Downlink test models
- FR1 test model 1.1 (NR-FR1-TM1.1)（满PRB，QPSK）
- FR1 test model 1.2 (NR-FR1-TM1.2)( QPSK/boosted/40% +QPSK)
- FR1 test model 2 (NR-FR1-TM2)(64QAM 只有1个PRB 功率最低)
- FR1 test model 2a (NR-FR1-TM2a) )(256QAM 只有1个PRB 功率最低)
- FR1 test model 2b (NR-FR1-TM2b) (1024QAM 只有1个PRB 功率最低)
- FR1 test model 3.1 (NR-FR1-TM3.1) （满PRB，64QAM）
- FR1 test model 3.1a (NR-FR1-TM3.1a) （满PRB，256QAM）功率回退就是在这个TM
- FR1 test model 3.1b (NR-FR1-TM3.1b) （满PRB，1024QAM）功率回退就是在这个TM
- FR1 test model 3.2 (NR-FR1-TM3.2) (16QAM/deboosted/EVM60% +QPSK)
- FR1 test model 3.3 (NR-FR1-TM3.3) (QPSK/deboosted/EVM/50% +QPSK)
Fixed Reference Channels（UP link Test models)
- A.1 Fixed Reference Channels for
- reference sensitivity level,
- ACS,
- in-band blocking,
- out-of-band blocking,
- receiver intermodulation
- in-channel selectivity (QPSK, R=1/3)
- A.2 Fixed Reference Channels for dynamic range (16QAM, R=2/3)
Configurations of TDD：定义了具体的帧结构以SCS30Khz为例：
- DL：SL：UL=7:1:2，special slot=6：4：4
The set-up of physical channels for transmitter tests shall be according to one of the NR FR1 test models (NR-FR1TM) below. A reference to the applicable test model is made within each test.
The following general parameters are used by all NR test models:
- Duration is 1 radio frame (10 ms) for FDD and 2 radio frames for TDD (20 ms)
- The slots are numbered 0 to 10´2µ – 1 where µ is the numerology corresponding to the subcarrier spacing
- NRB is the maximum transmission bandwidth configuration seen in table 5.3.2-1 in TS 38.104 [2].
- Normal CP
- Virtual resource blocks of localized type
For FR1-TDD without NB-IoT operation in NR in-band, test models are derived based on the uplink/downlink configuration as shown in the table 4.9.2.2-1 using information element TDD-UL-DL-ConfigCommon as defined in TS 38.331 [19].
Table 4.9.2.2-1: Configurations of TDD for BS type 1-C and BS type 1-H test models
| Field name | Value | ||
| referenceSubcarrierSpacing (kHz) | 15 | 30 | 60 |
| Periodicity (ms) for dl-UL-TransmissionPeriodicity | 5 | 5 | 5 |
| nrofDownlinkSlots | 3 | 7 | 14 |
| nrofDownlinkSymbols | 10 | 6 | 12 |
| nrofUplinkSlots | 1 | 2 | 4 |
| nrofUplinkSymbols | 2 | 4 | 8 |
对于PDCCH/PDSCH的定义可以上5G频谱对应看看，定义了Resource数量和位置，功率的大小
Table 4.9.2.2-2: Common physical channel parameters for PDCCH for BS type 1-C and BS type 1-H test models
| Parameter | Value |
| # of symbols used for control channel | 2 |
| Starting symbol number for control channel | 0 |
| # of CCEs allocated to PDCCH | 1 |
| Starting RB location for PDCCH | 0 |
| # of available REGs | 6 |
| Aggregation level | 1 |
| # of RBs not allocated for PDCCH in each symbol | NRB – 3 |
| Ratio of PDCCH EPRE to DM-RS EPRE | 0 dB |
| Boosting level of control channel | 0 dB |
Table 4.9.2.2-3: Common physical channel parameters for PDSCH for BS type 1-C and BS type 1-H test models
| Parameter | Value |
| Mapping type | PDSCH mapping type A |
| dmrs-TypeA-Position for the first DM-RS symbol | pos2 |
| dmrs-AdditionalPosition for additional DM-RS symbol(s) | 1 |
| dmrs-Type for comb pattern | Configuration type 1 |
| maxLength | 1 |
| Ratio of PDSCH EPRE to DM-RS EPRE | 0 dB |
FR1 test model 1.1 (NR-FR1-TM1.1)（满PRB，QPSK）
This model shall be used for tests on:
- BS output power
- Transmit ON/OFF power
- TAE
- Unwanted emissions
- Occupied bandwidth
- ACLR
- Operating band unwanted emissions
- Transmitter spurious emissions
- Transmitter intermodulation
- Receiver spurious emissions
Common physical channel parameters are defined in clause 4.9.2.2. Specific physical channel parameters for NR-FR1-TM1.1 are defined in table 4.9.2.2.1-1.

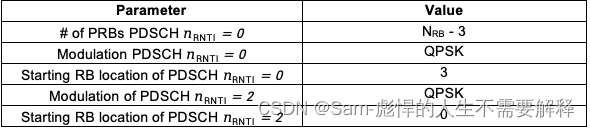

Table 4.9.2.2.1-1: Specific physical channel parameters of NR-FR1-TM1.1
4.9.2.2.2 FR1 test model 1.2 (NR-FR1-TM1.2)( QPSK/boosted/40% +QPSK)
This model shall be used for tests on:
- Unwanted emissions
- ACLR
- Operating band unwanted emissions
Common physical channel parameters are defined in clause 4.9.2.2. Specific physical channel parameters for NR-FR1-TM1.2 are defined in table 4.9.2.2.2-1.

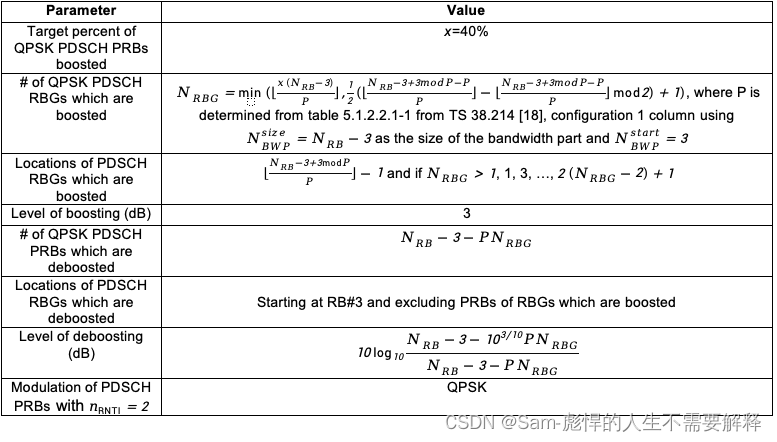

Table 4.9.2.2.2-1: Specific physical channel parameters of NR-FR1-TM1.2
4.9.2.2.3 FR1 test model 2 (NR-FR1-TM2)(64QAM 只有1个PRB 功率最低)
This model shall be used for tests on:
- Total power dynamic range (lower OFDM symbol TX power limit (OSTP) at min power)
- EVM of single 64QAM PRB allocation (at min power)
- Frequency error (at min power)
Common physical channel parameters are defined in clause 4.9.2.2. Specific physical channel parameters for NR-FR1-TM2 are defined in table 4.9.2.2.3-1.

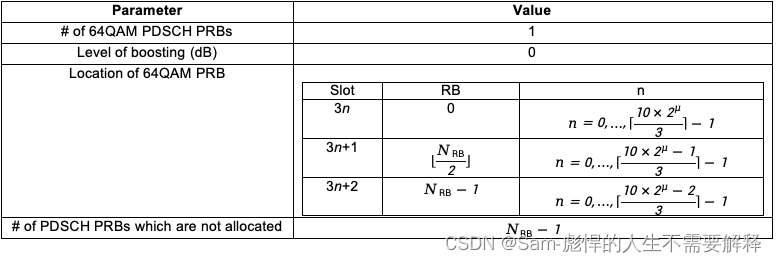

Table 4.9.2.2.3-1: Specific physical channel parameters of NR-FR1-TM2
4.9.2.2.4 FR1 test model 2a (NR-FR1-TM2a) )(256QAM 只有1个PRB 功率最低)
This model shall be used for tests on:
- Total power dynamic range (lower OFDM symbol TX power limit (OSTP) at min power)
- EVM of single 256QAM PRB allocation (at min power)
- Frequency error (at min power)
Common physical channel parameters are defined in clause 4.9.2.2. Physical channel parameters and numbers of the allocated PRB are defined in table 4.9.2.2.3-1 with all 64QAM PDSCH PRBs replaced by 256QAM PDSCH PRBs.
4.9.2.2.4A FR1 test model 2b (NR-FR1-TM2b) (1024QAM 只有1个PRB 功率最低)
This model shall be used for tests on:
- Total power dynamic range (lower OFDM symbol TX power limit (OSTP) at min power)
- EVM of single 1024QAM PRB allocation (at min power)
- Frequency error (at min power)
Common physical channel parameters are defined in clause 4.9.2.2. Physical channel parameters and numbers of the allocated PRB are defined in table 4.9.2.2.3-1 with all 64QAM PDSCH PRBs replaced by 1024QAM PDSCH PRBs.
4.9.2.2.5 FR1 test model 3.1 (NR-FR1-TM3.1) （满PRB，64QAM）
This model shall be used for tests on:
- Output power dynamics
- Total power dynamic range (upper OFDM symbol TX power limit (OSTP) at max power with all 64QAM PRBs allocated)
- Transmitted signal quality
- Frequency error
- EVM for 64QAM modulation (at max power)
NOTE: EVM shall be evaluated over PDSCH allocated PRBs with Nrnti = 0 and Nrnti = 2
Common physical channel parameters are defined in clause 4.9.2.2. Physical channel parameters are defined in table 4.9.2.2.1-1 with all QPSK PDSCH PRBs replaced by 64QAM PDSCH PRBs.
4.9.2.2.6 FR1 test model 3.1a (NR-FR1-TM3.1a) （满PRB，256QAM）功率回退就是在这个TM
This model shall be used for tests on:
- Output power dynamics
- Total power dynamic range (upper OFDM symbol TX power limit (OSTP) at max power with all 256QAM PRBs allocated)
- Transmitted signal quality
- Frequency error
- EVM for 256QAM modulation (at max power)
NOTE: EVM shall be evaluated over PDSCH allocated PRBs with Nrnti = 0 and Nrnti = 2
Common physical channel parameters are defined in clause 4.9.2.2. Physical channel parameters are defined in table 4.9.2.2.1-1 with all QPSK PDSCH PRBs replaced by 256QAM PDSCH PRBs.
4.9.2.2.6A FR1 test model 3.1b (NR-FR1-TM3.1b) （满PRB，1024QAM）功率回退就是在这个TM
This model shall be used for tests on:
- Output power dynamics
- Total power dynamic range (upper OFDM symbol TX power limit (OSTP) at max power with all 1024QAM PRBs allocated)
- Transmitted signal quality
- Frequency error
- EVM for 1024QAM modulation (at max power)
NOTE: EVM shall be evaluated over PDSCH allocated PRBs with Nrnti = 0 and Nrnti = 2
Common physical channel parameters are defined in clause 4.9.2.2. Physical channel parameters are defined in table 4.9.2.2.1-1 with all QPSK PDSCH PRBs replaced by 1024QAM PDSCH PRBs.
4.9.2.2.7 FR1 test model 3.2 (NR-FR1-TM3.2) (16QAM/deboosted/EVM60% +QPSK)
This model shall be used for tests on:
- Transmitted signal quality
- Frequency error
- EVM for 16QAM modulation
Common physical channel parameters are defined in clause 4.9.2.2. Specific physical channel parameters for NR-FR1-TM3.2 are defined in table 4.9.2.2.7-1.

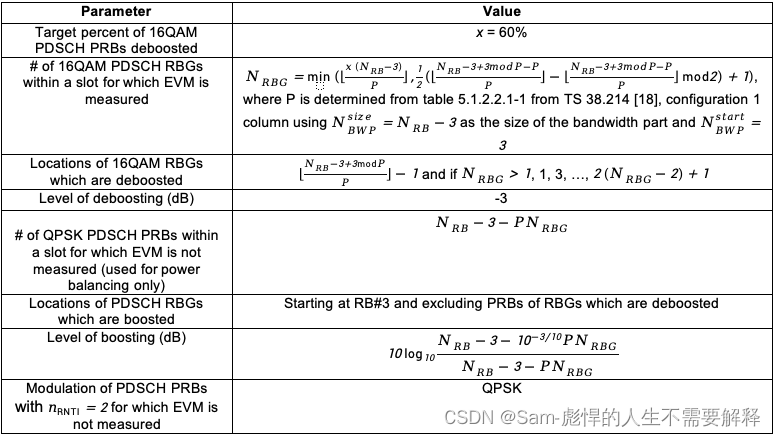

Table 4.9.2.2.7-1: Specific physical channel parameters of NR-FR1-TM3.2
4.9.2.2.8 FR1 test model 3.3 (NR-FR1-TM3.3) (QPSK/deboosted/EVM/50% +QPSK)
This model shall be used for tests on:
- Transmitted signal quality
- Frequency error
- EVM for QPSK modulation
Common physical channel parameters are defined in clause 4.9.2.2. Specific physical channel parameters for NR-FR1-TM3.3 are defined in table 4.9.2.2.8-1.

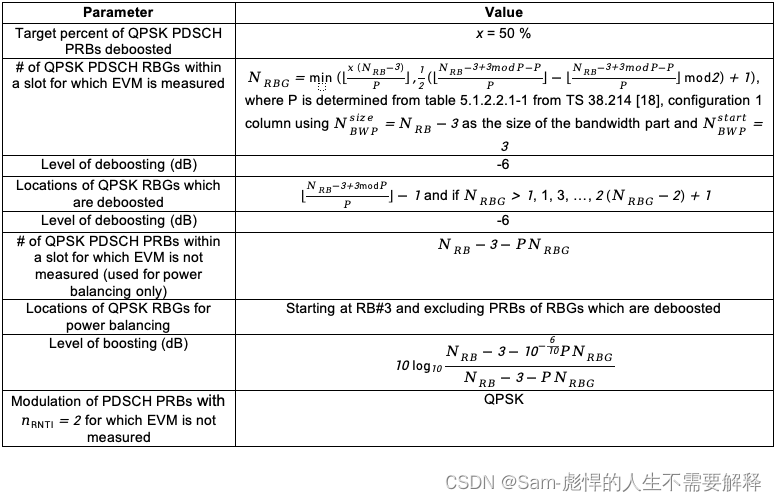

Table 4.9.2.2.8-1: Specific physical channel parameters of NR-FR1-TM3.3
A.1 Fixed Reference Channels for
- reference sensitivity level,
- ACS,
- in-band blocking,
- out-of-band blocking,
- receiver intermodulation
- in-channel selectivity (QPSK, R=1/3)
The parameters for the reference measurement channels are specified in table A.1-1 for FR1 reference sensitivity level, ACS, in-band blocking, out-of-band blocking, receiver intermodulation and in-channel selectivity.

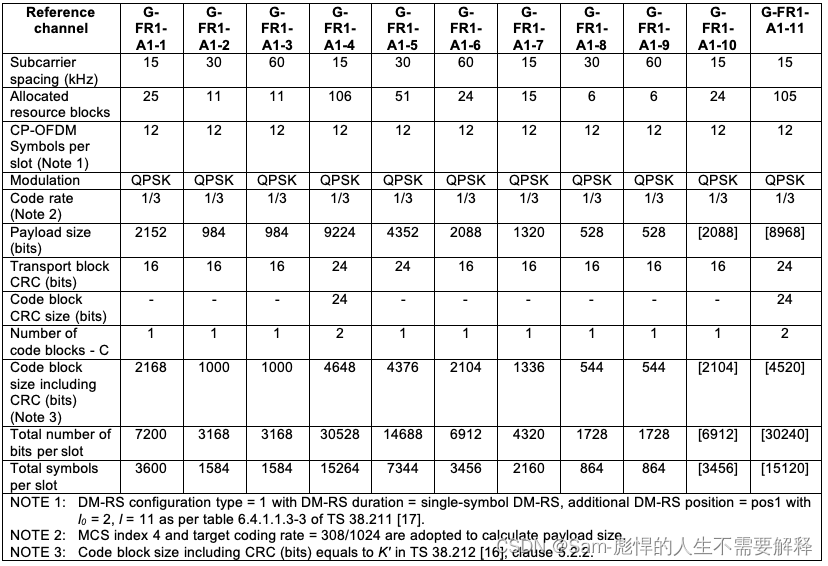

Table A.1-1: FRC parameters for FR1 reference sensitivity level, ACS, in-band blocking, out-of-band blocking, receiver intermodulation and in-channel selectivity
A.2 Fixed Reference Channels for dynamic range (16QAM, R=2/3)
The parameters for the reference measurement channels are specified in table A.2-1 for FR1 dynamic range.

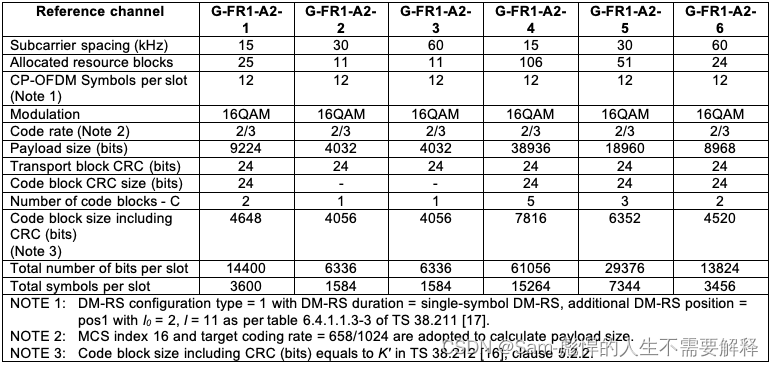

Table A.2-1: FRC parameters for FR1 dynamic range
