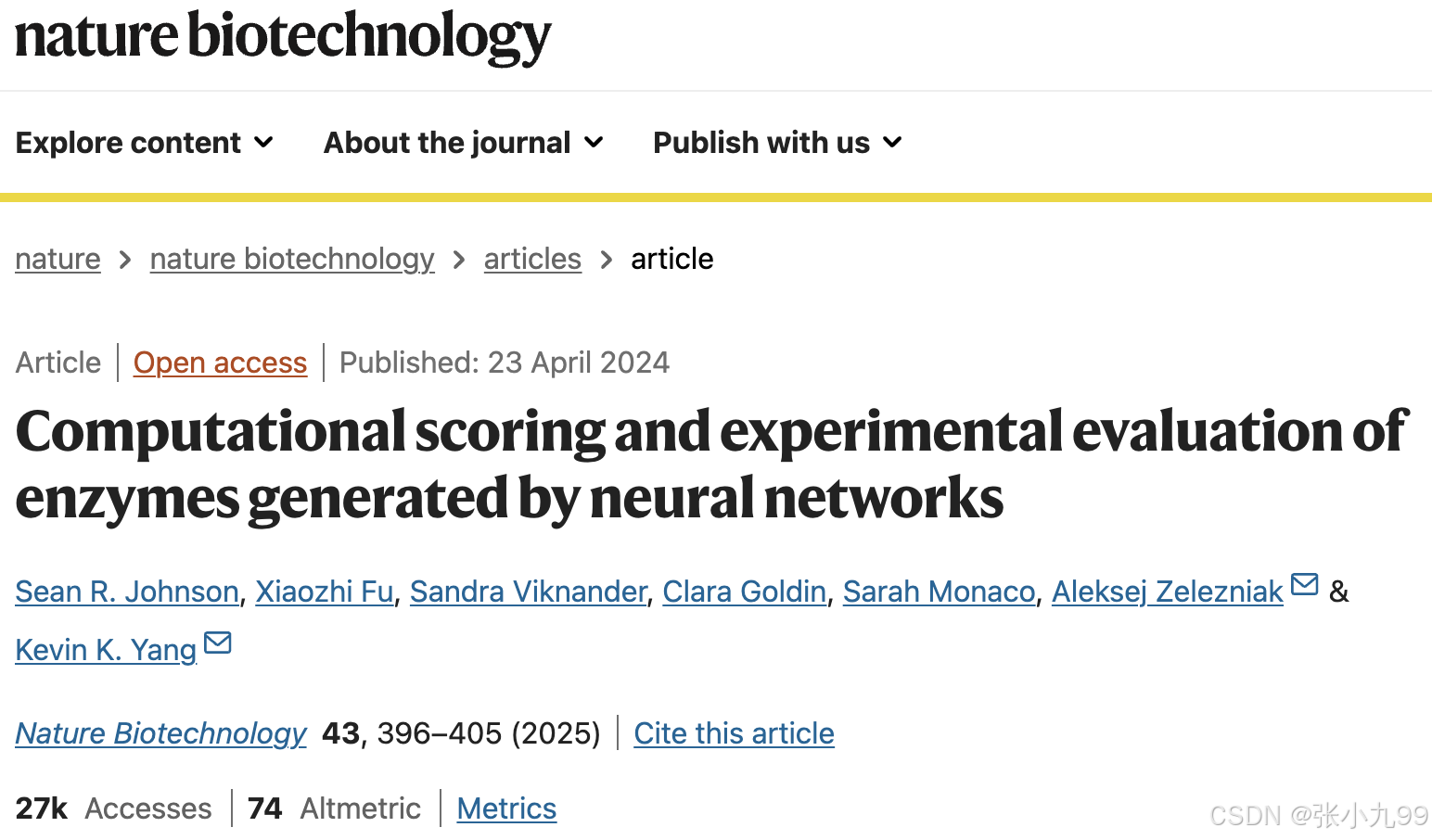

写在前面：近年来，基于语言模型或逆向折叠算法进行蛋白序列设计可谓如火如荼。然而，预测评估生成的蛋白质是否还会折叠和发挥功能仍具有挑战性。研究人员尝试了20种不同的计算指标，以评估三种模型（祖先序列重建、生成对抗网络和蛋白质语言模型）生成的酶蛋白序列质量。该篇研究重点关注两个酶家族，表达并纯化了500多个天然和生成序列，生成序列与最相似的天然序列具有70-90%一致性。对预测体外酶活性的计算指标进行基准测试。经过三轮实验，该研究提出一种计算过滤标准COMPSS，将实验成功率提高了 50-150%。提出的指标将作为蛋白序列设计的基准，帮助选择活性突变体，从而推动蛋白质工程研究。

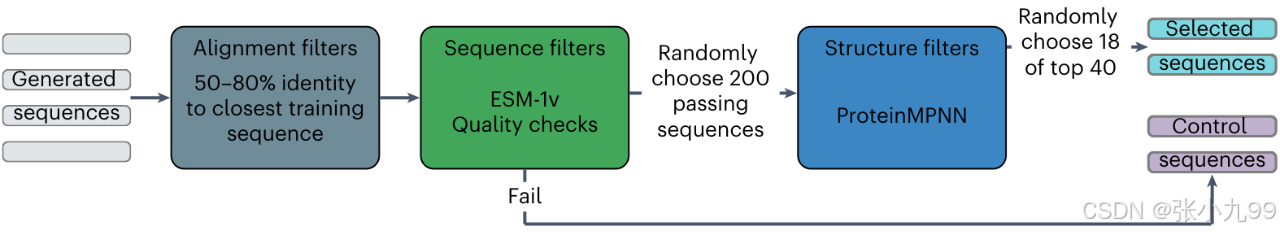

COMPSS框架主要包含以下关键步骤:

序列质量检查：确保序列以甲硫氨酸开头,无长重复序列和跨膜结构域。
ESM-1v筛选：使用蛋白质语言模型ESM-1v计算序列得分,保留得分高于阈值的序列。
AlphaFold2结构预测：对通过ESM-1v筛选的序列进行结构预测。
ProteinMPNN打分：使用反向折叠模型ProteinMPNN对预测结构进行打分,选择得分最高的序列进行实验验证。

一、环境的安装

✅ 第一步：克隆代码仓库并进入目录

git clone https://github.com/seanrjohnson/protein_gibbs_sampler.git
cd protein_gibbs_sampler

✅ 第二步：创建 conda 环境并安装依赖

conda env create --name protein_gibbs_sampler -f conda_env.yml

✅ 第三步：激活环境

conda activate protein_gibbs_sampler

✅ 第四步：测试是否安装成功

pytest .            # 该命令会在当前目录运行所有的测试脚本，确保安装无误。

注意：第一次执行该命令的时候会自动下载模型权重（esm_msa1b_t12_100M_UR50S.pt），执行时间可能会较长一些

二、部署esm1v蛋白质序列打分模型

1、安装所需的包

原文提供的代码是在需要在colab运行的notebooks脚本，为了使用方便，我们需要将其部署到本地服务器中，所以需要额外安装一些环境包；

conda install -c conda-forge xlsxwriter

2、测试本地运行，初次执行的时候，需要下载esm系列的模型权重，所以执行速度比较慢，第一次执行成功，下载好模型权重之后，后续执行速度就会变快；

# -*- coding: utf-8 -*-
# @Time    : 2025/5/12 20:07
# @Author  : Xiaojiu Zhang
# @File    : esm1v_score.py
# -*- coding: utf-8 -*-

from glob import glob
import tempfile
import subprocess
import torch
import pandas as pd
import xlsxwriter
import time
import os

# 设置是否启用 ESM-1v 打分
ESM_1v = True
device = 'cuda:0'
results = dict()
start = time.time()

# 输出路径配置
output_excel_path = 'test_esm1v.xlsx'
fasta_files = glob("test.fasta")

# 创建保存结果的函数
def add_metric(metrics_dict, protein_name, metric_name, value):
    if protein_name not in metrics_dict:
        metrics_dict[protein_name] = dict()
    metrics_dict[protein_name][metric_name] = value

# 运行 ESM-1v 无 mask 打分
if ESM_1v:
    if device == 'cuda:0':
        torch.cuda.empty_cache()

    for fasta_file in fasta_files:
        with tempfile.TemporaryDirectory() as output_dir:
            outfile = os.path.join(output_dir, "esm_results.tsv")
            try:
                proc = subprocess.run([
                    'python', "src/pgen/likelihood_esm.py",
                    "-i", fasta_file,
                    "-o", outfile,
                    "--model", "esm1v",
                    "--masking_off",
                    "--score_name", "score",
                    "--device", "gpu"
                ], stdout=subprocess.PIPE, stderr=subprocess.PIPE, check=True)
                print("stdout:", proc.stdout.decode())
                print("stderr:", proc.stderr.decode())
            except subprocess.CalledProcessError as e:
                print("ESM-1v scoring failed:")
                print("stdout:", e.stdout.decode())
                print("stderr:", e.stderr.decode())
                continue  # 出错继续下一个文件

            # 读取并保存得分结果
            df = pd.read_table(outfile)
            for _, row in df.iterrows():
                add_metric(results, row["id"], "ESM-1v", row["score"])

# 保存结果为 Excel
if results:
    os.makedirs(os.path.dirname(output_excel_path), exist_ok=True)
    workbook = xlsxwriter.Workbook(output_excel_path)
    worksheet = workbook.add_worksheet('sheet1')
    worksheet.write(0, 0, "seq")
    worksheet.write(0, 1, "ESM-1v")

    for i, (seq_id, metrics) in enumerate(results.items(), start=1):
        worksheet.write(i, 0, seq_id)
        worksheet.write(i, 1, metrics["ESM-1v"])

    workbook.close()
    print(f"结果已保存至：{output_excel_path}")
else:
    print("未生成有效结果，Excel 文件未创建。")

end = time.time()
print(f"计算 {len(results)} 条序列总共耗时：{end - start:.2f} 秒")

3、输出结果如下

seq	ESM-1v
UniRef90_A0A017RVR8	-0.1346586
UniRef90_A0A062U8W6	-0.1357431
UniRef90_A0A062XZ10	-0.1139585
UniRef90_A0A077PLI0	-0.1215153
UniRef90_A0A0A2DZA3	-0.137109
UniRef90_A0A0C7NZI3	-0.1371256

三、部署ProteinMPNN等结构评估方法

1、安装所需的包

# biotite 是一个用于处理结构生物学数据的 Python 库，支持：解析 .pdb、.mmcif 等结构文件、操作蛋白质结构（坐标、残基、原子等）、序列转换和操作（如 3-letter 到 1-letter）
conda install -c conda-forge biotite

# scipy一个核心科学计算库，它构建在 numpy 的基础之上，提供了大量用于数值计算、科学建模、数学分析和工程问题的高级函数和工具
conda install scipy

# 由于反向折叠模型 GVP 网络需要依赖图神经网络框架 PyTorch Geometric，所以需要安装核心依赖（用 pytorch 2.5 + cu124）
pip install torch-scatter -f https://data.pyg.org/whl/torch-2.5.1+cu124.html
pip install torch-sparse -f https://data.pyg.org/whl/torch-2.5.1+cu124.html
pip install torch-cluster -f https://data.pyg.org/whl/torch-2.5.1+cu124.html
pip install torch-spline-conv -f https://data.pyg.org/whl/torch-2.5.1+cu124.html

# 最后安装主库
pip install torch-geometric

2、安装ProteinMPNN

git clone https://github.com/dauparas/ProteinMPNN.git

3、测试本地运行

# -*- coding: utf-8 -*-
# @Time    : 2025/5/12 15:24
# @Author  : Xiaojiu Zhang
# @File    : structure_metrics_score.py
# -*- coding: utf-8 -*-

# structure Metrics

# Requires PDB uploaded files. All metrics will execute on all uploaded PDB files.
# The proteinMPNN and ESM-IF scores are the average log likelihood of the query residues. The ProteinMPNN score calculation is performed using the --score_only option of the protein_mpnn_run.py script from the ProteinMPNN repository (https://github.com/dauparas/ProteinMPNN). The ProteinMPNN score is multiplied by -1 so that higher is better, like with other metrics. The ESM-IF score is calculated using the esm.inverse_folding.util.score_sequence function from the ESM repository (https://github.com/facebookresearch/esm). The MIF-ST score is calculated using the extract_mif.py script from the Protein Sequence Models repository (https://github.com/microsoft/protein-sequence-models).
# Average taken from the b-factors in AlphaFold2-produced pdb files.

import os
import torch
import esm
import pandas as pd
from pathlib import Path
from glob import glob
from biotite.structure.io import pdb
from biotite.structure.residues import get_residues
from biotite.sequence import ProteinSequence
import tempfile
import subprocess
import xlsxwriter
import time

# ==== 配置部分 ====
results = dict()
device = 'cuda:0'
pdb_path = "test/*.pdb"
output_pdb_evaluate_excel = "test_structure_metrics.xlsx"

ESM_IF = True  # @param {type:"boolean"}
ProteinMPNN = True  # @param {type:"boolean"}
MIF_ST = False  # @param {type:"boolean"}
AlphaFold2_pLDDT = True  # @param {type:"boolean"}

start = time.time()

# ==== 工具函数 ====
def add_metric(metrics_dict, protein_name, metric_name, value):
    if protein_name not in metrics_dict:
        metrics_dict[protein_name] = dict()
    metrics_dict[protein_name][metric_name] = value

def get_pdb_sequence(pdb_path):
    with open(pdb_path) as f:
        pdb_file = pdb.PDBFile.read(pdb_path)
        atoms = pdb_file.get_structure()
        residues = get_residues(atoms)[1]
    return ''.join([ProteinSequence.convert_letter_3to1(r) for r in residues])

# ==== 计算 ESM-IF 分数 ====
if ESM_IF:  # TODO: move to GPU? Maybe spin off into a subprocess when moving to GPU, to avoid memory leaks?
    esm_if_model, esm_if_alphabet = esm.pretrained.esm_if1_gvp4_t16_142M_UR50()
    esm_if_model.eval()
    for pdb_file in glob(pdb_path):
        name = Path(pdb_file).stem
        coords, seq = esm.inverse_folding.util.load_coords(pdb_file, "A")
        ll, _ = esm.inverse_folding.util.score_sequence(esm_if_model, esm_if_alphabet, coords, str(seq))
        add_metric(results, name, "ESM-IF", ll)
    del esm_if_model, esm_if_alphabet

# ==== 计算 ProteinMPNN 分数 ====
if ProteinMPNN:
    print("Running ProteinMPNN scoring...")
    with tempfile.TemporaryDirectory() as output_dir:
        for i, pdb_file in enumerate(glob(pdb_path)):
            name = Path(pdb_file).stem
            outfile = output_dir + f"outfile_{i}.txt"
            command_line_arguments = [
                "python",
                "ProteinMPNN/protein_mpnn_run.py",
                "--pdb_path", pdb_file,
                "--pdb_path_chains", "A",
                "--score_only", "1",
                "--save_score", "1",
                "--out_folder", output_dir,
                "--batch_size", "1"
            ]
            with open(outfile, "w") as fh:
                proc = subprocess.run(command_line_arguments, stdout=subprocess.PIPE, check=True)
                print(proc.stdout.decode('utf-8'), file=fh)
            with open(outfile, "r") as score_file_h:
                score_file_lines = score_file_h.readlines()
            score_line = score_file_lines[-2].split(",")
            score_parts = score_line[1].strip().split(": ")
            assert score_parts[0] == "mean"
            score = -1 * float(score_parts[1])
            add_metric(results, name, "ProteinMPNN", score)

# ==== 计算 AlphaFold2 pLDDT 分数 ====
if AlphaFold2_pLDDT:
    for pdb_file in glob(pdb_path):
        name = Path(pdb_file).stem
        pdb_file_obj = pdb.PDBFile.read(pdb_file)
        atoms = pdb_file_obj.get_structure(extra_fields=['b_factor'])
        prev_residue = -1
        plddt_sum = 0
        residue_count = 0
        for a in atoms[0]:
            if a.res_id != prev_residue:
                prev_residue = a.res_id
                residue_count += 1
                plddt_sum += a.b_factor
        plddt_avg = plddt_sum / residue_count if residue_count else 0
        add_metric(results, name, "AlphaFold2_pLDDT", plddt_avg)

# ==== 保存 CSV 和 Excel 结果 ====
df = pd.DataFrame.from_dict(results, orient="index")
df.to_csv("calculated_metrics.csv")

workbook = xlsxwriter.Workbook(output_pdb_evaluate_excel)
worksheet = workbook.add_worksheet('sheet1')
headers = ["seq", "ESM-IF", "ProteinMPNN", "AlphaFold2_pLDDT"]
for col, header in enumerate(headers):
    worksheet.write(0, col, header)
print(df)

for row, (key, value) in enumerate(results.items(), start=1):
    worksheet.write(row, 0, key)
    worksheet.write(row, 1, value.get("ESM-IF", ""))
    worksheet.write(row, 2, value.get("ProteinMPNN", ""))
    worksheet.write(row, 3, value.get("AlphaFold2_pLDDT", ""))

workbook.close()

end = time.time()
print(f"\n✅ 共处理 {len(results)} 个结构，耗时 {end - start:.2f} 秒")

4、输出结果如下

seq	ESM-IF	ProteinMPNN	AlphaFold2_pLDDT
UniRef90_A0A017RVR8	-1.34865	-1.6513	73.60916
UniRef90_A0A062U8W6	-1.43547	-1.7539	73.18308
UniRef90_A0A062XZ10	-1.12485	-1.4414	83.58752
UniRef90_A0A077PLI0	-1.20124	-1.5233	78.54388
UniRef90_A0A0A2DZA3	-1.03581	-1.465	85.55203
UniRef90_A0A0C7NZI3	-1.22971	-1.5248	85.40533
