相位声码器

1. 原理

短时傅立叶变换中的每一个小块$X(m,k)$（$m$代表帧索引，$k$代表频带索引），都表征了第 $m$ 帧中，一个模长为$|X(m,k)|$， 相位为$\phi (m,k)$ ，数字频率为 $Fpred=kN\ast Fs$ 的复指数序列成分。然而受到短时傅立叶变换中频谱分辨率的影响， $stft$ 无法分析出原始信号中数字角频率位于频带范围中的频率成分。举个例子，有一个520hz，16k采样率的正弦信号。使用帧长为64（频率分辨率250hz），帧偏移32个采样点的 $stft$来分析，频段为$[0250][250500][500750].......$；那么520hz的频率分量体现在语谱图上，仅仅在[500~750]这个频段区间。

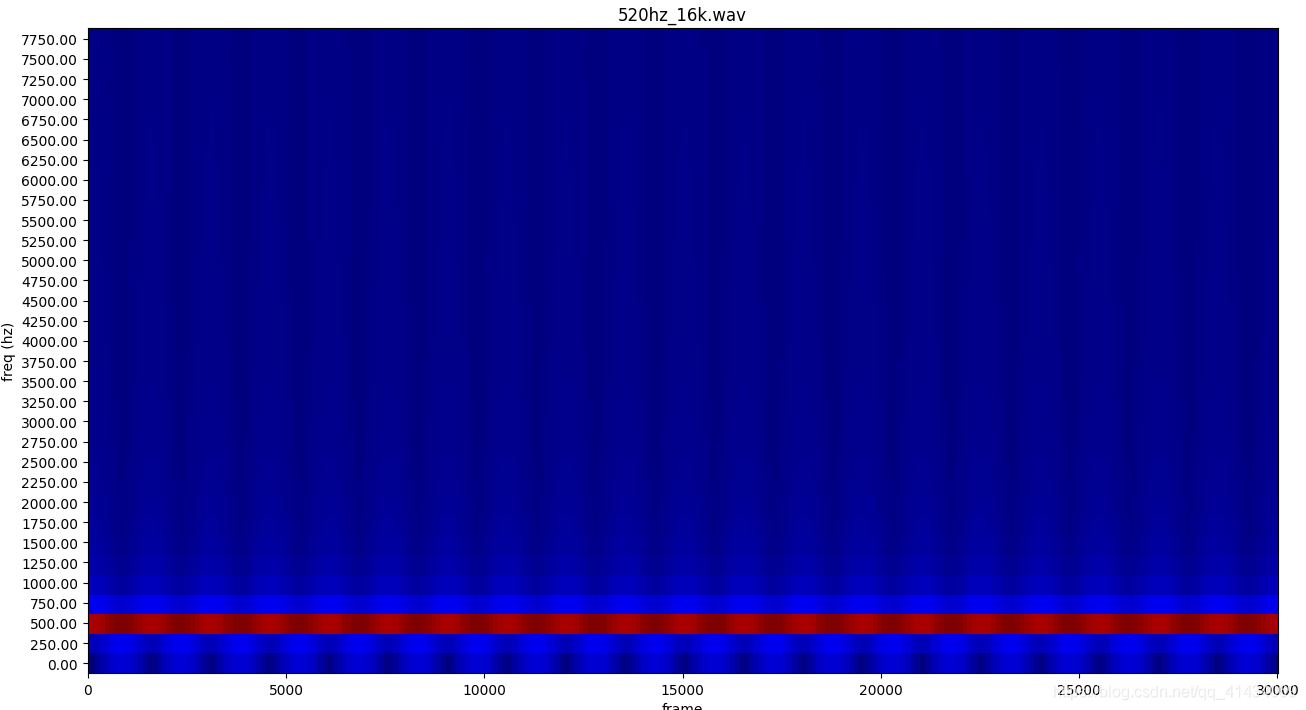

图1. 520hz正弦信号语谱图 从图1中可以看出，受分析帧长等参数影响， stft 仅仅能给出一个粗略的频率[500~750]hz区间，而不能给出信号音频成分的精确值。除了模长信息， stft 还提供了每一帧中各个频率成分的初始相位信息。我们可以利用 stft 的帧偏移、相位信息，来对stft给出的大致频率进行优化，从而得到信号中精确的瞬时分辨率；这种方法称为相位声码器。

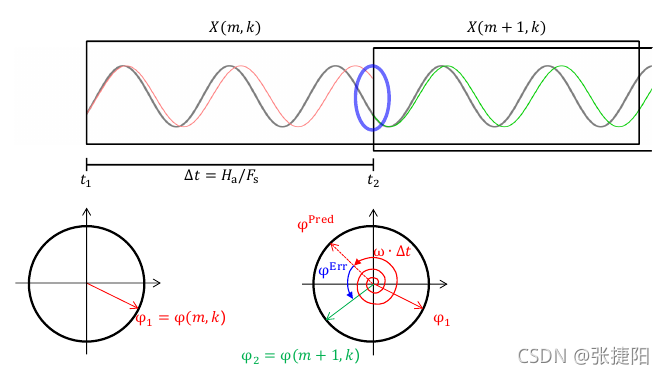

图2. 相位声码器的大致原理

图2给出stft变换中的一个示意图来理解相位声码器的大致原理。X(m,k)是第m帧，第k个频带对应的正弦分量；频带对应频率的计算方式：

$$F_{pred}(k)=\frac{k{F}_s}{N}$$
其中，$k$代表频带索引，$F_s$代表音频的采样频率，$N$代表$stft$的分析帧长。对应的预估角频率${\omega }_{pred}$为$F_{pred}\ast 2\pi$；体现在图2中，即就是两帧中红色和绿色对应的角频率，这个频率是不精确有误差的，我们需要对它进行精确化处理。$X(m+1,k)$对应的是第$m+1$帧，第$k$个频带对应的正弦分量。两帧起始点的采样点间隔即就是stft中的帧偏移$H_a$，该间隔对应的时间间隔即就是$H_a/F_s(s)$。通过stft，还可以得到m和m+1帧中，k频段正弦分量对应的初始相位，分别表示为${\phi }_1=\phi (m,k)$和${\phi }_2=\phi (m+1,k)$；通过预估的角频率$\omega$以及m帧的初始相位${\phi }_1$，我们可以估计出m+1帧的起始时刻（$t_2$）的相位，即就是图2中蓝色椭圆内红色线在$t_2$时刻的相位。可以发现如果预估的角频率和真实的角频率一致的话，t2时刻预估的相位${\phi }_{pred}$应该和m+1帧的初始相位${\phi }_2$保持一致(差值是$2\times \pi$的正整数倍)，即就是蓝色椭圆内，红色点和绿色点应该重合。定义t2时刻的预测相位和真实相位之间的差值为${\phi }_{err}={\phi }_2-{\phi }_{pred}$，该差值由误差角频率（真实角频率-预估角频率）在帧偏移这段时间的转动相位。
$${\phi }_{err}=({\omega }_{real}-{\omega }_{pred})\ast {\Delta }_t$$
因此，真实角频率即就是预估角频率加上误差角频率
$${\omega }_{real}={\omega }_{pred}+\frac{{\phi }_{err}}{{\Delta }_t}$$

2. 仿真

2.1.参数

参数	值
帧长	64
帧偏移	32
真实频率(hz)	520
分析音频文件	520hz_16k.wav

kmd_inout_imag ### 2.2.代码 代码对原始信号进行短时傅立叶变换处理，对每两帧间隔进行真实频率估计，并对所有帧得到的预估频率求均值；

# -*- coding: utf-8 -*-
# @Time    : 2021-05-13
# @Author  : Zhangjieyang
# @Email   : jieyangzhang@outlook.com
# @File    : phase_vocoder_demo.py
# @Software: vscode

import numpy as np
import matplotlib.pyplot as plt
from nara_wpe.utils import stft
import soundfile as sf

def main():
    N = 64 # 分帧长度
    shift = 32 # 偏移
    stft_options = dict(size=N, shift=shift)
    audio_name = '520hz_16k.wav'
    y, freq = sf.read(audio_name)
    Y = stft(y, **stft_options, window=np.ones)
    magnitude = np.abs(Y) # 模长
    phase = np.arctan2(Y.imag, Y.real) # 相位
    k = 16
    predict_freq_list = []
    for k in range(Y.shape[0]):
        base = np.argmax(magnitude[k])
        base_freq = base / N * freq
        previous_phase = phase[k - 1][base]
        current_phase = phase[k][base]
        pred_phase = previous_phase + shift / freq * (2 * np.pi * base_freq)
        err_phase = (current_phase - pred_phase) % (2 * np.pi)
        # if err_phase >  np.pi:
        #     err_phase = 2 * np.pi - err_phase
        estimate_freq = base_freq + err_phase / (shift / freq) / (2 * np.pi)
        predict_freq_list.append(estimate_freq)
        print('frame:%d -- base freq:%d predict phase:%f, current phase:%f, previous phase:%f, err phase:%f, predict freq:%f'
            % (k, base_freq, pred_phase, current_phase, previous_phase, err_phase, estimate_freq))

    # 计算预估频率均值
    average_predict_freq = np.average(predict_freq_list)
    print(average_predict_freq)
    # 绘制语谱图
    half = N / 2 + 1
    ylocs = np.linspace(0, half, int(half))
    freq_solution = freq / 2 / half
    plt.yticks(ylocs, ["%.02f" % l for l in (ylocs * freq_solution)])
    plt.ylabel('freq (hz)')
    plt.xlabel("frame")
    plt.imshow(np.transpose(np.abs(Y)), origin="lower", cmap="jet", aspect="auto", interpolation="none")
    plt.title(audio_name)
    plt.rcParams['ytick.direction'] = 'in'
    plt.show()


if __name__ == "__main__":
    main()

2.3.结果总结

截取一段帧区域的预测结果，有：

frame:29987 -- base freq:500 predict phase:7.456728, current phase:1.432367, previous phase:1.173543, err phase:0.258823, predict freq:520.596510
frame:29988 -- base freq:500 predict phase:7.715552, current phase:1.693486, previous phase:1.432367, err phase:0.261119, predict freq:520.779217
frame:29989 -- base freq:500 predict phase:7.976671, current phase:1.954352, previous phase:1.693486, err phase:0.260866, predict freq:520.759074
frame:29990 -- base freq:500 predict phase:8.237537, current phase:2.212500, previous phase:1.954352, err phase:0.258147, predict freq:520.542723
frame:29991 -- base freq:500 predict phase:8.495685, current phase:2.466256, previous phase:2.212500, err phase:0.253757, predict freq:520.193311
frame:29992 -- base freq:500 predict phase:8.749441, current phase:2.715126, previous phase:2.466256, err phase:0.248870, predict freq:519.804421
frame:29993 -- base freq:500 predict phase:8.998311, current phase:2.959832, previous phase:2.715126, err phase:0.244706, predict freq:519.473091
frame:29994 -- base freq:500 predict phase:9.243017, current phase:-3.081169, previous phase:2.959832, err phase:0.242184, predict freq:519.272386
frame:29995 -- base freq:500 predict phase:3.202016, current phase:-2.839341, previous phase:-3.081169, err phase:0.241828, predict freq:519.244056
frame:29996 -- base freq:500 predict phase:3.443844, current phase:-2.595632, previous phase:-2.839341, err phase:0.243710, predict freq:519.393789
frame:29997 -- base freq:500 predict phase:3.687553, current phase:-2.348190, previous phase:-2.595632, err phase:0.247442, predict freq:519.690841
frame:29998 -- base freq:500 predict phase:3.934996, current phase:-2.095976, previous phase:-2.348190, err phase:0.252213, predict freq:520.070504
frame:29999 -- base freq:500 predict phase:4.187209, current phase:-1.839067, previous phase:-2.095976, err phase:0.256909, predict freq:520.444147

预估的均值为：519.9993333555548hz和原始信号基本一致。

3.参考文献

A Review of Time-Scale Modification of Music Signals—5.3
