1、tfrecord基础API使用
tfrecord文件格式
-> tf.train.Example
-> tf.train.Features -> dict{"key": tf.train.Feature}
-> tf.train.Feature -> tf.train.ByteList/FloatList/Int64List
(1)定义tf.train.ByteList/FloatList/Int64List
favorite_books = [name.encode('utf-8')
for name in ["machine learning", "cc150"]]
favorite_books_bytelist = tf.train.BytesList(value = favorite_books)
print(favorite_books_bytelist)
hours_floatlist = tf.train.FloatList(value = [15.5, 9.5, 7.0, 8.0])
print(hours_floatlist)
age_int64list = tf.train.Int64List(value = [42])
print(age_int64list)
value: "machine learning" value: "cc150" value: 15.5 value: 9.5 value: 7.0 value: 8.0 value: 42
(2)定义features
features = tf.train.Features(
feature = {
"favorite_books_bytelist": tf.train.Feature(
bytes_list = favorite_books_bytelist),
"hours_floatlist": tf.train.Feature(
float_list = hours_floatlist),
"age_int64list": tf.train.Feature(
int64_list = age_int64list),
}
)
print(features)
feature { key: "age" value { int64_list { value: 42 } } } feature { key: "favorite_books" value { bytes_list { value: "machine learning" value: "cc150" } } } feature { key: "hours" value { float_list { value: 15.5 value: 9.5 value: 7.0 value: 8.0 } } }
(3)定义Example
example = tf.train.Example(features=features)
print(example)
features { feature { key: "age" value { int64_list { value: 42 } } } feature { key: "favorite_books" value { bytes_list { value: "machine learning" value: "cc150" } } } feature { key: "hours" value { float_list { value: 15.5 value: 9.5 value: 7.0 value: 8.0 } } } }
(4)将example序列化
因为在存储时需要对内容进行压缩,以减少size。
serialized_example = example.SerializeToString()
print(serialized_example)
b'\n\\\n-\n\x0efavorite_books\x12\x1b\n\x19\n\x10machine learning\n\x05cc150\n\x0c\n\x03age\x12\x05\x1a\x03\n\x01*\n\x1d\n\x05hours\x12\x14\x12\x12\n\x10\x00\x00xA\x00\x00\x18A\x00\x00\xe0@\x00\x00\x00A'

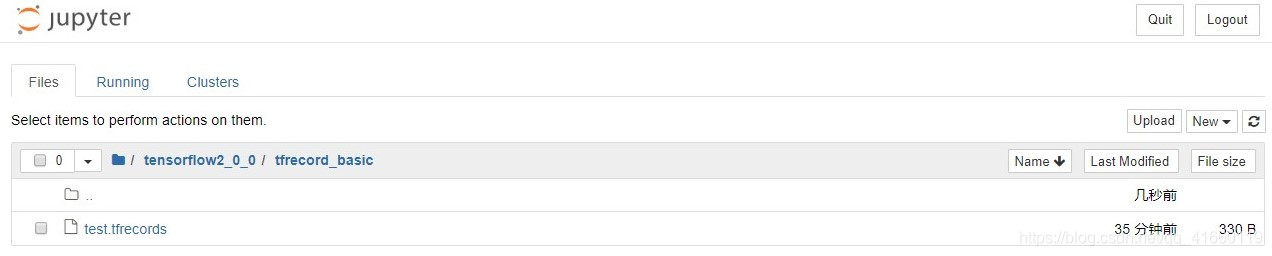

(5)生成tfrecord文件
将序列化后的example存到文件中,生成一个tfrecord文件
output_dir = 'tfrecord_basic'
if not os.path.exists(output_dir):
os.mkdir(output_dir)
filename = "test.tfrecords"
filename_fullpath = os.path.join(output_dir, filename) #全路径:文件夹+文件名
with tf.io.TFRecordWriter(filename_fullpath) as writer:
for i in range(3):
writer.write(serialized_example)#将序列化后的example写进去三次
(6)读取TFRecord文件
1)读取序列化后的example的TFRecord文件
dataset = tf.data.TFRecordDataset([filename_fullpath])#生成TFRecord的dateset
for serialized_example_tensor in dataset:
print(serialized_example_tensor)
tf.Tensor(b'\n\\\n-\n\x0efavorite_books\x12\x1b\n\x19\n\x10machine learning\n\x05cc150\n\x0c\n\x03age\x12\x05\x1a\x03\n\x01*\n\x1d\n\x05hours\x12\x14\x12\x12\n\x10\x00\x00xA\x00\x00\x18A\x00\x00\xe0@\x00\x00\x00A', shape=(), dtype=string) tf.Tensor(b'\n\\\n-\n\x0efavorite_books\x12\x1b\n\x19\n\x10machine learning\n\x05cc150\n\x0c\n\x03age\x12\x05\x1a\x03\n\x01*\n\x1d\n\x05hours\x12\x14\x12\x12\n\x10\x00\x00xA\x00\x00\x18A\x00\x00\xe0@\x00\x00\x00A', shape=(), dtype=string) tf.Tensor(b'\n\\\n-\n\x0efavorite_books\x12\x1b\n\x19\n\x10machine learning\n\x05cc150\n\x0c\n\x03age\x12\x05\x1a\x03\n\x01*\n\x1d\n\x05hours\x12\x14\x12\x12\n\x10\x00\x00xA\x00\x00\x18A\x00\x00\xe0@\x00\x00\x00A', shape=(), dtype=string)
2)将序列化后的example解析成正常的example,再进行读取
#定义一个字典,字典中定义了每一个feature所对应的类型
expected_features = {
"favorite_books": tf.io.VarLenFeature(dtype = tf.string), #变长
"hours": tf.io.VarLenFeature(dtype = tf.float32),
"age": tf.io.FixedLenFeature([], dtype = tf.int64),
}
dataset = tf.data.TFRecordDataset([filename_fullpath])
for serialized_example_tensor in dataset:
#print(serialized_example_tensor)
#对于每个数值并未直接打印,而是先解析一下
example = tf.io.parse_single_example(
serialized_example_tensor,
expected_features)
print(example)
books = tf.sparse.to_dense(example["favorite_books"],
default_value=b"")
for book in books:
print(book.numpy().decode("UTF-8"))
{'favorite_books': <tensorflow.python.framework.sparse_tensor.SparseTensor object at 0x00000125F39D5198>, 'hours': <tensorflow.python.framework.sparse_tensor.SparseTensor object at 0x00000125F39D5278>, 'age': <tf.Tensor: id=164, shape=(), dtype=int64, numpy=42>} machine learning cc150 {'favorite_books': <tensorflow.python.framework.sparse_tensor.SparseTensor object at 0x00000125F3999E48>, 'hours': <tensorflow.python.framework.sparse_tensor.SparseTensor object at 0x00000125F39992B0>, 'age': <tf.Tensor: id=183, shape=(), dtype=int64, numpy=42>} machine learning cc150 {'favorite_books': <tensorflow.python.framework.sparse_tensor.SparseTensor object at 0x00000125F39D51D0>, 'hours': <tensorflow.python.framework.sparse_tensor.SparseTensor object at 0x00000125F39D52B0>, 'age': <tf.Tensor: id=202, shape=(), dtype=int64, numpy=42>} machine learning cc150
(7)将TFRecord存储成压缩文件(330B vs 127B)
压缩文件与普通文件有很多相同地方,在下面主要介绍不同的地方,其他未介绍的地方,应与普通文件的用法相同。
filename_fullpath_zip = filename_fullpath + '.zip'
options = tf.io.TFRecordOptions(compression_type = "GZIP")
with tf.io.TFRecordWriter(filename_fullpath_zip, options) as writer:
for i in range(3):
writer.write(serialized_example)
dataset_zip = tf.data.TFRecordDataset([filename_fullpath_zip],
compression_type= "GZIP")
for serialized_example_tensor in dataset_zip:
example = tf.io.parse_single_example(
serialized_example_tensor,
expected_features)
books = tf.sparse.to_dense(example["favorite_books"],
default_value=b"")
for book in books:
print(book.numpy().decode("UTF-8"))
machine learning cc150 machine learning cc150 machine learning cc150
2、实战-将csv文件转化为tfrecord文件
在csv_reader_dataset中,我们在map函数中对每一行进行解析。
在parse_csv_line中,我们把每一行给拆成了前八个和后一个,即x和y。这样csv_reader_dataset返回的dataset里,每一个batch都是两个元素,即x_batch和y_batch。
而batch解绑定直接用了for循环,如下,
#接下来遍历这三个dataset,把取到的数据放到tfrecord中去
def serialize_example(x, y):
"""Converts x, y to tf.train.Example and serialize"""
input_feautres = tf.train.FloatList(value = x)
label = tf.train.FloatList(value = y)
features = tf.train.Features(
feature = {
"input_features": tf.train.Feature(
float_list = input_feautres),
"label": tf.train.Feature(float_list = label)
}
)
example = tf.train.Example(features = features)
return example.SerializeToString()
#将从csv中读取的dataset转化成tf.example,再写到tf.record文件中。
def csv_dataset_to_tfrecords(base_filename, dataset,
n_shards, #存成多少个文件
steps_per_shard,
compression_type = None):
options = tf.io.TFRecordOptions(
compression_type = compression_type)
all_filenames = []
for shard_id in range(n_shards):#遍历每一个要生成的小文件
filename_fullpath = '{}_{:05d}-of-{:05d}'.format(
base_filename, shard_id, n_shards)
with tf.io.TFRecordWriter(filename_fullpath, options) as writer:
#for x_batch, y_batch in dataset.take(steps_per_shard):
for x_batch, y_batch in dataset.skip(shard_id * steps_per_shard).take(steps_per_shard):#取得的每个数据都是一个batch
for x_example, y_example in zip(x_batch, y_batch):#解batch
writer.write(
serialize_example(x_example, y_example))
all_filenames.append(filename_fullpath)
return all_filenames
生成不压缩的tfrecord文件:
#生成不压缩的tfrecord文件
n_shards = 20
train_steps_per_shard = 11610 // batch_size // n_shards #得到在每一个shard上,需要有多少个batch
valid_steps_per_shard = 3880 // batch_size // n_shards
test_steps_per_shard = 5170 // batch_size // n_shards
#输出文件夹
output_dir = "generate_tfrecords"
if not os.path.exists(output_dir):
os.mkdir(output_dir)
train_basename = os.path.join(output_dir, "train")
valid_basename = os.path.join(output_dir, "valid")
test_basename = os.path.join(output_dir, "test")
train_tfrecord_filenames = csv_dataset_to_tfrecords(
train_basename, train_set, n_shards, train_steps_per_shard, None)
valid_tfrecord_filenames = csv_dataset_to_tfrecords(
valid_basename, valid_set, n_shards, valid_steps_per_shard, None)
test_tfrecord_fielnames = csv_dataset_to_tfrecords(
test_basename, test_set, n_shards, test_steps_per_shard, None)
生成压缩后的tfrecord文件:
#生成压缩后的tfrecord文件
n_shards = 20
train_steps_per_shard = 11610 // batch_size // n_shards
valid_steps_per_shard = 3880 // batch_size // n_shards
test_steps_per_shard = 5170 // batch_size // n_shards
output_dir = "generate_tfrecords_zip"
if not os.path.exists(output_dir):
os.mkdir(output_dir)
train_basename = os.path.join(output_dir, "train")
valid_basename = os.path.join(output_dir, "valid")
test_basename = os.path.join(output_dir, "test")
train_tfrecord_filenames = csv_dataset_to_tfrecords(
train_basename, train_set, n_shards, train_steps_per_shard,
compression_type = "GZIP")
valid_tfrecord_filenames = csv_dataset_to_tfrecords(
valid_basename, valid_set, n_shards, valid_steps_per_shard,
compression_type = "GZIP")
test_tfrecord_fielnames = csv_dataset_to_tfrecords(
test_basename, test_set, n_shards, test_steps_per_shard,
compression_type = "GZIP")
3、实战-读取tfrecord文件
expected_features = {
"input_features": tf.io.FixedLenFeature([8], dtype=tf.float32),
"label": tf.io.FixedLenFeature([1], dtype=tf.float32)
}
def parse_example(serialized_example):
example = tf.io.parse_single_example(serialized_example,
expected_features)
return example["input_features"], example["label"]
def tfrecords_reader_dataset(filenames, n_readers=5,
batch_size=32, n_parse_threads=5,
shuffle_buffer_size=10000):
dataset = tf.data.Dataset.list_files(filenames)
dataset = dataset.repeat()
dataset = dataset.interleave(
lambda filename: tf.data.TFRecordDataset(
filename, compression_type = "GZIP"),
cycle_length = n_readers
)
dataset.shuffle(shuffle_buffer_size)
dataset = dataset.map(parse_example,
num_parallel_calls=n_parse_threads)
dataset = dataset.batch(batch_size)
return dataset
tfrecords_train = tfrecords_reader_dataset(train_tfrecord_filenames,
batch_size = 3)
for x_batch, y_batch in tfrecords_train.take(2):
print(x_batch)
print(y_batch)
tf.Tensor( [[-1.1334558 1.0731637 -0.38411045 -0.19008651 -0.45323023 -0.06815852 1.0292323 -1.3457658 ] [-1.0591781 1.3935647 -0.02633197 -0.1100676 -0.6138199 -0.09695935 0.3247131 -0.03747724] [-0.24628098 1.2333642 -0.41765466 0.02003763 0.16009521 0.15687561 -0.7250671 0.6965625 ]], shape=(3, 8), dtype=float32) tf.Tensor( [[1.598] [0.672] [1.849]], shape=(3, 1), dtype=float32) tf.Tensor( [[ 0.51780826 0.6726626 0.15955476 -0.22812782 0.06029374 -0.03868682 0.94524986 -1.2808508 ] [-0.07763786 0.91296333 -0.33707762 -0.27174184 -0.81251556 0.05529061 -0.6644131 0.5916997 ] [-0.3680344 -1.0094423 9.957168 8.32342 -1.1128273 -0.14463872 1.3418335 -0.21224862]], shape=(3, 8), dtype=float32) tf.Tensor( [[1.883] [1.652] [1.406]], shape=(3, 1), dtype=float32)
附全部代码:
import matplotlib as mpl
import matplotlib.pyplot as plt
%matplotlib inline
import numpy as np
import sklearn
import pandas as pd
import os
import sys
import time
import tensorflow as tf
from tensorflow import keras
print(tf.__version__)
print(sys.version_info)
for module in mpl, np, pd, sklearn, tf, keras:
print(module.__name__, module.__version__)
source_dir = "./generate_csv/"
print(os.listdir(source_dir))
def get_filenames_by_prefix(source_dir, prefix_name):
all_files = os.listdir(source_dir) #获取该目录下所有的文件名
results = []
for filename in all_files:
if filename.startswith(prefix_name):
results.append(os.path.join(source_dir, filename))#全路径
return results
train_filenames = get_filenames_by_prefix(source_dir, "train")
valid_filenames = get_filenames_by_prefix(source_dir, "valid")
test_filenames = get_filenames_by_prefix(source_dir, "test")
#读取csv文件
def parse_csv_line(line, n_fields = 9):
defs = [tf.constant(np.nan)] * n_fields
parsed_fields = tf.io.decode_csv(line, record_defaults=defs)
x = tf.stack(parsed_fields[0:-1])
y = tf.stack(parsed_fields[-1:])
return x, y
def csv_reader_dataset(filenames, n_readers=5,
batch_size=32, n_parse_threads=5,
shuffle_buffer_size=10000):
dataset = tf.data.Dataset.list_files(filenames)
dataset = dataset.repeat()
dataset = dataset.interleave(
lambda filename: tf.data.TextLineDataset(filename).skip(1),
cycle_length = n_readers
)
dataset.shuffle(shuffle_buffer_size)
dataset = dataset.map(parse_csv_line,
num_parallel_calls=n_parse_threads)
dataset = dataset.batch(batch_size)
return dataset
batch_size = 32
train_set = csv_reader_dataset(train_filenames,
batch_size = batch_size)
valid_set = csv_reader_dataset(valid_filenames,
batch_size = batch_size)
test_set = csv_reader_dataset(test_filenames,
batch_size = batch_size)
#接下来遍历这三个dataset,把取到的数据放到tfrecord中去
def serialize_example(x, y):
"""Converts x, y to tf.train.Example and serialize"""
input_feautres = tf.train.FloatList(value = x)
label = tf.train.FloatList(value = y)
features = tf.train.Features(
feature = {
"input_features": tf.train.Feature(
float_list = input_feautres),
"label": tf.train.Feature(float_list = label)
}
)
example = tf.train.Example(features = features)
return example.SerializeToString()
#将从csv中读取的dataset转化成tf.example,再写到tf.record文件中。
def csv_dataset_to_tfrecords(base_filename, dataset,
n_shards, #存成多少个文件
steps_per_shard,
compression_type = None):
options = tf.io.TFRecordOptions(
compression_type = compression_type)
all_filenames = []
for shard_id in range(n_shards):#遍历每一个要生成的小文件
filename_fullpath = '{}_{:05d}-of-{:05d}'.format(
base_filename, shard_id, n_shards)
with tf.io.TFRecordWriter(filename_fullpath, options) as writer:
#for x_batch, y_batch in dataset.take(steps_per_shard):
for x_batch, y_batch in dataset.skip(shard_id * steps_per_shard).take(steps_per_shard):#取得的每个数据都是一个batch
for x_example, y_example in zip(x_batch, y_batch):#解batch
writer.write(
serialize_example(x_example, y_example))
all_filenames.append(filename_fullpath)
return all_filenames
#生成不压缩的tfrecord文件
n_shards = 20
train_steps_per_shard = 11610 // batch_size // n_shards #得到在每一个shard上,需要有多少个batch
valid_steps_per_shard = 3880 // batch_size // n_shards
test_steps_per_shard = 5170 // batch_size // n_shards
#输出文件夹
output_dir = "generate_tfrecords"
if not os.path.exists(output_dir):
os.mkdir(output_dir)
train_basename = os.path.join(output_dir, "train")
valid_basename = os.path.join(output_dir, "valid")
test_basename = os.path.join(output_dir, "test")
train_tfrecord_filenames = csv_dataset_to_tfrecords(
train_basename, train_set, n_shards, train_steps_per_shard, None)
valid_tfrecord_filenames = csv_dataset_to_tfrecords(
valid_basename, valid_set, n_shards, valid_steps_per_shard, None)
test_tfrecord_fielnames = csv_dataset_to_tfrecords(
test_basename, test_set, n_shards, test_steps_per_shard, None)
#生成压缩后的tfrecord文件
n_shards = 20
train_steps_per_shard = 11610 // batch_size // n_shards
valid_steps_per_shard = 3880 // batch_size // n_shards
test_steps_per_shard = 5170 // batch_size // n_shards
output_dir = "generate_tfrecords_zip"
if not os.path.exists(output_dir):
os.mkdir(output_dir)
train_basename = os.path.join(output_dir, "train")
valid_basename = os.path.join(output_dir, "valid")
test_basename = os.path.join(output_dir, "test")
train_tfrecord_filenames = csv_dataset_to_tfrecords(
train_basename, train_set, n_shards, train_steps_per_shard,
compression_type = "GZIP")
valid_tfrecord_filenames = csv_dataset_to_tfrecords(
valid_basename, valid_set, n_shards, valid_steps_per_shard,
compression_type = "GZIP")
test_tfrecord_fielnames = csv_dataset_to_tfrecords(
test_basename, test_set, n_shards, test_steps_per_shard,
compression_type = "GZIP")
expected_features = {
"input_features": tf.io.FixedLenFeature([8], dtype=tf.float32),
"label": tf.io.FixedLenFeature([1], dtype=tf.float32)
}
def parse_example(serialized_example):
example = tf.io.parse_single_example(serialized_example,
expected_features)
return example["input_features"], example["label"]
def tfrecords_reader_dataset(filenames, n_readers=5,
batch_size=32, n_parse_threads=5,
shuffle_buffer_size=10000):
dataset = tf.data.Dataset.list_files(filenames)
dataset = dataset.repeat()
dataset = dataset.interleave(
lambda filename: tf.data.TFRecordDataset(
filename, compression_type = "GZIP"),
cycle_length = n_readers
)
dataset.shuffle(shuffle_buffer_size)
dataset = dataset.map(parse_example,
num_parallel_calls=n_parse_threads)
dataset = dataset.batch(batch_size)
return dataset
batch_size = 32
tfrecords_train_set = tfrecords_reader_dataset(
train_tfrecord_filenames, batch_size = batch_size)
tfrecords_valid_set = tfrecords_reader_dataset(
valid_tfrecord_filenames, batch_size = batch_size)
tfrecords_test_set = tfrecords_reader_dataset(
test_tfrecord_fielnames, batch_size = batch_size)
model = keras.models.Sequential([
keras.layers.Dense(30, activation='relu',
input_shape=[8]),
keras.layers.Dense(1),
])
model.compile(loss="mean_squared_error", optimizer="sgd")
callbacks = [keras.callbacks.EarlyStopping(
patience=5, min_delta=1e-2)]
history = model.fit(tfrecords_train_set,
validation_data = tfrecords_valid_set,
steps_per_epoch = 11160 // batch_size,
validation_steps = 3870 // batch_size,
epochs = 100,
callbacks = callbacks)
model.evaluate(tfrecords_test_set, steps = 5160 // batch_size)
