复现Nature图表 ggplot做面积图（折线面积图）

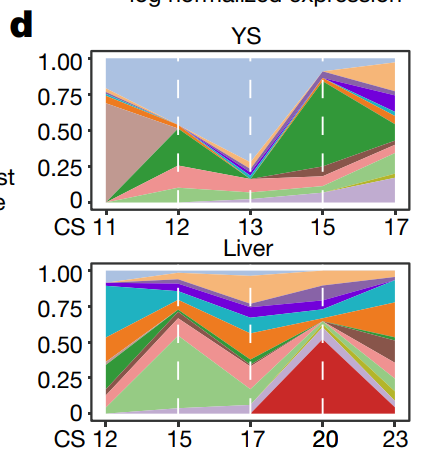

今天我们学做一下nature文章（Deciphering human macrophage development at single-cell resolution）的图表，本意是展示细胞比例的变化，但是新奇之处在于用了面积图，也就是折线图下添加了面积！


首先熟悉一下之前的知识，我们将这幅图片读入，提取下它的配色！

library(RImagePalette)
library(png)
picture <- readPNG("1663902753133.png")
r <- nrow(picture)/ncol(picture)
plot(c(0,1),c(0,r),type = "n",xlab = "",ylab = "",asp=1)
rasterImage(picture,0,0,1,r)

mycolor<-image_palette(picture,n=10)
scales::show_col(mycolor)
mycolor

col <- c("#D57444", "#33B1C0", "#34993B", "#8C67AC")

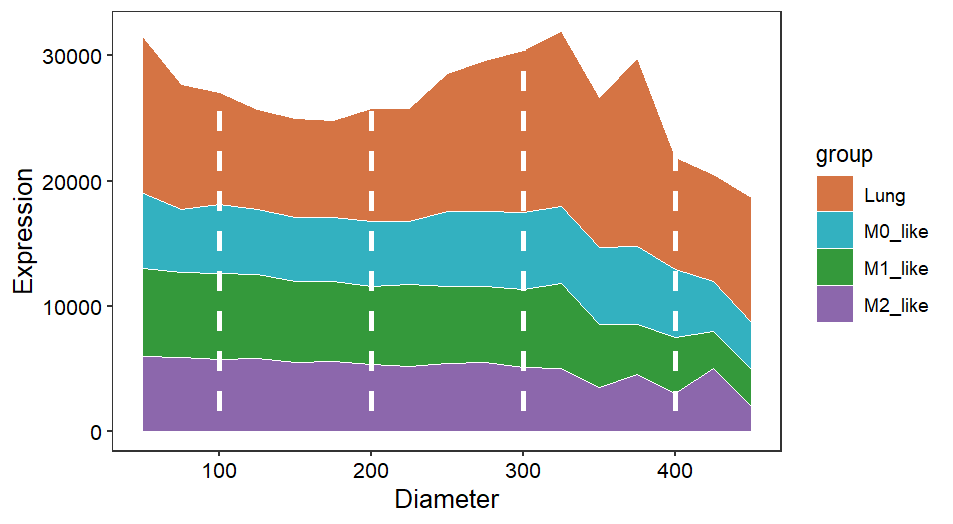

数据用之前的折线图数据，效果如下。

data <- read.csv("趋势气泡图.csv", header = T)
ggplot(data, aes(x=Diameter, y=expression, fill=group)) +
  geom_area(size=0.01,colour="white")+
  labs(y="Expression")+
  theme_bw()+
  scale_fill_manual(values=col)+
  theme(panel.grid.major=element_blank(),panel.grid.minor=element_blank(),
        axis.text = element_text(color = "black",size = 10),
        axis.title = element_text(color = 'black', size=12))+
  geom_vline(aes(xintercept =100),linetype="dashed", size=1.2, colour="white")+
  geom_vline(aes(xintercept =200),linetype="dashed", size=1.2, colour="white")+
  geom_vline(aes(xintercept =300),linetype="dashed", size=1.2, colour="white")+
  geom_vline(aes(xintercept =400),linetype="dashed", size=1.2, colour="white")


但是发现文章作者提供了原始数据，我们计算下细胞比例，整理为作图数据即可。这里折线高低并不能表示具体的数值，主要表示变化趋势！

df <- read.csv("nature_ratio.csv", header = T)
table(df$Stage)
A <- prop.table(table(df$cluster, df$Stage), margin = 2)
A <- as.data.frame(A)
colnames(A) <- c("celltype", "stage", "Freq")

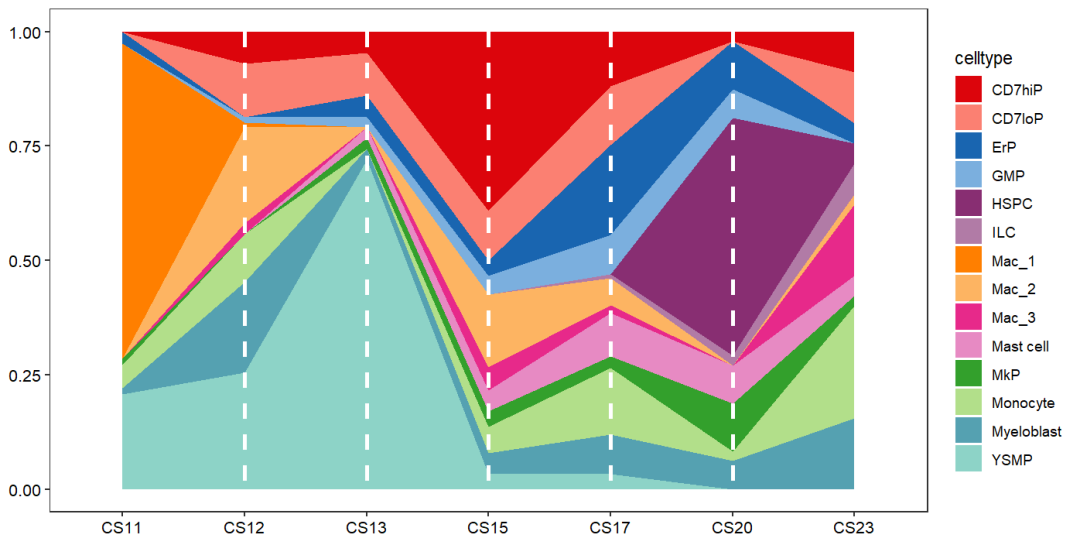

添加上颜色，做面积图的要点在于先成折线图，再添加面积。这样的效果和原文差不多。

cluster_cols <- c("#DC050C", "#FB8072", "#1965B0", "#7BAFDE", "#882E72",
                  "#B17BA6", "#FF7F00", "#FDB462", "#E7298A", "#E78AC3",
                  "#33A02C", "#B2DF8A", "#55A1B1", "#8DD3C7", "#A6761D",
                  "#E6AB02", "#7570B3", "#BEAED4", "#666666", "#999999",
                  "#aa8282", "#d4b7b7", "#8600bf", "#ba5ce3", "#808000",
                  "#aeae5c", "#1e90ff", "#00bfff", "#56ff0d", "#ffff00")
ggplot(A,aes(x = stage,y =Freq,
             group=celltype))+
  stat_summary(geom = 'line',fun='mean',cex=1,col='white')+
  geom_area(data = A,aes(fill=celltype))+
  scale_fill_manual(values=cluster_cols)+
  labs(x=NULL,y=NULL)+
  theme_bw()+
  theme(panel.grid.major=element_blank(),panel.grid.minor=element_blank(),
        axis.text = element_text(color = "black",size = 10))+
  geom_vline(aes(xintercept ="CS12"),linetype="dashed", size=1.2, colour="white")+
  geom_vline(aes(xintercept ="CS13"),linetype="dashed", size=1.2, colour="white")+
  geom_vline(aes(xintercept ="CS15"),linetype="dashed", size=1.2, colour="white")+
  geom_vline(aes(xintercept ="CS17"),linetype="dashed", size=1.2, colour="white")+
  geom_vline(aes(xintercept ="CS20"),linetype="dashed", size=1.2, colour="white")
