JTAG 和 SWD 接口定义

写在前面：

本文章旨在总结备份、方便以后查询，由于是个人总结，如有不对，欢迎指正；另外，内容大部分来自网络、书籍、和各类手册，如若侵权请告知，马上删帖致歉。

链接：https://arachnid.cc/jtag-and-swd

JTAG

https://wiki.segger.com/JTAG

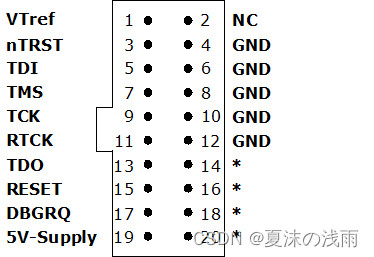

引脚分布

接口定义

PIN	SIGNAL	TYPE	Description
1	VTref	Input	This is the target reference voltage. It is used to check if the target has power, to create the logic-level reference for the input comparators and to control the output logic levels to the target. It is normally fed from VDD of the target board and must not have a series resistor.
2	Not connected	NC	This pin is not connected.
3	nTRST	Output	JTAG Reset. Output from J-Link to the Reset signal of the target JTAG port. Typically connected to nTRST of the target CPU. This pin is normally pulled HIGH on the target to avoid unintentional resets when there is no connection.
5	TDI	Output	JTAG data input of target CPU. It is recommended that this pin is pulled to a defined state on the target board. Typically connected to TDI of the target CPU.
7	TMS	Output	JTAG mode set input of target CPU. This pin should be pulled up on the target. Typically connected to TMS of the target CPU.
9	TCK	Output	JTAG clock signal to target CPU. It is recommended that this pin is pulled to a defined state of the target board. Typically connected to TCK of the target CPU.
11	RTCK	Input	Return test clock signal from the target. Some targets must synchronize the JTAG inputs to internal clocks. To assist in meeting this requirement, you can use a returned, and adjusted, TCK to dynamically control the TCK rate. J-Link supports adaptive clocking, which waits for TCK changes to be echoed correctly before making further changes. Connect to RTCK if available, otherwise to GND.
13	TDO	Input	JTAG data output from target CPU. Typically connected to TDO of the target CPU.
15	nRESET	I/O	Target CPU reset signal. Typically connected to the RESET pin of the target CPU, which is typically called “nRST”, “nRESET” or “RESET”. This signal is an active low signal.
17	DBGRQ	NC	This pin is not connected in J-Link. It is reserved for compatibility with other equipment to be used as a debug request signal to the target system. Typically connected to DBGRQ if available, otherwise left open.
19	5V-Supply	Output	This pin can be used to supply power to the target hardware. Older J-Links may not be able to supply power on this pin. For more information about how to enable/disable the power supply, please refer to Target power supply.
4, 6, 8, 10, 12	GND	Ground	GND pins connected to GND in J-Link. They should also be connected to GND in the target system.
14, 16, 18, 20	Res	Reserved	On some models like the J-Link ULTRA, these pins are reserved for firmware extension purposes. They can be left open or connected to GND in normal debug environment. They are not essential for JTAG or SWD in general Please do not assume them to be connected to GND inside J-Link.

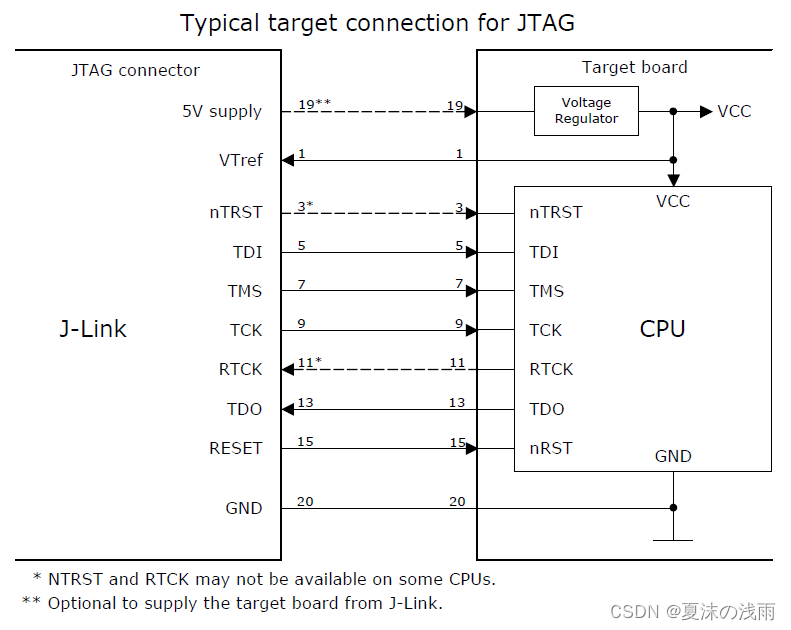

连接拓扑

引脚概述

序号	引脚	类型	说明
9	TCK	输出	目标时钟输入引脚，为目标 CPU 提供时钟逻辑信号。
5	TDI	输出	目标数据输入引脚，用于发送串行测试指令和数据给目标 CPU。
7	TMS	输出	目标模式选择引脚，TAP(Test access port) 控制器对接收到的信号进行解码，以控制测试操作。
13	TDO	输入	目标数据输出引脚，目标 CPU 串行输出测试指令和逻辑数据。
3	nTRST	输出（可选）	可选的复位输入目标引脚，用来指示 TAP 控制器的异步初始化。
11	RTCK	输入	目标 CPU 返回的时钟信号，有些目标 CPU 需要同步时钟。
15	nRESET	输入 / 输出	目标 CPU 复位信号。通常连接到目标 CPU 的 RESET 引脚。

SWD

https://wiki.segger.com/SWD

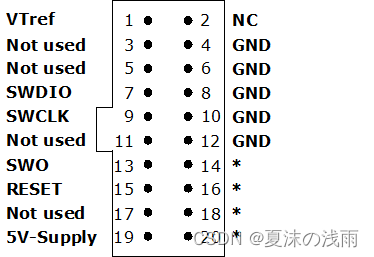

引脚分布

接口定义

PIN	SIGNAL	TYPE	Description
1	VTref	Input	This is the target reference voltage. It is used to check if the target has power, to create the logic-level reference for the input comparators and to control the output logic levels to the target. It is normally fed from VDD of the target board and must not have a series resistor.
2	Not connected	NC	This pin is not connected.
3	Not used	NC	This pin is not used by J-Link when selecting SWD as interface type. If the device may also be accessed via JTAG, this pin may be connected to nTRST, otherwise leave open.
5	Not used	NC	This pin is not used by J-Link when selecting SWD as interface type. If the device may also be accessed via JTAG, this pin may be connected to TDI, otherwise leave open.
7	SWDIO	Output	JTAG mode set input of target CPU. This pin should be pulled up on the target. Typically connected to TMS of the target CPU.
9	SWCLK	Output	JTAG clock signal to target CPU. It is recommended that this pin is pulled to a defined state of the target board. Typically connected to TCK of the target CPU.
11	Not used	NC	This pin is not used by J-Link when selecting SWD as interface type. If the device may also be accessed via JTAG, this pin may be connected to RTCK, otherwise leave open.
13	SWO	Input	Serial Wire Output trace port. (Optional, not required for SWD communication.)
15	nRESET	I/O	Target CPU reset signal. Typically connected to the RESET pin of the target CPU, which is typically called “nRST”, “nRESET” or “RESET”. This signal is an active low signal.
17	Not used	NC	This pin is not connected in J-Link.
19	5V-Supply	Output	This pin can be used to supply power to the target hardware. Older J-Links may not be able to supply power on this pin. For more information about how to enable/disable the power supply, please refer to Target power supply.
4, 6, 8, 10, 12	GND	Ground	GND pins connected to GND in J-Link. They should also be connected to GND in the target system.
14, 16, 18, 20	Res	Reserved	On some models like the J-Link ULTRA, these pins are reserved for firmware extension purposes. They can be left open or connected to GND in normal debug environment. They are not essential for JTAG or SWD in general Please do not assume them to be connected to GND inside J-Link.

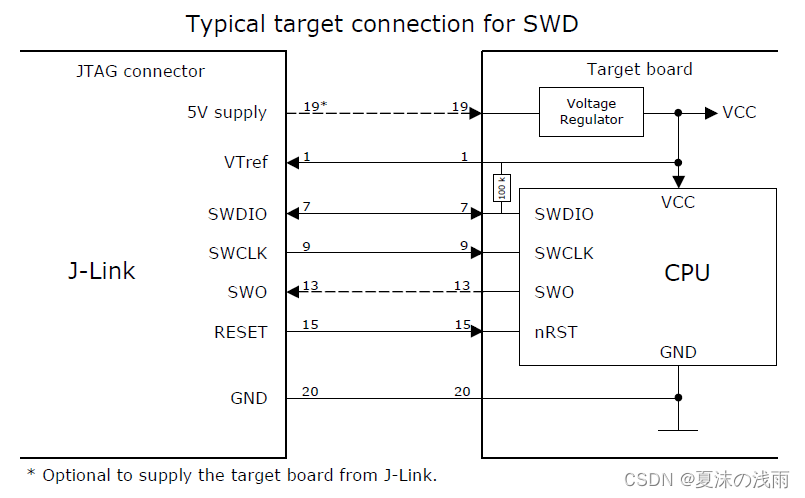

连接拓扑

引脚概述

序号	引脚	类型	说明
9	SWCLK	输出	时钟信号引脚。
7	SWDIO	输入 / 输出	双向数据引脚。
13	SWO	输出（可选）	可选的串行线跟踪输出引脚，允许 CPU 输出自定义数据，如 printf 输出，异步到 SWCLK 和其他调试引脚。
15	RESET	输入 / 输出	目标 CPU 复位信号。通常连接到目标 CPU 的 RESET 引脚。

参考

https://wiki.segger.com/20-pin_J-Link_Connector

https://developer.arm.com/documentation/101636/0100/Debug-and-Trace/JTAG-SWD-Interface

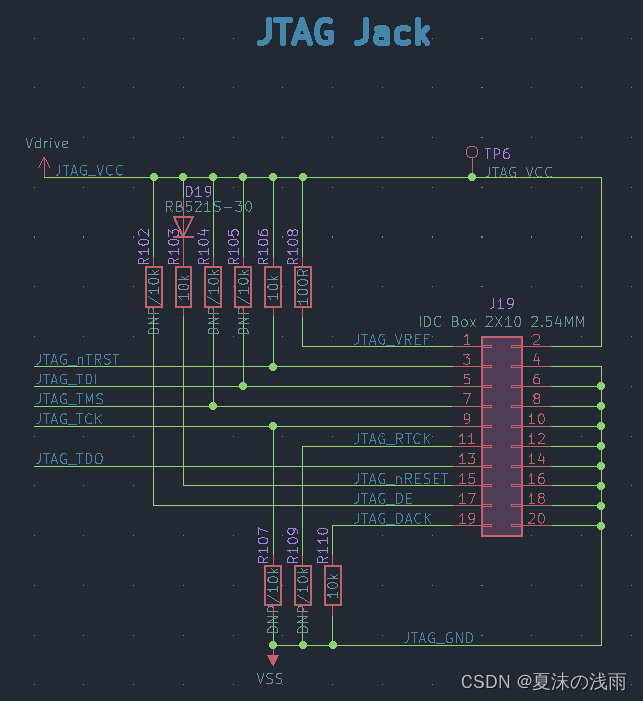

电路

如果是要兼容 SWD，则需要在 JTAG_TMS 引脚的上拉电阻前端增加一个二极管，参照 JTAG_nRESET 上拉。

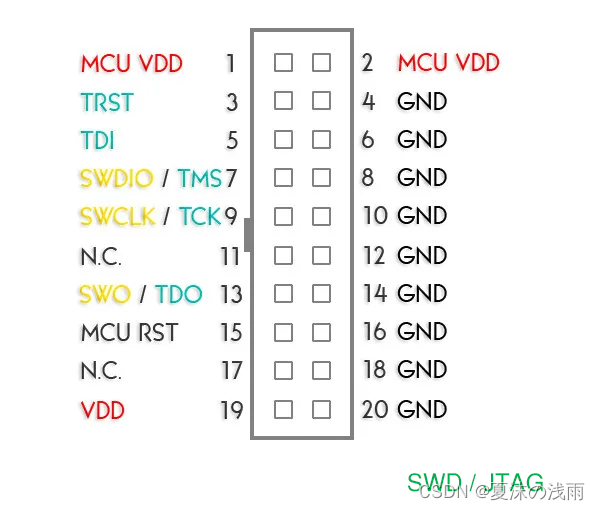

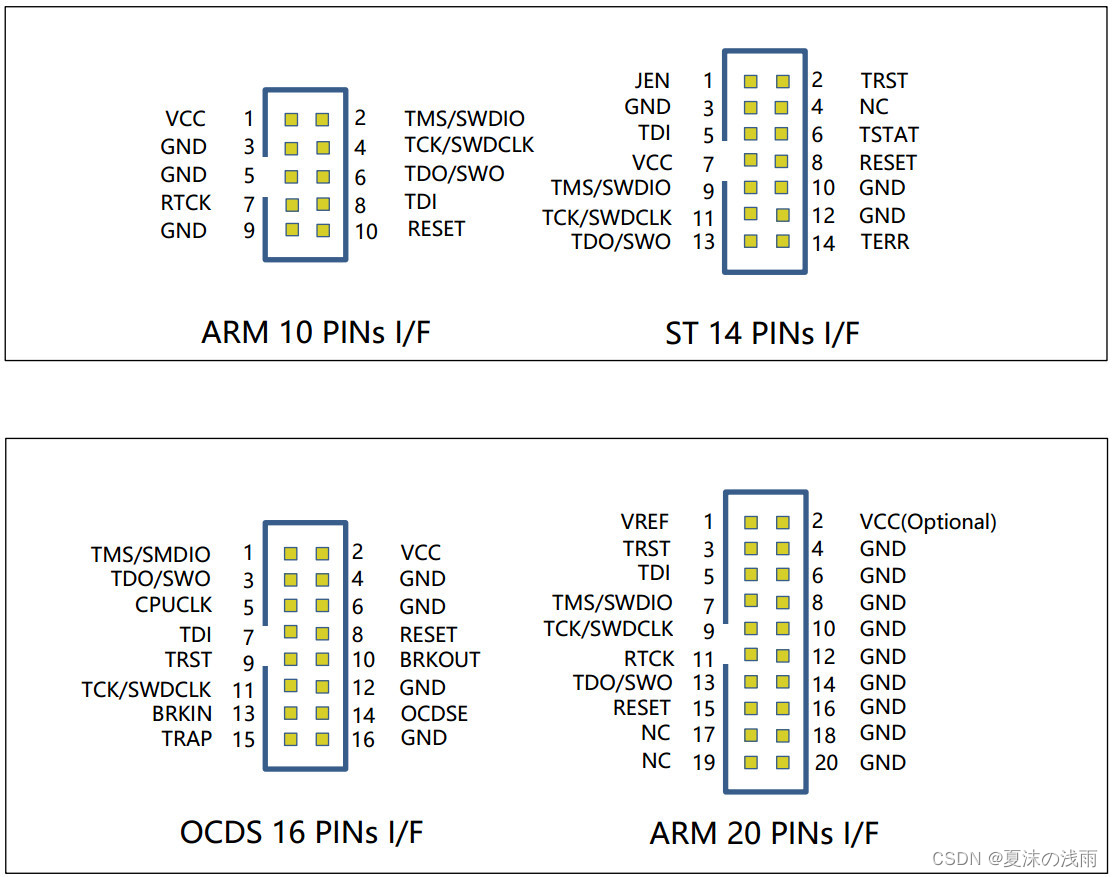

附录
