温湿度传感器 SHT3x-DIS 详解 & FPGA驱动

芯片简介

  SHT3x-DIS 是一款温湿度传感器，I2C 接口，通信速度最高可达 1MHz，测量精度 $\pm 1.5\%\mathrm{RH},\pm 0.1^{\circ }C$ 。数字输出经过校准和线性化，并进行了温度补偿。

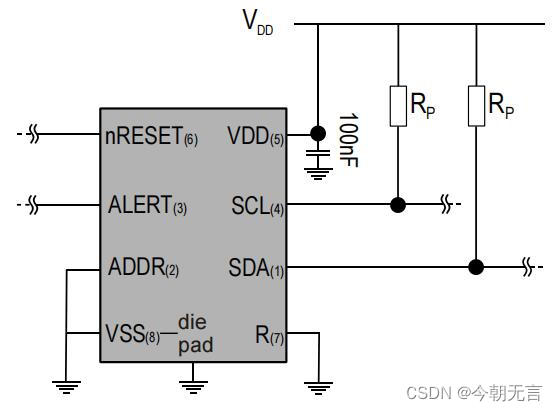

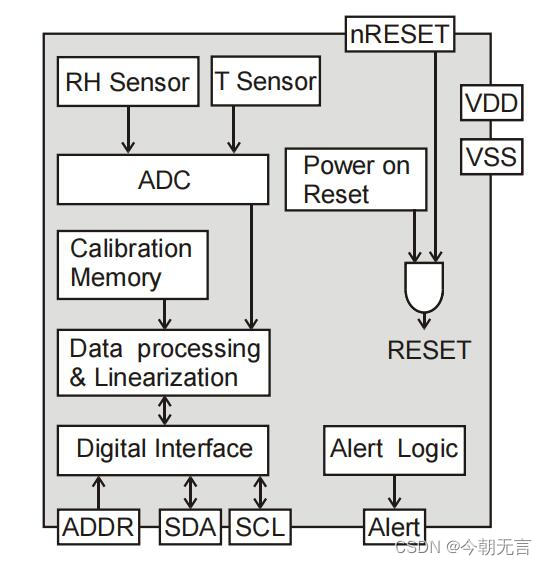

SHT3x-DIS 内部结构及电路示意如上图，由于 SDA 与SCL 为开漏，因此须接上拉电阻。除此之外，SDA 与 SCL 应串联限流电阻。

引脚说明：

• SDA

  I2C 串行数据总线，双向，最高支持 $1\mathrm{MHz}$，大于 $400\mathrm{kHz}$ 的通信需符合 I2C 快速模式标准。

• SCL

  I2C 串行时钟总线，双向，支持在 $0\sim 1\mathrm{MHz}$ 间自由选择。

• nRESET

  复位引脚，低电平有效，复位脉冲至少维持 1us 才能可靠地使芯片复位。若不使用建议悬空（芯片内部有 $50k\Omega$ 的上拉电阻），或接 $2k\Omega$ 以上的上拉电阻到 VDD。

• ALERT

  告警引脚，当温湿度超过设置的阈值时，该引脚给出高电平。若不使用，必须悬空。（datasheet 提到告警阈值是可编程的，但是没看到给出设置的方法）

• ADDR

  地址引脚，当该引脚接地时，设置 I2C 设备地址为 0x44，当该引脚拉高时，设置地址为 0x45。ADDR 引脚不可悬空，必须接地或接高电平。

• VDD

  供电引脚，2.15V 到 5.5V。

• VSS

  Ground。

• R

  Reserved，无电气作用，接地。

采样模式

  SHT3x-DIS 支持 I2C 快速模式，最高 1MHz。向传感器发送命令后，至少 1ms 后才可发送下一条命令。

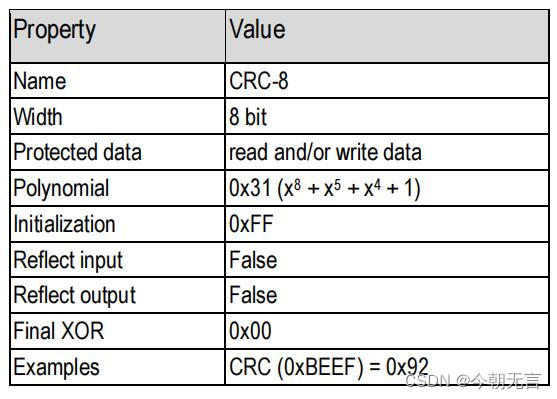

  SH3x-DIS 的数据和命令都映射到 16bit 的地址空间，并使用 CRC 校验进行保护。16bit 命令已经包含了 3bit 的 CRC 校验和，同时传感器的每次数据接收与发送，均使用 8 位 CRC 校验。

  当进行写操作时，必须提供 CRC 校验，SHT-3x-DIS 只接受具有正确校验和的数据；当进行读操作时，SHT3x-DIS 提供 8bit CRC 校验。

  当芯片上电后，经过一段时间后（1ms@5V，1.5ms@2.4V）自动进入空闲状态，准备好接收指令。在未处在接收指令或测量状态时，芯片自动进入空闲状态，以实现节能。

  测量通信序列由 7bit 设备地址，0 作为写入位，16bit 测量命令组成。传感器对每个字节的正确接收做出确认，在第 8 个 SCL 下降沿后给出 SDA=L 以示正确接收到了该字节。在接收完测量命令后，传感器开始测量湿度和温度。

单次采集模式

  该模式下，传感器每接收到一次测量命令，进行一次温湿度测量，温度和湿度均使用 16bit 数字量表示。

  单次采集模式的 16bit 指令如下表所示

• 可重复性（Repeatability）

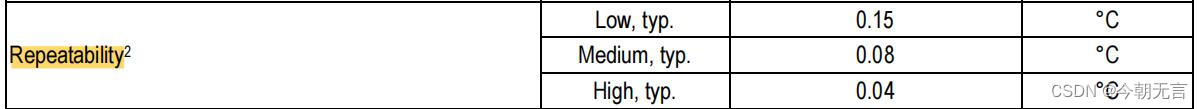

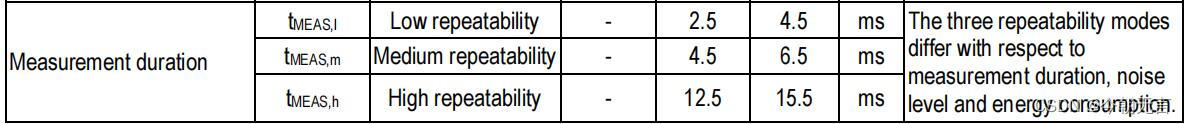

  可重复性影响采样的持续时间，重复性越高，测量时间越长（功耗越大），测量精度越高。三种可重复性下的测量时间以及对应的温湿度测量精度如下表

• 时钟拉伸（Clock Stretching）

  在 disable Clock Stretching 时，若 Master 发出读取报头时传感器尚未完成数据采样，将回复不确认 NACK （SDA=H）。

  当 enable Clock Stretching 时，传感器相应读报头，随后下拉 SCL ，直到测量完成。一旦数据测量完成，传感器将释放 SCL，并传输测量数据。

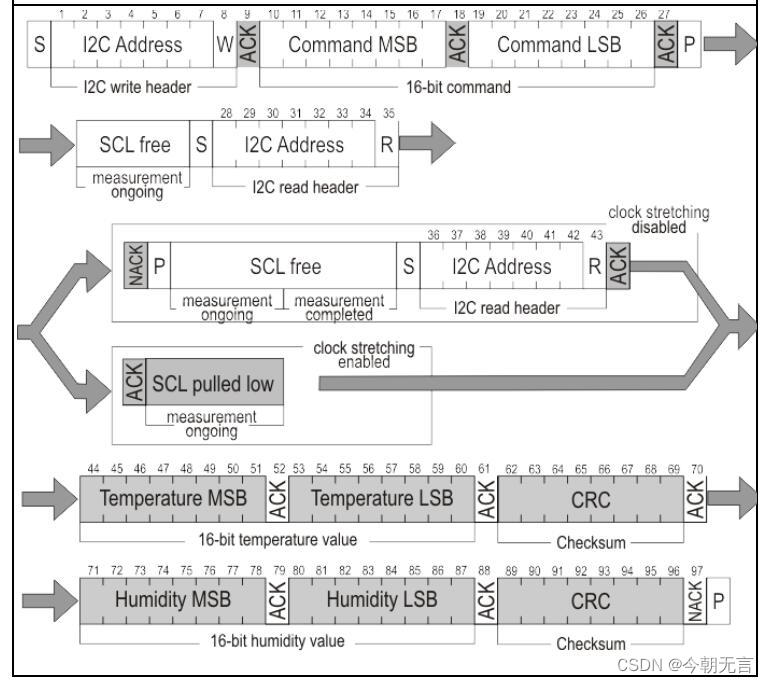

  两种时钟拉伸状态下的传输时序如上图，白色部分由微控制器给出，灰色部分由传感器给出。

  上分支所示是 Clock Stretching disabled 的情况，若数据尚未完成采样，传感器 NACK 读报头；当数据准备好之后，Mater 需再次发送读报文头，传感器 ACK 读报文头，并依次给出温度、湿度数据。

  下分支对应 Clock Stretching enabled 的情况，Master 只需要发出一次读报文头，若传感器数据尚未准备好，将 NACK 读报文头，并强制拉低 SCL 以终止数据传输，在数据准备好后释放 SCL，并随着 SCL 依次给出温度、湿度数据。

  16bit 数字量与实际物理量的对应关系如下

• 相对湿度

$$RH=\frac{S_{RH}}{2^{16}-1}\times 100\%$$

• 温度

$$T{(}^{\circ }C)=-45+175\cdot \frac{S_T}{2^{16}-1}$$

周期采集模式

  此模式下，一个测量命令将产生一个测量数据流，每个数据对由 16bit 温度和 16bit 湿度组成。

• 周期采集命令

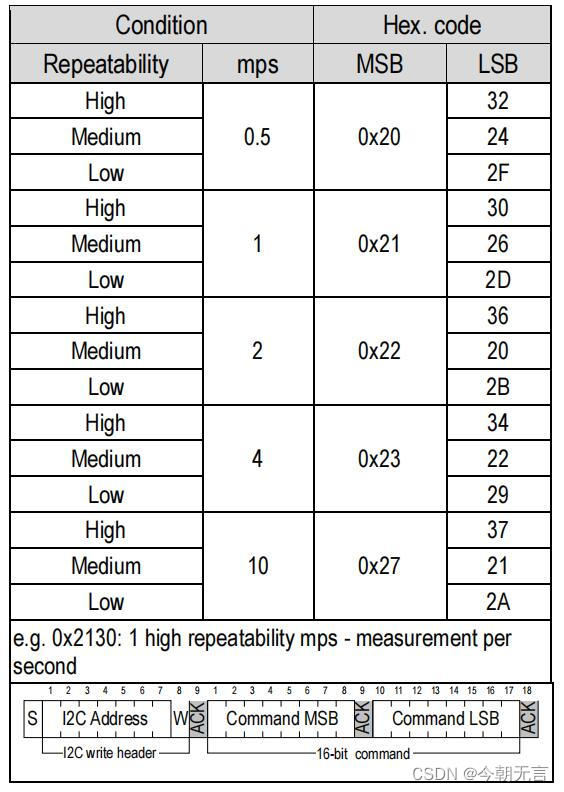

  周期采集模式的命令如下

表中 mps 表示每秒采集几次（measurement per second），有 $0.5,1,2,4,10mps$ 共 5 种测量频率。周期采集模式下，没有 Clock Stretching。

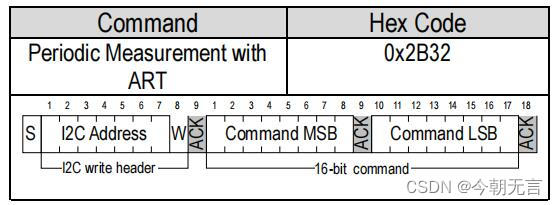

  周期采集模式还有一个 ART (accelerated response time) 模式，发出 ART 命令后，传感器将以 4Hz 的频率进行数据采集。

• 读取周期采集数据

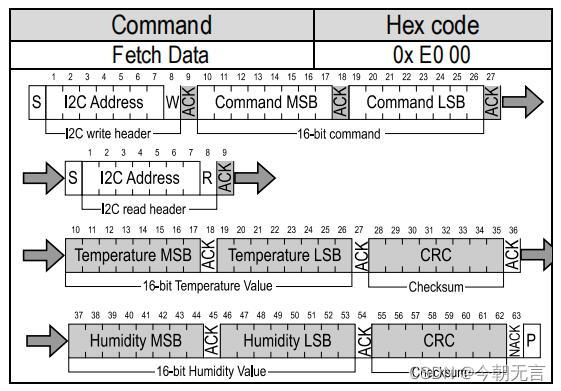

  要读取数据，使用如下的读取时序（注意 Fetch Data Command 后没有停止信号 P，而是紧接着一个 restart 信号 S，随后给出读报文头）

若传感器内没有数据，I2C 读取头将回应 NACK，通信停止。若有数据，将回应 ACK，并给出温湿度数据，读取完成后将清空数据存储器。

• 终止周期采集模式

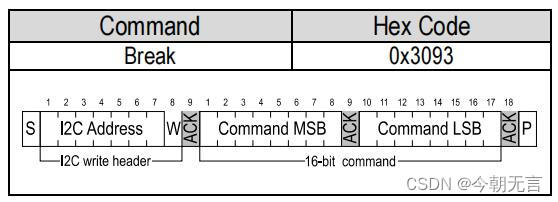

  采用如下指令终止周期采集模式，回到 Single Shot 模式。恢复为单次采集模式至少要 1ms。

复位 Reset

  SHT3x-DIS 有如下几种复位方式：

• Interface Reset

  接口复位，保持 SDA=H，切换 SCL 9次以上。该复位仅重置接口，不清空采样数据存储器。

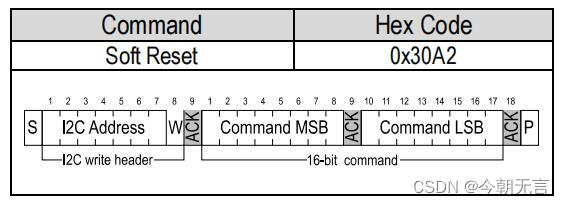

• Soft Reset

  软复位，通过发送命令进行复位，软复位将重置传感器，并重新加载校准数据。

• Reset through General Call

  通过 I2C 一般呼叫模式产生复位，功能上与通过 nRESET 复位相同。这种复位会使挂载在同一根 I2C 总线上的所有支持一般呼叫的设备重置。一般呼叫的 I2C 序列如下

• Reset through the nReset Pin

  拉低 nRESET 引脚至少 1us 可使 SHT3x-DIS 复位。

• Hard Reset

  硬复位，下电后重新上电。

加热器 Heater

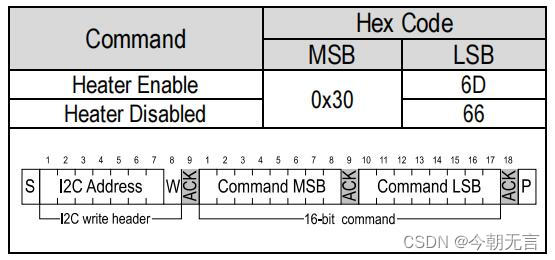

  SHT3x-DIS 内部有一个加热器，仅用于合理性验证（而不是为了什么保持传感器工作温度之类的），默认关闭。通过以下命令开关加热器。无法控制加热到多高温度，温度变化在几摄氏度（受环境影响）。

状态寄存器

  状态寄存器（16bit）包含关于加热器的运行状态、警报模式以及最后一个命令和最后一个写入序列的执行状态等信息。

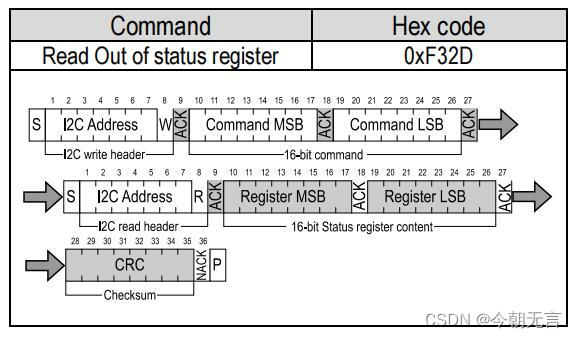

  读取状态寄存器的命令如下

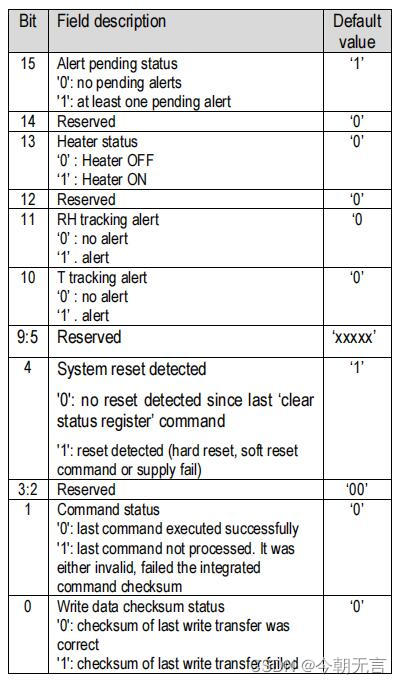

寄存器含义如下

通过如下命令清空状态寄存器

FPGA驱动实现

SHT3x-DIS 驱动代码

• SHT3x_singleShot.v

/*
 * file			: SHT3x_singleShot.v
 * author		: 今朝无言
 * Lab			: WHU-EIS-LMSWE
 * date			: 2023-03-20
 * version		: v1.0
 * description	: SHT3x-DISn单采集模式 (Single Shot Mode)
 * Copyright © 2023 WHU-EIS-LMSWE, All Rights Reserved.
 */
module SHT3x_singleShot(
input				clk_1M,			//4倍SCL，采用1MHz时钟，SCL_freq = 250kHz
input				rst_n,

input				samp_en,		//上升沿有效
output				busy,
output				alert,

output	reg	[15:0]	T,				//温度，数字量
output	reg	[15:0]	RH,				//相对湿度，数字量

inout				SCL,
inout				SDA,
input				ALERT,
output				nRESET
);
// 物理量 <- 数字量
// T(℃)=-45+175*S_T/65535
// RH=S_RH/65535*100%

localparam	ADDR				= 7'h44;		//I2C设备地址
localparam	RW_W				= 1'b0;
localparam	RW_R				= 1'b1;
localparam	CMD_SINGLE_SHOT		= 16'h2400;		//Sigle Shot, High Repeatability, Clock Stretching Disabled

//---------------------I2C Master State Define----------------------
// I2C Master sub 状态定义
localparam	IDLE		= 8'h01;	//空闲，释放SCL/SDA
localparam	START		= 8'h02;	//起始，SCL=H，SDA=D
localparam	SEND_DATA	= 8'h04;	//发送数据
localparam	GET_DATA	= 8'h08;	//读取数据，释放SDA
localparam	CHECK_ACK	= 8'h10;	//检查SDA的ACK/NACK，释放SDA
localparam	ACK			= 8'h20;	//发出ACK，SDA=L
localparam	NACK		= 8'h40;	//发出NACK，SDA=H
localparam	STOP		= 8'h80;	//停止，SCL=H，SDA=R

//------------------------SHT State Define-------------------------
// ---Send Command---
//IDLE,START,SEND_ADDR_W,CHECK_ACK1,SEND_COMMAND_MSB,CHECK_ACK2,SEND_COMMAND_LSB,CHECK_ACK3,STOP
localparam	C_IDLE				= 8'h00;
localparam	C_START				= 8'h01;
localparam	C_SEND_ADDR_W		= 8'h02;
localparam	C_CHECK_ACK1		= 8'h03;
localparam	C_SEND_COMMAND_MSB	= 8'h04;
localparam	C_CHECK_ACK2		= 8'h05;
localparam	C_SEND_COMMAND_LSB	= 8'h06;
localparam	C_CHECK_ACK3		= 8'h07;
localparam	C_STOP				= 8'h08;

// ---Get Data---
//IDLE,START,SEND_ADDR_R,CHECK_ACK,GET_T_MSB,ACK1,GET_T_LSB,ACK2,GET_CRC1,ACK3,
//GET_RH_MSB,ACK4,GET_RH_LSB,ACK5,GET_CRC2,ACKH6,STOP
localparam	D_IDLE				= 8'h10;
localparam	D_START				= 8'h11;
localparam	D_SEND_ADDR_R		= 8'h12;
localparam	D_CHECK_ACK			= 8'h13;
localparam	D_GET_T_MSB			= 8'h14;
localparam	D_ACK1				= 8'h15;
localparam	D_GET_T_LSB			= 8'h16;
localparam	D_ACK2				= 8'h17;
localparam	D_GET_CRC1			= 8'h18;
localparam	D_ACK3				= 8'h19;
localparam	D_GET_RH_MSB		= 8'h1a;
localparam	D_ACK4				= 8'h1b;
localparam	D_GET_RH_LSB		= 8'h1c;
localparam	D_ACK5				= 8'h1d;
localparam	D_GET_CRC2			= 8'h1e;
localparam	D_ACK6				= 8'h1f;
localparam	D_STOP				= 8'h20;

// ---SHT3x state---
localparam	SHT_IDLE			= 8'h01;
localparam	SHT_COMMAND_START	= 8'h02;	// IDLE -> START
localparam	SHT_SEND_COMMAND	= 8'h04;	// I2C busy, Send Command
localparam	SHT_SAMPLING		= 8'h08;	// wait 20ms
localparam	SHT_DATA_START		= 8'h10;	// IDLE -> START
localparam	SHT_GET_DATA		= 8'h20;	// I2C busy, Get Data
localparam	SHT_STOP			= 8'h40;	// T <- T_tmp, RH <- RH_tmp

//------------------------------------------------------------------
reg		[7:0]	I2C_state		= IDLE;		//该state输入I2C_Master_sub

reg		[7:0]	SHT_state		= SHT_IDLE;
reg		[7:0]	SHT_next_state	= SHT_IDLE;

reg		[7:0]	C_state			= C_IDLE;
reg		[7:0]	C_next_state	= C_IDLE;

reg		[7:0]	D_state			= D_IDLE;
reg		[7:0]	D_next_state	= D_IDLE;

reg				start_flag		= 1'b0;
reg				C_start_flag	= 1'b0;
reg				D_start_flag	= 1'b0;

reg		[7:0]	wrdat_buf		= 8'd0;
wire	[7:0]	rddat_tmp;
wire			check_ack;

wire			change_state;

reg		[15:0]	T_tmp			= 16'd0;
reg		[15:0]	RH_tmp			= 16'd0;

//--------------------------state trans------------------------------
always @(posedge change_state or negedge rst_n) begin
	if(~rst_n) begin
		SHT_state		<= SHT_IDLE;
	end
	else begin
		SHT_state		<= SHT_next_state;
	end
end

always @(posedge change_state) begin
	case(SHT_state)
	SHT_COMMAND_START, SHT_SEND_COMMAND: begin
		C_state			<= C_next_state;
	end
	default: begin
		C_state			<= C_state;
	end
	endcase
end

always @(posedge change_state) begin
	case(SHT_state)
	SHT_DATA_START, SHT_GET_DATA: begin
		D_state			<= D_next_state;
	end
	default: begin
		D_state			<= D_state;
	end
	endcase
end

//--------------------Send Command State Machine---------------------
always @(*) begin
	case(C_state)
	C_IDLE: begin
		if(C_start_flag) begin
			C_next_state	<= C_START;
		end
		else begin
			C_next_state	<= C_IDLE;
		end
	end
	C_START: begin
		C_next_state	<= C_SEND_ADDR_W;
	end
	C_SEND_ADDR_W: begin
		C_next_state	<= C_CHECK_ACK1;
	end
	C_CHECK_ACK1: begin
		C_next_state	<= C_SEND_COMMAND_MSB;
	end
	C_SEND_COMMAND_MSB: begin
		C_next_state	<= C_CHECK_ACK2;
	end
	C_CHECK_ACK2: begin
		C_next_state	<= C_SEND_COMMAND_LSB;
	end
	C_SEND_COMMAND_LSB: begin
		C_next_state	<= C_CHECK_ACK3;
	end
	C_CHECK_ACK3: begin
		C_next_state	<= C_STOP;
	end
	C_STOP: begin
		C_next_state	<= C_IDLE;
	end
	default: begin
		C_next_state	<= C_IDLE;
	end
	endcase
end

//----------------------Get Data State Machine-----------------------
always @(*) begin
	case(D_state)
	D_IDLE: begin
		if(D_start_flag) begin
			D_next_state	<= D_START;
		end
		else begin
			D_next_state	<= D_IDLE;
		end
	end
	D_START: begin
		D_next_state	<= D_SEND_ADDR_R;
	end
	D_SEND_ADDR_R: begin
		D_next_state	<= D_CHECK_ACK;
	end
	D_CHECK_ACK: begin
		D_next_state	<= D_GET_T_MSB;
	end
	D_GET_T_MSB: begin
		D_next_state	<= D_ACK1;
	end
	D_ACK1: begin
		D_next_state	<= D_GET_T_LSB;
	end
	D_GET_T_LSB: begin
		D_next_state	<= D_ACK2;
	end
	D_ACK2: begin
		D_next_state	<= D_GET_CRC1;
	end
	D_GET_CRC1: begin
		D_next_state	<= D_ACK3;
	end
	D_ACK3: begin
		D_next_state	<= D_GET_RH_MSB;
	end
	D_GET_RH_MSB: begin
		D_next_state	<= D_ACK4;
	end
	D_ACK4: begin
		D_next_state	<= D_GET_RH_LSB;
	end
	D_GET_RH_LSB: begin
		D_next_state	<= D_ACK5;
	end
	D_ACK5: begin
		D_next_state	<= D_GET_CRC2;
	end
	D_GET_CRC2: begin
		D_next_state	<= D_ACK6;
	end
	D_ACK6: begin
		D_next_state	<= D_STOP;
	end
	D_STOP: begin
		D_next_state	<= D_IDLE;
	end
	default: begin
		D_next_state	<= D_IDLE;
	end
	endcase
end

//----------------------I2C State Machine-----------------------
always @(*) begin
	case({C_state,D_state})
	{C_IDLE, D_IDLE}: begin
		I2C_state	<= IDLE;
	end

	//---Send Command---
	{C_START, D_IDLE}: begin
		I2C_state	<= START;
	end
	{C_SEND_ADDR_W, D_IDLE}: begin
		I2C_state	<= SEND_DATA;
	end
	{C_CHECK_ACK1, D_IDLE}: begin
		I2C_state	<= CHECK_ACK;
	end
	{C_SEND_COMMAND_MSB, D_IDLE}: begin
		I2C_state	<= SEND_DATA;
	end
	{C_CHECK_ACK2, D_IDLE}: begin
		I2C_state	<= CHECK_ACK;
	end
	{C_SEND_COMMAND_LSB, D_IDLE}: begin
		I2C_state	<= SEND_DATA;
	end
	{C_CHECK_ACK3, D_IDLE}: begin
		I2C_state	<= CHECK_ACK;
	end
	{C_STOP, D_IDLE}: begin
		I2C_state	<= STOP;
	end

	//---Get Data---
	{C_IDLE, D_START}: begin
		I2C_state	<= START;
	end
	{C_IDLE, D_SEND_ADDR_R}: begin
		I2C_state	<= SEND_DATA;
	end
	{C_IDLE, D_CHECK_ACK}: begin
		I2C_state	<= CHECK_ACK;
	end
	{C_IDLE, D_GET_T_MSB}: begin
		I2C_state	<= GET_DATA;
	end
	{C_IDLE, D_ACK1}: begin
		I2C_state	<= ACK;
	end
	{C_IDLE, D_GET_T_LSB}: begin
		I2C_state	<= GET_DATA;
	end
	{C_IDLE, D_ACK2}: begin
		I2C_state	<= ACK;
	end
	{C_IDLE, D_GET_CRC1}: begin
		I2C_state	<= GET_DATA;
	end
	{C_IDLE, D_ACK3}: begin
		I2C_state	<= ACK;
	end
	{C_IDLE, D_GET_RH_MSB}: begin
		I2C_state	<= GET_DATA;
	end
	{C_IDLE, D_ACK4}: begin
		I2C_state	<= ACK;
	end
	{C_IDLE, D_GET_RH_LSB}: begin
		I2C_state	<= GET_DATA;
	end
	{C_IDLE, D_ACK5}: begin
		I2C_state	<= ACK;
	end
	{C_IDLE, D_GET_CRC2}: begin
		I2C_state	<= GET_DATA;
	end
	{C_IDLE, D_ACK6}: begin
		I2C_state	<= ACK;
	end
	{C_IDLE, D_STOP}: begin
		I2C_state	<= STOP;
	end

	default: begin
		I2C_state	<= IDLE;
	end
	endcase
end

//--------------------------SHT State Machine--------------------------
always @(*) begin
	case(SHT_state)
	SHT_IDLE: begin
		if(start_flag) begin
			SHT_next_state	<= SHT_COMMAND_START;
		end
		else begin
			SHT_next_state	<= SHT_IDLE;
		end
	end
	SHT_COMMAND_START: begin
		SHT_next_state		<= SHT_SEND_COMMAND;
	end
	SHT_SEND_COMMAND: begin
		if(C_state==C_IDLE) begin
			SHT_next_state	<= SHT_SAMPLING;
		end
		else begin
			SHT_next_state	<= SHT_SEND_COMMAND;
		end
	end
	SHT_SAMPLING: begin
		if(~delay_busy) begin
			SHT_next_state	<= SHT_DATA_START;
		end
		else begin
			SHT_next_state	<= SHT_SAMPLING;
		end
	end
	SHT_DATA_START: begin
		SHT_next_state		<= SHT_GET_DATA;
	end
	SHT_GET_DATA: begin
		if(D_state==D_IDLE) begin
			SHT_next_state	<= SHT_STOP;
		end
		else begin
			SHT_next_state	<= SHT_GET_DATA;
		end
	end
	SHT_STOP: begin
		SHT_next_state		<= SHT_IDLE;
	end
	default: begin
		SHT_next_state		<= SHT_IDLE;
	end
	endcase
end

//---------------------------I2C Master sub----------------------------
I2C_Master_sub I2C_Master_sub_inst(
	.clk			(clk_1M),

	.wrdat_buf		(wrdat_buf),
	.rddat_tmp		(rddat_tmp),
	.check_ack		(check_ack),

	.SCL			(SCL),
	.SDA			(SDA),

	.change_state	(change_state),
	.state			(I2C_state)
);

//---------------------------Delay----------------------------
reg		delay_en	= 1'b0;
wire	delay_busy;

monostable_flipflop #(.Width(32))
monostable_flipflop_inst(
	.clk		(clk_1M),
	.rst_n		(1'b1),

	.delay_N	(32'd100_000),		//delay 100ms
	.reset_N	(1'b1),

	.in			(delay_en),
	.out		(delay_busy)
);

//------------------------------Control-------------------------------

// ---samp_en edge detect---
reg		samp_en_d0;
reg		samp_en_d1;
wire	samp_en_pe;

always @(posedge clk_1M) begin
	samp_en_d0	<= samp_en;
	samp_en_d1	<= samp_en_d0;
end

assign	samp_en_pe	= samp_en_d0 & (~samp_en_d1);

// ---start flag---
//启动samp进程
always @(posedge clk_1M) begin
	if(samp_en_pe && ~busy) begin
		start_flag	<= 1'b1;
	end
	else if(SHT_state == SHT_COMMAND_START) begin
		start_flag	<= 1'b0;
	end
	else begin
		start_flag	<= start_flag;
	end
end

// ---busy---
assign	busy = (SHT_state==SHT_IDLE)? 1'b0 : 1'b1;

// ---Send Command start flag---
always @(*) begin
	case(SHT_state)
	SHT_COMMAND_START: begin
		C_start_flag	<= 1'b1;
	end
	default: begin
		C_start_flag	<= 1'b0;
	end
	endcase
end

// ---Get Data start flag---
always @(*) begin
	case(SHT_state)
	SHT_DATA_START: begin
		D_start_flag	<= 1'b1;
	end
	default: begin
		D_start_flag	<= 1'b0;
	end
	endcase
end

// ---delay_en---
always @(*) begin
	if(C_state==C_STOP) begin
		delay_en	<= 1'b1;
	end
	else begin
		delay_en	<= 1'b0;
	end
end

// ---T_tmp---
always @(posedge clk_1M) begin
	case(D_state)
	D_START: begin
		T_tmp			<= 16'd0;
	end
	D_ACK1: begin
		T_tmp[15:8]		<= rddat_tmp;
	end
	D_ACK2: begin
		T_tmp[7:0]		<= rddat_tmp;
	end
	default: begin
		T_tmp			<= T_tmp;
	end
	endcase
end

// ---RH_tmp---
always @(posedge clk_1M) begin
	case(D_state)
	D_START: begin
		RH_tmp			<= 16'd0;
	end
	D_ACK4: begin
		RH_tmp[15:8]	<= rddat_tmp;
	end
	D_ACK5: begin
		RH_tmp[7:0]		<= rddat_tmp;
	end
	default: begin
		RH_tmp			<= RH_tmp;
	end
	endcase
end

// ---wrdat_buf---
always @(posedge clk_1M) begin
	case({C_state, D_state})
	{C_IDLE, D_IDLE}: begin
		wrdat_buf	<= 8'd0;
	end
	{C_START, D_IDLE}: begin
		wrdat_buf	<= {ADDR, RW_W};
	end
	{C_CHECK_ACK1, D_IDLE}: begin
		wrdat_buf	<= CMD_SINGLE_SHOT[15:8];
	end
	{C_CHECK_ACK2, D_IDLE}: begin
		wrdat_buf	<= CMD_SINGLE_SHOT[7:0];
	end
	{C_CHECK_ACK3, D_IDLE}: begin
		wrdat_buf	<= 8'd0;
	end
	{C_IDLE, D_START}: begin
		wrdat_buf	<= {ADDR, RW_R};
	end
	{C_IDLE, D_CHECK_ACK}: begin
		wrdat_buf	<= 8'd0;
	end
	default: begin
		wrdat_buf	<= wrdat_buf;
	end
	endcase
end

// ---T/RH---
always @(posedge clk_1M) begin
	case(SHT_state)
	SHT_STOP: begin
		T		<= T_tmp;			//缓存T/RH，给出稳定的输出结果
		RH		<= RH_tmp;
	end
	default: begin
		T		<= T;
		RH		<= RH;
	end
	endcase
end

//-------------------------alert & nReset----------------------------
assign	alert	= ALERT;
assign	nRESET	= 1'b1;

endmodule

• I2C_Master_sub.v

  该模块是 I2C Master 的 SCL/SDA 状态输出控制模块，关于 I2C 如何使用 Verilog 实现详见我之前的博文

/*
 * file			: I2C_Master_sub.v
 * author		: 今朝无言
 * Lab			: WHU-EIS-LMSWE
 * date			: 2023-03-19
 * version		: v1.0
 * description	: I2C master 的 SDA/SCL 控制模块（通过 state）
 */
module I2C_Master_sub(
input				clk,			//4倍SCL

input		[7:0]	wrdat_buf,
output	reg	[7:0]	rddat_tmp,
output	reg			check_ack,		//检查Slave给出的ACK信号，若为NACK，输出一个高电平脉冲

inout				SCL,
inout				SDA,

output	reg			change_state,	//上升沿时 top 模块应执行 state <- next_state
input		[7:0]	state
);

localparam	IDLE		= 8'h01;	//空闲，释放SCL/SDA
localparam	START		= 8'h02;	//起始，SCL=H，SDA=D
localparam	SEND_DATA	= 8'h04;	//发送数据
localparam	GET_DATA	= 8'h08;	//读取数据，释放SDA
localparam	CHECK_ACK	= 8'h10;	//检查SDA的ACK/NACK，释放SDA
localparam	ACK			= 8'h20;	//发出ACK，SDA=L
localparam	NACK		= 8'h40;	//发出NACK，SDA=H
localparam	STOP		= 8'h80;	//停止，SCL=H，SDA=R

reg				SCL_link	= 1'b0;
reg				SDA_link	= 1'b0;

reg				SCL_buf		= 1'b1;	//o_buf
reg				SDA_buf		= 1'b1;

wire			SCL_ibuf;			//i_buf
wire			SDA_ibuf;

reg		[3:0]	bit_cnt		= 4'd15;

//----------------------IO_BUF-----------------------------
//IOBUF for SCL
IOBUF IOBUF_SCL(
	.O		(SCL_ibuf),		// Buffer的输出，接采集信号
	.IO		(SCL),			// connect directly to top-level port
	.I		(SCL_buf),		// Buffer的输入，接要输出到FPGA外的信号
	.T		(~SCL_link)		// =1时，O <- IO；=0时，IO <- I
);

//IOBUF for SDA
IOBUF IOBUF_SDA(
	.O		(SDA_ibuf),
	.IO		(SDA),
	.I		(SDA_buf),
	.T		(~SDA_link)
);

//---------------------clk div-----------------------------
//将一个SCL周期划分为4份，便于逻辑实现
reg 	[1:0]	clk_cnt	= 2'd0;

always @(posedge clk) begin
	clk_cnt		<= clk_cnt + 1'b1;
end

//---------------------SCL_link-----------------------------
always @(posedge clk) begin
	case(state)
	IDLE: begin
		SCL_link	<= 1'b0;
	end
	START, SEND_DATA, GET_DATA, CHECK_ACK, ACK, NACK, STOP: begin
		SCL_link	<= 1'b1;
	end
	default: begin
		SCL_link	<= 1'b0;
	end
	endcase
end

//---------------------SDA_link-----------------------------
always @(posedge clk) begin
	case(state)
	IDLE, GET_DATA, CHECK_ACK: begin
		SDA_link	<= 1'b0;
	end
	START, SEND_DATA, ACK, NACK, STOP: begin
		SDA_link	<= 1'b1;
	end
	default: begin
		SDA_link	<= 1'b0;
	end
	endcase
end

//---------------------SCL_buf-----------------------------
always @(posedge clk) begin
	case(state)
	IDLE: begin											//1111
		SCL_buf		<= 1'b1;
	end
	START: begin										//1110
		case(clk_cnt)
		2'd0, 2'd1, 2'd2: begin
			SCL_buf		<= 1'b1;
		end
		2'd3: begin
			SCL_buf		<= 1'b0;
		end
		default: ;
		endcase
	end
	STOP: begin											//0111
		case(clk_cnt)
		2'd1, 2'd2, 2'd3: begin
			SCL_buf		<= 1'b1;
		end
		2'd0: begin
			SCL_buf		<= 1'b0;
		end
		default: ;
		endcase
	end
	SEND_DATA, GET_DATA, CHECK_ACK, ACK, NACK: begin	//0110
		case(clk_cnt)
		2'd1, 2'd2: begin
			SCL_buf		<= 1'b1;
		end
		2'd0, 2'd3: begin
			SCL_buf		<= 1'b0;
		end
		default: ;
		endcase
	end
	default: begin										//1111
		SCL_buf		<= 1'b1;
	end
	endcase
end

//---------------------bit_cnt-----------------------------
always @(posedge clk) begin
	case(state)
	SEND_DATA, GET_DATA: begin
		case(clk_cnt)
		2'd2: begin
			bit_cnt		<= bit_cnt - 1'b1;
		end
		default: ;
		endcase
	end
	START, ACK, NACK, CHECK_ACK: begin
		bit_cnt		<= 4'd7;
	end
	default: begin
		bit_cnt		<= 4'd15;
	end
	endcase
end

//--------------------rddat_tmp----------------------------
always @(posedge clk) begin
	case(state)
	GET_DATA: begin
		case(clk_cnt)
		2'd1: begin
			rddat_tmp[bit_cnt]	<= SDA_ibuf;
		end
		default: ;
		endcase
	end
	default: begin
		rddat_tmp	<= rddat_tmp;
	end
	endcase
end

//--------------------check_ack----------------------------
always @(posedge clk) begin
	case(state)
	CHECK_ACK: begin
		case(clk_cnt)
		2'd1: begin
			check_ack	<= SDA_ibuf;
		end
		default: begin
			check_ack	<= check_ack;
		end
		endcase
	end
	default: begin
		check_ack	<= 0;
	end
	endcase
end

//---------------------SDA_buf-----------------------------
always @(posedge clk) begin
	case(state)
	IDLE: begin
		SDA_buf		<= 1'b1;
	end
	START: begin										//1100，从而在SCL=H时，产生SDA=D
		case(clk_cnt)
		2'd0, 2'd1: begin
			SDA_buf		<= 1'b1;
		end
		2'd2, 2'd3: begin
			SDA_buf		<= 1'b0;
		end
		default: ;
		endcase
	end
	SEND_DATA: begin									//在clk_cnt=0给出数据，从而在clk_cnt=1,2时(SCL=H)保持SDA的稳定
		case(clk_cnt)
		2'd0: begin
			SDA_buf		<= wrdat_buf[bit_cnt];
		end
		default: ;
		endcase
	end
	GET_DATA: begin
		SDA_buf		<= 1'b1;
	end
	CHECK_ACK: begin
		SDA_buf		<= 1'b0;
	end
	ACK: begin
		SDA_buf		<= 1'b0;
	end
	NACK: begin
		SDA_buf		<= 1'b1;
	end
	STOP: begin											//0011，从而在SCL=H时，产生SDA=R
		case(clk_cnt)
		2'd0, 2'd1: begin
			SDA_buf		<= 1'b0;
		end
		2'd2, 2'd3: begin
			SDA_buf		<= 1'b1;
		end
		default: ;
		endcase
	end
	default: begin
		SDA_buf		<= 1'b1;
	end
	endcase
end

//-------------------change_state---------------------------
always @(posedge clk) begin
	case(state)
	IDLE, ACK, NACK, CHECK_ACK, STOP: begin
		case(clk_cnt)
		2'd3: begin
			change_state	<= 1'b1;
		end
		default: begin
			change_state	<= 1'b0;
		end
		endcase
	end
	SEND_DATA, GET_DATA: begin
		case(bit_cnt)
		4'd15: begin
			case(clk_cnt)
			2'd3: begin
				change_state	<= 1'b1;
			end
			default: begin
				change_state	<= 1'b0;
			end
			endcase
		end
		default: begin
			change_state	<= 1'b0;
		end
		endcase
	end
	default: begin
		case(clk_cnt)
		2'd3: begin
			change_state	<= 1'b1;
		end
		default: begin
			change_state	<= 1'b0;
		end
		endcase
	end
	endcase
end

endmodule

• monostable_flipflop.v

  单稳态电路，用于实现延时。单采集模式下，Sampling 阶段会持续 20 ms 左右，期间 SHT3x-DIS 会 NACK 读请求头

/*
 * file			: monostable_flipflop.v
 * author		: 今朝无言
 * Lab			: WHU-EIS-LMSWE
 * date			: 2023-03-19
 * version		: v1.0
 * description	: 单稳态触发器
 */
module monostable_flipflop(
input					clk,
input					rst_n,

input		[Width-1:0]	delay_N,
input					reset_N,

input					in,
input					out
);
parameter Width = 32;

reg		[Width-1:0]	delay_N_buf	= 1;
reg		[Width-1:0]	cnt			= 0;

always @(posedge clk or posedge reset_N) begin
	if(reset_N) begin
		delay_N_buf		<= delay_N;
	end
	else begin
		delay_N_buf		<= delay_N_buf;
	end
end

reg		in_d0;
reg		in_d1;
wire	in_pe;

assign	in_pe	= in_d0 & (~in_d1);

always @(posedge clk) begin
	in_d0	<= in;
	in_d1	<= in_d0;
end

always @(posedge clk or negedge rst_n) begin
	if(~rst_n) begin
		cnt		<= 0;
	end
	else if(in_pe) begin
		cnt		<= delay_N_buf;
	end
	else if(cnt > 0) begin
		cnt		<= cnt - 1'b1;
	end
	else begin
		cnt		<= cnt;
	end
end

assign	out	= (|cnt)? 1 : 0;

endmodule

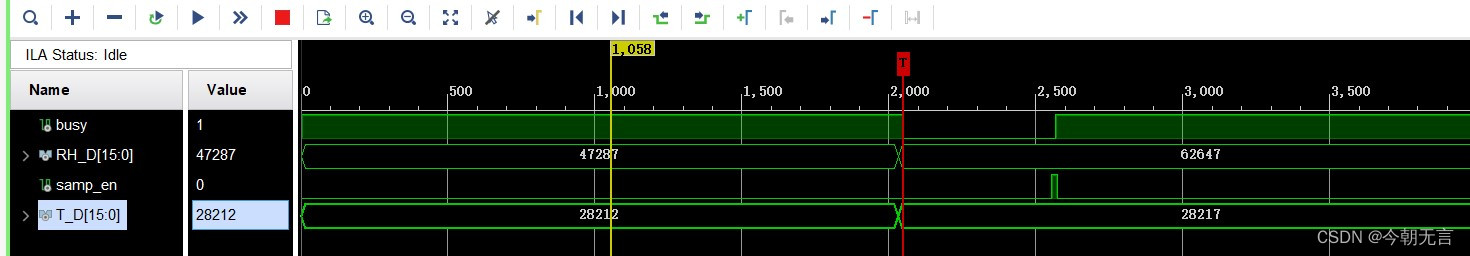

实机测试结果

  笔者的 SHT35-DIS 芯片湿度采集似乎有问题，一直在跳变，温度采集是很稳定的，大概在 $30^{\circ }C$ ，这是由于传感器芯片靠近 FPGA 的缘故。后来外接 SHT30-DIS 型号的温湿度芯片，测试结果正常（53%，$22.5^{\circ }C$）。

• 参考文献

[1] Sensirion_Humidity_Sensors_SHT3x_Datasheet_digital.pdf
