树莓派4B监控CPU占用率、内存使用率、磁盘使用量以及CPU温度

树莓派可以作为一个小型电脑，但是它不能像windows一样使用任务管理器查看当前资源占用情况

一、使用指令查看当前资源状态

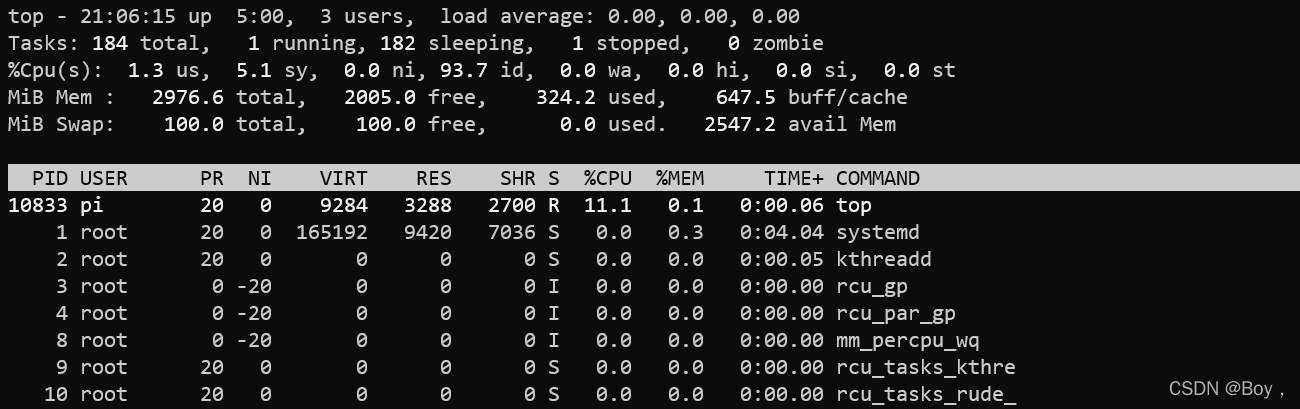

1. 使用top指令
   可以获取当前Cpu使用状态、RAM使用率等信息，但是只能查看，无法长时间运行时保存下来

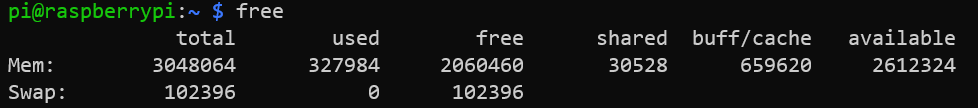

2. 使用free指令
   可以获得Mem信息，但是是以byte为单位，需要转换单位

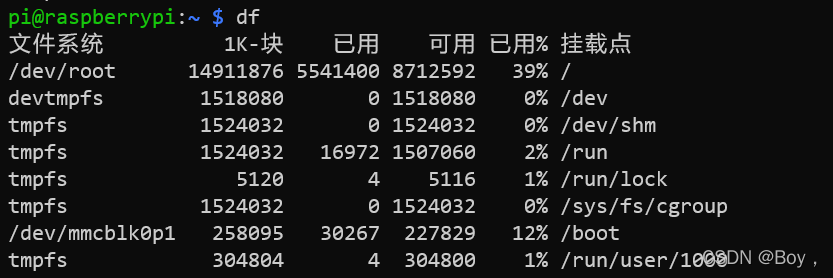

3. 使用df指令
   可以获得文件系统占用的详情


二、用Python语言获取资源状态并存储为txt文件

import os
import time
import logging

# Return CPU temperature as a character string
def  getCPUtemperature():
     res  = os.popen( 'vcgencmd measure_temp' ).readline()
     return (res.replace( "temp=" ," ").replace(" 'C\t "," "))

# Return RAM information (unit=kb) in a list
# Index 0: total RAM
# Index 1: used RAM
# Index 2: free RAM
def  getRAMinfo():
     p  = os.popen( 'free' )
     i  = 0
     while  1 :
         i  = i  + 1
         line  = p.readline()
         if  i == 2 :
             return (line.split()[ 1 : 4 ])

# Return % of CPU used by user as a character string
def  getCPUuse():
     return ( str (os.popen( "top -n1 | awk '/Cpu\(s\):/ {print $2}'" ).readline().strip()))

# Return information about disk space as a list (unit included)
# Index 0: total disk space
# Index 1: used disk space
# Index 2: remaining disk space
# Index 3: percentage of disk used
def  getDiskSpace():
     p = os.popen( "df -h /" )
     i = 0
     while 1 :
         i  = i  + 1
         line  = p.readline()
         if i == 2 :
             return (line.split()[ 1 : 5 ])

def get_info():

     # CPU informatiom
     CPU_temp  = getCPUtemperature()
     CPU_usage  = getCPUuse()

     # RAM information
     # Output is in kb, here I convert it in Mb for readability
     RAM_stats  = getRAMinfo()
     RAM_total  = round ( int (RAM_stats[ 0 ])  / 1024 , 1 )
     RAM_used  = round ( int (RAM_stats[ 1 ])  / 1024 , 1 )
     RAM_free  = round ( int (RAM_stats[ 2 ])  / 1024 , 1 )

     # Disk information
     DISK_stats  = getDiskSpace()
     DISK_total  = DISK_stats[0]
     DISK_used  = DISK_stats[1]
     DISK_left = DISK_stats[2]
     DISK_perc  = DISK_stats[3]

     logging.info(
          "Local Time {timenow} \n"
          "CPU Temperature ={CPU_temp}"
          "CPU Use = {CPU_usage} %\n\n"
          "RAM Total = {RAM_total} MB\n"
          "RAM Used = {RAM_used} MB\n"
          "RAM Free = {RAM_free} MB\n\n"
          "DISK Total Space = {DISK_total}B\n"
          "DISK Used Space = {DISK_used}B\n"
          "DISK Left Space = {DISK_left}B\n"
          "DISK Used Percentage = {DISK_perc}\n"
          "".format(
               timenow = time.asctime(time.localtime(time.time())),
               CPU_temp = CPU_temp,
               CPU_usage = CPU_usage,
               RAM_total = str(RAM_total),
               RAM_used = str(RAM_used),
               RAM_free = str(RAM_free),
               DISK_total = str(DISK_total),
               DISK_used = str(DISK_used),
               DISK_left = str(DISK_left),
               DISK_perc = str(DISK_perc),
               )
     )

if __name__  == '__main__':
     # get info
     logger_file = os.path.join('log_source_info.txt')
     handlers = [logging.FileHandler(logger_file, mode='w'),
                logging.StreamHandler()]
     logging.basicConfig(format='%(asctime)s - %(pathname)s[line:%(lineno)d] '
                           '- %(levelname)s: %(message)s',
                           level=logging.INFO,
                           handlers=handlers)
     # while(1):
     while(True):
          get_info()
          time.sleep(10) # Time interval for obtaining resources

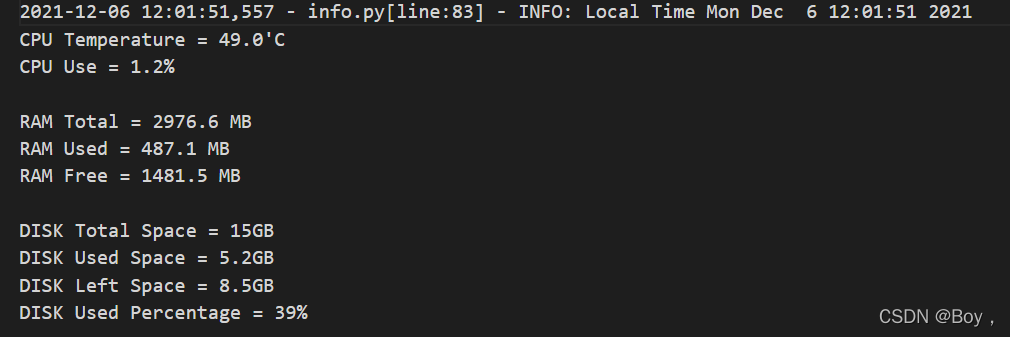

获取的文件形式如下：

三、获得了各种资源状态记录的txt文件，但是统计起来十分麻烦，特别是对于长时间记录的情况。可使用Python对保存的txt文件进行操作，将数据保存到csv，以CPU use和RAM use为例：

import numpy as np
addr = "log_source_info"

len_txt = len(open(addr + ".txt",'r').readlines())
len_data = int(len_txt / 13)

data = np.zeros([len_txt, 1]).astype(object)
data_i = 0

with open(addr + addr_num + ".txt", "r") as f:
    for line in f.readlines():
        line = line.strip('\n')
        data[data_i] = line
        data_i += 1
# print(data)
# CPU_Temp = np.zeros([len_data, 1]).astype(object)
CPU_Use = np.zeros([len_data, 1]).astype(object)
RAM_Total = 2976.6
RAM_Used = np.zeros([len_data, 1]).astype(object)
# CPU_Temp_cont = 0
CPU_Use_cont = 0
RAM_Used_cont = 0

cont = 0
for data_t in data:
    # print(data_t)
    temp = data_t[0].split(" ")
    # if cont == 1 :
        # CPU_Temp[CPU_Temp_cont] = float(temp[3])
        # CPU_Temp_cont += 1
    if cont == 2:
        # find some data miss
        if temp[3] == '%':
            CPU_Use[CPU_Use_cont] = 0
        else :
            # print(temp[3])
            CPU_Use[CPU_Use_cont] = float(temp[3])
        CPU_Use_cont += 1
    elif cont == 5:
        RAM_Used[RAM_Used_cont] = float(temp[3]) / RAM_Total
        RAM_Used_cont += 1
    # print(data)
    cont += 1
    cont %= 13
with open(addr + addr_num + ".csv", "w") as fw :
    # fw.write("CPU_Temp" + "," + "CPU_Use" + "," + "RAM_Used" + "," + "\n")
    fw.write("CPU_Use" + "," + "RAM_Used" + "," + "\n")
    for i in range(len_data):
        # fw.write(str(CPU_Temp[i,0]) + "," + str(CPU_Use[i,0]) + "," + str(RAM_Used[i,0]) + "\n")
        fw.write(str(CPU_Use[i,0]) + "," + str(RAM_Used[i,0]) + "\n")

注意！！！ 如果需要对CPU温度进行获取到csv文件，需要对txt文件进行处理，使用查找->替换，将

'C

替换为：

 'C  # 也就是在所有的摄氏度前面加一个空格，因为摄氏度为字符无法获得数据格式
