VRPB(Vehicle Routing Problem Backhauls)说明+pythoncode

Vehicle Routing Problem Backhauls

• 模型说明：Vehicle Routing Problem(VRP)+Backhauls

1. VRP:即多个车辆从depot点出发，向客户customer配送货物，每个customer只能被一辆车配送一次，最后车辆回到depot点

2. Backhauls：回程过程中取货的问题

3. VRPB：送货（linehaul-delivery-L）后取货（backhauls-pickup-B)，现实生活中：快递小哥配送件的同时+取件，且快递小哥不能全程只单纯取件不配件； 配件主要，取件附属品

• 数学模型：

1. 参数说明：

1. A：边； V：所有的customer+depot(由0表示)；

2. : 进入i点的边（ex,.一个点，有进入i的边，和从i出去的边）

3. : 和从i出去的边

4. ：代表边,是A的子集，: 代表S中最少的车的个数(如果求他是BPP问题)

• (1)目标函数，总路程最小

• (2,3)对于每一个点，只有一辆车经过一次

• (4,5)对于depot（0），出去的车和进来的车都一个为K

• (6,7)为capacity constraint cut, 比如(6)：在S集合里的点，与剩余的除了depot的点相连的边的个数必须大于这个集合需要的最小的车数.(画一个圈把S里的点全部包含,从S出去/进来的点的边-即和S这个圈圈相交的边的个数和除以2)

2. 问题分解

• 通过分析问题，可以将模型分解为三部分

• 第一部分：linehaul部分，即delivery的部分

• 第二部分：backhaul部分，即pickup部分

• 第三部分：connection部分，即delivery-pickup的连接弧的部分

• 注意：depot进入linehaul的边，即总的车辆数>=backhaul 进入depot的边，因为车辆可以直接从linehaul回去，不进行pickup

• 分解后的模型：

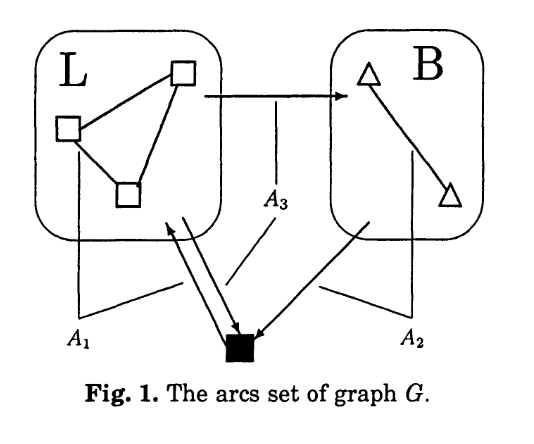

• 点集合V被分为：L（linehaul点）,B（backhaul点), L0(linehaul点+depot0),

B0（backhaul点+depot0)

• 边集合A被分为：A_L(linehaul边，从L0到L),

A_B(从B到B0), A_C(L到B0)

1.linehaul

2.backhaul

3.connection

• python code

1. 小算列数据解释：

• 车：capacity：2，K=2（车数量）

• Linehaul（delivery点）:L=[1,2,3] , L0=[0,1,2,3], d(demand)={},A_L: 从L0到L的边

• backhaul（pickup点）：B=[4,5],B0=[0,4,5],d(demand)={},A_B:从B到B0的边

• connection：A_C：从L到B0的边

2. 代码块

import numpy as np
import time
from docplex.mp.model import Model
##############################################################################
'''
This dataset corresponds to our small-scale dataset with 6 nodes including depot
and 5 customers/nodes in which customer 3 requires both delivery and pickup, i.e.,
simultaneous demand.

For instance: one node can be delivery and pickup

We use the CPLEX optimization solver, the academic version, to solve this problem.
'''
##############################################################################
# function that solves VRPB
def CVRPB():

    mdl = Model('CVRPB')

    # linhaul decision Variables
    x = mdl.binary_var_dict (A_L,name='x')
    u = mdl.continuous_var_dict (L, name = 'u')

    #bakchaul decision variables
    y = mdl.binary_var_dict (A_B,name='y')
    w = mdl.continuous_var_dict (B,name = 'w')

    #connection decision variables
    z = mdl.binary_var_dict (A_C,name='z')
    #####################################
    ##### linhaul constraints
    #truck constraint
    mdl.add_constraint(mdl.sum(x[0,j]for j in L)==k )
    #degree constraints
    mdl.add_constraints(mdl.sum(x[i,j]for i in L_0 if i!=j)==1 for j in L )
    #truck capacity
    mdl.add_constraints(u[i]-u[j]+Q*x[i,j]<= Q-d_L[j] for i,j in A_L if i!=0 and j!=0)

    ##### bakchaul constraints
    #truck constraints
    mdl.add_constraint(mdl.sum(y[i,0]for i in B)+mdl.sum(z[i,0] for i in L)==k )
    #mdl.add_constraint(mdl.sum(y[i,0]for i in B)<=k )
    #degree constraints
    mdl.add_constraints(mdl.sum(y[i,j]for j in B_0 if j!=i)==1 for i in B)
    #truck capacity
    mdl.add_constraints(w[i]-w[j]+Q*y[i,j]<=Q-d_B[j] for i,j in A_B if i!=0 and j!=0)

    ####### connection constraints
    #truck constraints
    mdl.add_constraint(mdl.sum(z[i,j]for i,j in A_C )==k)
    #degree constraints
    mdl.add_constraints(mdl.sum(x[i,j] for j in L if j!=i )+ mdl.sum(z[i,j] for j in B_0 )==1 for i in L)
    mdl.add_constraints(mdl.sum(y[i,j] for i in B if i!=j )+ mdl.sum(z[i,j] for i in L )==1 for j in B)
    ###################################
    ####objective functions
    obj_Linhaul = mdl.sum(c[i,j]*x[i,j]for i,j in A_L)
    mdl.add_kpi(obj_Linhaul, 'Linehaul Cost')

    obj_Backhaul = mdl.sum(c[i,j]*y[i,j]for i,j in A_B)
    mdl.add_kpi(obj_Backhaul, 'Backhaul Cost')

    obj_Connection = mdl.sum(c[i,j]*z[i,j]for i,j in A_C)
    mdl.add_kpi(obj_Connection, 'Connection Cost')

    objective = obj_Linhaul+obj_Backhaul+obj_Connection
    mdl.add_kpi(objective, 'Total Cost')
    #######################################
    #solving model
    mdl.minimize(objective)
    #mdl.parameters.timelimit=5
    solution =mdl.solve(log_output=False) #true if you need to see the steps of slover
    #mdl.report_kpis()
    if not solution:
        print('fail in solving, there is no feasible solution')
    #mdl.export_as_lp()
    ########################################
    #Collect optimal solution
    x_opt=[a for a in A_L if x[a].solution_value> 0.9]
    y_opt=[a for a in A_B if y[a].solution_value> 0.9]
    z_opt=[a for a in A_C if z[a].solution_value> 0.9]
    obj_opt=round(solution.objective_value,2)

    return obj_opt, x_opt, y_opt, z_opt
##############################################################################
#### step 1: preparing data
# location of nodes
loc_x = {0:0, 1:0, 2:2, 3:2, 4:0.5, 5:1.5}
loc_y = {0:0, 1:2, 2:2, 3:0, 4:1, 5:1}

# vehicles capacity and number of available vehicles at the depot
Q = 2
k = 2

# all nodes, where 0 states the depot. all links and symetric distance matrix
V = [0, 1, 2, 3, 4, 5]
A = [(i,j) for i in V for j in V]
c = {(i,j): round(np.sqrt((loc_x[j]-loc_x[i])**2 + (loc_y[j]-loc_y[i])**2),2) for i,j in A}

# all nodes and links related to linehaul customers
L = [1, 2, 3]
L_0 = [0] +L
d_L = {1:1, 2:1, 3:1}
A_L = [(i,j) for i in L_0 for j in L if i!=j]

# all nodes and links related to backhaul customers
B = [1,3, 4, 5]
B_0 = B + [0]
d_B = {1:1 ,3:1, 4:1, 5:1}
A_B = [(i,j) for i in B for j in B_0 if i!=j]

# all links related to connecting linehaul routes to backhaul routes or to the depot
A_C= [(i,j) for i in L for j in B_0]

#### step 2:  solve the problem
start = time.clock()
obj_opt, x_opt, y_opt, z_opt = CVRPB()
stop = time.clock()
CPU_running_time = round(stop - start,2)

#### step 3:  print the solution
print ('The solution for VRPB with simultaneous demand for small-scale dataset is:',
       '\nObjective value = ', obj_opt, '\nCPU running time in second = ', CPU_running_time)

print('\n the route sequence is', '\nlinehau = ', x_opt, '\nconnection = ', z_opt, '\nbaclhaul = ', y_opt )

https://github.com/IrandokhtPVZ/Vehicle-Routing-Problem-with-Backhaul
引用的代码

An Exact Algorithm for the Vehicle Routing Problem with Backhauls Author(s): PAOLO TOTH and DANIELE VIGO
