boa配置流程详解

前期准备
配置流程
附录A history
附录B boa.conf

前期准备

boa介绍

Boa服务器是一个小巧高效的web服务器，是一个运行于unix或linux下的，支持CGI的、适合于嵌入式系统的单任务的http服务器，源代码开放、性能高。Boa是一种非常小巧的Web服务器，其可执行代码只有大约60KB左右。作为一种单任务Web服务器，Boa只能依次完成用户的请求，而不会fork出新的进程来处理并发连接请求。但Boa支持CGI，能够为CGI程序fork出一个进程来执行。Boa的设计目标是速度和安全。

操作目的

本次流程目的是在飞凌开发板部署配置boa服务器，平台为aarch64，通过简单逻辑登录页面来验证流程是否成功，并将流程中的报错一并托出。

下载boa

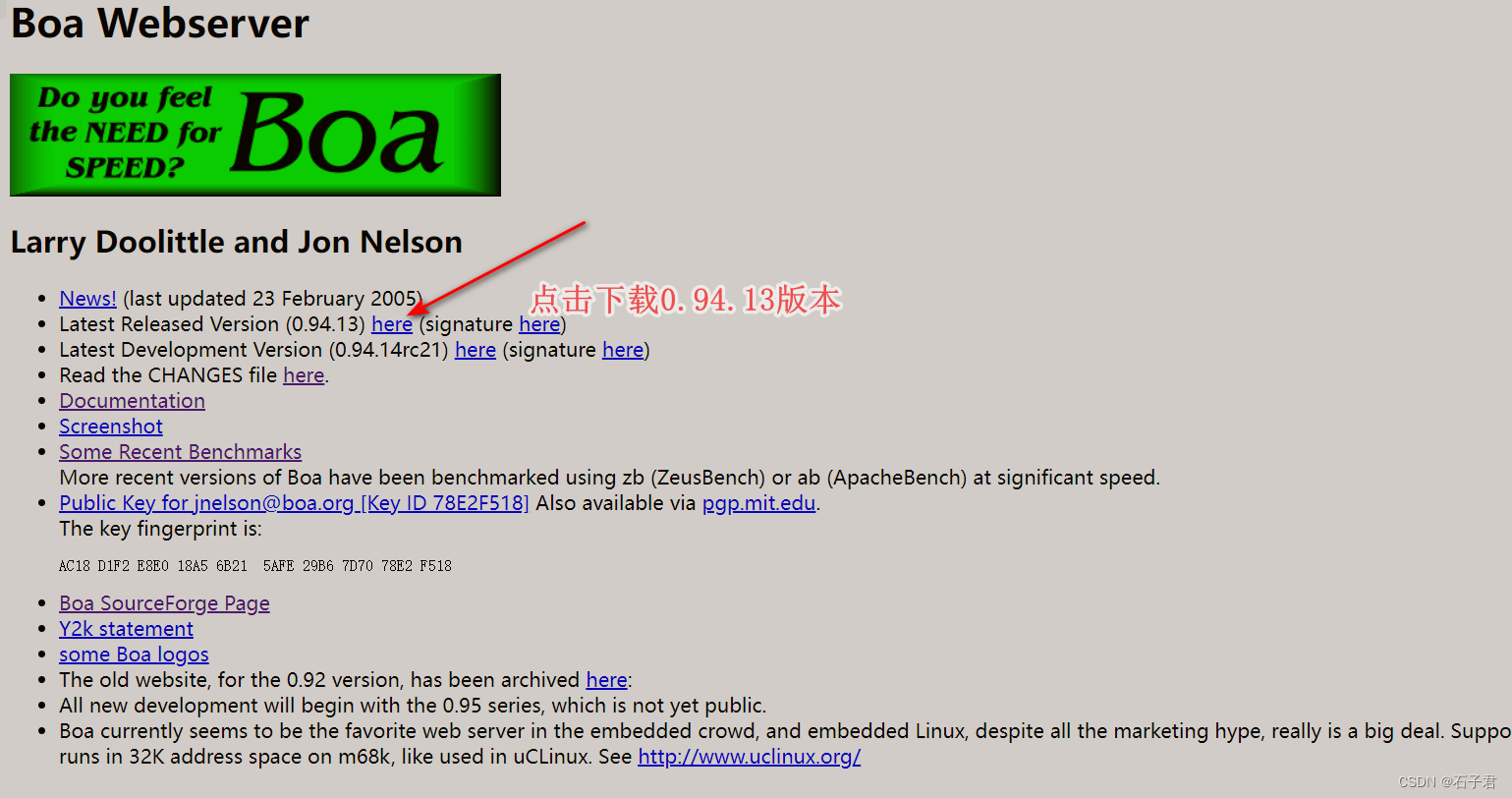

boa官网地址:www.boa.org
记得不要选0.94.14rc21，这个解压后src目录下没有configure文件，选择0.94.13的here下载。下载的格式是boa-0.94.13.tar.gz
请添加图片描述

配置流程

首先先连接好目标ip将boa的压缩包传进去，例：如果使用ubuntu的小伙伴那就使用xftp或者MobaXterm或者FileZilla Client将boa-0.94.13.tar.gz传入Ubuntu。

（本文会将history附在最后，暂记附录A）

1.解压boa服务器

我们假设你已经进入到Ubuntu的home路径下，开始解压boa
sudo tar zxvf boa-0.94.13.tar.gz
cd boa-0.94.13
sudo apt-get install bison flex
cd src
./configure 生成Makefile

2.配置Makefile

这里需要注意的是，假使你的目标是X86平台，可以跳过步骤2，如果你的目标平台是aarch64 arm等，需要改动makefile

查看平台架构：uname -m
文件显示行号：按键Esc，输入英文:set nu 或者:set number

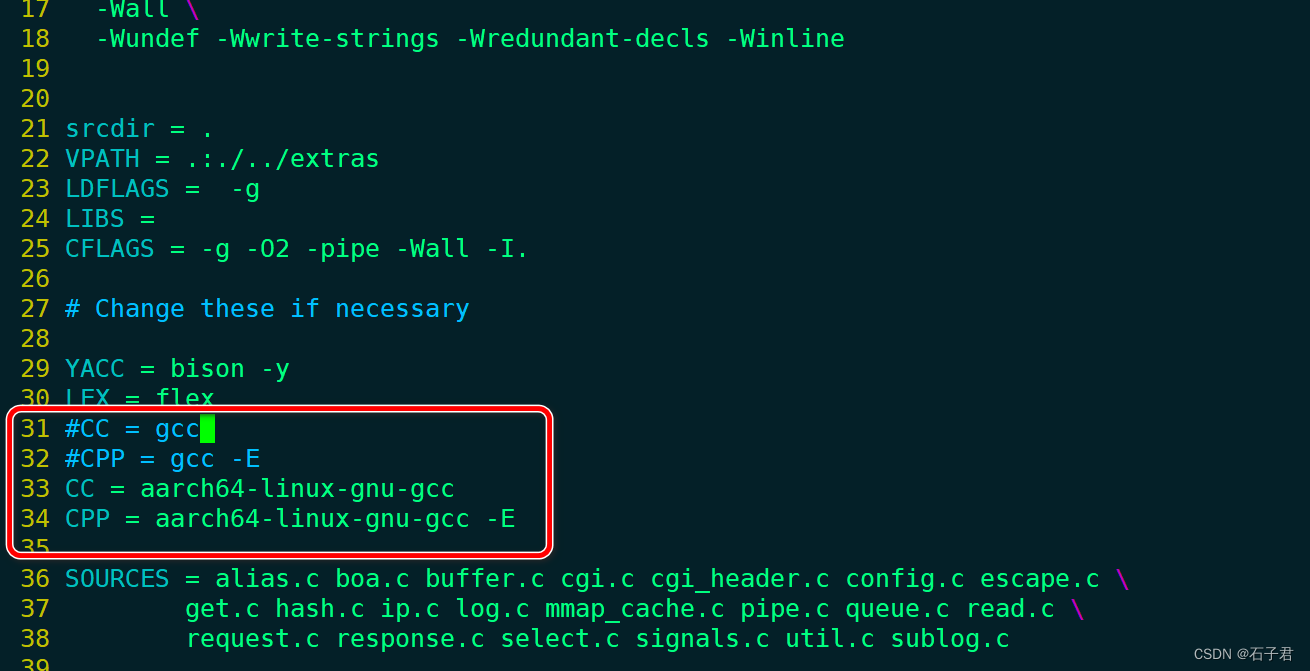

makefile改动CC CPP两点，如图示例。
执行
sudo vi Makefile
请添加图片描述
小伙伴们注意哈，aarch64-linux-gnu-gcc是tab补全的，千万别自己傻傻敲哈。

3.编译boa服务器

目前是在src目录下，即当前路径（以我为例）为/home/graysen/boa-0.94.13/src

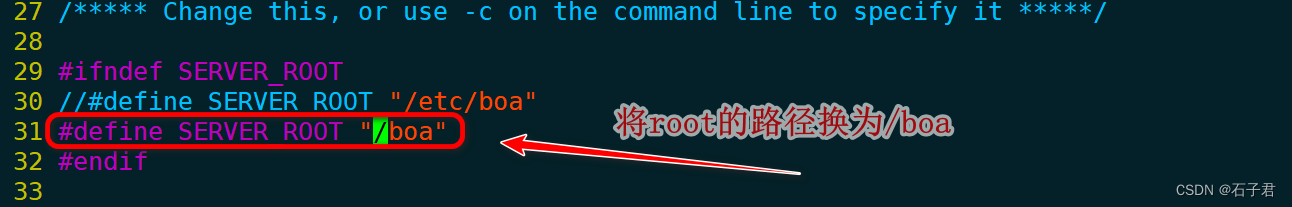

3.1 编辑defines.h
sudo vi defines.h
请添加图片描述
这里是web服务器根目录，也就是web，cgi的存放位置。

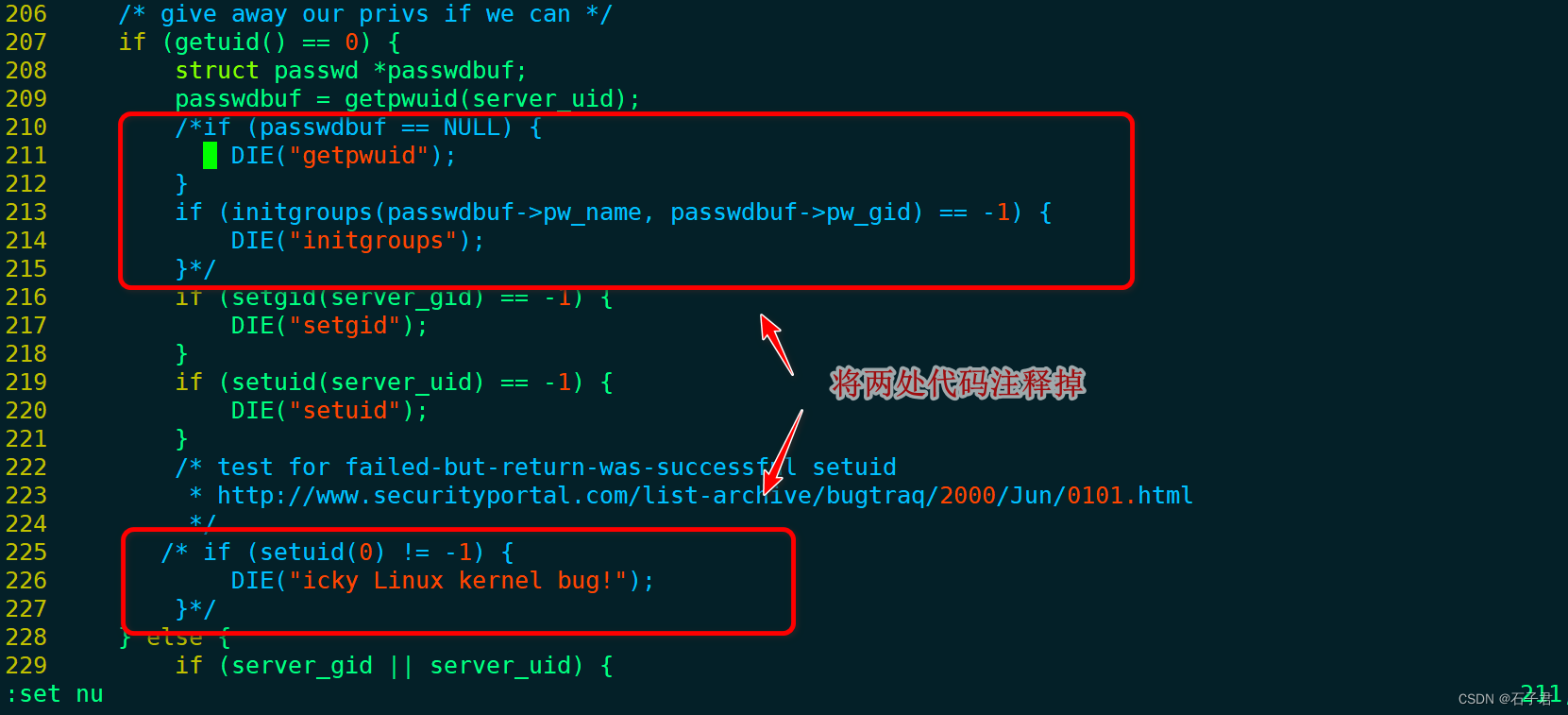

3.2 编辑boa.c

sudo vi boa.c
请添加图片描述

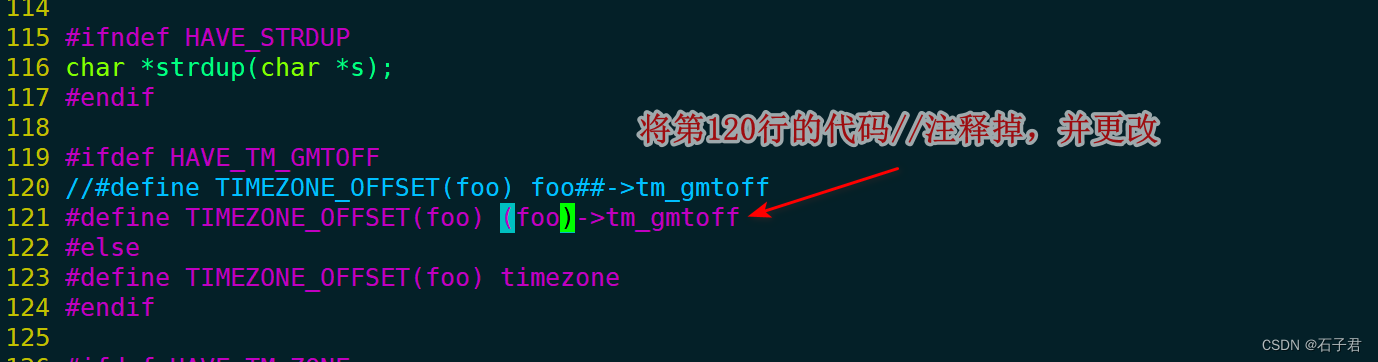

3.3 编辑compat.h

sudo vi compat.h

请添加图片描述

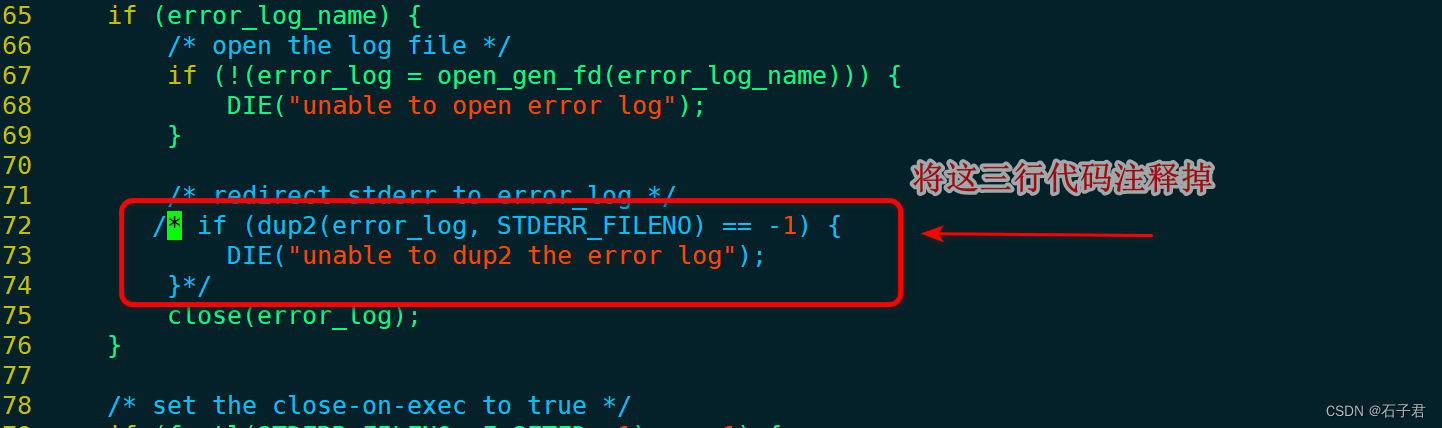

3.4 编辑log.c

sudo vi log.c

请添加图片描述
这里需要注意下，注释log.c的作用是决定是否显示启动boa服务器的打印输出，比如我注释了，在启动boa时会在shell中显示详细执行情况；如果不注释，启动完boa无任何输出（无论注释或者不注释结果都会显示在/boa/log目录下）

编辑修改文件工作已经完成
当前在src目录下

执行
sudo make

开始编译

编译完成后，开始安装boa服务器
在src目录下
sudo mkdir -p /boa /boa/www /boa/cgi-bin /boa/log
请添加图片描述
cd …

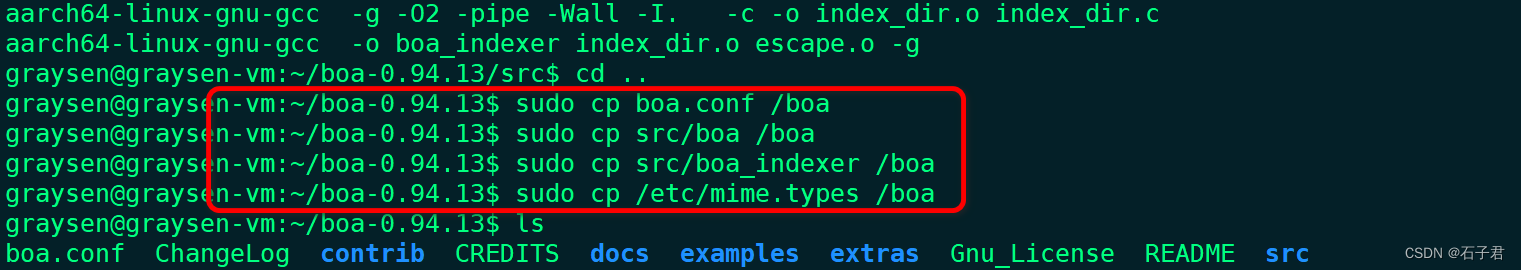

回到boa-0.94.13目录，将编译后的文件copy到boa服务器位置
执行
sudo cp boa.conf /boa
sudo cp src/boa /boa
sudo cp src/boa_indexer /boa
sudo cp /etc/mime.types /boa

请添加图片描述

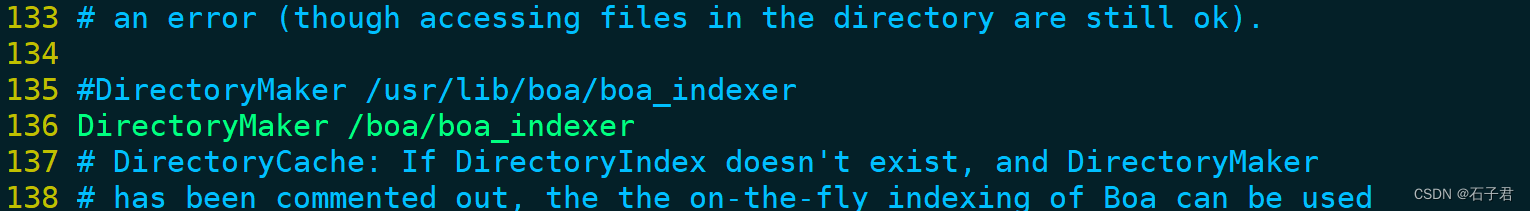

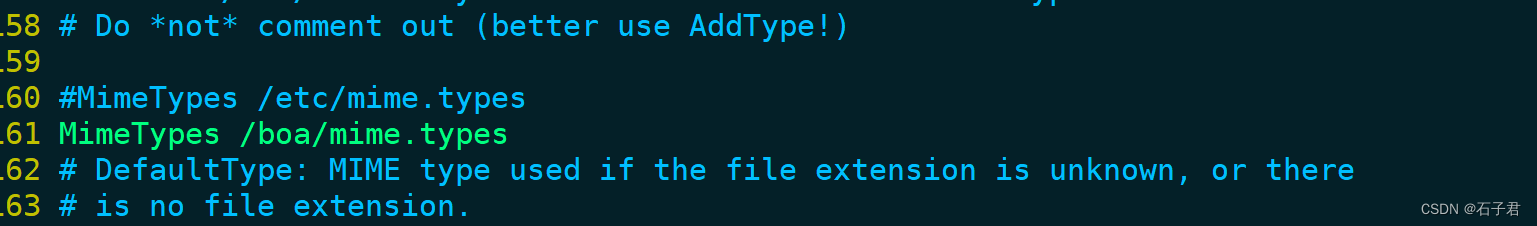

4.修改boa配置文件

我们将boa服务器放在了根目录下
cd /boa

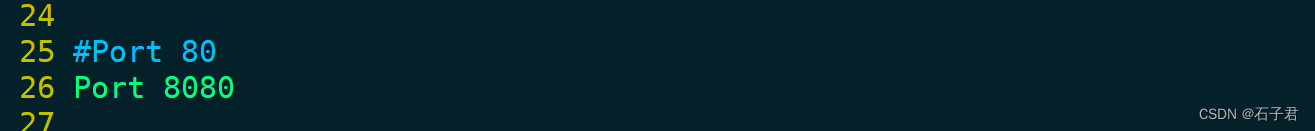

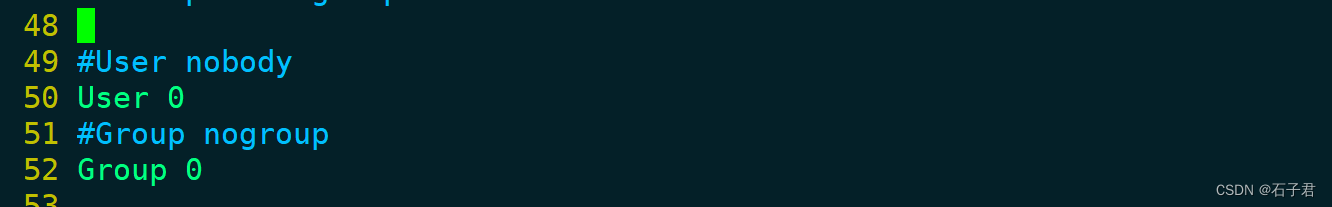

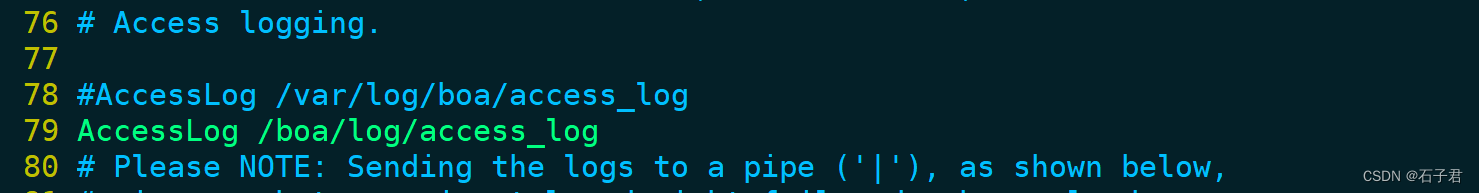

sudo vim boa.conf

请添加图片描述

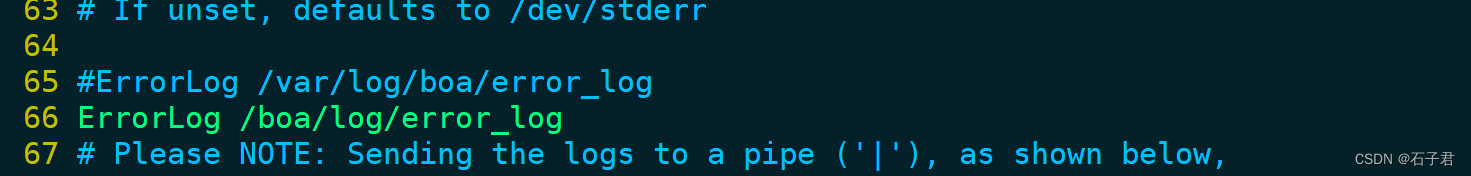

#ErrorLog /var/log/boa/error_log是定向输出到这的错误日志，如果您不想记录错误，请设置为 /dev/null。

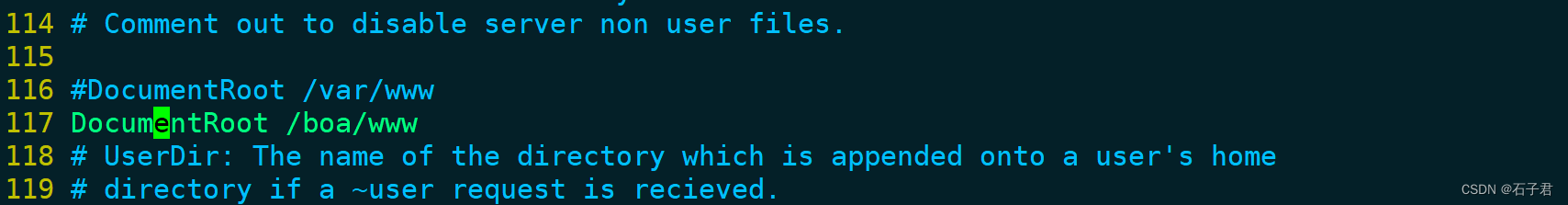

DocumentRoot /boa/www是你的web的目录，存放web的地方

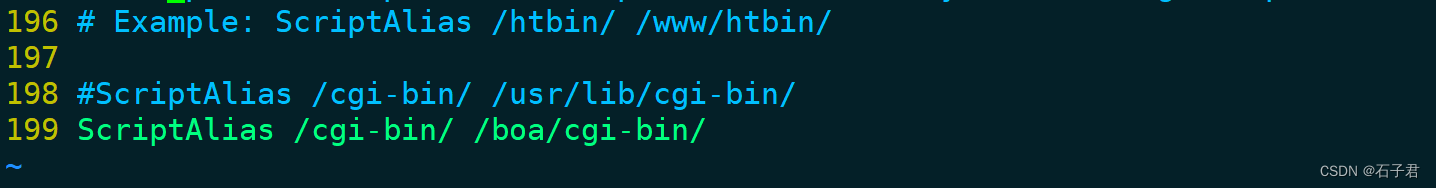

ScriptAlias /cgi-bin/ /boa/cgi-bin/是存放.c .cgi文件的地方，当然可以指定任何地方，可以在www下建立cgi-bin进行存放，那么这里就需要修改为：
ScriptAlias /cgi-bin/ /boa/www/cgi-bin/
请添加图片描述
里面字段的具体含义可以参考官网解释http://www.boa.org/documentation/boa-2.html#ss2.3

（本文会将boa.conf全文放置最后，暂且记附录B）

5.增加权限并编译cgi

修改boa权限

cd /boa
sudo chmod 777 *

编写简单html demo存放至/boa/www下

<html>
<head>
<title>CGI login</title>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
</head>
<body>
<form name="login" action="../cgi-bin/login.cgi">name：<input type="text" name="name" />
<br/>password：<input type="password" name="pwd" />
<br/>true：<input type="submit" value="login" />
</form>
</body>
</html>

编写简单c demo编译后存放至/boa/cgi-bin下

#include<stdio.h>
#include<stdlib.h>
int main()
{
    char *date;
    char name[50],pwd[20];
    printf("content-type:text/html;charset=utf-8\n\n");
    printf("<TITLE>login ret</TITLE>");
    printf("<H3>login ret</h3>");
    date=getenv("QUERY_STRING");
    if(date==NULL)
        printf("<p>err</p>");
    else
    {
        sscanf(date,"name=%[^&]&pwd=%s",name,pwd);
        printf("<p>name=%s</p>",name);
        printf("<p>pwd=%s</p>",pwd);
        printf("%s",date);
    }
    return 0;
}

printf("content-type:text/html;charset=utf-8\n\n");  如果你自己C文件这句话一定要加上

注意：
如果你是X86平台运行，请使用gcc编译
如果你是aarch64 arm平台运行，请使用aarch64-linux-gnu-gcc或者arm-linux-gnueabi-gcc编译

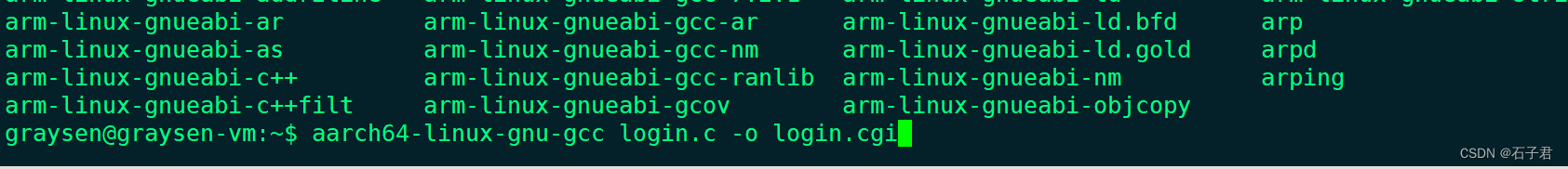

以我为例，使用aarch64-linux-gnu-gcc编译

请添加图片描述
将我的示例代码login.cgi存放至/boa/cgi-bin下

sudo cp login.cgi /boa/cgi-bin
并增加权限
(当前我已经切换到/boa/cgi-bin目录下)
sudo chmod 777 *(或者sudo chmod 777 login.cgi)

6.测试demo

在/boa目录下会看到boa
执行
./boa
启动服务器

打开浏览器输入（你的ubuntu ip或者开发板ip）（boa.conf设置的端口）
以我为例：192.168.31.201:8080
请添加图片描述
成功显示页面，并输入账号密码

请添加图片描述
成功跳转到/cgi-bin/login.cgi，显示正确

7.错误示例

7.1 -bash: ./boa: cannot execute binary file: Exec format error
出现-bash: ./boa: cannot execute binary file: Exec format error错误可能是因为你的交叉编译出问题了，有可能是你的目标环境是aarch64，但是你是用gcc编译的C文件，请尝试修改makefile，使用正确的编译器编译，遵循makefile-编译C-目标环境一致。

7.2Could not chdir to “/etc/boa”: aborting
关于该目录的定义在 defines.h中，可能你的boa服务器目录没有配置或者配置路径出错，按照我们示例，是将#define SERVER_ROOT修改为 “/boa”

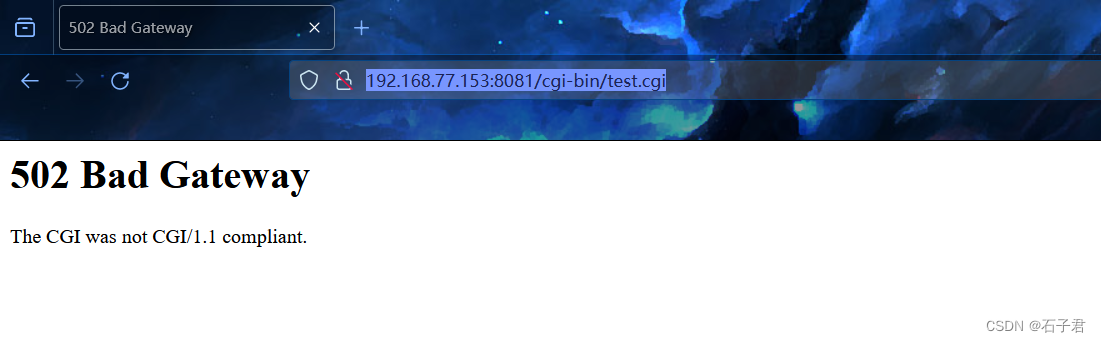

7.3 502 Bad GatewayThe CGI was not CGI/1.1 compliant

出现
502 Bad Gateway
The CGI was not CGI/1.1 compliant
cgi_header: unable to find LFLF

原因有以下几点：
1.可能是网址打错了(路径是否和配置文件对应)
2.配置有问题
3.权限没给足 chmod 777 test.cgi
4.代码本身有问题（先测测 cgi-test.cgi）
5.c代码使用错误的编译器生成了cgi
请添加图片描述
6.试试关闭两端防火墙，关闭火绒等

依次检查完无误后如果还是不行，可以尝试重新配置并移植boa

7.4 GET http://192.168.77.149:888/favicon.ico

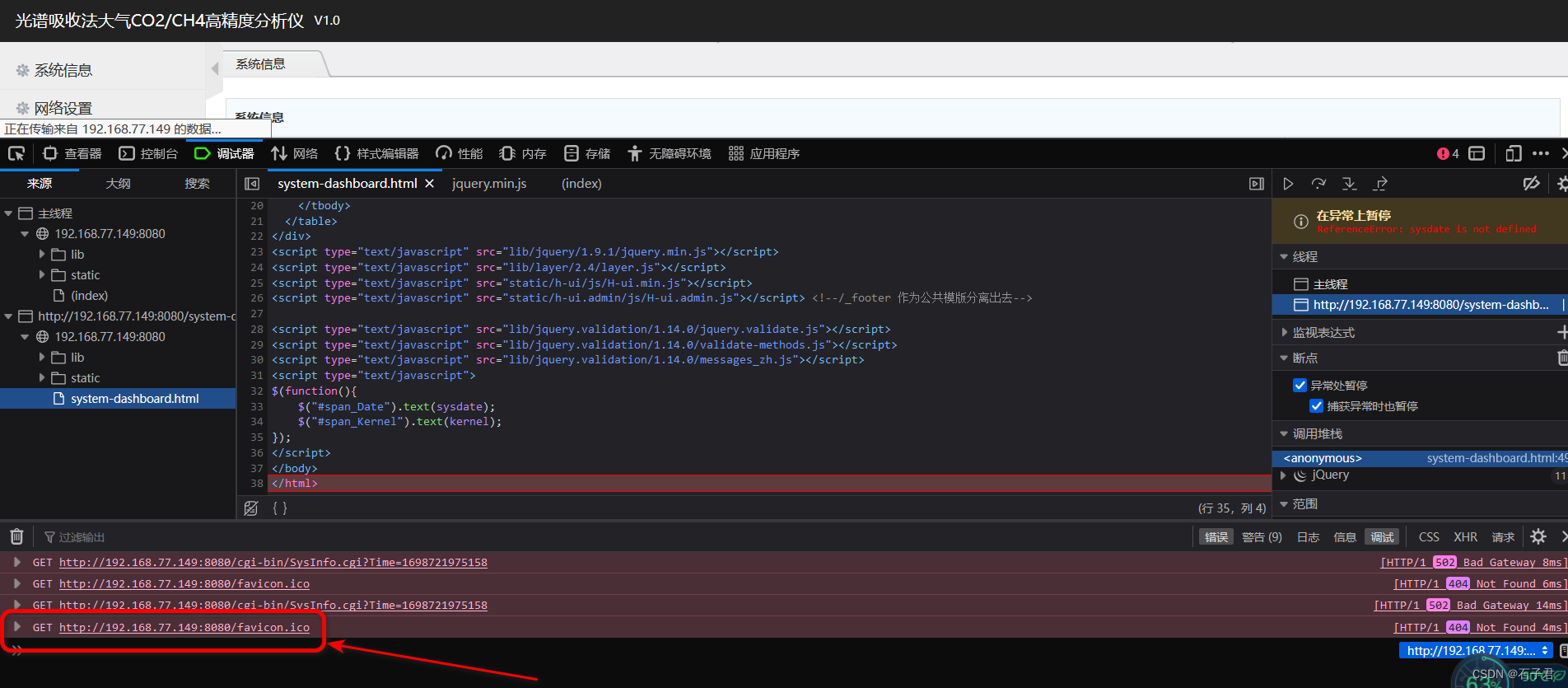

在网络调试抓捕中出现GET http://192.168.77.149:888/favicon.ico
请添加图片描述

显示你没有favicon.ico文件，在/boa/www下传入favicon.ico文件即可

favicon.ico一般用于作为缩略的网站标志，它显示在浏览器的地址栏、浏览器标签上或者在收藏夹上，是展示网站个性的缩略logo标志。

你可以使用在线转换网页来将任意图片转换为favicon.ico

附录A history

cd boa-0.94.13/
ls
sudo apt-get install bison flex
cd src/
sudo ./configure
ls
sudo vi defines.h
sudo vi boa.c
sudo vi compat.h
sudo make
sudo mkdir -p /boa /boa/www /boa/cgi-bin /boa/log
sudo cp boa.conf /boa
sudo cp src/boa /boa
sudo cp src/boa_indexer /boa
sudo cp /etc/mime.types /boa
sudo cp test.html /boa/www/
sudo cp test.c /boa/cgi-bin/
sudo ufw disable

附录B boa.conf

# Boa v0.94 configuration file
# File format has not changed from 0.93
# File format has changed little from 0.92
# version changes are noted in the comments
#
# The Boa configuration file is parsed with a lex/yacc or flex/bison
# generated parser.  If it reports an error, the line number will be
# provided; it should be easy to spot.  The syntax of each of these
# rules is very simple, and they can occur in any order.  Where possible
# these directives mimic those of NCSA httpd 1.3; I saw no reason to
# introduce gratuitous differences.

# $Id: boa.conf,v 1.25 2002/03/22 04:33:09 jnelson Exp $

# The "ServerRoot" is not in this configuration file.  It can be compiled
# into the server (see defines.h) or specified on the command line with
# the -c option, for example:
#
# boa -c /usr/local/boa


# Port: The port Boa runs on.  The default port for http servers is 80.
# If it is less than 1024, the server must be started as root.

#Port 80
Port 8080

# Listen: the Internet address to bind(2) to.  If you leave it out,
# it takes the behavior before 0.93.17.2, which is to bind to all
# addresses (INADDR_ANY).  You only get one "Listen" directive,
# if you want service on multiple IP addresses, you have three choices:
#    1. Run boa without a "Listen" directive
#       a. All addresses are treated the same; makes sense if the addresses
#          are localhost, ppp, and eth0.
#       b. Use the VirtualHost directive below to point requests to different
#          files.  Should be good for a very large number of addresses (web
#          hosting clients).
#    2. Run one copy of boa per IP address, each has its own configuration
#       with a "Listen" directive.  No big deal up to a few tens of addresses.
#       Nice separation between clients.
# The name you provide gets run through inet_aton(3), so you have to use dotted
# quad notation.  This configuration is too important to trust some DNS.

#Listen 192.68.0.5

#  User: The name or UID the server should run as.
# Group: The group name or GID the server should run as.

User nobody
#Group nogroup
Group nobody

# ServerAdmin: The email address where server problems should be sent.
# Note: this is not currently used, except as an environment variable
# for CGIs.

#ServerAdmin root@localhost

# ErrorLog: The location of the error log file. If this does not start
# with /, it is considered relative to the server root.
# Set to /dev/null if you don't want errors logged.
# If unset, defaults to /dev/stderr

#ErrorLog /var/log/boa/error_log
ErrorLog /boa/log/error_log
# Please NOTE: Sending the logs to a pipe ('|'), as shown below,
#  is somewhat experimental and might fail under heavy load.
# "Usual libc implementations of printf will stall the whole
#  process if the receiving end of a pipe stops reading."
#ErrorLog "|/usr/sbin/cronolog --symlink=/var/log/boa/error_log /var/log/boa/error-%Y%m%d.log"

# AccessLog: The location of the access log file. If this does not
# start with /, it is considered relative to the server root.
# Comment out or set to /dev/null (less effective) to disable
# Access logging.

#AccessLog /var/log/boa/access_log
AccessLog /boa/log/access_log
# Please NOTE: Sending the logs to a pipe ('|'), as shown below,
#  is somewhat experimental and might fail under heavy load.
# "Usual libc implementations of printf will stall the whole
#  process if the receiving end of a pipe stops reading."
#AccessLog  "|/usr/sbin/cronolog --symlink=/var/log/boa/access_log /var/log/boa/access-%Y%m%d.log"

# UseLocaltime: Logical switch.  Uncomment to use localtime
# instead of UTC time
#UseLocaltime

# VerboseCGILogs: this is just a logical switch.
#  It simply notes the start and stop times of cgis in the error log
# Comment out to disable.

#VerboseCGILogs

# ServerName: the name of this server that should be sent back to
# clients if different than that returned by gethostname + gethostbyname

#ServerName www.your.org.here

# VirtualHost: a logical switch.
# Comment out to disable.
# Given DocumentRoot /var/www, requests on interface 'A' or IP 'IP-A'
# become /var/www/IP-A.
# Example: http://localhost/ becomes /var/www/127.0.0.1
#
# Not used until version 0.93.17.2.  This "feature" also breaks commonlog
# output rules, it prepends the interface number to each access_log line.
# You are expected to fix that problem with a postprocessing script.

#VirtualHost

# DocumentRoot: The root directory of the HTML documents.
# Comment out to disable server non user files.

#DocumentRoot /var/www
DocumentRoot /boa/www
# UserDir: The name of the directory which is appended onto a user's home
# directory if a ~user request is recieved.

UserDir public_html

# DirectoryIndex: Name of the file to use as a pre-written HTML
# directory index.  Please MAKE AND USE THESE FILES.  On the
# fly creation of directory indexes can be _slow_.
# Comment out to always use DirectoryMaker

DirectoryIndex index.html

# DirectoryMaker: Name of program used to create a directory listing.
# Comment out to disable directory listings.  If both this and
# DirectoryIndex are commented out, accessing a directory will give
# an error (though accessing files in the directory are still ok).

#DirectoryMaker /usr/lib/boa/boa_indexer
DirectoryMaker /boa/boa_indexer
# DirectoryCache: If DirectoryIndex doesn't exist, and DirectoryMaker
# has been commented out, the the on-the-fly indexing of Boa can be used
# to generate indexes of directories. Be warned that the output is
# extremely minimal and can cause delays when slow disks are used.
# Note: The DirectoryCache must be writable by the same user/group that
# Boa runs as.

# DirectoryCache /var/spool/boa/dircache

# KeepAliveMax: Number of KeepAlive requests to allow per connection
# Comment out, or set to 0 to disable keepalive processing

KeepAliveMax 1000

# KeepAliveTimeout: seconds to wait before keepalive connection times out

KeepAliveTimeout 10

# MimeTypes: This is the file that is used to generate mime type pairs
# and Content-Type fields for boa.
# Set to /dev/null if you do not want to load a mime types file.
# Do *not* comment out (better use AddType!)

#MimeTypes /etc/mime.types
MimeTypes /boa/mime.types
# DefaultType: MIME type used if the file extension is unknown, or there
# is no file extension.

DefaultType text/plain

# CGIPath: The value of the $PATH environment variable given to CGI progs.

CGIPath /bin:/usr/bin:/usr/local/bin

# SinglePostLimit: The maximum allowable number of bytes in
# a single POST.  Default is normally 1MB.

# AddType: adds types without editing mime.types
# Example: AddType type extension [extension ...]

# Uncomment the next line if you want .cgi files to execute from anywhere
#AddType application/x-httpd-cgi cgi

# Redirect, Alias, and ScriptAlias all have the same semantics -- they
# match the beginning of a request and take appropriate action.  Use
# Redirect for other servers, Alias for the same server, and ScriptAlias
# to enable directories for script execution.

# Redirect allows you to tell clients about documents which used to exist in
# your server's namespace, but do not anymore. This allows you to tell the
# clients where to look for the relocated document.
# Example: Redirect /bar http://elsewhere/feh/bar

# Aliases: Aliases one path to another.
# Example: Alias /path1/bar /path2/foo

Alias /doc /usr/doc

# ScriptAlias: Maps a virtual path to a directory for serving scripts
# Example: ScriptAlias /htbin/ /www/htbin/

#ScriptAlias /cgi-bin/ /usr/lib/cgi-bin/
ScriptAlias /cgi-bin/ /boa/cgi-bin/

石子君

关注

2
点赞
踩
5

收藏

觉得还不错? 一键收藏
打赏
1
评论
嵌入式web boa配置流程详解

Boa服务器是一个小巧高效的web服务器，是一个运行于unix或linux下的，支持CGI的、适合于嵌入式系统的单任务的http服务器，源代码开放、性能高。Boa是一种非常小巧的Web服务器，其可执行代码只有大约60KB左右。作为一种单任务Web服务器，Boa只能依次完成用户的请求，而不会fork出新的进程来处理并发连接请求。但Boa支持CGI，能够为CGI程序fork出一个进程来执行。Boa的设计目标是速度和安全。
复制链接

扫一扫
