使用python对光谱进行lorentz峰值拟合并作图（标注峰值点位）

承接：

使用python对光谱进行lorentz峰值拟合

接下来是对图象的处理，即作图。

import numpy as np
import matplotlib.pyplot as plt
from scipy.optimize import curve_fit

# 定义Lorentzian函数
def lorentzian(x, x0, A, gamma):
    return A * gamma**2 / ((x - x0)**2 + gamma**2)

# 定义双Lorentzian函数作为拟合模型
def double_lorentzian(x, x1, A1, gamma1, x2, A2, gamma2):
    return lorentzian(x, x1, A1, gamma1) + lorentzian(x, x2, A2, gamma2)

# 生成模拟的光谱数据
x_data = np.linspace(500, 700, 200)
true_params = [600, 1000, 20, 650, 800, 30]
y_data = double_lorentzian(x_data, *true_params) + np.random.normal(0, 50, len(x_data))

wavelength = x_data
intensity = y_data

# 进行拟合
initial_guess = [600, 1000, 20, 650, 800, 30]
fit_params, _ = curve_fit(double_lorentzian, wavelength, intensity, p0=initial_guess)

# 绘制拟合结果
plt.plot(wavelength, intensity, label='Original Spectrum')
fit_curve = double_lorentzian(wavelength, *fit_params)
plt.plot(wavelength, fit_curve, color='red', label='Double Lorentz Fit')

# 标注峰的位置
for i in range(0, len(fit_params), 3):
    peak_position = fit_params[i]
    peak_intensity = lorentzian(peak_position, *fit_params[i:i+3])

    plt.plot(peak_position, peak_intensity, 'bo')  # 标注峰的位置

    # 绘制垂直虚线
    plt.plot([peak_position, peak_position], [0, peak_intensity], color='gray', linestyle='--')

    # 添加标签
    plt.text(peak_position, peak_intensity, f'({peak_position:.1f}, {peak_intensity:.1f})', fontsize=9, color='blue')


plt.plot(wavelength, lorentzian(wavelength, fit_params[0], fit_params[1], fit_params[2]),
         linestyle='dashed', color='green', label='Lorentz 1: ' + "{:.1f}".format(fit_params[0]))
plt.plot(wavelength, lorentzian(wavelength, fit_params[3], fit_params[4], fit_params[5]),
         linestyle='dashed', color='blue', label='Lorentz 2: ' + "{:.1f}".format(fit_params[3]))

plt.legend()
plt.xlabel('Wavelength')
plt.ylabel('Intensity')
plt.title('Double Lorentz Peak Fitting')

plt.show()

print('Fit parameters:', fit_params)

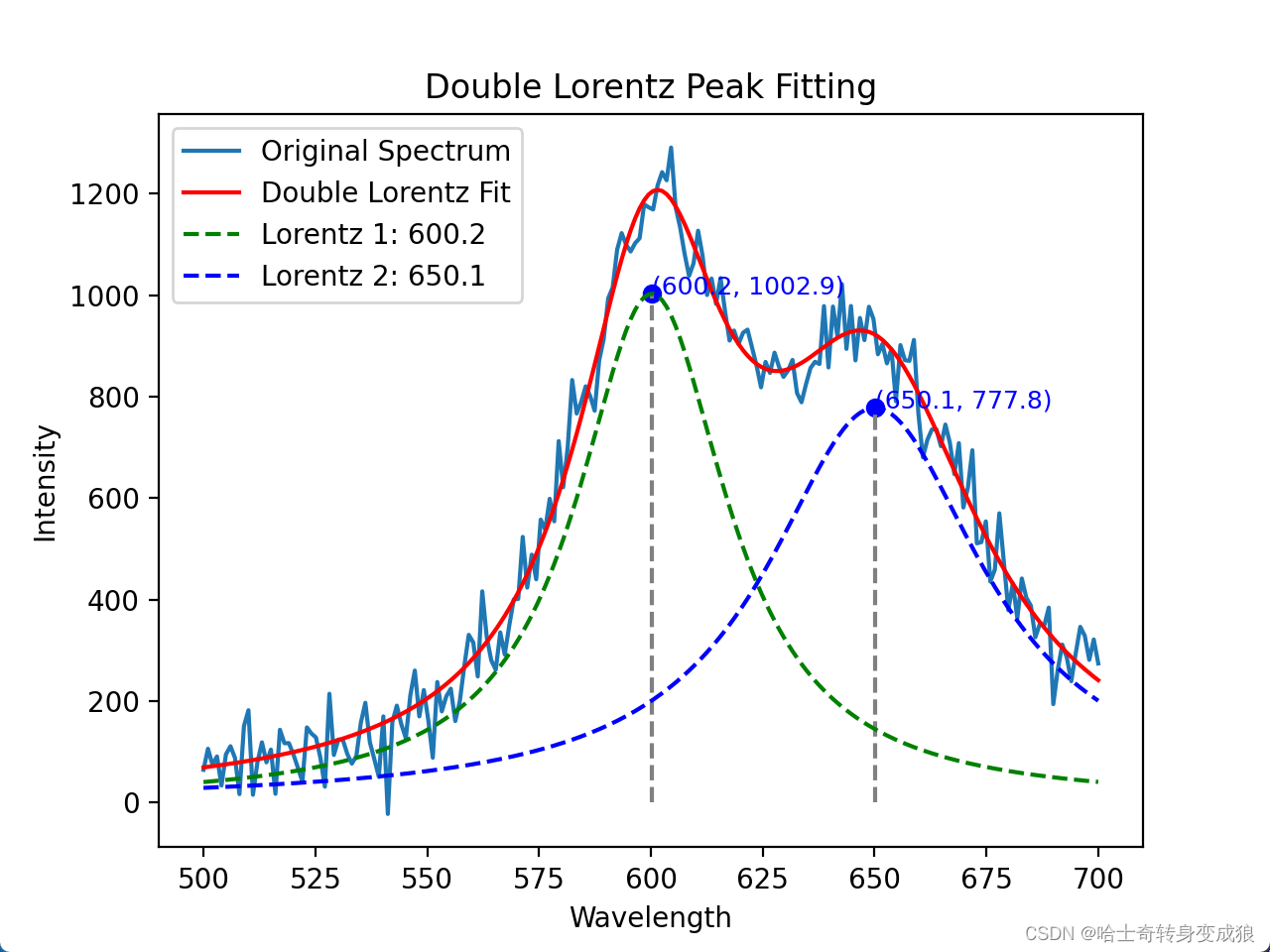

效果如图所示：
