Linux（Ubuntu系统）-- Conky配置文件记录

Conky文件配置

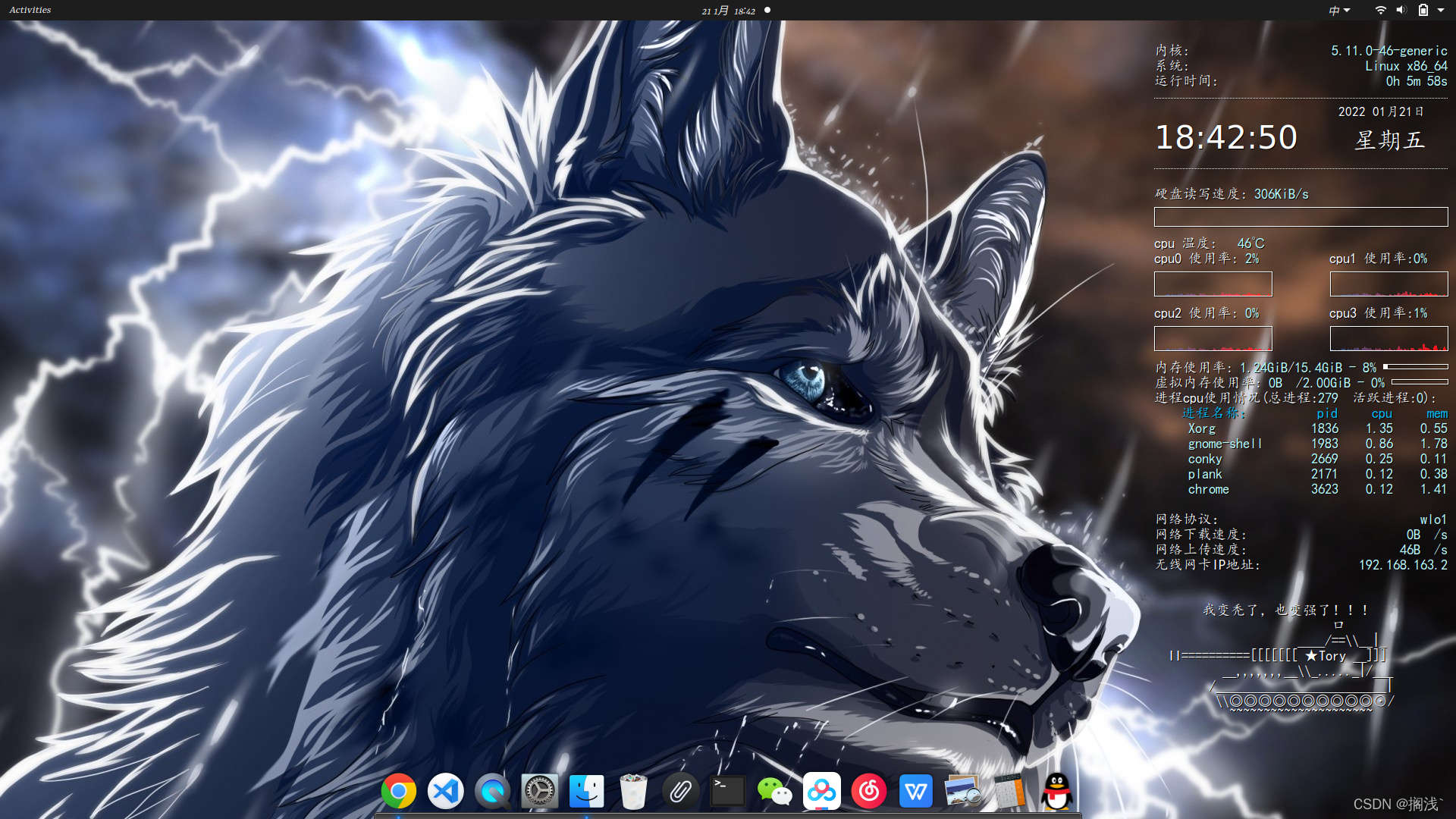

不禁觉得这匹狼配上conky有点小帅，特此记录一下。。。

Conky配置文件：

alignment top_right
#设置屏幕位置
background yes
#是否嵌入桌面
draw_borders no
#是否绘制窗口边框
border_width 1
#窗口边框宽度

cpu_avg_samples 2
#default_color cornflowerblue
#默认颜色
default_shade_color black
#默认字体阴影颜色
#default_outline_color red
#默认字体轮廓线颜色
double_buffer yes
#双缓冲绘图
draw_graph_borders yes
#绘制网速cpu等外框
#draw_outline yes

#绘制字体轮廓线
draw_shades yes
#绘制字体阴影

gap_x 10
gap_y 35

minmum_width 330
minmum_height 900

max_user_text 16384
net_avg_samples 2
no_buffers yes
out_to_console no

own_window yes
#自己的窗口
own_window_hints undecorated,below,sticky,skip_taskbar,skip_pager
#设置其嵌入桌面相关信息，不设置则会另起窗口
own_window_transparent yes
#窗口完全透明

own_window_argb_visual yes
own_window_argb_value 150
#窗口颜色值

update_interval 1
#更新时间单位秒
uppercase no
#全部大写
use_xft yes
#是否使用全局字体

color0 white
color1 green
color2 yellow
color3 blue

TEXT
${font 楷体:style=Bold:size=14}
${color0}内核:  ${color #BBFFFF}${alignr}$kernel
${color0}系统:  ${color #BBFFFF}${alignr}${Sysname} ${Machine}
${color0}运行时间:${color #BBFFFF}  ${alignr}$uptime
${color0}${stippled_hr}
${color white}${font 楷体:style=Bold:size=13} ${alignr 30} ${time %Y %m月%d日}
${color white}${font style=Bold:size=32}${time %H:%M:%S}\
${color white}${font 楷体:style=Bold:size=24} ${alignr 30} ${time 星期%a}
${color0}${stippled_hr}
${font 楷体:size=14}\
${color0}硬盘读写速度: ${color #BBFFFF}${diskio}/s
${color0}${diskiograph 32 155 104E8B ff0000 750}
#diskio->硬盘读写速度; diskiograph->硬盘读写速度监视器
${color0}cpu 温度:   ${color #BBFFFF}${acpitemp}℃
${color0}cpu0 使用率:${color #BBFFFF} ${cpu cpu0}% ${alignr 28}${color0}cpu1 使用率:${color #BBFFFF}${cpu cpu1}%
#
${color0}${cpugraph cpu0 2 32,155 104E8B ff0000} ${alignr}${color0}${cpugraph cpu1 2 32,155 104E8B ff0000}
#cpu->cpu实时占用百分比；cpubar->进度条；cpugraph->监视器；
${color0}cpu2 使用率:${color #BBFFFF} ${cpu cpu2}% ${alignr 28}${color0}cpu3 使用率:${color #BBFFFF}${cpu cpu3}%
#
${color0}${cpugraph cpu2 2 32,155 104E8B ff0000} ${alignr}${color0}${cpugraph cpu3 2 32,155 104E8B ff0000}
##cpu->cpu实时占用百分比；cpubar->进度条；cpugraph->监视器；
#
${color0}内存使用率:${color #BBFFFF} $mem${color0}/${color #BBFFFF}$memmax - $memperc% ${color0}$membar
#内存使用监控：mem->实时内存占用大小；memmax->内存总容量；memperc->内存实时占用百分比
#
${color0}虚拟内存使用率:${color #BBFFFF} $swap${color0}/${color #BBFFFF}$swapmax - $swapperc% ${color0}${swapbar}
#Swap->虚拟内存，即将部分硬盘空间当内存使用
#
#
${color0}进程cpu使用情况(总进程:${color #BBFFFF}${processes} ${color0} 活跃进程:${color #BBFFFF}${running_processes}${color0}):
${font 楷体:size=14}\
    ${color #00BFFF}进程名称：${alignr 20}pid     ${alignr 20}cpu   ${alignr}mem
    ${color #BBFFFF} ${top name 1} ${alignr}${top pid 1}  ${alignr}${top cpu 1}  ${alignr}${top mem 1}
    ${color #BBFFFF} ${top name 2} ${alignr}${top pid 2}  ${alignr}${top cpu 2}  ${alignr}${top mem 2}
    ${color #BBFFFF} ${top name 3} ${alignr}${top pid 3}  ${alignr}${top cpu 3}  ${alignr}${top mem 3}
    ${color #BBFFFF} ${top name 4} ${alignr}${top pid 4}  ${alignr}${top cpu 4}  ${alignr}${top mem 4}
    ${color #BBFFFF} ${top name 5} ${alignr}${top pid 5}  ${alignr}${top cpu 5}  ${alignr}${top mem 5}
#
${if_up eth0}
网络协议：${alignr}${color #BBFFFF}eth0
${color0}网络下载速度:${alignr}${color #BBFFFF}${downspeed eth0}/s
${color0}网络上传速度:${alignr}${color #BBFFFF}${upspeed eth0}/s
#downspeed/downspeedgraph为网络下载速度及其监视器；upspeed/upspeedgraph为网络上传速度监视器
${color0}有线网卡IP地址:${alignr}${color #BBFFFF}${addr eth0}
#
${else}${if_up wlo1}
${color0}网络协议：${alignr}${color #BBFFFF}wlo1
${color0}网络下载速度:${alignr}${color #BBFFFF}${downspeed wlo1}/s
${color0}网络上传速度:${alignr}${color #BBFFFF}${upspeed wlo1}/s
${color0}无线网卡IP地址:${alignr}${color #BBFFFF}${addr wlo1}${endif}
#
${else}${if_up ppp0}
${color0}网络协议：${alignr}${color #BBFFFF}ppp0
${color0}网络下载速度:${alignr}${color #BBFFFF}${downspeed ppp0}/s
${color0}网络上传速度:${alignr}${color #BBFFFF}${upspeed ppp0}/s
${color0}有线网卡IP地址:${alignr}${color #BBFFFF}${addr ppp0}${endif}
#

${color0}\
	我变秃了，也变强了！！！
                          口
                     ____/==\\__|_
  II==========[[[[[[[ ★Tory __]]]
          __,,,,,,,__\\_....._|/___
        /_________________________|
         \\◎◎◎◎◎◎◎◎◎◎⊙/
           ~~~~~~~~~~~~~~~~~~~~~
