悬浮窗（穿透实现）

1、实现效果文字描述

图片作为背景，使用悬浮窗实现，不影响下一层的实现，可以点击其中的软件等。

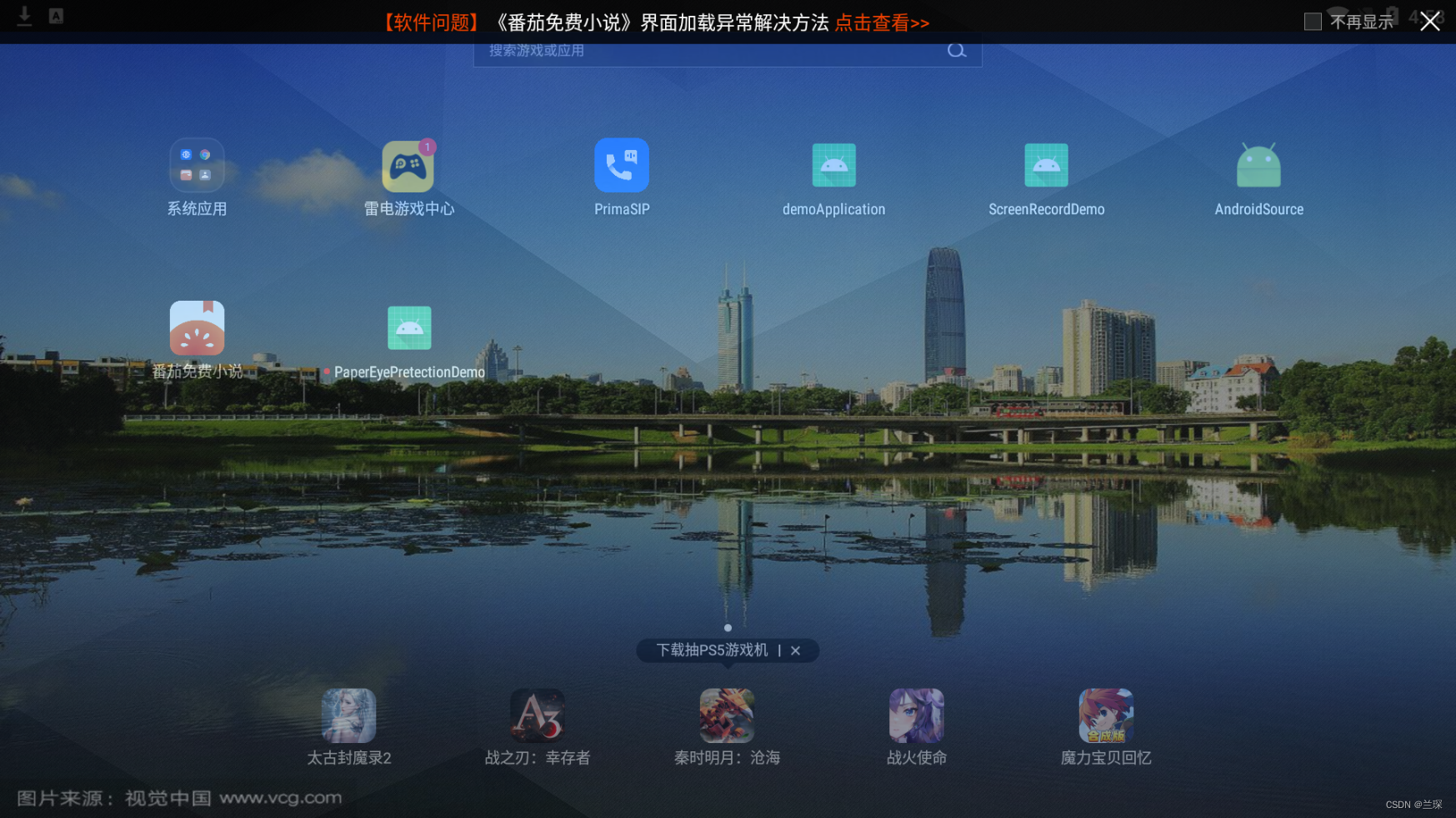

2、实现效果图片实现

3、实现步骤

3.1 manifest.xm中的操作（权限的声明）

<uses-permission android:name="android.permission.SYSTEM_ALERT_WINDOW"/>
<uses-permission android:name="android.permission.FOREGROUND_SERVICE"/>

3.2 悬浮窗的权限（自动开启）

if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.N_MR1 && !Settings.canDrawOverlays(this)) {
			Intent intent = new Intent(Settings.ACTION_MANAGE_OVERLAY_PERMISSION);
			startActivityForResult(intent, 100);
		}

3.2 具体代码实现

		setContentView(R.layout.activity_button);
		Button button = findViewById(R.id.button);
		button.setOnClickListener(new View.OnClickListener() {
			@Override
			public void onClick(View v) {
				startService(new Intent(getApplicationContext(),EyeServices.class));
			}
		});

		View root = View.inflate(this,R.layout.activity_main, null);
		//检查是否有悬浮权限
		if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.N_MR1 && !Settings.canDrawOverlays(this)) {
			Intent intent = new Intent(Settings.ACTION_MANAGE_OVERLAY_PERMISSION);
			startActivityForResult(intent, 100);
		}
		WindowManager.LayoutParams layoutParams = new WindowManager.LayoutParams();
		WindowManager manager = null;
		manager = (WindowManager) getApplication().getSystemService(WINDOW_SERVICE);
		layoutParams.type = Build.VERSION.SDK_INT < Build.VERSION_CODES.O ?
				WindowManager.LayoutParams.TYPE_SYSTEM_ALERT : WindowManager.LayoutParams.TYPE_APPLICATION_OVERLAY;
		//设置view不可焦，不可触
		layoutParams.flags = WindowManager.LayoutParams.FLAG_NOT_TOUCH_MODAL
				| WindowManager.LayoutParams.FLAG_NOT_TOUCHABLE
				| WindowManager.LayoutParams.FLAG_NOT_FOCUSABLE
		;
		layoutParams.format = PixelFormat.TRANSLUCENT;
		layoutParams.x = WindowManager.LayoutParams.MATCH_PARENT;
		layoutParams.y = WindowManager.LayoutParams.MATCH_PARENT;
		manager.addView(root,layoutParams);

遇到的问题

4.1 manager.addView(root,layoutParams);无法addview

问题：未设置format

解决：增加layoutParams.format = PixelFormat.TRANSLUCENT;

4.2 WindowManager.LayoutParams.TYPE_APPLICATION_OVERLAY没有权限

解决：在manifest添加权限

<uses-permission android:name="android.permission.SYSTEM_ALERT_WINDOW"/>
