LRU算法简介:
原理是根据页面的最近使用情况来决定哪些页面应该被置换出去,以便为新的页面腾出空间,是一种常见的页面置换算法,用于操作系统中的页面缓存管理。
代码部分:
整体结构
LRUCache.java
import java.util.*;
class LRUCache<K, V> {
private final int capacity;
private final Map<K, Node<K, V>> cache;
private final Node<K, V> head;
private final Node<K, V> tail;
public LRUCache(int capacity) {
this.capacity = capacity;
cache = new HashMap<>();
head = new Node<>(null, null);
tail = new Node<>(null, null);
head.next = tail;
tail.prev = head;
}
public V get(K key) {
Node<K, V> node = cache.get(key);
if (node == null) {
// 缓存中不存在该键,返回null
return null;
}
// 移动访问过的节点到链表头部,表示最近被使用过
moveToHead(node);
return node.value;
}
public void put(K key, V value) {
Node<K, V> node = cache.get(key);
if (node == null) {
// 缓存中不存在该键,需要插入新节点
if (cache.size() >= capacity) {
// 缓存已满,移除最久未使用的节点(尾节点的前一个节点)
Node<K, V> evictNode = tail.prev;
removeNode(evictNode);
cache.remove(evictNode.key);
}
// 创建新节点并放入缓存
node = new Node<>(key, value);
cache.put(key, node);
} else {
// 缓存中存在该键,更新节点的值,并将其移动到链表头部
node.value = value;
moveToHead(node);
}
// 将节点插入链表头部
addToHead(node);
}
private void moveToHead(Node<K, V> node) {
// 从链表中移除节点
removeNode(node);
// 将节点插入链表头部
addToHead(node);
}
private void removeNode(Node<K, V> node) {
// 从链表中移除节点
node.prev.next = node.next;
node.next.prev = node.prev;
}
private void addToHead(Node<K, V> node) {
// 将节点插入链表头部
node.prev = head;
node.next = head.next;
head.next.prev = node;
head.next = node;
}
private static class Node<K, V> {
private final K key;
private V value;
private Node<K, V> prev;
private Node<K, V> next;
Node(K key, V value) {
this.key = key;
this.value = value;
}
}
Main.java
public class Main {
public static void main(String[] args) {
LRUCache<Integer, String> cache = new LRUCache<>(3);
cache.put(1, "one");
cache.put(2, "two");
cache.put(3, "three");
System.out.println(cache.get(1)); // 输出: one
cache.put(4, "four");
System.out.println(cache.get(2)); // 输出: null
System.out.println(cache.get(1));
System.out.println(cache.get(3));
System.out.println(cache.get(4));
}
}

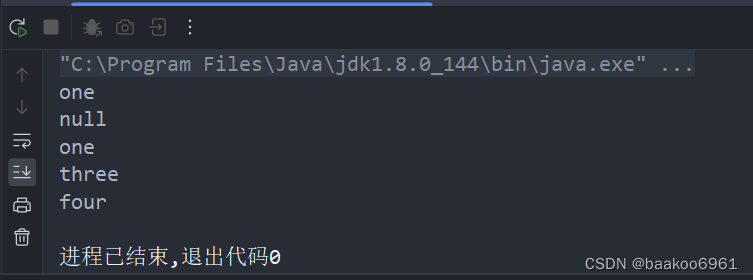

运行结果
过程:
首先创建LRUCache对象,容量为3。接着,将key为1,2,3的键值对数据以头插方式插入链表。当输出key为1的数据时,相当于访问,所以key为1的数据提前到链表头部,变成了1->3->2,插入key为4的数据时,挤出2,变为4->1->3。
