1.简介
1.mapbox收费定价及免费版本
-
参考链接
https://docs.mapbox.com/mapbox-gl-js/guides/pricing/
https://www.geoapify.com/mapbox-gl-new-license-and-6-free-alternatives -
Mapbox GL JS > v2.0.0 --收费
-
建议使用Mapbox GL JS = v1.13.3 --免费的最新版
版本差异:
Mapbox GL JS v1.x.x和v2.x.x之间的一个重要变化是在触发地图加载(map load)时机上的不同。在v1.x.x版本中,地图加载发生在初始化Mapbox GL JS地图对象并请求Mapbox托管的地图瓦片时。而在v2.x.x版本中,地图加载发生在初始化Mapbox GL JS地图对象时,无论是否请求Mapbox托管的地图瓦片。
结论:
Mapbox GL JS的旧版本(v1)是免费开源的。该版本在发布时采用了免费且开放的BSD3许可证。
Mapbox GL JS v2,采用了专有的非免费许可证,即新版本(v2)不再免费。
2.测试代码
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Display a map on a webpage</title>
<meta name="viewport" content="initial-scale=1,maximum-scale=1,user-scalable=no">
<link href="https://api.mapbox.com/mapbox-gl-js/v2.14.1/mapbox-gl.css" rel="stylesheet">
<script src="https://api.mapbox.com/mapbox-gl-js/v2.14.1/mapbox-gl.js"></script>
<style>
body { margin: 0; padding: 0; }
#map { position: absolute; top: 0; bottom: 0; width: 100%; }
</style>
</head>
<body>
<div id="map"></div>
<script>
var mapStyle = {
"version": 8,
"name": "Custom Map",
"sources": {
"custom-raster": {
"type": "raster",
"tiles": ["http://t5.tianditu.gov.cn/img_w/wmts?SERVICE=WMTS&REQUEST=GetTile&VERSION=1.0.0&LAYER=img&STYLE=default&TILEMATRIXSET=w&FORMAT=tiles&TILEMATRIX={z}&TILEROW={y}&TILECOL={x}&tk=6c6245339bf350c75a69c14125d14cb5"],
"tileSize": 256
}
},
// "sprite": "https://demotiles.maplibre.org/styles/osm-bright-gl-style/sprite",
"glyphs": "./fonts/glyphs/{fontstack}/{range}.pbf",
"layers": [
{
"id": "custom-raster-layer",
"type": "raster",
"source": "custom-raster"
}
]
};
// mapboxgl.accessToken = 'pk.eyJ1IjoiYWRtaW4tbHVjYXMiLCJhIjoiY2xrcm5jcDFnMGJvMjNmbjNrdWh1dDQ3biJ9.gW0WN4QSSl1EZPmgrhUc0Q';
const map = new mapboxgl.Map({
container: 'map', // container ID
// Choose from Mapbox's core styles, or make your own style with Mapbox Studio
style: mapStyle, // style URL
center: [-74.5, 40], // starting position [lng, lat]
zoom: 9 // starting zoom
});
</script>
</body>
</html>

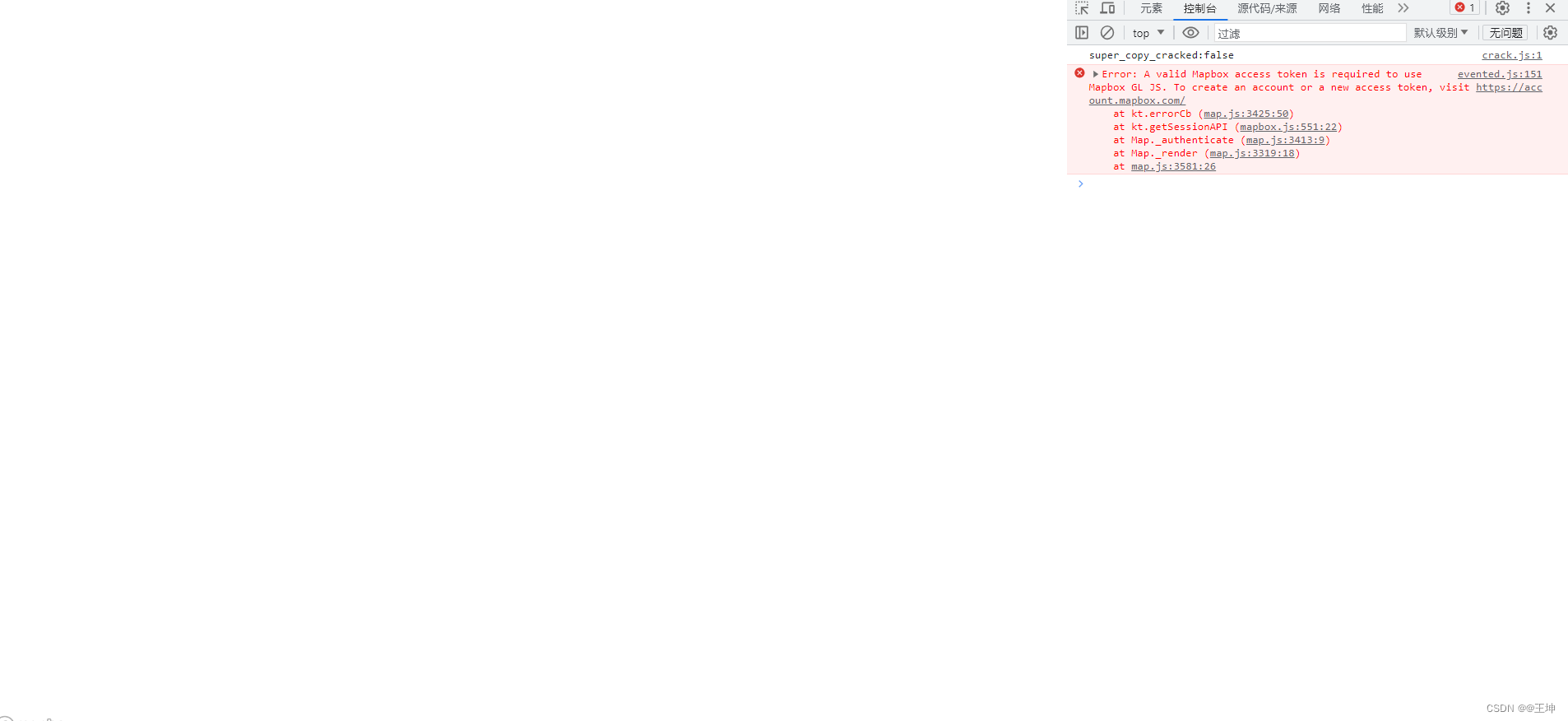

查看控制台

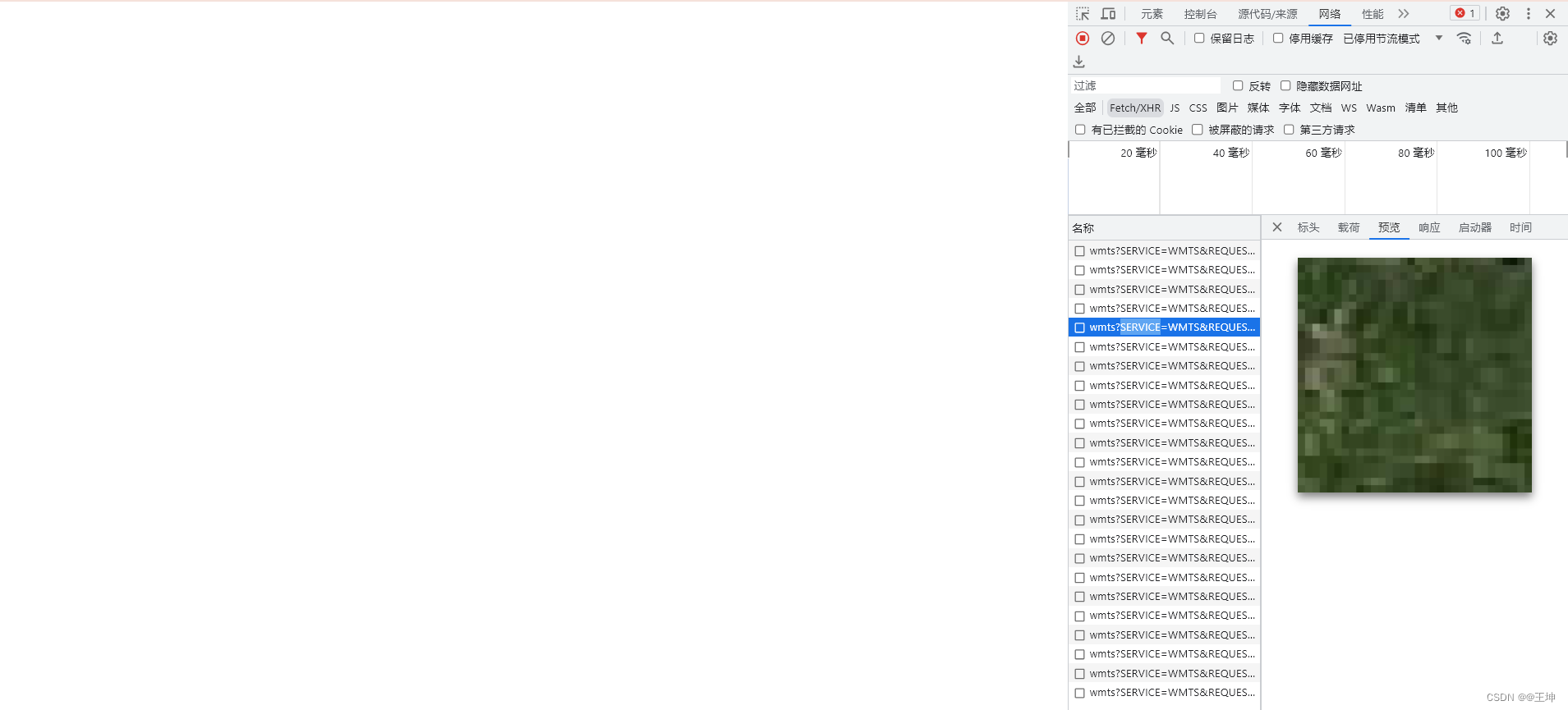

查看网络资源加载

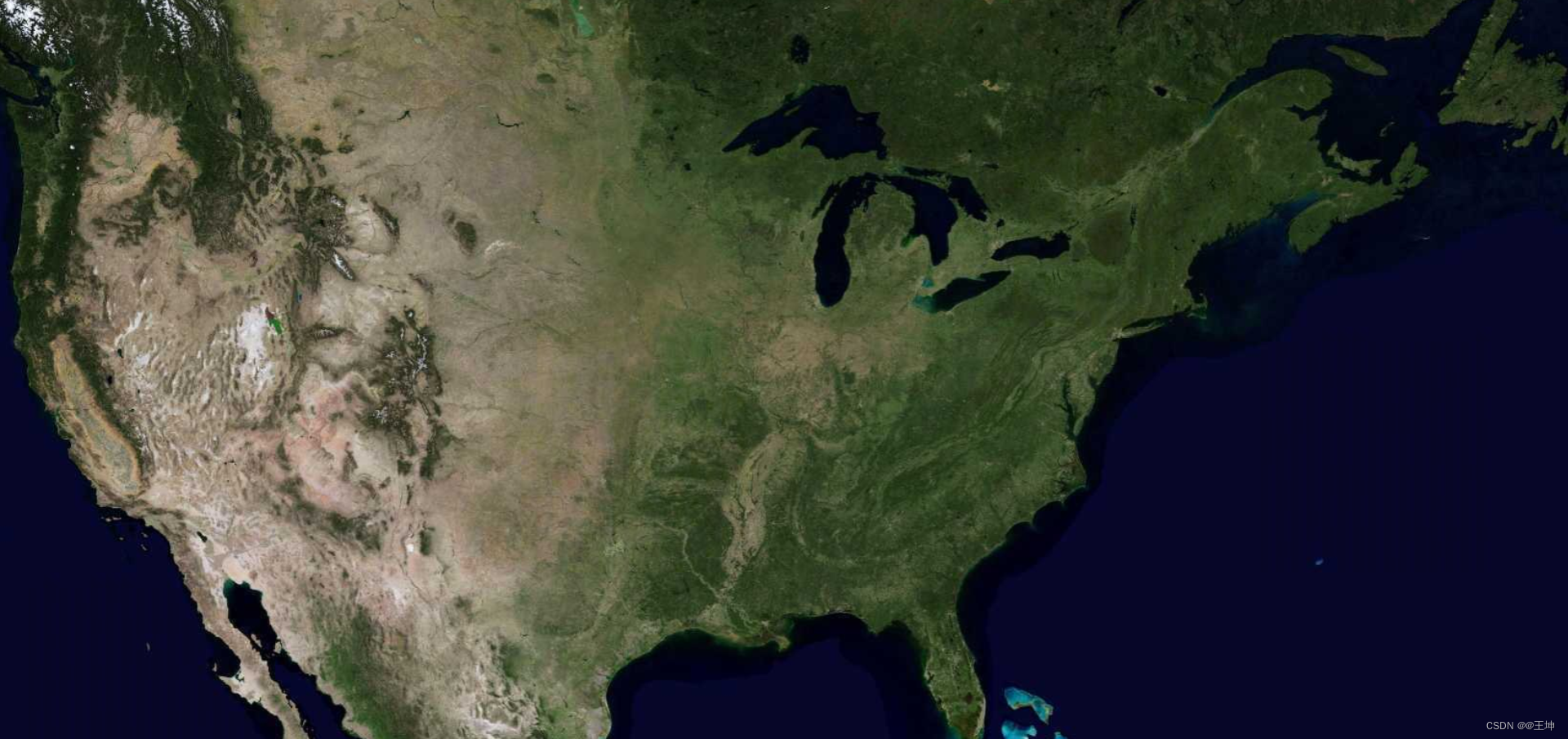

3.低版本就能加载
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Display a map on a webpage</title>
<meta name="viewport" content="initial-scale=1,maximum-scale=1,user-scalable=no">
<link href="https://api.mapbox.com/mapbox-gl-js/v1.3.1/mapbox-gl.css" rel="stylesheet">
<script src="https://api.mapbox.com/mapbox-gl-js/v1.3.1/mapbox-gl.js"></script>
<style>
body { margin: 0; padding: 0; }
#map { position: absolute; top: 0; bottom: 0; width: 100%; }
</style>
</head>
<body>
<div id="map"></div>
<script>
var mapStyle = {
"version": 8,
"name": "Custom Map",
"sources": {
"custom-raster": {
"type": "raster",
"tiles": ["http://t5.tianditu.gov.cn/img_w/wmts?SERVICE=WMTS&REQUEST=GetTile&VERSION=1.0.0&LAYER=img&STYLE=default&TILEMATRIXSET=w&FORMAT=tiles&TILEMATRIX={z}&TILEROW={y}&TILECOL={x}&tk=6c6245339bf350c75a69c14125d14cb5"],
"tileSize": 256
}
},
// "sprite": "https://demotiles.maplibre.org/styles/osm-bright-gl-style/sprite",
"glyphs": "./fonts/glyphs/{fontstack}/{range}.pbf",
"layers": [
{
"id": "custom-raster-layer",
"type": "raster",
"source": "custom-raster"
}
]
};
// mapboxgl.accessToken = 'pk.eyJ1IjoiYWRtaW4tbHVjYXMiLCJhIjoiY2xrcm5jcDFnMGJvMjNmbjNrdWh1dDQ3biJ9.gW0WN4QSSl1EZPmgrhUc0Q';
const map = new mapboxgl.Map({
container: 'map', // container ID
// Choose from Mapbox's core styles, or make your own style with Mapbox Studio
style: mapStyle, // style URL
center: [-74.5, 40], // starting position [lng, lat]
zoom: 9 // starting zoom
});
</script>
</body>
</html>
4.结论
- 高版本说明是先加载的地图服务,然后mapbox判断是否用token,我没用所以不能显示。
- 低版本就可以用自制的style,而不用token;高版本用自制的style也必须用token。
