Arduino+TFT_eSPI库+ESP32-S3+ST7789等屏幕

1、配置环境，详见资源arduino+esp32+显示屏SPI

（【免费】arduino+esp32+显示屏SPI资源-CSDN文库 内有pdf文档有详细介绍）

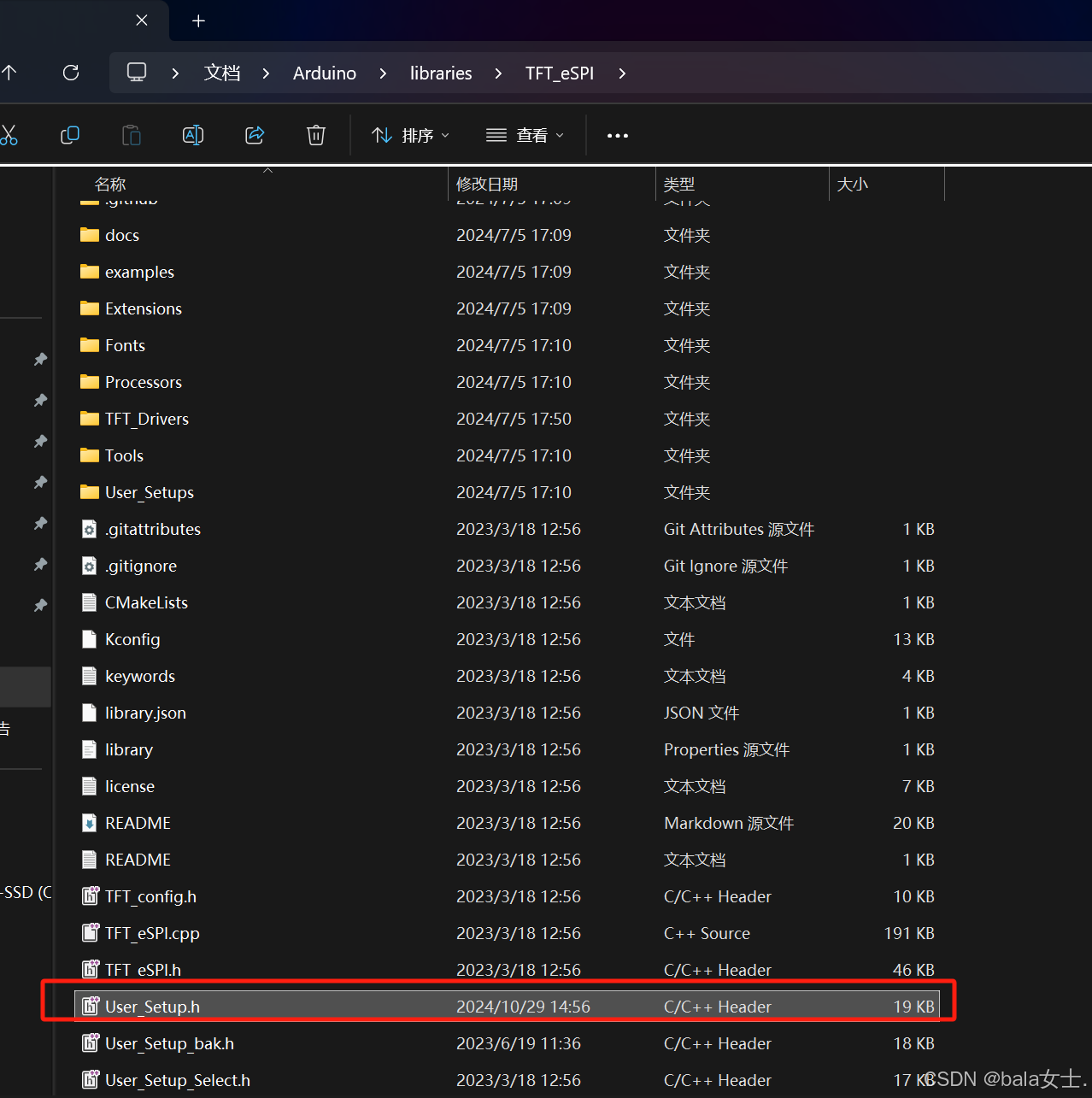

2、修改User_Setup.h中如下

或者直接注释掉所有代码，复制粘贴下方代码：

#define USER_SETUP_INFO "User_Setup"

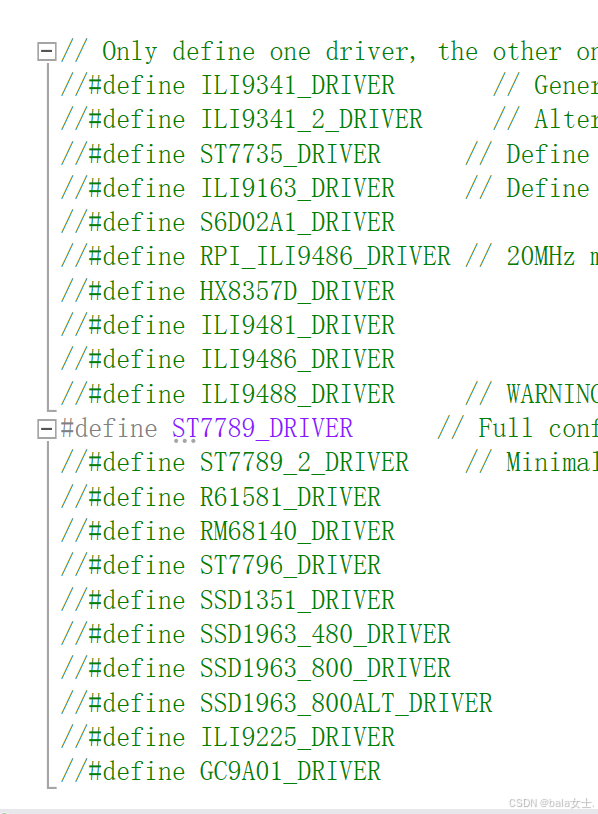

#define ST7789_DRIVER

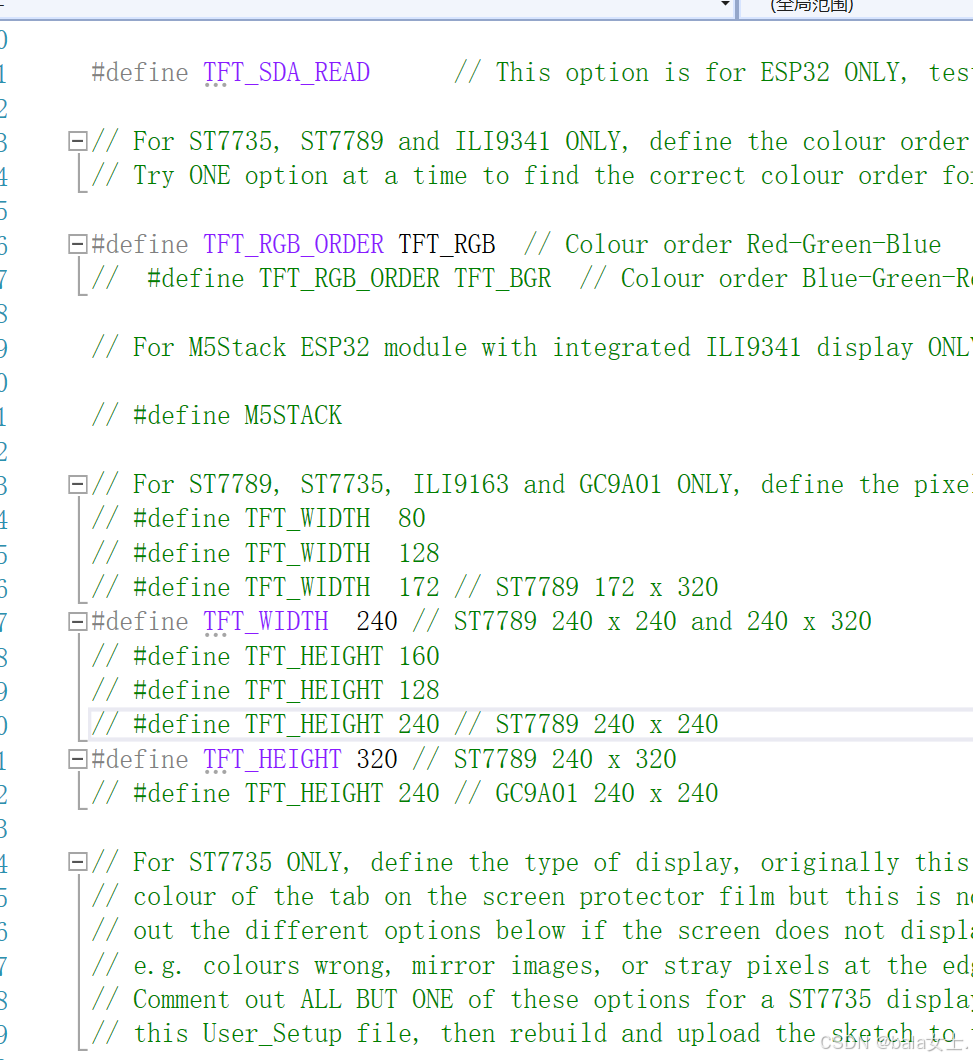

#define TFT_SDA_READ

#define TFT_RGB_ORDER TFT_RGB

#define TFT_WIDTH  240

#define TFT_HEIGHT 320

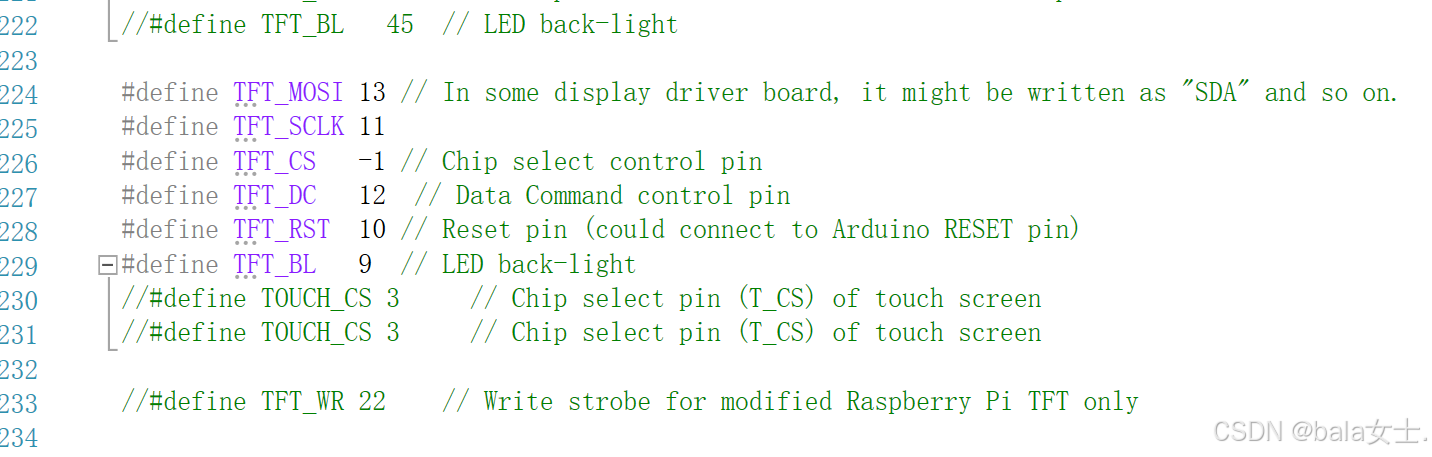

#define TFT_MOSI 13 // In some display driver board, it might be written as "SDA" and so on.
#define TFT_SCLK 11
#define TFT_CS   -1 // Chip select control pin
#define TFT_DC   12  // Data Command control pin
#define TFT_RST  10 // Reset pin (could connect to Arduino RESET pin)
#define TFT_BL   9  // LED back-light

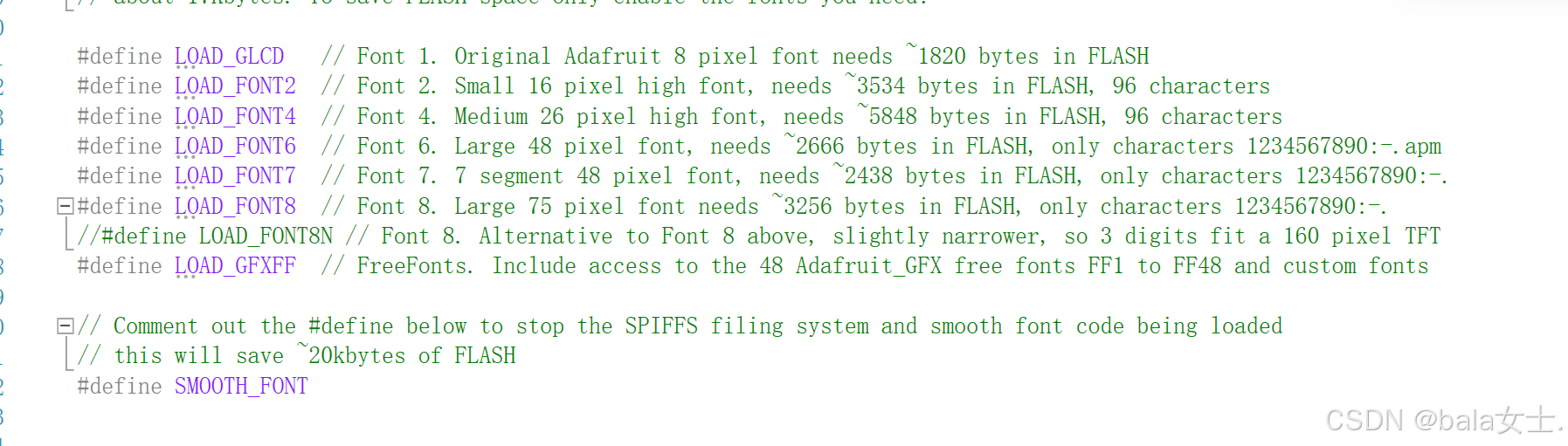

#define LOAD_GLCD   // Font 1. Original Adafruit 8 pixel font needs ~1820 bytes in FLASH
#define LOAD_FONT2  // Font 2. Small 16 pixel high font, needs ~3534 bytes in FLASH, 96 characters
#define LOAD_FONT4  // Font 4. Medium 26 pixel high font, needs ~5848 bytes in FLASH, 96 characters
#define LOAD_FONT6  // Font 6. Large 48 pixel font, needs ~2666 bytes in FLASH, only characters 1234567890:-.apm
#define LOAD_FONT7  // Font 7. 7 segment 48 pixel font, needs ~2438 bytes in FLASH, only characters 1234567890:-.
#define LOAD_FONT8  // Font 8. Large 75 pixel font needs ~3256 bytes in FLASH, only characters 1234567890:-.
//#define LOAD_FONT8N // Font 8. Alternative to Font 8 above, slightly narrower, so 3 digits fit a 160 pixel TFT
#define LOAD_GFXFF  // FreeFonts. Include access to the 48 Adafruit_GFX free fonts FF1 to FF48 and custom fonts

// Comment out the #define below to stop the SPIFFS filing system and smooth font code being loaded
// this will save ~20kbytes of FLASH
#define SMOOTH_FONT

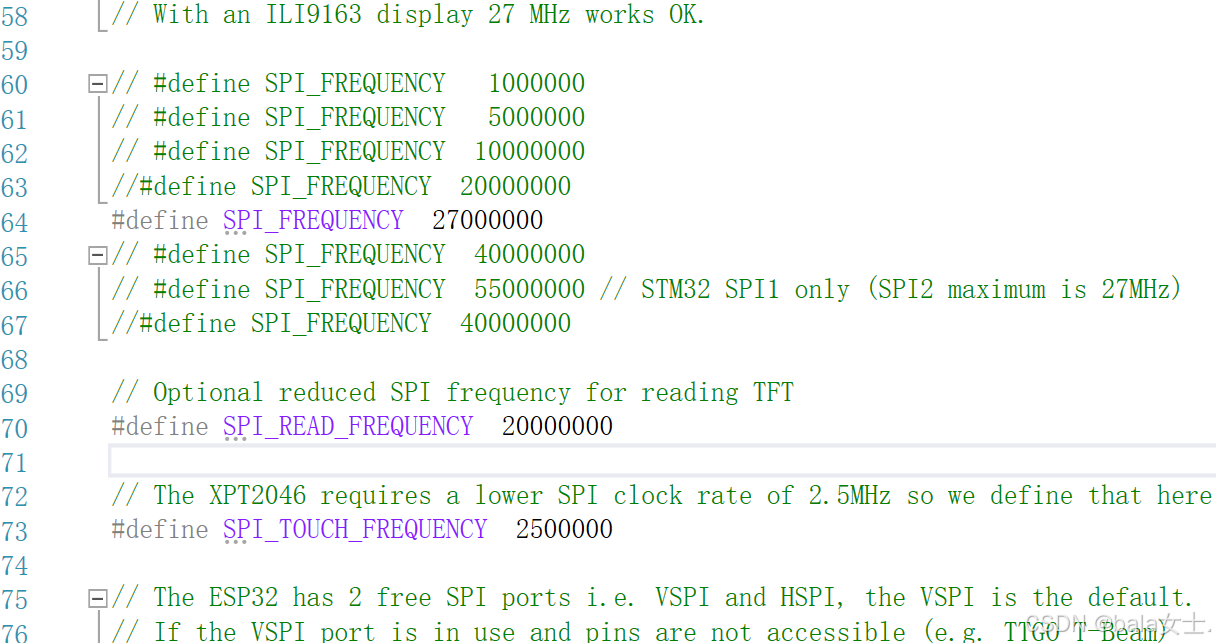

#define SPI_FREQUENCY  27000000
// #define SPI_FREQUENCY  40000000
// #define SPI_FREQUENCY  55000000 // STM32 SPI1 only (SPI2 maximum is 27MHz)
//#define SPI_FREQUENCY  40000000

// Optional reduced SPI frequency for reading TFT
#define SPI_READ_FREQUENCY  20000000

// The XPT2046 requires a lower SPI clock rate of 2.5MHz so we define that here:
#define SPI_TOUCH_FREQUENCY  2500000

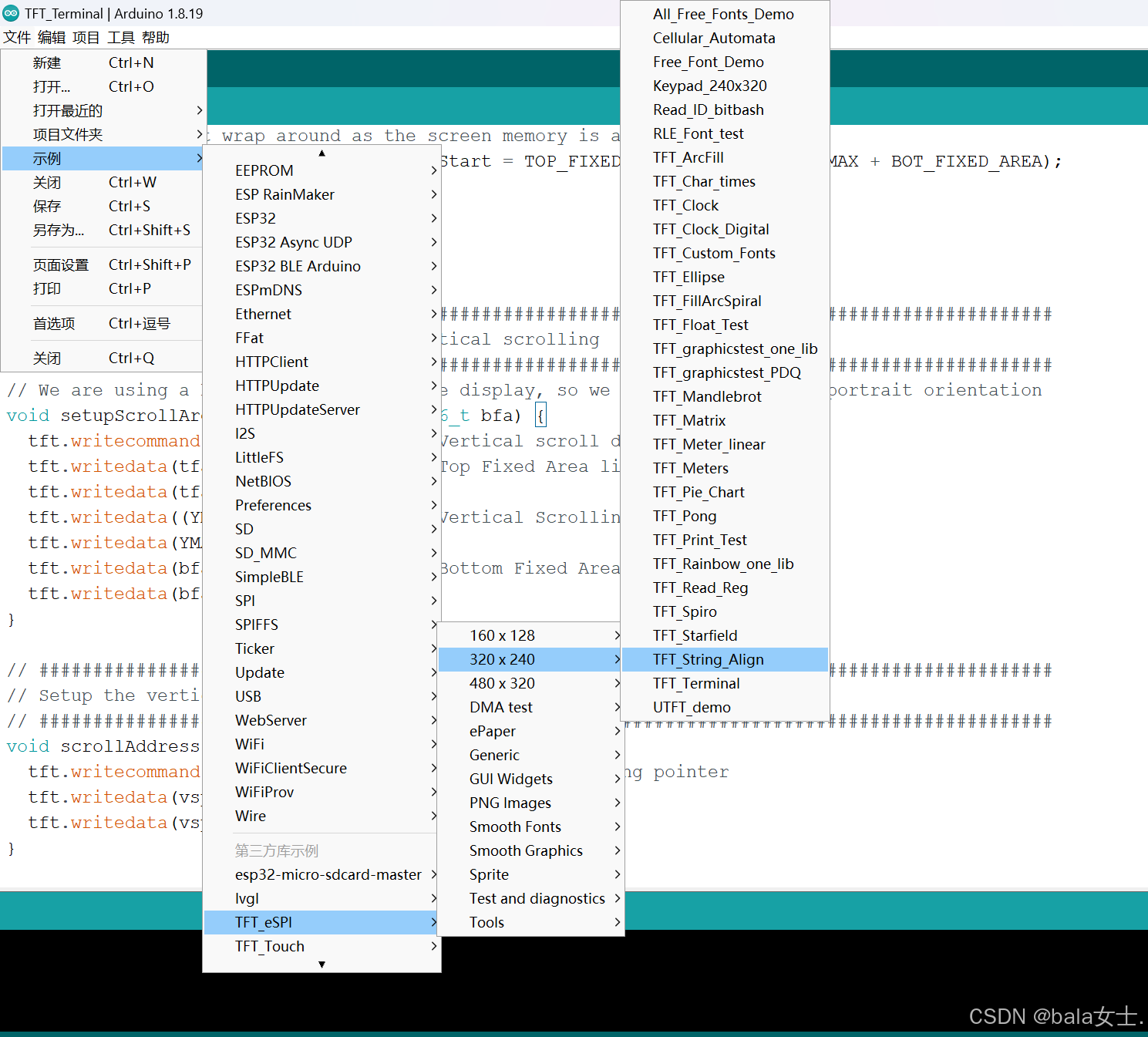

3、打开软件，如下操作，然后编译即可
