网上有作者介绍UF_DRF_ask_draft_aid_text_info这个函数，能够得到尺寸的尺寸值及公差，就想到既然如此能否用它导出图纸的尺寸。于是随意画了个工程图上，又标了几个尺寸。结果发现，这个函数的确可以获取到尺寸的尺寸值、公差、前后附加文本，但是它不是按期待的那样：以 （前附加文本+尺寸值+公差+后附加文本）的顺序排列，比如尺寸6-60±0.1X45°±4°通过循环得到的结果并不是6-60<T+0.1!-0.1>X45<$s><$t>4<$s>，而是6-<$t>4<$s>60<T+0.1!-0.1>45<$s>X。那么问题来了，怎样才能让它以理想的顺序排列并导出呢？因为刚刚入手UG二次开发，对于函数了解的不多，所以只能以已知的几个函数来解决这个问题，采用的笨办法就是先输出原始排列的结果，然后根据情况重新编排正确的输出顺序。一番操作之后，对于图示中的尺寸都能够导出想要的结果（应该没有囊括所有的标注）。而且如果网友们有更好的解决方法，希望得到指教。代码附后。

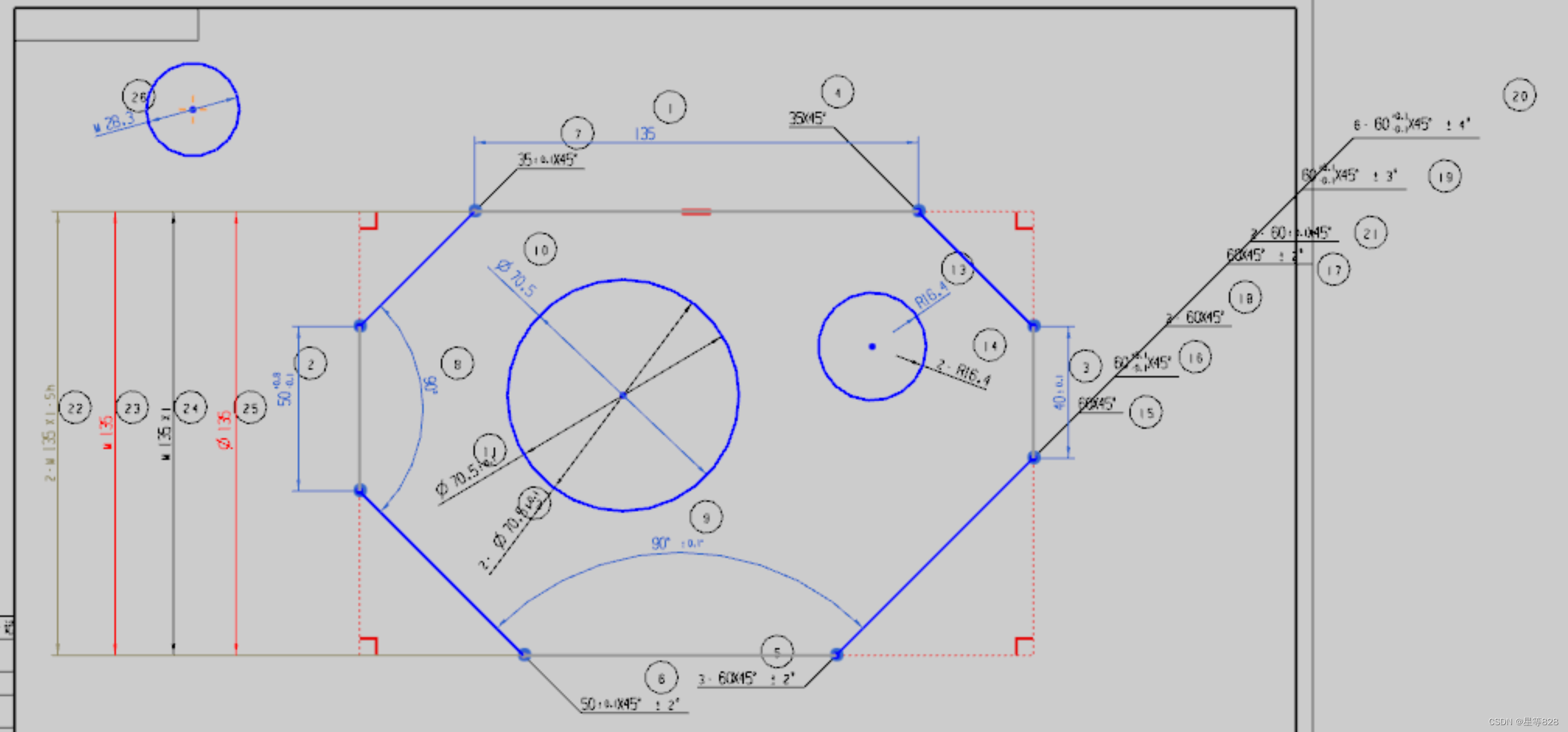

下面的图是随意画的，尺寸也是随意标注的，只是用来测试代码。暂且不考虑标注的合理性。图中气泡是按上篇文章的代码运行得到的。气泡的位置可能不是想要的，可以通过更改代码值或鼠标移动气泡到合理的位置。

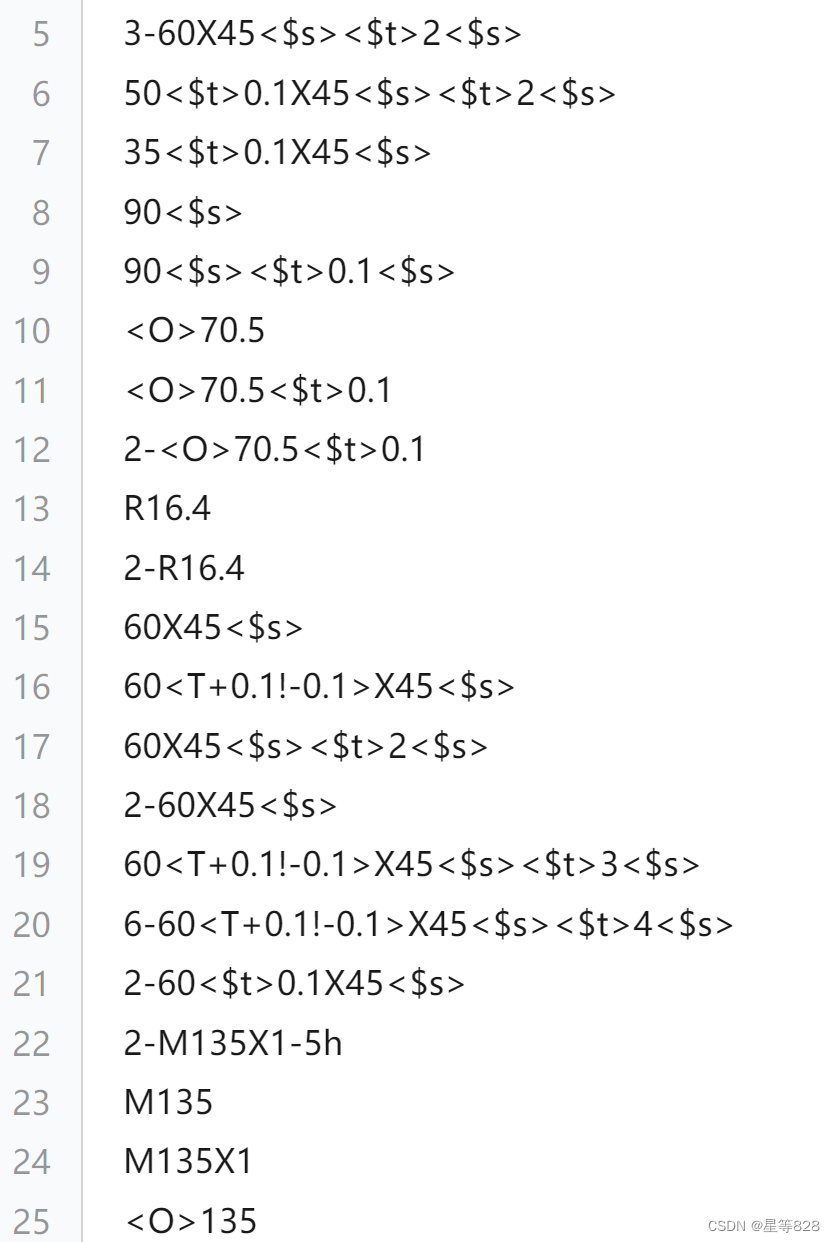

运行代码导出的TXT文件如下，因为篇幅，图像没有截取全
// 遍历尺寸，获取TAG值
tag_t object_tag = NULL_TAG; //尺寸object_tag初始化
UF_OBJ_cycle_objs_in_part(UF_PART_ask_display_part(), UF_dimension_type, &object_tag); // 遍历尺寸，获取TAG值
//打开文件
int fwl_file = uc4504("C:\\Users\\xiao'fan\\Desktop\\d.txt", 4, 79);
while (object_tag != NULL_TAG)
{
//查询尺寸信息，获取尺寸类型dim_subtype值，用来判断尺寸是否是半径等（以确定是否在尺寸前添加“R”等符号)
char msgtype[256];
int dim_subtype = 0; //尺寸类型
double dim_origin[3]; //尺寸坐标点
UF_DRF_dim_info_p_t dimInfo;
UF_DRF_ask_dim_info(object_tag, &dim_subtype, dim_origin, &dimInfo); //查询尺寸信息，获取尺寸类型dim_subtype值
//获取尺寸的附加文本 ，判断附加文本的前后位置
int num_text1 = 0;
char msg2[256];
UF_DRF_appended_text_p_t appended_text; //附加文本数量变量
UF_DRF_ask_appended_text(object_tag, &num_text1, &appended_text);
sprintf(msg2,"%d",num_text1);
//获得尺寸文本信息,包括前后附加文本、前缀、公差等
char msg[256];
int num_text;
UF_DRF_draft_aid_text_info_t *text_info;
UF_DRF_ask_draft_aid_text_info(object_tag,&num_text,&text_info); //获得尺寸文本信息
if (num_text1) //如果存在附加文本,
{
UF_DRF_appended_text_location_t loca = appended_text->location; //获得附加文本类型
if(num_text == 3)//如果有三个文本，且有附加文本，存在两种情况
{
if(loca ==UF_DRF_APPENDED_TEXT_BEFORE) //如果附加文本在前，文本的排列顺序
{
sprintf(msg,"%s%s%s", text_info[0].text->string, text_info[2].text->string,text_info[1].text->string);
uc4524(fwl_file,msg);//尺寸文本写入TXT文件
}
else if(loca ==UF_DRF_APPENDED_TEXT_AFTER)//如果附加文本在后，文本的排列顺序
{
sprintf(msg,"%s%s%s", text_info[2].text->string, text_info[0].text->string,text_info[1].text->string);
uc4524(fwl_file,msg);
}
}
else if(num_text == 4)
{ //非倒角标注情况
if((dim_subtype == 9)||(dim_subtype == 10)||(dim_subtype == 11)) //直径类标注时
{
sprintf(msg,"%s%s% s%s", text_info[0].text->string, text_info[3].text->string,text_info[1].text->string,text_info[2].text->string);
uc4524(fwl_file,msg);
}
else //倒角标注情况
{ //if(dim_subtype == 6)||(dim_subtype == 7))
if (loca ==UF_DRF_APPENDED_TEXT_BEFORE) //如果附加文本在前，文本的排列顺序
{ sprintf(msg,"%s%s%s%s", text_info[0].text->string, text_info[1].text->string,text_info[3].text->string,text_info[2].text->string);
uc4524(fwl_file,msg);
}
else
{//if(loca ==UF_DRF_APPENDED_TEXT_AFTER)//如果附加文本在后，文本的排列顺序
sprintf(msg,"%s%s%s%s", text_info[1].text->string, text_info[3].text->string,text_info[2].text->string,text_info[0].text->string);
uc4524(fwl_file,msg);
}
}
}
else if(num_text == 5)
{ //if((dim_subtype == 6)||(dim_subtype == 7))
if (loca ==UF_DRF_APPENDED_TEXT_BEFORE) //如果附加文本在前，文本的排列顺序
{if (num_text1==2)
{sprintf( msg,"%s%s%s%s%s", text_info[0].text->string, text_info[2].text->string,text_info[4].text->string,text_info[3].text->string,text_info[1].text->string);
uc4524(fwl_file,msg);//写入尺寸值
}
else
{sprintf( msg,"%s%s%s%s%s", text_info[0].text->string, text_info[1].text->string,text_info[2].text->string,text_info[4].text->string,text_info[3].text->string);
uc4524(fwl_file,msg);//写入尺寸值
}
}
else
{//if(loca ==UF_DRF_APPENDED_TEXT_AFTER)//如果附加文本在后，文本的排列顺序
sprintf( msg,"%s%s%s%s%s", text_info[1].text->string, text_info[2].text->string,text_info[4].text->string,text_info[3].text->string,text_info[0].text->string);
uc4524(fwl_file,msg);//写入尺寸值
}
}
else if(num_text == 6)
{//if((dim_subtype == 6)||(dim_subtype == 7))
sprintf( msg,"%s%s%s%s%s%s", text_info[0].text->string, text_info[2].text->string,text_info[3].text->string,text_info[5].text->string, text_info[4].text->string,text_info[1].text->string);
uc4524(fwl_file,msg);//写入尺寸值
}
else if(num_text == 2)
{//if((dim_subtype == 6)||(dim_subtype == 7))
sprintf( msg,"%s%s", text_info[0].text->string, text_info[1].text->string);
uc4524(fwl_file,msg);//写入尺寸值
}
}
else //如果没有附加文本，文本的排列顺序
{
if (num_text== 1)
{
sprintf(msg,"%s", text_info[0].text->string);//文本信息只有一个时
uc4524(fwl_file,msg);//写入尺寸值
}
else if(num_text == 2)
{
if((dim_subtype == 9)||(dim_subtype == 10)||(dim_subtype == 11)||(dim_subtype == 4))
{
sprintf(msg,"%s%s", text_info[1].text->string,text_info[0].text->string);//文本信息有2个时,且有前缀时
uc4524(fwl_file,msg);//写入为前缀及尺寸值类型
}
else{
sprintf(msg,"%s%s", text_info[0].text->string,text_info[1].text->string);//将文本信息有2个时,没有前缀时
uc4524(fwl_file,msg);//写入为尺寸及公差类型
}
}
else if(num_text == 3)//如果没有附加文本，且文本数有三个
{
if((dim_subtype == 9)||(dim_subtype == 10)||(dim_subtype == 11))
{
sprintf(msg,"%s%s%s", text_info[2].text->string, text_info[0].text->string,text_info[1].text->string);
uc4524(fwl_file,msg);
}
else
{ //如果为倒角标注
sprintf(msg,"%s%s%s", text_info[0].text->string, text_info[2].text->string,text_info[1].text->string);//将文本信息有2个时,没有前缀时
uc4524(fwl_file,msg);//写入为尺寸及公差类型
}
}
else if(num_text == 4)//如果没有附加文本，且文本数有4个,倒角类型
{
//if((dim_subtype == 6)||(dim_subtype == 7))
sprintf(msg,"%s%s%s%s", text_info[0].text->string, text_info[1].text->string,text_info[3].text->string, text_info[2].text->string);
uc4524(fwl_file,msg);
}
}
UF_DRF_free_text(num_text, &text_info);//释放
UF_OBJ_cycle_objs_in_part(UF_PART_ask_display_part(), UF_dimension_type, &object_tag); //再次遍历，获取TAG值
}
uc4540(fwl_file,0);//关闭文件
