Point Transformer V3 论文复现

安装

Pointcept/PointTransformerV3: [CVPR'24 Oral] Official repository of Point Transformer V3 (PTv3) (github.com)在Github上下载好代码文件进行环境配置

conda create -n pointcept python=3.8 -y
conda activate pointcept
conda install ninja -y
# Choose version you want here: https://pytorch.org/get-started/previous-versions/
# We use CUDA 11.8 and PyTorch 2.1.0 for our development of PTv3
conda install pytorch==2.1.0 torchvision==0.16.0 torchaudio==2.1.0 pytorch-cuda=11.8 -c pytorch -c nvidia
conda install h5py pyyaml -c anaconda -y
conda install sharedarray tensorboard tensorboardx yapf addict einops scipy plyfile termcolor timm -c conda-forge -y
conda install pytorch-cluster pytorch-scatter pytorch-sparse -c pyg -y
pip install torch-geometric

cd libs/pointops
python setup.py install
cd ../..

# spconv (SparseUNet)
# refer https://github.com/traveller59/spconv
pip install spconv-cu118  # choose version match your local cuda version

# Open3D (visualization, optional)
pip install open3d

这边由于使用Windows进行安装会出现很多BUG

BUG及解决

1.Sharedarray库安装时出现conda安装不了的问题

尝试使用github安装SharedNumpyarray替换原本的Sharedarray

pip install git+https://github.com/imaginary-friend94/SharedNumpyArray

安装成功后，修改pointcept/utils/cache.py，将sharedarray.attach改为

numpysharedarray.attach_mem_sh

sharedarray.create改为

numpysharedarray.create_mutex

2.ModuleNotFoundError: No module named 'pointgroup_ops'

conda install -c bioconda google-sparsehash
cd libs/pointgroup_ops
python setup.py install --include_dirs=${CONDA_PREFIX}/include

按照readme进行安装

发现无法安装google-sparsehash

然后直接进入官网下载到本地安装

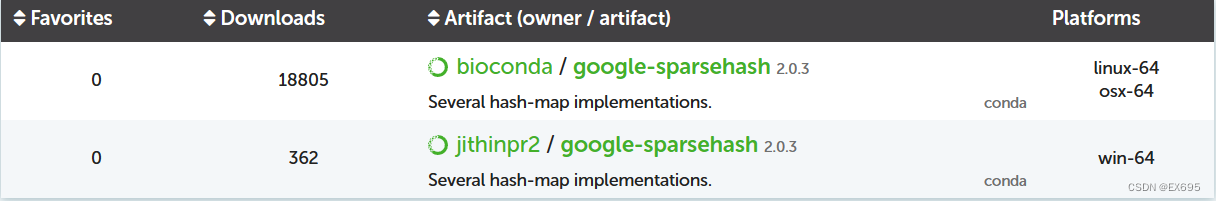

Search :: Anaconda.org

选择Win-64

conda install --use-local win-64_win-64_linux-64_google-sparsehash-2.0.3-1.tar.bz2

安装完成后，继续安装pointgroup-ops。进入Pointcept/libs/pointgroup_ops输入python setup.py install进行安装

cd Pointcept/libs/pointgroup_ops
python setup.py install

安装完成

数据预处理

完成环境配置后进行数据预处理操作，这里选择S3DIS数据集进行处理，数据集下载参考这篇文章

S3DIS场景点云数据集_s3dis数据集baiduwangpan下载-CSDN博客

下载完成后，对数据集进行处理

# S3DIS_DIR: the directory of downloaded Stanford3dDataset_v1.2 dataset.
# RAW_S3DIS_DIR: the directory of Stanford2d3dDataset_noXYZ dataset. (optional, for parsing normal)
# PROCESSED_S3DIS_DIR: the directory of processed S3DIS dataset (output dir).

# S3DIS without aligned angle
python pointcept/datasets/preprocessing/s3dis/preprocess_s3dis.py --dataset_root ${S3DIS_DIR} --output_root ${PROCESSED_S3DIS_DIR}
# S3DIS with aligned angle
python pointcept/datasets/preprocessing/s3dis/preprocess_s3dis.py --dataset_root ${S3DIS_DIR} --output_root ${PROCESSED_S3DIS_DIR} --align_angle
# S3DIS with normal vector (recommended, normal is helpful)
python pointcept/datasets/preprocessing/s3dis/preprocess_s3dis.py --dataset_root ${S3DIS_DIR} --output_root ${PROCESSED_S3DIS_DIR} --raw_root ${RAW_S3DIS_DIR} --parse_normal
python pointcept/datasets/preprocessing/s3dis/preprocess_s3dis.py --dataset_root ${S3DIS_DIR} --output_root ${PROCESSED_S3DIS_DIR} --raw_root ${RAW_S3DIS_DIR} --align_angle --parse_normal

需要注意，如果要计算法向量的话需要安装trimesh库

pip install trimesh

开始训练

由于没有使用法向量，这里需要对配置文件修改一些参数。

打开Pointcept\config\s3dis\semseg-pt-v3m1-1-rpe

删除所有字典里有"normal"的值，例如

            dict(
                type="Collect",
                keys=("coord", "grid_coord", "segment"),
                feat_keys=("color"),
                # feat_keys=("color", "normal"),
            ),

此外还需要修改Pointcept\pointcept\dataset\transform.py

将第49行处的

data[name] = torch.cat([data_dict[key].float() for key in keys], dim=1)

修改为

if self.kwargs.__len__() == 1:
    data[name] = torch.cat([data_dict[keys].float()], dim=1)
else:
    data[name] = torch.cat([data_dict[key].float() for key in keys], dim=1)

否则当keys只有一个元素"color"时会报错

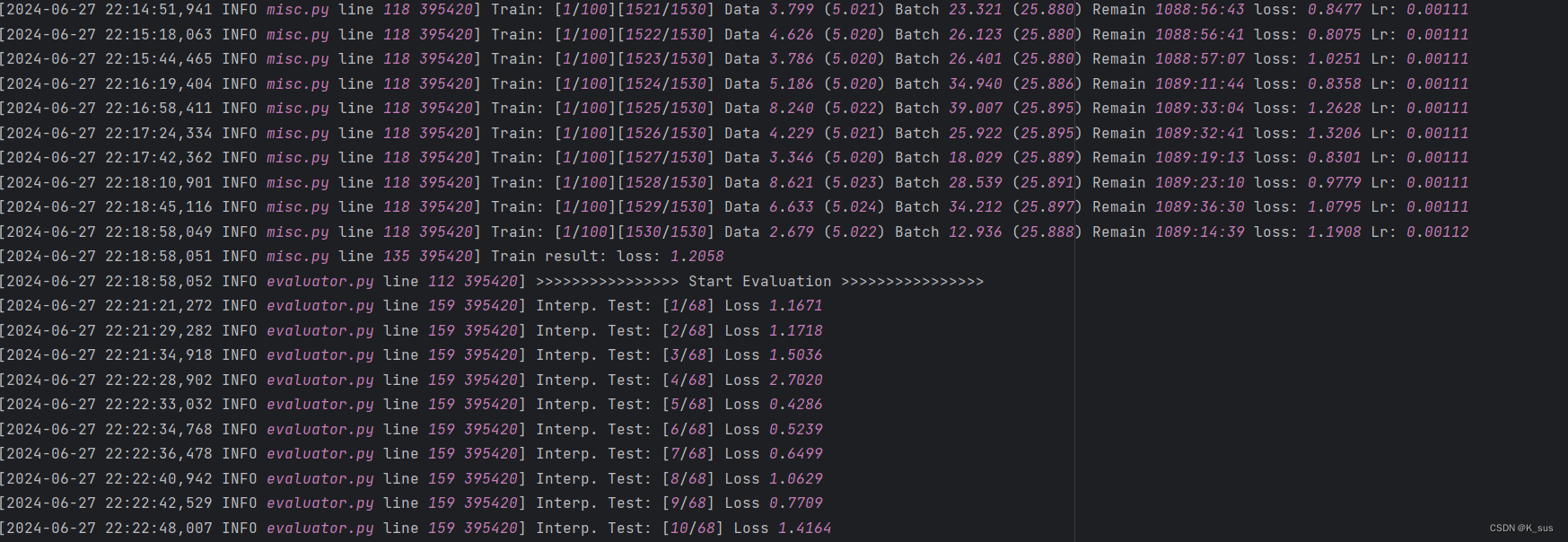

修改完成后，运行PTv3开始训练

sh scripts/train.sh -g 4 -d s3dis -c semseg-pt-v3m1-1-rpe -n semseg-pt-v3m1-0-rpe

运行成功！
