eNSP中WLAN的配置和使用

一、基础配置

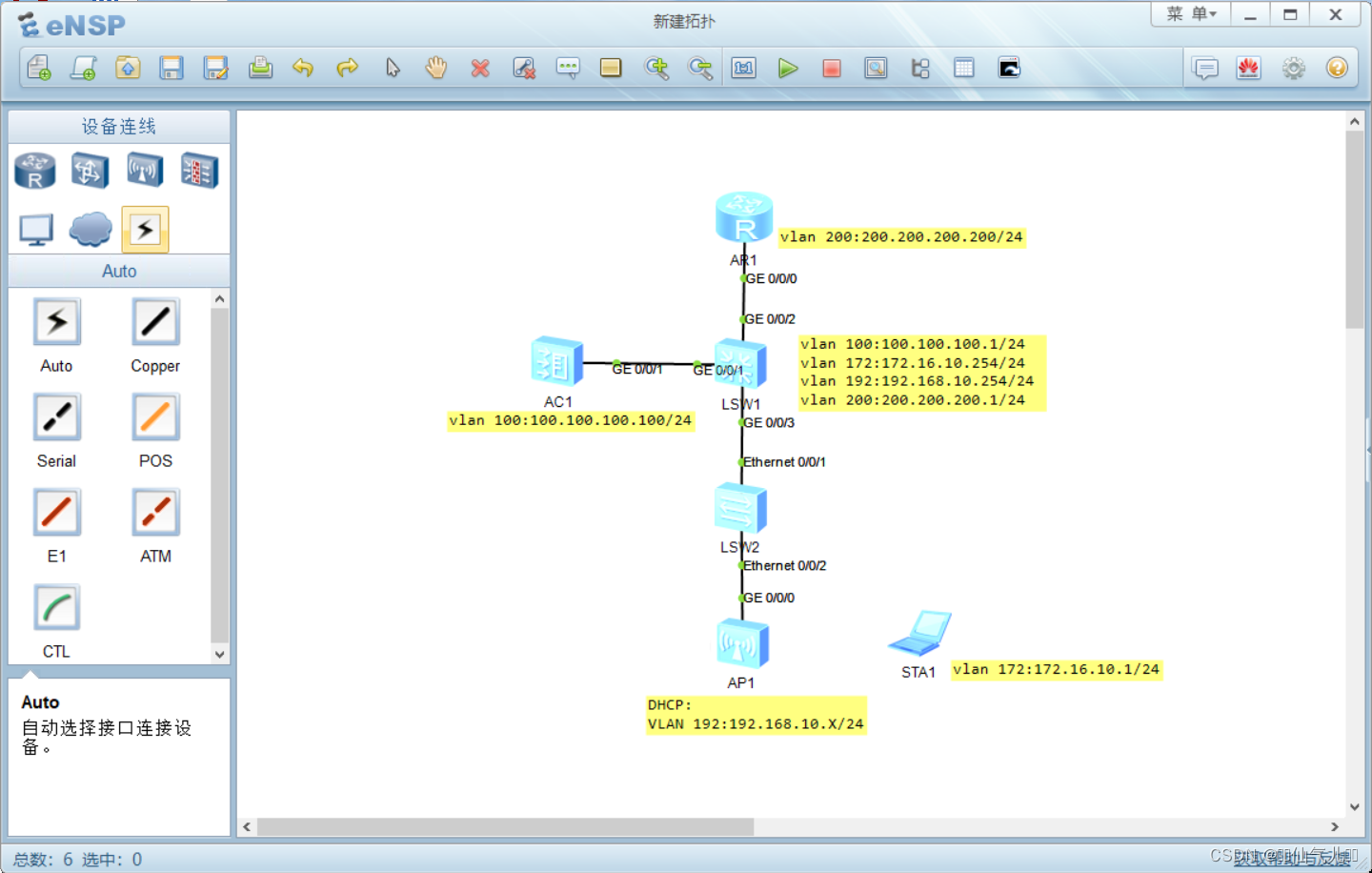

1.拓扑图

2.VLAN和IP配置

a.R1

<Huawei>system-view

[Huawei]sysname R1

GigabitEthernet 0/0/0

[R1-GigabitEthernet0/0/0]ip address 200.200.200.200 24

b.S1

<Huawei>system-view

[Huawei]sysname S1

[S1]vlan 100

[S1-vlan100]vlan 172

[S1-vlan172]vlan 192

[S1-vlan192]vlan 200

[S1-vlan200]quit

[S1]int

[S1]interface Vlanif 100

[S1-Vlanif100]ip address 100.100.100.1 24

[S1-Vlanif100]quit

[S1]interface Vlanif 172

[S1-Vlanif172]ip address 172.16.10.254 24

[S1-Vlanif172]quit

[S1]interface Vlanif 192

[S1-Vlanif192]ip address 192.168.10.254 24

[S1-Vlanif192]quit

[S1]interface Vlanif 200

[S1-Vlanif200]ip address 200.200.200.1 24

c.S2

<Huawei>system-view

[Huawei]sysname S2

[S2]vlan 192 //创建AP的vlan

d.AC1

<AC6005>system-view

[AC6005]sysname AC1

[AC1]vlan 100

[AC1-vlan100]quit

[AC1]interface Vlanif 100

[AC1-Vlanif100]ip address 100.100.100.100 24

[AC1-Vlanif100]quit

[AC1]vlan 172 //创建用户的vlan

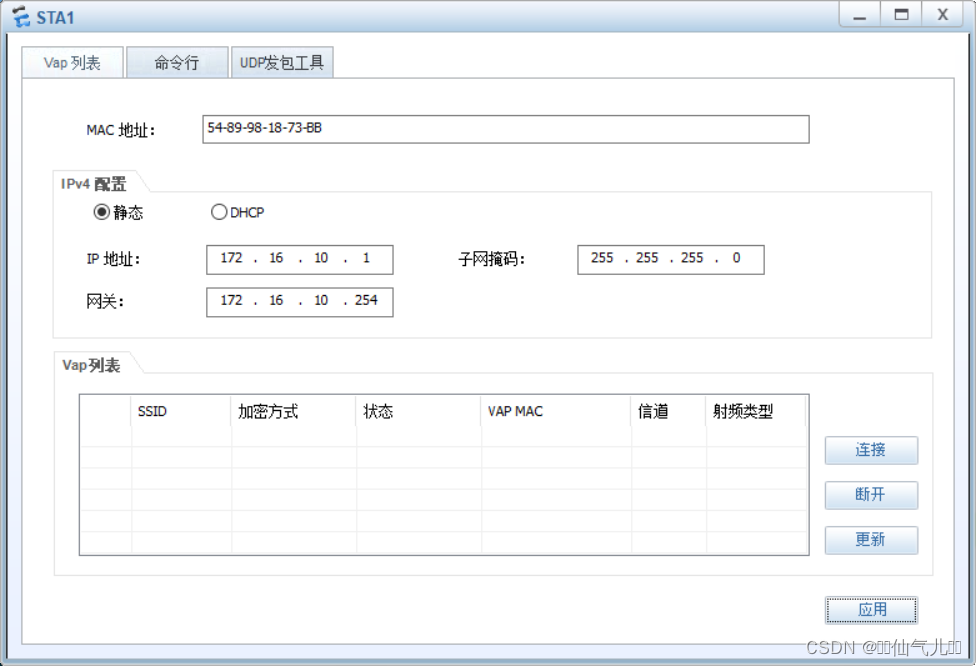

d.STA1

3.接口配置

a.AC1

[AC1]interface GigabitEthernet 0/0/1

[AC1-GigabitEthernet0/0/1]port link-type trunk

[AC1-GigabitEthernet0/0/1]port trunk allow-pass vlan all

[AC1-GigabitEthernet0/0/1]quit

[AC1]capwap source interface Vlanif 100 //配置和AP对接的vlanif 接口为100

b.S1

[S1]interfa
