STM32F103C8T6使用硬件IIC驱动OLED

1. 硬件I2C初始化

函数原型：

void I2C_Configuration(void);

引脚分布

查阅数据手册，决定使用 I2C1 ，引脚对应为：

I2C引脚STM32F1C8T6引脚
I2C1_SCLPB6
I2C1_SDAPB7

首先分别使能 GPIOB 和 I2C1 的时钟，分别位于APB2、APB1时钟总线上。

 RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB, ENABLE);   //开启GPIOB时钟
 RCC_APB1PeriphClockCmd(RCC_APB1Periph_I2C1, ENABLE);    //开启I2C1时钟

GPIOB配置

之后开始配置GPIO，之所以设置成开漏模式，是为了实现“线与”的功能，即同一时间只允许一台设备使用 I2C 总线。

 GPIO_InitStructure.GPIO_Mode  = GPIO_Mode_AF_OD;            //设置开漏复用模式
 GPIO_InitStructure.GPIO_Pin   = GPIO_Pin_6 | GPIO_Pin_7;    //I2C1_SCL <--> PB6                                                               //I2C1_SDA <--> PB7
 GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
 GPIO_Init(GPIOB, &GPIO_InitStructure);

硬件I2C参数介绍

开始配置 I2C1 ，I2C_InitTypeDef 结构体内容如下：

 typedef struct
 {
   uint32_t I2C_ClockSpeed;          /*!< 时钟频率.
                                          该参数必须设置小于 400kHz */
   uint16_t I2C_Mode;                /*!< I2C模式.
                                          该参数参考 @ref I2C_mode */
   uint16_t I2C_DutyCycle;           /*!< I2C快速模式占空比.
                                          该参数参考 @ref I2C_duty_cycle_in_fast_mode */
   uint16_t I2C_OwnAddress1;         /*!< 指定自身I2C设备的地址.
                                          该参数可以是7位或10位地址 */
   uint16_t I2C_Ack;                 /*!< 使能应答位.
                                          该参数参考 @ref I2C_acknowledgement */
   uint16_t I2C_AcknowledgedAddress; /*!< 7位或10位从地址设置.
                                          该参数参考 @ref I2C_acknowledged_address */
 }I2C_InitTypeDef;

1）I2C_ClockSpeed设置 I2C 的传输速率，要求不能超过 400kHz 。

2）I2C_mode有三种模式：

  • I2C_Mode_I2C ：I2C模式

  • I2C_Mode_SMBusDevice ： SMBus从模式

  • I2C_Mode_SMBusHost ： SMBus主模式

3）I2C_DutyCycle有两个选项：

  • I2C_DutyCycle_16_9 ： 低电平时间比高电平时间为16:9

  • I2C_DutyCycle_2 ：低电平时间比高电平时间为2:1

4）I2C_OwnAddress1设置 自身I2C设备的地址，可以是7位或10位地址，但要地址唯一。

5）I2C_Ack设置 I2C 应答是否使能。

  • I2C_Ack_Enable

  • I2C_Ack_Disable

6）I2C_AcknowledgedAddress设置 I2C 的寻址模式是7位还是10位地址，同时影响I2C_OwnAddress1的设置，只有该成员设置为7位模式，I2C_OwnAddress1才能设置成7位地址。有两个选项：

  • I2C_AcknowledgedAddress_7bit ：7位从地址

  • I2C_AcknowledgedAddress_10bit ：10位从地址

I2C1配置

了解 I2C_InitTypeDef 结构体各个成员的含义后，可以开始初始化 I2C1 。记得使能 I2C 。

 I2C_DeInit(I2C1);   //将I2C1外设寄存器初始化为其默认重置值
 ​
 I2C_InitStructure.I2C_Ack                   = I2C_Ack_Enable;
 I2C_InitStructure.I2C_AcknowledgedAddress   = I2C_AcknowledgedAddress_7bit;
 I2C_InitStructure.I2C_ClockSpeed            = 400000;
 I2C_InitStructure.I2C_DutyCycle             = I2C_DutyCycle_2;
 I2C_InitStructure.I2C_Mode                  = I2C_Mode_I2C;
 I2C_InitStructure.I2C_OwnAddress1           = 0x30;
 I2C_Init(I2C1, &I2C_InitStructure);
 ​
 I2C_Cmd(I2C1, ENABLE);

详细代码

 void I2C_Configuration(void)
 {
     GPIO_InitTypeDef GPIO_InitStructure;
     I2C_InitTypeDef I2C_InitStructure;
 ​
     RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB, ENABLE);   //开启GPIOB时钟
     RCC_APB1PeriphClockCmd(RCC_APB1Periph_I2C1, ENABLE);    //开启I2C1时钟
 ​
     GPIO_InitStructure.GPIO_Mode  = GPIO_Mode_AF_OD;            //设置开漏复用模式
     GPIO_InitStructure.GPIO_Pin   = GPIO_Pin_6 | GPIO_Pin_7;    //I2C1_SCL <--> PB6  I2C1_SDA <--> PB7
     GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
     GPIO_Init(GPIOB, &GPIO_InitStructure);
 ​
     I2C_DeInit(I2C1);           //将I2C1外设寄存器初始化为其默认重置值
 ​
     I2C_InitStructure.I2C_Ack                   = I2C_Ack_Enable;               //使能应答
     I2C_InitStructure.I2C_AcknowledgedAddress   = I2C_AcknowledgedAddress_7bit; //设置寻址地址为7位地址模式
     I2C_InitStructure.I2C_ClockSpeed            = 400000;                       //设置I2C速率为最大值400kHz
     I2C_InitStructure.I2C_DutyCycle             = I2C_DutyCycle_2;              //设置低比高电平时间为2:1
     I2C_InitStructure.I2C_Mode                  = I2C_Mode_I2C;                 //设置为I2C模式
     I2C_InitStructure.I2C_OwnAddress1           = 0x30;                         //设置自身设备地址为0x30
     I2C_Init(I2C1, &I2C_InitStructure);
     I2C_Cmd(I2C1, ENABLE);                                                      //使能I2C1
 }

2. 向OLED寄存器写入1Byte

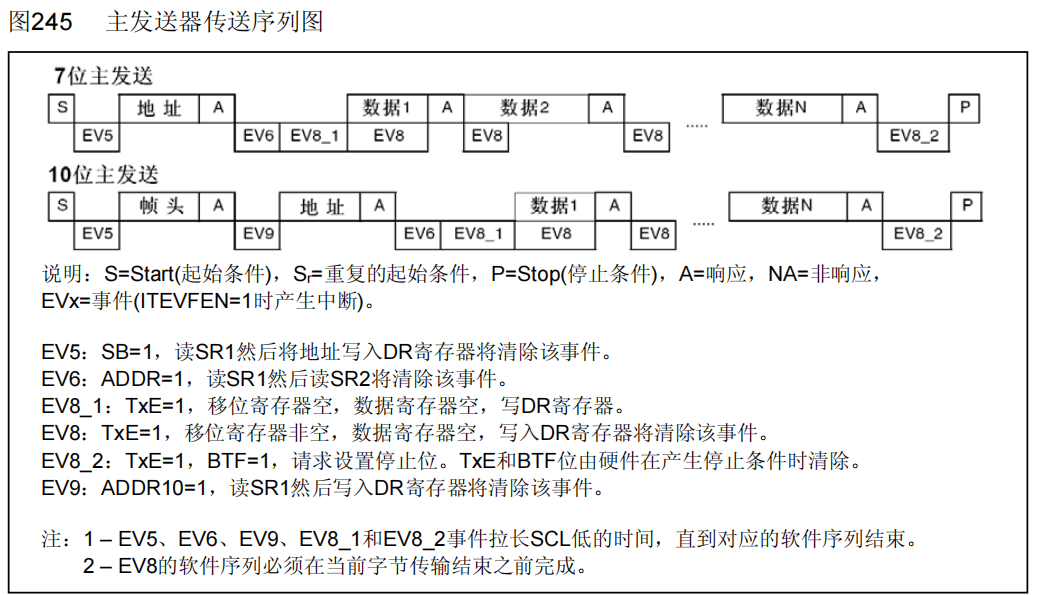

主发送器传送序列图

查阅STM32F10xx参考手册，在 I2C 主模式下，7位主发送序列如下：

image-20231108212130587

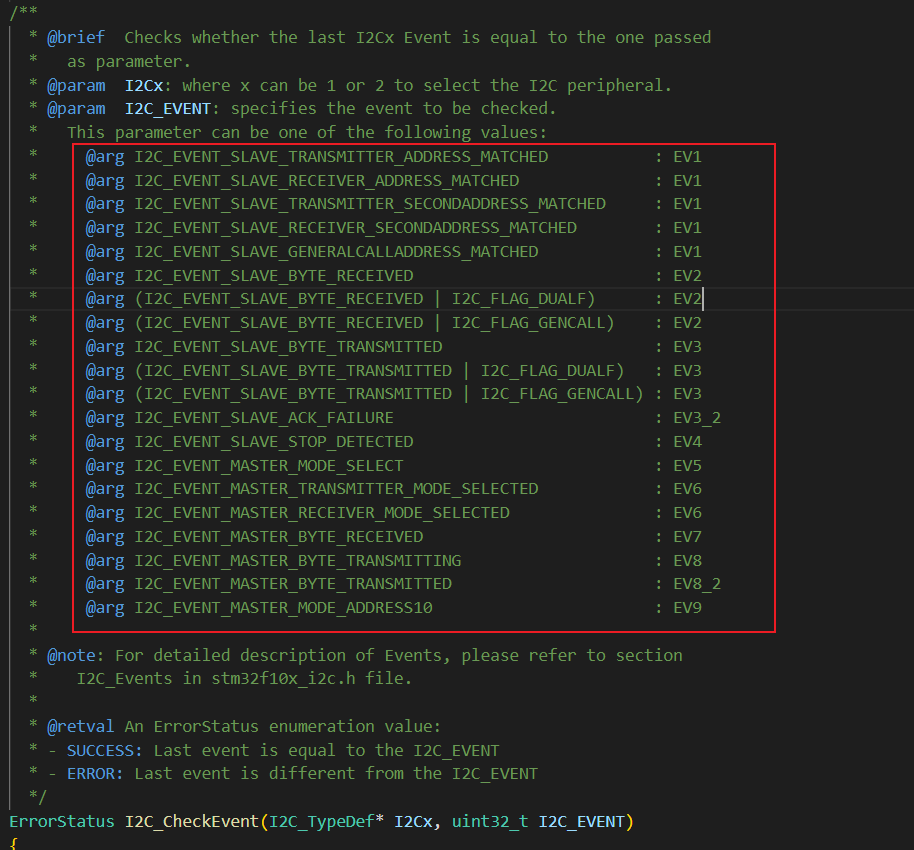

EV事件列表

同时，查看 stm32f10x_i2c.c 文件中的源码，找到 I2C_CheckEvent 函数，可以看到各个事件对应的变量。

image-20231108212413239

详细代码

/**
  * @name: OLED_WR_Byte
  * @brief: 向OLED寄存器发送一个字节
  * @param {u8} dat  ：待发送的字节
  * @param {u8} mode ：数据/命令标志     0，命令；1，数据
  * @return {*}
  */
 void OLED_WR_Byte( u8 data, u8 mode )
 {
     while( I2C_GetFlagStatus(I2C1, I2C_FLAG_BUSY) );        //等待总线空闲
     I2C_GenerateSTART(I2C1, ENABLE);
 ​
     while( I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_MODE_SELECT) == ERROR );       //检测EV5事件
     I2C_Send7bitAddress(I2C1, OLED_ADDRESS, I2C_Direction_Transmitter);
 ​
     while( I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_TRANSMITTER_MODE_SELECTED) == ERROR );     //检测EV6事件
     if( mode )
         I2C_SendData(I2C1, 0x40);   //写数据
     else
         I2C_SendData(I2C1, 0x00);   //写命令
 ​
     while( I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_BYTE_TRANSMITTING) == ERROR );     //检测EV8_2事件
     I2C_SendData(I2C1, data);

     while( I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_BYTE_TRANSMITTING) == ERROR );     //检测EV8_2事件
     I2C_GenerateSTOP(I2C1, ENABLE);
 }

3. OLED更新显存

如果是画一个点就写入寄存器，那么效率太慢了，所以定一个显存数组OLED_GRAM，将要改变的像素点记录，之后再将该数组一起写入寄存器中，提高效率。

u8 OLED_GRAM[144][8];
 ​
 /* 更新显存到OLED */
 void OLED_Refresh( void )
 {
     uint8_t i, n;
 ​
     for( i = 0; i < 8; i++ )
     {
         OLED_WR_Byte( 0xB0+i, OLED_CMD );   //设置页地址
         OLED_WR_Byte( 0x00, OLED_CMD );     //设置列地址低四位
         OLED_WR_Byte( 0x10, OLED_CMD );     //设置列地址高四位
 ​
         for( n = 0; n < 128; n++ )
             OLED_WR_Byte( OLED_GRAM[n][i], OLED_DATA );
     }
 }

4. OLED清屏

/* 清屏 */
 void OLED_Clear( void )
 {
     uint8_t i, n;
 ​
     for( i = 0; i < 8; i++ )
     {
         for( n = 0; n < 128; n++ )
         {
             OLED_GRAM[n][i] = 0;
         }
     }
 ​
     OLED_Refresh( );
 }

5. 画点

 /* 画点 */
 void OLED_DrawPoint( u8 x, u8 y )
 {
     uint8_t i, m, n;
 ​
     i = y / 8;          //第几页
     m = y % 8;          //一页中的第几个像素点
     n = 1 << m;
     OLED_GRAM[x][i] |= n;
 }

6. 清除一个点

/* 清除一个点 */
 void OLED_ClearPoint( u8 x, u8 y )
 {
     uint8_t i, m, n;

     i = y / 8;
     m = y % 8;
     n = 1 << m;
     OLED_GRAM[x][i] = ~OLED_GRAM[x][i];
     OLED_GRAM[x][i] |= n;
     OLED_GRAM[x][i] = ~OLED_GRAM[x][i];
 }

7. 显示一个字符

/**
  * @name: OLED_ShowChar
  * @brief: 在指定位置显示一个字符   （逐列式）
  * @param {u8} x：0~127
  * @param {u8} y：0~63
  * @param {u8} ch：待显示字符
  * @param {u8} size：字体大小   12/16/24
  * @return {*}
  */
 void OLED_ShowChar( u8 x, u8 y, u8 ch, u8 size )
 {
     u8 i, m, temp, realSize, chr;
     u8 y0 = y;
 ​
     realSize = (size / 8 + ((size % 8) ? 1 : 0)) * (size / 2);
     chr = ch - ' ';  //计算偏移值
 ​
     for( i = 0; i < realSize; i++ )
     {
         if( size == 12 )
             temp = asc2_1206[chr][i];    //调用1206字体
         else if( size == 16 )
             temp = asc2_1608[chr][i];    //调用1608字体
         else if( size == 24 )
             temp = asc2_2412[chr][i];    //调用2412字体
         else
             return;

         for( m = 0; m < 8; m++ )
         {
             if( temp & 0x80 )
                 OLED_DrawPoint( x, y );
             else
                 OLED_ClearPoint( x, y );

             temp <<= 1;
             y++;
             if( (y-y0) == size )
             {
                 y = y0;
                 x++;
                 break;
             }
         }
     }
 }

8. 显示字符串

 /**
  * @name: OLED_ShowString
  * @brief: 在指定位置显示一个字符串
  * @param {u8} x：0~127
  * @param {u8} y：0~63
  * @param {u8} *str：待显示字符串
  * @param {u8} size：字体大小
  * @return {*}
  */
 void OLED_ShowString( u8 x, u8 y, u8 *str, u8 size )
 {
     while( (*str) >= ' ' && (*str) <= '~' )     //判断是否是非法字符
     {
         OLED_ShowChar( x, y, *str, size );
         x += size / 2;
         if( x > 128-size )
         {
             x = 0;
             y += 2;
         }
         str++;
     }
 }

9. OLED初始化

 /* OLED初始化 */
 void OLED_Init( void )
 {
     I2C_Configuration( );
     delay_ms( 200 );
 ​
     OLED_WR_Byte(0xAE,OLED_CMD);//--关闭OLED面板
     OLED_WR_Byte(0x00,OLED_CMD);//---设置低列地址
     OLED_WR_Byte(0x10,OLED_CMD);//---设置高列地址
     OLED_WR_Byte(0x40,OLED_CMD);//--设置起始行地址 设置映射 RAM 显示起始行 (0x00~0x3F)
     OLED_WR_Byte(0x81,OLED_CMD);//--设置对比度控制寄存器
     OLED_WR_Byte(0xCF,OLED_CMD);// 设置 SEG 输出电流亮度
     OLED_WR_Byte(0xA1,OLED_CMD);//--设置 SEG/列映射     0xa0左右反置 0xa1正常
     OLED_WR_Byte(0xC8,OLED_CMD);//设置 COM/行扫描方向   0xc0上下反置 0xc8正常
     OLED_WR_Byte(0xA6,OLED_CMD);//--设置正常显示
     OLED_WR_Byte(0xA8,OLED_CMD);//--设置复用比（1 到 64）
     OLED_WR_Byte(0x3f,OLED_CMD);//--1/64 duty
     OLED_WR_Byte(0xD3,OLED_CMD);//-设置显示偏移量 移位映射 RAM 计数器 (0x00~0x3F)
     OLED_WR_Byte(0x00,OLED_CMD);//-不抵消
     OLED_WR_Byte(0xd5,OLED_CMD);//--设置显示时钟分频比/振荡器频率
     OLED_WR_Byte(0x80,OLED_CMD);//--设置分频比，设置时钟为 100 帧/秒
     OLED_WR_Byte(0xD9,OLED_CMD);//--设置预充电期
     OLED_WR_Byte(0xF1,OLED_CMD);//将预充电设置为 15 个时钟，将放电设置为 1 个时钟
     OLED_WR_Byte(0xDA,OLED_CMD);//--设置 com 引脚硬件配置
     OLED_WR_Byte(0x12,OLED_CMD);
     OLED_WR_Byte(0xDB,OLED_CMD);//--设置 vcomh
     OLED_WR_Byte(0x40,OLED_CMD);//设置 VCOM 取消选择级别
     OLED_WR_Byte(0x20,OLED_CMD);//-设置页面寻址模式（0x00/0x01/0x02）
     OLED_WR_Byte(0x02,OLED_CMD);//
     OLED_WR_Byte(0x8D,OLED_CMD);//--设置电荷泵启用/禁用
     OLED_WR_Byte(0x14,OLED_CMD);//--设置（0x10）禁用
     OLED_WR_Byte(0xA4,OLED_CMD);// 禁用整个显示 (0xa4/0xa5)
     OLED_WR_Byte(0xA6,OLED_CMD);// 禁用反向显示 (0xa6/a7)
     OLED_WR_Byte(0xAF,OLED_CMD);
     OLED_Clear();
 }

10. 完整代码

oled.h 文件

 #ifndef __OLED_H
 #define __OLED_H
 #include "stm32f10x.h"
 ​
 #define OLED_CMD  0 //写命令
 #define OLED_DATA 1 //写数据
 ​
 #define OLED_ADDRESS    0x78
 ​
 void I2C_Configuration(void);
 ​
 void OLED_Init( void );
 void OLED_WR_Byte( u8 dat, u8 mode );
 void OLED_Refresh( void );
 void OLED_Clear( void );
 void OLED_DrawPoint( u8 x, u8 y );
 void OLED_ClearPoint( u8 x, u8 y );
 ​
 void OLED_ShowChar( u8 x, u8 y, u8 ch, u8 size );
 void OLED_ShowString( u8 x, u8 y, u8 *str, u8 size );
 ​
 #endif

oled.c 文件

 #include "oled.h"
 #include "delay.h"
 #include "OLED_Font.h"
 ​
 u8 OLED_GRAM[144][8];
 ​
 void I2C_Configuration(void)
 {
     GPIO_InitTypeDef GPIO_InitStructure;
     I2C_InitTypeDef I2C_InitStructure;
 ​
     RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB, ENABLE);   //开启GPIOB时钟
     RCC_APB1PeriphClockCmd(RCC_APB1Periph_I2C1, ENABLE);    //开启I2C1时钟
 ​
     GPIO_InitStructure.GPIO_Mode  = GPIO_Mode_AF_OD;            //设置开漏复用模式
     GPIO_InitStructure.GPIO_Pin   = GPIO_Pin_6 | GPIO_Pin_7;    //I2C1_SCL <--> PB6  I2C1_SDA <--> PB7
     GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
     GPIO_Init(GPIOB, &GPIO_InitStructure);
 ​
     I2C_DeInit(I2C1);           //将I2C1外设寄存器初始化为其默认重置值
 ​
     I2C_InitStructure.I2C_Ack                   = I2C_Ack_Enable;                   //使能应答
     I2C_InitStructure.I2C_AcknowledgedAddress   = I2C_AcknowledgedAddress_7bit;     //设置寻址地址为7位地址模式
     I2C_InitStructure.I2C_ClockSpeed            = 400000;                           //设置I2C速率为最大值400kHz
     I2C_InitStructure.I2C_DutyCycle             = I2C_DutyCycle_2;                  //设置低电平时间比高电平时间为2:1
     I2C_InitStructure.I2C_Mode                  = I2C_Mode_I2C;                     //设置为I2C模式
     I2C_InitStructure.I2C_OwnAddress1           = 0x30;                             //设置自身设备地址为0x30
     I2C_Init(I2C1, &I2C_InitStructure);
     I2C_Cmd(I2C1, ENABLE);                                                          //使能I2C1
 }
 ​
 /**
  * @name: OLED_WR_Byte
  * @brief: 向OLED寄存器发送一个字节
  * @param {u8} dat  ：待发送的字节
  * @param {u8} mode ：数据/命令标志     0，命令；1，数据
  * @return {*}
  */
 void OLED_WR_Byte( u8 data, u8 mode )
 {
     while( I2C_GetFlagStatus(I2C1, I2C_FLAG_BUSY) );        //等待总线空闲
     I2C_GenerateSTART(I2C1, ENABLE);
 ​
     while( I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_MODE_SELECT) == ERROR );       //检测EV5事件
     I2C_Send7bitAddress(I2C1, OLED_ADDRESS, I2C_Direction_Transmitter);
 ​
     while( I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_TRANSMITTER_MODE_SELECTED) == ERROR );     //检测EV6事件
     if( mode )
         I2C_SendData(I2C1, 0x40);   //写数据
     else
         I2C_SendData(I2C1, 0x00);   //写命令
 ​
     while( I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_BYTE_TRANSMITTING) == ERROR );     //检测EV8_2事件
     I2C_SendData(I2C1, data);

     while( I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_BYTE_TRANSMITTING) == ERROR );     //检测EV8_2事件
     I2C_GenerateSTOP(I2C1, ENABLE);
 }
 ​
 /* 更新显存到OLED */
 void OLED_Refresh( void )
 {
     uint8_t i, n;
 ​
     for( i = 0; i < 8; i++ )
     {
         OLED_WR_Byte( 0xB0+i, OLED_CMD );   //设置页地址
         OLED_WR_Byte( 0x00, OLED_CMD );     //设置列地址低四位
         OLED_WR_Byte( 0x10, OLED_CMD );     //设置列地址高四位
 ​
         for( n = 0; n < 128; n++ )
             OLED_WR_Byte( OLED_GRAM[n][i], OLED_DATA );
     }
 }
 ​
 /* 清屏 */
 void OLED_Clear( void )
 {
     uint8_t i, n;
 ​
     for( i = 0; i < 8; i++ )
     {
         for( n = 0; n < 128; n++ )
         {
             OLED_GRAM[n][i] = 0;
         }
     }
 ​
     OLED_Refresh( );
 }
 ​
 /* 画点 */
 void OLED_DrawPoint( u8 x, u8 y )
 {
     uint8_t i, m, n;
 ​
     i = y / 8;          //第几页
     m = y % 8;          //一页中的第几个像素点
     n = 1 << m;
     OLED_GRAM[x][i] |= n;
 }
 ​
 /* 清除一个点 */
 void OLED_ClearPoint( u8 x, u8 y )
 {
     uint8_t i, m, n;

     i = y / 8;
     m = y % 8;
     n = 1 << m;
     OLED_GRAM[x][i] = ~OLED_GRAM[x][i];
     OLED_GRAM[x][i] |= n;
     OLED_GRAM[x][i] = ~OLED_GRAM[x][i];
 }
 ​
 /**
  * @name: OLED_ShowChar
  * @brief: 在指定位置显示一个字符   （逐列式）
  * @param {u8} x：0~127
  * @param {u8} y：0~63
  * @param {u8} ch：待显示字符
  * @param {u8} size：字体大小   12/16/24
  * @return {*}
  */
 void OLED_ShowChar( u8 x, u8 y, u8 ch, u8 size )
 {
     u8 i, m, temp, realSize, chr;
     u8 y0 = y;
 ​
     realSize = (size / 8 + ((size % 8) ? 1 : 0)) * (size / 2);
     chr = ch - ' ';  //计算偏移值
 ​
     for( i = 0; i < realSize; i++ )
     {
         if( size == 12 )
             temp = asc2_1206[chr][i];    //调用1206字体
         else if( size == 16 )
             temp = asc2_1608[chr][i];    //调用1608字体
         else if( size == 24 )
             temp = asc2_2412[chr][i];    //调用2412字体
         else
             return;

         for( m = 0; m < 8; m++ )
         {
             if( temp & 0x80 )
                 OLED_DrawPoint( x, y );
             else
                 OLED_ClearPoint( x, y );

             temp <<= 1;
             y++;
             if( (y-y0) == size )
             {
                 y = y0;
                 x++;
                 break;
             }
         }
     }
 }
 ​
 /**
  * @name: OLED_ShowString
  * @brief: 在指定位置显示一个字符串
  * @param {u8} x：0~127
  * @param {u8} y：0~63
  * @param {u8} *str：待显示字符串
  * @param {u8} size：字体大小
  * @return {*}
  */
 void OLED_ShowString( u8 x, u8 y, u8 *str, u8 size )
 {
     while( (*str) >= ' ' && (*str) <= '~' )     //判断是否是非法字符
     {
         OLED_ShowChar( x, y, *str, size );
         x += size / 2;
         if( x > 128-size )
         {
             x = 0;
             y += 2;
         }
         str++;
     }
 }
 ​
 /* OLED初始化 */
 void OLED_Init( void )
 {
     I2C_Configuration( );
     delay_ms( 200 );
 ​
     OLED_WR_Byte(0xAE,OLED_CMD);//--关闭OLED面板
     OLED_WR_Byte(0x00,OLED_CMD);//---设置低列地址
     OLED_WR_Byte(0x10,OLED_CMD);//---设置高列地址
     OLED_WR_Byte(0x40,OLED_CMD);//--设置起始行地址 设置映射 RAM 显示起始行 (0x00~0x3F)
     OLED_WR_Byte(0x81,OLED_CMD);//--设置对比度控制寄存器
     OLED_WR_Byte(0xCF,OLED_CMD);// 设置 SEG 输出电流亮度
     OLED_WR_Byte(0xA1,OLED_CMD);//--设置 SEG/列映射     0xa0左右反置 0xa1正常
     OLED_WR_Byte(0xC8,OLED_CMD);//设置 COM/行扫描方向   0xc0上下反置 0xc8正常
     OLED_WR_Byte(0xA6,OLED_CMD);//--设置正常显示
     OLED_WR_Byte(0xA8,OLED_CMD);//--设置复用比（1 到 64）
     OLED_WR_Byte(0x3f,OLED_CMD);//--1/64 duty
     OLED_WR_Byte(0xD3,OLED_CMD);//-设置显示偏移量 移位映射 RAM 计数器 (0x00~0x3F)
     OLED_WR_Byte(0x00,OLED_CMD);//-不抵消
     OLED_WR_Byte(0xd5,OLED_CMD);//--设置显示时钟分频比/振荡器频率
     OLED_WR_Byte(0x80,OLED_CMD);//--设置分频比，设置时钟为 100 帧/秒
     OLED_WR_Byte(0xD9,OLED_CMD);//--设置预充电期
     OLED_WR_Byte(0xF1,OLED_CMD);//将预充电设置为 15 个时钟，将放电设置为 1 个时钟
     OLED_WR_Byte(0xDA,OLED_CMD);//--设置 com 引脚硬件配置
     OLED_WR_Byte(0x12,OLED_CMD);
     OLED_WR_Byte(0xDB,OLED_CMD);//--设置 vcomh
     OLED_WR_Byte(0x40,OLED_CMD);//设置 VCOM 取消选择级别
     OLED_WR_Byte(0x20,OLED_CMD);//-设置页面寻址模式（0x00/0x01/0x02）
     OLED_WR_Byte(0x02,OLED_CMD);//
     OLED_WR_Byte(0x8D,OLED_CMD);//--设置电荷泵启用/禁用
     OLED_WR_Byte(0x14,OLED_CMD);//--设置（0x10）禁用
     OLED_WR_Byte(0xA4,OLED_CMD);// 禁用整个显示 (0xa4/0xa5)
     OLED_WR_Byte(0xA6,OLED_CMD);// 禁用反向显示 (0xa6/a7)
     OLED_WR_Byte(0xAF,OLED_CMD);
     OLED_Clear();
 }

oled_font.h 文件

 #ifndef __OLEDFONT_H
 #define __OLEDFONT_H

 //常用ASCII表
 //偏移量32
 //ASCII字符集
 //偏移量32
 //大小:12*6
 /************************************6*8的点阵************************************/
 //12*12 ASCII字符集点阵
 const unsigned char asc2_1206[95][12]={
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
 {0x00,0x00,0x00,0x00,0x3F,0x40,0x00,0x00,0x00,0x00,0x00,0x00},/*"!",1*/
 {0x00,0x00,0x30,0x00,0x40,0x00,0x30,0x00,0x40,0x00,0x00,0x00},/*""",2*/
 {0x09,0x00,0x0B,0xC0,0x3D,0x00,0x0B,0xC0,0x3D,0x00,0x09,0x00},/*"#",3*/
 {0x18,0xC0,0x24,0x40,0x7F,0xE0,0x22,0x40,0x31,0x80,0x00,0x00},/*"$",4*/
 {0x18,0x00,0x24,0xC0,0x1B,0x00,0x0D,0x80,0x32,0x40,0x01,0x80},/*"%",5*/
 {0x03,0x80,0x1C,0x40,0x27,0x40,0x1C,0x80,0x07,0x40,0x00,0x40},/*"&",6*/
 {0x10,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x80,0x20,0x40,0x40,0x20},/*"(",8*/
 {0x00,0x00,0x40,0x20,0x20,0x40,0x1F,0x80,0x00,0x00,0x00,0x00},/*")",9*/
 {0x09,0x00,0x06,0x00,0x1F,0x80,0x06,0x00,0x09,0x00,0x00,0x00},/*"*",10*/
 {0x04,0x00,0x04,0x00,0x3F,0x80,0x04,0x00,0x04,0x00,0x00,0x00},/*"+",11*/
 {0x00,0x10,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*",",12*/
 {0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x00,0x00},/*"-",13*/
 {0x00,0x00,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*".",14*/
 {0x00,0x20,0x01,0xC0,0x06,0x00,0x38,0x00,0x40,0x00,0x00,0x00},/*"/",15*/
 {0x1F,0x80,0x20,0x40,0x20,0x40,0x20,0x40,0x1F,0x80,0x00,0x00},/*"0",16*/
 {0x00,0x00,0x10,0x40,0x3F,0xC0,0x00,0x40,0x00,0x00,0x00,0x00},/*"1",17*/
 {0x18,0xC0,0x21,0x40,0x22,0x40,0x24,0x40,0x18,0x40,0x00,0x00},/*"2",18*/
 {0x10,0x80,0x20,0x40,0x24,0x40,0x24,0x40,0x1B,0x80,0x00,0x00},/*"3",19*/
 {0x02,0x00,0x0D,0x00,0x11,0x00,0x3F,0xC0,0x01,0x40,0x00,0x00},/*"4",20*/
 {0x3C,0x80,0x24,0x40,0x24,0x40,0x24,0x40,0x23,0x80,0x00,0x00},/*"5",21*/
 {0x1F,0x80,0x24,0x40,0x24,0x40,0x34,0x40,0x03,0x80,0x00,0x00},/*"6",22*/
 {0x30,0x00,0x20,0x00,0x27,0xC0,0x38,0x00,0x20,0x00,0x00,0x00},/*"7",23*/
 {0x1B,0x80,0x24,0x40,0x24,0x40,0x24,0x40,0x1B,0x80,0x00,0x00},/*"8",24*/
 {0x1C,0x00,0x22,0xC0,0x22,0x40,0x22,0x40,0x1F,0x80,0x00,0x00},/*"9",25*/
 {0x00,0x00,0x00,0x00,0x08,0x40,0x00,0x00,0x00,0x00,0x00,0x00},/*":",26*/
 {0x00,0x00,0x00,0x00,0x04,0x60,0x00,0x00,0x00,0x00,0x00,0x00},/*";",27*/
 {0x00,0x00,0x04,0x00,0x0A,0x00,0x11,0x00,0x20,0x80,0x40,0x40},/*"<",28*/
 {0x09,0x00,0x09,0x00,0x09,0x00,0x09,0x00,0x09,0x00,0x00,0x00},/*"=",29*/
 {0x00,0x00,0x40,0x40,0x20,0x80,0x11,0x00,0x0A,0x00,0x04,0x00},/*">",30*/
 {0x18,0x00,0x20,0x00,0x23,0x40,0x24,0x00,0x18,0x00,0x00,0x00},/*"?",31*/
 {0x1F,0x80,0x20,0x40,0x27,0x40,0x29,0x40,0x1F,0x40,0x00,0x00},/*"@",32*/
 {0x00,0x40,0x07,0xC0,0x39,0x00,0x0F,0x00,0x01,0xC0,0x00,0x40},/*"A",33*/
 {0x20,0x40,0x3F,0xC0,0x24,0x40,0x24,0x40,0x1B,0x80,0x00,0x00},/*"B",34*/
 {0x1F,0x80,0x20,0x40,0x20,0x40,0x20,0x40,0x30,0x80,0x00,0x00},/*"C",35*/
 {0x20,0x40,0x3F,0xC0,0x20,0x40,0x20,0x40,0x1F,0x80,0x00,0x00},/*"D",36*/
 {0x20,0x40,0x3F,0xC0,0x24,0x40,0x2E,0x40,0x30,0xC0,0x00,0x00},/*"E",37*/
 {0x20,0x40,0x3F,0xC0,0x24,0x40,0x2E,0x00,0x30,0x00,0x00,0x00},/*"F",38*/
 {0x0F,0x00,0x10,0x80,0x20,0x40,0x22,0x40,0x33,0x80,0x02,0x00},/*"G",39*/
 {0x20,0x40,0x3F,0xC0,0x04,0x00,0x04,0x00,0x3F,0xC0,0x20,0x40},/*"H",40*/
 {0x20,0x40,0x20,0x40,0x3F,0xC0,0x20,0x40,0x20,0x40,0x00,0x00},/*"I",41*/
 {0x00,0x60,0x20,0x20,0x20,0x20,0x3F,0xC0,0x20,0x00,0x20,0x00},/*"J",42*/
 {0x20,0x40,0x3F,0xC0,0x24,0x40,0x0B,0x00,0x30,0xC0,0x20,0x40},/*"K",43*/
 {0x20,0x40,0x3F,0xC0,0x20,0x40,0x00,0x40,0x00,0x40,0x00,0xC0},/*"L",44*/
 {0x3F,0xC0,0x3C,0x00,0x03,0xC0,0x3C,0x00,0x3F,0xC0,0x00,0x00},/*"M",45*/
 {0x20,0x40,0x3F,0xC0,0x0C,0x40,0x23,0x00,0x3F,0xC0,0x20,0x00},/*"N",46*/
 {0x1F,0x80,0x20,0x40,0x20,0x40,0x20,0x40,0x1F,0x80,0x00,0x00},/*"O",47*/
 {0x20,0x40,0x3F,0xC0,0x24,0x40,0x24,0x00,0x18,0x00,0x00,0x00},/*"P",48*/
 {0x1F,0x80,0x21,0x40,0x21,0x40,0x20,0xE0,0x1F,0xA0,0x00,0x00},/*"Q",49*/
 {0x20,0x40,0x3F,0xC0,0x24,0x40,0x26,0x00,0x19,0xC0,0x00,0x40},/*"R",50*/
 {0x18,0xC0,0x24,0x40,0x24,0x40,0x22,0x40,0x31,0x80,0x00,0x00},/*"S",51*/
 {0x30,0x00,0x20,0x40,0x3F,0xC0,0x20,0x40,0x30,0x00,0x00,0x00},/*"T",52*/
 {0x20,0x00,0x3F,0x80,0x00,0x40,0x00,0x40,0x3F,0x80,0x20,0x00},/*"U",53*/
 {0x20,0x00,0x3E,0x00,0x01,0xC0,0x07,0x00,0x38,0x00,0x20,0x00},/*"V",54*/
 {0x38,0x00,0x07,0xC0,0x3C,0x00,0x07,0xC0,0x38,0x00,0x00,0x00},/*"W",55*/
 {0x20,0x40,0x39,0xC0,0x06,0x00,0x39,0xC0,0x20,0x40,0x00,0x00},/*"X",56*/
 {0x20,0x00,0x38,0x40,0x07,0xC0,0x38,0x40,0x20,0x00,0x00,0x00},/*"Y",57*/
 {0x30,0x40,0x21,0xC0,0x26,0x40,0x38,0x40,0x20,0xC0,0x00,0x00},/*"Z",58*/
 {0x00,0x00,0x00,0x00,0x7F,0xE0,0x40,0x20,0x40,0x20,0x00,0x00},/*"[",59*/
 {0x00,0x00,0x70,0x00,0x0C,0x00,0x03,0x80,0x00,0x40,0x00,0x00},/*"\",60*/
 {0x00,0x00,0x40,0x20,0x40,0x20,0x7F,0xE0,0x00,0x00,0x00,0x00},/*"]",61*/
 {0x00,0x00,0x20,0x00,0x40,0x00,0x20,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
 {0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10},/*"_",63*/
 {0x00,0x00,0x00,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
 {0x00,0x00,0x02,0x80,0x05,0x40,0x05,0x40,0x03,0xC0,0x00,0x40},/*"a",65*/
 {0x20,0x00,0x3F,0xC0,0x04,0x40,0x04,0x40,0x03,0x80,0x00,0x00},/*"b",66*/
 {0x00,0x00,0x03,0x80,0x04,0x40,0x04,0x40,0x06,0x40,0x00,0x00},/*"c",67*/
 {0x00,0x00,0x03,0x80,0x04,0x40,0x24,0x40,0x3F,0xC0,0x00,0x40},/*"d",68*/
 {0x00,0x00,0x03,0x80,0x05,0x40,0x05,0x40,0x03,0x40,0x00,0x00},/*"e",69*/
 {0x00,0x00,0x04,0x40,0x1F,0xC0,0x24,0x40,0x24,0x40,0x20,0x00},/*"f",70*/
 {0x00,0x00,0x02,0xE0,0x05,0x50,0x05,0x50,0x06,0x50,0x04,0x20},/*"g",71*/
 {0x20,0x40,0x3F,0xC0,0x04,0x40,0x04,0x00,0x03,0xC0,0x00,0x40},/*"h",72*/
 {0x00,0x00,0x04,0x40,0x27,0xC0,0x00,0x40,0x00,0x00,0x00,0x00},/*"i",73*/
 {0x00,0x10,0x00,0x10,0x04,0x10,0x27,0xE0,0x00,0x00,0x00,0x00},/*"j",74*/
 {0x20,0x40,0x3F,0xC0,0x01,0x40,0x07,0x00,0x04,0xC0,0x04,0x40},/*"k",75*/
 {0x20,0x40,0x20,0x40,0x3F,0xC0,0x00,0x40,0x00,0x40,0x00,0x00},/*"l",76*/
 {0x07,0xC0,0x04,0x00,0x07,0xC0,0x04,0x00,0x03,0xC0,0x00,0x00},/*"m",77*/
 {0x04,0x40,0x07,0xC0,0x04,0x40,0x04,0x00,0x03,0xC0,0x00,0x40},/*"n",78*/
 {0x00,0x00,0x03,0x80,0x04,0x40,0x04,0x40,0x03,0x80,0x00,0x00},/*"o",79*/
 {0x04,0x10,0x07,0xF0,0x04,0x50,0x04,0x40,0x03,0x80,0x00,0x00},/*"p",80*/
 {0x00,0x00,0x03,0x80,0x04,0x40,0x04,0x50,0x07,0xF0,0x00,0x10},/*"q",81*/
 {0x04,0x40,0x07,0xC0,0x02,0x40,0x04,0x00,0x04,0x00,0x00,0x00},/*"r",82*/
 {0x00,0x00,0x06,0x40,0x05,0x40,0x05,0x40,0x04,0xC0,0x00,0x00},/*"s",83*/
 {0x00,0x00,0x04,0x00,0x1F,0x80,0x04,0x40,0x00,0x40,0x00,0x00},/*"t",84*/
 {0x04,0x00,0x07,0x80,0x00,0x40,0x04,0x40,0x07,0xC0,0x00,0x40},/*"u",85*/
 {0x04,0x00,0x07,0x00,0x04,0xC0,0x01,0x80,0x06,0x00,0x04,0x00},/*"v",86*/
 {0x06,0x00,0x01,0xC0,0x07,0x00,0x01,0xC0,0x06,0x00,0x00,0x00},/*"w",87*/
 {0x04,0x40,0x06,0xC0,0x01,0x00,0x06,0xC0,0x04,0x40,0x00,0x00},/*"x",88*/
 {0x04,0x10,0x07,0x10,0x04,0xE0,0x01,0x80,0x06,0x00,0x04,0x00},/*"y",89*/
 {0x00,0x00,0x04,0x40,0x05,0xC0,0x06,0x40,0x04,0x40,0x00,0x00},/*"z",90*/
 {0x00,0x00,0x00,0x00,0x04,0x00,0x7B,0xE0,0x40,0x20,0x00,0x00},/*"{",91*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xF0,0x00,0x00,0x00,0x00},/*"|",92*/
 {0x00,0x00,0x40,0x20,0x7B,0xE0,0x04,0x00,0x00,0x00,0x00,0x00},/*"}",93*/
 {0x40,0x00,0x80,0x00,0x40,0x00,0x20,0x00,0x20,0x00,0x40,0x00},/*"~",94*/
 };
 //16*16 ASCII字符集点阵
 const unsigned char asc2_1608[95][16]={
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xCC,0x00,0x0C,0x00,0x00,0x00,0x00,0x00,0x00},/*"!",1*/
 {0x00,0x00,0x08,0x00,0x30,0x00,0x60,0x00,0x08,0x00,0x30,0x00,0x60,0x00,0x00,0x00},/*""",2*/
 {0x02,0x20,0x03,0xFC,0x1E,0x20,0x02,0x20,0x03,0xFC,0x1E,0x20,0x02,0x20,0x00,0x00},/*"#",3*/
 {0x00,0x00,0x0E,0x18,0x11,0x04,0x3F,0xFF,0x10,0x84,0x0C,0x78,0x00,0x00,0x00,0x00},/*"$",4*/
 {0x0F,0x00,0x10,0x84,0x0F,0x38,0x00,0xC0,0x07,0x78,0x18,0x84,0x00,0x78,0x00,0x00},/*"%",5*/
 {0x00,0x78,0x0F,0x84,0x10,0xC4,0x11,0x24,0x0E,0x98,0x00,0xE4,0x00,0x84,0x00,0x08},/*"&",6*/
 {0x08,0x00,0x68,0x00,0x70,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xE0,0x18,0x18,0x20,0x04,0x40,0x02,0x00,0x00},/*"(",8*/
 {0x00,0x00,0x40,0x02,0x20,0x04,0x18,0x18,0x07,0xE0,0x00,0x00,0x00,0x00,0x00,0x00},/*")",9*/
 {0x02,0x40,0x02,0x40,0x01,0x80,0x0F,0xF0,0x01,0x80,0x02,0x40,0x02,0x40,0x00,0x00},/*"*",10*/
 {0x00,0x80,0x00,0x80,0x00,0x80,0x0F,0xF8,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x00},/*"+",11*/
 {0x00,0x01,0x00,0x0D,0x00,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*",",12*/
 {0x00,0x00,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80},/*"-",13*/
 {0x00,0x00,0x00,0x0C,0x00,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*".",14*/
 {0x00,0x00,0x00,0x06,0x00,0x18,0x00,0x60,0x01,0x80,0x06,0x00,0x18,0x00,0x20,0x00},/*"/",15*/
 {0x00,0x00,0x07,0xF0,0x08,0x08,0x10,0x04,0x10,0x04,0x08,0x08,0x07,0xF0,0x00,0x00},/*"0",16*/
 {0x00,0x00,0x08,0x04,0x08,0x04,0x1F,0xFC,0x00,0x04,0x00,0x04,0x00,0x00,0x00,0x00},/*"1",17*/
 {0x00,0x00,0x0E,0x0C,0x10,0x14,0x10,0x24,0x10,0x44,0x11,0x84,0x0E,0x0C,0x00,0x00},/*"2",18*/
 {0x00,0x00,0x0C,0x18,0x10,0x04,0x11,0x04,0x11,0x04,0x12,0x88,0x0C,0x70,0x00,0x00},/*"3",19*/
 {0x00,0x00,0x00,0xE0,0x03,0x20,0x04,0x24,0x08,0x24,0x1F,0xFC,0x00,0x24,0x00,0x00},/*"4",20*/
 {0x00,0x00,0x1F,0x98,0x10,0x84,0x11,0x04,0x11,0x04,0x10,0x88,0x10,0x70,0x00,0x00},/*"5",21*/
 {0x00,0x00,0x07,0xF0,0x08,0x88,0x11,0x04,0x11,0x04,0x18,0x88,0x00,0x70,0x00,0x00},/*"6",22*/
 {0x00,0x00,0x1C,0x00,0x10,0x00,0x10,0xFC,0x13,0x00,0x1C,0x00,0x10,0x00,0x00,0x00},/*"7",23*/
 {0x00,0x00,0x0E,0x38,0x11,0x44,0x10,0x84,0x10,0x84,0x11,0x44,0x0E,0x38,0x00,0x00},/*"8",24*/
 {0x00,0x00,0x07,0x00,0x08,0x8C,0x10,0x44,0x10,0x44,0x08,0x88,0x07,0xF0,0x00,0x00},/*"9",25*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0C,0x03,0x0C,0x00,0x00,0x00,0x00,0x00,0x00},/*":",26*/
 {0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*";",27*/
 {0x00,0x00,0x00,0x80,0x01,0x40,0x02,0x20,0x04,0x10,0x08,0x08,0x10,0x04,0x00,0x00},/*"<",28*/
 {0x02,0x20,0x02,0x20,0x02,0x20,0x02,0x20,0x02,0x20,0x02,0x20,0x02,0x20,0x00,0x00},/*"=",29*/
 {0x00,0x00,0x10,0x04,0x08,0x08,0x04,0x10,0x02,0x20,0x01,0x40,0x00,0x80,0x00,0x00},/*">",30*/
 {0x00,0x00,0x0E,0x00,0x12,0x00,0x10,0x0C,0x10,0x6C,0x10,0x80,0x0F,0x00,0x00,0x00},/*"?",31*/
 {0x03,0xE0,0x0C,0x18,0x13,0xE4,0x14,0x24,0x17,0xC4,0x08,0x28,0x07,0xD0,0x00,0x00},/*"@",32*/
 {0x00,0x04,0x00,0x3C,0x03,0xC4,0x1C,0x40,0x07,0x40,0x00,0xE4,0x00,0x1C,0x00,0x04},/*"A",33*/
 {0x10,0x04,0x1F,0xFC,0x11,0x04,0x11,0x04,0x11,0x04,0x0E,0x88,0x00,0x70,0x00,0x00},/*"B",34*/
 {0x03,0xE0,0x0C,0x18,0x10,0x04,0x10,0x04,0x10,0x04,0x10,0x08,0x1C,0x10,0x00,0x00},/*"C",35*/
 {0x10,0x04,0x1F,0xFC,0x10,0x04,0x10,0x04,0x10,0x04,0x08,0x08,0x07,0xF0,0x00,0x00},/*"D",36*/
 {0x10,0x04,0x1F,0xFC,0x11,0x04,0x11,0x04,0x17,0xC4,0x10,0x04,0x08,0x18,0x00,0x00},/*"E",37*/
 {0x10,0x04,0x1F,0xFC,0x11,0x04,0x11,0x00,0x17,0xC0,0x10,0x00,0x08,0x00,0x00,0x00},/*"F",38*/
 {0x03,0xE0,0x0C,0x18,0x10,0x04,0x10,0x04,0x10,0x44,0x1C,0x78,0x00,0x40,0x00,0x00},/*"G",39*/
 {0x10,0x04,0x1F,0xFC,0x10,0x84,0x00,0x80,0x00,0x80,0x10,0x84,0x1F,0xFC,0x10,0x04},/*"H",40*/
 {0x00,0x00,0x10,0x04,0x10,0x04,0x1F,0xFC,0x10,0x04,0x10,0x04,0x00,0x00,0x00,0x00},/*"I",41*/
 {0x00,0x03,0x00,0x01,0x10,0x01,0x10,0x01,0x1F,0xFE,0x10,0x00,0x10,0x00,0x00,0x00},/*"J",42*/
 {0x10,0x04,0x1F,0xFC,0x11,0x04,0x03,0x80,0x14,0x64,0x18,0x1C,0x10,0x04,0x00,0x00},/*"K",43*/
 {0x10,0x04,0x1F,0xFC,0x10,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x0C,0x00,0x00},/*"L",44*/
 {0x10,0x04,0x1F,0xFC,0x1F,0x00,0x00,0xFC,0x1F,0x00,0x1F,0xFC,0x10,0x04,0x00,0x00},/*"M",45*/
 {0x10,0x04,0x1F,0xFC,0x0C,0x04,0x03,0x00,0x00,0xE0,0x10,0x18,0x1F,0xFC,0x10,0x00},/*"N",46*/
 {0x07,0xF0,0x08,0x08,0x10,0x04,0x10,0x04,0x10,0x04,0x08,0x08,0x07,0xF0,0x00,0x00},/*"O",47*/
 {0x10,0x04,0x1F,0xFC,0x10,0x84,0x10,0x80,0x10,0x80,0x10,0x80,0x0F,0x00,0x00,0x00},/*"P",48*/
 {0x07,0xF0,0x08,0x18,0x10,0x24,0x10,0x24,0x10,0x1C,0x08,0x0A,0x07,0xF2,0x00,0x00},/*"Q",49*/
 {0x10,0x04,0x1F,0xFC,0x11,0x04,0x11,0x00,0x11,0xC0,0x11,0x30,0x0E,0x0C,0x00,0x04},/*"R",50*/
 {0x00,0x00,0x0E,0x1C,0x11,0x04,0x10,0x84,0x10,0x84,0x10,0x44,0x1C,0x38,0x00,0x00},/*"S",51*/
 {0x18,0x00,0x10,0x00,0x10,0x04,0x1F,0xFC,0x10,0x04,0x10,0x00,0x18,0x00,0x00,0x00},/*"T",52*/
 {0x10,0x00,0x1F,0xF8,0x10,0x04,0x00,0x04,0x00,0x04,0x10,0x04,0x1F,0xF8,0x10,0x00},/*"U",53*/
 {0x10,0x00,0x1E,0x00,0x11,0xE0,0x00,0x1C,0x00,0x70,0x13,0x80,0x1C,0x00,0x10,0x00},/*"V",54*/
 {0x1F,0xC0,0x10,0x3C,0x00,0xE0,0x1F,0x00,0x00,0xE0,0x10,0x3C,0x1F,0xC0,0x00,0x00},/*"W",55*/
 {0x10,0x04,0x18,0x0C,0x16,0x34,0x01,0xC0,0x01,0xC0,0x16,0x34,0x18,0x0C,0x10,0x04},/*"X",56*/
 {0x10,0x00,0x1C,0x00,0x13,0x04,0x00,0xFC,0x13,0x04,0x1C,0x00,0x10,0x00,0x00,0x00},/*"Y",57*/
 {0x08,0x04,0x10,0x1C,0x10,0x64,0x10,0x84,0x13,0x04,0x1C,0x04,0x10,0x18,0x00,0x00},/*"Z",58*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFE,0x40,0x02,0x40,0x02,0x40,0x02,0x00,0x00},/*"[",59*/
 {0x00,0x00,0x30,0x00,0x0C,0x00,0x03,0x80,0x00,0x60,0x00,0x1C,0x00,0x03,0x00,0x00},/*"\",60*/
 {0x00,0x00,0x40,0x02,0x40,0x02,0x40,0x02,0x7F,0xFE,0x00,0x00,0x00,0x00,0x00,0x00},/*"]",61*/
 {0x00,0x00,0x00,0x00,0x20,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x20,0x00,0x00,0x00},/*"^",62*/
 {0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01},/*"_",63*/
 {0x00,0x00,0x40,0x00,0x40,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
 {0x00,0x00,0x00,0x98,0x01,0x24,0x01,0x44,0x01,0x44,0x01,0x44,0x00,0xFC,0x00,0x04},/*"a",65*/
 {0x10,0x00,0x1F,0xFC,0x00,0x88,0x01,0x04,0x01,0x04,0x00,0x88,0x00,0x70,0x00,0x00},/*"b",66*/
 {0x00,0x00,0x00,0x70,0x00,0x88,0x01,0x04,0x01,0x04,0x01,0x04,0x00,0x88,0x00,0x00},/*"c",67*/
 {0x00,0x00,0x00,0x70,0x00,0x88,0x01,0x04,0x01,0x04,0x11,0x08,0x1F,0xFC,0x00,0x04},/*"d",68*/
 {0x00,0x00,0x00,0xF8,0x01,0x44,0x01,0x44,0x01,0x44,0x01,0x44,0x00,0xC8,0x00,0x00},/*"e",69*/
 {0x00,0x00,0x01,0x04,0x01,0x04,0x0F,0xFC,0x11,0x04,0x11,0x04,0x11,0x00,0x18,0x00},/*"f",70*/
 {0x00,0x00,0x00,0xD6,0x01,0x29,0x01,0x29,0x01,0x29,0x01,0xC9,0x01,0x06,0x00,0x00},/*"g",71*/
 {0x10,0x04,0x1F,0xFC,0x00,0x84,0x01,0x00,0x01,0x00,0x01,0x04,0x00,0xFC,0x00,0x04},/*"h",72*/
 {0x00,0x00,0x01,0x04,0x19,0x04,0x19,0xFC,0x00,0x04,0x00,0x04,0x00,0x00,0x00,0x00},/*"i",73*/
 {0x00,0x00,0x00,0x03,0x00,0x01,0x01,0x01,0x19,0x01,0x19,0xFE,0x00,0x00,0x00,0x00},/*"j",74*/
 {0x10,0x04,0x1F,0xFC,0x00,0x24,0x00,0x40,0x01,0xB4,0x01,0x0C,0x01,0x04,0x00,0x00},/*"k",75*/
 {0x00,0x00,0x10,0x04,0x10,0x04,0x1F,0xFC,0x00,0x04,0x00,0x04,0x00,0x00,0x00,0x00},/*"l",76*/
 {0x01,0x04,0x01,0xFC,0x01,0x04,0x01,0x00,0x01,0xFC,0x01,0x04,0x01,0x00,0x00,0xFC},/*"m",77*/
 {0x01,0x04,0x01,0xFC,0x00,0x84,0x01,0x00,0x01,0x00,0x01,0x04,0x00,0xFC,0x00,0x04},/*"n",78*/
 {0x00,0x00,0x00,0xF8,0x01,0x04,0x01,0x04,0x01,0x04,0x01,0x04,0x00,0xF8,0x00,0x00},/*"o",79*/
 {0x01,0x01,0x01,0xFF,0x00,0x85,0x01,0x04,0x01,0x04,0x00,0x88,0x00,0x70,0x00,0x00},/*"p",80*/
 {0x00,0x00,0x00,0x70,0x00,0x88,0x01,0x04,0x01,0x04,0x01,0x05,0x01,0xFF,0x00,0x01},/*"q",81*/
 {0x01,0x04,0x01,0x04,0x01,0xFC,0x00,0x84,0x01,0x04,0x01,0x00,0x01,0x80,0x00,0x00},/*"r",82*/
 {0x00,0x00,0x00,0xCC,0x01,0x24,0x01,0x24,0x01,0x24,0x01,0x24,0x01,0x98,0x00,0x00},/*"s",83*/
 {0x00,0x00,0x01,0x00,0x01,0x00,0x07,0xF8,0x01,0x04,0x01,0x04,0x00,0x00,0x00,0x00},/*"t",84*/
 {0x01,0x00,0x01,0xF8,0x00,0x04,0x00,0x04,0x00,0x04,0x01,0x08,0x01,0xFC,0x00,0x04},/*"u",85*/
 {0x01,0x00,0x01,0x80,0x01,0x70,0x00,0x0C,0x00,0x10,0x01,0x60,0x01,0x80,0x01,0x00},/*"v",86*/
 {0x01,0xF0,0x01,0x0C,0x00,0x30,0x01,0xC0,0x00,0x30,0x01,0x0C,0x01,0xF0,0x01,0x00},/*"w",87*/
 {0x00,0x00,0x01,0x04,0x01,0x8C,0x00,0x74,0x01,0x70,0x01,0x8C,0x01,0x04,0x00,0x00},/*"x",88*/
 {0x01,0x01,0x01,0x81,0x01,0x71,0x00,0x0E,0x00,0x18,0x01,0x60,0x01,0x80,0x01,0x00},/*"y",89*/
 {0x00,0x00,0x01,0x84,0x01,0x0C,0x01,0x34,0x01,0x44,0x01,0x84,0x01,0x0C,0x00,0x00},/*"z",90*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x3E,0xFC,0x40,0x02,0x40,0x02},/*"{",91*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00},/*"|",92*/
 {0x00,0x00,0x40,0x02,0x40,0x02,0x3E,0xFC,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"}",93*/
 {0x00,0x00,0x60,0x00,0x80,0x00,0x80,0x00,0x40,0x00,0x40,0x00,0x20,0x00,0x20,0x00},/*"~",94*/
 };
 //24*24 ASICII字符集点阵
 const unsigned char asc2_2412[95][36]={
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x80,0x38,0x0F,0xFE,0x38,0x0F,0x80,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"!",1*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x06,0x00,0x00,0x0C,0x00,0x00,0x38,0x00,0x00,0x31,0x00,0x00,0x06,0x00,0x00,0x0C,0x00,0x00,0x38,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00},/*""",2*/
 {0x00,0x00,0x00,0x00,0x61,0x80,0x00,0x67,0xF8,0x07,0xF9,0x80,0x00,0x61,0x80,0x00,0x61,0x80,0x00,0x61,0x80,0x00,0x61,0x80,0x00,0x67,0xF8,0x07,0xF9,0x80,0x00,0x61,0x80,0x00,0x00,0x00},/*"#",3*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xC0,0xE0,0x03,0xE0,0xF0,0x06,0x30,0x08,0x04,0x18,0x08,0x1F,0xFF,0xFE,0x04,0x0E,0x08,0x07,0x87,0xF0,0x03,0x81,0xE0,0x00,0x00,0x00,0x00,0x00,0x00},/*"$",4*/
 {0x01,0xF0,0x00,0x06,0x0C,0x00,0x04,0x04,0x08,0x06,0x0C,0x70,0x01,0xF9,0xC0,0x00,0x0E,0x00,0x00,0x3B,0xE0,0x00,0xEC,0x18,0x07,0x08,0x08,0x04,0x0C,0x18,0x00,0x03,0xE0,0x00,0x00,0x00},/*"%",5*/
 {0x00,0x01,0xE0,0x00,0x07,0xF0,0x03,0xF8,0x18,0x04,0x1C,0x08,0x04,0x17,0x08,0x07,0xE1,0xD0,0x03,0xC0,0xE0,0x00,0x23,0xB0,0x00,0x3C,0x08,0x00,0x20,0x08,0x00,0x00,0x10,0x00,0x00,0x00},/*"&",6*/
 {0x00,0x00,0x00,0x01,0x00,0x00,0x31,0x00,0x00,0x32,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x00,0x01,0xFF,0xC0,0x07,0x80,0xF0,0x0C,0x00,0x18,0x10,0x00,0x04,0x20,0x00,0x02,0x00,0x00,0x00},/*"(",8*/
 {0x00,0x00,0x00,0x20,0x00,0x02,0x10,0x00,0x04,0x0C,0x00,0x18,0x07,0x80,0xF0,0x01,0xFF,0xC0,0x00,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*")",9*/
 {0x00,0x00,0x00,0x00,0x42,0x00,0x00,0x66,0x00,0x00,0x66,0x00,0x00,0x3C,0x00,0x00,0x18,0x00,0x03,0xFF,0xC0,0x00,0x18,0x00,0x00,0x3C,0x00,0x00,0x66,0x00,0x00,0x66,0x00,0x00,0x42,0x00},/*"*",10*/
 {0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x01,0xFF,0xC0,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00},/*"+",11*/
 {0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x31,0x00,0x00,0x32,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*",",12*/
 {0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x00,0x00},/*"-",13*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0x00,0x38,0x00,0x00,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*".",14*/
 {0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x1C,0x00,0x00,0x70,0x00,0x01,0x80,0x00,0x0E,0x00,0x00,0x38,0x00,0x00,0xC0,0x00,0x07,0x00,0x00,0x1C,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00},/*"/",15*/
 {0x00,0x00,0x00,0x00,0x7F,0x80,0x01,0xFF,0xE0,0x03,0x80,0x70,0x06,0x00,0x18,0x04,0x00,0x08,0x04,0x00,0x08,0x06,0x00,0x18,0x03,0x80,0x70,0x01,0xFF,0xE0,0x00,0x7F,0x80,0x00,0x00,0x00},/*"0",16*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x08,0x01,0x00,0x08,0x01,0x00,0x08,0x03,0xFF,0xF8,0x07,0xFF,0xF8,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00},/*"1",17*/
 {0x00,0x00,0x00,0x01,0xC0,0x38,0x02,0xC0,0x58,0x04,0x00,0x98,0x04,0x01,0x18,0x04,0x02,0x18,0x04,0x04,0x18,0x06,0x1C,0x18,0x03,0xF8,0x18,0x01,0xE0,0xF8,0x00,0x00,0x00,0x00,0x00,0x00},/*"2",18*/
 {0x00,0x00,0x00,0x01,0xC0,0xE0,0x03,0xC0,0xF0,0x04,0x00,0x08,0x04,0x08,0x08,0x04,0x08,0x08,0x06,0x18,0x08,0x03,0xF4,0x18,0x01,0xE7,0xF0,0x00,0x01,0xE0,0x00,0x00,0x00,0x00,0x00,0x00},/*"3",19*/
 {0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x0D,0x00,0x00,0x11,0x00,0x00,0x61,0x00,0x00,0x81,0x08,0x03,0x01,0x08,0x07,0xFF,0xF8,0x0F,0xFF,0xF8,0x00,0x01,0x08,0x00,0x01,0x08,0x00,0x00,0x00},/*"4",20*/
 {0x00,0x00,0x00,0x00,0x00,0xE0,0x07,0xFC,0xD0,0x06,0x08,0x08,0x06,0x10,0x08,0x06,0x10,0x08,0x06,0x10,0x08,0x06,0x18,0x38,0x06,0x0F,0xF0,0x06,0x07,0xC0,0x00,0x00,0x00,0x00,0x00,0x00},/*"5",21*/
 {0x00,0x00,0x00,0x00,0x3F,0x80,0x01,0xFF,0xE0,0x03,0x84,0x30,0x02,0x08,0x18,0x04,0x10,0x08,0x04,0x10,0x08,0x04,0x10,0x08,0x07,0x18,0x10,0x03,0x0F,0xF0,0x00,0x07,0xC0,0x00,0x00,0x00},/*"6",22*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xC0,0x00,0x07,0x00,0x00,0x06,0x00,0x00,0x06,0x00,0xF8,0x06,0x07,0xF8,0x06,0x18,0x00,0x06,0xE0,0x00,0x07,0x00,0x00,0x06,0x00,0x00,0x00,0x00,0x00},/*"7",23*/
 {0x00,0x00,0x00,0x01,0xE1,0xE0,0x03,0xF7,0xF0,0x06,0x34,0x10,0x04,0x18,0x08,0x04,0x18,0x08,0x04,0x0C,0x08,0x04,0x0C,0x08,0x06,0x16,0x18,0x03,0xF3,0xF0,0x01,0xC1,0xE0,0x00,0x00,0x00},/*"8",24*/
 {0x00,0x00,0x00,0x00,0xF8,0x00,0x03,0xFC,0x30,0x03,0x06,0x38,0x04,0x02,0x08,0x04,0x02,0x08,0x04,0x02,0x08,0x04,0x04,0x10,0x03,0x08,0xF0,0x01,0xFF,0xC0,0x00,0x7F,0x00,0x00,0x00,0x00},/*"9",25*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0x38,0x00,0x70,0x38,0x00,0x70,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*":",26*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x1A,0x00,0x30,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*";",27*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x14,0x00,0x00,0x22,0x00,0x00,0x41,0x00,0x00,0x80,0x80,0x01,0x00,0x40,0x02,0x00,0x20,0x04,0x00,0x10,0x08,0x00,0x08,0x00,0x00,0x00},/*"<",28*/
 {0x00,0x00,0x00,0x00,0x21,0x00,0x00,0x21,0x00,0x00,0x21,0x00,0x00,0x21,0x00,0x00,0x21,0x00,0x00,0x21,0x00,0x00,0x21,0x00,0x00,0x21,0x00,0x00,0x21,0x00,0x00,0x21,0x00,0x00,0x00,0x00},/*"=",29*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x08,0x04,0x00,0x10,0x02,0x00,0x20,0x01,0x00,0x40,0x00,0x80,0x80,0x00,0x41,0x00,0x00,0x22,0x00,0x00,0x14,0x00,0x00,0x08,0x00,0x00,0x00,0x00},/*">",30*/
 {0x00,0x00,0x00,0x03,0xC0,0x00,0x04,0xC0,0x00,0x04,0x00,0x00,0x08,0x00,0x38,0x08,0x0F,0x38,0x08,0x08,0x38,0x08,0x10,0x00,0x0C,0x30,0x00,0x07,0xE0,0x00,0x03,0xC0,0x00,0x00,0x00,0x00},/*"?",31*/
 {0x00,0x00,0x00,0x00,0x3F,0x80,0x00,0xFF,0xE0,0x03,0x80,0x70,0x02,0x0F,0x10,0x06,0x70,0x88,0x04,0xC0,0x88,0x04,0x83,0x08,0x04,0x7F,0x88,0x02,0xC0,0x90,0x03,0x01,0x20,0x00,0xFE,0x40},/*"@",32*/
 {0x00,0x00,0x08,0x00,0x00,0x18,0x00,0x01,0xF8,0x00,0x3E,0x08,0x01,0xC2,0x00,0x07,0x02,0x00,0x07,0xE2,0x00,0x00,0xFE,0x00,0x00,0x1F,0xC8,0x00,0x01,0xF8,0x00,0x00,0x38,0x00,0x00,0x08},/*"A",33*/
 {0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x08,0x08,0x04,0x08,0x08,0x04,0x08,0x08,0x04,0x08,0x08,0x06,0x18,0x08,0x03,0xF4,0x18,0x01,0xE7,0xF0,0x00,0x01,0xE0,0x00,0x00,0x00},/*"B",34*/
 {0x00,0x00,0x00,0x00,0x3F,0x80,0x01,0xFF,0xE0,0x03,0x80,0x70,0x02,0x00,0x18,0x04,0x00,0x08,0x04,0x00,0x08,0x04,0x00,0x08,0x04,0x00,0x10,0x06,0x00,0x20,0x07,0x80,0xC0,0x00,0x00,0x00},/*"C",35*/
 {0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x00,0x08,0x04,0x00,0x08,0x04,0x00,0x08,0x04,0x00,0x18,0x02,0x00,0x10,0x03,0x80,0x70,0x01,0xFF,0xE0,0x00,0x7F,0x80,0x00,0x00,0x00},/*"D",36*/
 {0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x08,0x08,0x04,0x08,0x08,0x04,0x08,0x08,0x04,0x08,0x08,0x04,0x3E,0x08,0x04,0x00,0x08,0x06,0x00,0x18,0x01,0x00,0x60,0x00,0x00,0x00},/*"E",37*/
 {0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x08,0x08,0x04,0x08,0x00,0x04,0x08,0x00,0x04,0x08,0x00,0x04,0x3E,0x00,0x06,0x00,0x00,0x06,0x00,0x00,0x01,0x80,0x00,0x00,0x00,0x00},/*"F",38*/
 {0x00,0x00,0x00,0x00,0x3F,0x80,0x01,0xFF,0xE0,0x03,0x80,0x70,0x06,0x00,0x18,0x04,0x00,0x08,0x04,0x02,0x08,0x04,0x02,0x08,0x02,0x03,0xF0,0x07,0x83,0xF0,0x00,0x02,0x00,0x00,0x02,0x00},/*"G",39*/
 {0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x08,0x08,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x04,0x08,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x00,0x08},/*"H",40*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x08,0x04,0x00,0x08,0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x00,0x08,0x04,0x00,0x08,0x04,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00},/*"I",41*/
 {0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x07,0x00,0x00,0x01,0x04,0x00,0x01,0x04,0x00,0x01,0x04,0x00,0x03,0x07,0xFF,0xFE,0x07,0xFF,0xFC,0x04,0x00,0x00,0x04,0x00,0x00,0x04,0x00,0x00},/*"J",42*/
 {0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x0C,0x08,0x00,0x18,0x00,0x00,0x3E,0x00,0x04,0xC7,0x80,0x05,0x03,0xC8,0x06,0x00,0xF8,0x04,0x00,0x38,0x04,0x00,0x18,0x00,0x00,0x08},/*"K",43*/
 {0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x18,0x00,0x00,0x60,0x00,0x00,0x00},/*"L",44*/
 {0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0x80,0x08,0x07,0xFC,0x00,0x00,0x7F,0xC0,0x00,0x03,0xF8,0x00,0x07,0xC0,0x00,0x78,0x00,0x07,0x80,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x00,0x08},/*"M",45*/
 {0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0x00,0x08,0x03,0xC0,0x00,0x00,0xE0,0x00,0x00,0x38,0x00,0x00,0x1E,0x00,0x00,0x07,0x00,0x00,0x01,0xC0,0x04,0x00,0xF0,0x07,0xFF,0xF8,0x04,0x00,0x00},/*"N",46*/
 {0x00,0x00,0x00,0x00,0x7F,0x80,0x01,0xFF,0xE0,0x03,0x80,0x70,0x06,0x00,0x18,0x04,0x00,0x08,0x04,0x00,0x08,0x06,0x00,0x18,0x03,0x00,0x30,0x01,0xFF,0xE0,0x00,0x7F,0x80,0x00,0x00,0x00},/*"O",47*/
 {0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x04,0x08,0x04,0x04,0x00,0x04,0x04,0x00,0x04,0x04,0x00,0x04,0x04,0x00,0x06,0x0C,0x00,0x03,0xF8,0x00,0x01,0xF0,0x00,0x00,0x00,0x00},/*"P",48*/
 {0x00,0x00,0x00,0x00,0x7F,0x80,0x01,0xFF,0xE0,0x03,0x80,0x70,0x06,0x00,0x88,0x04,0x00,0x88,0x04,0x00,0xC8,0x06,0x00,0x3C,0x03,0x00,0x3E,0x01,0xFF,0xE6,0x00,0x7F,0x84,0x00,0x00,0x00},/*"Q",49*/
 {0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x08,0x08,0x04,0x08,0x00,0x04,0x0C,0x00,0x04,0x0F,0x00,0x04,0x0B,0xC0,0x06,0x10,0xF0,0x03,0xF0,0x38,0x01,0xE0,0x08,0x00,0x00,0x08},/*"R",50*/
 {0x00,0x00,0x00,0x01,0xE0,0xF8,0x03,0xF0,0x30,0x06,0x30,0x10,0x04,0x18,0x08,0x04,0x18,0x08,0x04,0x0C,0x08,0x04,0x0C,0x08,0x02,0x06,0x18,0x02,0x07,0xF0,0x07,0x81,0xE0,0x00,0x00,0x00},/*"S",51*/
 {0x01,0x80,0x00,0x06,0x00,0x00,0x04,0x00,0x00,0x04,0x00,0x00,0x04,0x00,0x08,0x07,0xFF,0xF8,0x07,0xFF,0xF8,0x04,0x00,0x08,0x04,0x00,0x00,0x04,0x00,0x00,0x06,0x00,0x00,0x01,0x80,0x00},/*"T",52*/
 {0x04,0x00,0x00,0x07,0xFF,0xE0,0x07,0xFF,0xF0,0x04,0x00,0x18,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x04,0x00,0x10,0x07,0xFF,0xE0,0x04,0x00,0x00},/*"U",53*/
 {0x04,0x00,0x00,0x06,0x00,0x00,0x07,0xE0,0x00,0x07,0xFE,0x00,0x04,0x1F,0xE0,0x00,0x01,0xF8,0x00,0x00,0x38,0x00,0x01,0xE0,0x04,0x3E,0x00,0x07,0xC0,0x00,0x06,0x00,0x00,0x04,0x00,0x00},/*"V",54*/
 {0x04,0x00,0x00,0x07,0xE0,0x00,0x07,0xFF,0xC0,0x04,0x1F,0xF8,0x00,0x07,0xC0,0x07,0xF8,0x00,0x07,0xFF,0x80,0x04,0x3F,0xF8,0x00,0x07,0xC0,0x04,0xF8,0x00,0x07,0x00,0x00,0x04,0x00,0x00},/*"W",55*/
 {0x00,0x00,0x00,0x04,0x00,0x08,0x06,0x00,0x18,0x07,0xC0,0x78,0x05,0xF1,0xC8,0x00,0x3E,0x00,0x00,0x1F,0x80,0x04,0x63,0xE8,0x07,0x80,0xF8,0x06,0x00,0x18,0x04,0x00,0x08,0x00,0x00,0x00},/*"X",56*/
 {0x04,0x00,0x00,0x06,0x00,0x00,0x07,0x80,0x00,0x07,0xE0,0x08,0x04,0x7C,0x08,0x00,0x1F,0xF8,0x00,0x07,0xF8,0x00,0x18,0x08,0x04,0xE0,0x08,0x07,0x00,0x00,0x06,0x00,0x00,0x04,0x00,0x00},/*"Y",57*/
 {0x00,0x00,0x00,0x01,0x00,0x08,0x06,0x00,0x38,0x04,0x00,0xF8,0x04,0x03,0xE8,0x04,0x0F,0x08,0x04,0x7C,0x08,0x05,0xF0,0x08,0x07,0xC0,0x08,0x07,0x00,0x18,0x04,0x00,0x60,0x00,0x00,0x00},/*"Z",58*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xFE,0x20,0x00,0x02,0x20,0x00,0x02,0x20,0x00,0x02,0x20,0x00,0x02,0x20,0x00,0x02,0x00,0x00,0x00},/*"[",59*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x07,0x00,0x00,0x00,0xC0,0x00,0x00,0x38,0x00,0x00,0x06,0x00,0x00,0x01,0xC0,0x00,0x00,0x30,0x00,0x00,0x0E,0x00,0x00,0x01,0x00,0x00,0x00},/*"\",60*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x02,0x20,0x00,0x02,0x20,0x00,0x02,0x20,0x00,0x02,0x20,0x00,0x02,0x3F,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"]",61*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x10,0x00,0x00,0x30,0x00,0x00,0x20,0x00,0x00,0x30,0x00,0x00,0x10,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
 {0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01,0x00,0x00,0x01},/*"_",63*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x20,0x00,0x00,0x10,0x00,0x00,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
 {0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x19,0xF8,0x00,0x1B,0x18,0x00,0x22,0x08,0x00,0x26,0x08,0x00,0x24,0x08,0x00,0x24,0x10,0x00,0x3F,0xF8,0x00,0x1F,0xF8,0x00,0x00,0x08,0x00,0x00,0x18},/*"a",65*/
 {0x00,0x00,0x00,0x04,0x00,0x00,0x07,0xFF,0xF8,0x0F,0xFF,0xF0,0x00,0x18,0x18,0x00,0x10,0x08,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x30,0x18,0x00,0x1F,0xF0,0x00,0x0F,0xC0,0x00,0x00,0x00},/*"b",66*/
 {0x00,0x00,0x00,0x00,0x07,0xC0,0x00,0x1F,0xF0,0x00,0x18,0x30,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x3C,0x08,0x00,0x1C,0x10,0x00,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00},/*"c",67*/
 {0x00,0x00,0x00,0x00,0x07,0xC0,0x00,0x1F,0xF0,0x00,0x38,0x18,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x20,0x08,0x04,0x10,0x10,0x07,0xFF,0xF8,0x0F,0xFF,0xF0,0x00,0x00,0x10,0x00,0x00,0x00},/*"d",68*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xC0,0x00,0x1F,0xF0,0x00,0x12,0x30,0x00,0x22,0x18,0x00,0x22,0x08,0x00,0x22,0x08,0x00,0x32,0x08,0x00,0x1E,0x10,0x00,0x0E,0x20,0x00,0x00,0x00},/*"e",69*/
 {0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x20,0x08,0x00,0x20,0x08,0x01,0xFF,0xF8,0x03,0xFF,0xF8,0x06,0x20,0x08,0x04,0x20,0x08,0x04,0x20,0x08,0x07,0x20,0x00,0x03,0x00,0x00,0x00,0x00,0x00},/*"f",70*/
 {0x00,0x00,0x00,0x00,0x00,0x0E,0x00,0x0E,0x6E,0x00,0x1F,0xF3,0x00,0x31,0xB1,0x00,0x20,0xB1,0x00,0x20,0xB1,0x00,0x31,0x91,0x00,0x1F,0x13,0x00,0x2E,0x1E,0x00,0x20,0x0E,0x00,0x30,0x00},/*"g",71*/
 {0x00,0x00,0x00,0x04,0x00,0x08,0x07,0xFF,0xF8,0x0F,0xFF,0xF8,0x00,0x10,0x08,0x00,0x20,0x00,0x00,0x20,0x00,0x00,0x20,0x08,0x00,0x3F,0xF8,0x00,0x1F,0xF8,0x00,0x00,0x08,0x00,0x00,0x00},/*"h",72*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x20,0x08,0x06,0x3F,0xF8,0x06,0x3F,0xF8,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00},/*"i",73*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x03,0x00,0x20,0x01,0x00,0x20,0x01,0x00,0x20,0x03,0x06,0x3F,0xFE,0x06,0x3F,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"j",74*/
 {0x00,0x00,0x00,0x04,0x00,0x08,0x07,0xFF,0xF8,0x0F,0xFF,0xF8,0x00,0x01,0x88,0x00,0x03,0x00,0x00,0x2F,0xC0,0x00,0x38,0xF8,0x00,0x20,0x38,0x00,0x20,0x08,0x00,0x00,0x08,0x00,0x00,0x00},/*"k",75*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x08,0x04,0x00,0x08,0x04,0x00,0x08,0x07,0xFF,0xF8,0x0F,0xFF,0xF8,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00},/*"l",76*/
 {0x00,0x20,0x08,0x00,0x3F,0xF8,0x00,0x3F,0xF8,0x00,0x10,0x08,0x00,0x20,0x00,0x00,0x3F,0xF8,0x00,0x3F,0xF8,0x00,0x10,0x08,0x00,0x20,0x00,0x00,0x3F,0xF8,0x00,0x3F,0xF8,0x00,0x00,0x08},/*"m",77*/
 {0x00,0x00,0x00,0x00,0x20,0x08,0x00,0x3F,0xF8,0x00,0x3F,0xF8,0x00,0x10,0x08,0x00,0x10,0x00,0x00,0x20,0x00,0x00,0x20,0x08,0x00,0x3F,0xF8,0x00,0x1F,0xF8,0x00,0x00,0x08,0x00,0x00,0x00},/*"n",78*/
 {0x00,0x00,0x00,0x00,0x07,0xC0,0x00,0x0F,0xF0,0x00,0x18,0x30,0x00,0x30,0x08,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x30,0x08,0x00,0x18,0x30,0x00,0x0F,0xF0,0x00,0x07,0xC0,0x00,0x00,0x00},/*"o",79*/
 {0x00,0x00,0x00,0x00,0x20,0x01,0x00,0x3F,0xFF,0x00,0x3F,0xFF,0x00,0x10,0x11,0x00,0x20,0x09,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x30,0x38,0x00,0x1F,0xF0,0x00,0x0F,0xC0,0x00,0x00,0x00},/*"p",80*/
 {0x00,0x00,0x00,0x00,0x07,0xC0,0x00,0x1F,0xF0,0x00,0x38,0x18,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x20,0x09,0x00,0x10,0x11,0x00,0x1F,0xFF,0x00,0x3F,0xFF,0x00,0x00,0x01,0x00,0x00,0x00},/*"q",81*/
 {0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x3F,0xF8,0x00,0x3F,0xF8,0x00,0x08,0x08,0x00,0x10,0x08,0x00,0x20,0x08,0x00,0x20,0x00,0x00,0x30,0x00,0x00,0x30,0x00,0x00,0x00,0x00},/*"r",82*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x78,0x00,0x1E,0x18,0x00,0x33,0x08,0x00,0x23,0x08,0x00,0x21,0x08,0x00,0x21,0x88,0x00,0x21,0x98,0x00,0x30,0xF0,0x00,0x38,0x60,0x00,0x00,0x00},/*"s",83*/
 {0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x20,0x00,0x00,0x20,0x00,0x00,0xFF,0xF0,0x03,0xFF,0xF8,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00},/*"t",84*/
 {0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x3F,0xF0,0x00,0x7F,0xF8,0x00,0x00,0x18,0x00,0x00,0x08,0x00,0x00,0x08,0x00,0x20,0x10,0x00,0x3F,0xF8,0x00,0x7F,0xF0,0x00,0x00,0x10,0x00,0x00,0x00},/*"u",85*/
 {0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x30,0x00,0x00,0x3C,0x00,0x00,0x3F,0x80,0x00,0x23,0xF0,0x00,0x00,0x78,0x00,0x00,0x70,0x00,0x23,0x80,0x00,0x3C,0x00,0x00,0x30,0x00,0x00,0x20,0x00},/*"v",86*/
 {0x00,0x20,0x00,0x00,0x3C,0x00,0x00,0x3F,0xE0,0x00,0x23,0xF8,0x00,0x00,0xE0,0x00,0x27,0x00,0x00,0x3E,0x00,0x00,0x3F,0xE0,0x00,0x21,0xF8,0x00,0x01,0xE0,0x00,0x3E,0x00,0x00,0x20,0x00},/*"w",87*/
 {0x00,0x00,0x00,0x00,0x20,0x08,0x00,0x20,0x08,0x00,0x38,0x38,0x00,0x3E,0x68,0x00,0x27,0x80,0x00,0x03,0xC8,0x00,0x2C,0xF8,0x00,0x38,0x38,0x00,0x20,0x18,0x00,0x20,0x08,0x00,0x00,0x00},/*"x",88*/
 {0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x30,0x03,0x00,0x3C,0x01,0x00,0x3F,0x83,0x00,0x23,0xEC,0x00,0x00,0x70,0x00,0x23,0x80,0x00,0x3C,0x00,0x00,0x20,0x00,0x00,0x20,0x00,0x00,0x00,0x00},/*"y",89*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x08,0x00,0x20,0x38,0x00,0x20,0xF8,0x00,0x23,0xE8,0x00,0x2F,0x88,0x00,0x3E,0x08,0x00,0x38,0x08,0x00,0x20,0x18,0x00,0x00,0x70,0x00,0x00,0x00},/*"z",90*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x14,0x00,0x1F,0xF7,0xFC,0x30,0x00,0x06,0x20,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00},/*"{",91*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"|",92*/
 {0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x02,0x30,0x00,0x06,0x1F,0xF7,0xFC,0x00,0x14,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"}",93*/
 {0x00,0x00,0x00,0x18,0x00,0x00,0x60,0x00,0x00,0x40,0x00,0x00,0x40,0x00,0x00,0x20,0x00,0x00,0x10,0x00,0x00,0x08,0x00,0x00,0x04,0x00,0x00,0x04,0x00,0x00,0x0C,0x00,0x00,0x10,0x00,0x00},/*"~",94*/
 };
 ​
 };
 #endif

main.c 文件

注意，一定要调用OLED_Refresh函数更新显存，不然不会显示的。

 #include "stm32f10x.h"                  // Device header
 #include "delay.h"
 #include "oled.h"
 ​
 int main(void)
 {
     OLED_Init( );
 ​
     OLED_ShowChar(36,0,'a',12);
     OLED_ShowChar(48,0,'b',16);
     OLED_ShowChar(64,0,'c',24);
     OLED_ShowString( 30, 40, (u8 *)"zzzzz", 16 );
     OLED_Refresh( );
 ​
     while (1)
     {
 ​
     }
 }

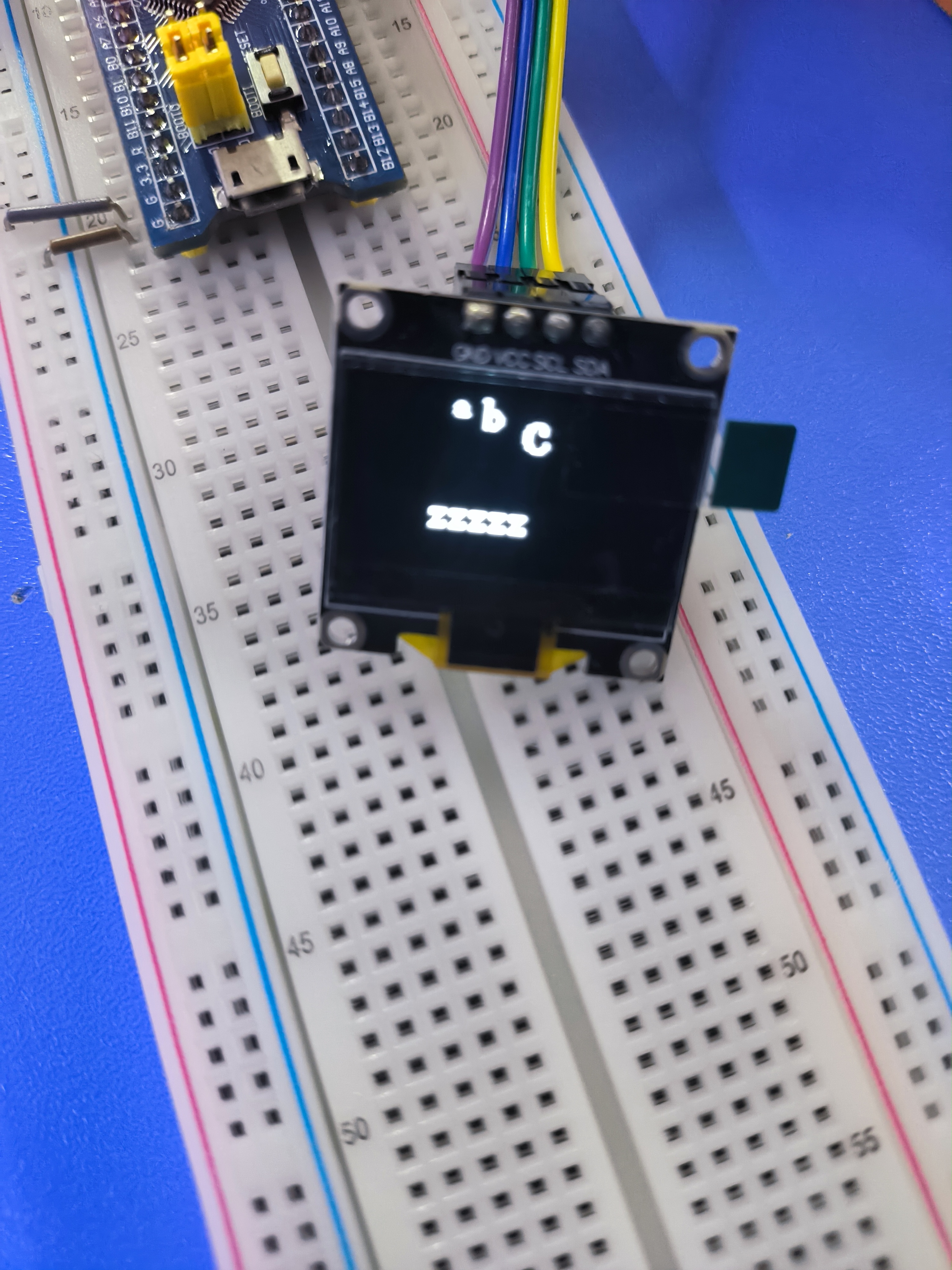

11. 效果展示

学啥都嵌
关注
STM32F103C8T6控制的OLED IIC 4针
CHINESEmen6的博客
05-03 2万+
简介 介绍一个c8t6驱动OLED的程序，之前做设计的时候，在网上找的内容较少，所以和大家分享下。分享下采用C8T6设计时出现的问题，避免大家走弯路。由于能力有限，程序大部分来自网路，只用于学习交流。 第一次写的博客，本想把程序去不传上去，后来发现好像不能。有问题大家再问吧，互相学习。 所采用的OLED 采用4针，IIC通信协议的0.96寸OLED屏幕；显示中文需要取模软件； 采用ZET6需要配...
stm32 f103c8t6 IIC 驱动oled屏幕 亲测有效 stm32_oled程序.rar
05-02
stm32 f103c8t6 IIC 驱动oled屏幕 亲测有效 关注bilibili个人账号号 在b站公告免费获取百度网盘下载链接
stm32f103c8t6驱动oled
weixin_35753291的博客
02-16 2303
要驱动OLED显示屏，您可以使用STM32F103C8T6微控制器及其相关的GPIO引脚和SPI总线接口。 以下是驱动OLED显示屏的一些基本步骤： 配置STM32F103C8T6的SPI总线接口。 通过SPI总线发送命令和数据给OLED显示屏。这些命令和数据将用于控制显示屏的显示内容和其他属性，例如亮度和对比度。 将OLED显示屏的引脚连接到STM32F103C8T6的GPIO引脚。这些引...
STM32F103C8T6实现IIC通信
weixin_45617200的博客
04-08 3097
通信开始时，主设备会发送一个起始信号（START），然后发送从设备地址和读写位。IIC（Inter-Integrated Circuit），也被称为I2C或TWI（Two-Wire Interface），是一种串行通信总线，用于连接微控制器和各种外围设备。通过STM32F103C8T6实现IIC通信，需要掌握IIC协议的基本原理和通信过程，并编写相应的代码来初始化GPIO、发送起始和停止信号、发送和接收数据等。在实际应用中，还需要根据具体的硬件和需求来优化和完善代码，以确保稳定可靠的通信。
这是用stm32F103C8T6操作oled的程序
10-07
这是用stm32F103C8T6操作oled的程序 这是用stm32F103C8T6操作oled的程序 这是用stm32F103C8T6操作oled的程序 这是用stm32F103C8T6操作oled的程序
stm32f103c8t6模拟IIC驱动0.96'oled
贾晓籽的博客
04-29 1万+
STM32f103c8t6模拟IIC驱动0.96'OLED模拟IIC驱动0.96’OLED效果主要代码：main.coled.coled.holedfont.h 模拟IIC驱动0.96’OLED 代码大部分考别人的，放这里作笔记，免得以后找不着 四线IIC接口0.96‘OLED接线： GND 电源地 VCC 3.3v电源 SCL 接PA5（SCL） SDA 接PA7（SDA） 验证...
OLED显示屏STM32F103C8T6驱动程序.zip_oled stm32f103c8t6_oled显示屏程序_stm32f
07-13
"OLED显示屏STM32F103C8T6驱动程序.zip" 这个压缩包文件的核心主题是针对STM32F103C8T6微控制器设计的OLED（有机发光二极管）显示屏的驱动程序。STM32F103C8T6是一款由STMicroelectronics公司生产的高性能32位微处理...
STM32F103C8T6硬件IIC控制4针0.96寸OLED显示屏
07-16
该程序经本人测试可以正常使用，也可先去搜索我的同名博客（STM32F103C8T6硬件IIC控制4针0.96寸OLED显示屏）先查看是否符合你的要求再进行下载，以免浪费下载积分，博客内容介绍有如何获取字模等步骤。
STM32F103C8T6模拟IIC控制4针0.96寸OLED显示屏
05-15
在本项目中，我们主要关注的是STM32F103C8T6如何模拟IIC（Inter-Integrated Circuit）协议来控制4针0.96寸的OLED显示屏。 IIC是一种多主机、两线接口，常用于低速设备间的通信，如传感器、显示模块等。STM32不自带...
STM32F103C8T6硬件I2C2成功驱动ADS1115源代码
10-31
今天终于用STM32F103C8T6的I2C2硬件驱动ADS1115获得成功。 但有一点就是：所有其他的中断处理程序必须耗时极短，否则不稳定，容易卡丝。 我都是在中断服务程序里处理一下标识，然后退出中断。再通过标识在主程序里处理中断服务程序的任务。 我测试成功的硬件配置：STM32F103C8T6+OLED12864+ADS1115+KEY+LED。使用时钟中断和ADC1的DMA中断，OLED用硬件I2C1驱动，ADS1115用硬件I2C2驱动。
0.96OLED显示屏STM32F103C8T6_硬件IIC例程.zip
04-17
stm32 硬件iic操作OLED 屏幕 0.96OLED显示屏STM32F103C8T6_硬件IIC例程 根据需要进行修改即可
STM32F103C8T6+OLED
08-26
初级！！！ STM32F103C8T6驱动0.9寸oled屏幕，SPI通信，cubemx生成，只有8*8字模，英语，简单定时器
STM32F103使用硬件IIC操作OLED屏幕
03-06
STM32F103使用硬件IIC操作OLED屏幕，适用于各类OLED屏幕
STM32F103C8T6_IIC.zip
08-07
可以检测单击、双击、连按
STM32F407VET6 使用SPI 驱动0.96寸OLED
snoopy_13579的博客
04-18 2317
STM32F407VET6 使用SPI 驱动0.96寸OLED
STM32系列(HAL库)——F103C8T6使用SPI方式点亮OLED
热门推荐
嵌入式创客工坊的博客
12-12 2万+
目录 1.软件准备 2.硬件准备 3.CubeMX配置 (1)芯片选择 (2)配置RCC、SYS、时钟树 (3)配置SPI (4)配置GPIO (5)生成代码工程 4.代码移植 (1)复制文件 (2)在Keil5里添加文件 (3)修改oled.h文件 (4)修改oled.c文件 (5)修改main.c函数 (6).代码下载 5.最终效果 1.软件准备 (1)编程平台：Keil5 (2)CubeMX (3)中景园移植代码——点我下载 提...
STM32F103C8T6 使用 HAL 库驱动 OLED 显示屏
最新发布
qq_58404700的博客
08-12 1769
本报告旨在概述使用STM32F103C8T6微控制器结合HAL库来驱动OLED显示屏的过程。OLED显示屏因其高对比度、低功耗和快速响应时间等特点，在嵌入式系统中得到广泛应用。本项目通过STM32的I2C接口与OLED显示屏进行通信，实现文字、图像等信息的显示。
stm32f103c8t6 oled iic
06-28
### 回答1： STM32F103C8T6是一款基于ARM Cortex-M3内核的微控制器，具有丰富的外设和高性能。OLED是一种有机发光二极管显示技术，具有高对比度、低功耗、快速响应等优点。IIC是一种串行通信协议，可以实现多个设备之间的通信。因此，STM32F103C8T6可以通过IIC接口控制OLED显示屏，实现图形、文字等内容的显示。 ### 回答2： STM32F103C8T6是一款来自ST公司的基于Cortex-M3内核的32位微控制器，具有高性能、低功耗、丰富的外设和良好的可扩展性等特点。它包括了128KB闪存和20KB SRAM，支持多种通信接口，如SPI、I2C、USART等，可以广泛应用于各种嵌入式系统中。 而OLED是一种无源式器件，具有发光、对比度高、响应快等优点，在小屏幕设备中得到广泛应用。IIC（Inter-Integrated Circuit）是一种串行通信总线，常用于单片机和外设之间的通信。因此，将STM32F103C8T6与OLED屏幕通过IIC协议进行连接可以实现显示控制。 在使用STM32F103C8T6与OLED IIC时，需要编写程序对其进行初始化和驱动。首先，需配置IIC相关的GPIO口，确保C8T6正确地连接到OLED屏幕上。接着，在代码中需要定义字模和字符点阵，以便在OLED屏幕上绘制文字、图像等。最后，编写显示模块的代码，实现OLED屏幕上的显示和操作。 总之，STM32F103C8T6与OLED IIC的结合可以实现小型嵌入式设备的显示控制，具有广泛的应用价值。但使用前需进行一定的硬件与软件设置，否则将无法正常工作。 ### 回答3： STM32F103C8T6是一款32位微控制器，拥有72MHz的主频速度和128KB Flash存储空间。它具有高性能、低功耗、广泛的应用领域以及丰富的外设资源，广泛应用于电子商业、工业自动化、医疗器械等领域。 而OLED，全称Organic Light-Emitting Diode，有机发光二极管，是一种新型的显示技术。根据显示材料和驱动方式的不同，OLED显示器可以分为PMOLED和AMOLED两种类型。与传统的显示技术相比，OLED显示器具有更广的可视角度、更快的响应速度、更高的对比度和更低的功耗。 IIC，全称Inter-Integrated Circuit，是一种串行通信接口协议。它由两根线组成，分别为SDA和SCL，通过控制线上信号电平的变化，实现数据的传输。 STM32F103C8T6和OLED IIC的结合，能够实现一些更加强大、高效、可靠、便捷的应用。通常使用STM32F103C8T6来驱动OLED IIC显示器，可以实现对显示效果的控制、更新和管理。用户可以通过代码编写来实现各种显示效果，比如在屏幕上显示不同字体、不同字号、不同颜色等。同时，STM32F103C8T6还可以监测到各种传感器的状态，并在OLED IIC显示器上实时显示出来。 因此，STM32F103C8T6和OLED IIC的组合，可以应用于各种领域，如智能家居、通信设备、医疗器械以及机器人等，可以使设备更加高效、智能化，提高设备工作效率和用户体验。
评论 3
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
