Android 仿美团GridView分页滑动（类似直播礼物列表效果）

Android 仿美团GridView分页滑动，类似直播礼物列表效果，在GridView展示时添加了动画效果，希望看到这篇文章的你喜欢

（很抱歉，有很久没有看CSDN了，今天无意中看到Tom.wen询问问题，还有FrenkX72几个月前的询问，没能及时的回复，很抱歉。其实，我们遇到自己不会的或没有做过的功能，我们可以先去百度一下或者去相关的技术网站上搜索关键字，比如CSDN、GitHub等，最主要的是我们可以准确的命中自己需要的功能的关键字，从而搜索到自己满意的结果。就拿本篇博客来说，关键字可以是：仿美团GridView，然后去GitHub上搜索，可以找到自己的答案）

GitHub上搜索的案例：（GridView礼物列表、仿美团GridView、PageRecyelerViewDemo）

https://github.com/search?q=%E4%BB%BF%E7%BE%8E%E5%9B%A2GridView

https://github.com/HeyMouser/MeiTuan

https://github.com/hkq325800/GridViewPager

https://github.com/Skynet-Jacopo/FangMeiTuan

https://github.com/ziwenL/HorizontalGridView   HorizontalGridView是一个仿照 直播间礼物列表/电商首页二级分类栏 实现横向滚动的自定view

https://github.com/shichaohui/PageRecyelerViewDemo

https://github.com/junlintian5233/PageRecyelerViewDemo

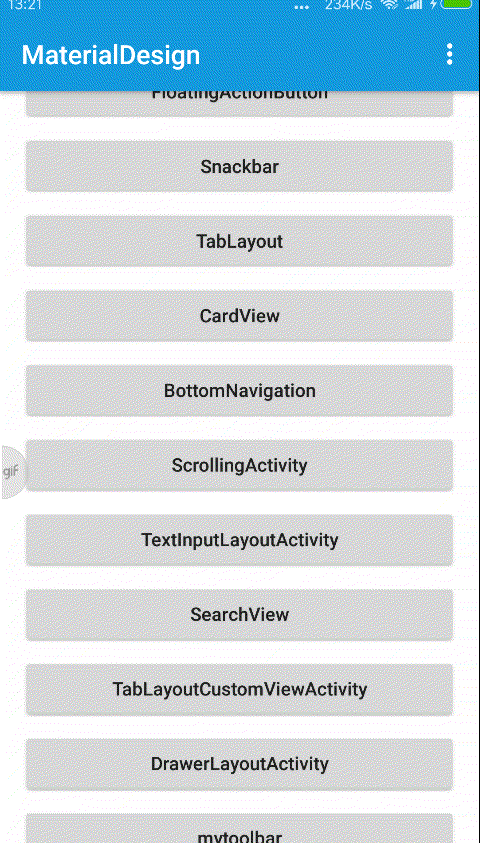

效果图：    RecyclerView实现分页滑动效果

直接贴出所有代码：

1.GridViewActivity类：

import android.support.v4.view.ViewPager;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.view.animation.AlphaAnimation;
import android.view.animation.Animation;
import android.view.animation.AnimationSet;
import android.view.animation.AnimationUtils;
import android.view.animation.LayoutAnimationController;
import android.view.animation.RotateAnimation;
import android.view.animation.ScaleAnimation;
import android.view.animation.TranslateAnimation;
import android.widget.Button;
import android.widget.GridView;
import android.widget.ImageView;
import android.widget.LinearLayout;

import com.yechaoa.materialdesign.R;
import com.yechaoa.materialdesign.activity.ToolbarActivity;
import com.yechaoa.materialdesign.activity.ToolbarActivity5;

import java.util.ArrayList;
import java.util.List;

import butterknife.BindView;

public class GridViewActivity extends ToolbarActivity5 implements ViewPager.OnPageChangeListener{
    private ViewGroup points;//小圆点指示器
    private ImageView[] ivPoints;//小圆点图片集合
    private ViewPager viewPager;
    private int totalPage;//总的页数
    private int mPageSize = 8;//每页显示的最大数量
    private List<ProductListBean> listDatas;//总的数据源
    private List<View> viewPagerList;//GridView作为一个View对象添加到ViewPager集合中
    private int currentPage;//当前页

    private String[] proName = {"名称0","名称1","名称2","名称3","名称4","名称5",
            "名称6","名称7","名称8","名称9","名称10","名称11","名称12","名称13",
            "名称14","名称15","名称16","名称17","名称18","名称19"};

    @Override
    protected int getLayoutId() {
        return R.layout.activity_gridview;
    }

    @Override
    protected void setToolbar() {
    }

    @Override
    protected void initView() {
        //初始化控件
        iniViews();
        //模拟数据源
        setDatas();
        LayoutInflater inflater = LayoutInflater.from(this);
        //总的页数，取整（这里有三种类型：Math.ceil(3.5)=4:向上取整，只要有小数都+1  Math.floor(3.5)=3：向下取整  Math.round(3.5)=4:四舍五入）
        totalPage = (int) Math.ceil(listDatas.size() * 1.0 / mPageSize);
        viewPagerList = new ArrayList<>();
        for(int i=0;i<totalPage;i++){
            //每个页面都是inflate出一个新实例
            GridView gridView = (GridView) inflater.inflate(R.layout.gridview_layout,viewPager,false);
            //

            Animation myAnim = AnimationUtils.loadAnimation(this, R.anim.in_from_right);
            myAnim.setFillAfter(true);//android动画结束后停在结束位置

            AnimationSet set = new AnimationSet(false);
            set.addAnimation(myAnim);    //加入动画集合
//            Animation animation = new AlphaAnimation(0,1);   //AlphaAnimation 控制渐变透明的动画效果
//            animation.setDuration(500);     //动画时间毫秒数
//            set.addAnimation(animation);    //加入动画集合
//
//            animation = new TranslateAnimation(1, 13, 10, 50);  //ScaleAnimation 控制尺寸伸缩的动画效果
//            animation.setDuration(300);
//            set.addAnimation(animation);
//
//            animation = new RotateAnimation(30,10);    //TranslateAnimation  控制画面平移的动画效果
//            animation.setDuration(300);
//            set.addAnimation(animation);
//
//            animation = new ScaleAnimation(5,0,2,0);    //RotateAnimation  控制画面角度变化的动画效果
//            animation.setDuration(300);
//            set.addAnimation(animation);

            LayoutAnimationController controller = new LayoutAnimationController(set, 1);
            //
            gridView.setLayoutAnimation(controller);//GridView 设置动画效果
            gridView.setAdapter(new MyGridViewAdapter(this,listDatas,i,mPageSize));
            //添加item点击监听
            /*gridView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
                @Override
                public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
                    int pos = position + currentPage*mPageSize;
                    Log.i("TAG","position的值为："+position + "-->pos的值为："+pos);
                    Toast.makeText(MainActivity.this,"你点击了 "+listDatas.get(pos).getProName(),Toast.LENGTH_SHORT).show();
                }
            });*/
            //每一个GridView作为一个View对象添加到ViewPager集合中
            viewPagerList.add(gridView);
        }
        //设置ViewPager适配器
        viewPager.setAdapter(new MyViewPagerAdapter(viewPagerList));
        //小圆点指示器
        ivPoints = new ImageView[totalPage];
        for(int i=0;i<ivPoints.length;i++){
            ImageView imageView = new ImageView(this);
            //设置图片的宽高
            imageView.setLayoutParams(new ViewGroup.LayoutParams(10,10));
            if(i == 0){
                imageView.setBackgroundResource(R.drawable.origin_gray3);
            }else{
                imageView.setBackgroundResource(R.drawable.origin_gray5);
            }
            ivPoints[i] = imageView;
            LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(new ViewGroup.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT, ViewGroup.LayoutParams.WRAP_CONTENT));
            layoutParams.leftMargin = 20;//设置点点点view的左边距
            layoutParams.rightMargin = 20;//设置点点点view的右边距
            points.addView(imageView,layoutParams);
        }
        //设置ViewPager滑动监听
        viewPager.addOnPageChangeListener(this);
    }
    private void iniViews() {
        viewPager = (ViewPager) findViewById(R.id.viewPager);
        //初始化小圆点指示器
        points = (ViewGroup) findViewById(R.id.points);
    }

    private void setDatas() {
        listDatas = new ArrayList<>();
        for(int i=0;i<proName.length;i++){
            listDatas.add(new ProductListBean(proName[i], R.drawable.ic_menu_slideshow));
        }
    }

    @Override
    public void onPageScrolled(int i, float v, int i1) {

    }

    @Override
    public void onPageSelected(int position) {
        //改变小圆圈指示器的切换效果
        setImageBackground(position);
        currentPage = position;
    }

    @Override
    public void onPageScrollStateChanged(int i) {

    }
    /**
     * 改变点点点的切换效果
     * @param selectItems
     */
    private void setImageBackground(int selectItems) {
        for (int i = 0; i < ivPoints.length; i++) {
            if (i == selectItems) {
                ivPoints[i].setBackgroundResource(R.drawable.origin_red);
            } else {
                ivPoints[i].setBackgroundResource(R.drawable.origin_gray);
            }
        }
    }
}

2.GridView加载数据的适配器：

import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.TextView;
import android.widget.Toast;

import com.yechaoa.materialdesign.R;

import java.util.List;

/**
 * GridView加载数据adapter
 */
public class MyGridViewAdapter extends BaseAdapter {

    private List<ProductListBean> listData;
    private LayoutInflater inflater;
    private Context context;
    private int mIndex;//页数下标，表示第几页，从0开始
    private int mPagerSize;//每页显示的最大数量

    public MyGridViewAdapter(Context context,List<ProductListBean> listData,int mIndex,int mPagerSize) {
        this.context = context;
        this.listData = listData;
        this.mIndex = mIndex;
        this.mPagerSize = mPagerSize;
        inflater = LayoutInflater.from(context);
    }

    /**
     * 先判断数据集的大小是否足够显示满本页？listData.size() > (mIndex + 1)*mPagerSize
     * 如果满足，则此页就显示最大数量mPagerSize的个数
     * 如果不够显示每页的最大数量，那么剩下几个就显示几个 (listData.size() - mIndex*mPagerSize)
     */
    @Override
    public int getCount() {
        return listData.size() > (mIndex + 1)*mPagerSize ? mPagerSize : (listData.size() - mIndex*mPagerSize);
    }

    @Override
    public Object getItem(int position) {
        return listData.get(position + mIndex * mPagerSize);
    }

    @Override
    public long getItemId(int position) {
        return position + mIndex * mPagerSize;
    }

    @Override
    public View getView(int position, View convertView, ViewGroup parent) {
        ViewHolder holder = null;
        if(convertView == null){
            convertView = inflater.inflate(R.layout.item_gridview,parent,false);
            holder = new ViewHolder();
            holder.proName = (TextView) convertView.findViewById(R.id.proName);
            holder.imgUrl = (ImageView) convertView.findViewById(R.id.imgUrl);

            convertView.setTag(holder);
        }else{
            holder = (ViewHolder) convertView.getTag();
        }
        //重新确定position（因为拿到的是总的数据源，数据源是分页加载到每页的GridView上的，为了确保能正确的点对不同页上的item）
        final int pos = position + mIndex*mPagerSize;//假设mPagerSize=8，假如点击的是第二页（即mIndex=1）上的第二个位置item(position=1),那么这个item的实际位置就是pos=9
        ProductListBean bean = listData.get(pos);
        holder.proName.setText(bean.getProName());
        holder.imgUrl.setImageResource(bean.getImgUrl());
        //添加item监听
        convertView.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                Toast.makeText(context,"你点击了 "+listData.get(pos).getProName(),Toast.LENGTH_SHORT).show();
            }
        });
        return convertView;
    }

    class ViewHolder{
        private TextView proName;
        private ImageView imgUrl;
    }
}

3.ViewPager适配器：

import android.support.v4.view.PagerAdapter;
import android.view.View;
import android.view.ViewGroup;

import java.util.List;

/**
 *ViewPager的adapter
 */
public class MyViewPagerAdapter extends PagerAdapter {

    private List<View> viewLists;//View就是GridView

    public MyViewPagerAdapter(List<View> viewLists) {
        this.viewLists = viewLists;
    }

    /**
     *这个方法，是从ViewGroup中移出当前View
     */
    @Override
    public void destroyItem(ViewGroup container, int position, Object object) {
        container.removeView(viewLists.get(position));
    }

    /**
     * 将当前View添加到ViewGroup容器中
     * 这个方法，return一个对象，这个对象表明了PagerAdapter适配器选择哪个对象放在当前的ViewPager中
     */
    @Override
    public Object instantiateItem(ViewGroup container, int position) {
        container.addView(viewLists.get(position));
        return viewLists.get(position);
    }

    /**
     *这个方法，是获取当前窗体界面数
     */
    @Override
    public int getCount() {
        return viewLists != null ? viewLists.size() : 0;
    }

    /**
     *用于判断是否由对象生成界面
     */
    @Override
    public boolean isViewFromObject(View view, Object object) {
        return view == object;//官方文档要求这样写
    }
}

4.实体类：

import java.io.Serializable;

/**
 * 实体类
 */
public class ProductListBean implements Serializable {
    private String proName;
    private int imgUrl;

    public ProductListBean(String proName, int imgUrl) {
        this.proName = proName;
        this.imgUrl = imgUrl;
    }

    public String getProName() {
        return proName;
    }

    public void setProName(String proName) {
        this.proName = proName;
    }

    public int getImgUrl() {
        return imgUrl;
    }

    public void setImgUrl(int imgUrl) {
        this.imgUrl = imgUrl;
    }
}

5.所有布局：

a).activity_gridview

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".activity.gridview.GridViewActivity">

    <RelativeLayout xmlns:tools="http://schemas.android.com/tools"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:background="#CDCDCD">

        <RelativeLayout
            android:layout_width="match_parent"
            android:layout_height="200dp"
            android:background="#FFFFFF">

            <android.support.v4.view.ViewPager
                android:id="@+id/viewPager"
                android:layout_width="match_parent"
                android:layout_height="wrap_content" />

            <LinearLayout
                android:id="@+id/points"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_alignParentBottom="true"
                android:layout_marginBottom="10dp"
                android:gravity="center"
                android:orientation="horizontal" />
        </RelativeLayout>
    </RelativeLayout>

</android.support.constraint.ConstraintLayout>

b).item_gridview

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="10dp"
    android:gravity="center"
    android:orientation="vertical">

    <ImageView
        android:id="@+id/imgUrl"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@mipmap/ic_launcher"/>
    <TextView
        android:id="@+id/proName"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="2dp"
        android:text="名称"/>
</LinearLayout>

c).gridview_layout

<?xml version="1.0" encoding="utf-8"?>
<GridView xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/gridView"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:numColumns="4">

</GridView>

 d).in_from_right   动画

<?xml version="1.0" encoding="utf-8"?>
<translate xmlns:android="http://schemas.android.com/apk/res/android"
    android:duration="300"
    android:fromXDelta="100%p"
    android:interpolator="@android:anim/overshoot_interpolator"
    android:toXDelta="0%p" >
    <!--    in_from_right.xml(从右边进入动画)-->
</translate>

xml动画效果可以参考：https://blog.csdn.net/shenggaofei/article/details/51732517

e).原点：

origin_gray3

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="oval"
    android:useLevel="false">
    <solid android:color="@color/colorAccent" />
    <size
        android:width="10dp"
        android:height="10dp" />
</shape>

origin_gray5

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="oval"
    android:useLevel="false">
    <solid android:color="@color/gray" />
    <size
        android:width="10dp"
        android:height="10dp" />
</shape>

origin_red

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="oval"

    android:useLevel="false">
    <solid android:color="@color/red" />
    <stroke
        android:width="1dp"
        android:color="@color/colorAccent" />
    <size
        android:width="10dp"
        android:height="10dp" />
</shape>

origin_gray

<?xml version="1.0" encoding="utf-8"?>
<shape
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="oval"
    android:useLevel="false" >
    <solid android:color="@color/red" />
    <padding
        android:left="2dp"
        android:top="1dp"
        android:right="2dp"
        android:bottom="1dp" />
    <solid
        android:color="@color/colorAccent" />
    <stroke
        android:width="1dp"
        android:color="@android:color/holo_red_dark" />
    <size android:width="10dp"
        android:height="10dp" />
</shape>
