Swagger Codegen与Openapi Generator生成SDK的分别的使用过程
文章目录
Swagger Codegen
参考链接：
https://github.com/swagger-api/swagger-codegen
https://www.jianshu.com/p/14a35d6f7b1a
https://www.cnblogs.com/shamo89/p/7680771.html

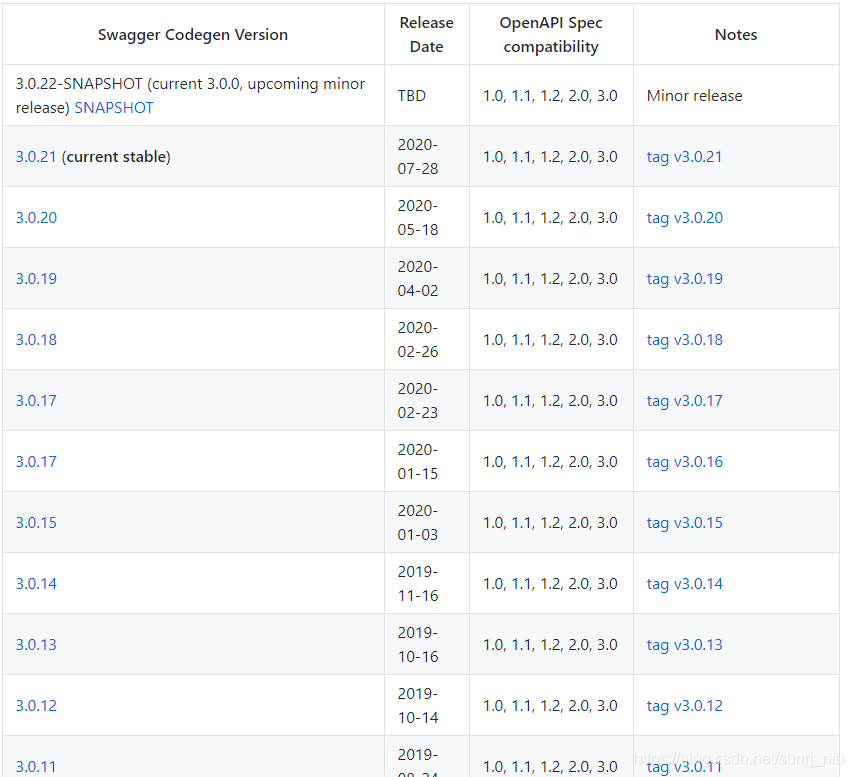

可以有很多个版本以及系统（mac，window，linux）可以选择
https://github.com/swagger-api/swagger-codegen
中有，根据情况而定：
这里主要说的linux下的使用和安装：
一、Swagger Codegen的安装
1.直接命令下载：
wget https://repo1.maven.org/maven2/io/swagger/swagger-codegen-cli/2.4.15/swagger-codegen-cli-2.4.15.jar -O swagger-codegen-cli.jar
2.下载好了，运行
java -jar swagger-codegen-cli.jar
3.下载之后查看帮助：
java -jar swagger-codegen-cli.jar help
根据返回结果可以看到Swagger Codegen支持的语言有很多:
[android, aspnet5, async-scala,
cwiki, csharp, cpprest, dart, flash, python-flask, go, groovy, java,
jaxrs, jaxrs-cxf, jaxrs-resteasy, jaxrs-spec, inflector, javascript,
javascript-closure-angular, jmeter, nancyfx, nodejs-server, objc,
perl, php, python, qt5cpp, ruby, scala, scalatra, silex-PHP, sinatra,
rails5, slim, spring, dynamic-html, html, html2, swagger,
swagger-yaml, swift, tizen, typescript-angular2, typescript-angular,
typescript-node, typescript-fetch, akka-scala, CsharpDotNet2, clojure,
haskell, lumen, go-server]
二、 Swagger Codegen的使用
查看Swagger Codegen支持的具体某个语言的使用帮助，拿java举例
「注意在 swagger-codegen-cli.jar的安装路径下执行，否则找不到」：
java -jar swagger-codegen-cli.jar config-help -l java
就会出来很多java语言相关的使用文档：
利用Swagger Codegen根据服务生成客户端代码
必须要在导入该jar的目录下执行
检测是否可以正常导入：
我这里是把swagger导出的json数据导出来
java -jar swagger-codegen-cli.jar generate -i http://[你的IP地址或者数据存放地址]:8080/v2/api-docs -l java -o /usr/local/swagger
-i http://10.2.0.126:8080/v2/api-docs 代表你要导入的数据
-o /usr/local/swagger 代表导出的地址

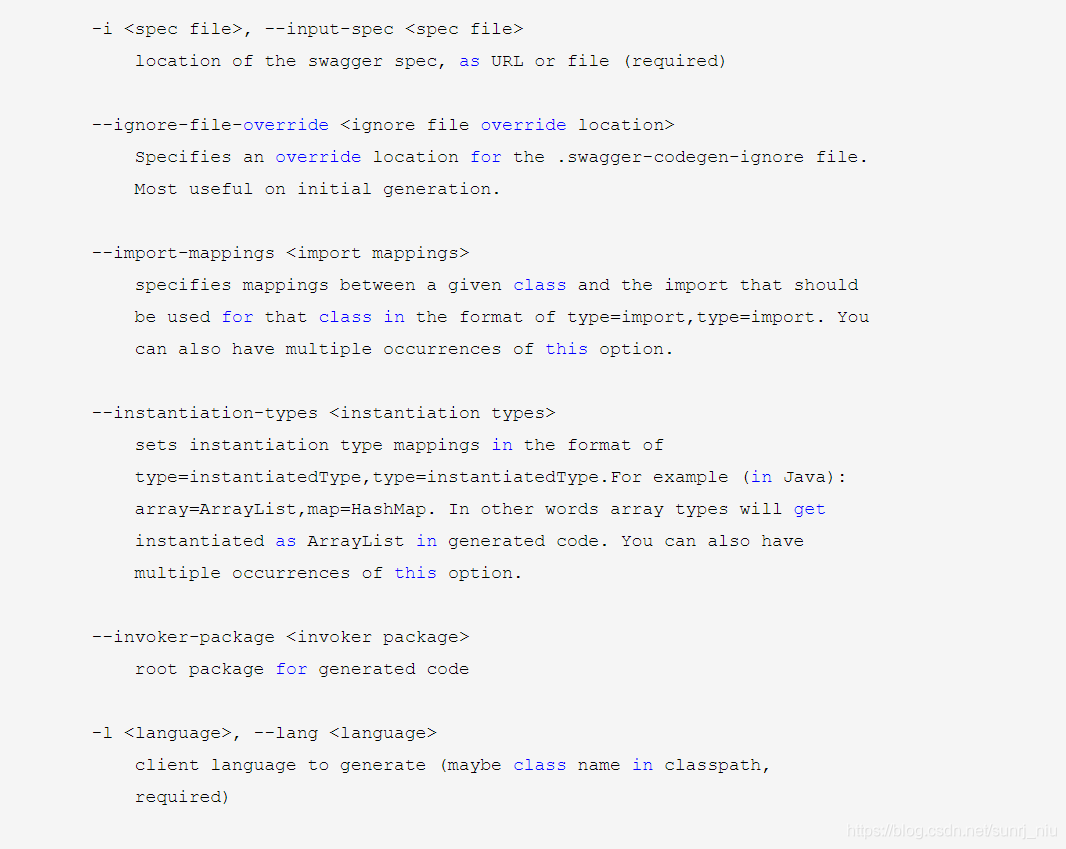

在上面这段代码里，使用了三个参数，分别是-i和-l和-o。
-i指定swagger描述文件的路径,url地址或路径文件;该参数为必须(http://petstore.swagger.io/v2/swagger.json是官方的一个例子，我们可以改成自己的服务)
-l指定生成客户端代码的语言,该参数为必须
-o指定生成文件的位置(默认当前目录)
除了可以指定上面三个参数，还有一些常用的：
-c json格式的配置文件的路径;文件为json格式,支持的配置项因语言的不同而不同
-a 当获取远程swagger定义时,添加授权头信息;URL-encoded格式化的name,逗号隔开的多个值
–api-package 指定生成的api类的包名
–artifact-id 指定pom.xml的artifactId的值
–artifact-version 指定pom.xml的artifact的版本
–group-id 指定pom.xml的groupId的值
–model-package 指定生成的model类的包名
-s 指定该参数表示不覆盖已经存在的文件
-t 指定模版文件所在目录

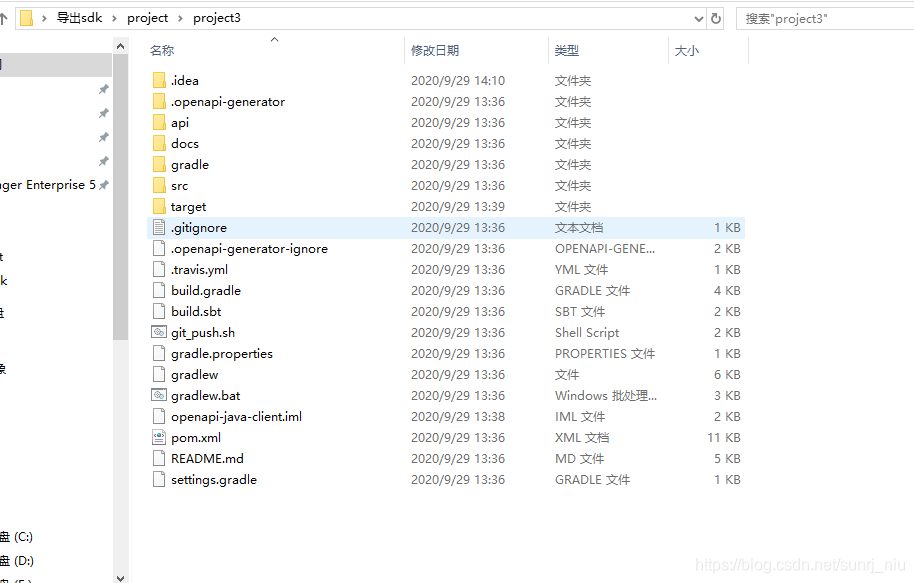

生成好的客户端代码
如图：

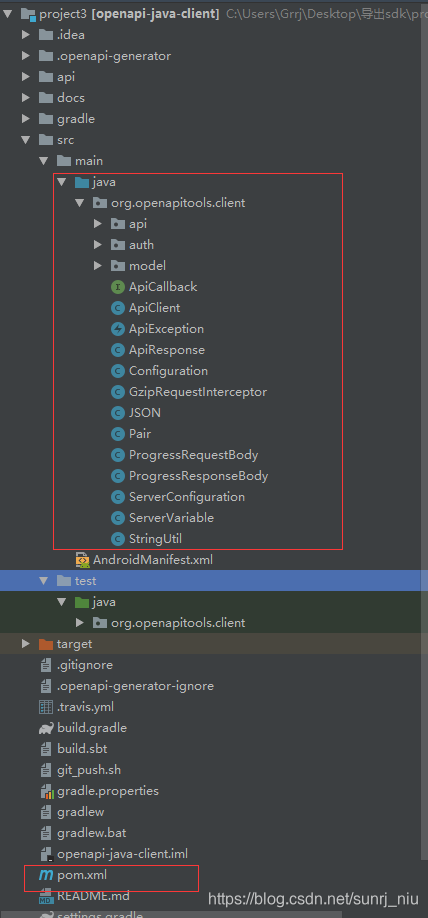

生成的这些文件里，src文件下的文件和pom.xml文件是对我们最有用的。把它们导入到我们习惯用的java编辑器里，这里以idea为例：
model中就是我们的实体类
test也就是测试类。可以进行测试
api所有的controller层都会有
我们会发现生成的默认包是io.swagger.client.api/module，而我们可能想要自己的包，怎么办呢
只需要生成代码的时候指定–api-package这个选项就好了。
java -jar swagger-codegen-cli.jar generate -i http://xxxx:8807/static/swagger.json -l java -o /usr/local/swagger/project --api-package com.xxxx.client --invoker-package com.xxxx.client.invoker --model-package com.xxxx.client.model
Openapi Generator
注意：安装Openapi Generator必须安装nodejs
一、Openapi Generator的安装
npm install @openapitools/openapi-generator-cli -g
npm install @openapitools/openapi-generator-cli@cli-4.3.1 -g
npm install @openapitools/openapi-generator-cli -D
petstore.yaml上一份json文件，类似于swagger生成的json文件，最下边有复制一份，有需要可直接复制，或者用自己的json文件也可以
npx @openapitools/openapi-generator-cli generate -i petstore.yaml -g java -o /tmp/test/
-i指定要生成的json的文件的路径
-o文件导出的路径
-g指定要生成的语言
然后就完成了
导出的文件：与 swagger-codegen是一样的
导入idea进行测试就可以了
petstore.yaml文件
swagger: '2.0'
info:
description: 'This is a sample server Petstore server. For this sample, you can use the api key `special-key` to test the authorization filters.'
version: 1.0.0
title: OpenAPI Petstore
license:
name: Apache-2.0
url: 'https://www.apache.org/licenses/LICENSE-2.0.html'
host: petstore.swagger.io
basePath: /v2
tags:
- name: pet
description: Everything about your Pets
- name: store
description: Access to Petstore orders
- name: user
description: Operations about user
schemes:
- http
paths:
/pet:
post:
tags:
- pet
summary: Add a new pet to the store
description: ''
operationId: addPet
consumes:
- application/json
- application/xml
produces:
- application/xml
- application/json
parameters:
- in: body
name: body
description: Pet object that needs to be added to the store
required: true
schema:
$ref: '#/definitions/Pet'
responses:
'405':
description: Invalid input
security:
- petstore_auth:
- 'write:pets'
- 'read:pets'
put:
tags:
- pet
summary: Update an existing pet
description: ''
operationId: updatePet
consumes:
- application/json
- application/xml
produces:
- application/xml
- application/json
parameters:
- in: body
name: body
description: Pet object that needs to be added to the store
required: true
schema:
$ref: '#/definitions/Pet'
responses:
'400':
description: Invalid ID supplied
'404':
description: Pet not found
'405':
description: Validation exception
security:
- petstore_auth:
- 'write:pets'
- 'read:pets'
/pet/findByStatus:
get:
tags:
- pet
summary: Finds Pets by status
description: Multiple status values can be provided with comma separated strings
operationId: findPetsByStatus
produces:
- application/xml
- application/json
parameters:
- name: status
in: query
description: Status values that need to be considered for filter
required: true
type: array
items:
type: string
enum:
- available
- pending
- sold
default: available
collectionFormat: csv
responses:
'200':
description: successful operation
schema:
type: array
items:
$ref: '#/definitions/Pet'
'400':
description: Invalid status value
security:
- petstore_auth:
- 'write:pets'
- 'read:pets'
/pet/findByTags:
get:
tags:
- pet
summary: Finds Pets by tags
description: 'Multiple tags can be provided with comma separated strings. Use tag1, tag2, tag3 for testing.'
operationId: findPetsByTags
produces:
- application/xml
- application/json
parameters:
- name: tags
in: query
description: Tags to filter by
required: true
type: array
items:
type: string
collectionFormat: csv
responses:
'200':
description: successful operation
schema:
type: array
items:
$ref: '#/definitions/Pet'
'400':
description: Invalid tag value
security:
- petstore_auth:
- 'write:pets'
- 'read:pets'
deprecated: true
'/pet/{petId}':
get:
tags:
- pet
summary: Find pet by ID
description: Returns a single pet
operationId: getPetById
produces:
- application/xml
- application/json
parameters:
- name: petId
in: path
description: ID of pet to return
required: true
type: integer
format: int64
responses:
'200':
description: successful operation
schema:
$ref: '#/definitions/Pet'
'400':
description: Invalid ID supplied
'404':
description: Pet not found
security:
- api_key: []
post:
tags:
- pet
summary: Updates a pet in the store with form data
description: ''
operationId: updatePetWithForm
consumes:
- application/x-www-form-urlencoded
produces:
- application/xml
- application/json
parameters:
- name: petId
in: path
description: ID of pet that needs to be updated
required: true
type: integer
format: int64
- name: name
in: formData
description: Updated name of the pet
required: false
type: string
- name: status
in: formData
description: Updated status of the pet
required: false
type: string
responses:
'405':
description: Invalid input
security:
- petstore_auth:
- 'write:pets'
- 'read:pets'
delete:
tags:
- pet
summary: Deletes a pet
description: ''
operationId: deletePet
produces:
- application/xml
- application/json
parameters:
- name: api_key
in: header
required: false
type: string
- name: petId
in: path
description: Pet id to delete
required: true
type: integer
format: int64
responses:
'400':
description: Invalid pet value
security:
- petstore_auth:
- 'write:pets'
- 'read:pets'
'/pet/{petId}/uploadImage':
post:
tags:
- pet
summary: uploads an image
description: ''
operationId: uploadFile
consumes:
- multipart/form-data
produces:
- application/json
parameters:
- name: petId
in: path
description: ID of pet to update
required: true
type: integer
format: int64
- name: additionalMetadata
in: formData
description: Additional data to pass to server
required: false
type: string
- name: file
in: formData
description: file to upload
required: false
type: file
responses:
'200':
description: successful operation
schema:
$ref: '#/definitions/ApiResponse'
security:
- petstore_auth:
- 'write:pets'
- 'read:pets'
/store/inventory:
get:
tags:
- store
summary: Returns pet inventories by status
description: Returns a map of status codes to quantities
operationId: getInventory
produces:
- application/json
parameters: []
responses:
'200':
description: successful operation
schema:
type: object
additionalProperties:
type: integer
format: int32
security:
- api_key: []
/store/order:
post:
tags:
- store
summary: Place an order for a pet
description: ''
operationId: placeOrder
produces:
- application/xml
- application/json
parameters:
- in: body
name: body
description: order placed for purchasing the pet
required: true
schema:
$ref: '#/definitions/Order'
responses:
'200':
description: successful operation
schema:
$ref: '#/definitions/Order'
'400':
description: Invalid Order
'/store/order/{orderId}':
get:
tags:
- store
summary: Find purchase order by ID
description: 'For valid response try integer IDs with value <= 5 or > 10. Other values will generated exceptions'
operationId: getOrderById
produces:
- application/xml
- application/json
parameters:
- name: orderId
in: path
description: ID of pet that needs to be fetched
required: true
type: integer
maximum: 5
minimum: 1
format: int64
responses:
'200':
description: successful operation
schema:
$ref: '#/definitions/Order'
'400':
description: Invalid ID supplied
'404':
description: Order not found
delete:
tags:
- store
summary: Delete purchase order by ID
description: For valid response try integer IDs with value < 1000. Anything above 1000 or nonintegers will generate API errors
operationId: deleteOrder
produces:
- application/xml
- application/json
parameters:
- name: orderId
in: path
description: ID of the order that needs to be deleted
required: true
type: string
responses:
'400':
description: Invalid ID supplied
'404':
description: Order not found
/user:
post:
tags:
- user
summary: Create user
description: This can only be done by the logged in user.
operationId: createUser
produces:
- application/xml
- application/json
parameters:
- in: body
name: body
description: Created user object
required: true
schema:
$ref: '#/definitions/User'
responses:
default:
description: successful operation
/user/createWithArray:
post:
tags:
- user
summary: Creates list of users with given input array
description: ''
operationId: createUsersWithArrayInput
produces:
- application/xml
- application/json
parameters:
- in: body
name: body
description: List of user object
required: true
schema:
type: array
items:
$ref: '#/definitions/User'
responses:
default:
description: successful operation
/user/createWithList:
post:
tags:
- user
summary: Creates list of users with given input array
description: ''
operationId: createUsersWithListInput
produces:
- application/xml
- application/json
parameters:
- in: body
name: body
description: List of user object
required: true
schema:
type: array
items:
$ref: '#/definitions/User'
responses:
default:
description: successful operation
/user/login:
get:
tags:
- user
summary: Logs user into the system
description: ''
operationId: loginUser
produces:
- application/xml
- application/json
parameters:
- name: username
in: query
description: The user name for login
required: true
type: string
- name: password
in: query
description: The password for login in clear text
required: true
type: string
responses:
'200':
description: successful operation
schema:
type: string
headers:
X-Rate-Limit:
type: integer
format: int32
description: calls per hour allowed by the user
X-Expires-After:
type: string
format: date-time
description: date in UTC when toekn expires
'400':
description: Invalid username/password supplied
/user/logout:
get:
tags:
- user
summary: Logs out current logged in user session
description: ''
operationId: logoutUser
produces:
- application/xml
- application/json
parameters: []
responses:
default:
description: successful operation
'/user/{username}':
get:
tags:
- user
summary: Get user by user name
description: ''
operationId: getUserByName
produces:
- application/xml
- application/json
parameters:
- name: username
in: path
description: 'The name that needs to be fetched. Use user1 for testing.'
required: true
type: string
responses:
'200':
description: successful operation
schema:
$ref: '#/definitions/User'
'400':
description: Invalid username supplied
'404':
description: User not found
put:
tags:
- user
summary: Updated user
description: This can only be done by the logged in user.
operationId: updateUser
produces:
- application/xml
- application/json
parameters:
- name: username
in: path
description: name that need to be deleted
required: true
type: string
- in: body
name: body
description: Updated user object
required: true
schema:
$ref: '#/definitions/User'
responses:
'400':
description: Invalid user supplied
'404':
description: User not found
delete:
tags:
- user
summary: Delete user
description: This can only be done by the logged in user.
operationId: deleteUser
produces:
- application/xml
- application/json
parameters:
- name: username
in: path
description: The name that needs to be deleted
required: true
type: string
responses:
'400':
description: Invalid username supplied
'404':
description: User not found
securityDefinitions:
petstore_auth:
type: oauth2
authorizationUrl: 'http://petstore.swagger.io/api/oauth/dialog'
flow: implicit
scopes:
'write:pets': modify pets in your account
'read:pets': read your pets
api_key:
type: apiKey
name: api_key
in: header
definitions:
Order:
title: Pet Order
description: An order for a pets from the pet store
type: object
properties:
id:
type: integer
format: int64
petId:
type: integer
format: int64
quantity:
type: integer
format: int32
shipDate:
type: string
format: date-time
status:
type: string
description: Order Status
enum:
- placed
- approved
- delivered
complete:
type: boolean
default: false
xml:
name: Order
Category:
title: Pet category
description: A category for a pet
type: object
properties:
id:
type: integer
format: int64
name:
type: string
xml:
name: Category
User:
title: a User
description: A User who is purchasing from the pet store
type: object
properties:
id:
type: integer
format: int64
username:
type: string
firstName:
type: string
lastName:
type: string
email:
type: string
password:
type: string
phone:
type: string
userStatus:
type: integer
format: int32
description: User Status
xml:
name: User
Tag:
title: Pet Tag
description: A tag for a pet
type: object
properties:
id:
type: integer
format: int64
name:
type: string
xml:
name: Tag
Pet:
title: a Pet
description: A pet for sale in the pet store
type: object
required:
- name
- photoUrls
properties:
id:
type: integer
format: int64
category:
$ref: '#/definitions/Category'
name:
type: string
example: doggie
photoUrls:
type: array
xml:
name: photoUrl
wrapped: true
items:
type: string
tags:
type: array
xml:
name: tag
wrapped: true
items:
$ref: '#/definitions/Tag'
status:
type: string
description: pet status in the store
enum:
- available
- pending
- sold
xml:
name: Pet
ApiResponse:
title: An uploaded response
description: Describes the result of uploading an image resource
type: object
properties:
code:
type: integer
format: int32
type:
type: string
message:
type: string
1069
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
