该种方式导入只适合小数据量的方式，并且节点的id创建困难的情况下。在实测的情况下，200万条数据，每条数据创建9个节点，8条边的情况下需要7~8分钟。

1.测试数据准备

数据规则，一个订单有多个角色，一个客户可以属于多个订单，一个客户可谓不同角色,具体表结构如下：

字段	类型	注释
order_id	varchar(50)	订单id
order_dt	varchar(50)	订单日期
cust_name	varchar(50)	客户名称
id_no	varchar(50)	证件号
role_type	varchar(50)	角色
mobile_phone	varchar(50)	手机号
home_area	varchar(50)	家庭区域编码
home_detail	varchar(50)	家庭详细地址
company_area	varchar(50)	公司区域编码
company_detail	varchar(50)	公司详细地址

导出的CVS文件anti_fraud.csv，字符集为UTF-8，内容如下：

order_id,order_dt,cust_name,id_no,role_type,mobile_phone,home_area,home_detail,company_area,company_detail
"201908010001","2019-08-01","张三","1001","01","10000010001","111101","家庭地址1","111101","公司地址1"
"201908010001","2019-08-01","赵四","1002","02","10000010002","111101","家庭地址2","111101","公司地址2"
"201908020002","2019-08-02","王一","1003","01","10000010003","111102","家庭地址3","111102","公司地址3"
"201908020002","2019-08-02","李二","1004","02","10000010004","111102","家庭地址4","111102","公司地址4"
"201908020003","2019-08-02","黄五","1005","01","10000010001","111102","家庭地址5","111103","公司地址5"
"201908020003","2019-08-02","马六","1006","02","10000010006","111102","家庭地址6","111102","公司地址6"
"201908020004","2019-08-02","张三","1001","02","10000010001","111102","家庭地址1","111103","公司地址5"
"201908020004","2019-08-02","伟奇","1007","01","10000010007","111102","家庭地址7","111102","公司地址7"

2.neo4j关系设计

2.1 node设计

将不同的信息放入不同的实体中，不同的实体中属性名称可以重复，但不推荐，具体实体如下：

订单实体 (Order{order_id,order_dt})
人实体 (Person{cust_name,id_no,role_type})
手机号码实体 (Mobilephone{mobile_phone})
家庭地址实体 (HomeAddress{home_area,home_detail})
公司地址实体 (CompanyAddress{company_area,company_detail})

2.2 label设计

边可以添加属性，用与区分实体之间的关系，边的信息如下：

人与订单关系 (Person)-[person_appl{order_id}]->(Order)
手机号与人关系 (Mobilephone)-[phone_appl{order_id}]->(Person)
家庭地址与人关系 (HomeAddress)-[homeAddr{order_id}]->(Person)
公司地址与人关系 (companyAddr)-[companyAddr{order_id}]->(Person)

3.csv导入neo4j

首先将csv文件放到neo4j根目录下的import文件夹下，

3.1创建node

唯一的节点创建从数据表中取出并不困难，将每一个节点的数据保存为一个文件，并且去重去空，5个节点分别保存5个文件。例如取出order节点的csv的sql语句为：

select distinct order_id,order_dt from anti_fraud where order_dt is not null and order_id is not null;

将节点导入neo4j数据库，在创建接节点时需要首先创建索引（注：实测过程中先创建索引后创建节点索引才生效），提高边的效率，创建语句如下：

create index on :Order(order_id,order_dt) ;
create index on :Person(cust_name,id_no,role_type) ;
create index on :Mobilephone(mobile_phone);
create index on :HomeAddress(home_area,home_detail);
create index on :CompanyAddress(company_area,company_detail);

LOAD CSV WITH HEADERS  FROM "file:///order.csv" AS line
CREATE (appl:Order{order_id:line.order_id,order_dt:line.order_dt});

LOAD CSV WITH HEADERS  FROM "file:///person.csv" AS line
CREATE (person:Person{cust_name:line.cust_name,id_no:line.id_no,role_type:line.role_type});

LOAD CSV WITH HEADERS  FROM "file:///mobilephone.csv" AS line
CREATE (m:Mobilephone{mobile_phone:line.mobile_phone});

LOAD CSV WITH HEADERS  FROM "file:///homeAddress.csv" AS line
CREATE (h:HomeAddress{home_area:line.home_area,home_detail:line.home_detail});

LOAD CSV WITH HEADERS  FROM "file:///companyAddress.csv" AS line
CREATE (c:CompanyAddress{company_area:line.company_area,company_detail:line.company_detail});

3.2 创建label

在创建边时关系以两个实体创建方案最优，如创建实体时多个match命令为交集，若一个实体未查询到，则关系不创建，创建边的关系如下：

LOAD CSV WITH HEADERS  FROM "file:///anti_fraud.csv" AS line
MATCH (appl:Order{order_id:line.order_id,order_dt:line.order_dt})
MATCH (person:Person{cust_name:line.cust_name,id_no:line.id_no,role_type:line.role_type})
MERGE (person)-[r:person_appl{order_id:line.order_id}]->(appl);

LOAD CSV WITH HEADERS  FROM "file:///anti_fraud.csv" AS line
MATCH (m:Mobilephone{mobile_phone:line.mobile_phone})
MATCH (person:Person{cust_name:line.cust_name,id_no:line.id_no,role_type:line.role_type})
MERGE (m)-[r:phone_appl{order_id:line.order_id}]->(person);

LOAD CSV WITH HEADERS  FROM "file:///anti_fraud.csv" AS line
MATCH (h:HomeAddress{home_area:line.home_area,home_detail:line.home_detail})
MATCH (person:Person{cust_name:line.cust_name,id_no:line.id_no,role_type:line.role_type})
MERGE (h)-[r:homeAddr{order_id:line.order_id}]->(person);

LOAD CSV WITH HEADERS  FROM "file:///anti_fraud.csv" AS line
MATCH (person:Person{cust_name:line.cust_name,id_no:line.id_no,role_type:line.role_type})
MATCH (c:CompanyAddress{company_area:line.company_area,company_detail:line.company_detail})
MERGE (c)-[r:companyAddr{order_id:line.order_id}]->(person);

3.3 执行命令

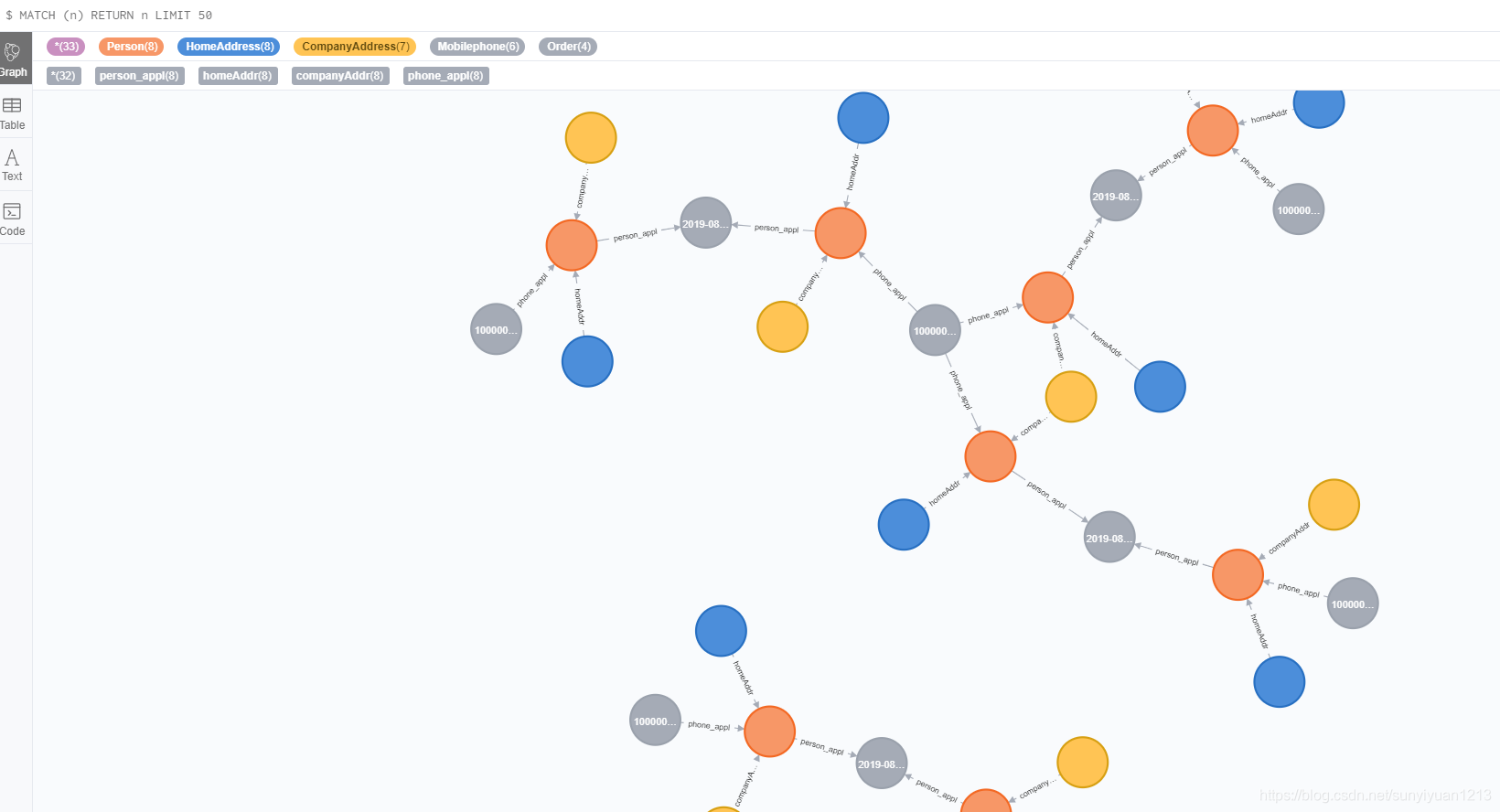

以shell方式批量执行，到neo4j下home 执行./bin/cypher-shell -u neo4j -p neo4j，执行以上命令便可以创建,创建内容如下;

4.将执行命令包装为shell脚本

4.1 创建neo4j命令文件

若在少量情况下可以用命令语句删除，删除语句如下：

MATCH data=(n)-[r1]->(person:Person)-[r2]->(appl:Appl) delete n,r1,person,r2,appl;

在实际情况中，由于服务器资源有限，大量的查询删除会出现内存不足的情况。因此在全量删除数据时可以将整个数据库删除重启，具体步骤如下：

1.停止neo4j服务
./bin/neo4j stop

2.删除neo4j数据库文件，最好最备份
rm -rf $neo4jhome/data/databases/graph.db

3.启动neo4j服务
./bin/neo4j start

创建import_neo4j.cql文件，将执行的neo4j命令写入一个文件，前两行为批量删除，以全量导入的方式实现，若是增量导入，去掉前两行删除命令，文件内容如下：

create index on :Order(order_id,order_dt) ;
create index on :Person(cust_name,id_no,role_type) ;
create index on :Mobilephone(mobile_phone);
create index on :HomeAddress(home_area,home_detail);
create index on :CompanyAddress(company_area,company_detail);

LOAD CSV WITH HEADERS  FROM "file:///order.csv" AS line
CREATE (appl:Order{order_id:line.order_id,order_dt:line.order_dt});

LOAD CSV WITH HEADERS  FROM "file:///person.csv" AS line
CREATE (person:Person{cust_name:line.cust_name,id_no:line.id_no,role_type:line.role_type});

LOAD CSV WITH HEADERS  FROM "file:///mobilephone.csv" AS line
CREATE (m:Mobilephone{mobile_phone:line.mobile_phone});

LOAD CSV WITH HEADERS  FROM "file:///homeAddress.csv" AS line
CREATE (h:HomeAddress{home_area:line.home_area,home_detail:line.home_detail});

LOAD CSV WITH HEADERS  FROM "file:///companyAddress.csv" AS line
CREATE (c:CompanyAddress{company_area:line.company_area,company_detail:line.company_detail});


LOAD CSV WITH HEADERS  FROM "file:///anti_fraud.csv" AS line
MATCH (appl:Order{order_id:line.order_id,order_dt:line.order_dt})
MATCH (person:Person{cust_name:line.cust_name,id_no:line.id_no,role_type:line.role_type})
MERGE (person)-[r:person_appl{order_id:line.order_id}]->(appl);

LOAD CSV WITH HEADERS  FROM "file:///anti_fraud.csv" AS line
MATCH (m:Mobilephone{mobile_phone:line.mobile_phone})
MATCH (person:Person{cust_name:line.cust_name,id_no:line.id_no,role_type:line.role_type})
MERGE (m)-[r:phone_appl{order_id:line.order_id}]->(person);

LOAD CSV WITH HEADERS  FROM "file:///anti_fraud.csv" AS line
MATCH (h:HomeAddress{home_area:line.home_area,home_detail:line.home_detail})
MATCH (person:Person{cust_name:line.cust_name,id_no:line.id_no,role_type:line.role_type})
MERGE (h)-[r:homeAddr{order_id:line.order_id}]->(person);

LOAD CSV WITH HEADERS  FROM "file:///anti_fraud.csv" AS line
MATCH (person:Person{cust_name:line.cust_name,id_no:line.id_no,role_type:line.role_type})
MATCH (c:CompanyAddress{company_area:line.company_area,company_detail:line.company_detail})
MERGE (c)-[r:companyAddr{order_id:line.order_id}]->(person);

4.2 创建调用cql文件

创建import_csv_neo4j.sh文件，删除读取出import_neo4j.cql文件内容，创建实体与边。

#!/bin/bash
#--------------------------------------
# filename:    import_neo4j.sh
# description: 将csv导入neo4j
# author:      test-abc
# date:        2019.08.05
#--------------------------------------
neo4jhome='/home/neo4j/neo4j-community-3.5.7'
username=neo4j
passwd=neo4j
cd $neo4jhome

source /etc/profile
#stop neo4j service
echo 'stop neo4j service'
./bin/neo4j stop

#delete neo4j database
echo 'delete neo4j database'
rm -rf $neo4jhome/data/databases/graph.db

#start neo4j service
echo 'start neo4j service'
./bin/neo4j start

sleep 30

echo "start importing neo4j"
cat $neo4jhome/import/import_neo4j.cql | ./bin/cypher-shell -u $username -p $passwd > $neo4jhome/import/import_csv_neo4j.log
echo "end of import neo4j"

4.3 调用shell脚本

给import_csv_neo4j.sh文件添加执行权限,执行该shell脚本

chmod +x import_csv_neo4j.sh
./import_csv_neo4j.sh
