Spring就是一个轻量级的控制反转和面向切面编程的框架
最全的XML配置
简介:
spring:春天----->给软件行业带来了春天
Spring框架是由于软件开发的复杂性而创建的。Spring使用的是基本的JavaBean来完成以前只可能由EJB完成的事情。然而,Spring的用途不仅仅限于服务器端的开发。从简单性、可测试性和松耦合性角度而言,绝大部分Java应用都可以从Spring中受益。
优点:
- 开源免费框架。
- 轻量级非入侵式框架。
- 控制反转(IOC),面向切面编程(AOP)。
- 支持事务的处理,对框架整合的支持。
官方:
2002年首次推出了Spring的雏形 interface21
2004年发布spring1.0版本
创作者Rod Johnson
SSH:Struct2 + Spring + Hibernate
SSM: SppringMVC + Spring + Mybatis
Spring下载:
Maven需要的导入包
<!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>5.3.9</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>5.3.9</version>
</dependency>
组成:
七大模块
博客https://blog.csdn.net/qq_33082731/article/details/75066956
拓展:
SpringBoot:
快速开发单个微服务的框架。
约定大于配置!
Spring Cloud:
基于Spring Boot实现的
大多数公司都在使用springBoot进行快速开发,学习Spring Boot的前提需要完全掌握Spring 和SpringMVC
弊端:发展太久之后,违背了原来的理念!配置十分繁琐。
IOC理论推导
控制反转(IOC)
使用一个Set接口实现
void getUserdao(UserDao userdao){
this.userdao=userdao;
}
这个理念只是一个原型。
HelloSpring
1.创建实体类
public class Hello {
private String name;
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
}
2.创建配置文件ApplicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd">
<!--使用Spring来创建对象,在Spring这些都成为bean
Hello hello= new Hello();
id=实例名 property给参数赋值
<bean id="hello" class="com.song.pojo.Hello">
<property name="name" value="Spring"/>
</bean>
ref=引用spring容器中创建好的对象
-->
<bean id="hello" class="com.song.pojo.Hello">
<property name="name" value="Spring"/>
</bean>
</beans>
3.测试
public static void main(String[] args) {
//获取spring的上下文对象
ApplicationContext context= new ClassPathXmlApplicationContext("ApplicationContext.xml");
//我们的对象现在都在spring中管理,我们要使用,直接去取就可以
Hello hello=(Hello) context.getBean("hello");
System.out.println(hello.toString());
}
IOC创建对象的方式
1、使用无参构造创建对象(默认)
<bean id="hello" class="com.song.pojo.Hello">
<property name="name" value="Spring"/>
</bean>
2、使用有参构造创建
<!--1.使用下标赋值,第一个参数为0,类推-->
<bean id="hello2" class="com.song.pojo.Hello">
<constructor-arg index="0" value="songyi"/>
</bean>
<!--2.类型式赋值(不建议使用)-->
<bean id="hello3" class="com.song.pojo.Hello">
<constructor-arg type="java.lang.String" value="songyi"/>
</bean>
<!--3.直接通过参数名来设置-->
<bean id="hello4" class="com.song.pojo.Hello">
<constructor-arg name="name" value="songyi"/>
</bean>
配置文件加载的时候,里边的所有实例就已经初始化了
Spring配置
别名(Alias)
<alias name="hello1" alias="h1"/>
<bean id="hello1" class="com.song.pojo.Hello">
<property name="name" value="Spring"/>
</bean>
Bean的配置
<!--id:唯一标识符,即对象名
class:对象所对应的全限定名:包名 + 类名
name:也是别名 分隔符可以为空格 逗号 分号
-->
<bean id="hello1" class="com.song.pojo.Hello" name="user1 u2,u3;u4">
<property name="name" value="Spring"/>
</bean>
import
假设项目有多个人开发,多个ApplationContext.xml文件
<import resource="Beans2.xml"/>
使用的时候直接使用总xml文件就行
依赖(DI)注入
构造器注入
即上边IOC创建对象的方式
Set方式注入
依赖注入:Set注入
依赖:bean对象的创建依赖于容器
注入:bean对象中的所有属性,由容器来注入
环境搭建
1.复杂类型
public class Student {
private String name;
private Address address;
private String[] books;
private List<String> hobbys;
private Map<String,String> card;
private Set<String> games;
private String wife;
private Properties info;
}
2.配置实现
<bean id="address" class="com.song.pojo.Address">
<property name="address" value="郑州"/>
</bean>
<bean id="student" class="com.song.pojo.Student">
<!--普通注入-->
<property name="name" value="宋燚"/>
<!--Bean注入,ref-->
<property name="address" ref="address"/>
<!--数组注入-->
<property name="books">
<array>
<value>红楼梦</value>
<value>金瓶梅</value>
<value>三国演义</value>
</array>
</property>
<!--List-->
<property name="hobbys">
<list>
<value>听歌</value>
<value>打游戏</value>
</list>
</property>
<!--Map-->
<property name="card">
<map>
<entry key="身份证" value="657576575757565"/>
<entry key="qq" value="687545768"/>
</map>
</property>
<!--Set-->
<property name="games" >
<set>
<value>LOL</value>
<value>COC</value>
<value>BOB</value>
</set>
</property>
<!--Null-->
<property name="wife">
<null/>
</property>
<!--Properties-->
<property name="info">
<props>
<prop key="学号">201705050137</prop>
<prop key="性别">男</prop>
</props>
</property>
</bean>
拓展方式注入
p和c命名需要在配置中导入约束
xmlns:p="http://www.springframework.org/schema/p"
xmlns:c="http://www.springframework.org/schema/c"

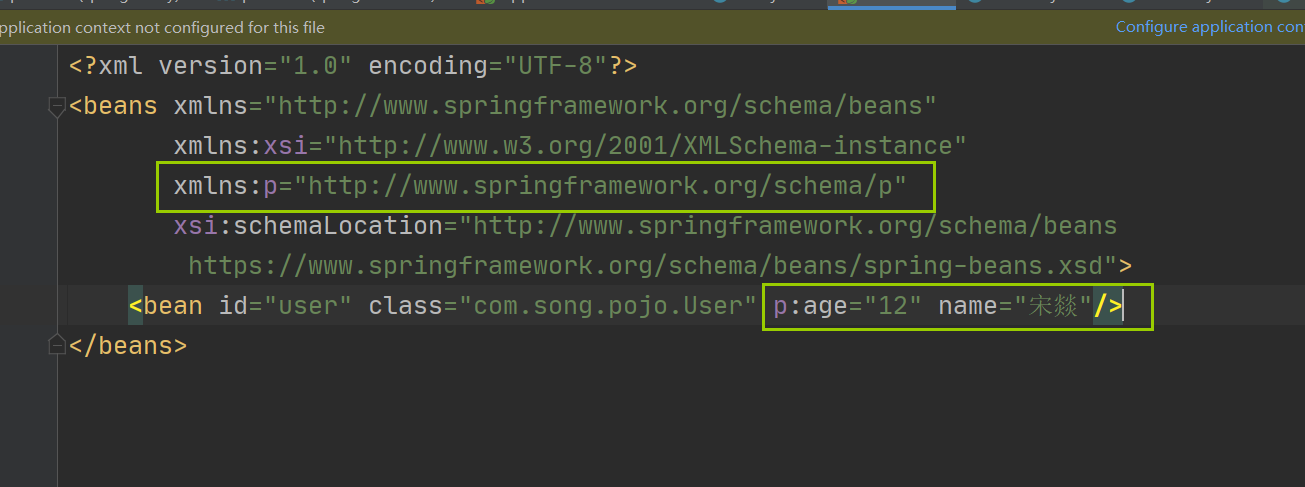

p命名空间注入
可以直接注入属性的值(适用于简单的属性)
使用:
c命名空间注入(通过构造器注入)
c输入的是构造器参数
Bean作用域(Bean Scopes)
单例模式(spring默认就是单例)
scope='singleton'
<bean id="user" class="com.song.pojo.User" p:age="12" name="宋燚" scope="singleton"/>
原型模式
每一次去get的时候都产生一个新的对象
scope="prototype"
<bean id="user" class="com.song.pojo.User" p:age="12" name="宋燚" scope="prototype"/>
其余的request、session、application只能在web开发中使用
Bean的自动装配
有三种装配方式
1、在xml中显式的配置
2、在java中显式配置
3、隐式地自动装配Bean(重要)
测试:
1、手动显式装配
<bean id="cat" class="com.song.pojo.Cat"/>
<bean id="dog" class="com.song.pojo.Dog"/>
<bean id="people" class="com.song.pojo.People">
<property name="name" value="宋燚"/>
<property name="dog" ref="dog"/>
<property name="cat" ref="cat"/>
</bean>
2、ByName自动装配

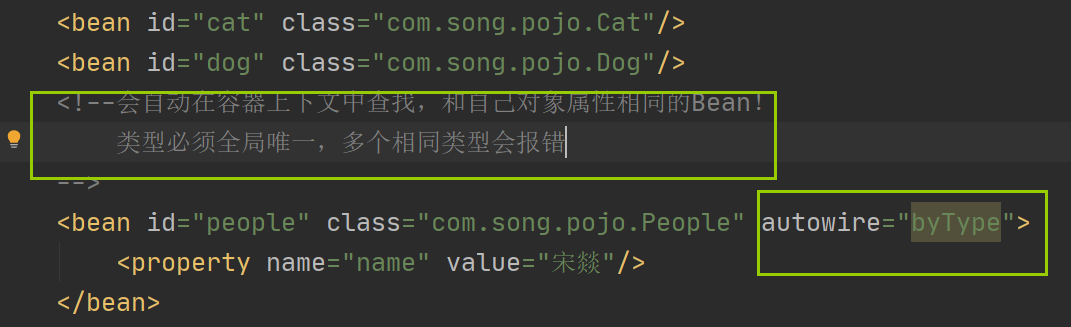

3、ByType自动装配
使用注解实现自动装配
jdk1.5支持的注解,spring2.5支持注解
使用xml开发太过麻烦,故使用注解开发
使用注解须知:
1.导入约束
2.配置注解的支持
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd">
<context:annotation-config/>
</beans>
3、测试

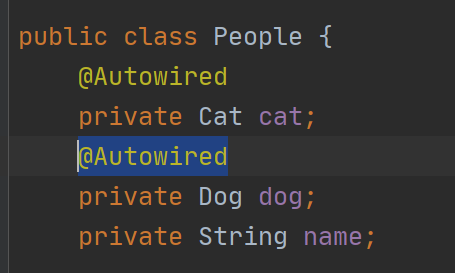

@Autowired标记在属性上侧,即自动寻找xml文件内的相对属性(可以忽略set,get方法使用)
id与字段名需一致(即默认先使用ByType方式自动装配)
@Nullable 字段标记这个注解,表名字段可以为null
可以显式这为他指定一个值

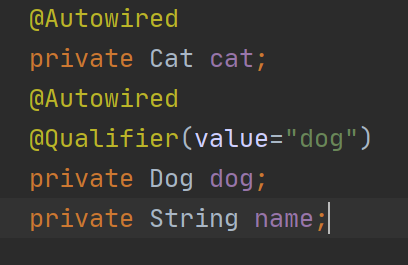

使用@Qualifier(value="id")
另一种方法

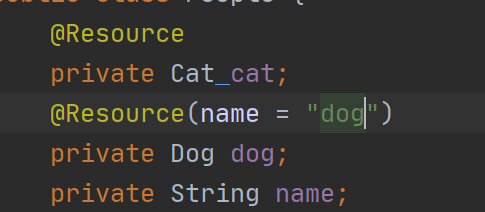

使用java内置注解@Resurce
可传参或不传参
使用注解开发
1、bean
2、属性如何注入
@Component
public class User {
@Value("宋燚")
public String name;
}
3、衍生的注解
@Component有三个衍生注解,功能相同,用在不同的层(MVC三层)
- @Repository(dao)
- @Service(service)
- @Controller(controller)
这四个注解功能都是一样的,都代表将某个类装配到spring容器中
4、自动装配置
上边有
5、作用域
@Scope
注解大全:
@Autowired:自动装配;通过类型 再 名字
@Autowired(value="id")
@Resource:自动装配;通过名字 再 类型
@Resource(name="id")
@Qualifier:指定具体的名字
@Nullable:字段标记了这个注解,说明这个字段可以为null
@Component:类上标记该注解,等价于在xml中配置bean,名字默认类的小写 user
@Component有三个衍生注解,功能相同,用在不同的层(MVC三层)
- @Repository(dao)
- @Service(service)
- @Controller(controller)
- @RestController(返回的为资源,不跳转页面)
@Value("字符串"):加在属性上(或属性的set方法上)相当于给属性赋值
@Scope:设置作用域,标记在类上
@Scope("singleton"):标注为单例模式
@Scope("prototype"):标注为原型模式
使用Java配置Spring
要完全不使用xml配置,全部使用java来实现
JavaConfig是Spring的一个子项目,在Spring4之后,他成为了一个核心功能
配置类
//在一个类上加该注解类似于<beans>标签
//配置类,他和ApplitaionContext.xml的作用是一样的
@Configuration
//导入另一个配置类
@ComponentScan("com.song.pojo")
@Import(com.song.service.config2.class)
public class config {
//相当于注册一个bean
//方法名 即为 id
//返回值 即为 class
//return就是返回要注入到bean的对象
@Bean
public User getuser(){
return new User();
}
}
测试
public static void main(String[] args) {
//如果完全使用配置类做,就需要AnnotationConfig来获取容器,通过配置的class对象加载
ApplicationContext context= new AnnotationConfigApplicationContext(config.class);
//取的话使用配置中的方法名
User geruser = (User)context.getBean("getuser");
System.out.println(geruser.toString());
}
纯Java的配置方式,在Spring Boot中随处可见
代理模式
中介;代理模式是SpringAOP的底层

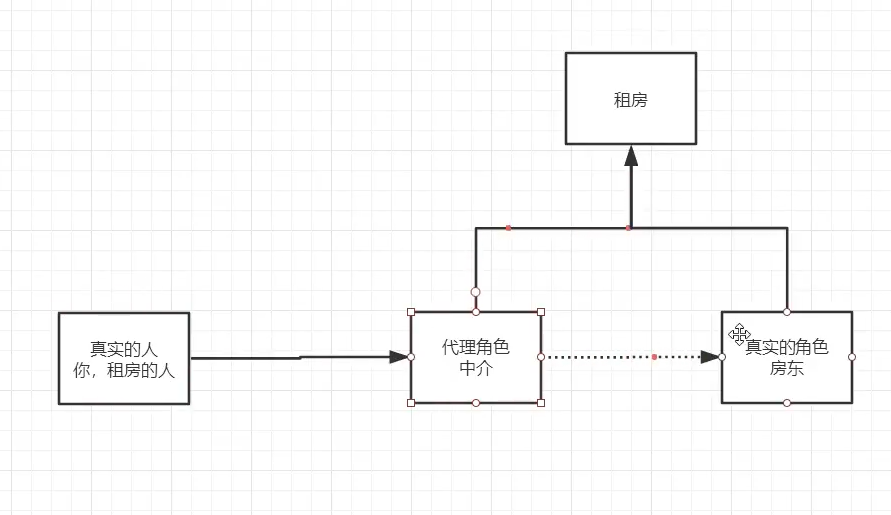

静态代理
抽象角色:一般会使用接口或抽象类来解决
真实角色:被代理的角色
代理角色:代理真实角色,代理真实角色后,我们一般会做一些附属操作
客户:访问代理对象的人
代理模式的好处:
- 可以使真实角色的操作更加纯粹,不需要做其他事情
- 公共业务交给代理角色,实现了业务的分工
- 公共业务发生扩展的时候,方便集中管理
缺点:
一个真实角色就会产生一个代理角色,代码量会翻倍,开发效率会变低
动态代理
动态代理和静态代理角色一致
动态代理类是动态生成的,不是直接写好的
动态代理分为两大类:1.基于接口的动态代理,2.基于类的动态代理
基于接口---jdk动态代理
基于类:cglib
java字节码实现:javasist
需要了解两个类:Proxy(动态代理类)和InvocationHandler(调用处理程序)
InvocationHandler
是一个接口,有一个invoke方法

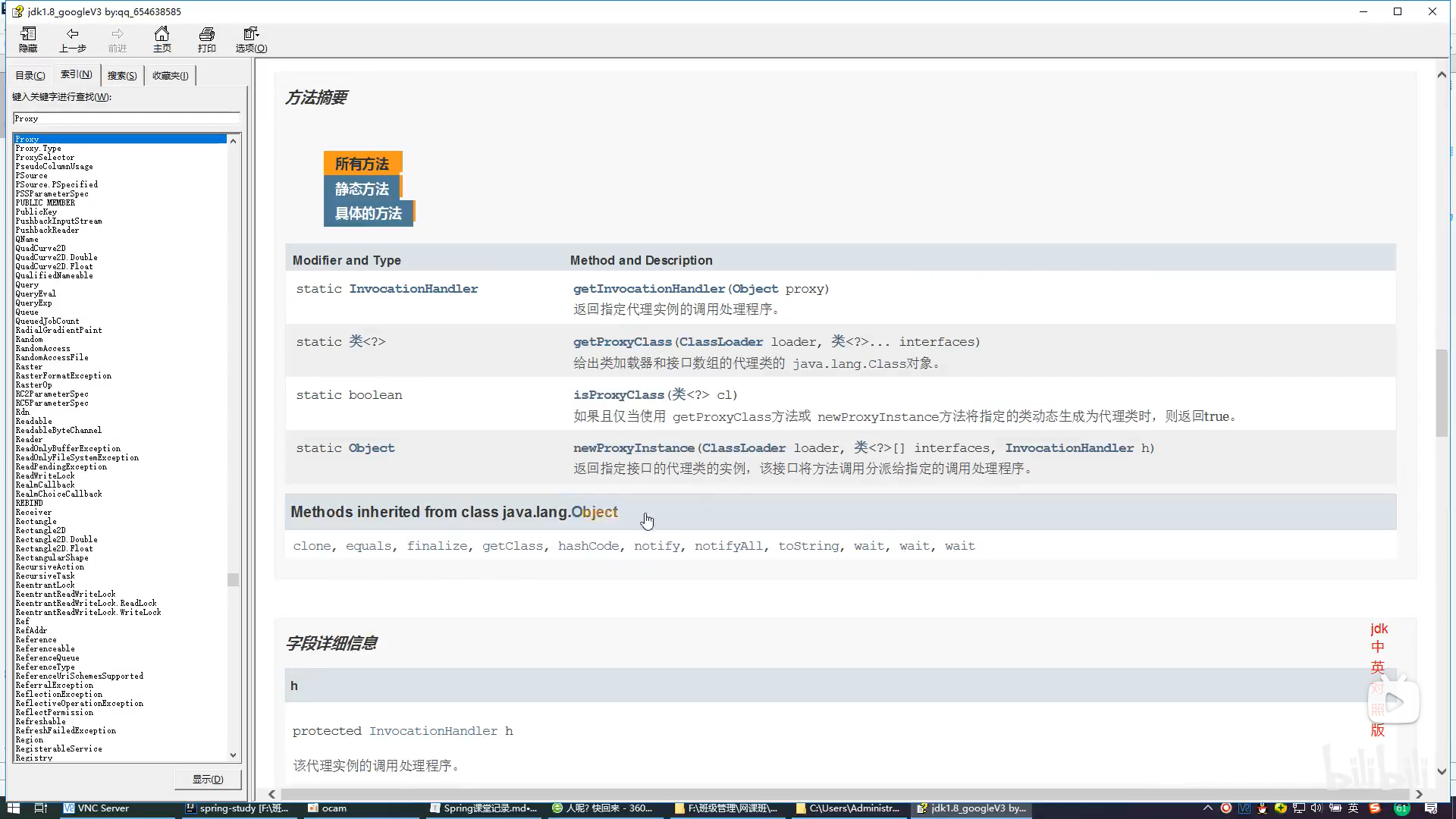

Proxy
提供了创建动态代理类和实例的静态方法
例子:
Rent:接口
Host:房东
Handler处理动态代理
client:用户
Rent:
public interface Rent {
//租房
void rent();
}
Host:
package com.song.demo01;
//房东
public class Host implements Rent{
public void rent() {
System.out.println("房东要出租房子");
}
//租房
}
Hanlder:
package com.song.demo01;
//用这个类自动生成代理类
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;
public class Handler implements InvocationHandler {
private Host host;
public void setHost(Host host) {
this.host = host;
}
public Object gerProxy() {
return Proxy.newProxyInstance(this.getClass().getClassLoader(),host.getClass().getInterfaces(),this);
}
//处理代理实例,返回结果
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
Object result=method.invoke(host,args);
return result;
}
}
client:
public class Client {
public static void main(String[] args) {
//生成代理类
//真实角色
Host host = new Host();
//代理角色:
Handler handler = new Handler();
//通过调用程序处理角色 来处理我们要调用的接口对象
handler.setHost(host);
Rent handler1 =(Rent) handler.gerProxy();
handler1.rent();
}
}
万能代理类:
public class Handler implements InvocationHandler {
private Object target;
public void setHost(Object target) {
this.target=target;
}
public Object gerProxy() {
return Proxy.newProxyInstance(this.getClass().getClassLoader(),target.getClass().getInterfaces(),this);
}
//处理代理实例,返回结果
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
Object result=method.invoke(target,args);
return result;
}
}
AOP(面向切面编程)
aop:面向切面编程
导包:
<!-- https://mvnrepository.com/artifact/org.aspectj/aspectjweaver -->
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.9.6</version>
<scope>runtime</scope>
</dependency>
方式一:
使用spring的API接口实现AOP
配置文件:
<bean id="userService" class="com.song.service.UserServiceImpl"/>
<bean id="log" class="com.song.log.log"/>
<bean id="afterLog" class="com.song.log.AfterLog"/>
<!--方式一:使用原生springAPI接口-->
<!--配置AOP:导入aop约束-->
<aop:config>
<!--配置切入点(在那个地方执行)expression(要执行的位置:):表达式-->
<!--该例子中,由于方法是给系统添加日志,故Log方法要添加在所有的方法中,使用*(..)表示-->
<aop:pointcut id="pointcut" expression="execution(* com.song.service.UserServiceImpl.*(..))"/>
<!--执行环绕增强-->
<aop:advisor advice-ref="log" pointcut-ref="pointcut"/>
<aop:advisor advice-ref="afterLog" pointcut-ref="pointcut"/>
</aop:config>
测试类:
public static void main(String[] args) {
ApplicationContext context = new ClassPathXmlApplicationContext("ApplicationContext.xml");
//动态代理代理的是接口
UserService userService=(UserService)context.getBean("userService");
userService.add();
}
execution表达式
https://www.cnblogs.com/gdwkong/p/8660027.html
方式二(自定义实现,主要是切面定义):
<!--方式二:-->
<bean id="diy" class="com.song.Diy"/>
<aop:config>
<!--自定义切面,ref 要引用的类-->
<aop:aspect ref="diy">
<!--切入点-->
<aop:pointcut id="point" expression="execution(* com.song.service.UserServiceImpl.*(..))"/>
<!--通知(插入方法)-->
<aop:before method="before" pointcut-ref="point"/>
<aop:after method="after" pointcut-ref="point"/>
</aop:aspect>
</aop:config>
方式三:注解实现AOP
导包
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.9.6</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>aspectj</groupId>
<artifactId>aspectjrt</artifactId>
<version>1.5.4</version>
</dependency>
配置文件
<!--方式三-->
<bean id="zhujie" class="com.song.Zujie"/>
<!--开启注解支持-->
<aop:aspectj-autoproxy/>
类:
//使用注解实现AOP
@Aspect//标注这是一个切面
public class Zujie {
@Before("execution(* com.song.service.UserServiceImpl.*(..))")//方法执行前
public void before(){
System.out.println("前");
}
@After("execution(* com.song.service.UserServiceImpl.*(..))")//方法执行后
public void an(){
}
//环绕
@Around("execution(* com.song.service.UserServiceImpl.*(..))")
public void around(ProceedingJoinPoint joinPoint) throws Throwable {
System.out.println("环绕前");
System.out.println(joinPoint.getSignature());//获得签名
Object o=joinPoint.proceed();//执行方法
System.out.println("环绕后");
System.out.println(o);
}
}
整合Mybatis
1.导入相关jar包
- junit
- mybatis
- mysql
- spring
- aop
- mybatis-spring
<dependencies>
<!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>5.3.9</version>
</dependency>
<!-- https://mvnrepository.com/artifact/junit/junit -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.9.6</version>
<scope>runtime</scope>
</dependency>
<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>2.0.6</version>
</dependency>
</dependencies>
2.编写配置文件配置
3.测试
mybatis
1.编写实体类
2.编写核心配置文件
3.编写接口
4.编写mapper
5.测试
Mybatis-spring
导包
<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>2.0.6</version>
</dependency>
1.编写数据源配置
2.sqlSessionFactory
3.sqlSessionTemplate
4.需要给接口加实现类
5.将自己写的实现类注入到spring中
xml
<?xml version="1.0" encoding="GBK"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:p="http://www.springframework.org/schema/p"
xmlns:c="http://www.springframework.org/schema/c"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd">
<!--DataSource:使用Spring的 数据源替换Mybatis的配置 c3p0 dbcp druid-->
<bean id="datasource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName" value="com.mysql.cj.jdbc.Driver"/>
<property name="url" value="jdbc:mysql://localhost:3306/mybatis?useSSL=true&serverTimezone=UTC&useUnicode=true&characterEncoding=UTF8"/>
<property name="username" value="root"/>
<property name="password" value="root"/>
</bean>
<!--sqlSessionFactory-->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="datasource"/>
<!--绑定Mybatis配置文件-->
<property name="configLocation" value="classpath:mybatis-config.xml"/>
<property name="mapperLocations" value="classpath:com/song/mapper/*.xml"/>
</bean>
<!--SqlSessionTemplate就是代码里的sqlSession-->
<bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate">
<!--只能使用构造器注入,因为他没有set方法-->
<constructor-arg index="0" ref="sqlSessionFactory"/>
</bean>
<bean id="userMapper" class="com.song.mapper.UserMapperImpl">
<property name="sqlsession" ref="sqlSession"/>
</bean>
</beans>
mapper接口
public interface UserMapper {
public List<User> selectUser();
}
mapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.song.mapper.UserMapper">
<select id="selectUser" resultType="user">
select * from `user`;
</select>
</mapper>
mapperImpl
package com.song.mapper;
import com.song.pojo.User;
import org.mybatis.spring.SqlSessionTemplate;
import java.util.List;
public class UserMapperImpl implements UserMapper{
//以前所有操作都使用sqlsession执行,现在使用sqlsessionTemplate
private SqlSessionTemplate sqlsession;
public void setSqlsession(SqlSessionTemplate sqlsession) {
this.sqlsession = sqlsession;
}
public List<User> selectUser() {
UserMapper userMapper=sqlsession.getMapper(UserMapper.class);
return userMapper.selectUser();
}
}
第二种mapperimpl2:
public class UserMapper2 extends SqlSessionDaoSupport implements UserMapper{
public List<User> selectUser() {
SqlSession sqlSession = getSqlSession();
UserMapper mapper = sqlSession.getMapper(UserMapper.class);
return mapper.selectUser();
}
}
配置:
<bean id="userMapper2" class="com.song.mapper.UserMapper2">
<property name="sqlSessionFactory" ref="sqlSessionFactory"/>
</bean>
声明式事务
事务:
要么都成功,要么都失败
事务在项目开发中十分的重要,涉及到数据的一致性的问题,不能马虎
确保完整性和一致性
事务ACID原则:
A(原子性):确保都成功或都失败
C(一致性):确保都成功或都失败
I(隔离性):多个独立的事务之间相同资源不被互相影响
D(持久性):事务完成,数据长久存在
Spring中的事务管理
声明式事务:AOP(常用)
<!--配置声明事务-->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<constructor-arg ref="datasource"/>
</bean>
<!--结合AOP进行事务的织入-->
<!--配置事务通知-->
<tx:advice id="txAdvice" transaction-manager="transactionManager">
<!--给哪些方法配置事务-->
<tx:attributes>
<tx:method name="add" propagation="REQUIRED"/>
<tx:method name="delete" propagation="REQUIRED"/>
<tx:method name="update" propagation="REQUIRED"/>
<tx:method name="query" read-only="true"/>
<tx:method name="*" propagation="REQUIRED"/>
</tx:attributes>
</tx:advice>
<!--配置事务切入-->
<aop:config>
<aop:pointcut id="txPointCut" expression="execution(* com.song.mapper.*.*(..))"/>
<aop:advisor advice-ref="txAdvice" pointcut-ref="txPointCut"/>
</aop:config>
