1、Activity应用启动的几个阶段
Activity应用启动大致可以分为以下几个阶段：
- 准备阶段：做进程启动前的准备工作。
- 进程启动阶段：通过Zygote启动进程。(当应用已经启动时，此步骤略）
- Activity启动阶段：在新的进程里，启动Activity。
本文重点说明第1阶段和第3阶段，进程启动阶段参见前一篇文章《Android 进阶 - 进程启动分析》。
2. 准备阶段
此阶段主要是做启动入口至进程启动之前的处理工作，通过不同的入口，启动Activity，需要做一些不同的处理。Home主屏幕应用（Launcher）由于是在Android系统启动时，直接通过ActivityManagerService启动的，不用走一次Binder进程间通讯的流程，但在Launcher应用或是其他应用里启动一个应用时，则需要通过Binder驱动程序，进入到ActivityManagerService服务时来启动，所以，要启动过程复杂一点。
2.1 Launcher启动准备
《Android入门 -系统启动简介》已经分析了，Launcher的启动是通过ActivityManagerService.startHomeActivityLocked启动的：- startHomeActivityLocked:
frameworks/base/services/java/com/android/server/am/ActivityManagerService.java://获取主屏幕Intent Intent getHomeIntent() { Intent intent = new Intent(mTopAction, mTopData != null ? Uri.parse(mTopData) : null); intent.setComponent(mTopComponent); if (mFactoryTest != SystemServer.FACTORY_TEST_LOW_LEVEL) { intent.addCategory(Intent.CATEGORY_HOME); } return intent; } boolean startHomeActivityLocked(int userId) { ... // 获取主屏幕的Intent Intent intent = getHomeIntent(); // 获取主屏幕的Activity信息(如：包名，Activity名，应用信息，进程名等) ActivityInfo aInfo = resolveActivityInfo(intent, STOCK_PM_FLAGS, userId); if (aInfo != null) { // 设置主屏幕Intent的组件信息 intent.setComponent(new ComponentName( aInfo.applicationInfo.packageName, aInfo.name)); // Don't do this if the home app is currently being // instrumented. aInfo = new ActivityInfo(aInfo); aInfo.applicationInfo = getAppInfoForUser(aInfo.applicationInfo, userId); // 获取主屏幕应用的进程信息 ProcessRecord app = getProcessRecordLocked(aInfo.processName, aInfo.applicationInfo.uid, true); if (app == null || app.instrumentationClass == null) { // 假如主屏幕应用进程未启动，则启动 intent.setFlags(intent.getFlags() | Intent.FLAG_ACTIVITY_NEW_TASK); mStackSupervisor.startHomeActivity(intent, aInfo); } } return true; } - startActivityLocked:
frameworks/base/services/java/com/android/server/am/ActivityStackSupervisor.java:void startHomeActivity(Intent intent, ActivityInfo aInfo) { moveHomeToTop(); startActivityLocked(null, intent, null, aInfo, null, null, 0, 0, 0, null, 0, null, false, null); }
2.2、一般应用启动准备流程
这里，我们先创建一个HelloAndroid的应用，再创建一个TestCallApp的应用，尝试在TestCallApp里，启动HelloAndroid应用。2.2.1、创建HelloAndroid应用
在Eclipse里，NewProject->Android ApplicationProject，取名：HelloAndroid，package名为:com.helloandroid。按向导一直Next，最后点击finish。
打开AndroidManifest.xml:
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.helloandroid" android:versioncode="1" android:versionname="1.0">
<uses-sdk android:minsdkversion="19" android:targetsdkversion="19">
<application android:allowbackup="true" android:icon="@drawable/ic_launcher" android:label="@string/app_name" android:theme="@style/AppTheme">
<activity android:name="com.helloandroid.MainActivity" android:label="@string/app_name">
<intent-filter>
<action android:name="android.intent.action.MAIN">
<action android:name="com.helloandroid.HELLO">
<category android:name="android.intent.category.DEFAULT">
<category android:name="android.intent.category.LAUNCHER">
</category></category></action></action></intent-filter>
</activity>
</application>
</uses-sdk></manifest>intent-filter下面已经有一个名为“android.intent.action.MAIN”的action和一个名为“android.intent.category.LAUNCHER”的category，这是用于在Launcher里点击用户图标来启动应用的。我们在intent-filter下新增一个名为“com.helloandroid.HELLO”的action和一个名为“android.intent.category.DEFAULT”的category，这样做是为了方便其他程序调用。本章暂不详细讨论Intent。
点击Run，安装并运行HelloAndroid应用。
2.2.2、创建TestCallApp应用
创建应用的方法同上，名称用:TestCallApp，包名为：com.testcallapp。打开fragment_main.xml，转至GraphicalLayout，拖一个Button放到界面上，ID为call_button。
转至MainActivity.java:
...
/**
* A placeholder fragment containing a simple view.
*/
public static class PlaceholderFragment extends Fragment {
public PlaceholderFragment() {
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View rootView = inflater.inflate(R.layout.fragment_main, container, false);
// 加入下面代码
Button b = (Button) rootView.findViewById(R.id.call_button);
if (b != null)
b.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
Intent intent = new Intent();
intent.setAction("com.helloandroid.HELLO");
startActivity(intent);
}
});
return rootView;
}
}
...
上面是在Activity里内嵌了一个Fragment碎片，如果没用Fragment，可以在Activity.OnCreate里写上面的代码。
点击Run，运行并安装此程序。点击”Call“按钮，即可启动HelloAndroid应用。
此案例说明了如何从一个应用里启动另一个应用，也是用Intent，通过Activity.startActivity()函数来调用。

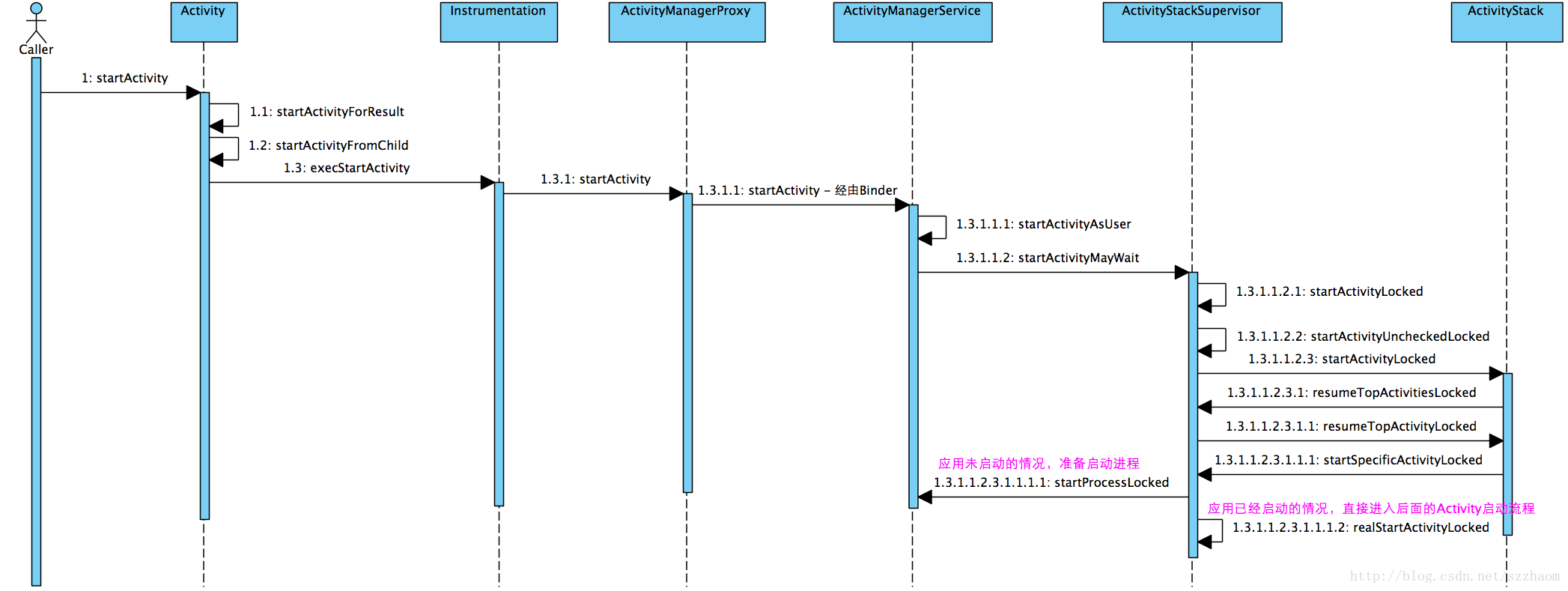

2.3、流程图
由于一般应用启动流程要比Home应用启动复杂，这里我们以一般应用启动流程，来说明其进程启动之前的准备工作。
在上图中我们可以知道，Home应用启动流程是在1.3.1.1.2.1：startActivityLocket步骤开始的，后面的流程与一般应用的启动流程相同。
2.4 关键流程解析
上面的流程图比较清晰，这里仅选取少数几处较为关键的函数代码分析。
2.4.1 Binder通信
Binder的具体实现将忽略，将作用为专题文章来讨论。当流程走到mInstrumentation.execStartActivity时：
frameworks/base/core/java/android/app/Instrumentation.java
...
public ActivityResult execStartActivity(
Context who, IBinder contextThread, IBinder token, Activity target,
Intent intent, int requestCode, Bundle options) {
...
try {
intent.migrateExtraStreamToClipData();
intent.prepareToLeaveProcess();
int result = ActivityManagerNative.getDefault()
.startActivity(whoThread, who.getBasePackageName(), intent,
intent.resolveTypeIfNeeded(who.getContentResolver()),
token, target != null ? target.mEmbeddedID : null,
requestCode, 0, null, null, options);
checkStartActivityResult(result, intent);
} catch (RemoteException e) {
}
return null;
}
...
流程走到这里，突然看不到源码了，因为IActivityManager是一个接口，通过调用IActivityManager.startActivity函数，来启动Activity。那么，IActivityManager的实现类在哪？先来看看ActivityManagerNative.getDefault()干了什么。
frameworks/base/core/java/android/app/ActivityManagerNative.java
static public IActivityManager asInterface(IBinder obj) {
if (obj == null) {
return null;
}
IActivityManager in =
(IActivityManager)obj.queryLocalInterface(descriptor);
if (in != null) {
return in;
}
return new ActivityManagerProxy(obj);
}
...
static public IActivityManager getDefault() {
return gDefault.get();
}
...
private static final Singleton<IActivityManager> gDefault = new Singleton<IActivityManager>() {
protected IActivityManager create() {
IBinder b = ServiceManager.getService("activity");
if (false) {
Log.v("ActivityManager", "default service binder = " + b);
}
IActivityManager am = asInterface(b);
if (false) {
Log.v("ActivityManager", "default service = " + am);
}
return am;
}
};ActivityManagerNative.gDefault是一个私有的单例模式运行的成员变量，保存当前默认的IActivityManager，从create代码可以看出，gDefault是"activity"服务的一个通信代理，即：ActivityManagerProxy，通过IBinder与ActivityManagerService通信，进入到ActivityManagerService.startActivityLocked。
2.4.2 ActivityStatck.startActivityLocked
frameworks/base/services/java/com/android/server/am/ActivityStack.java
final void startActivityLocked(ActivityRecord r, boolean newTask,
boolean doResume, boolean keepCurTransition, Bundle options) {
TaskRecord rTask = r.task;
final int taskId = rTask.taskId;
if (taskForIdLocked(taskId) == null || newTask) {
// 如果是新任务，则将任务插入到任务列表顶端
// Last activity in task had been removed or ActivityManagerService is reusing task.
// Insert or replace.
// Might not even be in.
insertTaskAtTop(rTask);
mWindowManager.moveTaskToTop(taskId);
}
TaskRecord task = null;
if (!newTask) {
...
}
...
task = r.task;
// Slot the activity into the history stack and proceed
if (DEBUG_ADD_REMOVE) Slog.i(TAG, "Adding activity " + r + " to stack to task " + task,
new RuntimeException("here").fillInStackTrace());
// 将Activity插到任务的Activities顶端，一个任务可以有多个Activities
task.addActivityToTop(r);
// 标记Activity已经在历史记录中
r.putInHistory();
r.frontOfTask = newTask;
if (!isHomeStack() || numActivities() > 0) {
// 非home下的窗口处理，略
...
} else {
// home下的窗口处理，涉及锁屏等，略
...
}
if (VALIDATE_TOKENS) {
validateAppTokensLocked();
}
if (doResume) {
// 恢复或启动顶层的Activity，本函数之前已经将Activity置入顶层
mStackSupervisor.resumeTopActivitiesLocked();
}
}
本函数先将Activity插入到Activities的顶端，再调用resumeTopActivitiesLocked函数，走到ActivityStack.resumtTopActivityLocked。
2.4.3 ActivityStackSupervisor.resumeTopActivitiesLocked:
frameworks/base/services/java/com/android/server/am/ActivityStack.javafinal boolean resumeTopActivityLocked(ActivityRecord prev) {
return resumeTopActivityLocked(prev, null);
}
final boolean resumeTopActivityLocked(ActivityRecord prev, Bundle options) {
if (ActivityManagerService.DEBUG_LOCKSCREEN) mService.logLockScreen("");
// 找到顶层的ActivityRecord
// Find the first activity that is not finishing.
ActivityRecord next = topRunningActivityLocked(null);
// Remember how we'll process this pause/resume situation, and ensure
// that the state is reset however we wind up proceeding.
final boolean userLeaving = mStackSupervisor.mUserLeaving;
mStackSupervisor.mUserLeaving = false;
if (next == null) {
// 此处启动Launcher，在上一篇文章有描述，不过，经过一翻流转，最终还是会回到本函数，但此时next不是null了。Android源码，哎。。。
...
}
...
if (next.app != null && next.app.thread != null) {
// 应用已经启动情况，有可能会重启动应用，此处不分析
...
} else {
...
mStackSupervisor.startSpecificActivityLocked(next, true, true);
}
if (DEBUG_STACK) mStackSupervisor.validateTopActivitiesLocked();
return true;
}
上面的函数逻辑非常复杂，有许多的return语句，这些return之后，经过一翻流转有可能又进入此函数，进入另一个判断分支。本文不详细分析Activity的各种复杂管理，只讨论如何启动，所以，略去了这许多代码。
2.4.4 ActivityStackSupervisor.startSpecificActivityLocked:
frameworks/base/services/java/com/android/server/am/ActivityStackSupervisor.javavoid startSpecificActivityLocked(ActivityRecord r,
boolean andResume, boolean checkConfig) {
// Is this activity's application already running?
ProcessRecord app = mService.getProcessRecordLocked(r.processName,
r.info.applicationInfo.uid, true);
r.task.stack.setLaunchTime(r);
if (app != null && app.thread != null) {
// 如果进程已经运行。。。当然，在一个应用内启动自己的Activity，肯定会进入此段代码
try {
// 直接启动Activity，
realStartActivityLocked(r, app, andResume, checkConfig);
return;
} catch (RemoteException e) {
Slog.w(TAG, "Exception when starting activity "
+ r.intent.getComponent().flattenToShortString(), e);
}
}
//启动进程
mService.startProcessLocked(r.processName, r.info.applicationInfo, true, 0,
"activity", r.intent.getComponent(), false, false, true);
}
说明：如何判断应用是否已经运行，这个在前面的源代码并未详细分析，本文也不准备详细分析，今后如果有项目的需要，再来继续深入研究，目前，了解到这么多足够了，因为如果是单实例应用，分析的必要性不大，而多实例(MULTI)应用并不多见。
3 进程启动阶段
略，见《Android 进阶 - 进程启动分析》。
4 Activity启动阶段
在《Android 进阶 -进程启动分析》一文中，最后指出，进程启动，并将进程的thread指定到新创建的ActivityThread之后，会首先尝试将进程作为应用来启动，即调用ActivityStackSupervisor.attachApplicationLocked来连接进程。我们接着这来分析。
4.1 流程图

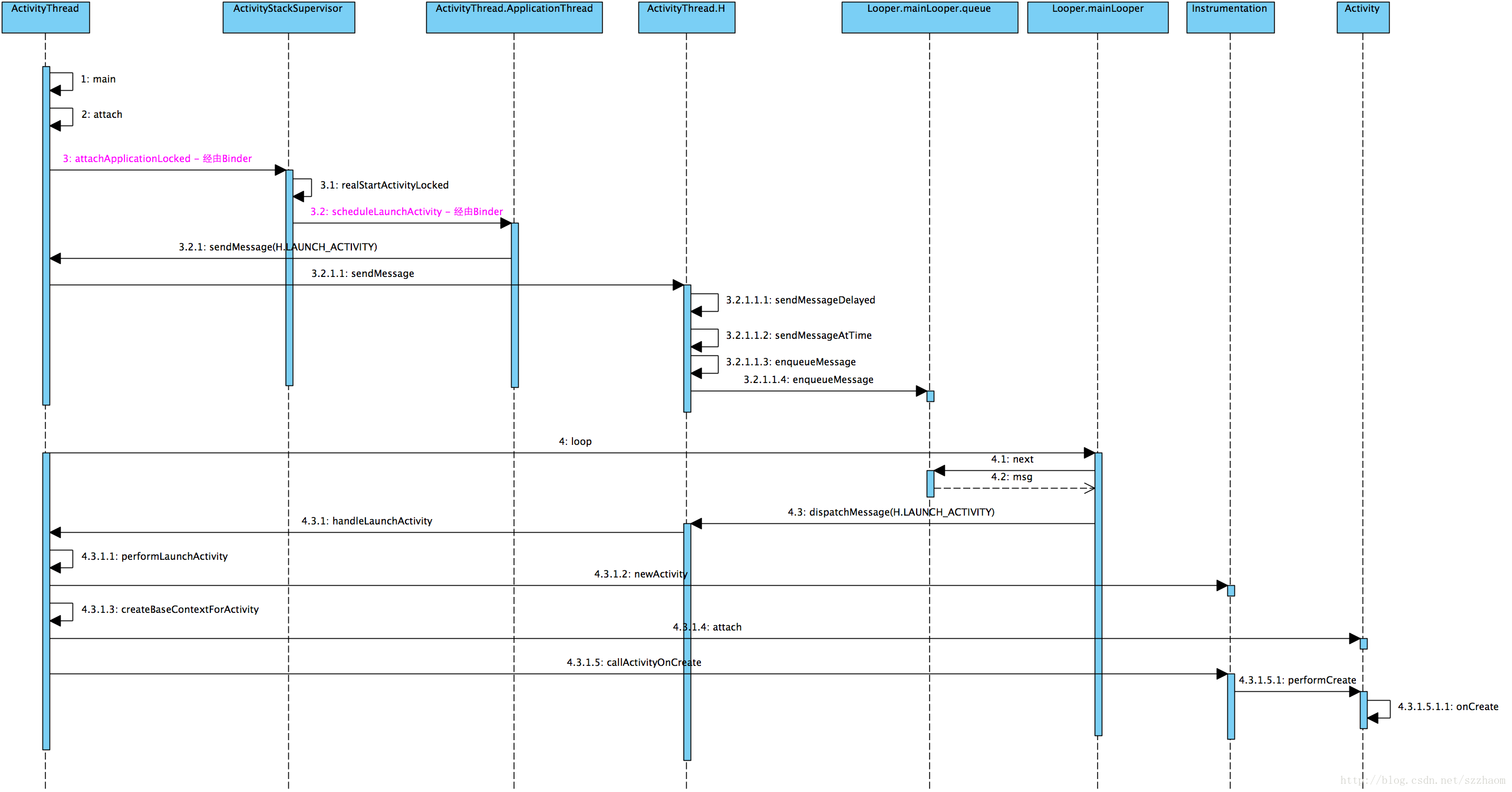

4.2 关键流程解析
本节的流程与Looper有很大的相关性，在ActivityThread内部的通信，是采用Looper的异步消息队列通讯机制。
上图的流程，是承接新进程的情况下，画的。如果是应用已经启动进程情况，可直接从3.1：realStartActivityLocked步骤开始看。
4.2.1 发送H.LAUNCH_ACTICITY消息
流程走至ActivityStackSupervisor.realStartActivityLocked，见代码：
frameworks/base/services/java/com/android/server/am/ActivityStackSupervisor.java
boolean attachApplicationLocked(ProcessRecord app, boolean headless) throws Exception {
boolean didSomething = false;
final String processName = app.processName;
// 找到app对应的ActivityRecord，并调用realStartActivityLocked启动Activity。
for (int stackNdx = mStacks.size() - 1; stackNdx >= 0; --stackNdx) {
final ActivityStack stack = mStacks.get(stackNdx);
if (!isFrontStack(stack)) {
continue;
}
ActivityRecord hr = stack.topRunningActivityLocked(null);
if (hr != null) {
if (hr.app == null && app.uid == hr.info.applicationInfo.uid
&& processName.equals(hr.processName)) {
try {
if (headless) {
Slog.e(TAG, "Starting activities not supported on headless device: "
+ hr);
} else if (realStartActivityLocked(hr, app, true, true)) {
didSomething = true;
}
} catch (Exception e) {
Slog.w(TAG, "Exception in new application when starting activity "
+ hr.intent.getComponent().flattenToShortString(), e);
throw e;
}
}
}
}
if (!didSomething) {
ensureActivitiesVisibleLocked(null, 0);
}
return didSomething;
}
...
final boolean realStartActivityLocked(ActivityRecord r,
ProcessRecord app, boolean andResume, boolean checkConfig)
throws RemoteException {
...
r.app = app;
app.waitingToKill = null;
r.launchCount++;
r.lastLaunchTime = SystemClock.uptimeMillis();
...
final ActivityStack stack = r.task.stack;
try {
if (app.thread == null) {
throw new RemoteException();
}
...
// 启动Activity
app.thread.scheduleLaunchActivity(new Intent(r.intent), r.appToken,
System.identityHashCode(r), r.info,
new Configuration(mService.mConfiguration), r.compat,
app.repProcState, r.icicle, results, newIntents, !andResume,
mService.isNextTransitionForward(), profileFile, profileFd,
profileAutoStop);
...
} catch (RemoteException e) {
...
throw e;
}
...
return true;
}
frameworks/base/core/java/android/app/ActivityThread.java
public class ActivityThread{
// mH是一个H类实例
final H mH = new H();
...
// H类继承自android.os.Handler类。
private class H extends Handler {
}
...
class ApplicationThread{
...
public final void scheduleLaunchActivity(Intent intent, IBinder token, int ident,
ActivityInfo info, Configuration curConfig, CompatibilityInfo compatInfo,
int procState, Bundle state, List<ResultInfo> pendingResults,
List<Intent> pendingNewIntents, boolean notResumed, boolean isForward,
String profileName, ParcelFileDescriptor profileFd, boolean autoStopProfiler) {
updateProcessState(procState, false);
ActivityClientRecord r = new ActivityClientRecord();
r.token = token;
r.ident = ident;
r.intent = intent;
r.activityInfo = info;
r.compatInfo = compatInfo;
r.state = state;
r.pendingResults = pendingResults;
r.pendingIntents = pendingNewIntents;
r.startsNotResumed = notResumed;
r.isForward = isForward;
r.profileFile = profileName;
r.profileFd = profileFd;
r.autoStopProfiler = autoStopProfiler;
updatePendingConfiguration(curConfig);
sendMessage(H.LAUNCH_ACTIVITY, r);
}
....
private void sendMessage(int what, Object obj) {
sendMessage(what, obj, 0, 0, false);
}
...
private void sendMessage(int what, Object obj, int arg1, int arg2, boolean async) {
if (DEBUG_MESSAGES) Slog.v(
TAG, "SCHEDULE " + what + " " + mH.codeToString(what)
+ ": " + arg1 + " / " + obj);
Message msg = Message.obtain();
msg.what = what;
msg.obj = obj;
msg.arg1 = arg1;
msg.arg2 = arg2;
if (async) {
msg.setAsynchronous(true);
}
// 通过mH发送消息。
mH.sendMessage(msg);
}
}
}然后，通过Looper机制，发送H.LAUNCH_ACTICITY消息。
frameworks/base/core/java/android/os/Handler.java
public Handler{
...
public final boolean sendMessage(Message msg)
{
return sendMessageDelayed(msg, 0);
}
...
public final boolean sendMessageDelayed(Message msg, long delayMillis)
{
if (delayMillis < 0) {
delayMillis = 0;
}
return sendMessageAtTime(msg, SystemClock.uptimeMillis() + delayMillis);
}
...
public boolean sendMessageAtTime(Message msg, long uptimeMillis) {
MessageQueue queue = mQueue;
if (queue == null) {
RuntimeException e = new RuntimeException(
this + " sendMessageAtTime() called with no mQueue");
Log.w("Looper", e.getMessage(), e);
return false;
}
return enqueueMessage(queue, msg, uptimeMillis);
}
...
// 通过前面的调用，最终进入本函数，执行消息入队
private boolean enqueueMessage(MessageQueue queue, Message msg, long uptimeMillis) {
// 将消息的target，指向自己，这样在Looper.loop中可以调用msg.target.dispatchMessage来回调本Handle的消息处理
msg.target = this;
if (mAsynchronous) {
msg.setAsynchronous(true);
}
return queue.enqueueMessage(msg, uptimeMillis);
}
}
上面的代码，其实只是将msg放入到mQueue队列中。尽管这里用的mQueue队列，但并不是异步处理，因为此段代码的在main线程中执行。后面的Looper.loop()函数会处理这个消息的。
4.2.2 处理H.LAUNCH_ACTIVITY
前面已经将H.LAUNCH_ACTICITY消息发送给Looper.mainLooper，接下来，就是处理消息了。在ActivityThread.main()函数中，调用attach函数()之后，会执行Looper.loop()，进入消息循环，处理消息。由于之前的消息是通过mH发送，所以，消息的处理，最终会进入H.handleMessage中，这在Looper进程内通讯一文中有详细描述。frameworks/base/core/java/android/app/ActivityThread.java
public final class ActivityThread {
...
final H mH = new H();
...
private class H extends Handler {
...
public void handleMessage(Message msg) {
if (DEBUG_MESSAGES) Slog.v(TAG, ">>> handling: " + codeToString(msg.what));
switch (msg.what) {
case LAUNCH_ACTIVITY: {
// 处理H.LAUNCH_ACTIVITY消息
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStart");
ActivityClientRecord r = (ActivityClientRecord)msg.obj;
r.packageInfo = getPackageInfoNoCheck(
r.activityInfo.applicationInfo, r.compatInfo);
handleLaunchActivity(r, null);
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
} break;
...
}
...
}
}
...
private void handleLaunchActivity(ActivityClientRecord r, Intent customIntent) {
...
Activity a = performLaunchActivity(r, customIntent);
if (a != null) {
r.createdConfig = new Configuration(mConfiguration);
Bundle oldState = r.state;
handleResumeActivity(r.token, false, r.isForward,
!r.activity.mFinished && !r.startsNotResumed);
...
} else {
...
}
}
...
private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
// System.out.println("##### [" + System.currentTimeMillis() + "] ActivityThread.performLaunchActivity(" + r + ")");
ActivityInfo aInfo = r.activityInfo;
...
Activity activity = null;
try {
java.lang.ClassLoader cl = r.packageInfo.getClassLoader();
// 创建新的Activity实例
activity = mInstrumentation.newActivity(
cl, component.getClassName(), r.intent);
StrictMode.incrementExpectedActivityCount(activity.getClass());
r.intent.setExtrasClassLoader(cl);
if (r.state != null) {
r.state.setClassLoader(cl);
}
} catch (Exception e) {
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to instantiate activity " + component
+ ": " + e.toString(), e);
}
}
try {
Application app = r.packageInfo.makeApplication(false, mInstrumentation);
if (localLOGV) Slog.v(TAG, "Performing launch of " + r);
if (localLOGV) Slog.v(
TAG, r + ": app=" + app
+ ", appName=" + app.getPackageName()
+ ", pkg=" + r.packageInfo.getPackageName()
+ ", comp=" + r.intent.getComponent().toShortString()
+ ", dir=" + r.packageInfo.getAppDir());
if (activity != null) {
// 为Activity创建上下文
Context appContext = createBaseContextForActivity(r, activity);
CharSequence title = r.activityInfo.loadLabel(appContext.getPackageManager());
Configuration config = new Configuration(mCompatConfiguration);
if (DEBUG_CONFIGURATION) Slog.v(TAG, "Launching activity "
+ r.activityInfo.name + " with config " + config);
// 将Activity与上下文连接
activity.attach(appContext, this, getInstrumentation(), r.token,
r.ident, app, r.intent, r.activityInfo, title, r.parent,
r.embeddedID, r.lastNonConfigurationInstances, config);
if (customIntent != null) {
activity.mIntent = customIntent;
}
r.lastNonConfigurationInstances = null;
activity.mStartedActivity = false;
int theme = r.activityInfo.getThemeResource();
if (theme != 0) {
activity.setTheme(theme);
}
activity.mCalled = false;
// 发送Activity.OnCreate事件，在这里可调用用户定义的事件。
mInstrumentation.callActivityOnCreate(activity, r.state);
...
}
r.paused = true;
mActivities.put(r.token, r);
} catch (SuperNotCalledException e) {
throw e;
} catch (Exception e) {
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to start activity " + component
+ ": " + e.toString(), e);
}
}
return activity;
}
...
}
237
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
