一、前言
正如题目所言,笔者第一次使用IEEE的会议LaTex模板,加入太多作者会导致排版不好看,于是笔者研究了模板中自带的文件《How to Use the IEEEtran LATEX Class》文件中IV. THE TITLE PAGE
一节,将学习成果记录如下,首先是原文其次是各种类型的实现。

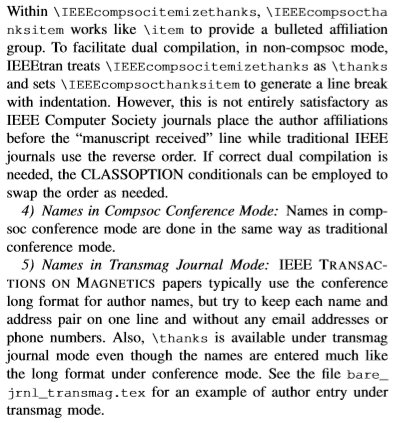

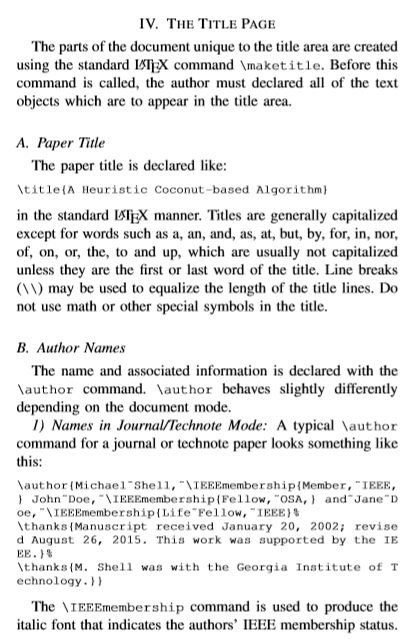

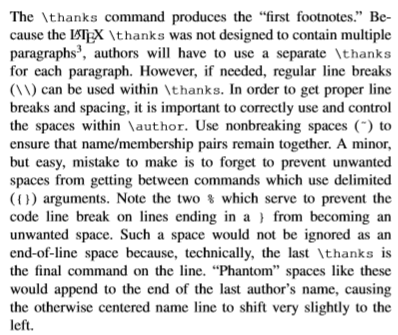

二、原文
三、如何使用
使用\author
命令指定作者信息,这里介绍两者常用的情况Names in Journal/Technote Mode
和Names in Conference Mode
,我本次主要参考的是会议论文写法。
1. Names in Journal/Technote Mode

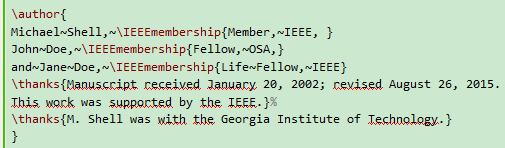

典型的期刊论文的作者信息如下语句。
\author{
Michael~Shell,~\IEEEmembership{Member,~IEEE, }
John~Doe,~\IEEEmembership{Fellow,~OSA,}
and~Jane~Doe,~\IEEEmembership{Life~Fellow,~IEEE}
\thanks{Manuscript received January 20, 2002; revised August 26, 2015. This work was supported by the IEEE.}%
\thanks{M. Shell was with the Georgia Institute of Technology.}
}
\IEEEmembership
使用斜体字表示作者的IEEE会员身份。- 使用
~
来确保名字/会员身份对保持在一起
样式如下 👇

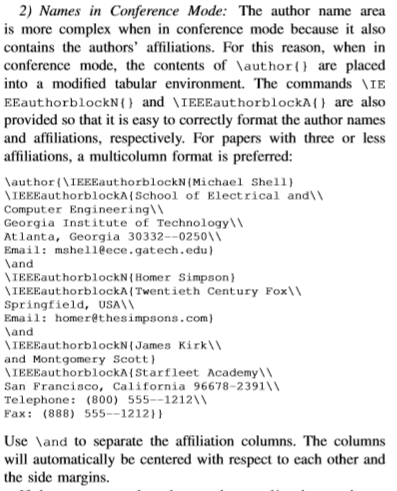

2. Names in Conference Mode
- 对于有三个及以下作者的论文,最好使用多栏格式
命令如下 👇\author{ \IEEEauthorblockN{Michael Shell} \IEEEauthorblockA{School of Electrical and\\ Computer Engineering\\ Georgia Institute of Technology\\ Atlanta, Georgia 30332--0250\\ Email: mshell@ece.gatech.edu} \and \IEEEauthorblockN{Homer Simpson} \IEEEauthorblockA{Twentieth Century Fox\\ Springfield, USA\\ Email: homer@thesimpsons.com} \and \IEEEauthorblockN{James Kirk\\ and Montgomery Scott} \IEEEauthorblockA{Starfleet Academy\\ San Francisco, California 96678-2391\\ Telephone: (800) 555--1212\\ Fax: (888) 555--1212} }
\IEEEauthorblockN{}
and\IEEEauthorblockA{}
分别代表作者姓名和所属机构- 使用
\and

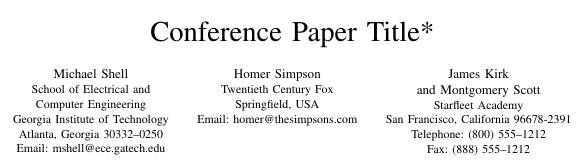

分割多个姓名和所属机构 - 效果如下 👇

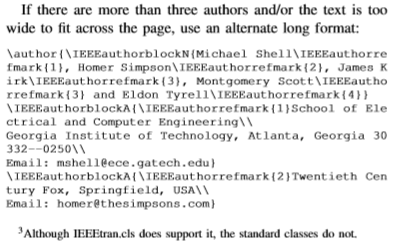

- 对于三个以上作者或者文本太宽时,请使用另一种长格式
命令如下 👇\author{ \IEEEauthorblockN{ Michael Shell\IEEEauthorrefmark{1}, Homer Simpson\IEEEauthorrefmark{2}, James K irk\IEEEauthorrefmark{3}, Montgomery Scott\IEEEauthorrefmark{3} and Eldon Tyrell\IEEEauthorrefmark{4}} \IEEEauthorblockA{\IEEEauthorrefmark{1}School of Ele ctrical and Computer Engineering\\ Georgia Institute of Technology, Atlanta, Georgia 30 332--0250\\ Email: mshell@ece.gatech.edu} \IEEEauthorblockA{\IEEEauthorrefmark{2}Twentieth Cen tury Fox, Springfield, USA\\ Email: homer@thesimpsons.com} \IEEEauthorblockA{\IEEEauthorrefmark{3}Starfleet Aca demy, San Francisco, California 96678-2391\\ Telephone: (800) 555--1212, Fax: (888) 555--1212} \IEEEauthorblockA{\IEEEauthorrefmark{4}Tyrell Inc., 123 Replicant Street, Los Angeles, California 90210 --4321} }

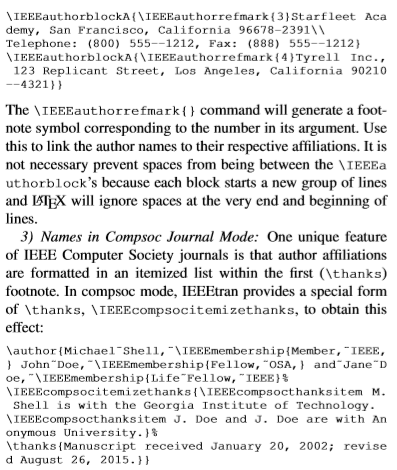

\IEEEauthorrefmark{}
命令将生成与其参数中的数字对应的脚注符号。使用此链接将作者姓名与其各自的联系联系起来。

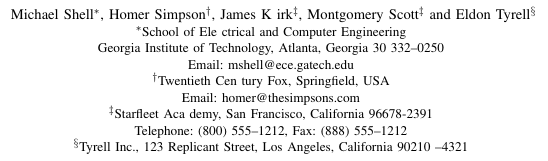

效果如下 👇
四、总结
以上就是今天要分享的内容,本文介绍了如何使用基本语句,更为高级的自定义操作待读者进一步开发。
如果本文能给你带来帮助的话,点个赞鼓励一下作者吧!😆
五、参考
[1] IEEE官网:https://mirrors.bfsu.edu.cn/CTAN/macros/latex/contrib/IEEEtran/IEEEtran_HOWTO.pdf
