HarmonyOS NEXT-应用首次启动案例

使用说明

  1. 第一次打开应用进入启动页,显示隐私协议弹框。
  2. 第一次打开应用进入启动页,点击隐私协议链接跳转隐私协议页面。
  3. 第一次打开应用进入启动页,显示隐私协议弹框,点击不同意,退出应用。
  4. 第一次打开应用进入启动页,显示隐私协议弹框,点击同意,3秒后跳转到广告页。
  5. 进入广告页,2秒后自动跳转应用首页。
  6. 进入广告页,点击右上角跳过按钮,跳转应用首页。

相关概念

  • 首选项:首选项为应用提供Key-Value键值型的数据处理能力,支持应用持久化轻量级数据,并对其修改和查询。数据存储形式为键值对,键的类型为字符串型,值的存储数据类型包括数字型、字符型、布尔型以及这3种类型的数组类型。

  • 自定义弹窗:通过CustomDialogController类显示自定义弹窗。

  • 页面路由:提供通过不同的url访问不同的页面,包括跳转到应用内的指定页面、用应用内的某个页面替换当前页面、返回上一页面或指定的页面等。

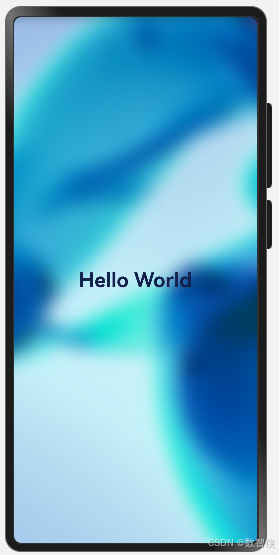

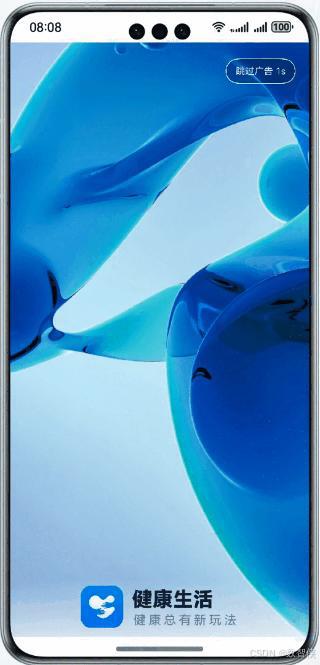

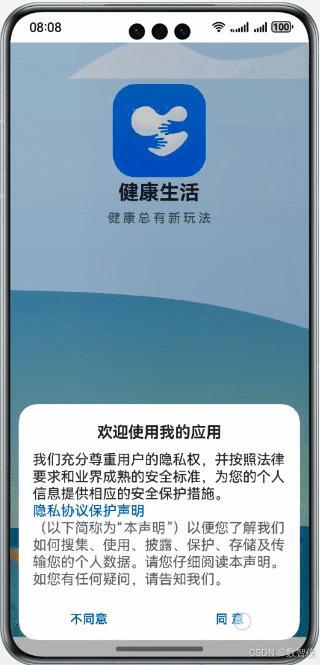

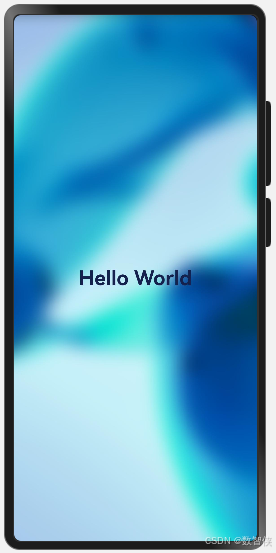

效果截图

代码结构

CommonConstants

export default class CommonConstants {
  /**
   * The main ability tag.
   */
  static readonly ENTRY_ABILITY_TAG: string = 'EntryAbility';

  /**
   * The launcher page tag.
   */
  static readonly LAUNCHER_PAGE_TAG: string = 'LauncherPage';

  /**
   * The advertsing page tag.
   */
  static readonly ADVERTISING_PAGE_TAG: string = 'AdvertisingPage';

  /**
   * The custom dialog component tag.
   */
  static readonly CUSTOM_DIALOG_TAG: string = 'CustomDialogComponent';

  /**
   * Preference saved key.
   */
  static readonly PREFERENCES_KEY_PRIVACY: string = 'isPrivacy';

  /**
   * Preference saved file name.
   */
  static readonly PREFERENCES_FILE_NAME: string = 'myStore';

  /**
   * Launcher page count down.
   */
  static readonly LAUNCHER_DELAY_TIME: number = 3000;

  /**
   * Image logo top margin.
   */
  static readonly LAUNCHER_IMAGE_MARGIN_TOP: string = '16.2%';

  /**
   * Healthy living text spacing.
   */
  static readonly LAUNCHER_LIFE_TEXT_SPACING: number = 0.1;

  /**
   * Healthy living title text top margin.
   */
  static readonly LAUNCHER_TEXT_TITLE_MARGIN_TOP: string = '0.5%';

  /**
   * Content control height.
   */
  static readonly LAUNCHER_TEXT_INTRODUCE_HEIGHT: string = '2.7%';

  /**
   * Healthy living instructions.
   */
  static readonly LAUNCHER_TEXT_INTRODUCE_SPACING: number = 3.4;

  /**
   * Healthy living content top margin.
   */
  static readonly LAUNCHER_TEXT_INTRODUCE_MARGIN_TOP: string = '1.3%';

  /**
   * Interval execution time.
   */
  static readonly ADVERTISING_INTERVAL_TIME: number = 1000;

  /**
   * Advertising page url.
   */
  static readonly ADVERTISING_PAGE_URL: string = 'pages/AdvertisingPage';

  /**
   * Display countdown seconds.
   */
  static readonly ADVERTISING_COUNT_DOWN_SECONDS: number = 2;

  /**
   * Count down text spacing.
   */
  static readonly ADVERTISING_TITLE_TEXT_LETTER_SPACING: number = 0.05;

  /**
   * Advertising page healthy text spacing.
   */
  static readonly ADVERTISING_HEALTHY_LIFE_TEXT_SPACING: number = 0.1;

  /**
   * Advertising page health description text spacing.
   */
  static readonly ADVERTISING_TEXT_INTRODUCE_LETTER_SPACING: number = 3.4;

  /**
   * Advertising page health description text top margin.
   */
  static readonly ADVERTISING_TEXT_INTRODUCE_MARGIN_TOP: string = '0.4%';

  /**
   * Column container left margin.
   */
  static readonly ADVERTISING_COLUMN_MARGIN_LEFT: string = '3.1%';

  /**
   * Row container bottom margin.
   */
  static readonly ADVERTISING_ROW_MARGIN_BOTTOM: string = '3.1%';

  /**
   * Dialog component width the percentage of the 90.
   */
  static readonly DIALOG_COMPONENT_WIDTH_PERCENT: string = '90%';

  /**
   * Dialog title text weight.
   */
  static readonly DIALOG_TITLE_FONT_WEIGHT: number = 600;

  /**
   * Dialog width the percentage of the 93.3.
   */
  static readonly DIALOG_WIDTH_PERCENT: string = '93.3%';

  /**
   * Dialog border radius.
   */
  static readonly DIALOG_BORDER_RADIUS: number = 24;

  /**
   * Dialog component bottom margin,
   */
  static readonly DIALOG_ROW_MARGIN_BOTTOM: string = '3.1%';

  /**
   * Dialog y-axis offset distance.
   */
  static readonly DIALOG_CONTROLLER_DY_OFFSET: number = -24;

  /**
   * Width the percentage of the 100.
   */
  static readonly FULL_WIDTH: string = '100%';

  /**
   * Height the percentage of the 100.
   */
  static readonly FULL_HEIGHT: string = '100%';

  /**
   * Privacy page url.
   */
  static readonly PRIVACY_PAGE_URL: string = 'pages/PrivacyPage';

  /**
   * App home page url.
   */
  static readonly APP_HOME_PAGE_URL: string = 'pages/AppHomePage';

  /**
   * Common layout weight.
   */
  static readonly COMMON_LAYOUT_WEIGHT: number = 1;
}

GlobalContext

export class GlobalContext {
  private constructor() { }
  private static instance: GlobalContext;
  private _objects = new Map<string, Object>();

  public static getContext(): GlobalContext {
    if (!GlobalContext.instance) {
      GlobalContext.instance = new GlobalContext();
    }
    return GlobalContext.instance;
  }

  getObject(value: string): Object | undefined {
    return this._objects.get(value);
  }

  setObject(key: string, objectClass: Object): void {
    this._objects.set(key, objectClass);
  }
}

Logger

import { hilog } from '@kit.PerformanceAnalysisKit';

class Logger {
  private domain: number;
  private prefix: string;
  private format: string = '%{public}s, %{public}s';

  /**
   * constructor.
   *
   * @param Prefix Identifies the log tag.
   * @param domain Domain Indicates the service domain, which is a hexadecimal integer ranging from 0x0 to 0xFFFFF.
   */
  constructor(prefix: string = 'MyApp', domain: number = 0xFF00) {
    this.prefix = prefix;
    this.domain = domain;
  }

  debug(...args: string[]): void {
    hilog.debug(this.domain, this.prefix, this.format, args);
  }

  info(...args: string[]): void {
    hilog.info(this.domain, this.prefix, this.format, args);
  }

  warn(...args: string[]): void {
    hilog.warn(this.domain, this.prefix, this.format, args);
  }

  error(...args: string[]): void {
    hilog.error(this.domain, this.prefix, this.format, args);
  }
}

export default new Logger('FirstStartDemo', 0xFF00)

AdvertisingPage

import { router } from '@kit.ArkUI';
import Logger from '../common/utils/Logger';
import CommonConstants from '../common/constants/CommonConstants';

/**
 * Stay on the advertising page for a few seconds to jump to the home page.
 */
@Entry
@Component
struct AdvertisingPage {
  @State countDownSeconds: number = CommonConstants.ADVERTISING_COUNT_DOWN_SECONDS;
  private timeId: number = 0;

  onPageShow() {
    this.timeId = setInterval(() => {
      if (this.countDownSeconds == 0) {
        this.jumpToAppHomePage();
      } else {
        this.countDownSeconds--;
      }
    }, CommonConstants.ADVERTISING_INTERVAL_TIME);
  }

  onPageHide() {
    router.clear();
    clearInterval(this.timeId);
  }

  /**
   * Jump to app home page.
   */
  jumpToAppHomePage() {
    router.pushUrl({
      url: CommonConstants.APP_HOME_PAGE_URL
    }).catch((error: Error) => {
      Logger.error(CommonConstants.ADVERTISING_PAGE_TAG, 'AdvertisingPage pushUrl error ' + JSON.stringify(error));
    });
  }

  build() {
    Stack({ alignContent: Alignment.Top }) {
      Image($r('app.media.ic_advertising_background'))
        .width(CommonConstants.FULL_WIDTH)
        .height(CommonConstants.FULL_HEIGHT)
      Text($r('app.string.advertising_text_title', this.countDownSeconds))
        .fontColor(Color.White)
        .fontSize($r('app.float.advertising_text_font_size'))
        .letterSpacing(CommonConstants.ADVERTISING_TITLE_TEXT_LETTER_SPACING)
        .backgroundColor($r('app.color.advertising_text_background_color'))
        .border({
          radius: $r('app.float.advertising_text_radius'),
          width: $r('app.float.advertising_text_border_width'),
          color: Color.White
        })
        .margin({
          top: $r('app.float.advertising_title_text_margin_top'),
          left: $r('app.float.advertising_title_text_margin_left')
        })
        .padding({
          left: $r('app.float.advertising_text_padding_left'),
          top: $r('app.float.advertising_text_padding_top'),
          right: $r('app.float.advertising_text_padding_left'),
          bottom: $r('app.float.advertising_text_padding_bottom')
        })
        .onClick(() => {
          this.jumpToAppHomePage();
        })
      Row() {
        Image($r('app.media.ic_logo'))
          .width($r('app.float.advertising_image_width'))
          .height($r('app.float.advertising_image_height'))
          .margin({ bottom: CommonConstants.ADVERTISING_ROW_MARGIN_BOTTOM })
        Column() {
          Text($r('app.string.healthy_life_text'))
            .bottomTextStyle(FontWeight.Bolder,
            CommonConstants.ADVERTISING_HEALTHY_LIFE_TEXT_SPACING,
              $r('app.float.advertising_text_title_size'),
              $r('app.color.advertising_text_title_color'))
          Text($r('app.string.healthy_life_introduce'))
            .bottomTextStyle(FontWeight.Normal,
            CommonConstants.ADVERTISING_TEXT_INTRODUCE_LETTER_SPACING,
              $r('app.float.advertising_text_introduce_size'),
              $r('app.color.launcher_text_introduce_color'))
            .opacity($r('app.float.advertising_text_opacity'))
            .margin({ top: CommonConstants.ADVERTISING_TEXT_INTRODUCE_MARGIN_TOP })
        }
        .alignItems(HorizontalAlign.Start)
        .margin({
          left: CommonConstants.ADVERTISING_COLUMN_MARGIN_LEFT,
          bottom: CommonConstants.ADVERTISING_ROW_MARGIN_BOTTOM
        })
      }
      .alignItems(VerticalAlign.Bottom)
      .height(CommonConstants.FULL_HEIGHT)
    }
    .width(CommonConstants.FULL_WIDTH)
    .height(CommonConstants.FULL_HEIGHT)
  }
}
// Bottom text common style.
@Extend(Text) function bottomTextStyle (fontWeight: number,
  textAttribute: number, fontSize: Resource, fontColor: Resource) {
    .fontWeight(fontWeight)
    .letterSpacing(textAttribute)
    .fontSize(fontSize)
    .fontColor(fontColor)
}

AppHomePage

import CommonConstants from '../common/constants/CommonConstants';

/**
 * App home page.
 */
@Entry
@Component
struct AppHomePage {
  build() {
    Stack() {
      Image($r('app.media.ic_home_page_background'))
        .width(CommonConstants.FULL_WIDTH)
        .height(CommonConstants.FULL_HEIGHT)
      Text($r('app.string.home_page_text'))
        .fontSize($r('app.float.home_page_text_size'))
        .fontColor($r('app.color.home_page_text_color'))
        .fontWeight(FontWeight.Bold)
        .textAlign(TextAlign.Center)
        .height(CommonConstants.FULL_HEIGHT)
        .width(CommonConstants.FULL_WIDTH)
    }
  }
}

LauncherPage

import { preferences } from '@kit.ArkData';
import { common } from '@kit.AbilityKit';
import { router } from '@kit.ArkUI';
import Logger from '../common/utils/Logger';
import CommonConstants from '../common/constants/CommonConstants';
import CustomDialogComponent from '../view/CustomDialogComponent';
import { GlobalContext } from '../common/utils/GlobalContext';

/**
 * The LauncherPage is the entry point of the application and shows how to develop the LauncherPage.
 * Stay on the LauncherPage for a few seconds to jump to the AdvertisingPage.
 * Developers can replace the background image.
 */
@Entry
@Component
struct LauncherPage {
  private context?: common.UIAbilityContext;
  private timerId: number = 0;
  private isJumpToAdvertising: boolean = false;
  dialogController: CustomDialogController = new CustomDialogController({
    builder: CustomDialogComponent(
      {
        cancel: () => {
          this.onCancel();
        },
        confirm: () => {
          this.onConfirm();
        }
      }),
    alignment: DialogAlignment.Bottom,
    offset: { dx: 0, dy: CommonConstants.DIALOG_CONTROLLER_DY_OFFSET },
    customStyle: true,
    autoCancel: false
  });

  onCancel() {
    // Exit the application.
    this.context?.terminateSelf();
  }

  onConfirm() {
    // Save privacy agreement status.
    this.saveIsPrivacy();
    this.jumpToAdvertisingPage();
  }

  onPageHide() {
    if (this.isJumpToAdvertising) {
      router.clear();
    }
    // globalThis.isJumpPrivacy = true;
    GlobalContext.getContext().setObject('isJumpPrivacy', true);
    clearTimeout(this.timerId);
  }

  /**
   * Jump to advertising page.
   */
  jumpToAdvertisingPage() {
    this.timerId = setTimeout(() => {
      this.isJumpToAdvertising = true;
      router.pushUrl({
        url: CommonConstants.ADVERTISING_PAGE_URL
      }).catch((error: Error) => {
        Logger.error(CommonConstants.LAUNCHER_PAGE_TAG, 'LauncherPage pushUrl error ' + JSON.stringify(error));
      });
    }, CommonConstants.LAUNCHER_DELAY_TIME);
  }

  saveIsPrivacy() {
    let preferences: Promise<preferences.Preferences> = this.getDataPreferences(this);
    preferences.then((result: preferences.Preferences) => {
      let privacyPut = result.put(CommonConstants.PREFERENCES_KEY_PRIVACY, false);
      result.flush();
      privacyPut.then(() => {
        Logger.info(CommonConstants.LAUNCHER_PAGE_TAG, 'Put the value of startup Successfully.');
      }).catch((err: Error) => {
        Logger.error(CommonConstants.LAUNCHER_PAGE_TAG, 'Put the value of startup Failed, err: ' + err);
      });
    }).catch((err: Error) => {
      Logger.error(CommonConstants.LAUNCHER_PAGE_TAG, 'Get the preferences Failed, err: ' + err);
    });
  }

  onPageShow() {
    this.context = getContext(this) as common.UIAbilityContext;
    // Get the operation class for saving data.
    this.getDataPreferences(this).then((preferences: preferences.Preferences) => {
      preferences.get(CommonConstants.PREFERENCES_KEY_PRIVACY, true).then((value: preferences.ValueType) => {
        Logger.info(CommonConstants.LAUNCHER_PAGE_TAG, 'onPageShow value: ' + value);
        if (value) {
          // let isJumpPrivacy: boolean = globalThis.isJumpPrivacy ?? false;
          let isJumpPrivacy: boolean = (GlobalContext.getContext().getObject('isJumpPrivacy') as boolean) ?? false;
          if (!isJumpPrivacy) {
            this.dialogController.open();
          }
        } else {
          this.jumpToAdvertisingPage();
        }
      });
    });
  }

  /**
   * Get data preferences action.
   */
  getDataPreferences(common: Object) {
    return preferences.getPreferences(getContext(common), CommonConstants.PREFERENCES_FILE_NAME);
  }

  build() {
    Stack() {
      Image($r('app.media.ic_launcher_background'))
        .width(CommonConstants.FULL_WIDTH)
        .height(CommonConstants.FULL_HEIGHT)
      Column() {
        Image($r('app.media.ic_logo'))
          .width($r('app.float.launcher_logo_size'))
          .height($r('app.float.launcher_logo_size'))
          .margin({ top: CommonConstants.LAUNCHER_IMAGE_MARGIN_TOP })
        Text($r('app.string.healthy_life_text'))
          .width($r('app.float.launcher_life_text_width'))
          .height($r('app.float.launcher_life_text_height'))
          .healthyLifeTextStyle(FontWeight.Bold,
            CommonConstants.LAUNCHER_LIFE_TEXT_SPACING,
            $r('app.float.launcher_text_title_size'),
            $r('app.color.launcher_text_title_color'))
          .margin({ top: CommonConstants.LAUNCHER_TEXT_TITLE_MARGIN_TOP })
        Text($r('app.string.healthy_life_introduce'))
          .height(CommonConstants.LAUNCHER_TEXT_INTRODUCE_HEIGHT)
          .healthyLifeTextStyle(FontWeight.Normal,
            CommonConstants.LAUNCHER_TEXT_INTRODUCE_SPACING,
            $r('app.float.launcher_text_introduce_size'),
            $r('app.color.launcher_text_introduce_color'))
          .opacity($r('app.float.launcher_text_opacity'))
          .margin({ top: CommonConstants.LAUNCHER_TEXT_INTRODUCE_MARGIN_TOP })
      }
      .height(CommonConstants.FULL_HEIGHT)
      .width(CommonConstants.FULL_WIDTH)
    }
  }
}
// Healthy living text common styles.
@Extend(Text) function healthyLifeTextStyle (fontWeight: number,
  textAttribute: number, fontSize: Resource, fontColor: Resource) {
    .fontWeight(fontWeight)
    .letterSpacing(textAttribute)
    .fontSize(fontSize)
    .fontColor(fontColor)
}

PrivacyPage

import { router } from '@kit.ArkUI';
import CommonConstants from '../common/constants/CommonConstants';
import { GlobalContext } from '../common/utils/GlobalContext';

/**
 * The privacy agreement page displays the agreement content.
 */
@Entry
@Component
struct PrivacyPage {
  build() {
    Column() {
      Text($r('app.string.privacy_text_title'))
        .fontSize($r('app.float.privacy_text_title_size'))
        .textAlign(TextAlign.Center)
        .margin({
          top: $r('app.float.privacy_text_margin_top'),
          bottom: $r('app.float.privacy_text_margin_bottom')
        })
      Text($r('app.string.privacy_text_content'))
        .fontSize($r('app.float.dialog_common_text_size'))
        .margin({
          left: $r('app.float.privacy_text_content_left'),
          right: $r('app.float.privacy_text_content_right')
        })
      Text($r('app.string.privacy_back'))
        .fontColor($r('app.color.privacy_back_text'))
        .fontSize($r('app.float.privacy_back_text_size'))
        .textAlign(TextAlign.Center)
        .fontWeight(FontWeight.Medium)
        .onClick(() => {
          // globalThis.isJumpPrivacy = false;
          GlobalContext.getContext().setObject('isJumpPrivacy', false);
          router.back();
        })
        .margin({ top: $r('app.float.privacy_bottom_text_margin') })
    }
    .justifyContent(FlexAlign.Center)
    .height(CommonConstants.FULL_HEIGHT)
  }

  onBackPress() {
    // globalThis.isJumpPrivacy = false;
    GlobalContext.getContext().setObject('isJumpPrivacy', false);
  }
}

CustomDialogComponent

import { router } from '@kit.ArkUI';
import Logger from '../common/utils/Logger';
import CommonConstants from '../common/constants/CommonConstants';
import { GlobalContext } from '../common/utils/GlobalContext';

/**
 * Custom pop-up window.
 */
@CustomDialog
export default struct CustomDialogComponent {
  controller: CustomDialogController = new CustomDialogController({'builder': ''});
  cancel: Function = () => {};
  confirm: Function = () => {};

  build() {
    Column() {
      Text($r('app.string.dialog_text_title'))
        .width(CommonConstants.DIALOG_COMPONENT_WIDTH_PERCENT)
        .fontColor($r('app.color.dialog_text_color'))
        .fontSize($r('app.float.dialog_text_privacy_size'))
        .textAlign(TextAlign.Center)
        .fontWeight(CommonConstants.DIALOG_TITLE_FONT_WEIGHT)
        .margin({
          top: $r('app.float.dialog_text_privacy_top'),
          bottom: $r('app.float.dialog_text_privacy_bottom')
        })
      Text($r('app.string.dialog_text_privacy_content'))
        .fontSize($r('app.float.dialog_common_text_size'))
        .width(CommonConstants.DIALOG_COMPONENT_WIDTH_PERCENT)
      Text($r('app.string.dialog_text_privacy_statement'))
        .width(CommonConstants.DIALOG_COMPONENT_WIDTH_PERCENT)
        .fontColor($r('app.color.dialog_text_statement_color'))
        .fontSize($r('app.float.dialog_common_text_size'))
        .onClick(() => {
          // globalThis.isJumpPrivacy = true;
          this.controller.close();
          GlobalContext.getContext().setObject('isJumpPrivacy', true);
          router.pushUrl({
            url: CommonConstants.PRIVACY_PAGE_URL
          }).catch((error: Error) => {
            Logger.error(CommonConstants.CUSTOM_DIALOG_TAG, 'CustomDialog pushUrl error ' + JSON.stringify(error));
          });
        })
      Text($r('app.string.dialog_text_declaration_prompt'))
        .width(CommonConstants.DIALOG_COMPONENT_WIDTH_PERCENT)
        .fontColor($r('app.color.dialog_text_color'))
        .fontSize($r('app.float.dialog_common_text_size'))
        .opacity($r('app.float.dialog_text_opacity'))
        .margin({ bottom: $r('app.float.dialog_text_declaration_bottom') })
      Row() {
        Text($r('app.string.dialog_button_disagree'))
          .fancy()
          .onClick(() => {
            this.controller.close();
            this.cancel();
          })
        Blank()
          .backgroundColor($r('app.color.dialog_blank_background_color'))
          .width($r('app.float.dialog_blank_width'))
          .height($r('app.float.dialog_blank_height'))
        Text($r('app.string.dialog_button_agree'))
          .fancy()
          .onClick(() => {
            this.controller.close();
            this.confirm();
          })
      }
      .margin({ bottom: CommonConstants.DIALOG_ROW_MARGIN_BOTTOM })
    }
    .width(CommonConstants.DIALOG_WIDTH_PERCENT)
    .borderRadius(CommonConstants.DIALOG_BORDER_RADIUS)
    .backgroundColor(Color.White)
  }
}

// Common text styles.
@Extend(Text) function fancy () {
  .fontColor($r("app.color.dialog_fancy_text_color"))
  .fontSize($r("app.float.dialog_fancy_text_size"))
  .textAlign(TextAlign.Center)
  .fontWeight(FontWeight.Medium)
  .layoutWeight(CommonConstants.COMMON_LAYOUT_WEIGHT)
}

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

源图客

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付:¥1
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
