伪彩色处理

伪彩色处理

---

---

代码展示

#include<opencv2\opencv.hpp>
using namespace cv;

int main()
{
	Mat img = imread("D:\\Images\\test2.png", 0);
	imshow("原图", img);

	Mat R = img.clone();
	Mat G = img.clone();
	Mat B = img.clone();
	int rows = img.rows;
	int cols = img.cols;
	for (int i = 0; i < rows; i++)
	{
		for (int j = 0; j < cols; j++)
		{
			int current = img.at<uchar>(i, j);
			if (0 < current && current <= 64)
			{
				R.at<uchar>(i, j) = 0;
				G.at<uchar>(i, j) = 4 * current;
				B.at<uchar>(i, j) = 255;
			}
			else if (64 < current && current <= 128)
			{
				R.at<uchar>(i, j) = 0;
				G.at<uchar>(i, j) = 255;
				B.at<uchar>(i, j) = (-4) * (current - 128);
			}
			else if (128 < current && current <= 192)
			{
				R.at<uchar>(i, j) = 4 * (current - 128);
				G.at<uchar>(i, j) = 255;
				B.at<uchar>(i, j) = 0;
			}
			else
			{
				R.at<uchar>(i, j) = 255;
				G.at<uchar>(i, j) = (-4) * (current - 255);
				B.at<uchar>(i, j) = 0;
			}

		}
	}

	Mat imgArray[3];
	imgArray[0] = R;
	imgArray[1] = G;
	imgArray[2] = B;
	Mat newImg;
	merge(imgArray, 3, newImg);
	imshow("效果图", newImg);
	waitKey(0);
	return 0;
}

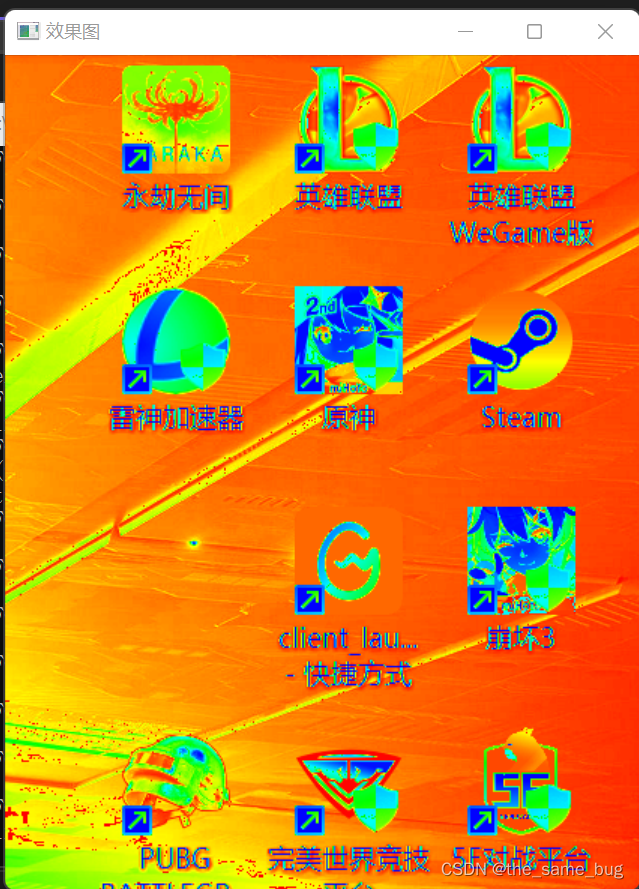

效果展示
