package com.zfoo.net.handler;
import com.zfoo.event.manager.EventBus;
import com.zfoo.net.NetContext;
import com.zfoo.net.consumer.balancer.ConsistentHashConsumerLoadBalancer;
import com.zfoo.net.core.gateway.IGatewayLoadBalancer;
import com.zfoo.net.core.gateway.model.GatewaySessionInactiveEvent;
import com.zfoo.net.packet.common.Heartbeat;
import com.zfoo.net.packet.common.Ping;
import com.zfoo.net.packet.common.Pong;
import com.zfoo.net.packet.model.DecodedPacketInfo;
import com.zfoo.net.router.attachment.GatewayAttachment;
import com.zfoo.net.router.attachment.IAttachment;
import com.zfoo.net.router.attachment.SignalAttachment;
import com.zfoo.net.session.model.AttributeType;
import com.zfoo.net.session.model.Session;
import com.zfoo.net.util.SessionUtils;
import com.zfoo.protocol.IPacket;
import com.zfoo.protocol.ProtocolManager;
import com.zfoo.protocol.registration.IProtocolRegistration;
import com.zfoo.protocol.util.JsonUtils;
import com.zfoo.protocol.util.StringUtils;
import com.zfoo.scheduler.util.TimeUtils;
import io.netty.channel.ChannelHandler;
import io.netty.channel.ChannelHandlerContext;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.util.function.BiFunction;
/**
* @author jaysunxiao
* @version 3.0
*/
@ChannelHandler.Sharable
public class GatewayRouteHandler extends ServerRouteHandler {
private static final Logger logger = LoggerFactory.getLogger(GatewayRouteHandler.class);
private final BiFunction<Session, IPacket, Boolean> packetFilter;
private final BiFunction<Session, IPacket, Integer> routerFunc;
public GatewayRouteHandler(BiFunction<Session, IPacket, Boolean> packetFilter) {
this(packetFilter, null);
}
public GatewayRouteHandler(BiFunction<Session, IPacket, Boolean> packetFilter, BiFunction<Session, IPacket, Integer> routerFunc) {
this.packetFilter = packetFilter;
this.routerFunc = routerFunc;
}
// TODO test
public static final BiFunction<Session, IPacket, Integer> routerFunc1 = (session, packet) -> {
var module = ProtocolManager.moduleByProtocolId(packet.protocolId());
var name = module.getName();
switch (name) {
case "game":
return (Integer) session.getAttribute(AttributeType.UID);
case "guild":
return (Integer) session.getAttribute(AttributeType.CONSUMER);
}
return null;
};
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) {
// 请求者的session,一般是serverSession
var session = SessionUtils.getSession(ctx);
if (session == null) {
return;
}
var decodedPacketInfo = (DecodedPacketInfo) msg;
var packet = decodedPacketInfo.getPacket();
if (packet.protocolId() == Heartbeat.PROTOCOL_ID) {
return;
}
if (packet.protocolId() == Ping.PROTOCOL_ID) {
NetContext.getRouter().send(session, Pong.valueOf(TimeUtils.now()), null);
return;
}
// 过滤非法包
if (packetFilter != null && packetFilter.apply(session, packet)) {
throw new IllegalArgumentException(StringUtils.format("[session:{}]发送了一个非法包[{}]"
, SessionUtils.sessionInfo(ctx), JsonUtils.object2String(packet)));
}
var signalAttachment = (SignalAttachment) decodedPacketInfo.getAttachment();
// 把客户端信息包装为一个GatewayAttachment,因此通过这个网关附加包可以得到玩家的uid、sid之类的信息
var gatewayAttachment = new GatewayAttachment(session, signalAttachment);
// 网关优先使用IGatewayLoadBalancer作为一致性hash的计算参数,然后才会使用客户端的session做参数
// 例子:以聊天服务来说,玩家知道自己在哪个群组groupId中,那往这个群发送消息时,会在Packet中带上这个groupId做为一致性hash就可以了。
if (packet instanceof IGatewayLoadBalancer) {
var loadBalancerConsistentHashObject = ((IGatewayLoadBalancer) packet).loadBalancerConsistentHashObject();
gatewayAttachment.useExecutorConsistentHash(loadBalancerConsistentHashObject);
forwardingPacket(packet, gatewayAttachment, loadBalancerConsistentHashObject);
return;
} else {
// 针对当前业务模块,是否session上绑定的有路由信息,从而直接转发给provider
if (routerFunc != null) {
Integer hashId = routerFunc.apply(session, packet);
if (hashId != null) {
forwardingPacket(packet, gatewayAttachment, hashId);
return;
}
}
// 使用用户的uid做一致性hash
var uid = (Long) session.getAttribute(AttributeType.UID);
if (uid != null) {
forwardingPacket(packet, gatewayAttachment, uid);
return;
}
}
// 再使用session的sid做一致性hash,因为每次客户端连接过来sid都会改变,所以客户端重新建立连接的话可能会被路由到其它的服务器
// 如果有特殊需求的话,可以考虑去重写网关的转发策略
// 拿着玩家的sid做一致性hash,那肯定是:一旦重连sid就会一直变化。所以:一般情况下除非自己创建TcpClient,否则逻辑不应该走到这里。 而是走上面的通过UID做一致性hash
var sid = session.getSid();
forwardingPacket(packet, gatewayAttachment, sid);
}
/**
* 转发网关收到的包到Provider
*/
private void forwardingPacket(IPacket packet, IAttachment attachment, Object argument) {
try {
var consumerSession = ConsistentHashConsumerLoadBalancer.getInstance().loadBalancer(packet, argument);
NetContext.getRouter().send(consumerSession, packet, attachment);
} catch (Exception e) {
logger.error("网关发生异常", e);
} catch (Throwable t) {
logger.error("网关发生错误", t);
}
}
@Override
public void channelInactive(ChannelHandlerContext ctx) throws Exception {
var session = SessionUtils.getSession(ctx);
if (session == null) {
return;
}
var sid = session.getSid();
var uid = (Long) session.getAttribute(AttributeType.UID);
// 连接到网关的客户端断开了连接
EventBus.asyncSubmit(GatewaySessionInactiveEvent.valueOf(sid, uid == null ? 0 : uid.longValue()));
super.channelInactive(ctx);
}
}

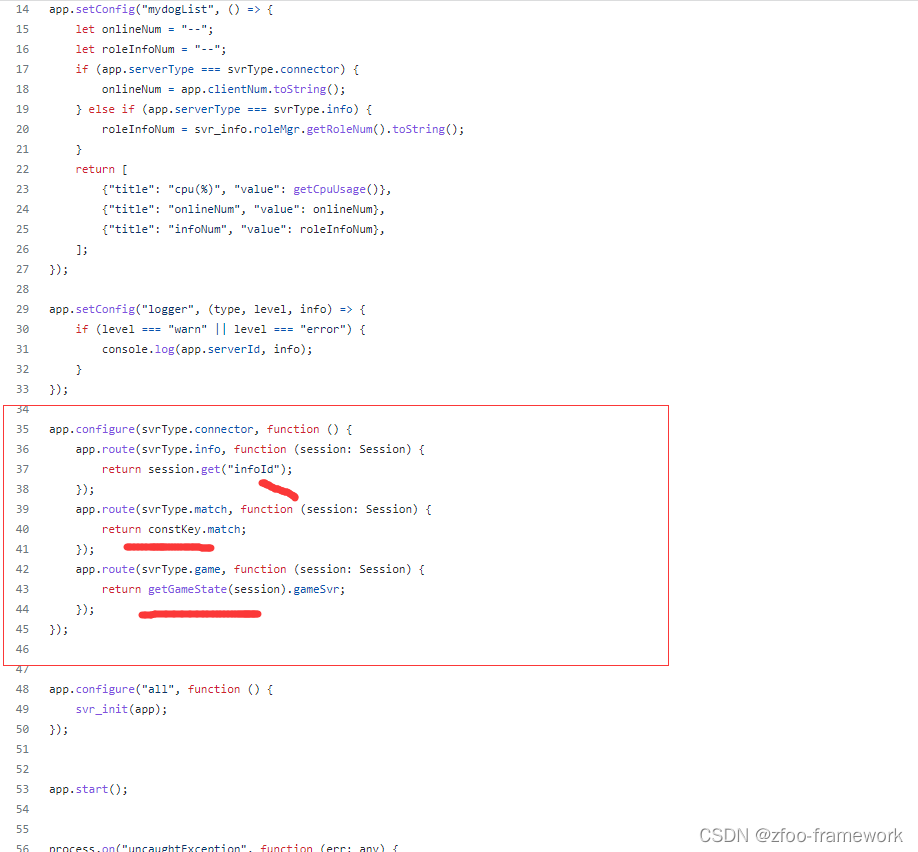

zfoo的gateway就相当于mydog的Connector服务器
