OpenFOAM 网格拓扑与计算表面向量和 (2)
在上一篇文章中我们讨论了OpenFOAM的网格拓扑,以及通量的计算方式。在这篇文章中我们来对OpenFOAM的网格与面做一系列的处理。
在 The Finite Volume Method in Computational Fluid Dynamics[1]书的第六章 Exercise中,有一道练习题 (Exercise 2),计算每个网格的表面向量和是否为0:
Write a program that reads an OpenFOAM® mesh and checks that for each element the sum of the surface vectors is zero.
本文尝试作如下解答:
首先,新建文件夹Exercise_6_8_2,在其中创建 Exercise6_8_2.C
文件:
#include "fvCFD.H"
int main(int argc, char *argv[])
{
#include "setRootCase.H"
// runTime类 与 mesh类的实例化
#include "createTime.H"
#include "createMesh.H"
// 在循环中,按照mesh的数量来遍历所有的网格
for (label meshID = 0; meshID < mesh.C().size(); meshID++){
// 初始化 temp 向量
vector temp = vector::zero;
// 子循环遍历网格的所有face:
for (label faceID = 0; faceID < mesh.faces().size(); faceID++){
// 如果此face的本网格(owner) 序号等于外层循环的网格序号
if (mesh.owner()[faceID] == meshID){
Info << "the face vector is: " << mesh.Sf()[faceID] << endl;
// 对面法向量求和
temp += mesh.Sf()[faceID];
}
}
// 再遍历所有的内部面 (InternalFaces)
for (label neighbourID = 0; neighbourID < mesh.neighbour().size(); neighbourID++){ // 如果内部面中有相邻网格(neighbour) 的序号等于外层循环的网格序号
if (mesh.neighbour()[neighbourID] == meshID){
Info << "the neighbour vector is: " << mesh.Sf()[neighbourID] << endl;
// 减去此面法向量
temp -= mesh.Sf()[neighbourID];
}
}
// 判定 temp 向量的模值是否为0
if (mag(temp) != 0){
// 如果不为0的话,则输出错误信息 和 网格序号,并跳出循环
Info << "error and break" << " " << meshID << " " << temp << endl;
break;
}
}
Info<< "End\n" << endl;
return 0;
接下来是大家所熟悉的编译环节, 编辑Exercise_6_8_2/Make/files
:
Exercise6_8_2.C
EXE = $(FOAM_USER_APPBIN)/Exercise6_8_2
并且 wmake
编译。
接下来,在测试算例 testCase
中执行 blockMesh
,画出
4
×
4
×
1
4 × 4 × 1
4×4×1 的网格:
Writing polyMesh
----------------
Mesh Information
----------------
boundingBox: (0 0 0) (1 1 0.1)
nPoints: 50
nCells: 16
nFaces: 72
nInternalFaces: 24
----------------
Patches
----------------
patch 0 (start: 24 size: 4) name: movingWall
patch 1 (start: 28 size: 12) name: fixedWalls
patch 2 (start: 40 size: 32) name: frontAndBack
End

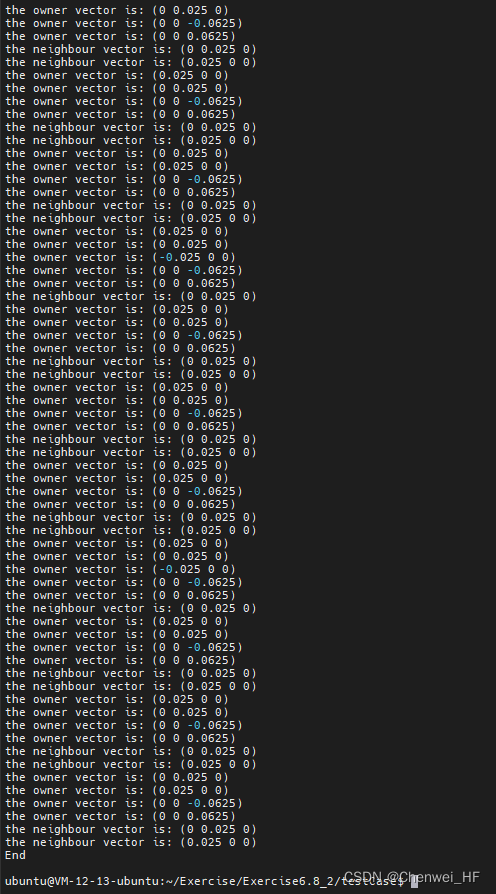

接下来,执行 Exercise_6_8_2
,可以看到如下信息:
可以看到,输出了每个
c
e
l
l
cell
cell 的各个
f
a
c
e
face
face 的面法向量,并且把它们做了
o
w
n
e
r
owner
owner 与
n
e
i
g
h
b
o
u
r
neighbour
neighbour 的区分。
程序并没有输出错误信息,可见各个网格的面法向量之和为0。
