Day09_OpenTTD的Viewport介绍

返回目录

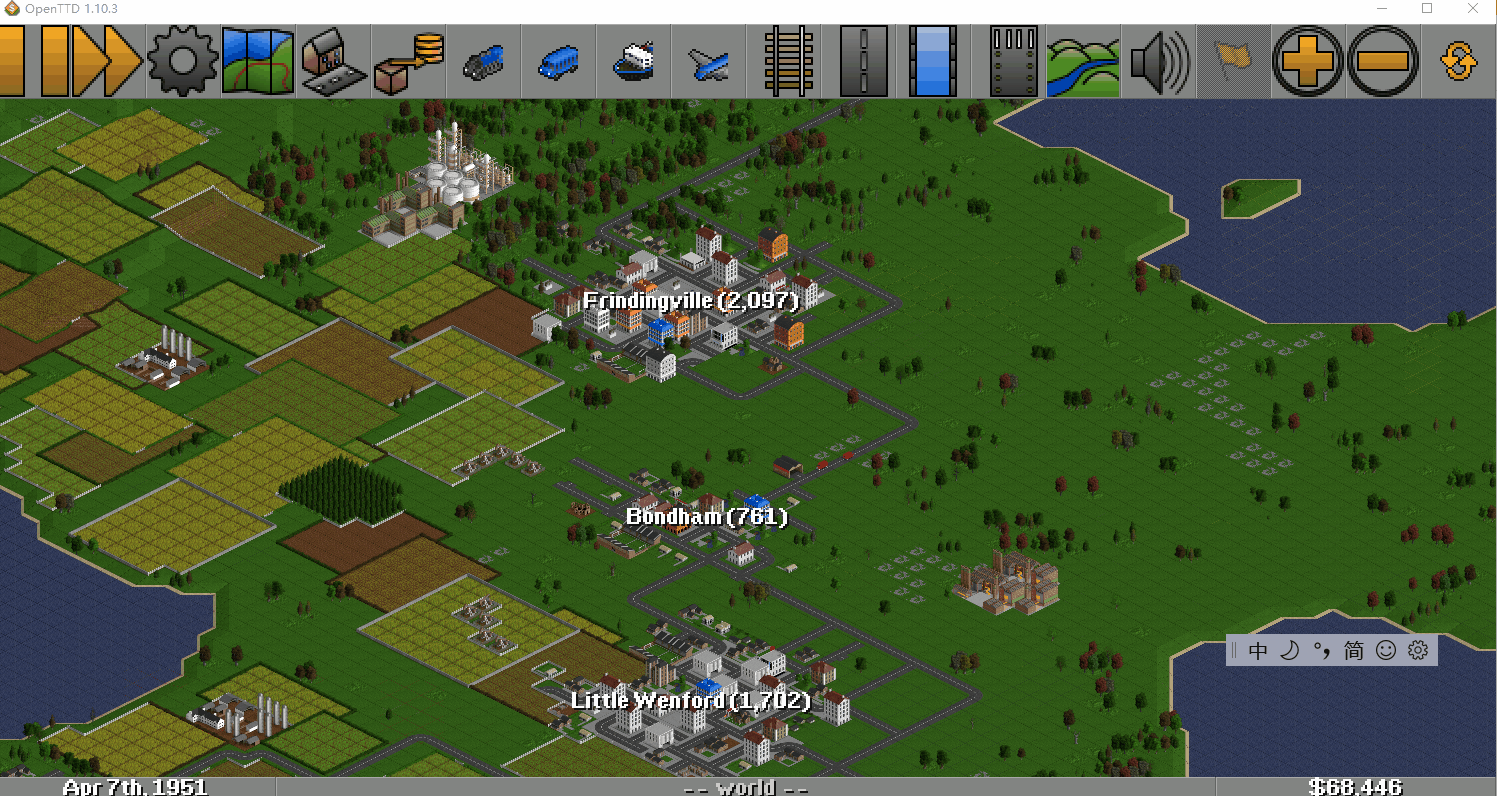

OpenTTD的视觉系统2.5D形式展现，素材都是图片，通过屏幕贴图的方式生成界面元素，因此不能像真3D游戏那样在游戏过程中旋转视角，看到3D模型侧面或者背面的情况。这种2.5D的展示方式对显卡要求较低，大量使用在手机游戏里面，比如 王者荣耀、部落冲突、三国志策略版的界面，我们都能看到这种显示模式的身影。Openttd.cpp 代码量不大（行数 3000+），函数数量多(50+)，其中对外服务函数26个，私有服务 27个。上层调用者主要包括 gui类、cmd类以及游戏初始化阶段的各种类，向下调用 gfx.cpp set dirty(把屏幕部分或者全部设置刷新） ， Draw开头的绘制等操作，下面是整理出来的主要函数调用关系及说明。
viewport是游戏进行中的主界面，我们以铺设铁轨为例，修建铁路相关的界面在rail_gui.cpp定义，操作流程：
1.点开toolbar的铁路菜单栏；
2.选择修建铁路图标；
3.鼠标左键拖动修建铁路；
4.鼠标拖动过程中，界面对应Tile对应显示铁轨；
5.鼠标左键抬起，完成修建动作；

以上3-5步骤分别由 viewport.cpp的三个函数实现

VpStartPlaceSizing() 开始拖动
<- rail_gui.cpp OnPlaceObject()
<- viewport.cpp PlaceObject()
<- viewport.cpp VpStartDragging() 拖动中
VpHandlePlaceSizingDrag() 拖动完成
<- rail_gui.cpp OnPlaceMouseUp()

通过上面的分析，我们可以看到，实现拖动架设铁路的操作是由 viewport.cpp 与 rail_gui.cpp 几个函数之间互相调用实现

铺设铁路调用链
说明：
a<-b 表示函数a被函数b调用
<= 后面是这个函数的说明
格式：<-(第一行没有) 源码文件名 函数名 <= 函数说明

rail_gui.cpp DoRailroadTrack() <= 调用DoCommandP()
<- HandleAutodirPlacement() <= select_proc=DDSP_PLACE_RAIL
<- OnPlaceMouseUp() <= select_proc=DDSP_PLACE_RAIL
<- PlaceRail_Bridge() <= Start placing a rail bridge.
<- OnPlaceObject() <= this->last_user_action=WID_RAT_BUILD_BRIDGE
<- viewport.cpp <= PlaceObject()
<- HandleViewportClicked()
<- window.cpp MouseLoop() <= 每一个tick
<- HandleMouseEvents()
<- sdl2_v.cpp VideoDriver_SDL_Base::PollEvent()
<- video_driver.cpp VideoDriver::Tick()

最后，是viewport.cpp的函数清单
说明：
a() <- b() 表示函数a被 函数b调用
: 后面是这个函数的中英文说明
*3 表示这是需要重要关注的函数

----public----

1. StartSpriteCombine() <- *_cmd.cpp 一般是draw操作前调用
   : Starts a block of sprites, which are “combined” into a single bounding box.
2. EndSpriteCombine() <- *_cmd.cpp 与上面成对出现
   : Terminates a block of sprites started by #StartSpriteCombine.
   *3. ViewportDoDraw() <- screenshot.cpp LargeWorldCallback() & this.ViewportDraw()
   : 调用 ViewportDraw 开头的几个私有函数完成ViewPort的绘制
3. DrawViewport() <- widget.cpp NWidgetViewport::Draw()
   : Draw the viewport of this window.
   : 在窗口的小组件widget绘制的时候，直接调用 ViewportDraw() 间接调用 ViewportDoDraw()
4. ViewportAddString() <- texteff.cpp DrawTextEffects() & this.ViewportAddKdtreeSigns()
   : Add a string to draw in the viewport
   : 界面上增加字符串
   ------六个Make开头的函数 被 cmd类程序发起
5. MakeStation() <- station_map.h 创建车站、码头、机场等Tile & this.RebuildViewportKdtree()
6. MakeWaypoint() <- waypoint_cmd.cpp Waypoint::UpdateVirtCoord() & this.RebuildViewportKdtree()
7. MakeTown() <- town_cmd.cpp Town::UpdateVirtCoord() & this.RebuildViewportKdtree()
8. MakeSign() <- signs.cpp Sign::UpdateVirtCoord() & this.RebuildViewportKdtree()
   ------
9. RebuildViewportKdtree() <- afterload.cpp AfterLoadGame() UpdateAllVirtCoords() & misc.cpp InitializeGame()
10. ScrollWindowTo() <- main_gui.cpp ZoomInOrOutToCursorWindow() & smallmap_gui.cpp ScrollMainWindowTo()
    : Scrolls the viewport in a window to a given location.
11. ScrollWindowToTile() <- *_gui.cpp OnResize() 包括 industry/town/waypoint
    : Scrolls the viewport in a window to a given location.
12. ScrollMainWindowToTile() <- *_gui.cpp 大量调用这个方法 跳转视角
    : Scrolls the viewport of the main window to a given location.
13. UpdateTileSelection() <- window.cpp MouseLoop() & station_gui.cpp StationJoinerNeeded()
    : Updates tile highlighting for all cases.
14. VpSelectTilesWithMethod() <- *_gui.cpp OnPlaceDrag()
    : Selects tiles while dragging
15. VpHandlePlaceSizingDrag() <- window.cpp MouseLoop()
    : Handle the mouse while dragging for placement/resizing.
16. SetObjectToPlaceWnd() <- *_gui.cpp OnClick()
    : 调用SetObjectToPlace()
17. SetObjectToPlace() <- genworld.cpp GenerateWorld() & *_gui.cpp OnClick()
    : Change the cursor and mouse click/drag handling
18. ResetObjectToPlace()
    : Reset the cursor and mouse mode handling back to default
    : 调用SetObjectToPlace()
19. GetViewportStationMiddle() <- linkgraph_gui.cpp GetStationMiddle()
20. CmdScrollViewport(): Scroll players main viewport.
21. SetViewportCatchmentStation():
22. SetViewportCatchmentTown(): Town’s coverage set dirty

----init----

1. InitializeSpriteSorter() <- openttd.cpp main()
2. InitializeWindowViewport() <- widget.cpp NWidgetViewport::InitializeViewport()
   : 很多 gui 创建新窗口的时候调用

----private----

1. MarkCatchmentTilesDirty() <- SetViewportCatchmentStation()
2. CalcRaildirsDrawstyle() <- VpSelectTilesWithMethod()
   : while dragging
3. DoSetViewportPosition() <- SetViewportPosition()
4. SetViewportPosition() <- UpdateViewportPosition()
   *5. TranslateXYToTileCoord() <- GetTileFromScreenXY() & CheckClickOnLandscape()
   : Translate screen coordinate in a viewport to underlying tile coordinate.
   : x,y的坐标转换为3D的透视图，调用 landscape.cpp InverseRemapCoords2() 完成转换
5. GetTileFromScreenXY() <- GetTileBelowCursor() & GetTileZoomCenterWindow()
   : When used for zooming, check area below current coordinates (x,y)
6. AddTileSpriteToDraw() <- DrawGroundSpriteAt() & DrawSelectionSprite()
   : Schedules a tile sprite for drawing.
7. AddChildSpriteToFoundation() <- DrawGroundSpriteAt() & DrawSelectionSprite（）
   : Adds a child sprite to the active foundation.
8. AddCombinedSprite() <- AddSortableSpriteToDraw()
   : Draw a (transparent) sprite at given coordinates with a given bounding box.
9. AddStringToDraw() <- ViewportAddString()
10. ViewportSortParentSprites() <- InitializeSpriteSorter()
    ------下面这一堆函数都被ViewportDoDraw()调用
11. ViewportAddLandscape() <- ViewportDoDraw()
12. ViewportDrawTileSprites() <- ViewportDoDraw()
13. ViewportDrawParentSprites() <- ViewportDoDraw()
14. ViewportDrawBoundingBoxes() <- ViewportDoDraw()
15. ViewportDrawDirtyBlocks() <- ViewportDoDraw()
    : Draw/colour the blocks that have been redrawn.
16. ViewportDrawStrings() <- ViewportDoDraw()
    ------上面这一堆函数都被ViewportDoDraw()调用
17. ClampViewportToMap() <- UpdateViewportPosition()
    : Ensure that a given viewport has a valid scroll position.
18. SetSelectionTilesDirty() <- SetSelectionRed() & UpdateTileSelection() & SetObjectToPlace()
    : Marks the selected tiles as dirty.
19. UpdateViewportPosition() <- window.cpp UpdateWindows()
    : Update the viewport position being displayed.
20. CheckClickOnViewportSign() <- HandleViewportClicked()
    : Check whether any viewport sign was clicked, and dispatch the click.
21. CheckClickOnLandscape() <- HandleViewportClicked()
22. PlaceObject() <- HandleViewportClicked()
23. HandleViewportClicked() <- window.cpp MouseLoop()
    : 点击鼠标左键的事件响应
24. ViewportDraw() <- Window::DrawViewport()
    : Draw the viewport of this window.
25. RebuildViewportOverlay() <- ScrollWindowTo()
    : 区域 SetDirty()
