Tips:

1.高德地图最多支持16个途径点，如果超过可以进行数据优化，或进行数据再次拆分进行规划

2023年6月20日更新

如果遇到获取驾车数据失败 :INVALID_USER_SCODE 请确保是否按官方文档要求的配置了安全密钥

准备-入门-教程-地图 JS API | 高德地图API

引入地图 JSAPI 脚本之前增加设置 JSAPI 安全密钥的脚本标签，并将您的安全密钥「您申请的安全密钥」替换为您的安全密钥；（注意这个设置必须是在 JSAPI 的脚本加载之前进行设置，否则设置无效。）

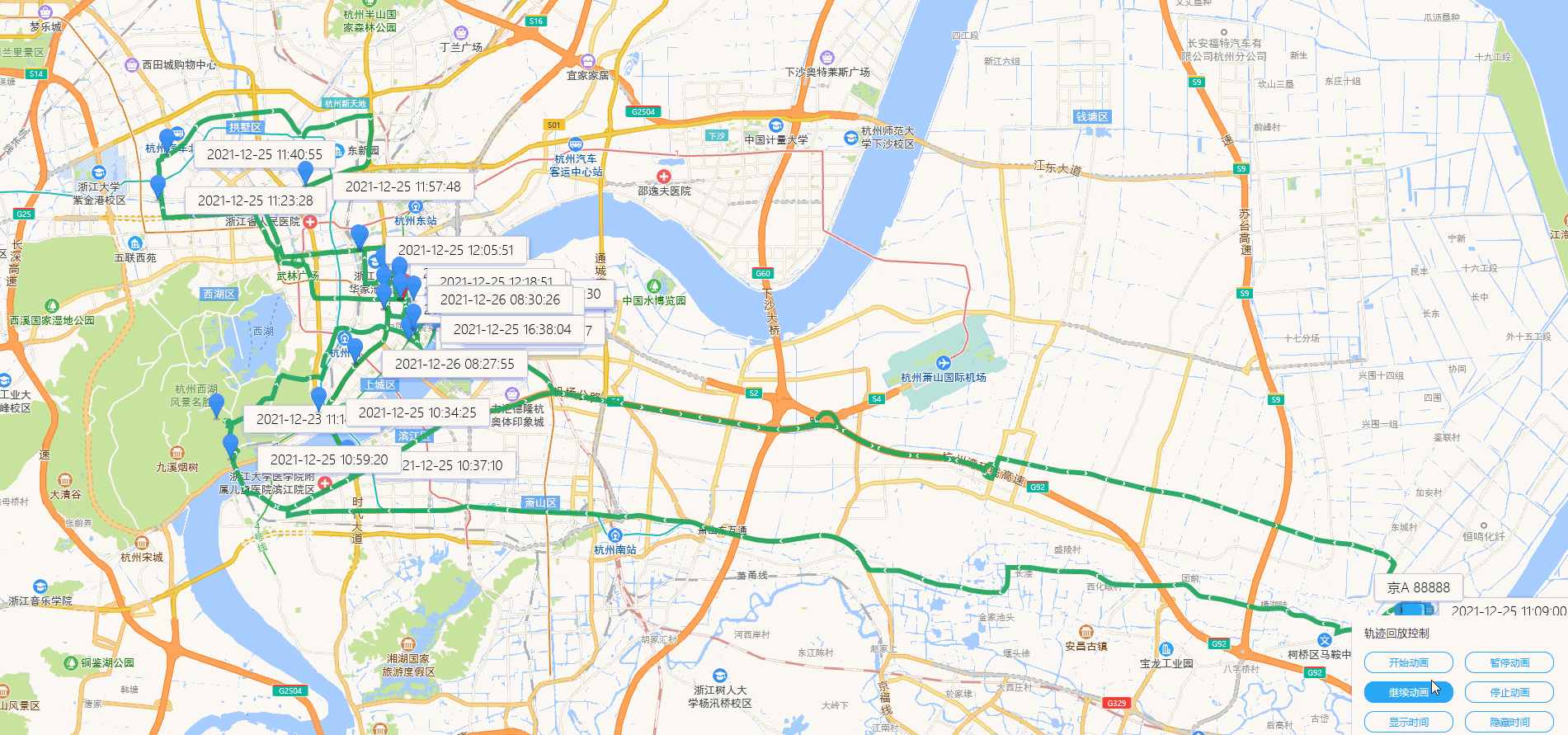

先看下效果

在线演示:https://www.ydxiaoshuai.cn/track.html
HTML代码

记得修改自己的KEY
<!doctype html>
<html>
<head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no, width=device-width">
    <title>轨迹回放</title>
    <link rel="stylesheet" href="https://a.amap.com/jsapi_demos/static/demo-center/css/demo-center.css"/>
    <style>
        html, body, #container {
            height: 100%;
            width: 100%;
            font-family: "微软雅黑";
        }

        .input-card .btn {
            margin-right: 1.2rem;
            width: 9rem;
        }

        .input-card .btn:last-child {
            margin-right: 0;
        }
        .amap-marker-label{
            border: 0;
            background-color: transparent;
        }
        .amap-marker-content img {
            width: 25px;
            height: 34px;
        }

        .info {
            position: relative;
            top: 0;
            right: 0;
            min-width: 0;
            font-size: 16px;
            border: 1px solid rgb(204, 204, 204);
        }
    </style>
</head>
<body>
<div id="container"></div>
<div class="input-card">
    <h4>轨迹回放控制</h4>
    <div class="input-item">
        <input type="button" class="btn" value="开始动画" id="start" onclick="startAnimation()"/>
        <input type="button" class="btn" value="暂停动画" id="pause" onclick="pauseAnimation()"/>
    </div>
    <div class="input-item">
        <input type="button" class="btn" value="继续动画" id="resume" onclick="resumeAnimation()"/>
        <input type="button" class="btn" value="停止动画" id="stop" onclick="stopAnimation()"/>
    </div>
    <div class="input-item">
        <input type="button" class="btn" value="显示时间" id="showDate" onclick="showDate()"/>
        <input type="button" class="btn" value="隐藏时间" id="hideDate" onclick="hideDate()"/>
    </div>
</div>
<script type="text/javascript">
        window._AMapSecurityConfig = {
            securityJsCode:'您申请的安全密钥',
        }
</script>
<script type="text/javascript" src="https://webapi.amap.com/maps?v=1.4.15&key=您申请的key值&plugin=AMap.Driving"></script>
<script>
    //只要起点 和 终点的 经纬度信息
    var allData = "{\"code\":0,\"data\":{\"code\":0,\"rows\":[{\"gpsInfos\":[{\"create_time\":\"2021-12-23 11:06:29\",\"device_no\":\"05710342\",\"dimensionality\":\"30.1457034\",\"longitude\":\"120.628397\"},{\"create_time\":\"2021-12-23 11:14:18\",\"device_no\":\"05710344\",\"dimensionality\":\"30.214728\",\"longitude\":\"120.130949\"},{\"create_time\":\"2021-12-23 13:38:43\",\"device_no\":\"05710084\",\"dimensionality\":\"30.24272034411505\",\"longitude\":\"120.21083422496174\"},{\"create_time\":\"2021-12-23 13:40:55\",\"device_no\":\"05710016\",\"dimensionality\":\"30.245067518396294\",\"longitude\":\"120.21325691364603\"},{\"create_time\":\"2021-12-23 13:42:51\",\"device_no\":\"05710046\",\"dimensionality\":\"30.24941698272965\",\"longitude\":\"120.21701424167102\"},{\"create_time\":\"2021-12-23 13:45:21\",\"device_no\":\"05710018\",\"dimensionality\":\"30.256128996190263\",\"longitude\":\"120.22230022534742\"},{\"create_time\":\"2021-12-23 13:46:01\",\"device_no\":\"05710121\",\"dimensionality\":\"30.259319960160795\",\"longitude\":\"120.22518351942183\"},{\"create_time\":\"2021-12-23 13:53:48\",\"device_no\":\"05710027\",\"dimensionality\":\"30.259707612101607\",\"longitude\":\"120.2252208278293\"},{\"create_time\":\"2021-12-23 15:30:33\",\"device_no\":\"05710121\",\"dimensionality\":\"30.259319960160795\",\"longitude\":\"120.22518351942183\"},{\"create_time\":\"2021-12-23 15:39:30\",\"device_no\":\"05710027\",\"dimensionality\":\"30.259707612101607\",\"longitude\":\"120.2252208278293\"},{\"create_time\":\"2021-12-23 15:39:37\",\"device_no\":\"05710106\",\"dimensionality\":\"30.24648078248098\",\"longitude\":\"120.2218931995549\"}],\"pointDay\":\"2021-12-23 00:00:00\"},{\"gpsInfos\":[{\"create_time\":\"2021-12-25 09:48:40\",\"device_no\":\"05710008\",\"dimensionality\":\"30.257682710325838\",\"longitude\":\"120.20736949202505\"},{\"create_time\":\"2021-12-25 09:51:00\",\"device_no\":\"05710073\",\"dimensionality\":\"30.262882075964665\",\"longitude\":\"120.2072096361178\"},{\"create_time\":\"2021-12-25 10:18:47\",\"device_no\":\"05710271\",\"dimensionality\":\"30.275311\",\"longitude\":\"120.190955\"},{\"create_time\":\"2021-12-25 10:24:39\",\"device_no\":\"05710938\",\"dimensionality\":\"30.26737899\",\"longitude\":\"120.2002456\"},{\"create_time\":\"2021-12-25 10:25:50\",\"device_no\":\"05710936\",\"dimensionality\":\"30.26033171\",\"longitude\":\"120.2004977\"},{\"create_time\":\"2021-12-25 10:26:49\",\"device_no\":\"05710934\",\"dimensionality\":\"30.25411338\",\"longitude\":\"120.2006479\"},{\"create_time\":\"2021-12-25 10:26:49\",\"device_no\":\"05710933\",\"dimensionality\":\"30.25411338\",\"longitude\":\"120.2006479\"},{\"create_time\":\"2021-12-25 10:29:14\",\"device_no\":\"05710949\",\"dimensionality\":\"30.23471909\",\"longitude\":\"120.1884331\"},{\"create_time\":\"2021-12-25 10:34:25\",\"device_no\":\"05710808\",\"dimensionality\":\"30.21715226\",\"longitude\":\"120.1733433\"},{\"create_time\":\"2021-12-25 10:37:10\",\"device_no\":\"05710855\",\"dimensionality\":\"30.19804254\",\"longitude\":\"120.1854881\"},{\"create_time\":\"2021-12-25 10:59:20\",\"device_no\":\"05710345\",\"dimensionality\":\"30.200215\",\"longitude\":\"120.136742\"},{\"create_time\":\"2021-12-25 11:09:00\",\"device_no\":\"05710342\",\"dimensionality\":\"30.1457034\",\"longitude\":\"120.628397\"},{\"create_time\":\"2021-12-25 11:23:28\",\"device_no\":\"05710427\",\"dimensionality\":\"30.2933594464354\",\"longitude\":\"120.106499449073\"},{\"create_time\":\"2021-12-25 11:40:55\",\"device_no\":\"05710282\",\"dimensionality\":\"30.310004\",\"longitude\":\"120.110222\"},{\"create_time\":\"2021-12-25 11:57:48\",\"device_no\":\"05710417\",\"dimensionality\":\"30.298432\",\"longitude\":\"120.167852\"},{\"create_time\":\"2021-12-25 12:05:51\",\"device_no\":\"05710269\",\"dimensionality\":\"30.275508\",\"longitude\":\"120.189923\"},{\"create_time\":\"2021-12-25 12:18:51\",\"device_no\":\"05710075\",\"dimensionality\":\"30.264107697083247\",\"longitude\":\"120.2070549876594\"},{\"create_time\":\"2021-12-25 12:20:40\",\"device_no\":\"05710077\",\"dimensionality\":\"30.25817488973962\",\"longitude\":\"120.20728071317905\"},{\"create_time\":\"2021-12-25 12:25:28\",\"device_no\":\"05710078\",\"dimensionality\":\"30.257050414663\",\"longitude\":\"120.2129408940299\"},{\"create_time\":\"2021-12-25 16:38:04\",\"device_no\":\"05710080\",\"dimensionality\":\"30.24707682944013\",\"longitude\":\"120.21302026256564\"}],\"pointDay\":\"2021-12-25 00:00:00\"},{\"gpsInfos\":[{\"create_time\":\"2021-12-26 08:27:55\",\"device_no\":\"05710920\",\"dimensionality\":\"30.23471909\",\"longitude\":\"120.1884331\"},{\"create_time\":\"2021-12-26 08:30:26\",\"device_no\":\"05710008\",\"dimensionality\":\"30.257682710325838\",\"longitude\":\"120.20736949202505\"}],\"pointDay\":\"2021-12-26 00:00:00\"}],\"total\":33},\"msg\":\"操作成功\"}";
    var lineArr;
    var polyline;
    var passedPolyline;
    //全部的点
    var path = [];
    //是否显示时间
    var showStatus = true;
    //途经点
    var wayMarker;
    //初始化中心坐标
    var centerGPS = ['120.21473911773758', '30.263519892563018'];
    //途经点数组。方便清空数据
    var wayMarkerArray = new Array();
    var carStart, carEnd;
    //创建地图。中心点、缩放等级
    var map = new AMap.Map("container", {
        resizeEnable: true,
        center: [centerGPS[0], centerGPS[1]],
        zoom: 17
    });
    //驾车策略基础信息
    var drivingOption = {
        policy: AMap.DrivingPolicy.LEAST_DISTANCE,
        ferry: 1,
    }
    var gpsData = JSON.parse(allData)
    var rowLength = gpsData.data.rows.length;
    var gpsLength = gpsData.data.rows[rowLength - 1].gpsInfos.length;
    //添加小汽车
    carStart = [gpsData.data.rows[0].gpsInfos[0].longitude, gpsData.data.rows[0].gpsInfos[0].dimensionality]
    carEnd = [gpsData.data.rows[rowLength - 1].gpsInfos[gpsLength - 1].longitude, gpsData.data.rows[rowLength - 1].gpsInfos[gpsLength - 1].dimensionality]
    addCar('京A 88888');
    //递归循环初始索引值
    var dataLength = 0;
    //调用递归
    diGuiFor(dataLength);

    function diGuiFor(dataLength) {
        var data = gpsData.data.rows[dataLength];
        var longitudeS = data.gpsInfos[0].longitude
        var dimensionalityS = data.gpsInfos[0].dimensionality
        var longitudeE = data.gpsInfos[data.gpsInfos.length - 1].longitude
        var dimensionalityE = data.gpsInfos[data.gpsInfos.length - 1].dimensionality
        //大于0
        if (dataLength > 0) {
            //则需要取上一个的结束为起点，
            var dataP = gpsData.data.rows[dataLength - 1];
            longitudeS = dataP.gpsInfos[dataP.gpsInfos.length - 1].longitude
            dimensionalityS = dataP.gpsInfos[dataP.gpsInfos.length - 1].dimensionality
            //本次循环的最后一个为终点
            longitudeE = data.gpsInfos[data.gpsInfos.length - 1].longitude
            dimensionalityE = data.gpsInfos[data.gpsInfos.length - 1].dimensionality
        }
        // 根据起终点经纬度规划驾车导航路线
        var driving = new AMap.Driving(drivingOption, {map: map})
        driving.search(new AMap.LngLat(longitudeS, dimensionalityS),
            new AMap.LngLat(longitudeE, dimensionalityE),
            {waypoints: getWayPoints(data.gpsInfos)},
            function (status, result) {
                if (status === 'complete') {
                    console.info('绘制驾车路线完成')
                    parseRouteToPath(result.routes[0], dataLength)
                    var length = dataLength + 1;
                    if (length < gpsData.data.rows.length) {
                        diGuiFor(dataLength + 1)
                    } else {
                        lineArr = path;
                        drawTrack(path);
                        drawPassedPolyLine();
                        addMarker();
                        map.setFitView();
                    }
                } else {
                    console.info('获取驾车数据失败：' + result)
                }
            });
    }

    function getWayPoints(coords) {
        var GPS = new Array();
        if (coords.length > 1) {
            //不要第一个和最后一个，会导致起点终点图标被覆盖
            for (var i = 1; i < coords.length - 1; i++) {
                var wayPoint = coords[i];
                var wayPointGPS = new AMap.LngLat(wayPoint.longitude, wayPoint.dimensionality)
                GPS.push(wayPointGPS);
            }
        }
        return GPS;
    }

    // 绘制轨迹
    function drawTrack(path) {
        polyline = new AMap.Polyline({
            map: map,
            path: path,
            showDir: true,
            strokeColor: "#18a45b",  //线颜色
            strokeWeight: 6,      //线宽
        });
    }

    // 绘制运动轨迹样式
    function drawPassedPolyLine() {
        passedPolyline = new AMap.Polyline({
            map: map,
            strokeColor: "#AF5",  //线颜色
            strokeWeight: 6,      //线宽
        });
    }

    /*
     增加轨迹回放的小汽车和车牌
     @param plate - 车牌
    */
    function addCar(plate) {
        marker = new AMap.Marker({
            map: map,
            zIndex: 9999,
            position: [carStart[0], carStart[1]],
            icon: "http://lbsyun.baidu.com/jsdemo/img/car.png",
            offset: new AMap.Pixel(-26, -13),
            autoRotation: true,
            label: {
                content: "<div class='info'>" + plate + "</div>",
                offset: new AMap.Pixel(-26, -35),
                autoRotation: true
            }
        });
    }

    // 显示时间
    function showDate() {
        showStatus = true;
        addMarker();
    }

    // 隐藏时间
    function hideDate() {
        showStatus = false;
        addMarker();
    }

    // 实例化点标记
    function addMarker() {
        if (null != wayMarker) {
            wayMarkerArray.forEach(function (wayMarkerPoint) {
                wayMarkerPoint.setMap(null);
            })
            wayMarkerArray = new Array();
        }
        for (var i = 0; i < gpsData.data.rows.length; i++) {
            var data = gpsData.data.rows[i];
            for (var j = 0; j < data.gpsInfos.length; j++) {
                var gpsInfo = data.gpsInfos[j];
                wayMarker = new AMap.Marker({
                    map: map,
                    position: [gpsInfo.longitude, gpsInfo.dimensionality],
                    offset: new AMap.Pixel(-13, -30)
                });
                if (showStatus) {
                    wayMarker.setLabel({
                        offset: new AMap.Pixel(20, 20),  //设置文本标注偏移量
                        content: "<div class='info'>" + gpsInfo.create_time + "</div>", //设置文本标注内容
                        direction: 'right' //设置文本标注方位
                    });
                }
                wayMarkerArray.push(wayMarker);
            }
        }
    }

    /**********起点ICON**********/
    var startMarker = new AMap.Marker({
        position: carStart,
        icon: 'https://webapi.amap.com/theme/v1.3/markers/n/start.png',
        map: map
    })
    /**********终点ICON**********/
    var endMarker = new AMap.Marker({
        position: carEnd,
        icon: 'https://webapi.amap.com/theme/v1.3/markers/n/end.png',
        map: map
    })

    // 调整视野达到最佳显示区域
    map.setFitView([startMarker, endMarker])

    marker.on('moving', function (e) {
        passedPolyline.setPath(e.passedPath);
    });

    /**********动画 START**********/
    function startAnimation() {
        marker.moveAlong(lineArr, 99200);
    }

    function pauseAnimation() {
        marker.pauseMove();
    }

    function resumeAnimation() {
        marker.resumeMove();
    }

    function stopAnimation() {
        marker.stopMove();
    }

    /**********动画 END**********/

    // 解析DrivingRoute对象，构造成AMap.Polyline的path参数需要的格式
    function parseRouteToPath(route, type) {
        for (var i = 0, l = route.steps.length; i < l; i++) {
            var step = route.steps[i]

            for (var j = 0, n = step.path.length; j < n; j++) {
                path.push(step.path[j])
            }
        }
        return path
    }
</script>
</body>
</html>
