Pytorch(1.2.0+)：多机单卡并行实操（MNIST识别）

背景

简单实际操作一下用Pytorch(1.2.0+)进行多机单卡并行训练，可能就不太关注原理了。

---

参考

https://blog.csdn.net/u010557442/article/details/79431520
https://zhuanlan.zhihu.com/p/116482019
https://blog.csdn.net/gbyy42299/article/details/103673840
https://blog.csdn.net/m0_38008956/article/details/86559432

---

代码

https://gitee.com/KevinYan37/pytorch_ddp

流程

1. 配置环境

将多台配置一模一样的电脑（ubuntu系统，显卡版本，NVIDIA驱动，CUDA驱动，pytorch版本）置于同一网段下，例如我的两台电脑分别在192.168.10.235和192.168.10.236，同时关闭防火墙等操作。

2. 确认环境

import torch
print(torch.__version__)
print(torch.cuda.is_available())
print(torch.distributed.is_available())

3. MNIST数据集代码

以下代码都是从torchvision里拷贝得到，只是修改了一下下载路径。

import warnings
from PIL import Image
import os
import os.path
import numpy as np
import torch
from torchvision import datasets
import codecs
import string
import gzip
import lzma
from typing import Any, Callable, Dict, IO, List, Optional, Tuple, Union
from torchvision.datasets.utils import download_url, download_and_extract_archive, extract_archive, \
    verify_str_arg

def get_int(b: bytes) -> int:
    return int(codecs.encode(b, 'hex'), 16)

def open_maybe_compressed_file(path: Union[str, IO]) -> Union[IO, gzip.GzipFile]:
    """Return a file object that possibly decompresses 'path' on the fly.
       Decompression occurs when argument `path` is a string and ends with '.gz' or '.xz'.
    """
    if not isinstance(path, torch._six.string_classes):
        return path
    if path.endswith('.gz'):
        return gzip.open(path, 'rb')
    if path.endswith('.xz'):
        return lzma.open(path, 'rb')
    return open(path, 'rb')


SN3_PASCALVINCENT_TYPEMAP = {
    8: (torch.uint8, np.uint8, np.uint8),
    9: (torch.int8, np.int8, np.int8),
    11: (torch.int16, np.dtype('>i2'), 'i2'),
    12: (torch.int32, np.dtype('>i4'), 'i4'),
    13: (torch.float32, np.dtype('>f4'), 'f4'),
    14: (torch.float64, np.dtype('>f8'), 'f8')
}


def read_sn3_pascalvincent_tensor(path: Union[str, IO], strict: bool = True) -> torch.Tensor:
    """Read a SN3 file in "Pascal Vincent" format (Lush file 'libidx/idx-io.lsh').
       Argument may be a filename, compressed filename, or file object.
    """
    # read
    with open_maybe_compressed_file(path) as f:
        data = f.read()
    # parse
    magic = get_int(data[0:4])
    nd = magic % 256
    ty = magic // 256
    assert nd >= 1 and nd <= 3
    assert ty >= 8 and ty <= 14
    m = SN3_PASCALVINCENT_TYPEMAP[ty]
    s = [get_int(data[4 * (i + 1): 4 * (i + 2)]) for i in range(nd)]
    parsed = np.frombuffer(data, dtype=m[1], offset=(4 * (nd + 1)))
    assert parsed.shape[0] == np.prod(s) or not strict
    return torch.from_numpy(parsed.astype(m[2], copy=False)).view(*s)


def read_label_file(path: str) -> torch.Tensor:
    with open(path, 'rb') as f:
        x = read_sn3_pascalvincent_tensor(f, strict=False)
    assert(x.dtype == torch.uint8)
    assert(x.ndimension() == 1)
    return x.long()


def read_image_file(path: str) -> torch.Tensor:
    with open(path, 'rb') as f:
        x = read_sn3_pascalvincent_tensor(f, strict=False)
    assert(x.dtype == torch.uint8)
    assert(x.ndimension() == 3)
    return x


class MNIST(datasets.VisionDataset):
    """`MNIST <http://yann.lecun.com/exdb/mnist/>`_ Dataset.
    Args:
        root (string): Root directory of dataset where ``MNIST/processed/training.pt``
            and  ``MNIST/processed/test.pt`` exist.
        train (bool, optional): If True, creates dataset from ``training.pt``,
            otherwise from ``test.pt``.
        download (bool, optional): If true, downloads the dataset from the internet and
            puts it in root directory. If dataset is already downloaded, it is not
            downloaded again.
        transform (callable, optional): A function/transform that  takes in an PIL image
            and returns a transformed version. E.g, ``transforms.RandomCrop``
        target_transform (callable, optional): A function/transform that takes in the
            target and transforms it.
    """

    resources = [
        ("file://./data/MNIST/train-images-idx3-ubyte.gz", "f68b3c2dcbeaaa9fbdd348bbdeb94873"),
        ("file://./data/MNIST/train-labels-idx1-ubyte.gz", "d53e105ee54ea40749a09fcbcd1e9432"),
        ("file://./data/MNIST/t10k-images-idx3-ubyte.gz", "9fb629c4189551a2d022fa330f9573f3"),
        ("file://./data/MNIST/t10k-labels-idx1-ubyte.gz", "ec29112dd5afa0611ce80d1b7f02629c")
    ]

    training_file = 'training.pt'
    test_file = 'test.pt'
    classes = ['0 - zero', '1 - one', '2 - two', '3 - three', '4 - four',
               '5 - five', '6 - six', '7 - seven', '8 - eight', '9 - nine']

    @property
    def train_labels(self):
        warnings.warn("train_labels has been renamed targets")
        return self.targets

    @property
    def test_labels(self):
        warnings.warn("test_labels has been renamed targets")
        return self.targets

    @property
    def train_data(self):
        warnings.warn("train_data has been renamed data")
        return self.data

    @property
    def test_data(self):
        warnings.warn("test_data has been renamed data")
        return self.data

    def __init__(
            self,
            root: str,
            train: bool = True,
            transform: Optional[Callable] = None,
            target_transform: Optional[Callable] = None,
            download: bool = False,
    ) -> None:
        super(MNIST, self).__init__(root, transform=transform,
                                    target_transform=target_transform)
        self.train = train  # training set or test set

        if download:
            self.download()

        if not self._check_exists():
            raise RuntimeError('Dataset not found.' +
                               ' You can use download=True to download it')

        if self.train:
            data_file = self.training_file
        else:
            data_file = self.test_file
        self.data, self.targets = torch.load(os.path.join(self.processed_folder, data_file))

    def __getitem__(self, index: int) -> Tuple[Any, Any]:
        """
        Args:
            index (int): Index
        Returns:
            tuple: (image, target) where target is index of the target class.
        """
        img, target = self.data[index], int(self.targets[index])

        # doing this so that it is consistent with all other datasets
        # to return a PIL Image
        img = Image.fromarray(img.numpy(), mode='L')

        if self.transform is not None:
            img = self.transform(img)

        if self.target_transform is not None:
            target = self.target_transform(target)

        return img, target

    def __len__(self) -> int:
        return len(self.data)

    @property
    def raw_folder(self) -> str:
        return os.path.join(self.root, self.__class__.__name__, 'raw')

    @property
    def processed_folder(self) -> str:
        return os.path.join(self.root, self.__class__.__name__, 'processed')

    @property
    def class_to_idx(self) -> Dict[str, int]:
        return {_class: i for i, _class in enumerate(self.classes)}

    def _check_exists(self) -> bool:
        return (os.path.exists(os.path.join(self.processed_folder,
                                            self.training_file)) and
                os.path.exists(os.path.join(self.processed_folder,
                                            self.test_file)))

    def download(self) -> None:
        """Download the MNIST data if it doesn't exist in processed_folder already."""

        if self._check_exists():
            return

        os.makedirs(self.raw_folder, exist_ok=True)
        os.makedirs(self.processed_folder, exist_ok=True)

        # download files
        for url, md5 in self.resources:
            filename = url.rpartition('/')[2]
            download_and_extract_archive(url, download_root=self.raw_folder, filename=filename, md5=md5)

        # process and save as torch files
        print('Processing...')

        training_set = (
            read_image_file(os.path.join(self.raw_folder, 'train-images-idx3-ubyte')),
            read_label_file(os.path.join(self.raw_folder, 'train-labels-idx1-ubyte'))
        )
        test_set = (
            read_image_file(os.path.join(self.raw_folder, 't10k-images-idx3-ubyte')),
            read_label_file(os.path.join(self.raw_folder, 't10k-labels-idx1-ubyte'))
        )
        with open(os.path.join(self.processed_folder, self.training_file), 'wb') as f:
            torch.save(training_set, f)
        with open(os.path.join(self.processed_folder, self.test_file), 'wb') as f:
            torch.save(test_set, f)

        print('Done!')

    def extra_repr(self) -> str:
        return "Split: {}".format("Train" if self.train is True else "Test")

4. 训练代码

from __future__ import print_function
import argparse
import torch
import torch.nn as nn
import time

import torch.nn.parallel
import torch.nn.functional as F
import torch.backends.cudnn as cudnn
import torch.distributed as dist
import torch.utils.data
import torch.utils.data.distributed
import torch.optim as optim
from torchvision import datasets, transforms
from torch.autograd import Variable

from MNIST import MNIST

# Training settings
parser = argparse.ArgumentParser(description='PyTorch MNIST Example')
parser.add_argument('--batch-size', type=int, default=64, metavar='N',
                    help='input batch size for training (default: 64)')
parser.add_argument('--test-batch-size', type=int, default=1000, metavar='N',
                    help='input batch size for testing (default: 1000)')
parser.add_argument('--epochs', type=int, default=10, metavar='N',
                    help='number of epochs to train (default: 10)')
parser.add_argument('--lr', type=float, default=0.01, metavar='LR',
                    help='learning rate (default: 0.01)')
parser.add_argument('--momentum', type=float, default=0.5, metavar='M',
                    help='SGD momentum (default: 0.5)')
parser.add_argument('--no-cuda', action='store_true', default=False,
                    help='disables CUDA training')
parser.add_argument('--seed', type=int, default=1, metavar='S',
                    help='random seed (default: 1)')
parser.add_argument('--log-interval', type=int, default=10, metavar='N',
                    help='how many batches to wait before logging training status')
# 必须设置的参数
parser.add_argument('--tcp', type=str, default='tcp://192.168.10.235:23456', metavar='N',
                    help='how many batches to wait before logging training status')
parser.add_argument('--rank', type=int, default=0, metavar='N',
                    help='pytorch distribued rank')
args = parser.parse_args()
args.cuda = not args.no_cuda and torch.cuda.is_available()

#初始化
dist.init_process_group(init_method=args.tcp,backend="nccl",rank=args.rank,world_size=2,group_name="pytorch_test")

torch.manual_seed(args.seed)
if args.cuda:
    torch.cuda.manual_seed(args.seed)

train_dataset=MNIST('./data', train=True, download=True,
               transform=transforms.Compose([
                   transforms.ToTensor(),
                   transforms.Normalize((0.1307,), (0.3081,))
               ]))
# 分发数据
train_sampler = torch.utils.data.distributed.DistributedSampler(train_dataset)

kwargs = {'num_workers': 1, 'pin_memory': True} if args.cuda else {}

train_loader = torch.utils.data.DataLoader(train_dataset,
    batch_size=args.batch_size, shuffle=True, **kwargs)
test_loader = torch.utils.data.DataLoader(
    MNIST('./data', train=False, transform=transforms.Compose([
                       transforms.ToTensor(),
                       transforms.Normalize((0.1307,), (0.3081,))
                   ])),
    batch_size=args.test_batch_size, shuffle=True, **kwargs)


class Net(nn.Module):
    def __init__(self):
        super(Net, self).__init__()
        self.conv1 = nn.Conv2d(1, 10, kernel_size=5)
        self.conv2 = nn.Conv2d(10, 20, kernel_size=5)
        self.conv2_drop = nn.Dropout2d()
        self.fc1 = nn.Linear(320, 50)
        self.fc2 = nn.Linear(50, 10)

    def forward(self, x):
        x = F.relu(F.max_pool2d(self.conv1(x), 2))
        x = F.relu(F.max_pool2d(self.conv2_drop(self.conv2(x)), 2))
        x = x.view(-1, 320)
        x = F.relu(self.fc1(x))
        x = F.dropout(x, training=self.training)
        x = self.fc2(x)
        return F.log_softmax(x)

model = Net()
if args.cuda:
    # 分发模型
    model.cuda()
    model = torch.nn.parallel.DistributedDataParallel(model)
    # model = torch.nn.DataParallel(model,device_ids=[0,1,2,3]).cuda()
    # model.cuda()

optimizer = optim.SGD(model.parameters(), lr=args.lr, momentum=args.momentum)

def train(epoch):
    model.train()
    for batch_idx, (data, target) in enumerate(train_loader):
        if args.cuda:
            data, target = data.cuda(), target.cuda()
        data, target = Variable(data), Variable(target)
        optimizer.zero_grad()
        output = model(data)
        loss = F.nll_loss(output, target)
        loss.backward()
        optimizer.step()
        if batch_idx % args.log_interval == 0:

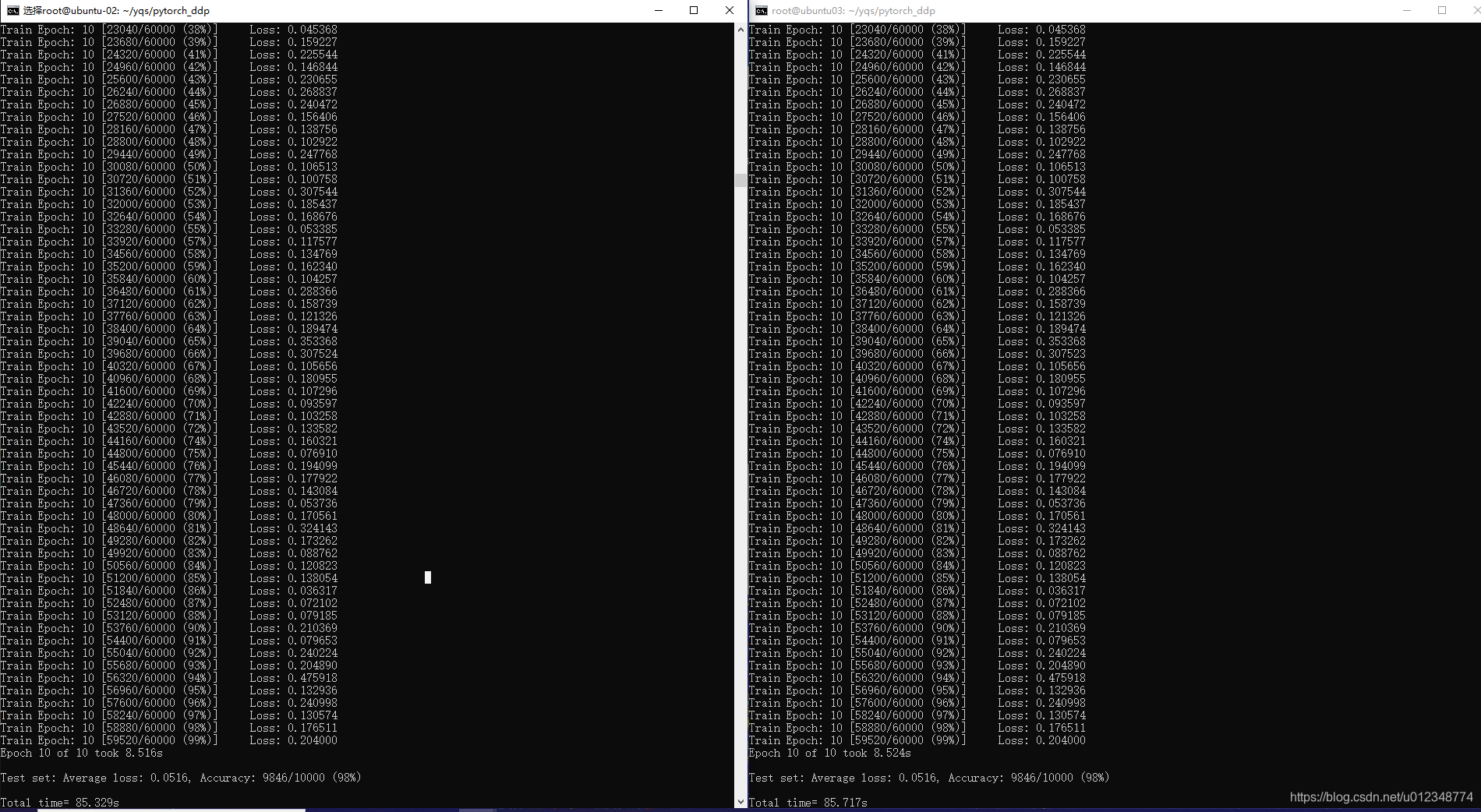

            print('Train Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(
                epoch, batch_idx * len(data), len(train_loader.dataset),
                100. * batch_idx / len(train_loader), loss.item()))

def test():
    model.eval()
    test_loss = 0
    correct = 0
    for data, target in test_loader:
        if args.cuda:
            data, target = data.cuda(), target.cuda()
        data, target = Variable(data, volatile=True), Variable(target)
        output = model(data)
        test_loss += F.nll_loss(output, target, size_average=False).item() # sum up batch loss
        pred = output.data.max(1, keepdim=True)[1] # get the index of the max log-probability
        correct += pred.eq(target.data.view_as(pred)).cpu().sum()

    test_loss /= len(test_loader.dataset)
    print('\nTest set: Average loss: {:.4f}, Accuracy: {}/{} ({:.0f}%)\n'.format(
        test_loss, correct, len(test_loader.dataset),
        100. * correct / len(test_loader.dataset)))

tot_time=0;

for epoch in range(1, args.epochs + 1):
    # 设置epoch位置，这应该是个为了同步所做的工作
    train_sampler.set_epoch(epoch)
    start_cpu_secs = time.time()
    #long running
    train(epoch)
    end_cpu_secs = time.time()
    print("Epoch {} of {} took {:.3f}s".format(
        epoch , args.epochs , end_cpu_secs - start_cpu_secs))
    tot_time+=end_cpu_secs - start_cpu_secs
    test()

print("Total time= {:.3f}s".format(tot_time))

5. 运行代码

在两台电脑上分别运行代码即可

# 主机，rank为0
python test.py --tcp '192.168.10.235:23456' --rank 0

在另外一台电脑上运行

python test.py --tcp '192.168.10.235:23456' --rank 1

总结

本次就是一个简单的操作，具体细节原理就不讨论了，以后继续学习。
