Spark根据RDD间的依赖关系是否是Shuffle依赖进行Stage的划分，为了说明问题在这里先执行的Stage标记为Stage1，后执行的Stage标记为Stage2。Shuffle分2步操作

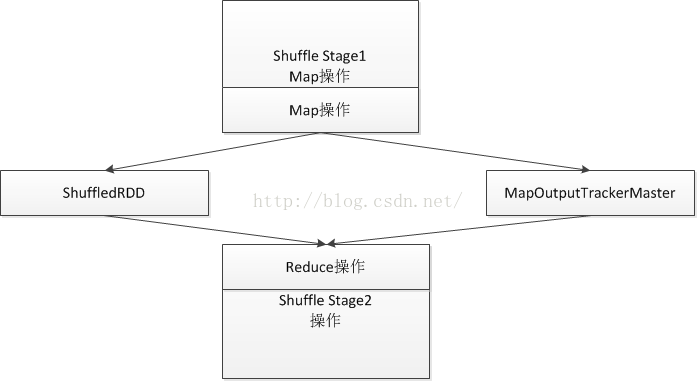

Map操作和Recude操作可以通过下面这个图表示出来：
1. Map操作。Map操作在Stage1结束的时候执行；Map操作的作用是将Stage1阶段的一个partition的数据写入到Shuffle文件，Shuffle文件保存在执行Map操作的节点的本地磁盘
2. Reduce操作。 Reduce操作在Stage2开始的时候执行；Reduce操作的作用是读取Map操作生成的Shuffle文件，生成Stage2的一个partition
Map操作与Recude操作通过ShuffledRDD类和MapOutputTrackerMaster类联系起来。
通过ShuffledRDD可以找到Stage1和Stage2之间的依赖关系，这个依赖关系里面包含了横跨2个Stage间ShuffledRDD的分区算法类Partitioner，数据合并类Aggregator、数据序列化类Serializer等。
MapOutputTrackerMaster类保存了Stage1是如何生成Shuffle文件的，Stage2根据MapOutputTrackerMaster类对Shuffle文件的描述读取Shuffle磁盘的文件，产生Stage2的一个分区的数据。
Stage1(Shuffle Map任务)执行完成之后，Spark Driver采用如下时序图进行任务的调度启动Stage2：
上面的时序图对理解Spark shuffle任务调度特别重要，由于显示的不清楚请同学们放大观看，放大后能够清晰显示！
ShuffleMapTask运行结束之后，将生成的Shuffle文件信息返回给TaskRunner类，TaskRunner调用CoarseGrainedExecutorBackend.statusUpdate方法将Shuffle文件信息发送给CoarseGrainedSchedulerBackend类给CoarseGrainedSchedulerBackend类接收到消息后，会调用TaskSchedulerImpl.statusUpate处理任务状态变更消息。
TaskSchdeulerImpl.statusUpdate主要干了以下2件事情：
1. 通过调用TaskSetManager.removeRunningTask将成功完成的任务从TaskSetManager.runningTasksSet HashMap中删除
2.调用TaskResultGetter.enqueueSuccessFullTask将ShuffleMapTask返回信息deserialize，还原ShuffleMapTask返回的对象，这个对象会发送给TaskSchedulerImpl。.默认情况下，ShuffleMapTask返回结果大于1G返回结果会丢弃，并将结果丢弃信息发送给Driver；如果返回信息大于10M-200K，则将返回信息serialize后保存到BlockManager；其它情况则将ShuffleMapTask返回序列化后直接发送给Driver。所以在这一步中，TaskResultGetter.enqueueSuccessFullTask根据这几种情况对结果分别加以处理。处理完成之后会调用TaskSchedulerImpl.handleSuccessfullTask
相关代码为：
def enqueueSuccessfulTask(
taskSetManager: TaskSetManager, tid: Long, serializedData: ByteBuffer) {
getTaskResultExecutor.execute(new Runnable {
override def run(): Unit = Utils.logUncaughtExceptions {
try {
val (result, size) = serializer.get().deserialize[TaskResult[_]](serializedData) match {
/*
* 直接返回结果的处理，这种情况下返回信息没有保存在BlockManager
* */
case directResult: DirectTaskResult[_] =>
if (!taskSetManager.canFetchMoreResults(serializedData.limit())) {
return
}
// deserialize "value" without holding any lock so that it won't block other threads.
// We should call it here, so that when it's called again in
// "TaskSetManager.handleSuccessfulTask", it does not need to deserialize the value.
directResult.value()
(directResult, serializedData.limit())
/*
* 间接返回结果的处理，这种情况下返回信息保存在BlockManager。从BlockManager读取返回信息之后，需要将返回信息从BlockManager删除
* */
case IndirectTaskResult(blockId, size) =>
if (!taskSetManager.canFetchMoreResults(size)) {
// dropped by executor if size is larger than maxResultSize
sparkEnv.blockManager.master.removeBlock(blockId)
return
}
logDebug("Fetching indirect task result for TID %s".format(tid))
scheduler.handleTaskGettingResult(taskSetManager, tid)
val serializedTaskResult = sparkEnv.blockManager.getRemoteBytes(blockId)
if (!serializedTaskResult.isDefined) {
/* We won't be able to get the task result if the machine that ran the task failed
* between when the task ended and when we tried to fetch the result, or if the
* block manager had to flush the result. */
scheduler.handleFailedTask(
taskSetManager, tid, TaskState.FINISHED, TaskResultLost)
return
}
val deserializedResult = serializer.get().deserialize[DirectTaskResult[_]](
serializedTaskResult.get)
sparkEnv.blockManager.master.removeBlock(blockId)
(deserializedResult, size)
}
result.metrics.setResultSize(size)
/*
* Task返回信息已经处理完毕，调用TaskSchedulerImpl.handleSuccessfulTask进行近一步的处理
* */
scheduler.handleSuccessfulTask(taskSetManager, tid, result)
} catch {
case cnf: ClassNotFoundException =>
val loader = Thread.currentThread.getContextClassLoader
taskSetManager.abort("ClassNotFound with classloader: " + loader)
// Matching NonFatal so we don't catch the ControlThrowable from the "return" above.
case NonFatal(ex) =>
logError("Exception while getting task result", ex)
taskSetManager.abort("Exception while getting task result: %s".format(ex))
}
}
})
}TaskSchedulerImpl.handleSuccessfulTask主要调用了TaskSetManager.handleSuccessfulTask方法进入了任务集内部的任务调度处理。
TaskSetManager.handleSuccessfulTask调用DAGScheduler.taskEnded方法给DAGSchedulerEventProcessLoop发送任务完成CompletionEvent消息，接收到消息之后调用DAGScheduler.handleTaskCompletion方法处理任务完成的收尾工作。
在DAGScheduler.handleTaskCompletion方法首先调用ShuffleMapStage.addOutputLoc将TaskResultGetter.enqueueSuccessFullTask deserialize出来的对象存入ShuffleMapStage.outLocs数组中，这个对象就是一个Shuffle文件的描述信息。当一个Stage的所有Task都完成之后，DAGScheduler把ShuffleMapStage.outLocs的信息通过调用MapOutputTrackerMaster.registerMapOutputs方法将每个Stage1分区对应的Shuffle文件消息保存到MapOutputTrackerMaster。Stage1成功完成之后，从Stage等待队列中找到所有没有Parent的Stage，执行DAGScheduler.submitMissingTasks把每个Stage转化成任务放到任务等待队列，然后申请资源，执行任务。在这里的包含了以Shuffle reduce操作开始的Stage2。代码如下：
private[scheduler] def handleTaskCompletion(event: CompletionEvent) {
val task = event.task
val stageId = task.stageId
val taskType = Utils.getFormattedClassName(task)
outputCommitCoordinator.taskCompleted(stageId, task.partitionId,
event.taskInfo.attempt, event.reason)
// The success case is dealt with separately below, since we need to compute accumulator
// updates before posting.
if (event.reason != Success) {
val attemptId = stageIdToStage.get(task.stageId).map(_.latestInfo.attemptId).getOrElse(-1)
listenerBus.post(SparkListenerTaskEnd(stageId, attemptId, taskType, event.reason,
event.taskInfo, event.taskMetrics))
}
if (!stageIdToStage.contains(task.stageId)) {
// Skip all the actions if the stage has been cancelled.
return
}
val stage = stageIdToStage(task.stageId)
event.reason match {
case Success =>
listenerBus.post(SparkListenerTaskEnd(stageId, stage.latestInfo.attemptId, taskType,
event.reason, event.taskInfo, event.taskMetrics))
stage.pendingTasks -= task
task match {
case rt: ResultTask[_, _] =>
// Cast to ResultStage here because it's part of the ResultTask
// TODO Refactor this out to a function that accepts a ResultStage
val resultStage = stage.asInstanceOf[ResultStage]
resultStage.resultOfJob match {
case Some(job) =>
if (!job.finished(rt.outputId)) {
updateAccumulators(event)
job.finished(rt.outputId) = true
job.numFinished += 1
// If the whole job has finished, remove it
if (job.numFinished == job.numPartitions) {
markStageAsFinished(resultStage)
cleanupStateForJobAndIndependentStages(job)
listenerBus.post(
SparkListenerJobEnd(job.jobId, clock.getTimeMillis(), JobSucceeded))
}
// taskSucceeded runs some user code that might throw an exception. Make sure
// we are resilient against that.
try {
job.listener.taskSucceeded(rt.outputId, event.result)
} catch {
case e: Exception =>
// TODO: Perhaps we want to mark the resultStage as failed?
job.listener.jobFailed(new SparkDriverExecutionException(e))
}
}
case None =>
logInfo("Ignoring result from " + rt + " because its job has finished")
}
case smt: ShuffleMapTask =>
val shuffleStage = stage.asInstanceOf[ShuffleMapStage]
updateAccumulators(event)
val status = event.result.asInstanceOf[MapStatus]
val execId = status.location.executorId
logDebug("ShuffleMapTask finished on " + execId)
if (failedEpoch.contains(execId) && smt.epoch <= failedEpoch(execId)) {
logInfo("Ignoring possibly bogus ShuffleMapTask completion from " + execId)
} else {
/*
* 记录shuffle map阶段一个partition的返回结果到stage.outputLocs
* shuffle map阶段将一个partition的数据根据Partitioner对Key进行运算后shuffle到reduce阶段的N个分区中，这些数据写记录到本地disk的一个文件中
* shuffle map阶段的返回结果就是reduce阶段每个partition的数据长度
* 因为在这个文件中是根据partition index从0开始依次记录的，所以知道每位partition的数据长度后，也就知道了每个partition数据在这个partition的起始地址
* */
shuffleStage.addOutputLoc(smt.partitionId, status)
}
/*
* 一个stage的所有task都执行完，没有pending的task了
* */
if (runningStages.contains(shuffleStage) && shuffleStage.pendingTasks.isEmpty) {
markStageAsFinished(shuffleStage)
logInfo("looking for newly runnable stages")
logInfo("running: " + runningStages)
logInfo("waiting: " + waitingStages)
logInfo("failed: " + failedStages)
// We supply true to increment the epoch number here in case this is a
// recomputation of the map outputs. In that case, some nodes may have cached
// locations with holes (from when we detected the error) and will need the
// epoch incremented to refetch them.
// TODO: Only increment the epoch number if this is not the first time
// we registered these map outputs.
/*
* Shuffle Stage的任务等待队列没有任务之后，将这个Stage的所有ShuffleMapTask的返回结果保存到MapOutputTrackerMaster
* */
mapOutputTracker.registerMapOutputs(
shuffleStage.shuffleDep.shuffleId,
shuffleStage.outputLocs.map(list => if (list.isEmpty) null else list.head).toArray,
changeEpoch = true)
clearCacheLocs()
if (shuffleStage.outputLocs.contains(Nil)) {
// Some tasks had failed; let's resubmit this shuffleStage
// TODO: Lower-level scheduler should also deal with this
logInfo("Resubmitting " + shuffleStage + " (" + shuffleStage.name +
") because some of its tasks had failed: " +
shuffleStage.outputLocs.zipWithIndex.filter(_._1.isEmpty)
.map(_._2).mkString(", "))
submitStage(shuffleStage)
} else {
val newlyRunnable = new ArrayBuffer[Stage]
for (shuffleStage <- waitingStages) {
logInfo("Missing parents for " + shuffleStage + ": " +
getMissingParentStages(shuffleStage))
}
/*
* 一个Stage成功完成之后，从Stage等待队列中找到所有没有Parent的Stage，执行DAGScheduler.submitMissingTasks把每个Stage转化成任务放到任务等待队列，
* 然后申请资源，执行任务。在这里的包含了以Shuffle reduce操作开始的Stage
* */
for (shuffleStage <- waitingStages if getMissingParentStages(shuffleStage).isEmpty)
{
newlyRunnable += shuffleStage
}
waitingStages --= newlyRunnable
runningStages ++= newlyRunnable
for {
shuffleStage <- newlyRunnable.sortBy(_.id)
jobId <- activeJobForStage(shuffleStage)
} {
logInfo("Submitting " + shuffleStage + " (" +
shuffleStage.rdd + "), which is now runnable")
submitMissingTasks(shuffleStage, jobId)
}
}
}
}
case Resubmitted =>
logInfo("Resubmitted " + task + ", so marking it as still running")
stage.pendingTasks += task
case FetchFailed(bmAddress, shuffleId, mapId, reduceId, failureMessage) =>
val failedStage = stageIdToStage(task.stageId)
val mapStage = shuffleToMapStage(shuffleId)
// It is likely that we receive multiple FetchFailed for a single stage (because we have
// multiple tasks running concurrently on different executors). In that case, it is possible
// the fetch failure has already been handled by the scheduler.
if (runningStages.contains(failedStage)) {
logInfo(s"Marking $failedStage (${failedStage.name}) as failed " +
s"due to a fetch failure from $mapStage (${mapStage.name})")
markStageAsFinished(failedStage, Some(failureMessage))
}
if (disallowStageRetryForTest) {
abortStage(failedStage, "Fetch failure will not retry stage due to testing config")
} else if (failedStages.isEmpty) {
// Don't schedule an event to resubmit failed stages if failed isn't empty, because
// in that case the event will already have been scheduled.
// TODO: Cancel running tasks in the stage
logInfo(s"Resubmitting $mapStage (${mapStage.name}) and " +
s"$failedStage (${failedStage.name}) due to fetch failure")
messageScheduler.schedule(new Runnable {
override def run(): Unit = eventProcessLoop.post(ResubmitFailedStages)
}, DAGScheduler.RESUBMIT_TIMEOUT, TimeUnit.MILLISECONDS)
}
failedStages += failedStage
failedStages += mapStage
// Mark the map whose fetch failed as broken in the map stage
if (mapId != -1) {
mapStage.removeOutputLoc(mapId, bmAddress)
mapOutputTracker.unregisterMapOutput(shuffleId, mapId, bmAddress)
}
// TODO: mark the executor as failed only if there were lots of fetch failures on it
if (bmAddress != null) {
handleExecutorLost(bmAddress.executorId, fetchFailed = true, Some(task.epoch))
}
case commitDenied: TaskCommitDenied =>
// Do nothing here, left up to the TaskScheduler to decide how to handle denied commits
case ExceptionFailure(className, description, stackTrace, fullStackTrace, metrics) =>
// Do nothing here, left up to the TaskScheduler to decide how to handle user failures
case TaskResultLost =>
// Do nothing here; the TaskScheduler handles these failures and resubmits the task.
case other =>
// Unrecognized failure - also do nothing. If the task fails repeatedly, the TaskScheduler
// will abort the job.
}
submitWaitingStages()
}MapOutputTrackerMaster中保存的shuffleMap阶段的返回信息是一个二维数组，数组的第一维度是Stage1也就是Map操作所在的Stage的分区index；数组的第二维度是Stage2也就是reduce操作所在的Stage的分区index。

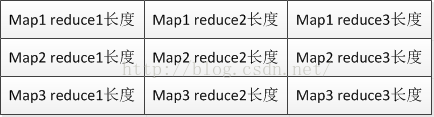

假设Stage1 Map操作有3个分区，Stage2 Reduce操作同样也有3个分区，那么MapOutputTrackerMaster中保存的shuffleMap阶段的返回信息可以用如下图表示：
上图中的Shuffle操作把Stage1的一个分区的数据Shuffle到了Stage2的3个分区，"Map2 reduce1长度"表示Stage1中第二个分区的数据Shuffle到Stage2第一个分区的数据长度
在DAGScheduler.submitMissingTasks方法里面，会调用到DAGScheduler.getPreferredLocs方法计算出这个Stage每个任务的位置在DAGScheduler.getPreferredLocs方法里面，会调用到DAGScheduler.getPreferredLocsInternal方法计算出这个Stage每个任务的位置
DAGScheduler.getPreferredLocsInternal会调用MapOutputTrackerMaster.getLocationsWithLargestOutputs确定Task的位置
表示Task位置的数据结构为TaskLocation，具体源码为：
private[spark] object TaskLocation {
// We identify hosts on which the block is cached with this prefix. Because this prefix contains
// underscores, which are not legal characters in hostnames, there should be no potential for
// confusion. See RFC 952 and RFC 1123 for information about the format of hostnames.
val inMemoryLocationTag = "hdfs_cache_"
def apply(host: String, executorId: String): TaskLocation = {
new ExecutorCacheTaskLocation(host, executorId)
}
/**
* Create a TaskLocation from a string returned by getPreferredLocations.
* These strings have the form [hostname] or hdfs_cache_[hostname], depending on whether the
* location is cached.
*/
def apply(str: String): TaskLocation = {
val hstr = str.stripPrefix(inMemoryLocationTag)
if (hstr.equals(str)) {
new HostTaskLocation(str)
} else {
new HostTaskLocation(hstr)
}
}
}计算方法为：在Stage1某个TaskLocation上partition Shuffle后数据占Stage2 partition所有数据的比率大于REDUCER_PREF_LOCS_FRACTION，则这个TaskLocation会作为Stage2任务的TaskLocation
以上图"Map2 reduce2长度"为例：(Map2 reduce2的长度)/(Map1 reduce2长度 + Map2 reduce2长度 + Map3 reduce2长度) > REDUCER_PREF_LOCS_FRACTION则使用Map2在Stage1所在节点的IP地址和Executor Id创建TaskLocation
通过TaskLocation的定义可以知道实际创建的TaskLocation类型是ExecutorCacheLocation
具体代码为：
private def getPreferredLocsInternal(
rdd: RDD[_],
partition: Int,
visited: HashSet[(RDD[_], Int)]): Seq[TaskLocation] = {
// If the partition has already been visited, no need to re-visit.
// This avoids exponential path exploration. SPARK-695
if (!visited.add((rdd, partition))) {
// Nil has already been returned for previously visited partitions.
return Nil
}
// If the partition is cached, return the cache locations
val cached = getCacheLocs(rdd)(partition)
if (cached.nonEmpty) {
return cached
}
// If the RDD has some placement preferences (as is the case for input RDDs), get those
val rddPrefs = rdd.preferredLocations(rdd.partitions(partition)).toList
if (rddPrefs.nonEmpty) {
return rddPrefs.map(TaskLocation(_))
}
rdd.dependencies.foreach {
case n: NarrowDependency[_] =>
// If the RDD has narrow dependencies, pick the first partition of the first narrow dep
// that has any placement preferences. Ideally we would choose based on transfer sizes,
// but this will do for now.
for (inPart <- n.getParents(partition)) {
val locs = getPreferredLocsInternal(n.rdd, inPart, visited)
if (locs != Nil) {
return locs
}
}
case s: ShuffleDependency[_, _, _] =>
// For shuffle dependencies, pick locations which have at least REDUCER_PREF_LOCS_FRACTION
// of data as preferred locations
if (shuffleLocalityEnabled &&
rdd.partitions.size < SHUFFLE_PREF_REDUCE_THRESHOLD &&
s.rdd.partitions.size < SHUFFLE_PREF_MAP_THRESHOLD) {
// Get the preferred map output locations for this reducer
/*
*根据Stage1 shuffle map操作各个任务的返回值确定Stage2 shuffle reduce操作各个任务的本地性
*在Stage1某个节点partition Shuffle后数据占Stage2 partition所有数据的比率大于REDUCER_PREF_LOCS_FRACTION（默认0.2），则这个
* 节点会作为Stage2任务的启动节点
* */
val topLocsForReducer = mapOutputTracker.getLocationsWithLargestOutputs(s.shuffleId,
partition, rdd.partitions.size, REDUCER_PREF_LOCS_FRACTION)
if (topLocsForReducer.nonEmpty) {
return topLocsForReducer.get.map(loc => TaskLocation(loc.host, loc.executorId))
}
}
case _ =>
}
Nil
}DAGScheduler.submitMissingTasks会根据TaskLocation创建ShuffleMapTask或者ResultTask，如果Shuffle后的数据，没有能够满足条件创建ExecutorCacheLocation，则在创建ShuffleMapTask或者ResultTask的时候，传入的locs参数为Nil
创建完某个Stage的任务之后，然后调用TaskSchedulerImpl.submitTasks创建TaskSetManager，在创建TaskSetManager的时候会根据ShuffleMapTask或者ResultTask的TaskLocality加入到不同的HashMap中，代码如下：
<pre name="code" class="java"> private def addPendingTask(index: Int, readding: Boolean = false) {
// Utility method that adds `index` to a list only if readding=false or it's not already there
def addTo(list: ArrayBuffer[Int]) {
if (!readding || !list.contains(index)) {
list += index
}
}
for (loc <- tasks(index).preferredLocations) {//preferredLocation方法返回partition所在的IP地址和Executor id
loc match {
case e: ExecutorCacheTaskLocation =>
/*
* 在创建ShuffleMapTask或者ResultTask的时候，如果这个Task传入的locs参数类型为ExecutorCacheTaskLocation则将Task id加入到pendingTasksForExecutor
* pendingTasksForExecutor HashMap的key是Executor id， value是这个Executor对应的Task的id，可以有多个Task
* */
addTo(pendingTasksForExecutor.getOrElseUpdate(e.executorId, new ArrayBuffer))
case e: HDFSCacheTaskLocation => {
val exe = sched.getExecutorsAliveOnHost(loc.host)
exe match {
case Some(set) => {
for (e <- set) {
addTo(pendingTasksForExecutor.getOrElseUpdate(e, new ArrayBuffer))
}
logInfo(s"Pending task $index has a cached location at ${e.host} " +
", where there are executors " + set.mkString(","))
}
case None => logDebug(s"Pending task $index has a cached location at ${e.host} " +
", but there are no executors alive there.")
}
}
case _ => Unit
}
addTo(pendingTasksForHost.getOrElseUpdate(loc.host, new ArrayBuffer))//由于DirectDStream方式的loc.host地址不属于Spark集群和HDFS集群，所以Task加到了这个HashMap
for (rack <- sched.getRackForHost(loc.host)) {
addTo(pendingTasksForRack.getOrElseUpdate(rack, new ArrayBuffer))
}
}
/*
* 在创建ShuffleMapTask或者ResultTask的时候，如果这个Task传入的locs参数为Nil则将Task id加入到pendingTasksWithNoPrefs
* pendingTasksWithNoPrefs类型是ArrayBuffe，它的每个元素的value是这Task的id
* */
if (tasks(index).preferredLocations == Nil) {
addTo(pendingTasksWithNoPrefs)
}
if (!readding) {
/*
* 所有任务都会加入到addPendingTasks
* */
allPendingTasks += index // No point scanning this whole list to find the old task there 所有的Task都会加入到这个HashMap，包括DirectDStream情况下的Task
}
}从上面的代码可见，TaskLocation类型是ExecutorCacheLocation的ShuffleMapTask或者ResultTask会同时加入到pendingTasksForExecutor、pendingTasksForHost、allPendingTasks 中。而TaskLocation类型是Nil的ShuffleMapTask或者ResultTask会同时加入到pendingTasksForHost、allPendingTasks 中
这里有一个问题需要注意：虽然相同的任务加入到了多个任务等待队列，但是不会出现任务的重复调度，具体原因会在下面任务调度的时候讲到。
TaskScheduler.submitTasks方法创建TaskSetManager之后，调用CoarseGrainedSchedulerBackend.reviveOffers申请执行Stage2的资源.
在CoarseGrainedSchedulerBackend.reviveOffers最终会调用到TaskSchedulerImpl.resourceOffer方法分配执行资源。代码如下：
def resourceOffers(offers: Seq[WorkerOffer]): Seq[Seq[TaskDescription]] = synchronized {
// Mark each slave as alive and remember its hostname
// Also track if new executor is added
var newExecAvail = false
for (o <- offers) {
executorIdToHost(o.executorId) = o.host
activeExecutorIds += o.executorId
if (!executorsByHost.contains(o.host)) {
executorsByHost(o.host) = new HashSet[String]()
executorAdded(o.executorId, o.host)
newExecAvail = true
}
for (rack <- getRackForHost(o.host)) {
hostsByRack.getOrElseUpdate(rack, new HashSet[String]()) += o.host
}
}
// Randomly shuffle offers to avoid always placing tasks on the same set of workers.
val shuffledOffers = Random.shuffle(offers)
// Build a list of tasks to assign to each worker.
//tasks是一个链表，这个链表的一个元素是一个数组，数组的类型是ArrayBuffer[TaskDescription]，数组的大小跟跟这个executor的cores个数相同
val tasks = shuffledOffers.map(o => new ArrayBuffer[TaskDescription](o.cores))
//availableCpus是一个List，这个List的每个元素表示一个worker上这个Executor可用的cpu个数
val availableCpus = shuffledOffers.map(o => o.cores).toArray
val sortedTaskSets = rootPool.getSortedTaskSetQueue //从rootPool里面拿到对应的TaskSet，会使用设置的调度算法返回TaskSet的顺序
for (taskSet <- sortedTaskSets) {
logDebug("parentName: %s, name: %s, runningTasks: %s".format(
taskSet.parent.name, taskSet.name, taskSet.runningTasks))
if (newExecAvail) {
taskSet.executorAdded()//添加了新的Executor，重新计算任务的本地性
}
}
// Take each TaskSet in our scheduling order, and then offer it each node in increasing order
// of locality levels so that it gets a chance to launch local tasks on all of them.
// NOTE: the preferredLocality order: PROCESS_LOCAL, NODE_LOCAL, NO_PREF, RACK_LOCAL, ANY
var launchedTask = false
/*
* 对于一个任务集合，优先执行PROCESS_LOCAL任务，最后执行ANY任务
* */
for (taskSet <- sortedTaskSets; maxLocality <- taskSet.myLocalityLevels) {
do {
launchedTask = resourceOfferSingleTaskSet(
taskSet, maxLocality, shuffledOffers, availableCpus, tasks)
} while (launchedTask)
}
if (tasks.size > 0) {
hasLaunchedTask = true
}
return tasks
}
对任务集中的任务进行资源分配优先集为：PROCESS_LOCAL>NODE_LOCAL>NO_PREF>RACK_LOCAL>ANY
TaskSchedulerImpl.resourceOffer最终要调用TaskSchedulerImpl.resouceOfferSingleTaskSet为一个任务集分配资源，TaskSchedulerImpl.resouceOfferSingleTaskSet方法轮询每个Executor，从任务等待队列中拿到需要执行任务id，给轮询到的Executor执行
private def resourceOfferSingleTaskSet(
taskSet: TaskSetManager,
maxLocality: TaskLocality,
shuffledOffers: Seq[WorkerOffer],
availableCpus: Array[Int],
tasks: Seq[ArrayBuffer[TaskDescription]]) : Boolean = {
var launchedTask = false
for (i <- 0 until shuffledOffers.size) {
val execId = shuffledOffers(i).executorId
val host = shuffledOffers(i).host
if (availableCpus(i) >= CPUS_PER_TASK) {//按照cpu cores个数分配task
try {
for (task <- taskSet.resourceOffer(execId, host, maxLocality)) {
tasks(i) += task //将这个task放在了第i个worker(worker顺序已经shuffle了)
val tid = task.taskId
taskIdToTaskSetId(tid) = taskSet.taskSet.id//记录task所在的taskset
taskIdToExecutorId(tid) = execId//记录task所在的executor
executorsByHost(host) += execId
availableCpus(i) -= CPUS_PER_TASK
assert(availableCpus(i) >= 0)
launchedTask = true
}
} catch {
case e: TaskNotSerializableException =>
logError(s"Resource offer failed, task set ${taskSet.name} was not serializable")
// Do not offer resources for this task, but don't throw an error to allow other
// task sets to be submitted.
return launchedTask
}
}
}
return launchedTask
} private def dequeueTask(execId: String, host: String, maxLocality: TaskLocality.Value)
: Option[(Int, TaskLocality.Value, Boolean)] =
{
/*
* 在创建ShuffleMapTask或者ResultTask的时候，如果这个Task传入的locs参数为类型则从pendingTasksForExecutor HashMap获取任务执行的id
* */
for (index <- dequeueTaskFromList(execId, getPendingTasksForExecutor(execId))) {
return Some((index, TaskLocality.PROCESS_LOCAL, false))
}
if (TaskLocality.isAllowed(maxLocality, TaskLocality.NODE_LOCAL)) {//由于KafkaRDD partition所在的Ip地址跟Executor的IP地址不同，所以Task不能从这个HashMap获取
for (index <- dequeueTaskFromList(execId, getPendingTasksForHost(host))) {
return Some((index, TaskLocality.NODE_LOCAL, false))
}
}
/*
* 在创建ShuffleMapTask或者ResultTask的时候，如果这个Task传入的locs参数为Nil则从pendingTasksWithNoPrefs获取任务执行的id
* */
if (TaskLocality.isAllowed(maxLocality, TaskLocality.NO_PREF)) {
// Look for noPref tasks after NODE_LOCAL for minimize cross-rack traffic
for (index <- dequeueTaskFromList(execId, pendingTasksWithNoPrefs)) {
return Some((index, TaskLocality.PROCESS_LOCAL, false))
}
}
if (TaskLocality.isAllowed(maxLocality, TaskLocality.RACK_LOCAL)) {
for {
rack <- sched.getRackForHost(host)
index <- dequeueTaskFromList(execId, getPendingTasksForRack(rack))
} {
return Some((index, TaskLocality.RACK_LOCAL, false))
}
}
if (TaskLocality.isAllowed(maxLocality, TaskLocality.ANY)) {//KafkaRDD的处理Task从addPendingTask这个HashMap获取
for (index <- dequeueTaskFromList(execId, allPendingTasks)) {
return Some((index, TaskLocality.ANY, false))
}
}
// find a speculative task if all others tasks have been scheduled
dequeueSpeculativeTask(execId, host, maxLocality).map {
case (taskIndex, allowedLocality) => (taskIndex, allowedLocality, true)}
}
TaskSetManager.dequeueTask调用TaskSetManager.dequeueTaskFromList从任务等待链表中获取任务：
private def dequeueTaskFromList(execId: String, list: ArrayBuffer[Int]): Option[Int] = {
var indexOffset = list.size
while (indexOffset > 0) {
indexOffset -= 1
val index = list(indexOffset)
if (!executorIsBlacklisted(execId, index)) {
// This should almost always be list.trimEnd(1) to remove tail
list.remove(indexOffset)
/*
* 若任务已经开始执行，copiesRunning(index)==1
* 若任务已经成功完成，则successful(index) ==true
* 通过这个判断避免任务重复执行
* */
if (copiesRunning(index) == 0 && !successful(index)) {
return Some(index)
}
}
}
None
}
对于本地性非常高的任务，比如ExecutorCacheLocation任务，它被添加到pendingTasksForExecutor pendingTasksForHost allPendingTasks 3个数据结构中， 若任务已经开始执行，copiesRunning(index)==1， 若任务已经成功完成，则successful(index) ==true， 通过判断copiesRunning(index) == 0 && !successful(index)避免任务重复执行
通过以上分析可以得出结论，
Stage2任务在哪个Executor执行分2中情况
情况1：创建Stage2任务的时候，传入的loc2类型是ExecutorCacheLocation，也就是(Map2 reduce2的长度)/(Map1 reduce2长度 + Map2 reduce2长度 + Map3 reduce2长度) > REDUCER_PREF_LOCS_FRACTION，这种任务执行的Executor会在Map2所执行的Executor
情况2：创建Stage2任务的时候，传入的loc2类型是Nil，也就是(Map2 reduce2的长度)/(Map1 reduce2长度 + Map2 reduce2长度 + Map3 reduce2长度) < REDUCER_PREF_LOCS_FRACTION，这种任务执行的Executor会随机分配一个Executor执行
3158
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
