深度学习十种食物分类系统3：含训练测试代码、数据集和GUI交互界面

第一步：准备数据

10种食物数据：["冰激凌", "鸡蛋布丁", "烤冷面", "芒果班戟", "三明治", "松鼠鱼", "甜甜圈", "土豆泥", "小米粥", "玉米饼"]，训练数据集总共有4050张图片，测试数据集总共有500张图片，验证数据集总共有450张图片

第二步：搭建模型

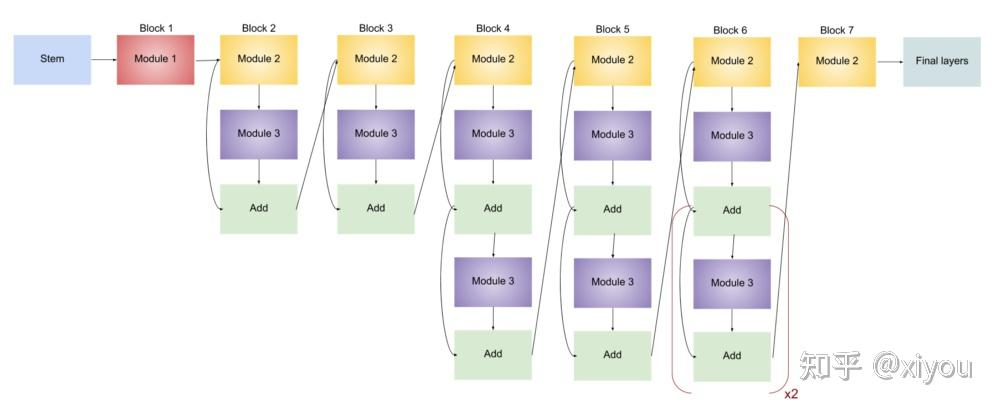

本文选择resnet34，efficientnet_b0，convnext_tiny，其网络结构分别如下：

由于是十分类问题，直接套用网络肯定是不行，因此会在全连接部分做手脚，参考代码如下：

    # model = create_model(num_classes=args.num_classes).to(device)
    # model = models.resnet34(pretrained=False)
    # num_ftrs = model.fc.in_features  # 获取全连接层的输入特征数
    # model.fc = nn.Linear(num_ftrs, args.num_classes)  # 修改全连接层以适应10个类别的输出
    # model = model.to(device)

    model = models.efficientnet_b0(pretrained=False)
    num_ftrs = model.classifier[1].in_features  # 获取原始全连接层的输入特征数
    model.classifier = nn.Sequential(
        nn.Linear(num_ftrs, args.num_classes)  # 修改最后一层为10个输出类别的全连接层
    )
    model = model.to(device)

第三步：训练代码

1）损失函数为：交叉熵损失函数

2）网络可以从头训练或者利用预训练模型进行训练：

    for epoch in range(args.epochs):
        # 计时器time_start
        time_start = time.time()
        # train
        train_loss, train_acc = train_one_epoch(model=model,
                                                optimizer=optimizer,
                                                data_loader=train_loader,
                                                device=device,
                                                epoch=epoch,
                                                lr_scheduler=lr_scheduler)

        # validate
        val_loss, val_acc = evaluate(model=model,
                                     data_loader=val_loader,
                                     device=device,
                                     epoch=epoch)
        time_end = time.time()
        f.write("[epoch {}] train_loss: {:.3f},train_acc:{:.3f},val_loss:{:.3f},val_acc:{:.3f},Spend_time:{:.3f}S"
                .format(epoch + 1, train_loss, train_acc, val_loss, val_acc, time_end - time_start))
        f.flush()

        # add Training results into tensorboard
        # #######################################
        tags = ["train_loss", "train_acc", "val_loss", "val_acc", "learning_rate"]
        tb_writer.add_scalar(tags[0], train_loss, epoch)
        tb_writer.add_scalar(tags[1], train_acc, epoch)
        tb_writer.add_scalar(tags[2], val_loss, epoch)
        tb_writer.add_scalar(tags[3], val_acc, epoch)
        tb_writer.add_scalar(tags[4], optimizer.param_groups[0]["lr"], epoch)

        # add figure into tensorboard
        # #######################################
        fig = plot_class_preds(net=model,
                               images_dir=r"plot_img",
                               transform=data_transform["val"],
                               num_plot=6,
                               device=device)
        if fig is not None:
            tb_writer.add_figure("predictions vs. actuals",
                                 figure=fig,
                                 global_step=epoch)

        if val_acc > best_acc:
            best_acc = val_acc
            f.write(',save best model')
            torch.save(model.state_dict(), save_path + "/weights/bestmodel.pth")
        f.write('\n')
    f.close()

第四步：统计正确率

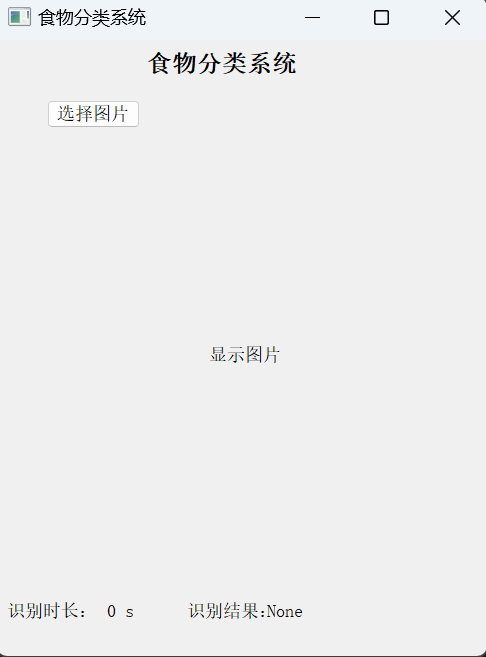

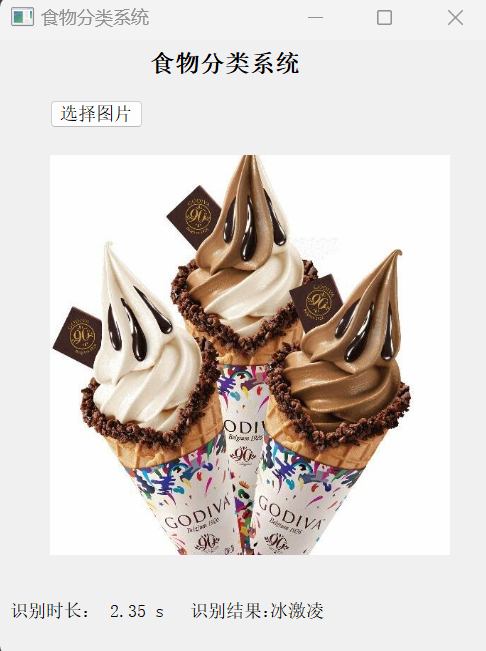

第五步：界面代码运行

第六步：整个工程的内容

 项目完整文件下载请见演示与介绍视频的简介处给出：➷➷➷

https://www.bilibili.com/video/BV1PbkDBREW3/

​
