这段代码使用Cesium.js库在网页上实现了台风烟花的路径模拟，结合实时风速数据，动态展示台风的移动轨迹。通过获取JSON数据，将台风的经纬度坐标和风速信息转化为Cesium中的点和标签，同时设置了不同风速对应的点颜色，创建了台风路径的飞行动画效果，为用户提供直观的台风动态展示。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

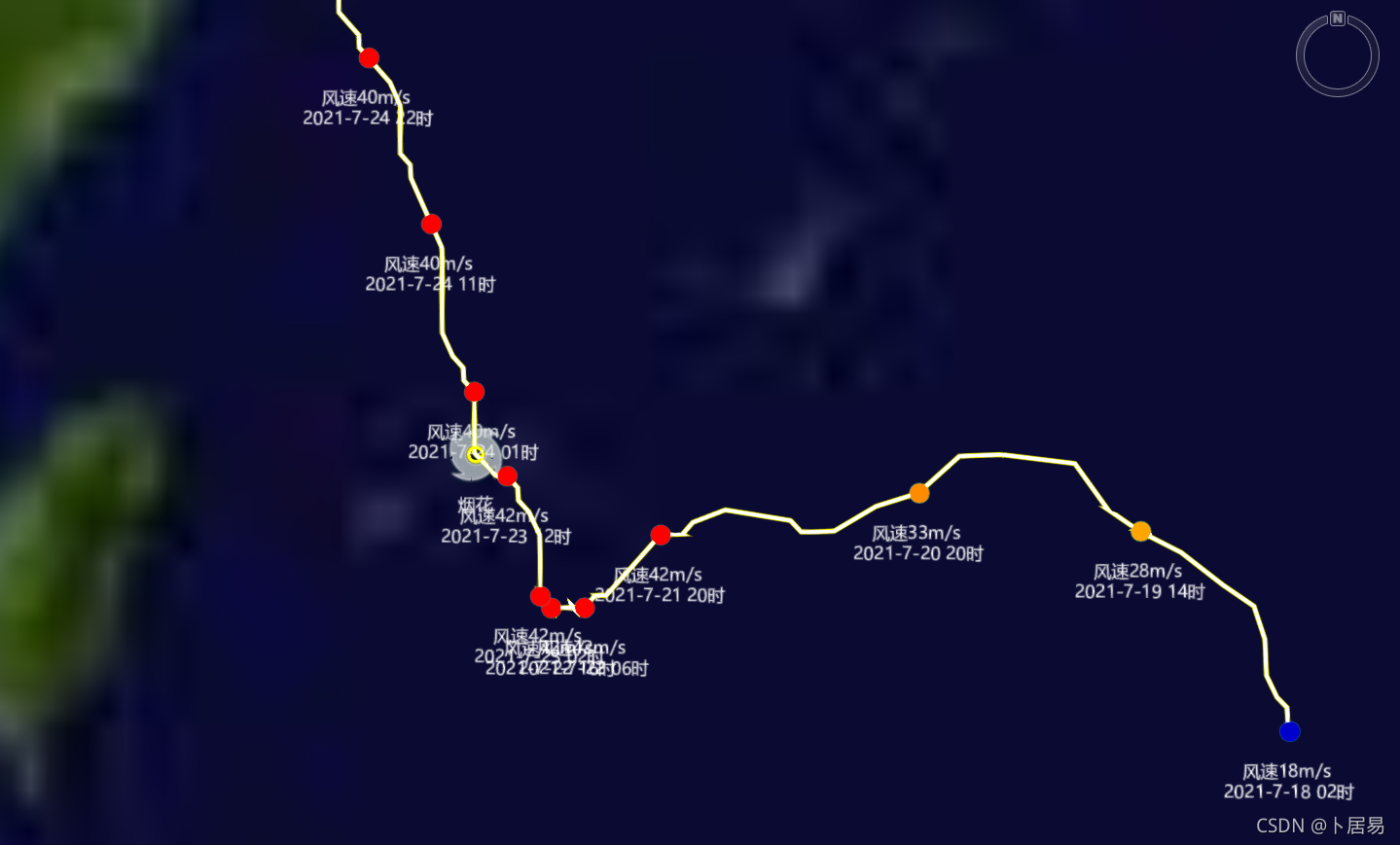

效果如图所示：

代码：

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=Edge,chrome=1">
    <meta name="viewport"
          content="width=device-width, initial-scale=1, maximum-scale=1, minimum-scale=1, user-scalable=no">
    <title>台风烟花</title>
    <link href="../../Build/Cesium/Widgets/widgets.css" rel="stylesheet">
    <link href="./css/pretty.css" rel="stylesheet">
    <script src="./js/jquery.min.js"></script>
	<script type="text/javascript" src="../../Build/Cesium/Cesium.js"></script>
</head>
<body>
<div id="cesiumContainer"></div>
<div id='loadingbar' class="spinner">
    <div class="spinner-container container1">
        <div class="circle1"></div>
        <div class="circle2"></div>
        <div class="circle3"></div>
        <div class="circle4"></div>
    </div>
    <div class="spinner-container container2">
        <div class="circle1"></div>
        <div class="circle2"></div>
        <div class="circle3"></div>
        <div class="circle4"></div>
    </div>
    <div class="spinner-container container3">
        <div class="circle1"></div>
        <div class="circle2"></div>
        <div class="circle3"></div>
        <div class="circle4"></div>
    </div>
</div>
<script>
    var viewer;
    function onload(Cesium) {
        viewer = new Cesium.Viewer('cesiumContainer', {
            baseLayerPicker: false,
            selectionIndicator: false,
            infoBox: false,
            animation: false, // 动画
            timeline: false, // 时间线
            navigationHelpButton: false, // 关闭帮助控件
            fullscreenButton: false, // 关闭全屏显示
            geocoder : false // 关闭搜索控件
        });

        viewer._cesiumWidget._creditContainer.style.display = "none"; // 去除水印
        viewer.scene.globe.enableLighting = false; // 关闭日照
        viewer.scene.globe.depthTestAgainstTerrain = true; // 开启地形探测(地形之下的不可见)
        viewer.scene.globe.showGroundAtmosphere = false; // 关闭大气层

        $.get("data/typhoonYH.json", function(data){
            var typhoonName = "烟花";
            var result = [];
            if (data.length > 0) {
                for(let p= data.length -1; p >= 0; p--){
                    const d = {
                        'FID' : data[p]["日期"] + " " + data[p]["时间"],
                        'serial': p+1,
                        'fLongitude': data[p].y,
                        'fLatitude': data[p].x
                    }
                    result.push(d);

                    if (p % 10 == 0){
                        var color = null;
                        var fs = data[p]["风速（m/s）"];
                        if (fs >= 15 && fs < 20){
                            color = new Cesium.Color(0, 0, 205/255);
                        }else if (fs >= 20 && fs < 25){
                            color = new Cesium.Color(1, 1, 0);
                        }else if (fs >= 25 && fs < 30){
                            color = new Cesium.Color(1, 165/255, 0);
                        }else if (fs >= 30 && fs < 35){
                            color = new Cesium.Color(1, 140/255, 0);
                        }else if (fs >= 35){
                            color = new Cesium.Color(1, 0, 0);
                        }
                        viewer.entities.add(new Cesium.Entity({
                            point: new Cesium.PointGraphics({
                                color: color,
                                pixelSize: 20,
                                outlineColor: new Cesium.Color(0, 1, 1)
                            }),
                            label : {
                                text: "风速" + fs + "m/s \n" + data[p]["日期"] + " " + data[p]["时间"].split(":")[0] + "时",
                                font : '18px sans-serif',
                                pixelOffset : new Cesium.Cartesian2(0, 50)
                            },
                            position: Cesium.Cartesian3.fromDegrees(data[p].y, data[p].x, 5000)
                        }));
                    }




                }
                typhoonFlytoPath(viewer, result, typhoonName)
            }
        })

        $('#loadingbar').remove();
    }

    function typhoonFlytoPath(viewer, positions, typhoonName){
        // 允许飞行动画
        viewer.clock.shouldAnimate = true;
        // 设定模拟时间的界限
        const start = Cesium.JulianDate.fromDate(new Date(2015, 2, 25, 16));
        const stop = Cesium.JulianDate.addSeconds(start, positions.length, new Cesium.JulianDate());

        viewer.clock.startTime = start.clone();
        viewer.clock.stopTime = stop.clone();
        viewer.clock.currentTime = start.clone();
        viewer.clock.clockRange = Cesium.ClockRange.LOOP_STOP; //末尾循环
        // 飞行速度，值越大速度越快，multiplier为0停止移动
        viewer.clock.multiplier = 3;
        // viewer.timeline.zoomTo(start, stop);


        // 计算飞行时间和位置
        const property = computeFlight(start, positions)

        var rotation = Cesium.Math.toRadians(30);

        function getRotationValue() {
            rotation += -0.03;
            return rotation;
        }

        const typhoonEntity = viewer.entities.add({
            name : '台风路径',
            availability : new Cesium.TimeIntervalCollection([new Cesium.TimeInterval({
                start : start,
                stop : stop
            })]),
            position : property,
            orientation : new Cesium.VelocityOrientationProperty(property), // 根据位置移动自动计算方向
            ellipse : {
                semiMinorAxis : 35000.0,
                semiMajorAxis : 35000.0,
                height: 0.0,
                fill: true,
                outlineColor: Cesium.Color.RED,
                outlineWidth: 5,
                outline : false,
                rotation: new Cesium.CallbackProperty(getRotationValue, false),
                stRotation: new Cesium.CallbackProperty(getRotationValue, false),
                material: new Cesium.ImageMaterialProperty({
                    image: "images/map_taifeng.png",
                    transparent: true
                })
            },
            point : {
                pixelSize : 10,
                color : Cesium.Color.TRANSPARENT,
                outlineColor : Cesium.Color.YELLOW,
                outlineWidth : 4
            },
            label : {
                text: typhoonName,
                font : '18px sans-serif',
                pixelOffset : new Cesium.Cartesian2(0.0, 50)
            },
            path : {
                resolution : 1,
                material : new Cesium.PolylineGlowMaterialProperty({
                    glowPower : 0.9,
                    color : Cesium.Color.YELLOW
                }),
                width : 6
            }
        })

        // 设置飞行视角
        viewer.trackedEntity = undefined;
        viewer.flyTo(typhoonEntity,{
            duration: 2,
            offset : {
                heading : Cesium.Math.toRadians(0.0),
                pitch : Cesium.Math.toRadians(-90),
                range : 1500000
            }
        })
        // 飞行视角追踪
        var preUpdateHandler = function(){
            if(typhoonEntity){
                const center = typhoonEntity.position.getValue(viewer.clock.currentTime);
                const hpr = new Cesium.HeadingPitchRange(Cesium.Math.toRadians(0.0), Cesium.Math.toRadians(-90), 1500000)
                if(center){
                    viewer.camera.lookAt(center, hpr);
                }

            }
        }
        viewer.scene.preUpdate.addEventListener(preUpdateHandler);

        // 设置插值函数为拉格朗日算法
        typhoonEntity.position.setInterpolationOptions({
            interpolationDegree : 3,
            interpolationAlgorithm : Cesium.LagrangePolynomialApproximation
        });
    }

    function computeFlight(start, positions){
        const property = new Cesium.SampledPositionProperty();
        for(let i=0; i<positions.length; i++){
            const time = Cesium.JulianDate.addSeconds(start, i, new Cesium.JulianDate());
            const position = Cesium.Cartesian3.fromDegrees(parseFloat(positions[i].fLongitude), parseFloat(positions[i].fLatitude), Cesium.Math.nextRandomNumber() * 500 + 1750);
            property.addSample(time, position);
        }
        return property;
    }

    if (typeof Cesium !== 'undefined') {
        window.startupCalled = true;
        onload(Cesium);
    }
</script>
</body>
</html>

数据：

[
{"日期":"2021-7-30","时间":"17:00:00","纬度":"38.4N","经度":"119E", "气压（hPa）":988,"风速（m/s）":15,"x":38.4,"y":119},
{"日期":"2021-7-30","时间":"14:00::00","纬度":"38.4N","经度":"118.7E","气压（hPa）":988,"风速（m/s）":15,"x":38.4,"y":118.7},
{"日期":"2021-7-30","时间":"11:00:00","纬度":"38.8N","经度":"118.2E","气压（hPa）":988,"风速（m/s）":15,"x":38.8,"y":118.2},
{"日期":"2021-7-30","时间":"08:00:00","纬度":"38.8N","经度":"118.2E","气压（hPa）":988,"风速（m/s）":15,"x":38.8,"y":118.2},
{"日期":"2021-7-30","时间":"05:00:00","纬度":"38.6N","经度":"117.8E","气压（hPa）":988,"风速（m/s）":15,"x":38.6,"y":117.8},
{"日期":"2021-7-30","时间":"02:00:00","纬度":"38.5N","经度":"117.6E","气压（hPa）":988,"风速（m/s）":15,"x":38.5,"y":117.6},
{"日期":"2021-7-29","时间":"23:00:00","纬度":"37.8N","经度":"117.5E","气压（hPa）":988,"风速（m/s）":15,"x":37.8,"y":117.5},
{"日期":"2021-7-29","时间":"20:00:00","纬度":"37.1N","经度":"117.4E","气压（hPa）":988,"风速（m/s）":15,"x":37.1,"y":117.4},
{"日期":"2021-7-29","时间":"17:00:00","纬度":"36.3N","经度":"117.2E","气压（hPa）":988,"风速（m/s）":15,"x":36.3,"y":117.2},
{"日期":"2021-7-29","时间":"14:00::00","纬度":"35.8N","经度":"117.1E","气压（hPa）":988,"风速（m/s）":15,"x":35.8,"y":117.1},
{"日期":"2021-7-29","时间":"11:00:00","纬度":"35.3N","经度":"116.9E","气压（hPa）":988,"风速（m/s）":15,"x":35.3,"y":116.9},
{"日期":"2021-7-29","时间":"08:00:00","纬度":"34.9N","经度":"116.7E","气压（hPa）":988,"风速（m/s）":15,"x":34.9,"y":116.7},
{"日期":"2021-7-29","时间":"05:00:00","纬度":"34.5N","经度":"116.8E","气压（hPa）":988,"风速（m/s）":15,"x":34.5,"y":116.8},
{"日期":"2021-7-29","时间":"02:00:00","纬度":"34N","经度":"116.8E","气压（hPa）":985,"风速（m/s）":15,"x":34,"y":116.8},
{"日期":"2021-7-28","时间":"23:00:00","纬度":"33.3N","经度":"116.9E","气压（hPa）":985,"风速（m/s）":15,"x":33.3,"y":116.9},
{"日期":"2021-7-28","时间":"20:00:00","纬度":"32.8N","经度":"116.9E","气压（hPa）":985,"风速（m/s）":15,"x":32.8,"y":116.9},
{"日期":"2021-7-28","时间":"17:00:00","纬度":"32.8N","经度":"116.6E","气压（hPa）":985,"风速（m/s）":15,"x":32.8,"y":116.6},
{"日期":"2021-7-28","时间":"14:00::00","纬度":"33.1N","经度":"116.7E","气压（hPa）":985,"风速（m/s）":15,"x":33.1,"y":116.7},
{"日期":"2021-7-28","时间":"11:00:00","纬度":"33.1N","经度":"117.1E","气压（hPa）":985,"风速（m/s）":15,"x":33.1,"y":117.1},
{"日期":"2021-7-28","时间":"08:00:00","纬度":"32.7N","经度":"117.6E","气压（hPa）":985,"风速（m/s）":15,"x":32.7,"y":117.6},
{"日期":"2021-7-28","时间":"05:00:00","纬度":"32.4N","经度":"117.9E","气压（hPa）":985,"风速（m/s）":15,"x":32.4,"y":117.9},
{"日期":"2021-7-28","时间":"03:00:00","纬度":"32.4N","经度":"118.1E","气压（hPa）":985,"风速（m/s）":15,"x":32.4,"y":118.1},
{"日期":"2021-7-28","时间":"02:00:00","纬度":"32.3N","经度":"118.2E","气压（hPa）":985,"风速（m/s）":18,"x":32.3,"y":118.2},
{"日期":"2021-7-28","时间":"01:00:00","纬度":"32.2N","经度":"118.4E","气压（hPa）":985,"风速（m/s）":18,"x":32.2,"y":118.4},
{"日期":"2021-7-28","时间":"00:00:00","纬度":"32N","经度":"118.6E","气压（hPa）":985,"风速（m/s）":18,"x":32,"y":118.6},
{"日期":"2021-7-27","时间":"23:00:00","纬度":"31.9N","经度":"118.7E","气压（hPa）":985,"风速（m/s）":18,"x":31.9,"y":118.7},
{"日期":"2021-7-27","时间":"22:00:00","纬度":"31.8N","经度":"118.9E","气压（hPa）":985,"风速（m/s）":18,"x":31.8,"y":118.9},
{"日期":"2021-7-27","时间":"21:00:00","纬度":"31.6N","经度":"119E","气压（hPa）":985,"风速（m/s）":18,"x":31.6,"y":119},
{"日期":"2021-7-27","时间":"20:00:00","纬度":"31.5N","经度":"119E","气压（hPa）":985,"风速（m/s）":18,"x":31.5,"y":119},
{"日期":"2021-7-27","时间":"19:00:00","纬度":"31.4N","经度":"119.1E","气压（hPa）":985,"风速（m/s）":18,"x":31.4,"y":119.1},
{"日期":"2021-7-27","时间":"18:00:00","纬度":"31.3N","经度":"119E","气压（hPa）":985,"风速（m/s）":18,"x":31.3,"y":119},
{"日期":"2021-7-27","时间":"17:00:00","纬度":"31.3N","经度":"119E","气压（hPa）":985,"风速（m/s）":18,"x":31.3,"y":119},
{"日期":"2021-7-27","时间":"16:00:00","纬度":"31.3N","经度":"119E","气压（hPa）":985,"风速（m/s）":18,"x":31.3,"y":119},
{"日期":"2021-7-27","时间":"15:00:00","纬度":"31.3N","经度":"119E","气压（hPa）":985,"风速（m/s）":18,"x":31.3,"y":119},
{"日期":"2021-7-27","时间":"14:00::00","纬度":"31.3N","经度":"119E","气压（hPa）":985,"风速（m/s）":18,"x":31.3,"y":119},
{"日期":"2021-7-27","时间":"13:00:00","纬度":"31.3N","经度":"119E","气压（hPa）":985,"风速（m/s）":18,"x":31.3,"y":119},
{"日期":"2021-7-27","时间":"12:00:00","纬度":"31.3N","经度":"119E","气压（hPa）":982,"风速（m/s）":20,"x":31.3,"y":119},
{"日期":"2021-7-27","时间":"11:00:00","纬度":"31.3N","经度":"119.1E","气压（hPa）":982,"风速（m/s）":20,"x":31.3,"y":119.1},
{"日期":"2021-7-27","时间":"10:00:00","纬度":"31.3N","经度":"119.2E","气压（hPa）":982,"风速（m/s）":20,"x":31.3,"y":119.2},
{"日期":"2021-7-27","时间":"09:00:00","纬度":"31.3N","经度":"119.3E","气压（hPa）":982,"风速（m/s）":20,"x":31.3,"y":119.3},
{"日期":"2021-7-27","时间":"08:00:00","纬度":"31.3N","经度":"119.4E","气压（hPa）":982,"风速（m/s）":20,"x":31.3,"y":119.4},
{"日期":"2021-7-27","时间":"07:00:00","纬度":"31.3N","经度":"119.5E","气压（hPa）":985,"风速（m/s）":20,"x":31.3,"y":119.5},
{"日期":"2021-7-27","时间":"06:00:00","纬度":"31.3N","经度":"119.6E","气压（hPa）":985,"风速（m/s）":20,"x":31.3,"y":119.6},
{"日期":"2021-7-27","时间":"05:00:00","纬度":"31.3N","经度":"119.7E","气压（hPa）":985,"风速（m/s）":20,"x":31.3,"y":119.7},
{"日期":"2021-7-27","时间":"04:00:00","纬度":"31.3N","经度":"119.8E","气压（hPa）":985,"风速（m/s）":20,"x":31.3,"y":119.8},
{"日期":"2021-7-27","时间":"03:00:00","纬度":"31.2N","经度":"119.9E","气压（hPa）":985,"风速（m/s）":20,"x":31.2,"y":119.9},
{"日期":"2021-7-27","时间":"02:00:00","纬度":"31.2N","经度":"120E","气压（hPa）":985,"风速（m/s）":20,"x":31.2,"y":120},
{"日期":"2021-7-27","时间":"01:00:00","纬度":"31.2N","经度":"120E","气压（hPa）":985,"风速（m/s）":20,"x":31.2,"y":120},
{"日期":"2021-7-27","时间":"00:00:00","纬度":"31.2N","经度":"120E","气压（hPa）":985,"风速（m/s）":20,"x":31.2,"y":120},
{"日期":"2021-7-26","时间":"23:00:00","纬度":"31.1N","经度":"120.1E","气压（hPa）":985,"风速（m/s）":20,"x":31.1,"y":120.1},
{"日期":"2021-7-26","时间":"22:00:00","纬度":"31.1N","经度":"120.2E","气压（hPa）":980,"风速（m/s）":23,"x":31.1,"y":120.2},
{"日期":"2021-7-26","时间":"21:00:00","纬度":"31N","经度":"120.3E","气压（hPa）":980,"风速（m/s）":23,"x":31,"y":120.3},
{"日期":"2021-7-26","时间":"20:00:00","纬度":"31N","经度":"120.4E","气压（hPa）":980,"风速（m/s）":23,"x":31,"y":120.4},
{"日期":"2021-7-26","时间":"19:00:00","纬度":"31N","经度":"120.5E","气压（hPa）":980,"风速（m/s）":23,"x":31,"y":120.5},
{"日期":"2021-7-26","时间":"18:00:00","纬度":"31N","经度":"120.6E","气压（hPa）":980,"风速（m/s）":23,"x":31,"y":120.6},
{"日期":"2021-7-26","时间":"17:00:00","纬度":"31N","经度":"120.7E","气压（hPa）":980,"风速（m/s）":23,"x":31,"y":120.7},
{"日期":"2021-7-26","时间":"16:00:00","纬度":"30.9N","经度":"120.8E","气压（hPa）":980,"风速（m/s）":25,"x":30.9,"y":120.8},
{"日期":"2021-7-26","时间":"15:00:00","纬度":"30.9N","经度":"120.8E","气压（hPa）":980,"风速（m/s）":25,"x":30.9,"y":120.8},
{"日期":"2021-7-26","时间":"14:00::00","纬度":"30.8N","经度":"120.9E","气压（hPa）":980,"风速（m/s）":25,"x":30.8,"y":120.9},
{"日期":"2021-7-26","时间":"13:00:00","纬度":"30.8N","经度":"120.9E","气压（hPa）":978,"风速（m/s）":28,"x":30.8,"y":120.9},
{"日期":"2021-7-26","时间":"12:00:00","纬度":"30.8N","经度":"121E","气压（hPa）":978,"风速（m/s）":28,"x":30.8,"y":121},
{"日期":"2021-7-26","时间":"11:00:00","纬度":"30.7N","经度":"121E","气压（hPa）":978,"风速（m/s）":28,"x":30.7,"y":121},
{"日期":"2021-7-26","时间":"10:00:00","纬度":"30.7N","经度":"121.1E","气压（hPa）":978,"风速（m/s）":28,"x":30.7,"y":121.1},
{"日期":"2021-7-26","时间":"09:00:00","纬度":"30.6N","经度":"121.2E","气压（hPa）":978,"风速（m/s）":28,"x":30.6,"y":121.2},
{"日期":"2021-7-26","时间":"09:00:00","纬度":"30.6N","经度":"121.2E","气压（hPa）":975,"风速（m/s）":30,"x":30.6,"y":121.2},
{"日期":"2021-7-26","时间":"08:00:00","纬度":"30.5N","经度":"121.3E","气压（hPa）":970,"风速（m/s）":33,"x":30.5,"y":121.3},
{"日期":"2021-7-26","时间":"07:00:00","纬度":"30.5N","经度":"121.3E","气压（hPa）":975,"风速（m/s）":33,"x":30.5,"y":121.3},
{"日期":"2021-7-26","时间":"06:00:00","纬度":"30.5N","经度":"121.4E","气压（hPa）":975,"风速（m/s）":33,"x":30.5,"y":121.4},
{"日期":"2021-7-26","时间":"05:00:00","纬度":"30.5N","经度":"121.4E","气压（hPa）":975,"风速（m/s）":33,"x":30.5,"y":121.4},
{"日期":"2021-7-26","时间":"04:00:00","纬度":"30.5N","经度":"121.4E","气压（hPa）":970,"风速（m/s）":35,"x":30.5,"y":121.4},
{"日期":"2021-7-26","时间":"03:00:00","纬度":"30.5N","经度":"121.4E","气压（hPa）":970,"风速（m/s）":35,"x":30.5,"y":121.4},
{"日期":"2021-7-26","时间":"02:00:00","纬度":"30.4N","经度":"121.5E","气压（hPa）":970,"风速（m/s）":35,"x":30.4,"y":121.5},
{"日期":"2021-7-26","时间":"01:00:00","纬度":"30.4N","经度":"121.5E","气压（hPa）":970,"风速（m/s）":35,"x":30.4,"y":121.5},
{"日期":"2021-7-26","时间":"00:00:00","纬度":"30.4N","经度":"121.6E","气压（hPa）":970,"风速（m/s）":35,"x":30.4,"y":121.6},
{"日期":"2021-7-25","时间":"23:00:00","纬度":"30.3N","经度":"121.7E","气压（hPa）":970,"风速（m/s）":35,"x":30.3,"y":121.7},
{"日期":"2021-7-25","时间":"22:00:00","纬度":"30.2N","经度":"121.8E","气压（hPa）":970,"风速（m/s）":35,"x":30.2,"y":121.8},
{"日期":"2021-7-25","时间":"21:00:00","纬度":"30.2N","经度":"121.8E","气压（hPa）":970,"风速（m/s）":35,"x":30.2,"y":121.8},
{"日期":"2021-7-25","时间":"20:00:00","纬度":"30.2N","经度":"121.9E","气压（hPa）":970,"风速（m/s）":35,"x":30.2,"y":121.9},
{"日期":"2021-7-25","时间":"19:00:00","纬度":"30.2N","经度":"121.9E","气压（hPa）":965,"风速（m/s）":38,"x":30.2,"y":121.9},
{"日期":"2021-7-25","时间":"18:00:00","纬度":"30.2N","经度":"122E","气压（hPa）":965,"风速（m/s）":38,"x":30.2,"y":122},
{"日期":"2021-7-25","时间":"17:00:00","纬度":"30N","经度":"122.2E","气压（hPa）":965,"风速（m/s）":38,"x":30,"y":122.2},
{"日期":"2021-7-25","时间":"16:00:00","纬度":"30N","经度":"122.2E","气压（hPa）":965,"风速（m/s）":38,"x":30,"y":122.2},
{"日期":"2021-7-25","时间":"15:00:00","纬度":"30N","经度":"122.2E","气压（hPa）":965,"风速（m/s）":38,"x":30,"y":122.2},
{"日期":"2021-7-25","时间":"14:00::00","纬度":"30N","经度":"122.2E","气压（hPa）":965,"风速（m/s）":38,"x":30,"y":122.2},
{"日期":"2021-7-25","时间":"13:00:00","纬度":"30N","经度":"122.3E","气压（hPa）":965,"风速（m/s）":38,"x":30,"y":122.3},
{"日期":"2021-7-25","时间":"12:00:00","纬度":"30N","经度":"122.5E","气压（hPa）":965,"风速（m/s）":38,"x":30,"y":122.5},
{"日期":"2021-7-25","时间":"12:00:00","纬度":"30N","经度":"122.5E","气压（hPa）":965,"风速（m/s）":38,"x":30,"y":122.5},
{"日期":"2021-7-25","时间":"11:00:00","纬度":"29.9N","经度":"122.7E","气压（hPa）":965,"风速（m/s）":38,"x":29.9,"y":122.7},
{"日期":"2021-7-25","时间":"10:00:00","纬度":"29.8N","经度":"122.9E","气压（hPa）":965,"风速（m/s）":38,"x":29.8,"y":122.9},
{"日期":"2021-7-25","时间":"09:00:00","纬度":"29.7N","经度":"123E","气压（hPa）":965,"风速（m/s）":38,"x":29.7,"y":123},
{"日期":"2021-7-25","时间":"08:00:00","纬度":"29.6N","经度":"123.1E","气压（hPa）":965,"风速（m/s）":38,"x":29.6,"y":123.1},
{"日期":"2021-7-25","时间":"07:00:00","纬度":"29.5N","经度":"123.2E","气压（hPa）":965,"风速（m/s）":38,"x":29.5,"y":123.2},
{"日期":"2021-7-25","时间":"06:00:00","纬度":"29.4N","经度":"123.3E","气压（hPa）":965,"风速（m/s）":38,"x":29.4,"y":123.3},
{"日期":"2021-7-25","时间":"05:00:00","纬度":"29.3N","经度":"123.4E","气压（hPa）":965,"风速（m/s）":38,"x":29.3,"y":123.4},
{"日期":"2021-7-25","时间":"04:00:00","纬度":"29N","经度":"123.5E","气压（hPa）":960,"风速（m/s）":40,"x":29,"y":123.5},
{"日期":"2021-7-25","时间":"03:00:00","纬度":"28.7N","经度":"123.6E","气压（hPa）":960,"风速（m/s）":40,"x":28.7,"y":123.6},
{"日期":"2021-7-25","时间":"02:00:00","纬度":"28.5N","经度":"123.6E","气压（hPa）":960,"风速（m/s）":40,"x":28.5,"y":123.6},
{"日期":"2021-7-25","时间":"01:00:00","纬度":"28.4N","经度":"123.7E","气压（hPa）":960,"风速（m/s）":40,"x":28.4,"y":123.7},
{"日期":"2021-7-25","时间":"00:00:00","纬度":"28.3N","经度":"123.8E","气压（hPa）":960,"风速（m/s）":40,"x":28.3,"y":123.8},
{"日期":"2021-7-24","时间":"23:00:00","纬度":"28.2N","经度":"123.8E","气压（hPa）":960,"风速（m/s）":40,"x":28.2,"y":123.8},
{"日期":"2021-7-24","时间":"22:00:00","纬度":"28.1N","经度":"123.9E","气压（hPa）":960,"风速（m/s）":40,"x":28.1,"y":123.9},
{"日期":"2021-7-24","时间":"21:00:00","纬度":"28N","经度":"124E","气压（hPa）":960,"风速（m/s）":40,"x":28,"y":124},
{"日期":"2021-7-24","时间":"20:00:00","纬度":"27.9N","经度":"124.1E","气压（hPa）":960,"风速（m/s）":40,"x":27.9,"y":124.1},
{"日期":"2021-7-24","时间":"18:00:00","纬度":"27.7N","经度":"124.2E","气压（hPa）":960,"风速（m/s）":40,"x":27.7,"y":124.2},
{"日期":"2021-7-24","时间":"17:00:00","纬度":"27.5N","经度":"124.2E","气压（hPa）":960,"风速（m/s）":40,"x":27.5,"y":124.2},
{"日期":"2021-7-24","时间":"16:00:00","纬度":"27.4N","经度":"124.2E","气压（hPa）":960,"风速（m/s）":40,"x":27.4,"y":124.2},
{"日期":"2021-7-24","时间":"15:00:00","纬度":"27.3N","经度":"124.2E","气压（hPa）":960,"风速（m/s）":40,"x":27.3,"y":124.2},
{"日期":"2021-7-24","时间":"14:00::00","纬度":"27.2N","经度":"124.3E","气压（hPa）":960,"风速（m/s）":40,"x":27.2,"y":124.3},
{"日期":"2021-7-24","时间":"13:00:00","纬度":"27.1N","经度":"124.3E","气压（hPa）":960,"风速（m/s）":40,"x":27.1,"y":124.3},
{"日期":"2021-7-24","时间":"12:00:00","纬度":"26.9N","经度":"124.4E","气压（hPa）":960,"风速（m/s）":40,"x":26.9,"y":124.4},
{"日期":"2021-7-24","时间":"11:00:00","纬度":"26.7N","经度":"124.5E","气压（hPa）":960,"风速（m/s）":40,"x":26.7,"y":124.5},
{"日期":"2021-7-24","时间":"10:00:00","纬度":"26.5N","经度":"124.6E","气压（hPa）":960,"风速（m/s）":40,"x":26.5,"y":124.6},
{"日期":"2021-7-24","时间":"09:00:00","纬度":"26.3N","经度":"124.6E","气压（hPa）":960,"风速（m/s）":40,"x":26.3,"y":124.6},
{"日期":"2021-7-24","时间":"08:00:00","纬度":"26.1N","经度":"124.6E","气压（hPa）":960,"风速（m/s）":40,"x":26.1,"y":124.6},
{"日期":"2021-7-24","时间":"07:00:00","纬度":"26N","经度":"124.6E","气压（hPa）":960,"风速（m/s）":40,"x":26,"y":124.6},
{"日期":"2021-7-24","时间":"06:00:00","纬度":"25.9N","经度":"124.6E","气压（hPa）":960,"风速（m/s）":40,"x":25.9,"y":124.6},
{"日期":"2021-7-24","时间":"05:00:00","纬度":"25.8N","经度":"124.6E","气压（hPa）":960,"风速（m/s）":40,"x":25.8,"y":124.6},
{"日期":"2021-7-24","时间":"04:00:00","纬度":"25.6N","经度":"124.7E","气压（hPa）":960,"风速（m/s）":40,"x":25.6,"y":124.7},
{"日期":"2021-7-24","时间":"03:00:00","纬度":"25.5N","经度":"124.8E","气压（hPa）":960,"风速（m/s）":40,"x":25.5,"y":124.8},
{"日期":"2021-7-24","时间":"02:00:00","纬度":"25.4N","经度":"124.8E","气压（hPa）":960,"风速（m/s）":40,"x":25.4,"y":124.8},
{"日期":"2021-7-24","时间":"01:00:00","纬度":"25.3N","经度":"124.9E","气压（hPa）":960,"风速（m/s）":40,"x":25.3,"y":124.9},
{"日期":"2021-7-24","时间":"00:00:00","纬度":"25.1N","经度":"124.9E","气压（hPa）":960,"风速（m/s）":40,"x":25.1,"y":124.9},
{"日期":"2021-7-23","时间":"23:00:00","纬度":"25N","经度":"124.9E","气压（hPa）":960,"风速（m/s）":40,"x":25,"y":124.9},
{"日期":"2021-7-23","时间":"20:00:00","纬度":"24.8N","经度":"124.9E","气压（hPa）":955,"风速（m/s）":42,"x":24.8,"y":124.9},
{"日期":"2021-7-23","时间":"18:00:00","纬度":"24.7N","经度":"125E","气压（hPa）":955,"风速（m/s）":42,"x":24.7,"y":125},
{"日期":"2021-7-23","时间":"17:00:00","纬度":"24.7N","经度":"125E","气压（hPa）":955,"风速（m/s）":42,"x":24.7,"y":125},
{"日期":"2021-7-23","时间":"16:00:00","纬度":"24.7N","经度":"125E","气压（hPa）":955,"风速（m/s）":42,"x":24.7,"y":125},
{"日期":"2021-7-23","时间":"15:00:00","纬度":"24.6N","经度":"125.1E","气压（hPa）":955,"风速（m/s）":42,"x":24.6,"y":125.1},
{"日期":"2021-7-23","时间":"14:00::00","纬度":"24.6N","经度":"125.1E","气压（hPa）":955,"风速（m/s）":42,"x":24.6,"y":125.1},
{"日期":"2021-7-23","时间":"13:00:00","纬度":"24.6N","经度":"125.1E","气压（hPa）":955,"风速（m/s）":42,"x":24.6,"y":125.1},
{"日期":"2021-7-23","时间":"12:00:00","纬度":"24.6N","经度":"125.2E","气压（hPa）":955,"风速（m/s）":42,"x":24.6,"y":125.2},
{"日期":"2021-7-23","时间":"11:00:00","纬度":"24.5N","经度":"125.3E","气压（hPa）":955,"风速（m/s）":42,"x":24.5,"y":125.3},
{"日期":"2021-7-23","时间":"10:00:00","纬度":"24.4N","经度":"125.3E","气压（hPa）":955,"风速（m/s）":42,"x":24.4,"y":125.3},
{"日期":"2021-7-23","时间":"09:00:00","纬度":"24.3N","经度":"125.4E","气压（hPa）":955,"风速（m/s）":42,"x":24.3,"y":125.4},
{"日期":"2021-7-23","时间":"08:00:00","纬度":"24.1N","经度":"125.5E","气压（hPa）":955,"风速（m/s）":42,"x":24.1,"y":125.5},
{"日期":"2021-7-23","时间":"07:00:00","纬度":"24N","经度":"125.5E","气压（hPa）":955,"风速（m/s）":42,"x":24,"y":125.5},
{"日期":"2021-7-23","时间":"06:00:00","纬度":"23.9N","经度":"125.5E","气压（hPa）":955,"风速（m/s）":42,"x":23.9,"y":125.5},
{"日期":"2021-7-23","时间":"05:00:00","纬度":"23.7N","经度":"125.5E","气压（hPa）":955,"风速（m/s）":42,"x":23.7,"y":125.5},
{"日期":"2021-7-23","时间":"04:00:00","纬度":"23.6N","经度":"125.5E","气压（hPa）":955,"风速（m/s）":42,"x":23.6,"y":125.5},
{"日期":"2021-7-23","时间":"03:00:00","纬度":"23.6N","经度":"125.5E","气压（hPa）":955,"风速（m/s）":42,"x":23.6,"y":125.5},
{"日期":"2021-7-23","时间":"02:00:00","纬度":"23.6N","经度":"125.5E","气压（hPa）":955,"风速（m/s）":42,"x":23.6,"y":125.5},
{"日期":"2021-7-23","时间":"01:00:00","纬度":"23.5N","经度":"125.6E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.6},
{"日期":"2021-7-23","时间":"00:00:00","纬度":"23.5N","经度":"125.6E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.6},
{"日期":"2021-7-22","时间":"23:00:00","纬度":"23.5N","经度":"125.6E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.6},
{"日期":"2021-7-22","时间":"22:00:00","纬度":"23.5N","经度":"125.6E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.6},
{"日期":"2021-7-22","时间":"21:00:00","纬度":"23.5N","经度":"125.6E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.6},
{"日期":"2021-7-22","时间":"20:00:00","纬度":"23.5N","经度":"125.6E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.6},
{"日期":"2021-7-22","时间":"19:00:00","纬度":"23.5N","经度":"125.6E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.6},
{"日期":"2021-7-22","时间":"18:00:00","纬度":"23.5N","经度":"125.6E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.6},
{"日期":"2021-7-22","时间":"17:00:00","纬度":"23.5N","经度":"125.6E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.6},
{"日期":"2021-7-22","时间":"16:00:00","纬度":"23.5N","经度":"125.6E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.6},
{"日期":"2021-7-22","时间":"15:00:00","纬度":"23.5N","经度":"125.7E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.7},
{"日期":"2021-7-22","时间":"14:00::00","纬度":"23.5N","经度":"125.7E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.7},
{"日期":"2021-7-22","时间":"13:00:00","纬度":"23.5N","经度":"125.8E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.8},
{"日期":"2021-7-22","时间":"12:00:00","纬度":"23.5N","经度":"125.8E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.8},
{"日期":"2021-7-22","时间":"11:00:00","纬度":"23.5N","经度":"125.8E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.8},
{"日期":"2021-7-22","时间":"10:00:00","纬度":"23.5N","经度":"125.8E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.8},
{"日期":"2021-7-22","时间":"09:00:00","纬度":"23.5N","经度":"125.8E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.8},
{"日期":"2021-7-22","时间":"08:00:00","纬度":"23.5N","经度":"125.8E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.8},
{"日期":"2021-7-22","时间":"07:00:00","纬度":"23.5N","经度":"125.8E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.8},
{"日期":"2021-7-22","时间":"06:00:00","纬度":"23.5N","经度":"125.9E","气压（hPa）":955,"风速（m/s）":42,"x":23.5,"y":125.9},
{"日期":"2021-7-22","时间":"05:00:00","纬度":"23.6N","经度":"126E","气压（hPa）":955,"风速（m/s）":42,"x":23.6,"y":126},
{"日期":"2021-7-22","时间":"04:00:00","纬度":"23.6N","经度":"126E","气压（hPa）":955,"风速（m/s）":42,"x":23.6,"y":126},
{"日期":"2021-7-22","时间":"03:00:00","纬度":"23.6N","经度":"126.1E","气压（hPa）":955,"风速（m/s）":42,"x":23.6,"y":126.1},
{"日期":"2021-7-22","时间":"02:00:00","纬度":"23.7N","经度":"126.2E","气压（hPa）":955,"风速（m/s）":42,"x":23.7,"y":126.2},
{"日期":"2021-7-22","时间":"01:00:00","纬度":"23.7N","经度":"126.2E","气压（hPa）":955,"风速（m/s）":42,"x":23.7,"y":126.2},
{"日期":"2021-7-22","时间":"00:00:00","纬度":"23.8N","经度":"126.3E","气压（hPa）":955,"风速（m/s）":42,"x":23.8,"y":126.3},
{"日期":"2021-7-21","时间":"23:00:00","纬度":"23.8N","经度":"126.3E","气压（hPa）":955,"风速（m/s）":42,"x":23.8,"y":126.3},
{"日期":"2021-7-21","时间":"22:00:00","纬度":"23.9N","经度":"126.4E","气压（hPa）":955,"风速（m/s）":42,"x":23.9,"y":126.4},
{"日期":"2021-7-21","时间":"21:00:00","纬度":"24N","经度":"126.5E","气压（hPa）":955,"风速（m/s）":42,"x":24,"y":126.5},
{"日期":"2021-7-21","时间":"20:00:00","纬度":"24.1N","经度":"126.6E","气压（hPa）":955,"风速（m/s）":42,"x":24.1,"y":126.6},
{"日期":"2021-7-21","时间":"19:00:00","纬度":"24.1N","经度":"126.8E","气压（hPa）":955,"风速（m/s）":42,"x":24.1,"y":126.8},
{"日期":"2021-7-21","时间":"18:00:00","纬度":"24.1N","经度":"126.8E","气压（hPa）":955,"风速（m/s）":42,"x":24.1,"y":126.8},
{"日期":"2021-7-21","时间":"17:00:00","纬度":"24.2N","经度":"126.9E","气压（hPa）":955,"风速（m/s）":42,"x":24.2,"y":126.9},
{"日期":"2021-7-21","时间":"14:00::00","纬度":"24.3N","经度":"127.2E","气压（hPa）":955,"风速（m/s）":42,"x":24.3,"y":127.2},
{"日期":"2021-7-21","时间":"11:00:00","纬度":"24.2N","经度":"127.8E","气压（hPa）":955,"风速（m/s）":42,"x":24.2,"y":127.8},
{"日期":"2021-7-21","时间":"08:00:00","纬度":"24.1N","经度":"127.9E","气压（hPa）":965,"风速（m/s）":38,"x":24.1,"y":127.9},
{"日期":"2021-7-21","时间":"05:00:00","纬度":"24.1N","经度":"128E","气压（hPa）":970,"风速（m/s）":35,"x":24.1,"y":128},
{"日期":"2021-7-21","时间":"02:00:00","纬度":"24.1N","经度":"128.2E","气压（hPa）":970,"风速（m/s）":35,"x":24.1,"y":128.2},
{"日期":"2021-7-20","时间":"23:00:00","纬度":"24.3N","经度":"128.6E","气压（hPa）":970,"风速（m/s）":35,"x":24.3,"y":128.6},
{"日期":"2021-7-20","时间":"20:00:00","纬度":"24.4N","经度":"129E","气压（hPa）":975,"风速（m/s）":33,"x":24.4,"y":129},
{"日期":"2021-7-20","时间":"17:00:00","纬度":"24.7N","经度":"129.4E","气压（hPa）":975,"风速（m/s）":33,"x":24.7,"y":129.4},
{"日期":"2021-7-20","时间":"14:00::00","纬度":"24.7N","经度":"129.8E","气压（hPa）":975,"风速（m/s）":33,"x":24.7,"y":129.8},
{"日期":"2021-7-20","时间":"11:00:00","纬度":"24.6N","经度":"130.5E","气压（hPa）":980,"风速（m/s）":30,"x":24.6,"y":130.5},
{"日期":"2021-7-20","时间":"08:00:00","纬度":"24.2N","经度":"130.8E","气压（hPa）":980,"风速（m/s）":30,"x":24.2,"y":130.8},
{"日期":"2021-7-20","时间":"05:00:00","纬度":"24.2N","经度":"130.8E","气压（hPa）":980,"风速（m/s）":30,"x":24.2,"y":130.8},
{"日期":"2021-7-20","时间":"02:00:00","纬度":"24N","经度":"131.1E","气压（hPa）":980,"风速（m/s）":30,"x":24,"y":131.1},
{"日期":"2021-7-19","时间":"23:00:00","纬度":"24N","经度":"131.1E","气压（hPa）":980,"风速（m/s）":30,"x":24,"y":131.1},
{"日期":"2021-7-19","时间":"20:00:00","纬度":"24N","经度":"131.1E","气压（hPa）":980,"风速（m/s）":30,"x":24,"y":131.1},
{"日期":"2021-7-19","时间":"17:00:00","纬度":"24N","经度":"131.1E","气压（hPa）":982,"风速（m/s）":28,"x":24,"y":131.1},
{"日期":"2021-7-19","时间":"14:00::00","纬度":"24N","经度":"131.1E","气压（hPa）":982,"风速（m/s）":28,"x":24,"y":131.1},
{"日期":"2021-7-19","时间":"11:00:00","纬度":"24N","经度":"131.1E","气压（hPa）":985,"风速（m/s）":25,"x":24,"y":131.1},
{"日期":"2021-7-19","时间":"08:00:00","纬度":"23.9N","经度":"131.3E","气压（hPa）":985,"风速（m/s）":25,"x":23.9,"y":131.3},
{"日期":"2021-7-19","时间":"05:00:00","纬度":"23.8N","经度":"131.5E","气压（hPa）":990,"风速（m/s）":23,"x":23.8,"y":131.5},
{"日期":"2021-7-19","时间":"02:00:00","纬度":"23.5N","经度":"131.9E","气压（hPa）":990,"风速（m/s）":23,"x":23.5,"y":131.9},
{"日期":"2021-7-18","时间":"20:00:00","纬度":"23.3N","经度":"132.2E","气压（hPa）":995,"风速（m/s）":20,"x":23.3,"y":132.2},
{"日期":"2021-7-18","时间":"17:00:00","纬度":"23N","经度":"132.3E","气压（hPa）":995,"风速（m/s）":20,"x":23,"y":132.3},
{"日期":"2021-7-18","时间":"14:00::00","纬度":"22.7N","经度":"132.3E","气压（hPa）":995,"风速（m/s）":20,"x":22.7,"y":132.3},
{"日期":"2021-7-18","时间":"08:00:00","纬度":"22.5N","经度":"132.4E","气压（hPa）":998,"风速（m/s）":18,"x":22.5,"y":132.4},
{"日期":"2021-7-18","时间":"05:00:00","纬度":"22.4N","经度":"132.5E","气压（hPa）":998,"风速（m/s）":18,"x":22.4,"y":132.5},
{"日期":"2021-7-18","时间":"02:00:00","纬度":"22.2N","经度":"132.5E","气压（hPa）":998,"风速（m/s）":18,"x":22.2,"y":132.5}

]
