LOOGSON派二代buildroot文件系统编译

1.下载编译工具gcc-4.9.3-64-gnu.tar.gz并解压

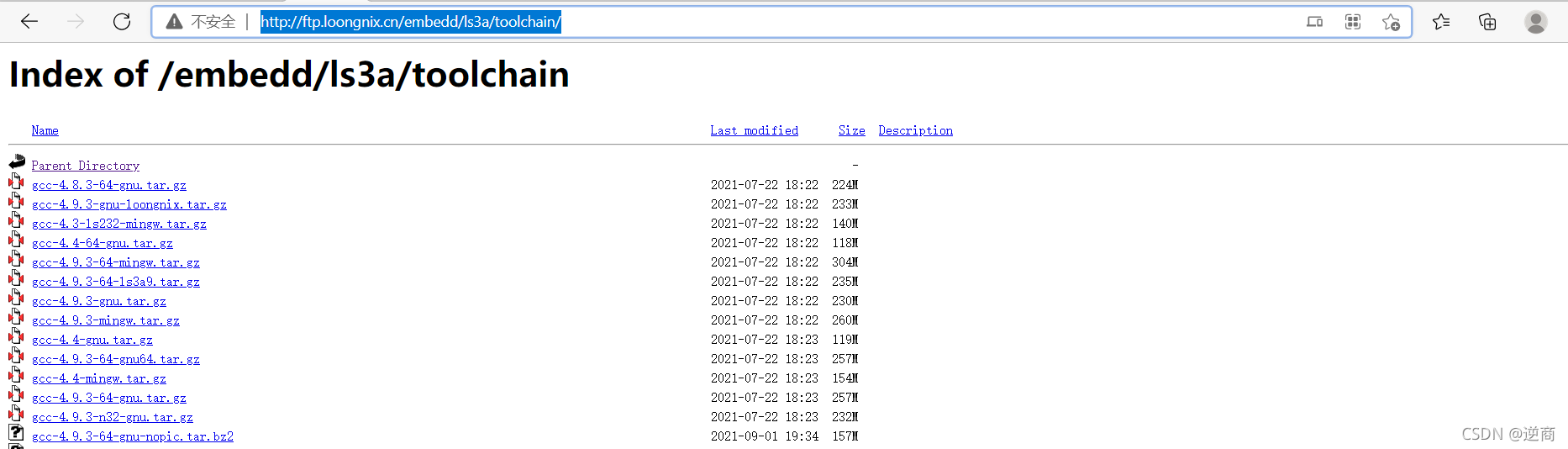

Index of /embedd/ls3a/toolchain (loongnix.cn)

解压命令 sudo tar -zxvf gcc-4.9.3-64-gnu.tar.gz -C /

2.下载buildroot工具并解压

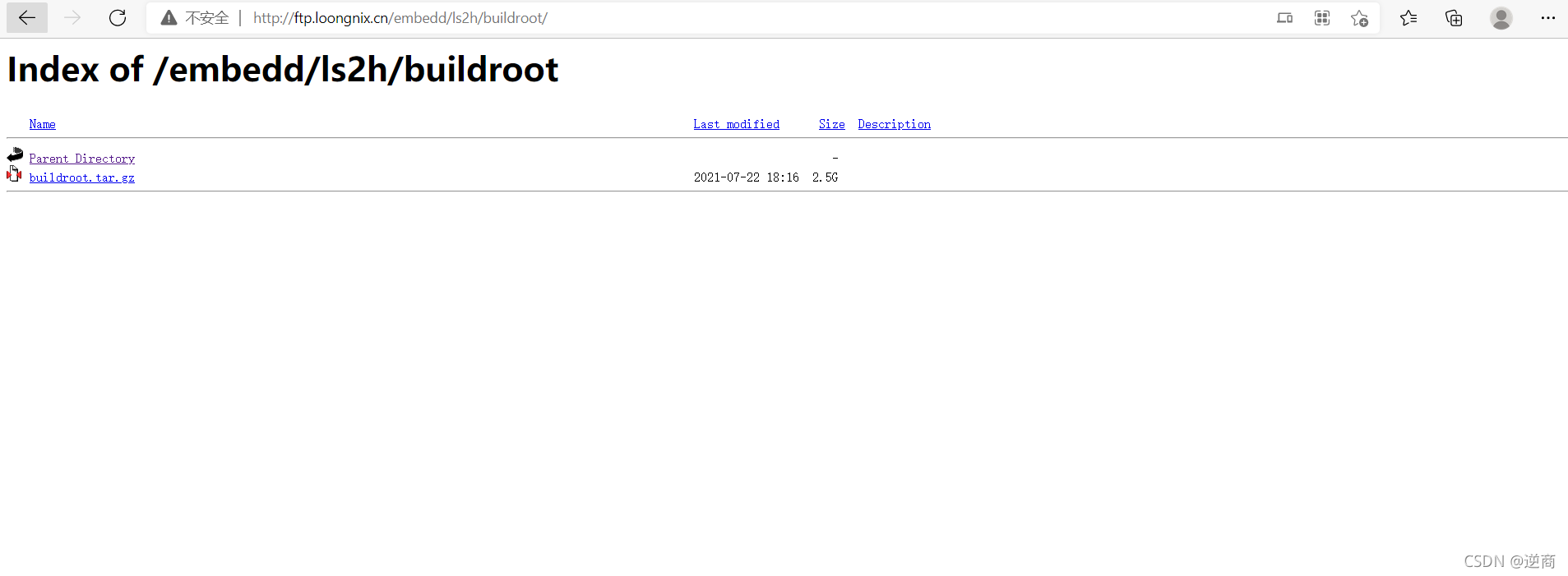

Index of /embedd/ls2h/buildroot (loongnix.cn)

解压命令sudo tar -zxvf buildroot.tar.gz

创建编译脚本cmd.sh

------------------------------------------------------------------------------------

#! /bin/bash

export LANG=C

export PATH=/opt/gcc-4.9.3-64-gnu/bin/:$PATH

make ARCH=mips CROSS_COMPILE=mips64el-linux- -j8

-----------------------------------------------------------------------------------

修改权限 sudo chmod 777 -f cmd.sh

3.配置编译选项

3.1    cp ls2k_docker-systemd-gcc-4.9.3.config .config

3.2   make menuconfig

3.2.1Target options —>

配置CPU参数 小端 MIPS64

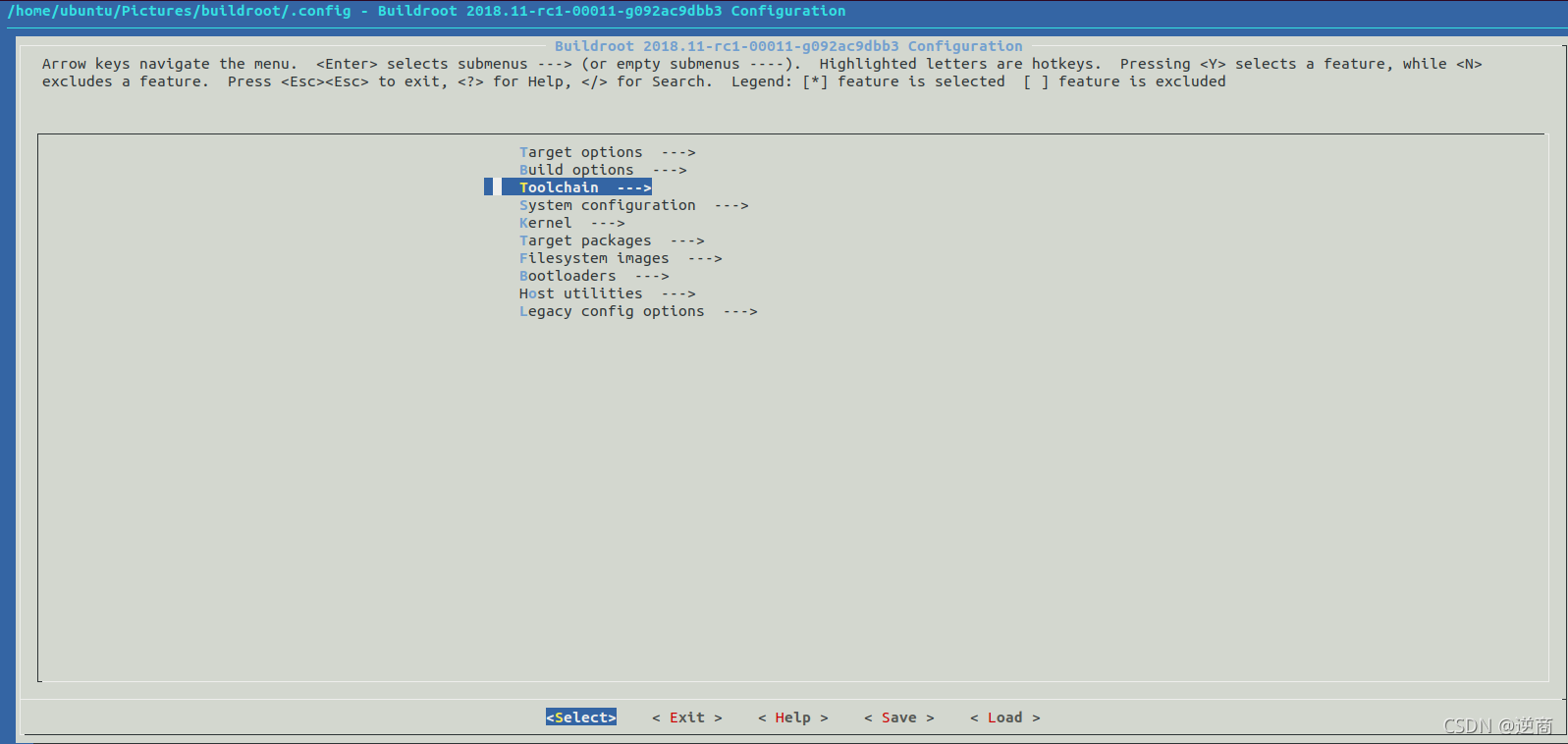

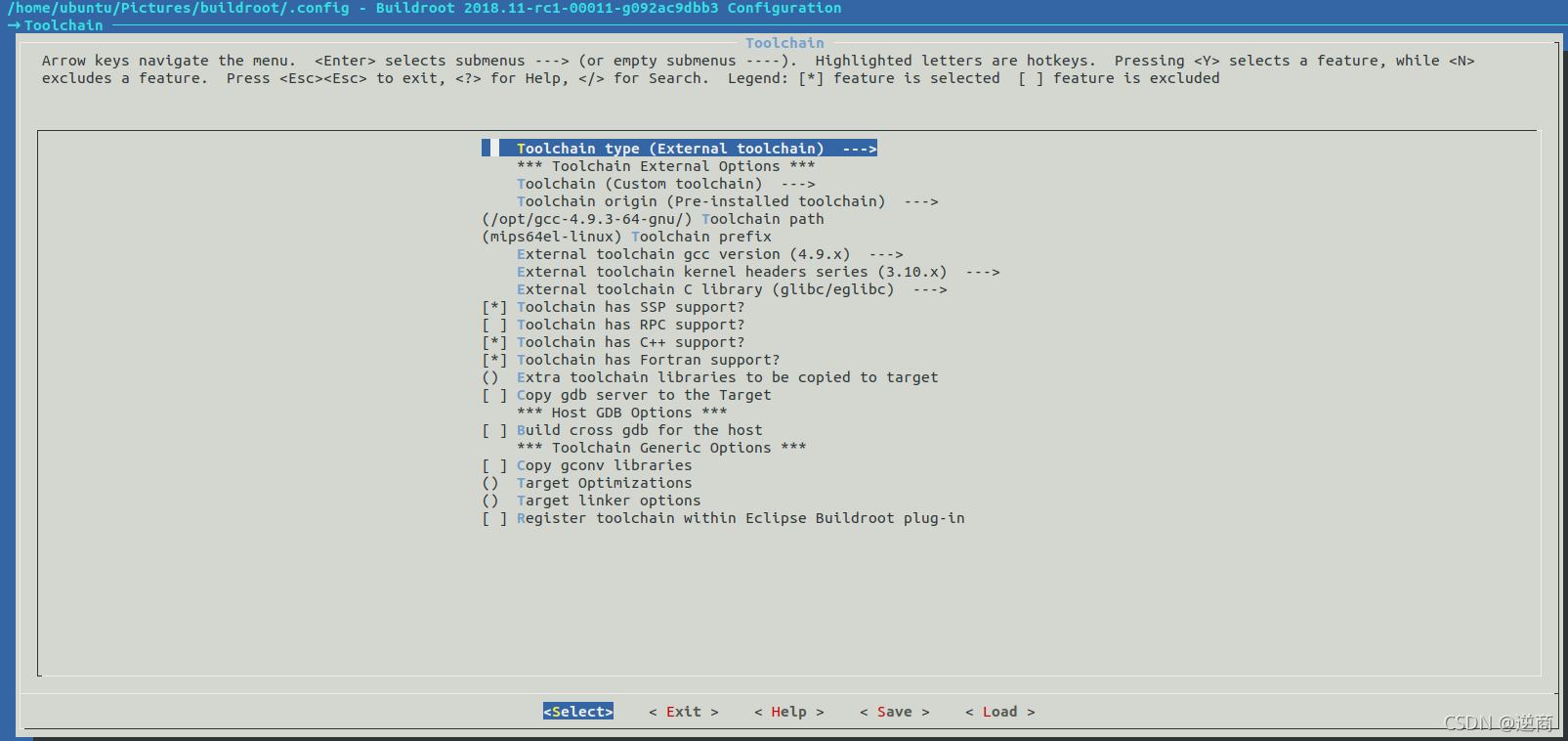

3.2.2Toolchain —>

添加默认工具链 gcc-4.9.3-64-gun

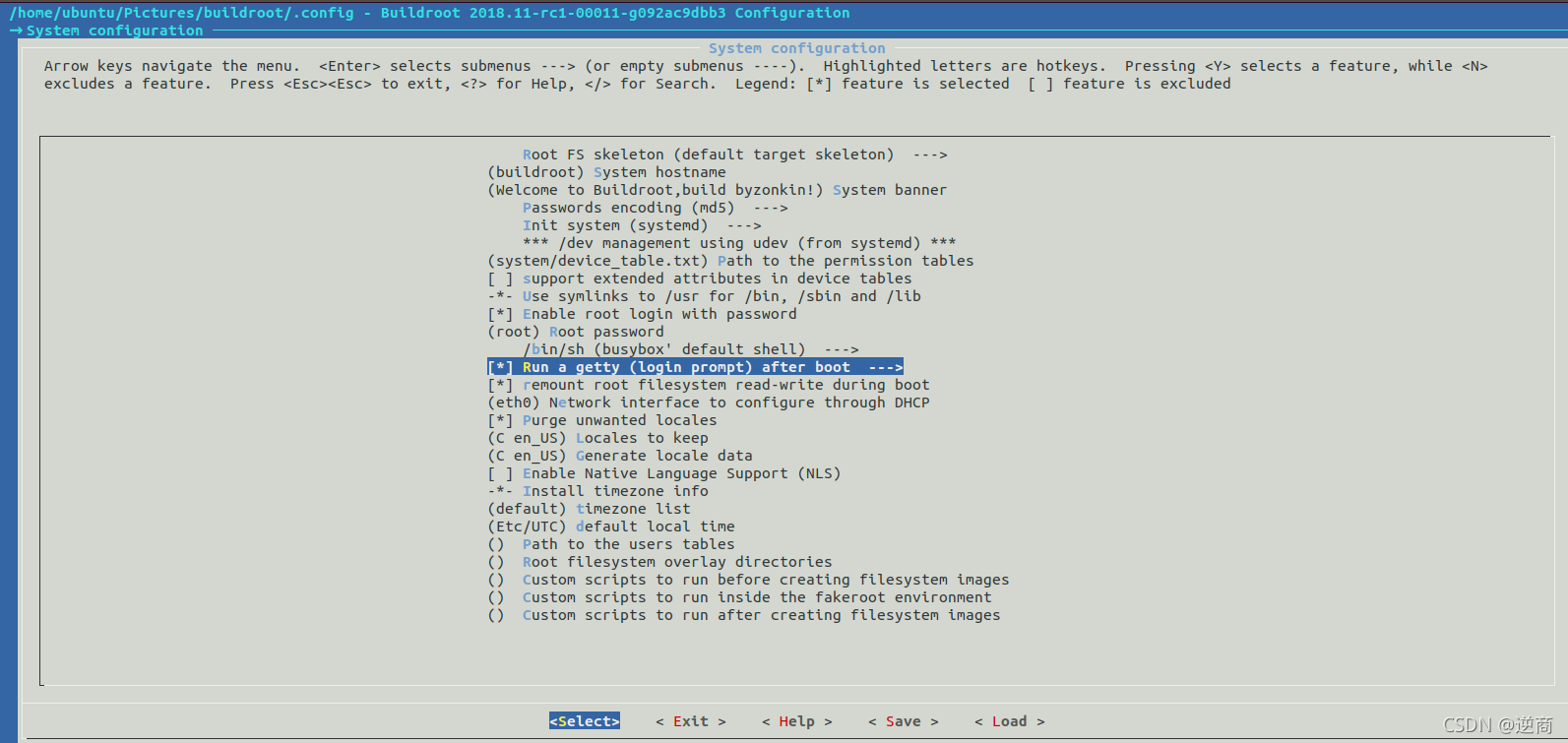

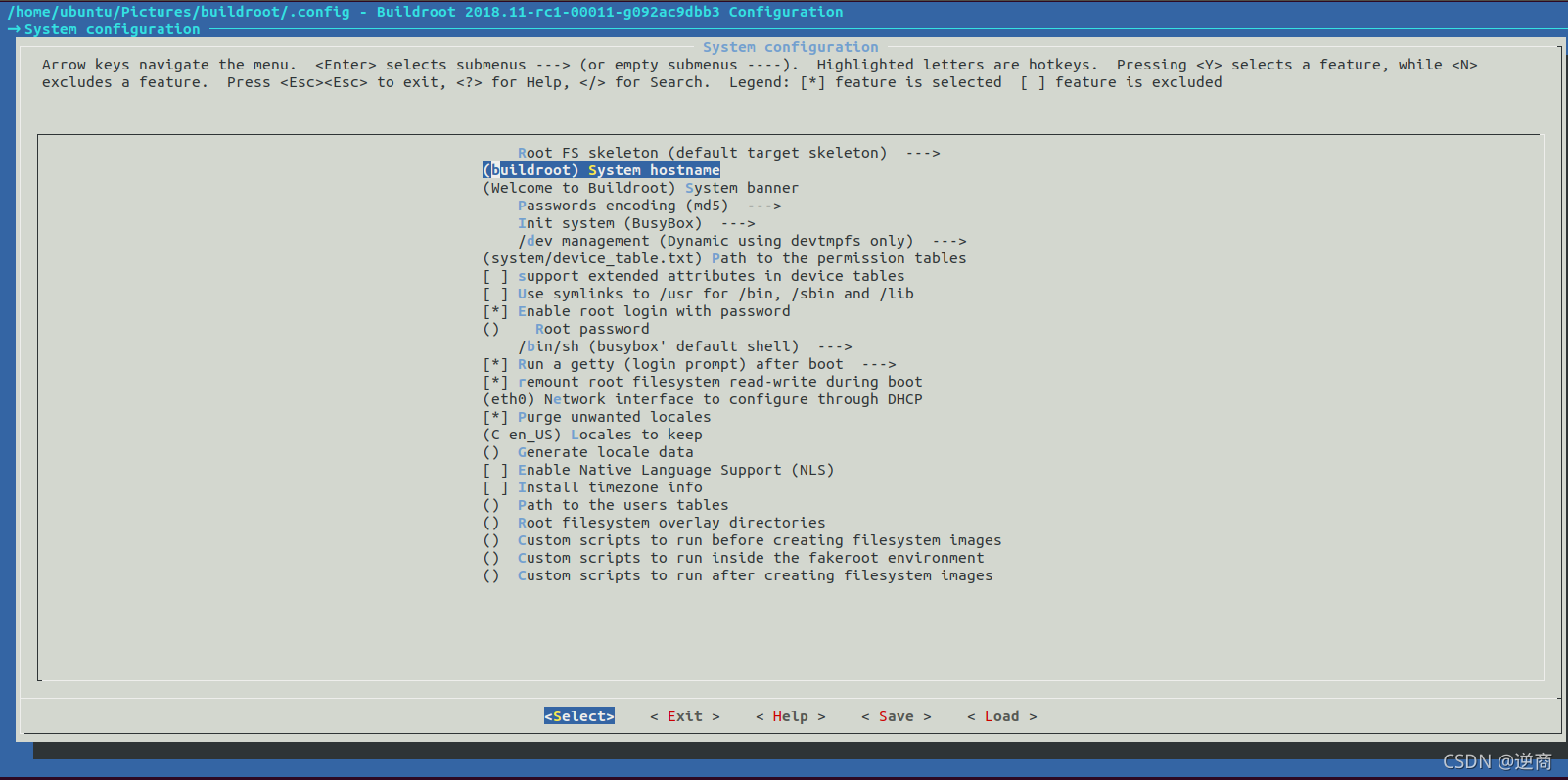

3.2.3System configuration —>

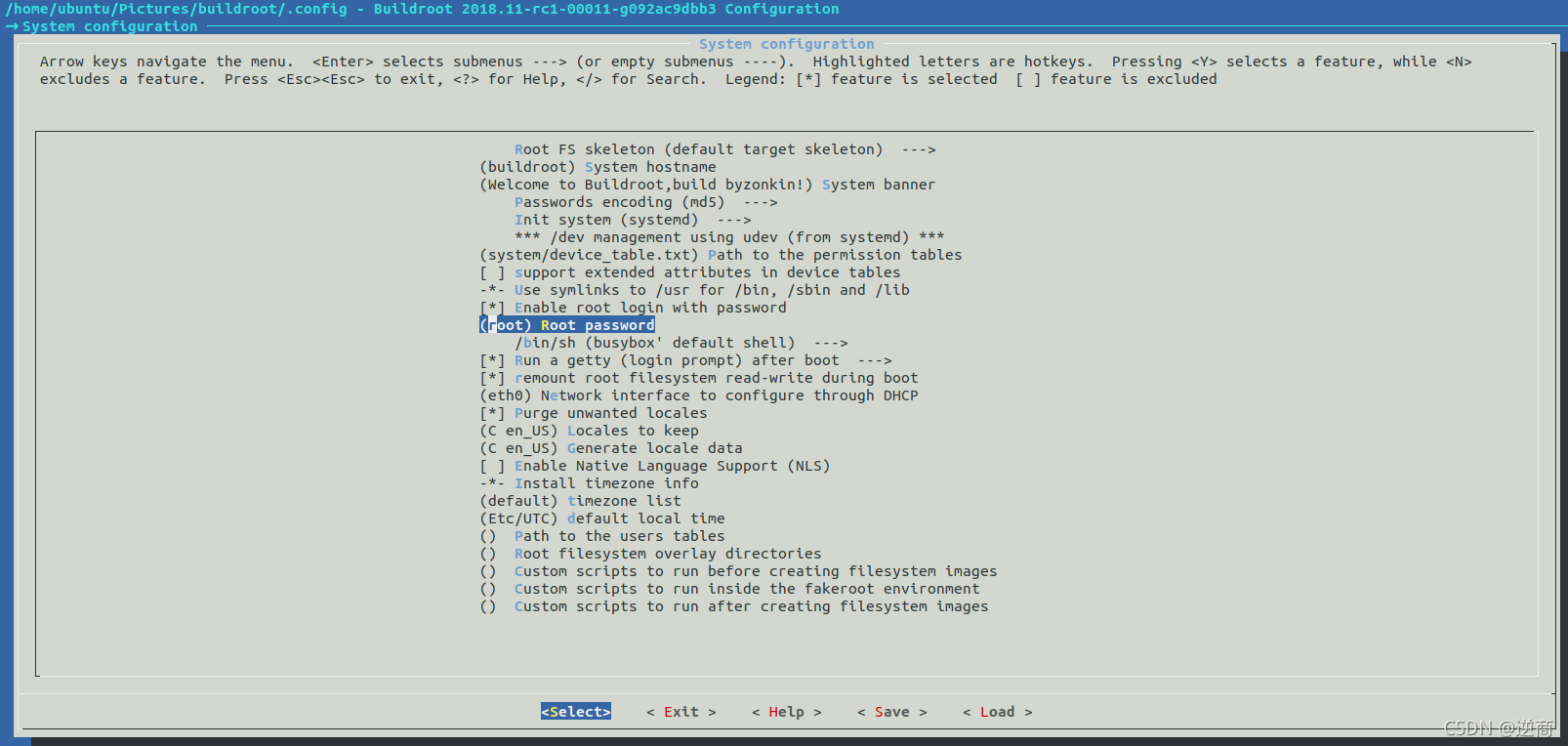

root password是登录后的密码，默认的用户名是root，添加密码root

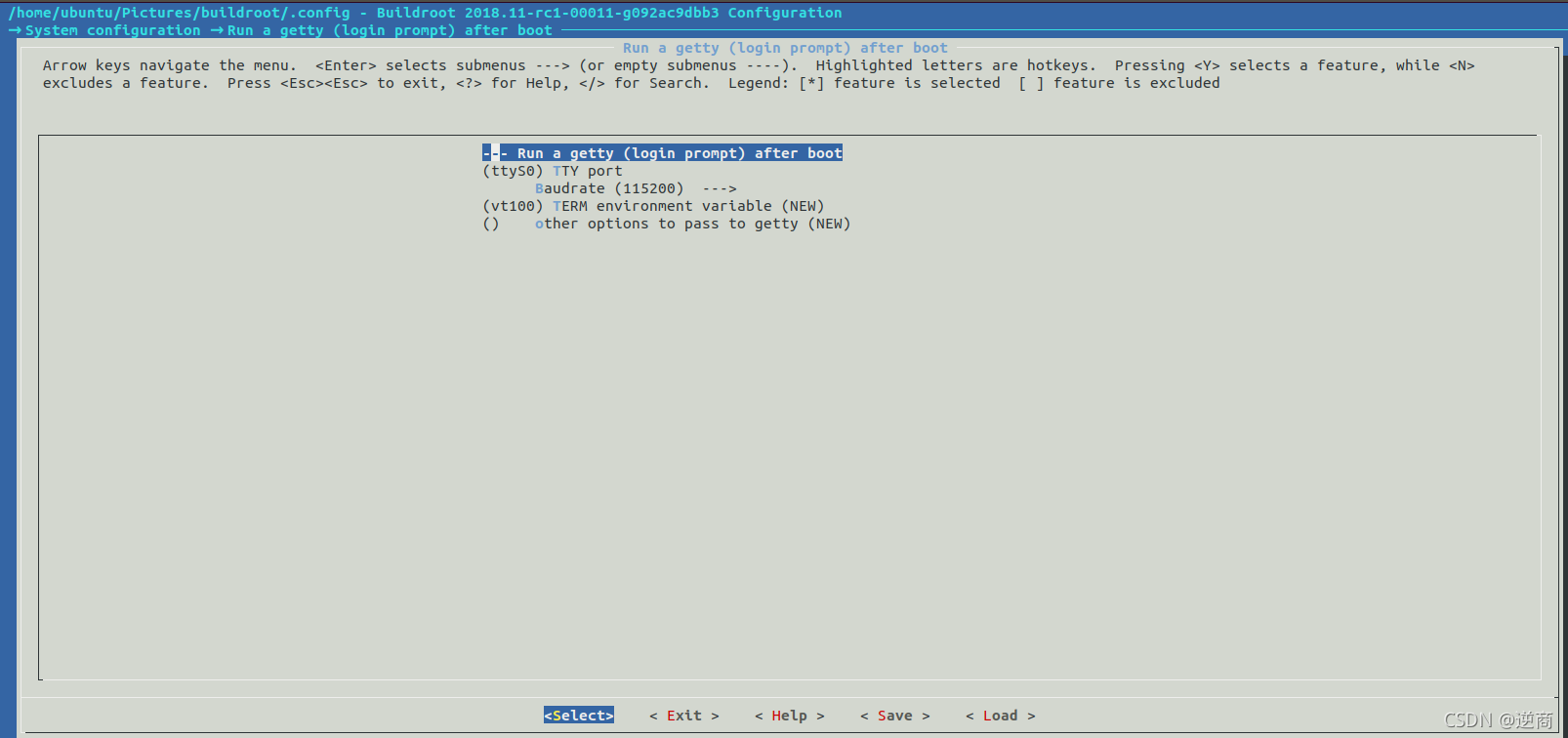

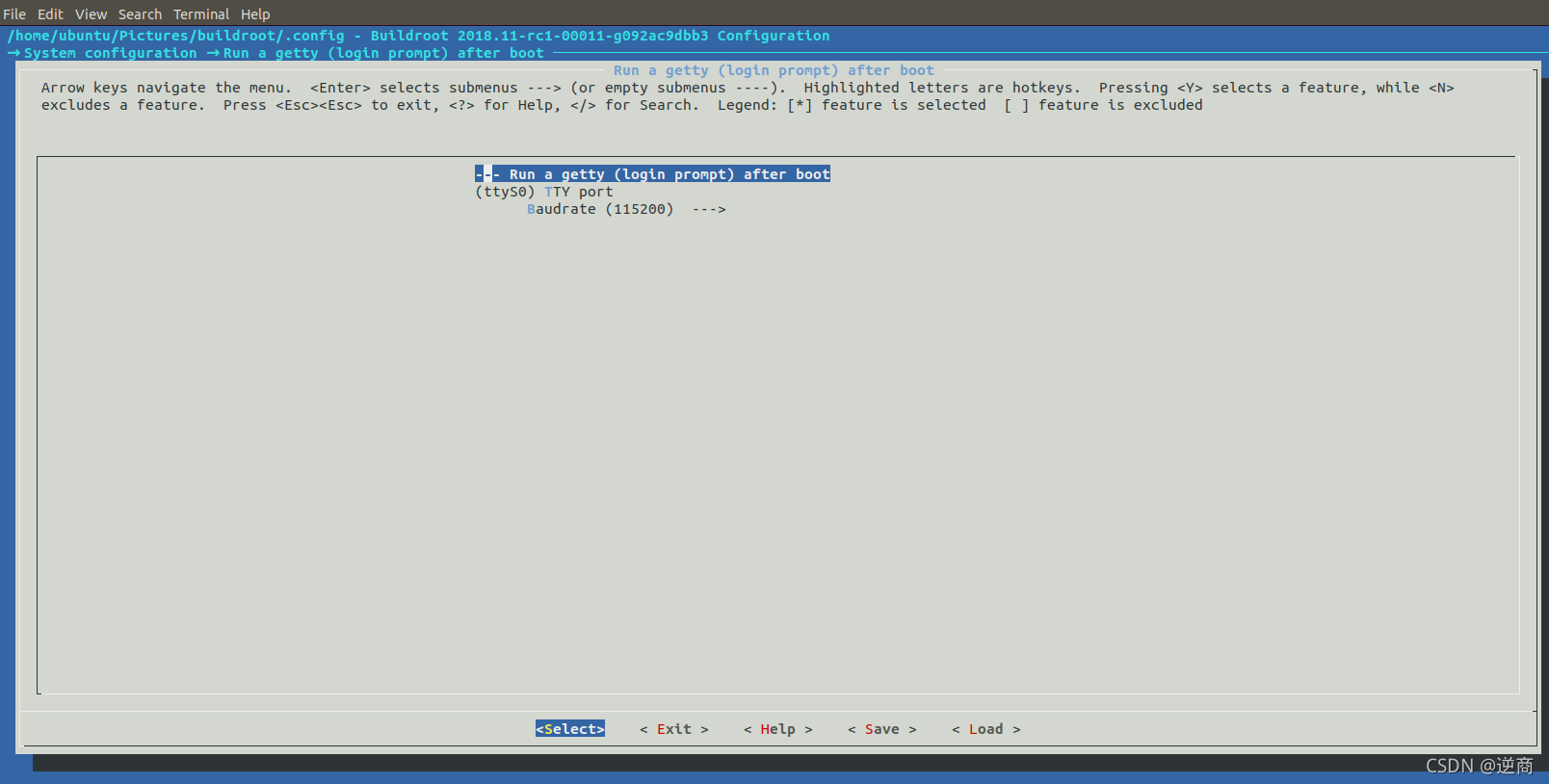

3.2.4Run a getty (login prompt) after boot —>

配置打印串口ttyS0和波特率

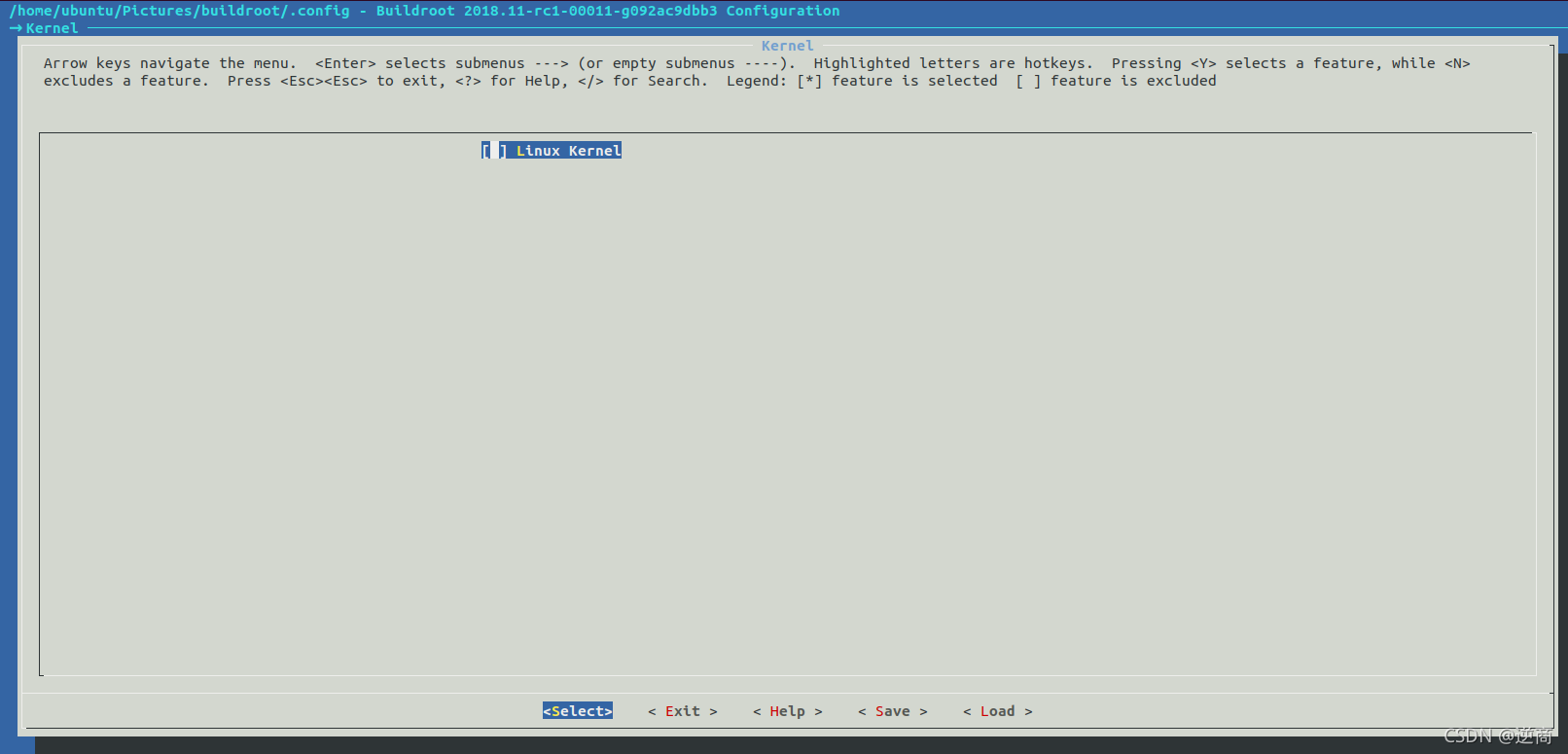

3.2.5Kernel —>

这里我们不编译

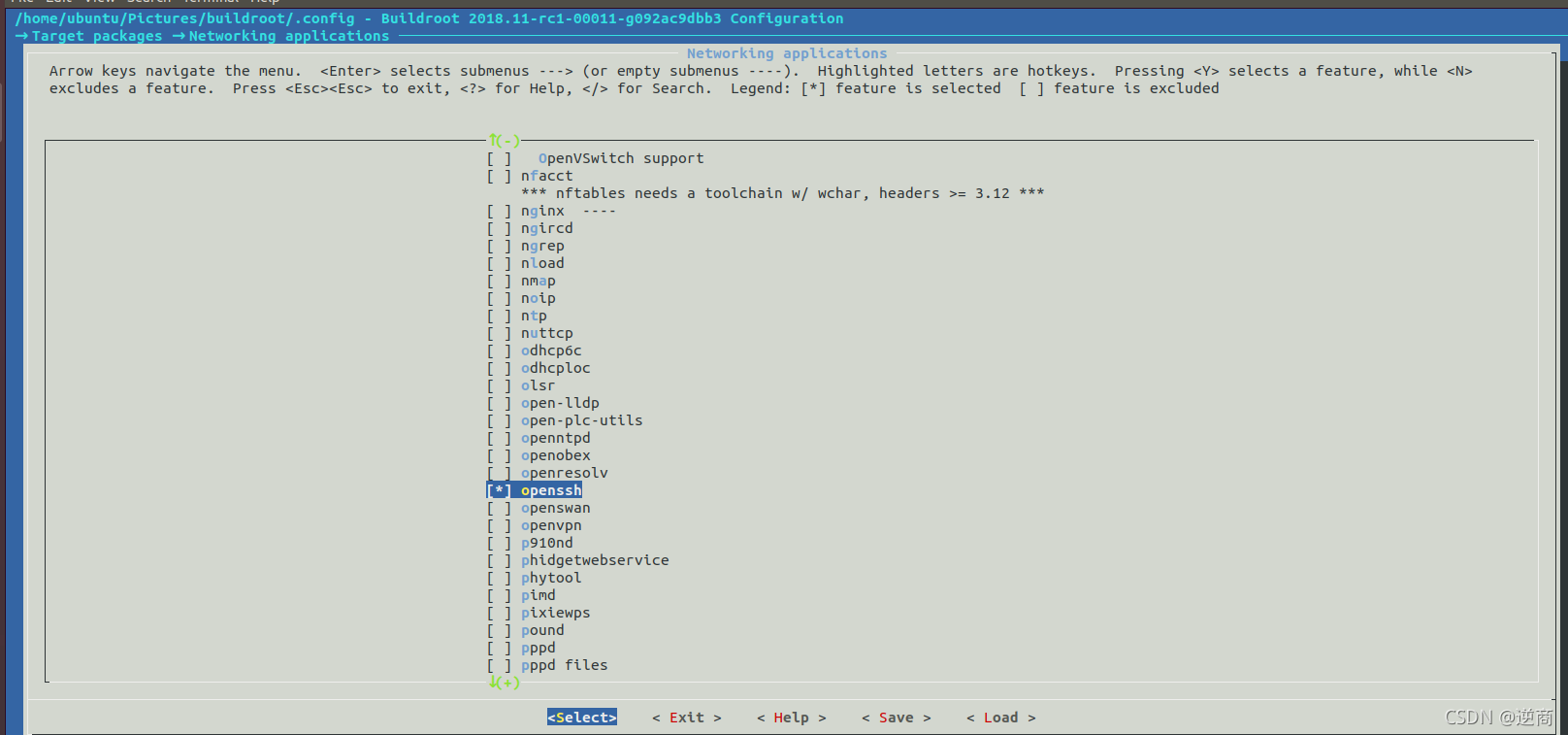

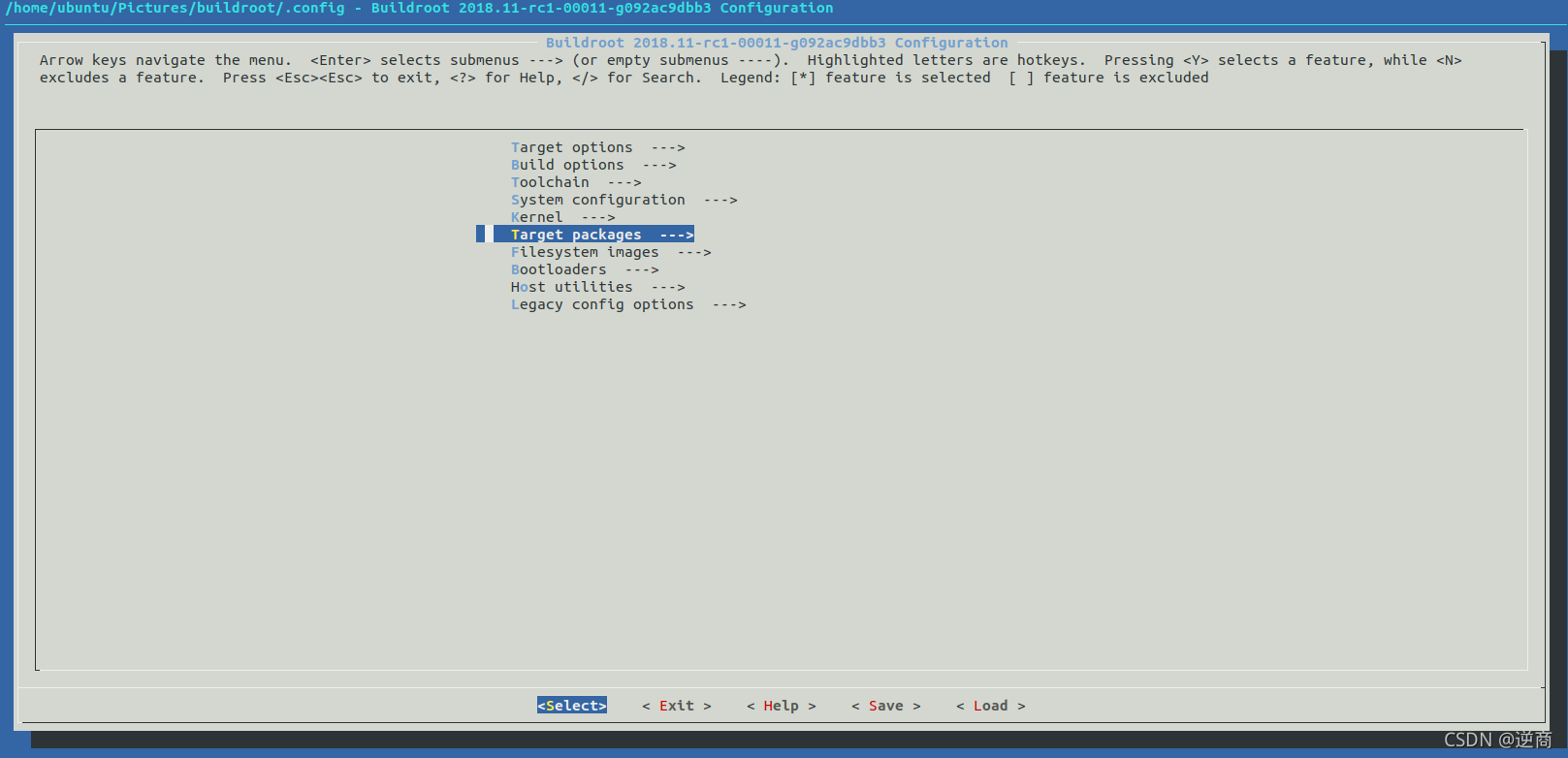

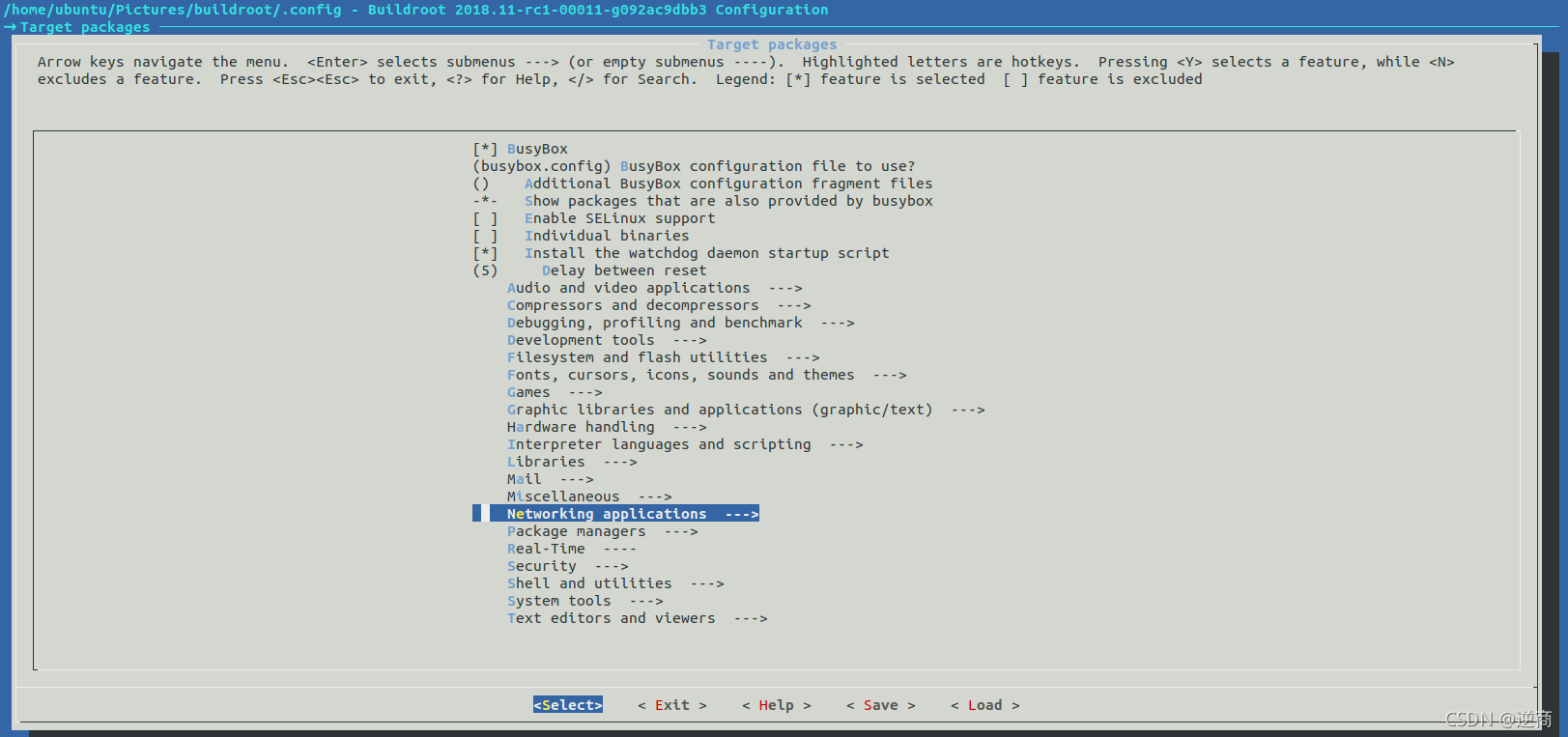

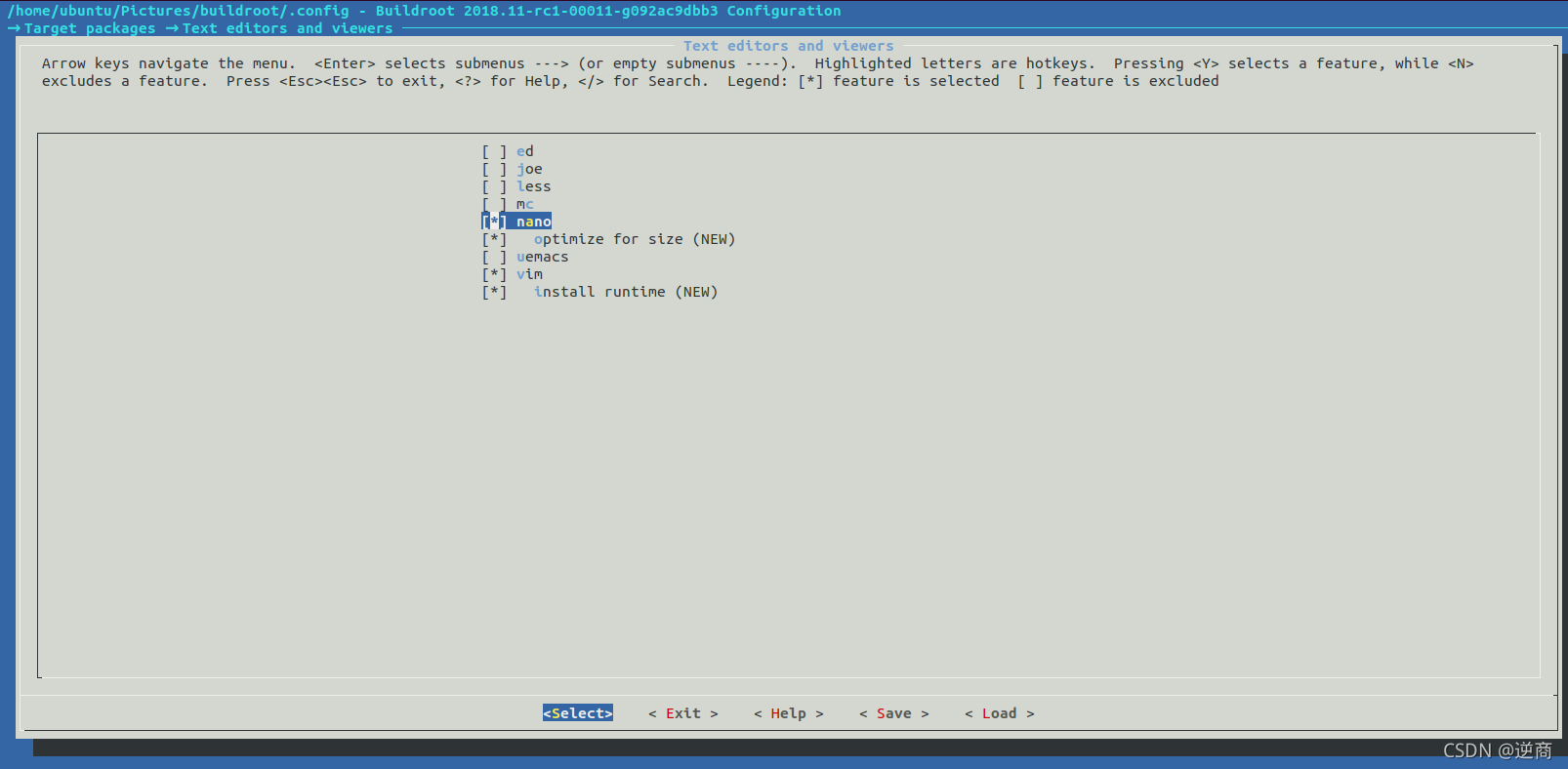

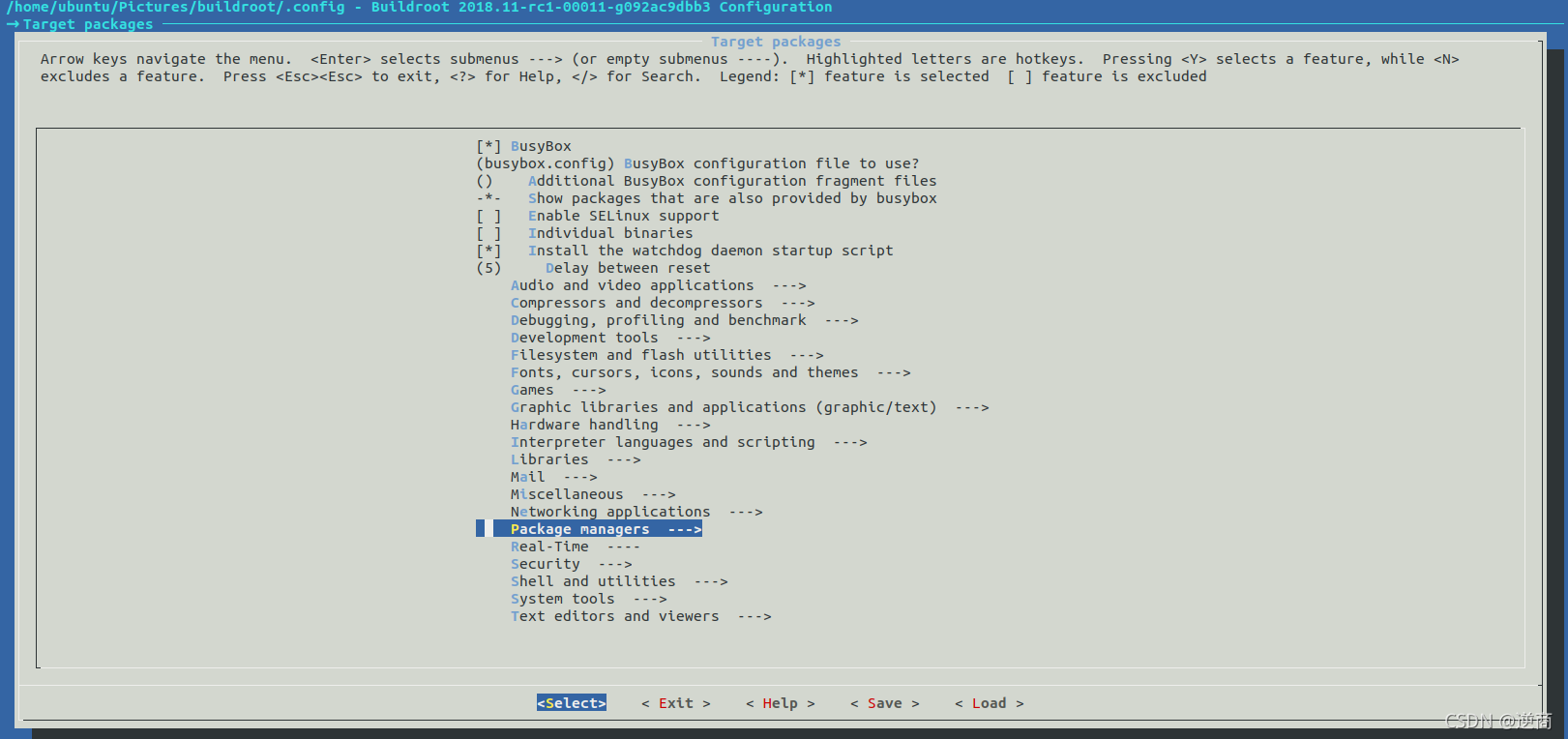

3.2.6Target packages —>

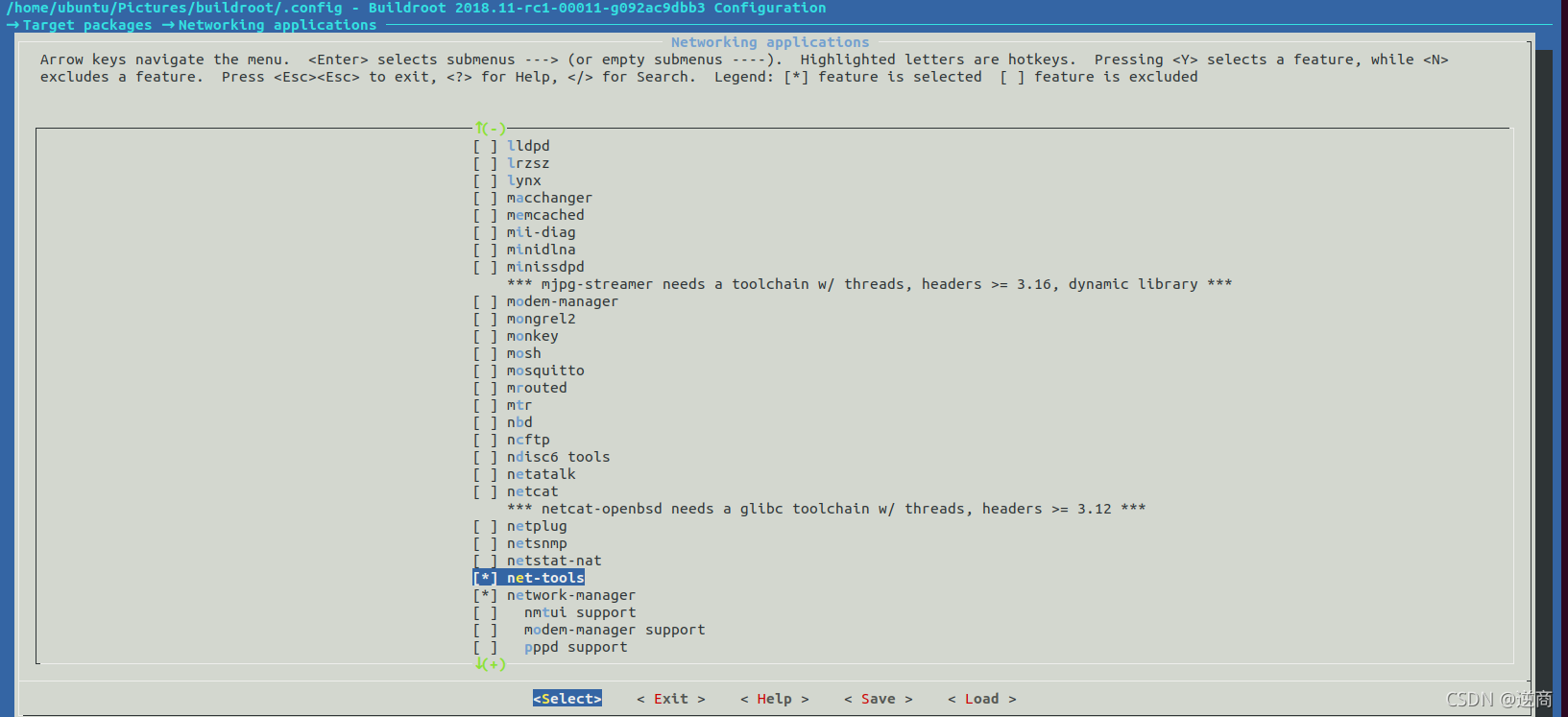

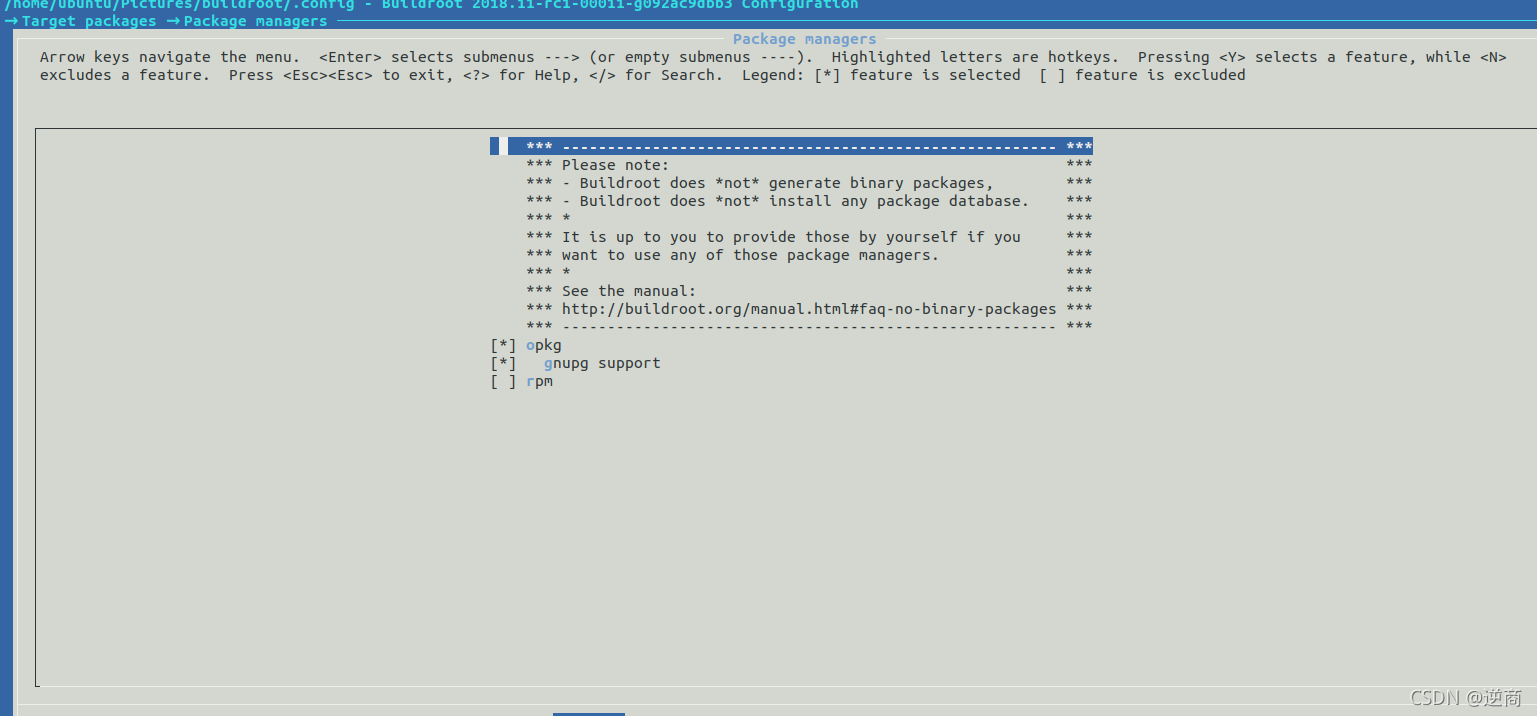

选择需要的工具 ，我们添加net-tool  openssh vim nano opkg



配置修改如下

4.构建./cmd.sh

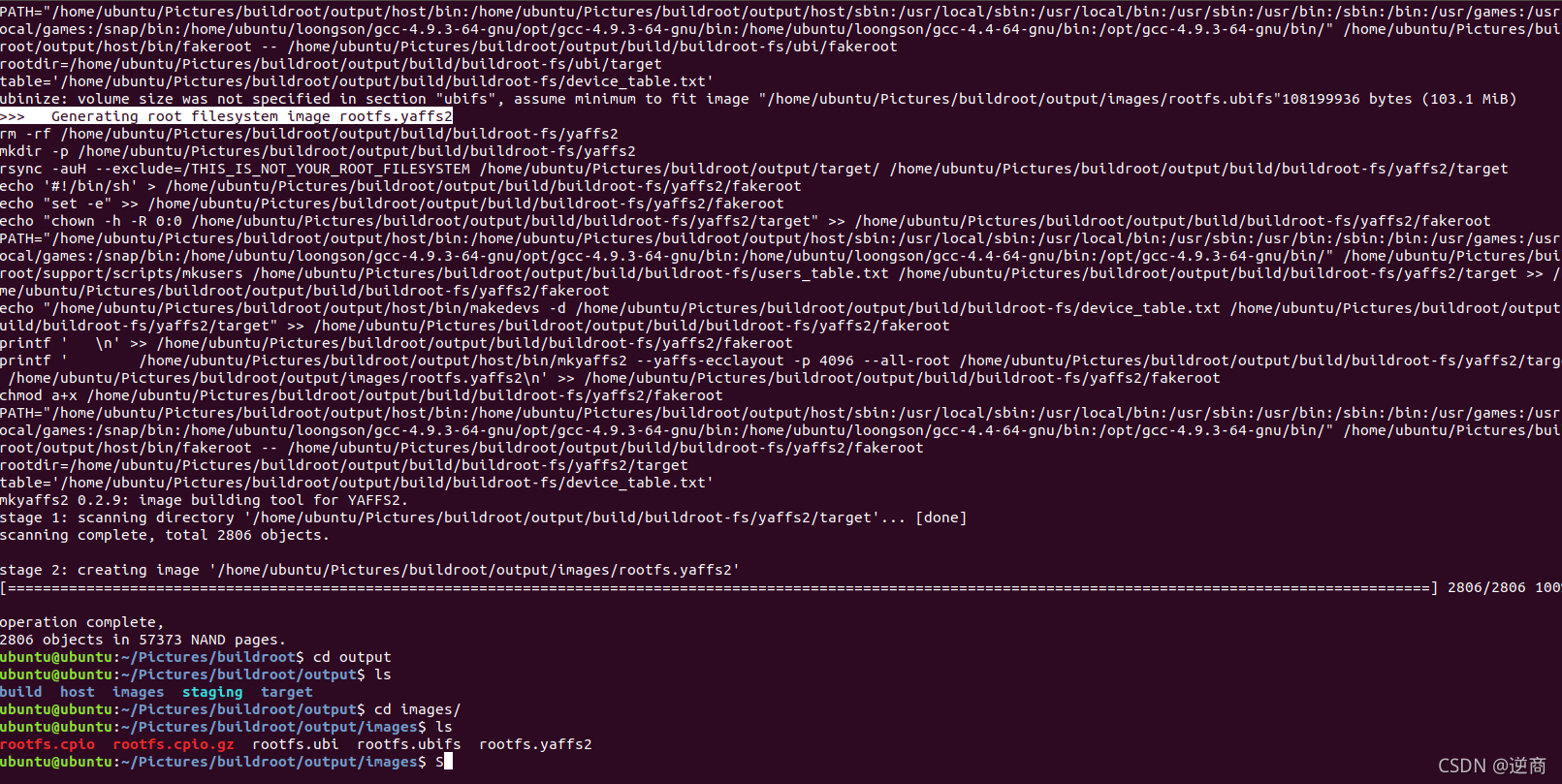

构建完成：



5.编译过程中出现错误

checking size of unsigned long... 8
checking size of mp_limb_t... 8
configure: error: Oops, mp_limb_t is 64 bits, but the assembler code
in this configuration expects 32 bits.
You appear to have set $CFLAGS, perhaps you also need to tell GMP the
intended ABI, see "ABI and ISA" in the manual.
package/pkg-generic.mk:219: recipe for target '/home/ubuntu/Pictures/buildroot/output/build/gmp-6.1.2/.stamp_configured' failed
make[1]: *** [/home/ubuntu/Pictures/buildroot/output/build/gmp-6.1.2/.stamp_configured] Error 1
Makefile:84: recipe for target '_all' failed
make: *** [_all] Error 2


./configure

make

sudo make install
