dcos - docker的日志收集

java日志配置

<?xml version="1.0" encoding="UTF-8"?>
<!--
    Copyright 2010-2011 The myBatis Team
    Licensed under the Apache License, Version 2.0 (the "License");
    you may not use this file except in compliance with the License.
    You may obtain a copy of the License at
        http://www.apache.org/licenses/LICENSE-2.0
    Unless required by applicable law or agreed to in writing, software
    distributed under the License is distributed on an "AS IS" BASIS,
    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    See the License for the specific language governing permissions and
    limitations under the License.
-->
<configuration debug="false">
    <!--定义日志文件的存储地址 勿在 LogBack 的配置中使用相对路径-->
    <property name="LOG_HOME" value="/data/logs/1232"/>
    <!-- 控制台输出 -->
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <Encoding>UTF-8</Encoding>
        <layout class="ch.qos.logback.classic.PatternLayout">
            <!--格式化输出：%d表示日期，%thread表示线程名，%-5level：级别从左显示5个字符宽度%msg：日志消息，%n是换行符-->
            <pattern>[%-5level] %d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %logger{500} - %msg%n</pattern>
        </layout>
    </appender>
    <!-- 按照每天生成错误日志文件 -->

    <appender name="ERROR_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <Encoding>UTF-8</Encoding>
    <file>${LOG_HOME}/123.error.log</file>
    <rollingPolicy class="ch.qos.logback.core.rolling.FixedWindowRollingPolicy">
      <fileNamePattern>${LOG_HOME}/123.%i.error.log</fileNamePattern>
      <minIndex>1</minIndex>
      <maxIndex>10000</maxIndex>
    </rollingPolicy>
    <triggeringPolicy class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
      <maxFileSize>1MB</maxFileSize>
    </triggeringPolicy>
        <encoder>
            <pattern>[%-5level] %d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %logger{500} - %msg%n</pattern>
        </encoder>
    </appender>

    <appender name="INFO_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <Encoding>UTF-8</Encoding>
        <file>${LOG_HOME}/123.info.log</file>
    <rollingPolicy class="ch.qos.logback.core.rolling.FixedWindowRollingPolicy">
      <fileNamePattern>${LOG_HOME}/123.%i.info.log</fileNamePattern>
      <minIndex>1</minIndex>
      <maxIndex>10000</maxIndex>
    </rollingPolicy>
    <triggeringPolicy class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
      <maxFileSize>1MB</maxFileSize>
    </triggeringPolicy>
        <encoder>
            <pattern>[%-5level] %d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %logger{500} - %msg%n</pattern>
        </encoder>
    </appender>

<configuration debug="true">
    <appender name="loggly" class="ch.qos.logback.classic.net.SyslogAppender">
        <syslogHost>localhost</syslogHost>
        <facility>SYSLOG</facility>
        <port>514</port>
        <suffixPattern>java %d{ISO8601,UTC} %p %t %c{0}.%M - %m%n</suffixPattern>
    </appender>
   <root level="info">
       <appender-ref ref="loggly" />
   </root>
</configuration>



    <!-- 本工程的日志级别 -->
    <logger name="net.123.server" level="INFO"/>
    <logger name="org.springframework.amqp" level="WARN"/>
    <!-- show parameters for hibernate sql 专为 Hibernate 定制 -->
    <logger name="org.hibernate.ptype.descriptor.sql.BasicBinder" level="INFO"/>
    <logger name="org.hibernate.ptype.descriptor.sql.BasicExtractor" level="INFO"/>
    <logger name="org.hibernate.SQL" level="INFO"/>
    <logger name="org.hibernate.engine.QueryParameters" level="INFO"/>
    <logger name="org.hibernate.engine.query.HQLQueryPlan" level="INFO"/>
    <!--myibatis log configure-->
    <logger name="java.sql.Connection" level="INFO"/>
    <logger name="java.sql.Statement" level="INFO"/>
    <logger name="java.sql.PreparedStatement" level="INFO"/>

    <logger name="org.apache.commons" level="INFO"/>
    <!-- 日志输出级别 -->
    <root level="INFO">
        <appender-ref ref="STDOUT"/>
        <appender-ref ref="INFO_FILE"/>
        <appender-ref ref="ERROR_FILE"/>
    </root>
</configuration>

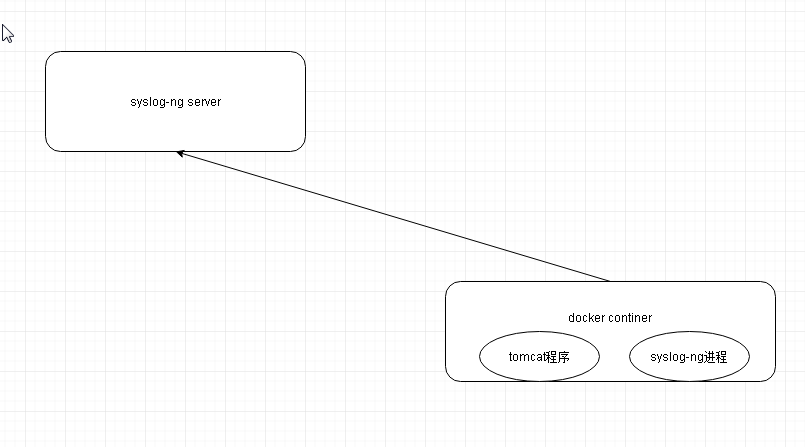

docker里面的syslog-ng进程

[root@d390c7582ad7 syslog-ng]# cat syslog-ng.conf
@version:3.2

# syslog-ng configuration file.
#
# This should behave pretty much like the original syslog on RedHat. But
# it could be configured a lot smarter.
#
# See syslog-ng(8) and syslog-ng.conf(5) for more information.
#

options {
    flush_lines (0);
    time_reopen (10);
    log_fifo_size (1000);
    long_hostnames (off);
    use_dns (no);
    use_fqdn (no);
    create_dirs (no);
    keep_hostname (yes);
};

options {
    long_hostnames(off); flush_lines(0); use_dns(no); use_fqdn(no);
          owner("root"); group("adm"); perm(0640); stats_freq(0);
          bad_hostname("^gconfd$");
};

source test{
    file("/data/logs/123-123/xcloud-cs.2016-11-24_0.error.log" follow_freq(1) program_override("123-123.error"));
    file("/data/logs/123-123/123-123.2016-11-24_0.info.log" follow_freq(1) program_override("123-123.info"));
};
destination test {
    syslog("192.168.126.15" transport("tcp") port(5555) template("$MESSAGE\n"));
};

log {
    source(test);
        destination(test);
};

syslog-ng server进程配置

[root@t15 conf.d]# cat a.conf
@version: 3.5

source log5555 {
    syslog(ip(0.0.0.0) port(5555));
};

destination log5555 {
    file("/var/log/syslog-ng/$PROGRAM/${S_MONTH}${S_DAY}/${HOST}.${SOURCEIP}.log");
};
log{
    source(log5555);destination(log5555);
};
