我的课表—android 表格布局应用

我的课表—android 表格布局应用

1. 布局文件


a.完整mainactivity布局文件代码

关键点：在（0,0）的位置，左上角空出一个位置代码

android:layout_column="1"

<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#aabbcc"
    tools:context="${relativePackage}.${activityClass}" >

    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginBottom="5dp"
        android:background="#ccbbaa"
        android:gravity="center"
        android:padding="5dp"
        android:text="@string/mycur"
        android:textColor="#ff2233"
        android:textSize="24sp" />

    <TableRow>

        <TextView
            style="@style/textView"
            android:background="#00000000" />

        <TextView
            style="@style/textView"
            android:layout_column="1"
            android:text="@string/yi" />

        <TextView
            style="@style/textView"
            android:text="@string/er" />

        <TextView
            style="@style/textView"
            android:text="@string/san" />

        <TextView
            style="@style/textView"
            android:text="@string/si" />

        <TextView
            style="@style/textView"
            android:text="@string/wu" />

        <TextView
            style="@style/textView"
            android:text="@string/liu" />
		   <TextView
            style="@style/textView"
            android:text="@string/qi" />
    </TableRow>

    <TableRow>

        <TextView
            style="@style/textView"
            android:text="@string/first" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />
    </TableRow>
	  <TableRow>

        <TextView
            style="@style/textView"
            android:text="@string/second" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />
    </TableRow>
	      <TableRow>

        <TextView
            style="@style/textView"
            android:text="@string/third" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />
    </TableRow>
	      <TableRow>

        <TextView
            style="@style/textView"
            android:text="@string/forth" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />
    </TableRow>
      <TableRow>

        <TextView
            style="@style/textView"
            android:text="@string/fifth" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />
    </TableRow>
	  <TableRow>

        <TextView
            style="@style/textView"
            android:text="@string/sixth" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

        <Button style="@style/btn" />

    </TableRow>

</TableLayout>

b.自定义布局文件

  bg.xml 自定义TextView 边框

<resources xmlns:android="http://schemas.android.com/apk/res/android">

    <!--
        Base application theme, dependent on API level. This theme is replaced
        by AppBaseTheme from res/values-vXX/styles.xml on newer devices.
    -->
    <style name="AppBaseTheme" parent="android:Theme.Light">
        <!--
            Theme customizations available in newer API levels can go in
            res/values-vXX/styles.xml, while customizations related to
            backward-compatibility can go here.

        -->
    </style>

    <!-- Application theme. -->
    <style name="AppTheme" parent="AppBaseTheme">
        <!-- All customizations that are NOT specific to a particular API-level can go here. -->
    </style>

    <style name="textView">
        <item name="android:layout_width">0dp</item>
        <item name="android:layout_weight">1</item>
        <item name="android:layout_height">wrap_content</item>
        <item name="android:layout_margin">1dp</item>
        <item name="android:textSize">16sp</item>
        <item name="android:background">@drawable/bg</item>
    </style>

    <style name="btn">
        <item name="android:layout_width">0dp</item>
        <item name="android:layout_weight">1</item>
        <item name="android:layout_height">wrap_content</item>
        <item name="android:layout_margin">1dp</item>
        <item name="android:textSize">16sp</item>
        <item name="android:background">@drawable/bg</item>
        <item name="android:minHeight">0dp</item>
        <item name="android:minWidth">0dp</item>
        <item name="android:textColor">#0000ff</item>
        <item name="android:onClick">setCourse</item>
    </style>

</resources>

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle" >
    <solid android:color="#00000000" /><!-- 矩形颜色为透明 -->
    <padding android:left="5dp"
        android:top="5dp"
        android:right="5dp"
        android:bottom="5dp"/>
    <stroke
        android:width="2dp"
        android:color="#000000" /><!-- 矩形边框为2像素，颜色为黑色 -->
</shape>

2 绑定到指定标签

将onClick属性添加到样式文件 点击空格可以添加课程信息

  <item name="android:onClick">setCourse</item>

在Activity中添加一个对应的方法

public void setCourse(View view) {
        btn=(Button) view;
       Builder courseBuild= new AlertDialog.Builder(this);
        courseBuild.setTitle("请输入课程名");
        final EditText editText= new EditText(this);
        editText.setText(btn.getText().toString());
        courseBuild.setView(editText);
        courseBuild.setPositiveButton("确定",new DialogInterface.OnClickListener() {
            public void onClick(DialogInterface dialog, int which) {
                btn.setText(editText.getText().toString());//设置课程
            }
        });//为对话框添加确定按钮
        courseBuild.create().show();
    }

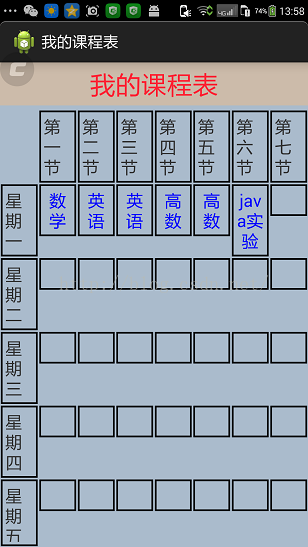

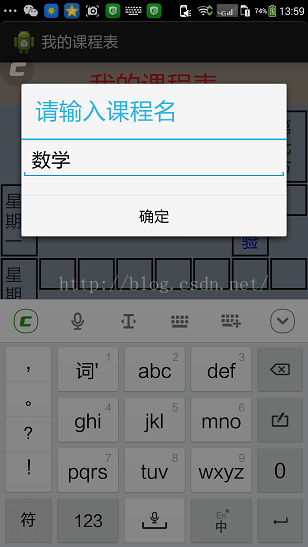

3运行效果
