Pascal VOC转COCO数据

参考：

• cocodataset/cocoapi
• philferriere/cocoapi- support Windows build and python3
• COCO 标注详解
• labelme标注的数据分析
• MSCOCO数据标注详解
• labelme数据转成COCO数据

---

详细代码点击这里

---

Pascal VOC 2007数据下载

wget http://host.robots.ox.ac.uk/pascal/VOC/voc2007/VOCtrainval_06-Nov-2007.tar
wget http://host.robots.ox.ac.uk/pascal/VOC/voc2007/VOCtest_06-Nov-2007.tar
wget http://host.robots.ox.ac.uk/pascal/VOC/voc2007/VOCdevkit_08-Jun-2007.tar

# 执行以下命令将解压到一个名为VOCdevkit的目录中
tar xvf VOCtrainval_06-Nov-2007.tar
tar xvf VOCtest_06-Nov-2007.tar
tar xvf VOCdevkit_08-Jun-2007.tar

---

数据预览

1、VOC2007/Annotations

类别名与对象的矩形框位置

<annotation>
    <folder>VOC2007</folder> # 所在文件夹
    <filename>000032.jpg</filename> # 对应的图片名
    <source>
        <database>The VOC2007 Database</database> # 数据集
        <annotation>PASCAL VOC2007</annotation>
        <image>flickr</image>
        <flickrid>311023000</flickrid>
    </source>
    <owner>
        <flickrid>-hi-no-to-ri-mo-rt-al-</flickrid>
        <name>?</name>
    </owner>
    <size>
        <width>500</width> # 图片宽
        <height>281</height> # 图片高
        <depth>3</depth> # 图片 通道数
    </size>
    <segmented>1</segmented>
    <object>
        <name>aeroplane</name> # 对象名
        <pose>Frontal</pose>
        <truncated>0</truncated>
        <difficult>0</difficult>
        <bndbox>
            <xmin>104</xmin> # 对象框左上角 x
            <ymin>78</ymin> # 对象框左上角 y
            <xmax>375</xmax> # 对象框右下角 x
            <ymax>183</ymax> # 对象框右下角 y
        </bndbox>
    </object>
    <object>
        <name>aeroplane</name> # 对象名
        <pose>Left</pose>
        <truncated>0</truncated>
        <difficult>0</difficult>
        <bndbox>
            <xmin>133</xmin>
            <ymin>88</ymin>
            <xmax>197</xmax>
            <ymax>123</ymax>
        </bndbox>
    </object>
    <object>
        <name>person</name>
        <pose>Rear</pose>
        <truncated>0</truncated>
        <difficult>0</difficult>
        <bndbox>
            <xmin>195</xmin>
            <ymin>180</ymin>
            <xmax>213</xmax>
            <ymax>229</ymax>
        </bndbox>
    </object>
    <object>
        <name>person</name>
        <pose>Rear</pose>
        <truncated>0</truncated>
        <difficult>0</difficult>
        <bndbox>
            <xmin>26</xmin>
            <ymin>189</ymin>
            <xmax>44</xmax>
            <ymax>238</ymax>
        </bndbox>
    </object>
</annotation>

2、VOC2007/JPEGImages

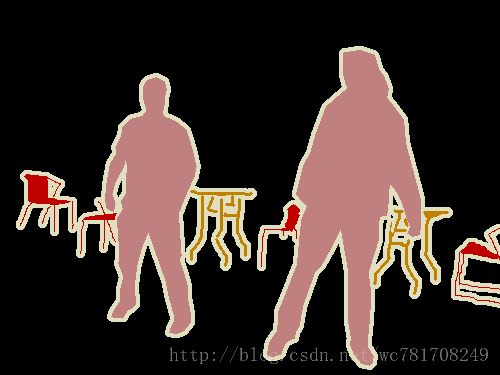

3、VOC2007/SegmentationClass

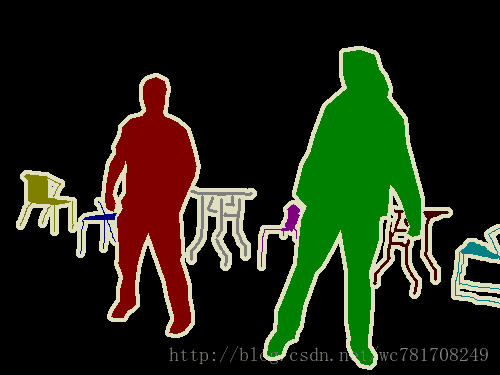

4、VOC2007/SegmentationObject

将Pascal VOC转COCO的JSON数据

• XML数据解析参考这里

• labelme数据转成COCO数据

---

参考 labelme数据转成COCO数据

通过解析xml文件得到images、categories、annotations字段中的内容
详情参考：PascalVOC2COCO.py

 def image(self):
        image = {}
        image['height'] = self.height
        image['width'] = self.width
        image['id'] = self.num + 1
        image['file_name'] = self.filen_ame
        return image

    def categorie(self):
        categorie = {}
        categorie['supercategory'] = self.supercategory
        categorie['id'] = len(self.label) + 1  # 0 默认为背景
        categorie['name'] = self.supercategory
        return categorie

    def annotation(self):
        annotation = {}
        # annotation['segmentation'] = [self.getsegmentation()]
        annotation['segmentation'] = [list(map(float, self.getsegmentation()))]
        annotation['iscrowd'] = 0
        annotation['image_id'] = self.num + 1
        # annotation['bbox'] = list(map(float, self.bbox))
        annotation['bbox'] = self.bbox
        annotation['category_id'] = self.getcatid(self.supercategory)
        annotation['id'] = self.annID
        return annotation

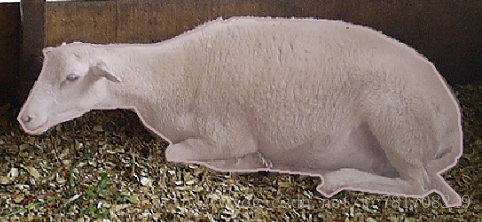

可视化结果

参考：visualization.py

# -*- coding:utf-8 -*-

from __future__ import print_function
from pycocotools.coco import COCO
import os, sys, zipfile
import urllib.request
import shutil
import numpy as np
import skimage.io as io
import matplotlib.pyplot as plt
import pylab
pylab.rcParams['figure.figsize'] = (8.0, 10.0)

annFile='./new.json'
coco=COCO(annFile)

# display COCO categories and supercategories
cats = coco.loadCats(coco.getCatIds())
nms=[cat['name'] for cat in cats]
print('COCO categories: \n{}\n'.format(' '.join(nms)))

nms = set([cat['supercategory'] for cat in cats])
print('COCO supercategories: \n{}'.format(' '.join(nms)))

# imgIds = coco.getImgIds(imgIds = [324158])
imgIds = coco.getImgIds()
imgId=np.random.randint(0,len(imgIds))
img = coco.loadImgs(imgIds[imgId])[0]
dataDir = '.'
dataType = 'JPEGImages'
I = io.imread('%s/%s/%s'%(dataDir,dataType,img['file_name']))
# I = io.imread('%s/%s'%(dataDir,img['file_name']))

plt.axis('off')
plt.imshow(I)
plt.show()


# load and display instance annotations
# 加载实例掩膜
# catIds = coco.getCatIds(catNms=['person','dog','skateboard']);
# catIds=coco.getCatIds()
catIds=[]
for ann in coco.dataset['annotations']:
    if ann['image_id']==imgIds[imgId]:
        catIds.append(ann['category_id'])

plt.imshow(I); plt.axis('off')
annIds = coco.getAnnIds(imgIds=img['id'], catIds=catIds, iscrowd=None)
anns = coco.loadAnns(annIds)
coco.showAnns(anns)
plt.show()

存在的问题

• 1、从SegmentationObject文件夹中提取对象的mask效果不好
• 2、从mask反算出mask边界点上的坐标，使用opencv提取对象边缘，感觉效果不好

上面问题导致annotation['segmentation'] 得到的点不是很准确
