MindSpore的NPU环境安装教程+疑难杂症排查（附上测试代码）

最近有机会测试昇腾NPU，测试了一下用于训练效果还是很不错的（安利一下）。但是关于昇腾和Mindspore的教程文章比较少，所以发博客记录一下。

本博客记录一下MindSpore环境安装流程和第一次安装会遇到的一些小问题。

本博客写的时间是2024年12月6日，安装的版本是MindSpore2.4.1，因为感觉MindSpore变动会比较大特意记录一下时间和版本。

参考：mindspore官方教程

驱动安装&验证

首先得确定有NPU卡和NPU相关驱动，驱动是8.0.RC3.beta1，如果没安装可以参考CANN官方安装教程

完成安装后检测方法是运行

npu-smi info

可以看到如下信息的话就表示驱动已经安装完成了。

在这里插入图片描述

安装MindSpore

个人比较推荐使用conda安装，这样环境比较好管理，自动安装的依赖项也比较多

首先需要安装前置依赖的包：

pip install sympy
pip install "numpy>=1.20.0,<2.0.0"
pip install /usr/local/Ascend/ascend-toolkit/latest/lib64/te-*-py3-none-any.whl
pip install /usr/local/Ascend/ascend-toolkit/latest/lib64/hccl-*-py3-none-any.whl

如果本地下载比较慢可以使用带国内源版本的命令

pip install sympy -i https://mirrors.cernet.edu.cn/pypi/web/simple
pip install "numpy>=1.20.0,<2.0.0" -i https://mirrors.cernet.edu.cn/pypi/web/simple
pip install /usr/local/Ascend/ascend-toolkit/latest/lib64/te-*-py3-none-any.whl -i https://mirrors.cernet.edu.cn/pypi/web/simple
pip install /usr/local/Ascend/ascend-toolkit/latest/lib64/hccl-*-py3-none-any.whl  -i https://mirrors.cernet.edu.cn/pypi/web/simple

conda安装MindSpore方法如下：

conda install mindspore=2.4.1 -c mindspore -c conda-forge

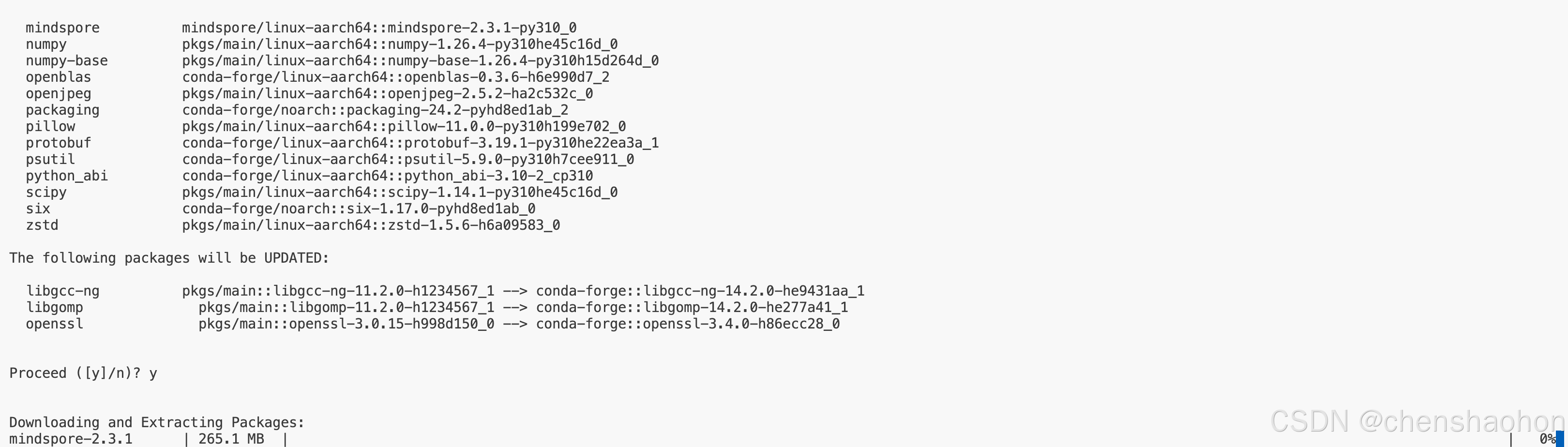

因为某些众所周知的原因，有时候conda源会失效，反应出来就是conda安装mindspore时会进度一直为0%，如下图：

请添加图片描述

可以使用如下方法指定国内源：

conda install mindspore=2.4.1 -c https://mirrors.tuna.tsinghua.edu.cn/anaconda/cloud/MindSpore/ -c conda-forge

pip安装MindSpore命令如下：

pip install https://ms-release.obs.cn-north-4.myhuaweicloud.com/2.4.1/MindSpore/unified/aarch64/mindspore-2.4.1-cp311-cp311-linux_aarch64.whl --trusted-host ms-release.obs.cn-north-4.myhuaweicloud.com -i https://pypi.tuna.tsinghua.edu.cn/simple

安装完成后可以使用如下命令进行测试

python -c "import mindspore;mindspore.set_context(device_target='Ascend');mindspore.run_check()"

如果这步出现报错可以参考本文后面疑难杂症章节

出现版本号信息和计算验证便意味着安装成功

MindSpore version:  2.4.1
The result of multiplication calculation is correct, MindSpore has been installed on platform [Ascend] successfully!

不知道一直会出几个warning，但似乎不影响使用

[WARNING] GE_ADPT(1055634,ffff85319020,python):2024-12-06-13:12:38.313.345 [mindspore/ccsrc/utils/dlopen_macro.h:163] DlsymAscend] Dynamically load symbol aclmdlBundleGetModelId failed, result = /usr/local/Ascend/ascend-toolkit/latest/lib64/libascendcl.so: undefined symbol: aclmdlBundleGetModelId
[WARNING] GE_ADPT(1055634,ffff85319020,python):2024-12-06-13:12:38.313.433 [mindspore/ccsrc/utils/dlopen_macro.h:163] DlsymAscend] Dynamically load symbol aclmdlBundleLoadFromMem failed, result = /usr/local/Ascend/ascend-toolkit/latest/lib64/libascendcl.so: undefined symbol: aclmdlBundleLoadFromMem
[WARNING] GE_ADPT(1055634,ffff85319020,python):2024-12-06-13:12:38.313.465 [mindspore/ccsrc/utils/dlopen_macro.h:163] DlsymAscend] Dynamically load symbol aclmdlBundleUnload failed, result = /usr/local/Ascend/ascend-toolkit/latest/lib64/libascendcl.so: undefined symbol: aclmdlBundleUnload
/home/huawei/miniconda3/envs/mindspore241/lib/python3.11/site-packages/numpy/core/getlimits.py:549: UserWarning: The value of the smallest subnormal for <class 'numpy.float64'> type is zero.
  setattr(self, word, getattr(machar, word).flat[0])
/home/huawei/miniconda3/envs/mindspore241/lib/python3.11/site-packages/numpy/core/getlimits.py:89: UserWarning: The value of the smallest subnormal for <class 'numpy.float64'> type is zero.
  return self._float_to_str(self.smallest_subnormal)
/home/huawei/miniconda3/envs/mindspore241/lib/python3.11/site-packages/numpy/core/getlimits.py:549: UserWarning: The value of the smallest subnormal for <class 'numpy.float32'> type is zero.
  setattr(self, word, getattr(machar, word).flat[0])
/home/huawei/miniconda3/envs/mindspore241/lib/python3.11/site-packages/numpy/core/getlimits.py:89: UserWarning: The value of the smallest subnormal for <class 'numpy.float32'> type is zero.
  return self._float_to_str(self.smallest_subnormal)
MindSpore version:  2.4.1
The result of multiplication calculation is correct, MindSpore has been installed on platform [Ascend] successfully!

运行神经网络测试

这里提供一个简单的教程代码仓库。可以实际运行测试一下，感觉还是挺好用的。

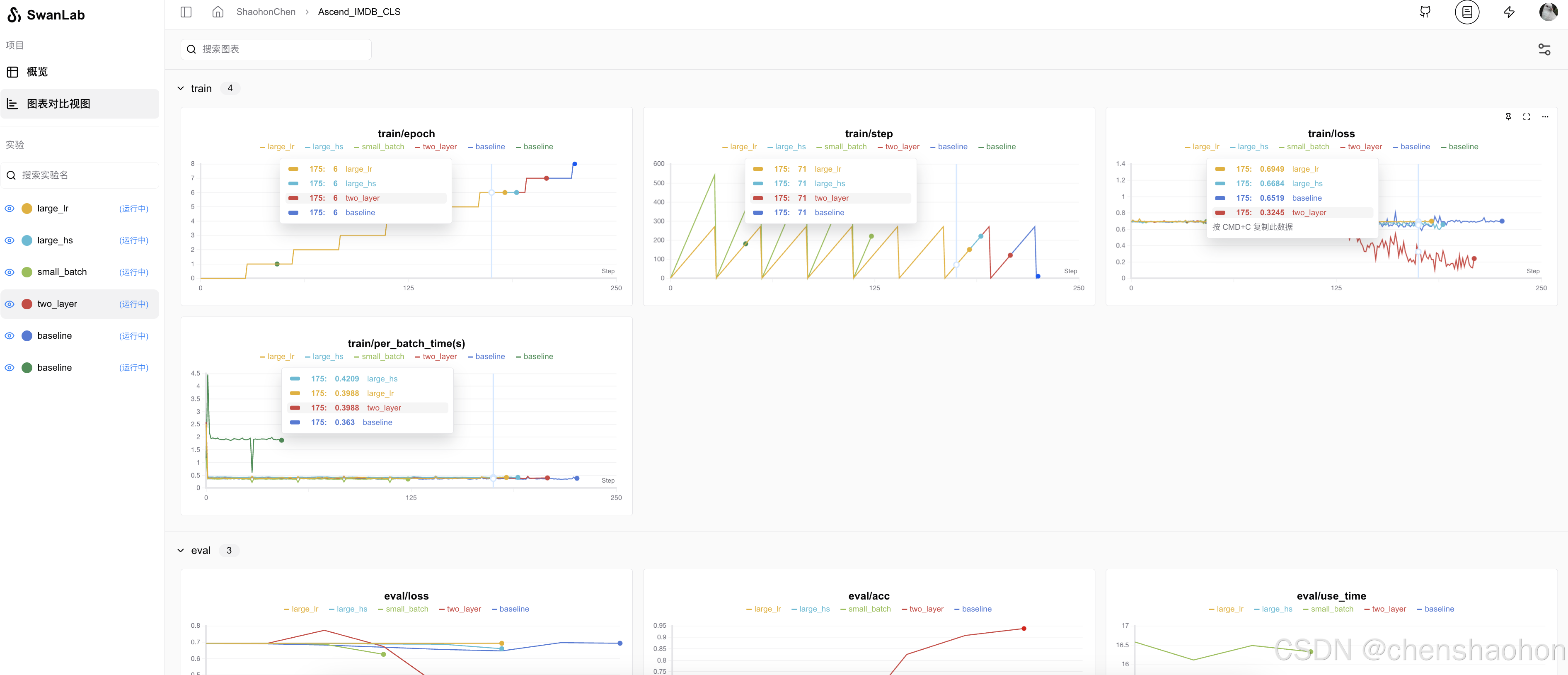

这里安利一下SwanLab，一个在线实验日志跟踪看板(下图)。

请添加图片描述

也有github开源版，求Star🌟～ GitHub链接

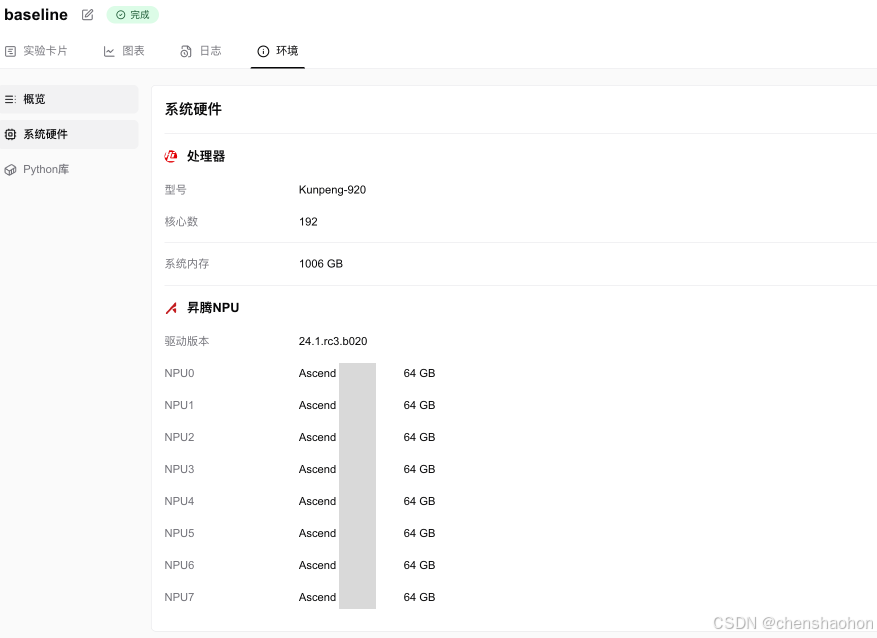

能够检测+监控晟腾设备的运行状况。非常推荐尝试！

在这里插入图片描述

疑难杂症

可能出现的问题一：MindSpore和CANN版本不对应

务必确保MindSpore版本和驱动一致，否则会出现如下报错：

[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:11.112.000 [mindspore/run_check/_check_version.py:357] MindSpore version 2.3.1 and Ascend AI software package (Ascend Data Center Solution)version 7.5 does not match, the version of software package expect one of ['7.2', '7.3']. Please refer to the match info on: https://www.mindspore.cn/install
/home/huawei/miniconda3/envs/mindspore231/lib/python3.10/site-packages/numpy/core/getlimits.py:549: UserWarning: The value of the smallest subnormal for <class 'numpy.float64'> type is zero.
  setattr(self, word, getattr(machar, word).flat[0])
/home/huawei/miniconda3/envs/mindspore231/lib/python3.10/site-packages/numpy/core/getlimits.py:89: UserWarning: The value of the smallest subnormal for <class 'numpy.float64'> type is zero.
  return self._float_to_str(self.smallest_subnormal)
/home/huawei/miniconda3/envs/mindspore231/lib/python3.10/site-packages/numpy/core/getlimits.py:549: UserWarning: The value of the smallest subnormal for <class 'numpy.float32'> type is zero.
  setattr(self, word, getattr(machar, word).flat[0])
/home/huawei/miniconda3/envs/mindspore231/lib/python3.10/site-packages/numpy/core/getlimits.py:89: UserWarning: The value of the smallest subnormal for <class 'numpy.float32'> type is zero.
  return self._float_to_str(self.smallest_subnormal)
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:13.700.000 [mindspore/run_check/_check_version.py:375] MindSpore version 2.3.1 and "te" wheel package version 7.5 does not match. For details, refer to the installation guidelines: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:13.701.000 [mindspore/run_check/_check_version.py:382] MindSpore version 2.3.1 and "hccl" wheel package version 7.5 does not match. For details, refer to the installation guidelines: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:13.702.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 3
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:14.703.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 2
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:15.704.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 1
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:18.608.000 [mindspore/run_check/_check_version.py:357] MindSpore version 2.3.1 and Ascend AI software package (Ascend Data Center Solution)version 7.5 does not match, the version of software package expect one of ['7.2', '7.3']. Please refer to the match info on: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:18.608.000 [mindspore/run_check/_check_version.py:375] MindSpore version 2.3.1 and "te" wheel package version 7.5 does not match. For details, refer to the installation guidelines: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:18.608.000 [mindspore/run_check/_check_version.py:382] MindSpore version 2.3.1 and "hccl" wheel package version 7.5 does not match. For details, refer to the installation guidelines: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:18.608.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 3
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:19.609.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 2
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:20.611.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 1
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:21.614.000 [mindspore/run_check/_check_version.py:357] MindSpore version 2.3.1 and Ascend AI software package (Ascend Data Center Solution)version 7.5 does not match, the version of software package expect one of ['7.2', '7.3']. Please refer to the match info on: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:21.614.000 [mindspore/run_check/_check_version.py:375] MindSpore version 2.3.1 and "te" wheel package version 7.5 does not match. For details, refer to the installation guidelines: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:21.614.000 [mindspore/run_check/_check_version.py:382] MindSpore version 2.3.1 and "hccl" wheel package version 7.5 does not match. For details, refer to the installation guidelines: https://www.mindspore.cn/install
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:21.615.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 3
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:22.616.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 2
[WARNING] ME(1049852:281473041023008,MainProcess):2024-12-06-12:23:23.617.000 [mindspore/run_check/_check_version.py:396] Please pay attention to the above warning, countdown: 1
MindSpore version:  2.3.1
Segmentation fault (core dumped)

解决方法：装对版本即可解决。对于MindSpore2.4.1，安装8.0.RC3.beta1驱动

可能出现的问题二：少装了前置的包

这里面

[ERROR] ME(1051780:281473416683552,MainProcess):2024-12-06-12:39:02.460.00 [mindspore/run_check/_check_version.py:360] CheckFailed: cannot import name 'version' from 'te' (unknown location)
[ERROR] ME(1051780:281473416683552,MainProcess):2024-12-06-12:39:02.460.00 [mindspore/run_check/_check_version.py:361] MindSpore relies on whl packages of "te" and "hccl" in the "latest" folder of the Ascend AI software package (Ascend Data Center Solution). Please check whether they are installed correctly or not, refer to the match info on: https://www.mindspore.cn/install
Traceback (most recent call last):
  File "<string>", line 1, in <module>
  File "/home/huawei/miniconda3/envs/mindspore241/lib/python3.11/site-packages/mindspore/__init__.py", line 19, in <module>
    from mindspore import common, dataset, mindrecord, train, log, amp
...
ImportError: cannot import name 'util' from 'tbe.tvm.topi.cce' (unknown location)
Fatal Python error: PyThreadState_Get: the function must be called with the GIL held, but the GIL is released (the current Python thread state is NULL)
Python runtime state: finalizing (tstate=0x00000000008aceb0)

Aborted (core dumped)

可能出现的问题三：pip安装阶段报错opc-tool 0.1.0 requires attrs, which is not installed

若出现如下报错（之前安装的时候有概率pip会报如下错误）：

ERROR: pip's dependency resolver does not currently take into account all the packages that are installed. This behaviour is the source of the following dependency conflicts.
auto-tune 0.1.0 requires decorator, which is not installed.
dataflow 0.0.1 requires jinja2, which is not installed.
opc-tool 0.1.0 requires attrs, which is not installed.
opc-tool 0.1.0 requires decorator, which is not installed.
opc-tool 0.1.0 requires psutil, which is not installed.
schedule-search 0.0.1 requires absl-py, which is not installed.
schedule-search 0.0.1 requires decorator, which is not installed.
te 0.4.0 requires attrs, which is not installed.
te 0.4.0 requires cloudpickle, which is not installed.
te 0.4.0 requires decorator, which is not installed.
te 0.4.0 requires ml-dtypes, which is not installed.
te 0.4.0 requires psutil, which is not installed.
te 0.4.0 requires scipy, which is not installed.
te 0.4.0 requires tornado, which is not installed.

尝试使用如下命令解决：

pip install attrs cloudpickle decorator jinja2 ml-dtypes psutil scipy tornado absl-py

可能出现的问题四：在测试或者实际训练的时候出现KeyError: ‘op_debug_dir’

出现如下情况大概率是没有运行环境变量命令。

Traceback (most recent call last):
  File "/home/huawei/miniconda3/envs/mindspore241/lib/python3.11/multiprocessing/process.py", line 314, in _bootstrap
    self.run()
  File "/home/huawei/miniconda3/envs/mindspore241/lib/python3.11/multiprocessing/process.py", line 108, in run
    self._target(*self._args, **self._kwargs)
  File "/home/huawei/.local/lib/python3.11/site-packages/te_fusion/parallel_compilation.py", line 249, in exec_compilation_task
    check_dict_paras(dict_ops)
  File "/home/huawei/.local/lib/python3.11/site-packages/te_fusion/parallel_compilation.py", line 183, in check_dict_paras
    if dict_ops['op_debug_dir'] == None or dict_ops['op_debug_dir'] == '':
       ~~~~~~~~^^^^^^^^^^^^^^^^
KeyError: 'op_debug_dir'

解决方法：使用如下命令设置环境变量

# control log level. 0-DEBUG, 1-INFO, 2-WARNING, 3-ERROR, 4-CRITICAL, default level is WARNING.
export GLOG_v=2

# environment variables
LOCAL_ASCEND=/usr/local/Ascend # 设置为软件包的实际安装路径

# set environmet variables using script provided by CANN, swap "ascend-toolkit" with "nnae" if you are using CANN-nnae package instead
source ${LOCAL_ASCEND}/ascend-toolkit/set_env.sh

使用conda的时候发现似乎每次都要运行一次如上命令。如果想要永久解决这个问题，可以使用如下命令解决：

export LOCAL_ASCEND=/usr/local/Ascend # 设置为软件包的实际安装路径
echo "source ${LOCAL_ASCEND}/ascend-toolkit/set_env.sh" >> ~/.bashrc
source ~/.bashrc
