从头开始opencv（八）——core:Basic drawing

---

Goals

• 画一条线
• 画一个椭圆
• 画一个矩形
• 画一个圆
• 画一个填充多边形

OpenCV Theory

  我们将会频繁使用的是：cv::Point()和cv::Scalar()

Point

  代表了一个二维的点的坐标。

//method 1
Point pt;
pt.x = 10;
pt.y = 8;

//method 2
Point pt =  Point(10, 8);

Scalar

  是一个四维的向量。

  在opencv中，我们一般用scalar来代表BGR三分量，第四个值一般不显式出现。换种说法，scalar可以用来代表任意的四维向量，但是每一个向量都不是一定要的，最多是四维的。我们在opencv中多使用前三个通道来表示BGR三分量。

Scalar( a, b, c )

Code

#include <opencv2/core.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>
#define w 400
using namespace cv;
void MyEllipse(Mat img, double angle);
void MyFilledCircle(Mat img, Point center);
void MyPolygon(Mat img);
void MyLine(Mat img, Point start, Point end);
int main(void) {
    char atom_window[] = "Drawing 1: Atom";
    char rook_window[] = "Drawing 2: Rook";
    Mat atom_image = Mat::zeros(w, w, CV_8UC3);
    Mat rook_image = Mat::zeros(w, w, CV_8UC3);
    MyEllipse(atom_image, 90);
    MyEllipse(atom_image, 0);
    MyEllipse(atom_image, 45);
    MyEllipse(atom_image, -45);
    MyFilledCircle(atom_image, Point(w / 2, w / 2));
    MyPolygon(rook_image);
    rectangle(rook_image,
        Point(0, 7 * w / 8),
        Point(w, w),
        Scalar(0, 255, 255),
        FILLED,
        LINE_8);
    MyLine(rook_image, Point(0, 15 * w / 16), Point(w, 15 * w / 16));
    MyLine(rook_image, Point(w / 4, 7 * w / 8), Point(w / 4, w));
    MyLine(rook_image, Point(w / 2, 7 * w / 8), Point(w / 2, w));
    MyLine(rook_image, Point(3 * w / 4, 7 * w / 8), Point(3 * w / 4, w));
    imshow(atom_window, atom_image);
    moveWindow(atom_window, 0, 200);
    imshow(rook_window, rook_image);
    moveWindow(rook_window, w, 200);
    waitKey(0);
    return(0);
}
void MyEllipse(Mat img, double angle)
{
    int thickness = 2;
    int lineType = 8;
    ellipse(img,
        Point(w / 2, w / 2),
        Size(w / 4, w / 16),
        angle,
        0,
        360,
        Scalar(255, 0, 0),
        thickness,
        lineType);
}
void MyFilledCircle(Mat img, Point center)
{
    circle(img,
        center,
        w / 32,
        Scalar(0, 0, 255),
        FILLED,
        LINE_8);
}
void MyPolygon(Mat img)
{
    int lineType = LINE_8;
    Point rook_points[1][20];
    rook_points[0][0] = Point(w / 4, 7 * w / 8);
    rook_points[0][1] = Point(3 * w / 4, 7 * w / 8);
    rook_points[0][2] = Point(3 * w / 4, 13 * w / 16);
    rook_points[0][3] = Point(11 * w / 16, 13 * w / 16);
    rook_points[0][4] = Point(19 * w / 32, 3 * w / 8);
    rook_points[0][5] = Point(3 * w / 4, 3 * w / 8);
    rook_points[0][6] = Point(3 * w / 4, w / 8);
    rook_points[0][7] = Point(26 * w / 40, w / 8);
    rook_points[0][8] = Point(26 * w / 40, w / 4);
    rook_points[0][9] = Point(22 * w / 40, w / 4);
    rook_points[0][10] = Point(22 * w / 40, w / 8);
    rook_points[0][11] = Point(18 * w / 40, w / 8);
    rook_points[0][12] = Point(18 * w / 40, w / 4);
    rook_points[0][13] = Point(14 * w / 40, w / 4);
    rook_points[0][14] = Point(14 * w / 40, w / 8);
    rook_points[0][15] = Point(w / 4, w / 8);
    rook_points[0][16] = Point(w / 4, 3 * w / 8);
    rook_points[0][17] = Point(13 * w / 32, 3 * w / 8);
    rook_points[0][18] = Point(5 * w / 16, 13 * w / 16);
    rook_points[0][19] = Point(w / 4, 13 * w / 16);
    const Point* ppt[1] = { rook_points[0] };
    int npt[] = { 20 };
    fillPoly(img,
        ppt,
        npt,
        1,
        Scalar(255, 255, 255),
        lineType);
}
void MyLine(Mat img, Point start, Point end)
{
    int thickness = 2;
    int lineType = LINE_8;
    line(img,
        start,
        end,
        Scalar(0, 0, 0),
        thickness,
        lineType);
}

结果：

  代码看起来非常的简单。下面我们来看各种形状实现的代码函数原型。

ellipse()

  ellipse()有两种实现模式。

//method 1
void cv::ellipse	(
InputOutputArray 	img,	//image
Point 				center,	//center of the ellipse
Size 				axes,	//Half of the size of the ellipse main axes
double 				angle,	//Ellipse rotation angle in degrees
double 				startAngle,//Starting angle of the elliptic arc n degrees
double 				endAngle,//Ending angle of the elliptic arc in degress
const Scalar & 		color,//Ellipse color
int 				thickness = 1,//Thickness of the ellipse arc outline
int 				lineType = LINE_8,//type of the ellipse boundary
int 				shift = 0 //number of fractional bits in the coordinates of the center and values of axes
)

//method 2
void cv::ellipse	(
InputOutputArray 		img,//image
const RotatedRect & 	box,//the function draws an ellipse inscribed in the rotated rectangle
const Scalar 	  & 	color,//ellipse color
int 					thickness = 1,//thickness of the ellipse arc outline
int 					lineType = LINE_8//type of the ellipse boundary
)

  angle所代表的旋转是顺时针旋转的。

LineTypes:

FILLED
LINE_4	4-connected line
LINE_8	8-connected line
LINE_AA	antialiased line(抗锯齿线)

【说明】：linetype参数并不是指的线型是实线、虚线还是点画线，这个参数实际用途是改变线的产生算法。

因为分辨率的关系，直线是使用光栅的形式表示的。

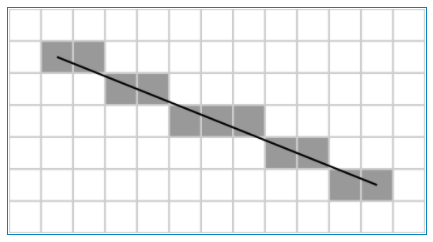

8联通：

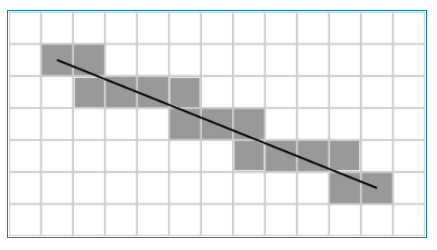

4联通：

4联通法消除了8联通法中线断裂的瑕疵，可以说是一种更好的方式，但是8联通法在算法的是线上更为简单，所以一般来讲我们会选择8联通算法。

Circle()

void cv::circle	(
InputOutputArray 	img,//image where the circle is drawn
Point 	center,//center of the circle
int 	radius,//radius of the circle
const Scalar & 	color,//circle color
int 	thickness = 1,//thickness of the circle outline
int 	lineType = LINE_8,//type of the circle boundary
int 	shift = 0 //Number of fractional bits in the coordinates of the center and in the radius value
)

fillPoly()

  fillPoly()有两种实现模式。

//method 1
void cv::fillPoly	(
Mat & 	img,
const Point ** 	pts,
const int * 	npts,
int 	ncontours,
const Scalar & 	color,
int 	lineType = LINE_8,
int 	shift = 0,
Point 	offset = Point()
)

//method 2
void cv::fillPoly	(
InputOutputArray 	img,//image
InputArrayOfArrays 	pts,//array of polygons where each polygon is represented as an array of points
const Scalar & 	color,//polygon color
int 	lineType = LINE_8,//type of the polygon boundaries
int 	shift = 0,//number of fractional bits in the vertex coordinates
Point 	offset = Point() //optional offset of all points of the contours
)

rectangle()

  rectangle()也有两种实现模式。

//method 1
void cv::rectangle	(
InputOutputArray 	img,//image
Point 	pt1,//vertex of the rectangle
Point 	pt2,//vertex of the rectangle opposite to pt1
const Scalar & 	color,//rectangle color or brightness
int 	thickness = 1,//thickness of lines that make up the rectangle
int 	lineType = LINE_8,//type of the line
int 	shift = 0 //number of the fractional bits in the point coordinates
)

//method 2
void cv::rectangle	(
Mat & 	img,
Rect 	rec,//绘制矩形的替代规范
const Scalar & 	color,
int 	thickness = 1,
int 	lineType = LINE_8,
int 	shift = 0
)

  Rect对象的定义：

typedef Rect_<int> Rect;

  Rect_的定义：

/*!
  The 2D up-right rectangle class

  The class represents a 2D rectangle with coordinates of the specified data type.
  Normally, cv::Rect ~ cv::Rect_<int> is used.
*/
template<typename _Tp> class Rect_
{
public:
    typedef _Tp value_type;

    //! various constructors
    Rect_();
    Rect_(_Tp _x, _Tp _y, _Tp _width, _Tp _height);
    Rect_(const Rect_& r);
    Rect_(const CvRect& r);
    Rect_(const Point_<_Tp>& org, const Size_<_Tp>& sz);
    Rect_(const Point_<_Tp>& pt1, const Point_<_Tp>& pt2);

    Rect_& operator = ( const Rect_& r );
    //! the top-left corner
    Point_<_Tp> tl() const;
    //! the bottom-right corner
    Point_<_Tp> br() const;

    //! size (width, height) of the rectangle
    Size_<_Tp> size() const;
    //! area (width*height) of the rectangle
    _Tp area() const;

    //! conversion to another data type
    template<typename _Tp2> operator Rect_<_Tp2>() const;
    //! conversion to the old-style CvRect
    operator CvRect() const;

    //! checks whether the rectangle contains the point
    bool contains(const Point_<_Tp>& pt) const;

    _Tp x, y, width, height; //< the top-left corner, as well as width and height of the rectangle
};

Line()

void cv::line	(
InputOutputArray 	img,//image
Point 	pt1,//first point of the line segment
Point 	pt2,//second point of the line segment
const Scalar & 	color,//line color
int 	thickness = 1,//line thickness
int 	lineType = LINE_8,//type of the line
int 	shift = 0 //number of fractional bits in the point coordinates
)
