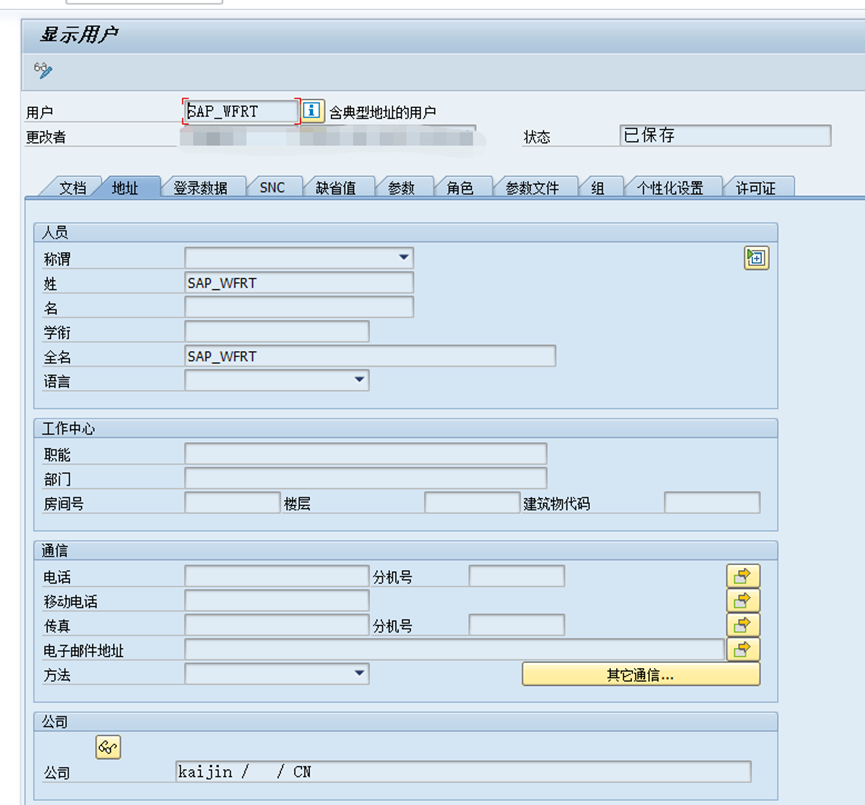

1启用WorkFlow功能系统配置

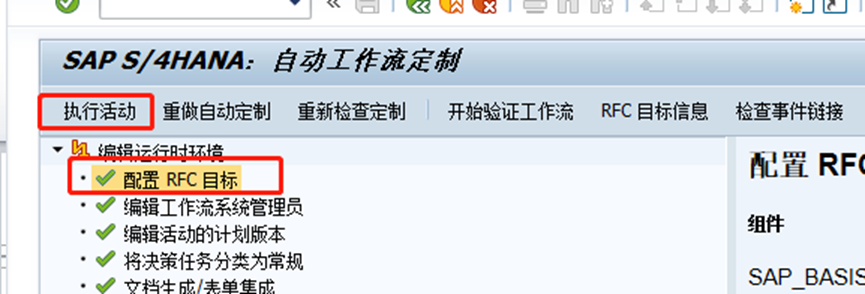

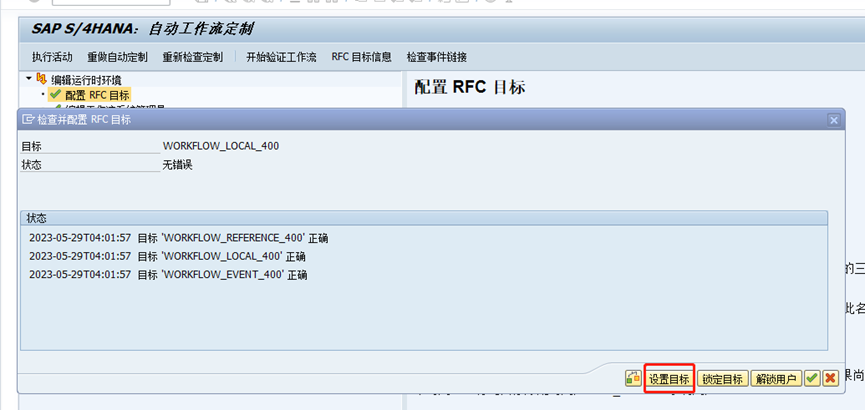

1.2 配置RFC目标

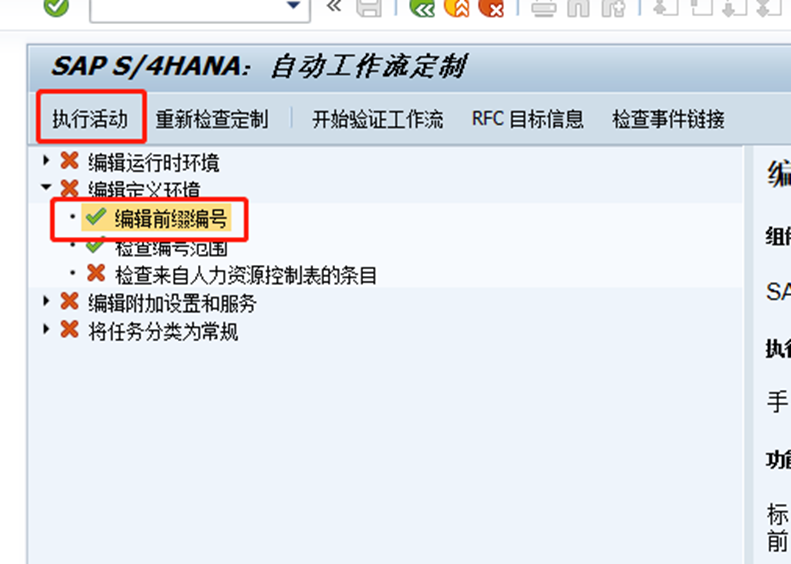

TCODE：SWU3 - 自动工作流定制

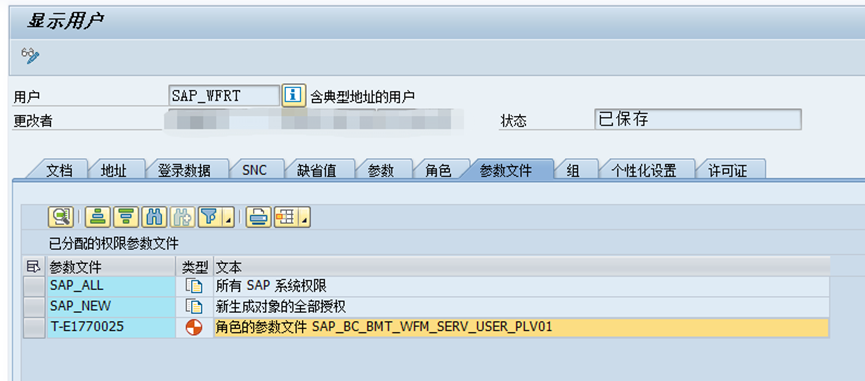

生成的RFC连接查看

TCODE：SM59 - RFC 目标（显示/编辑）

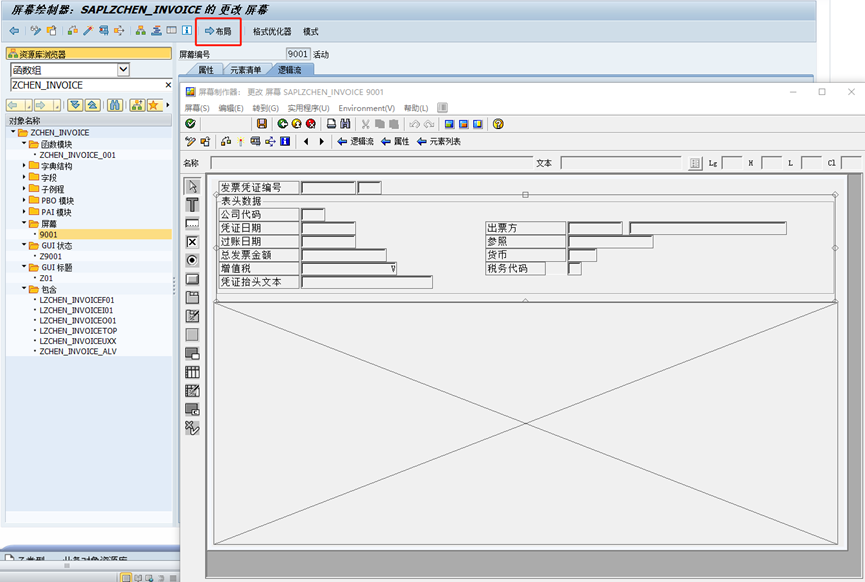

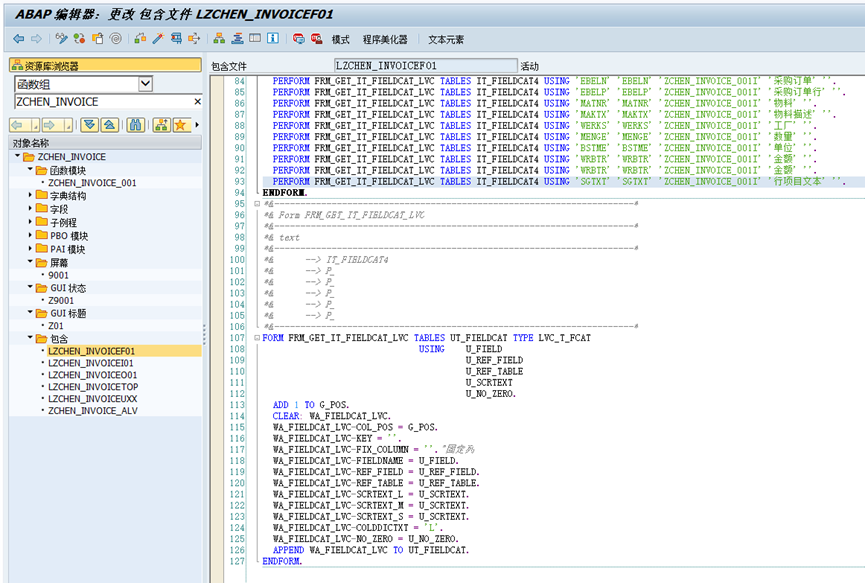

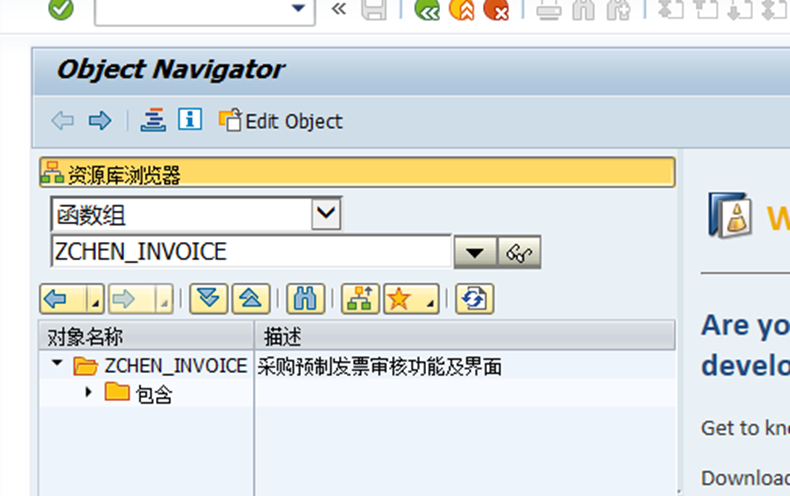

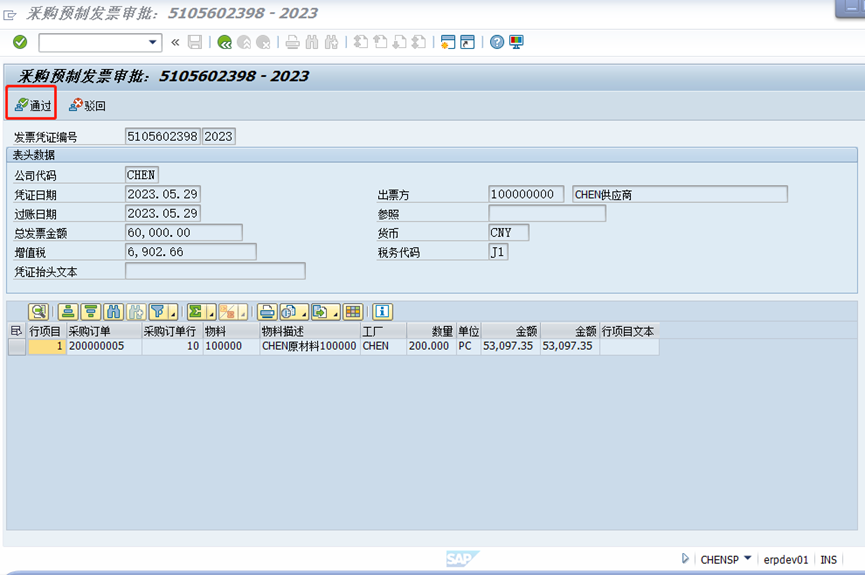

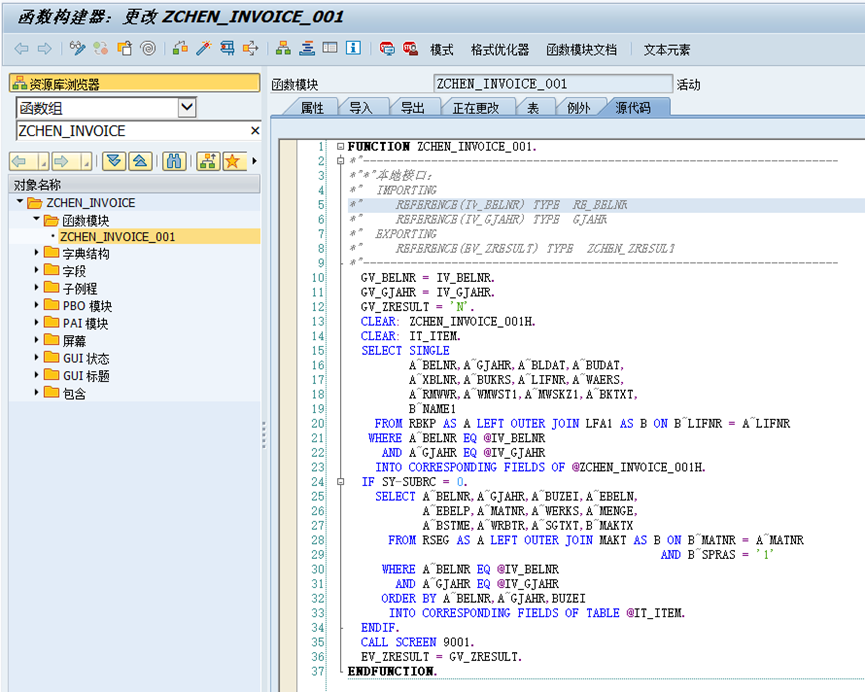

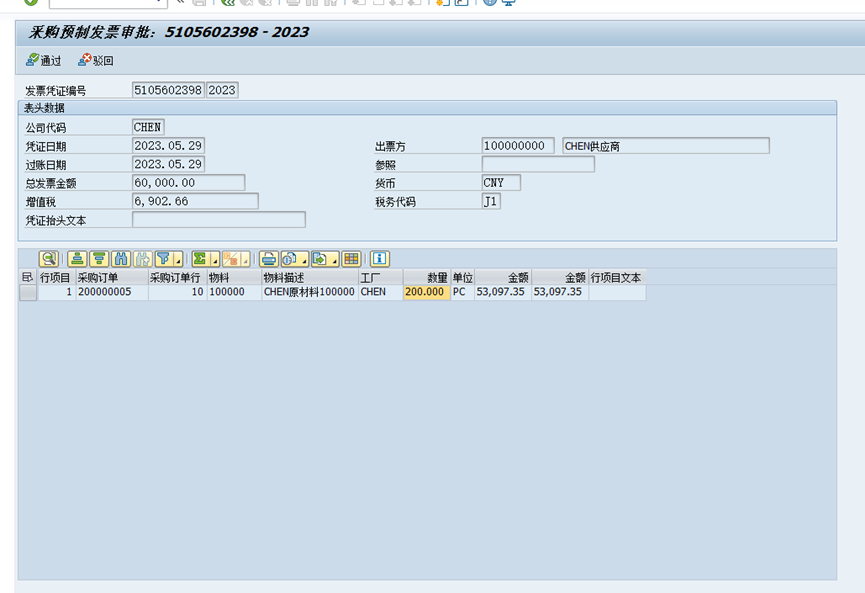

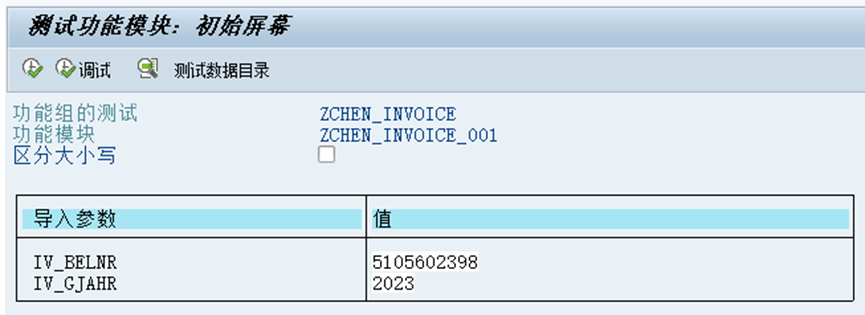

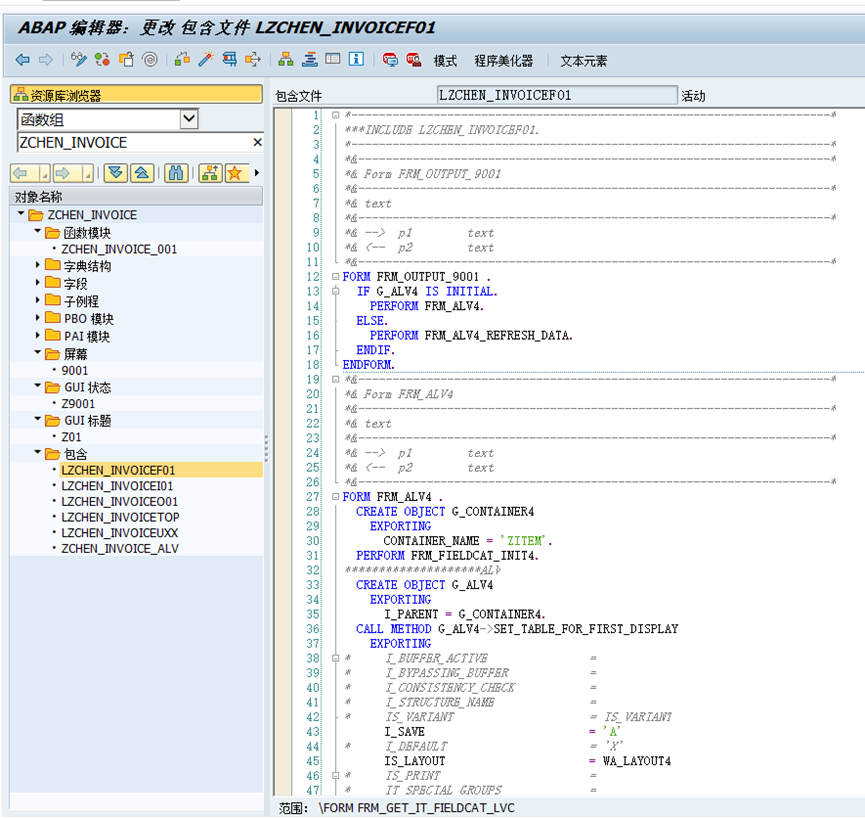

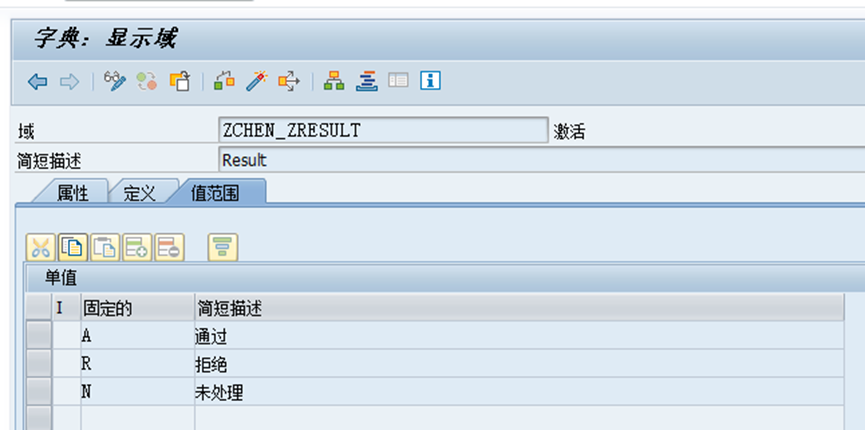

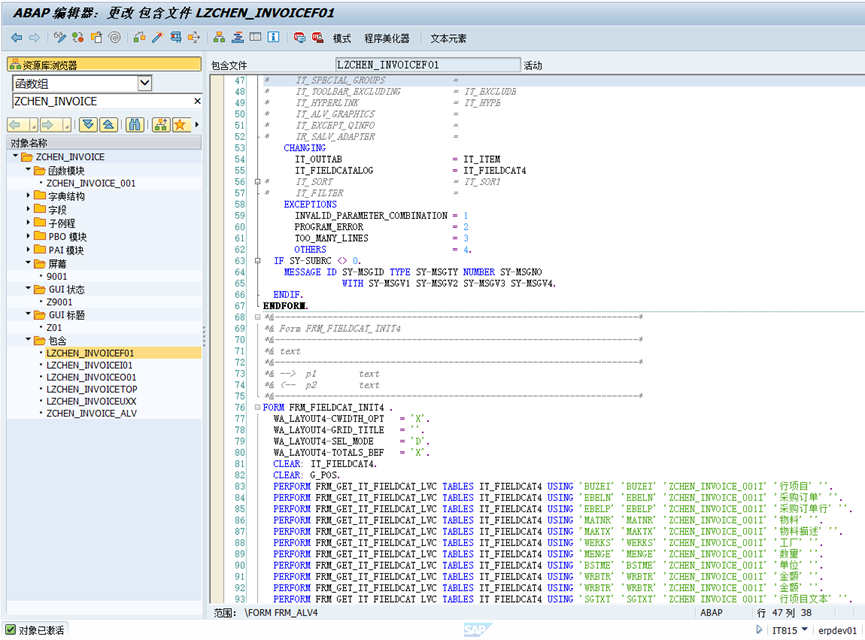

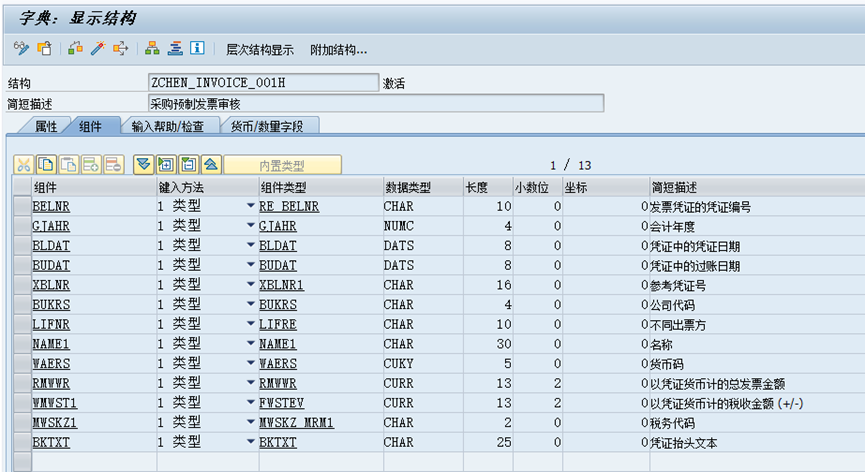

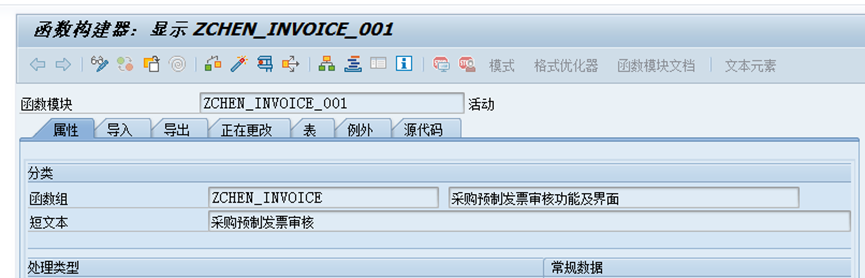

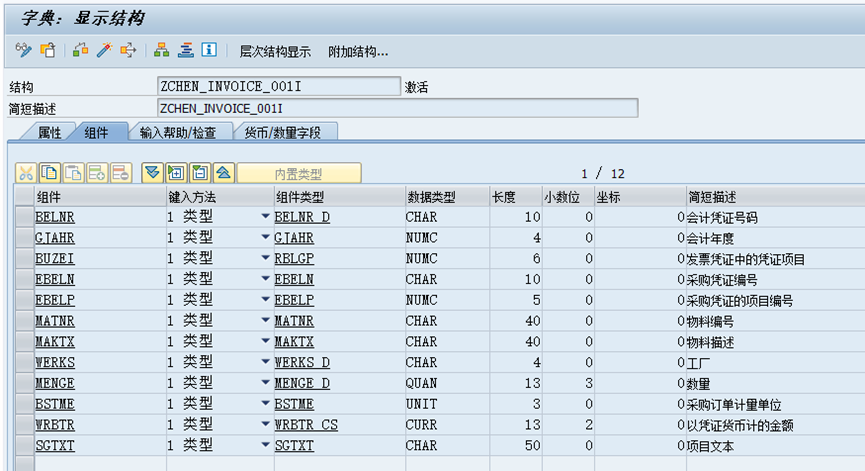

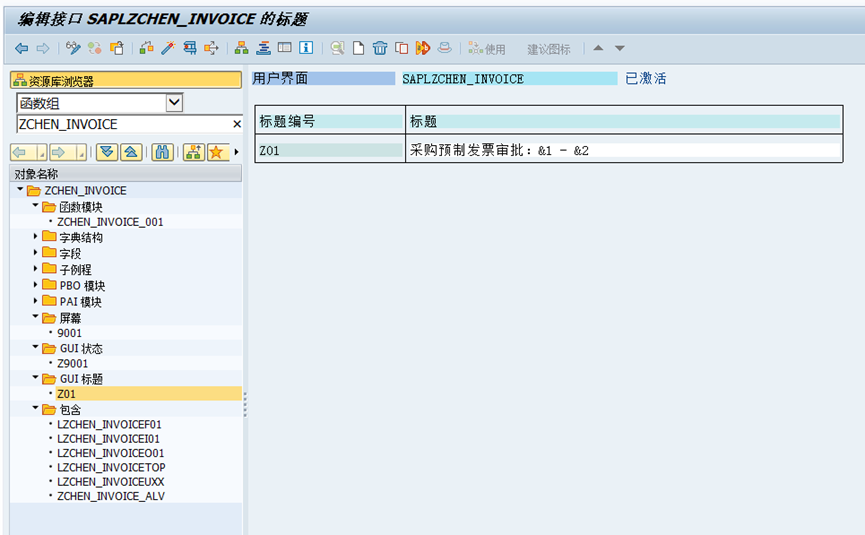

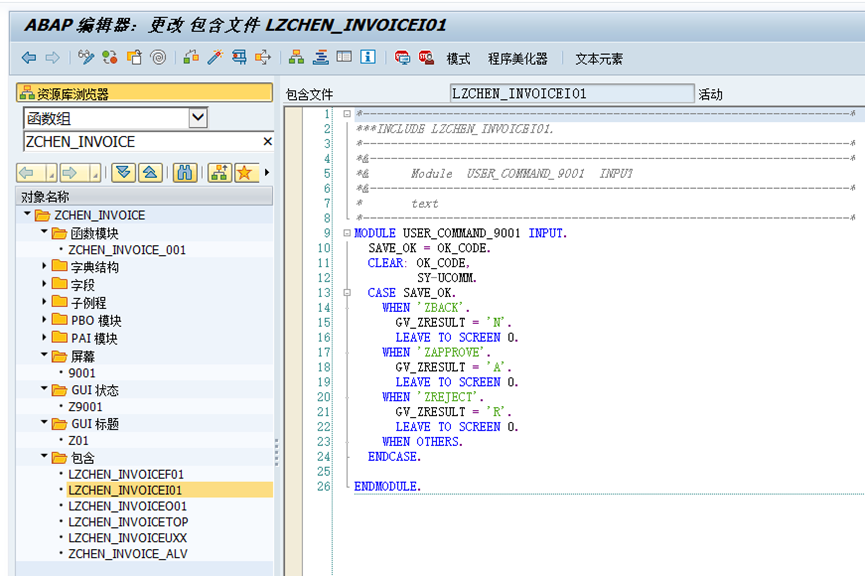

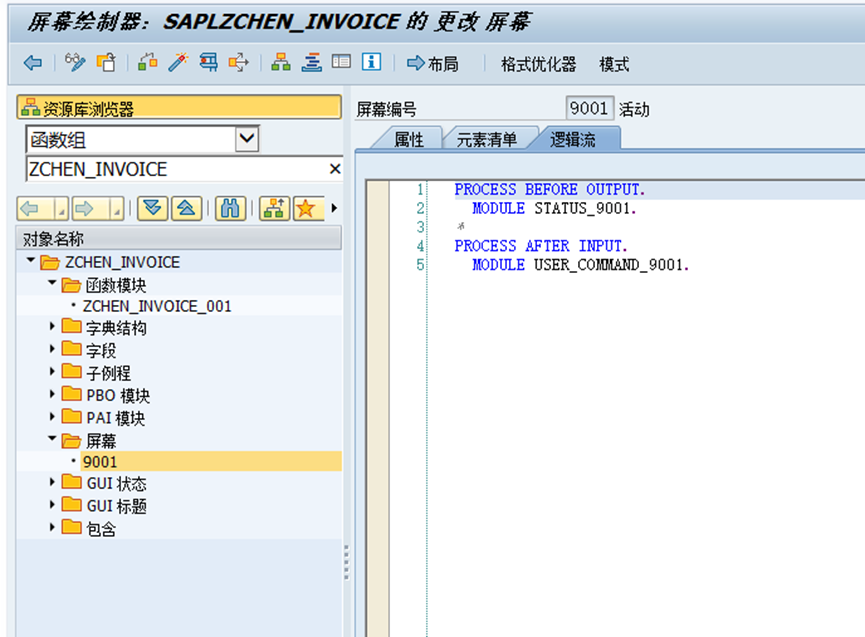

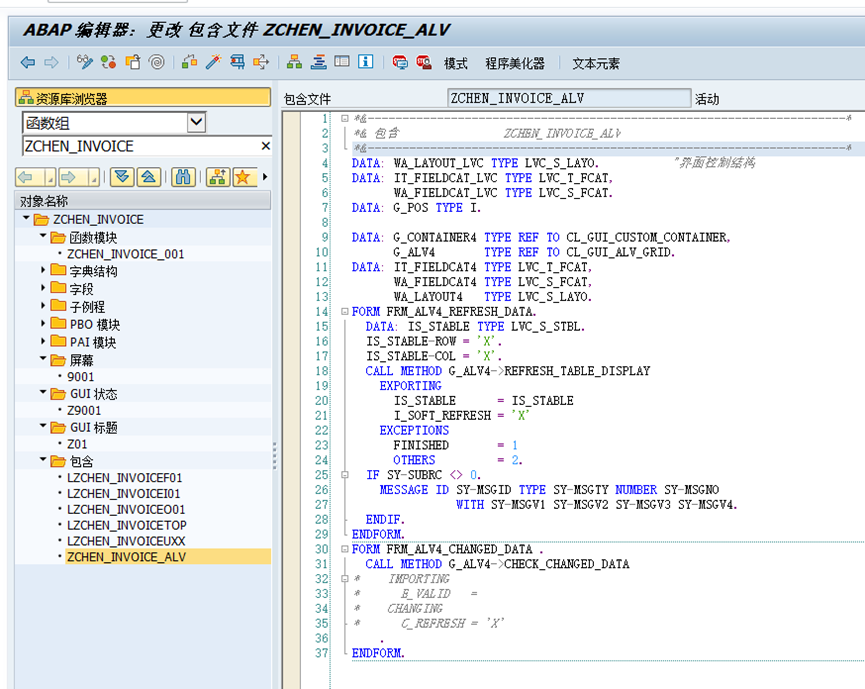

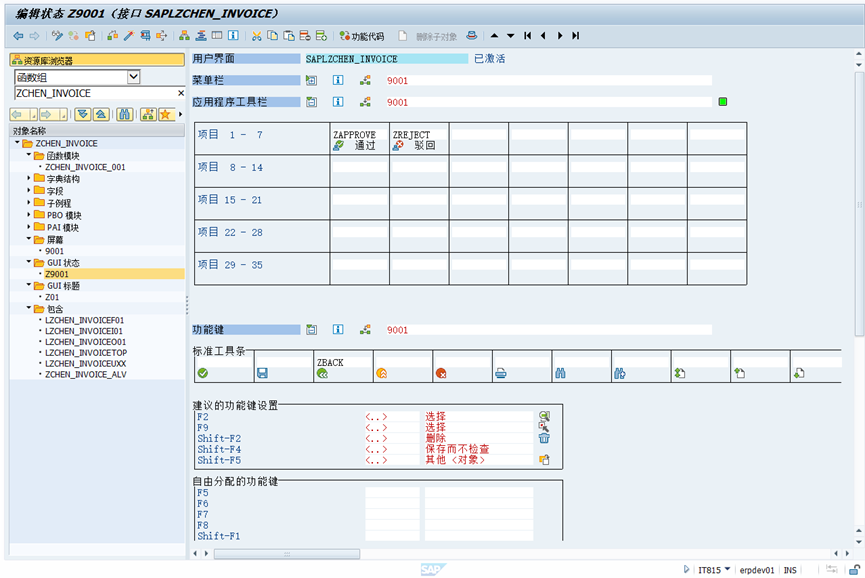

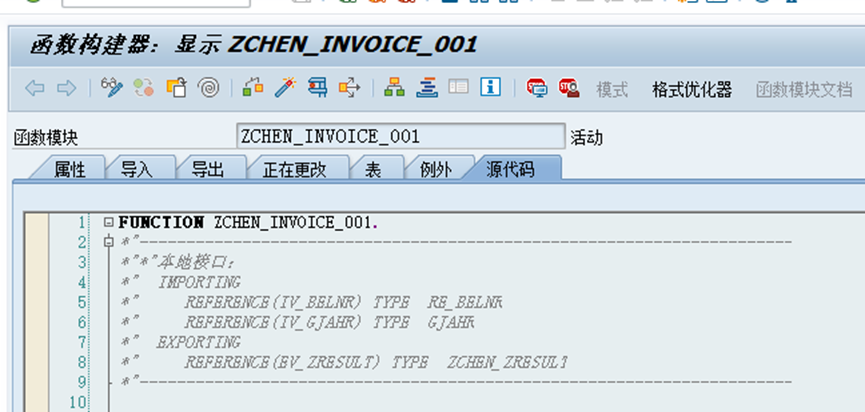

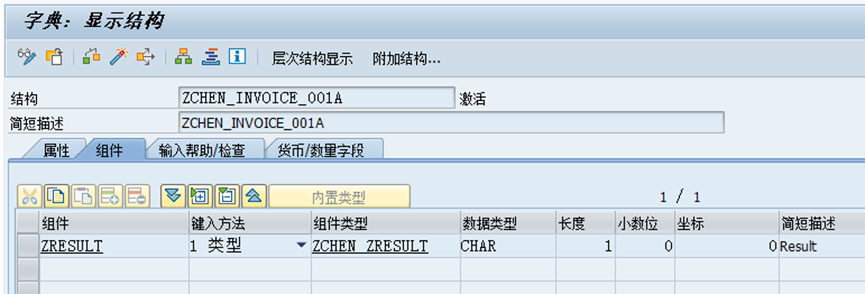

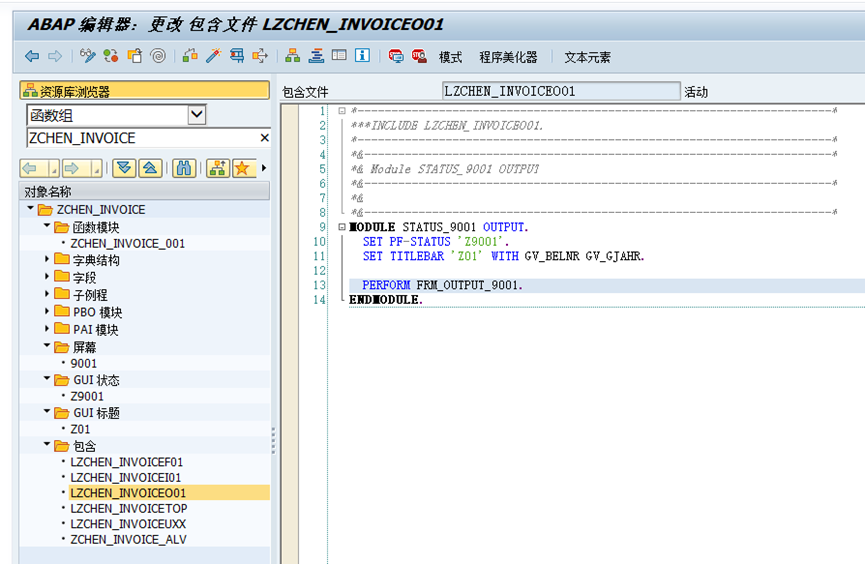

2采购预制发票审核功能及界面

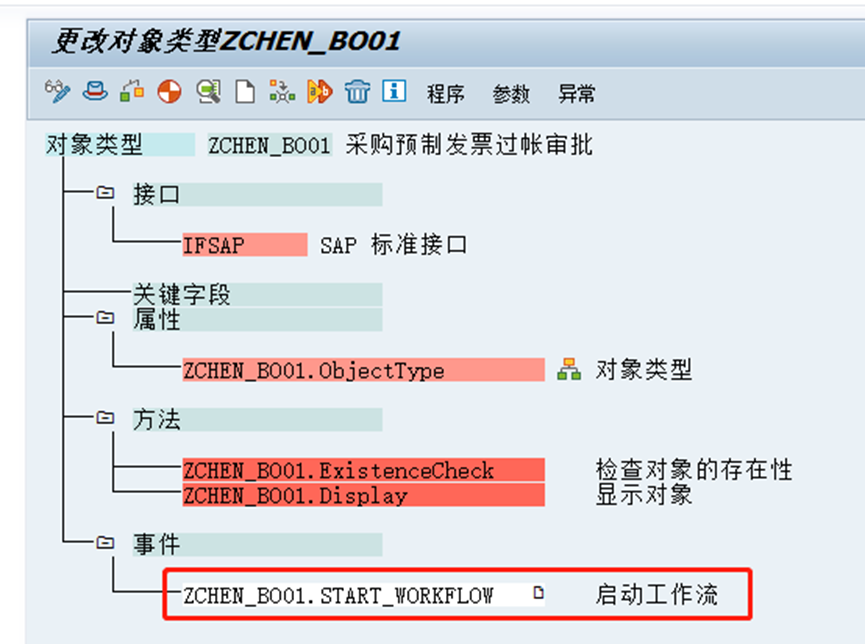

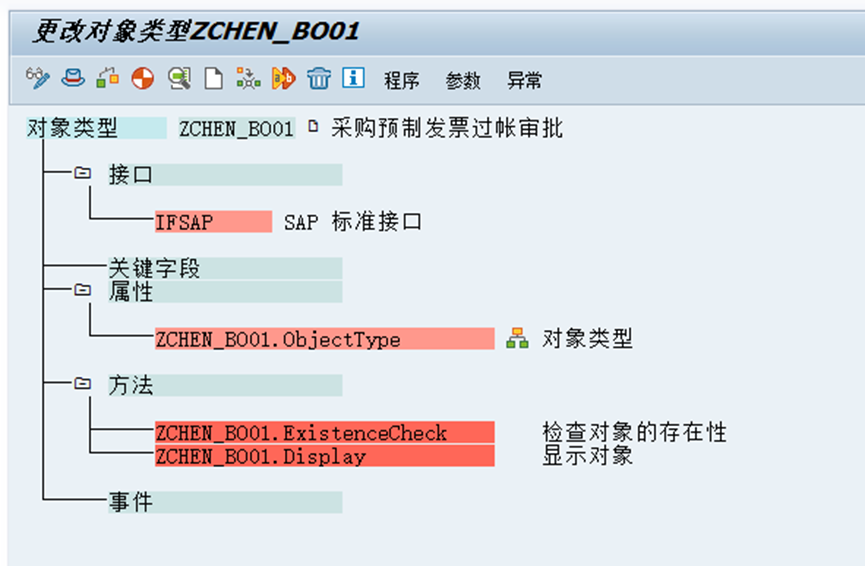

3创建业务对象

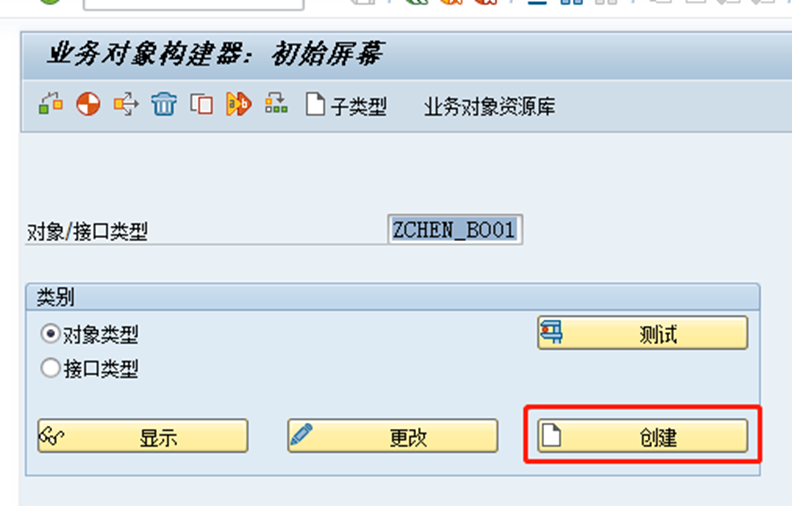

TCODE：SWO1 - 业务对象制作程序

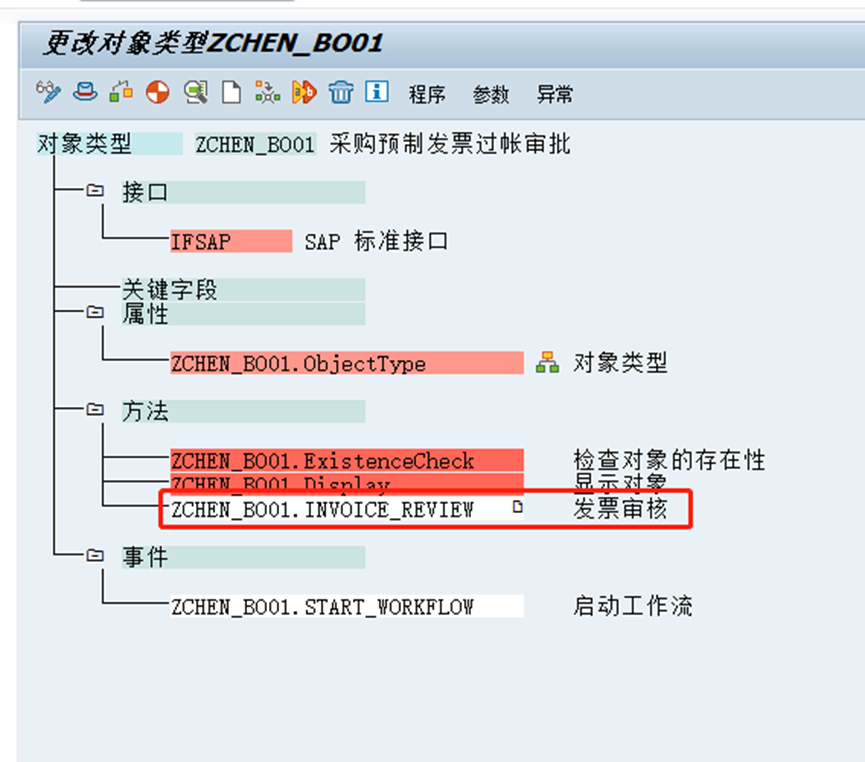

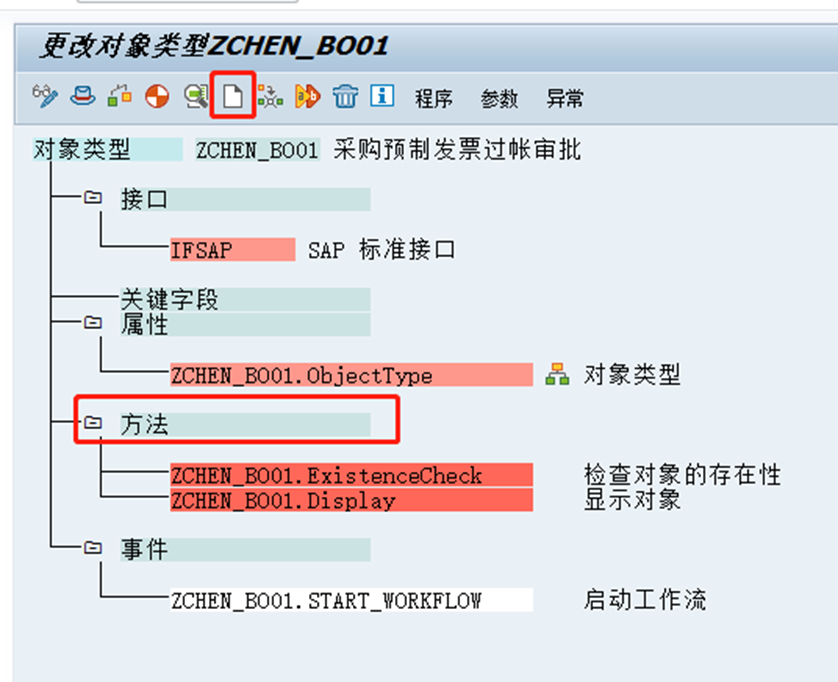

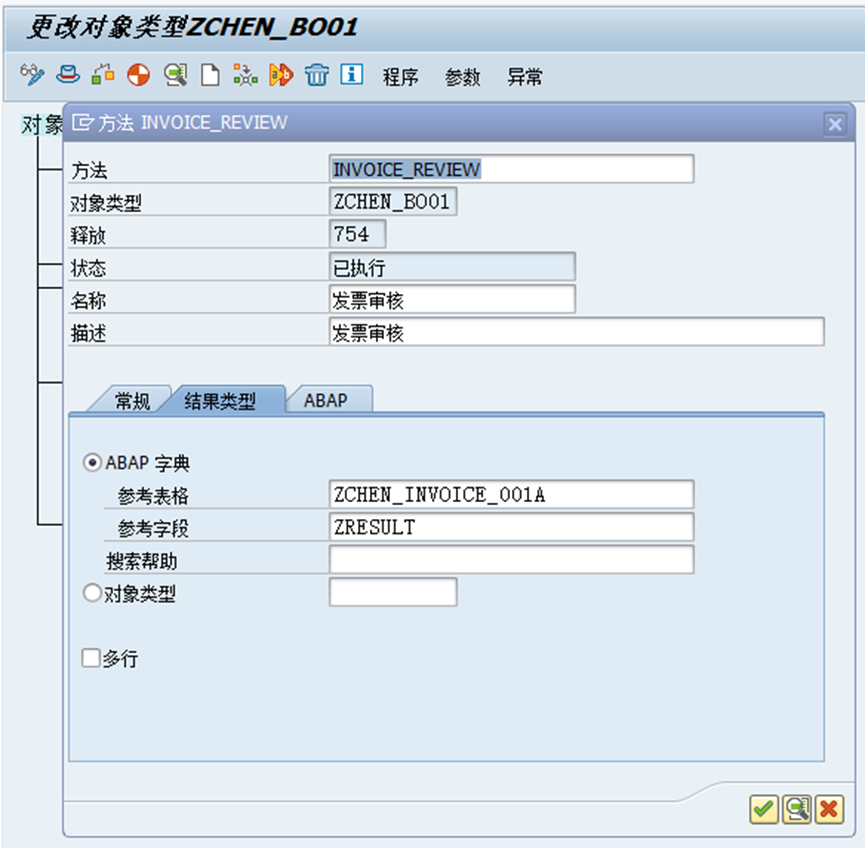

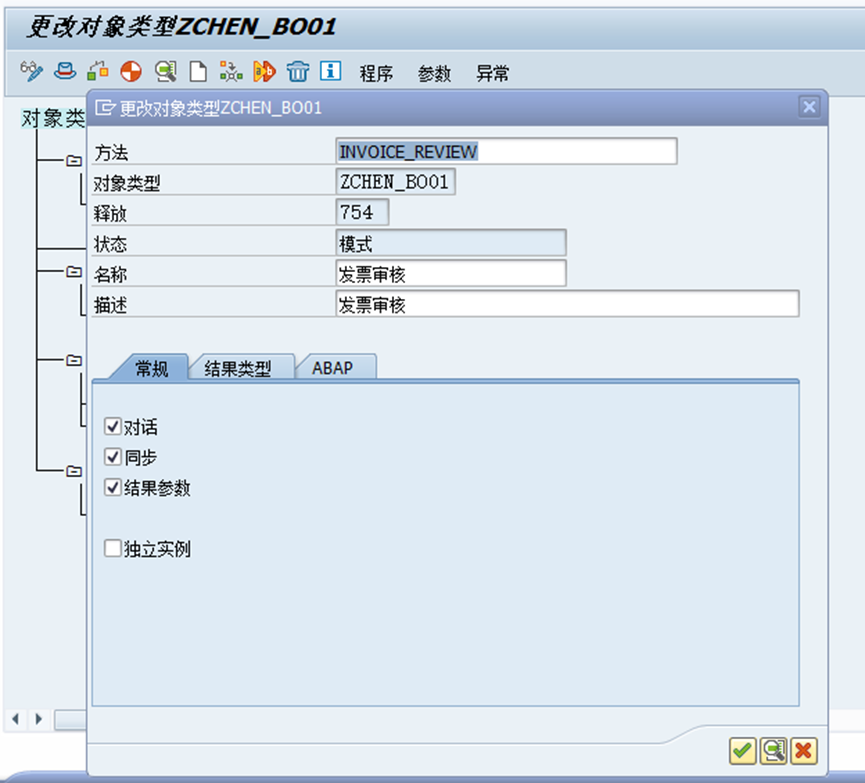

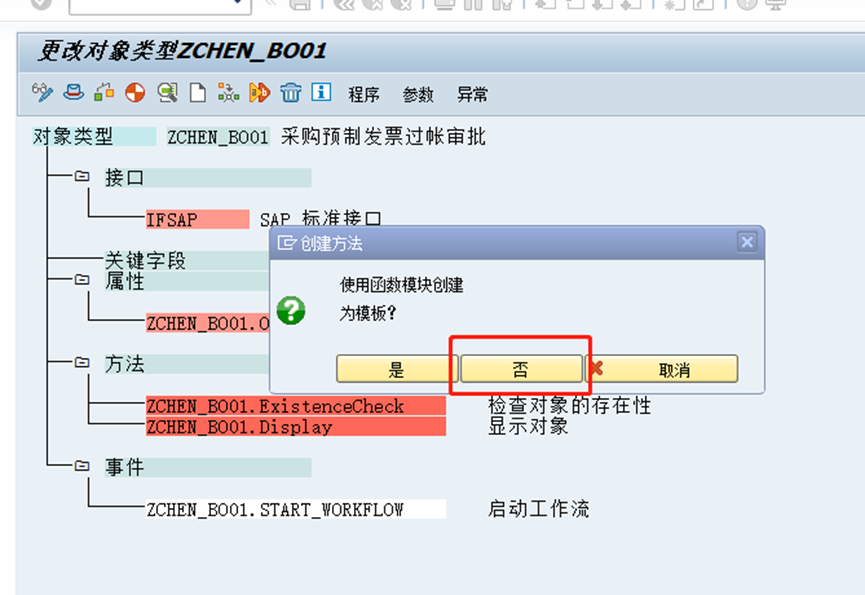

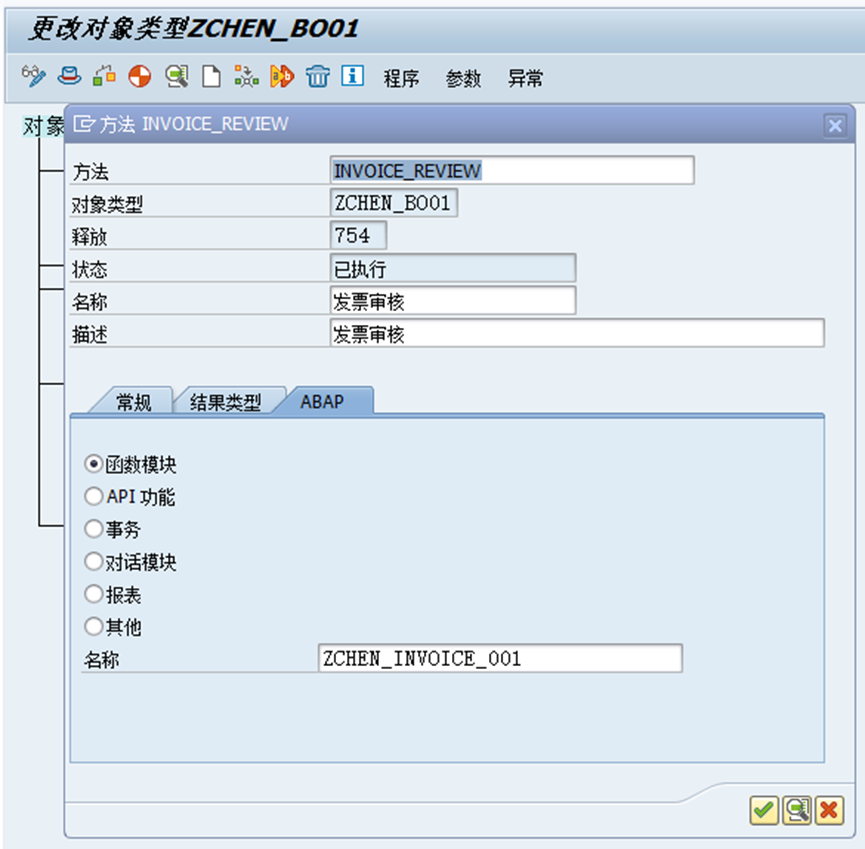

3.3创建方法

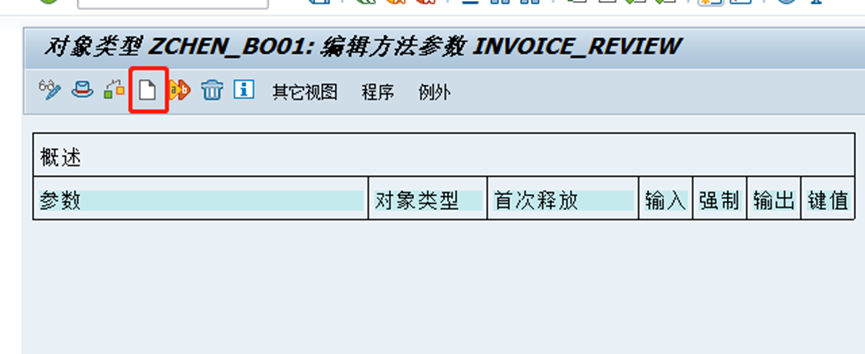

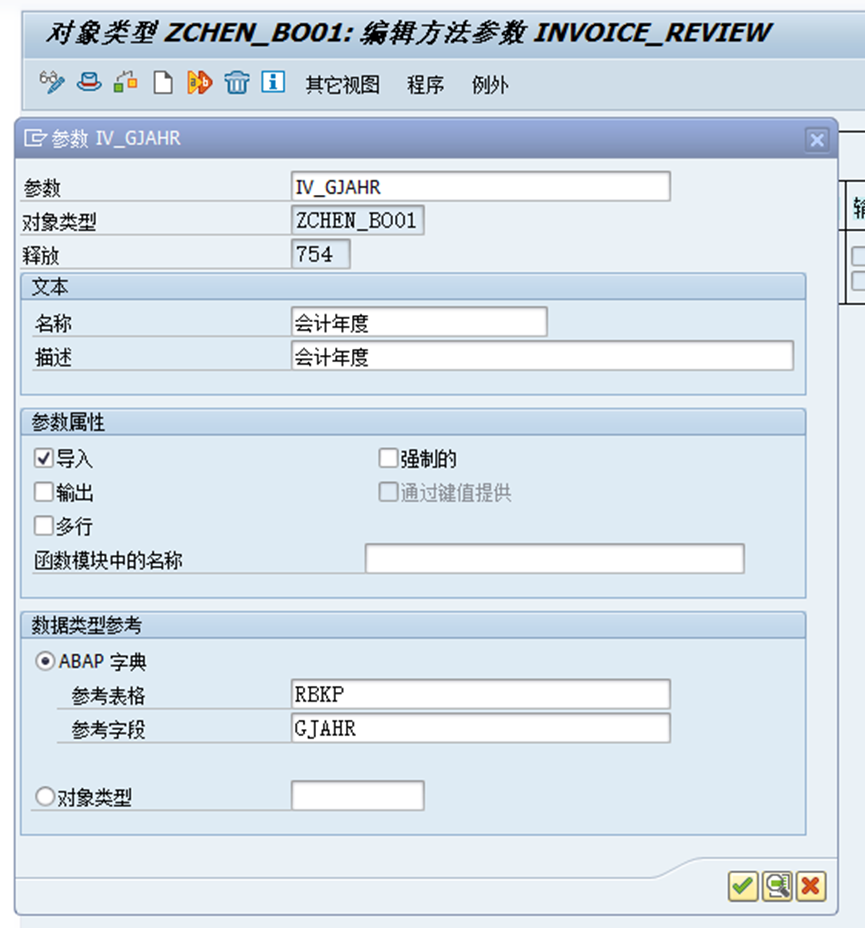

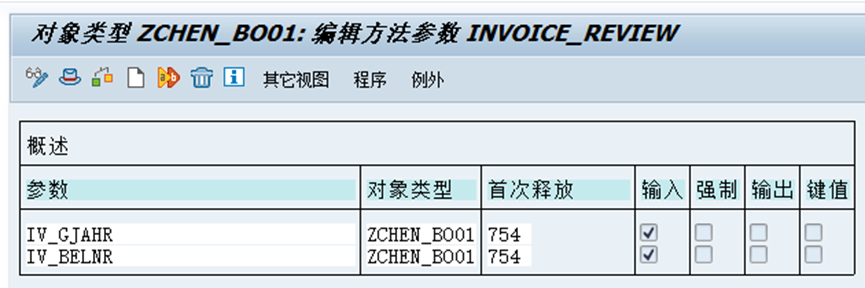

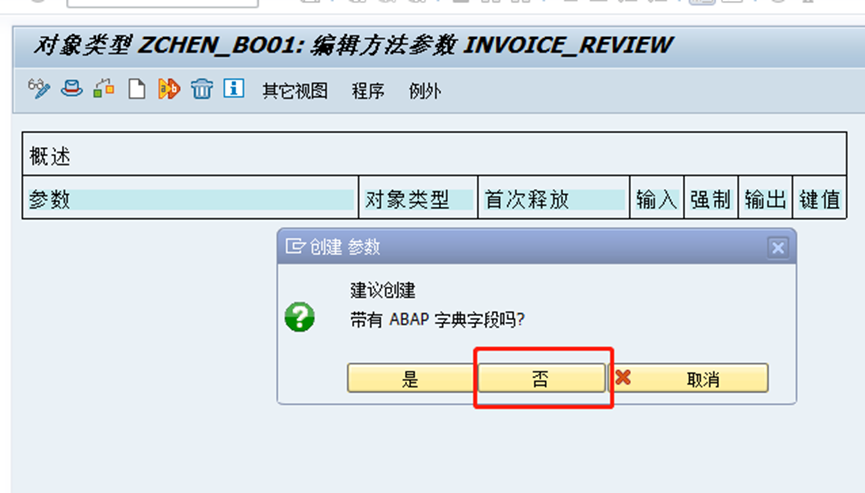

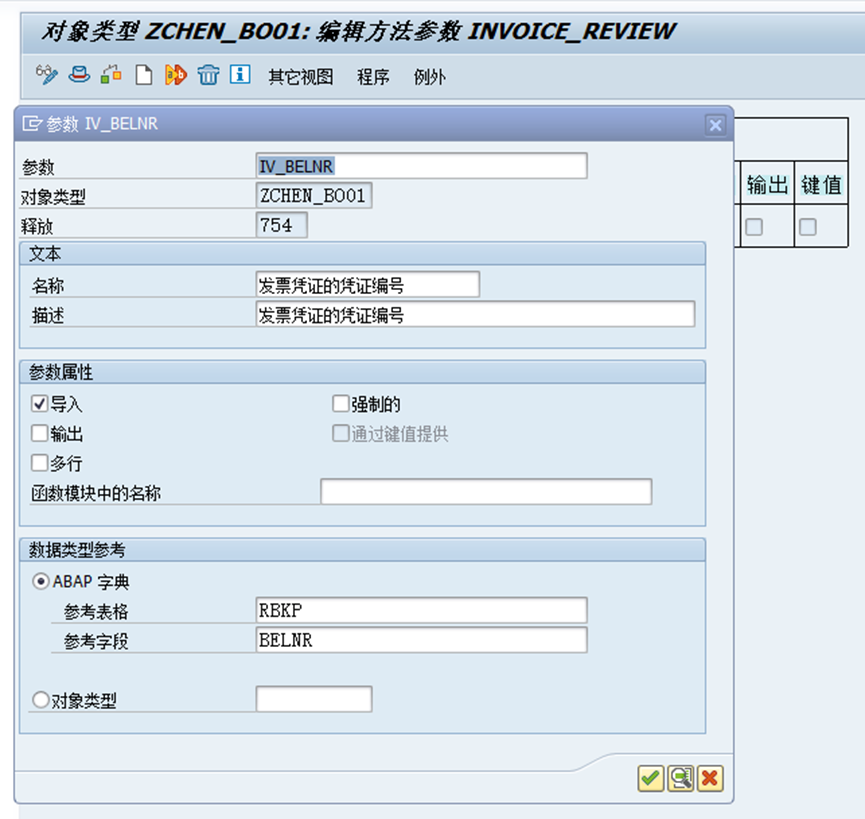

方法INVOICE_REVIEW增加参数

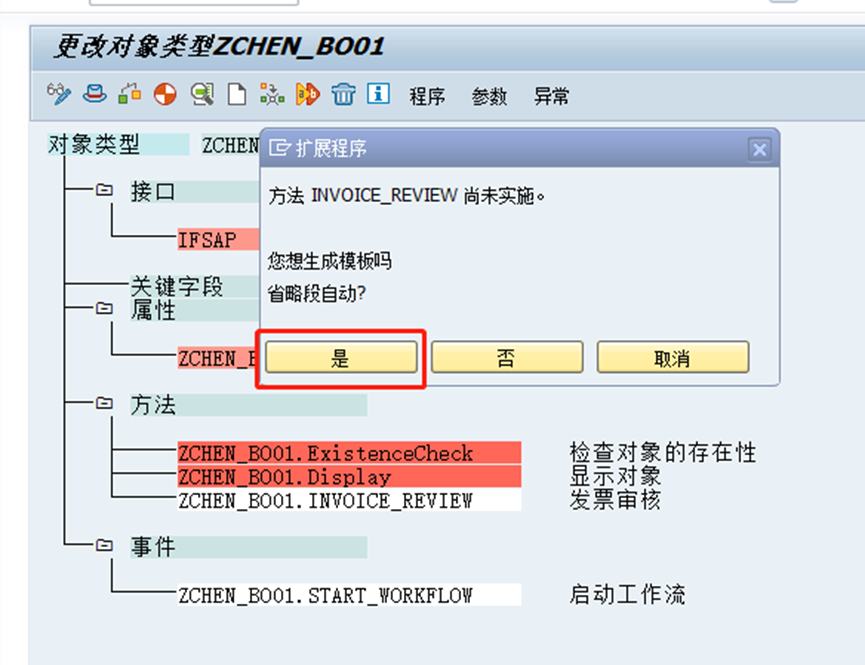

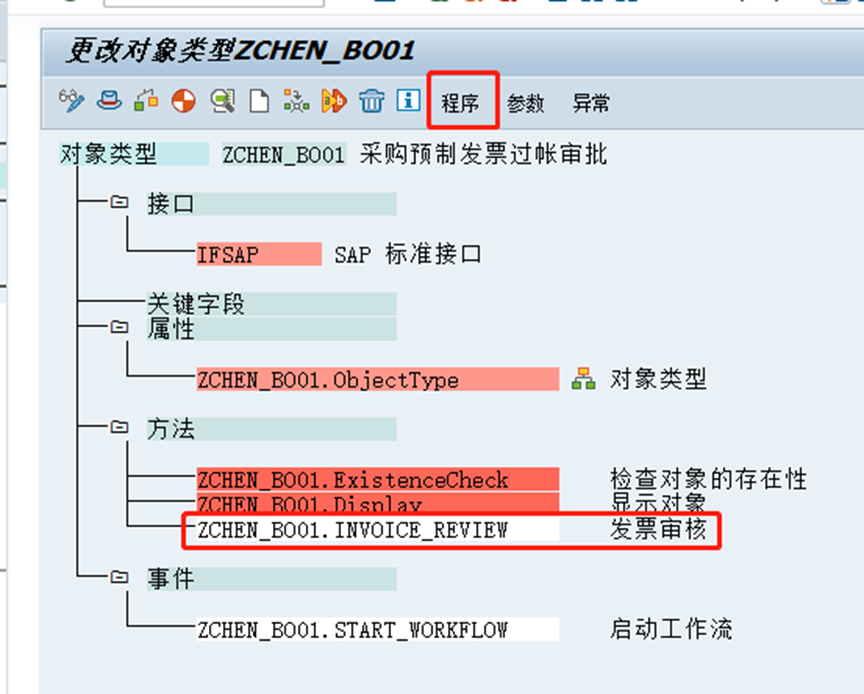

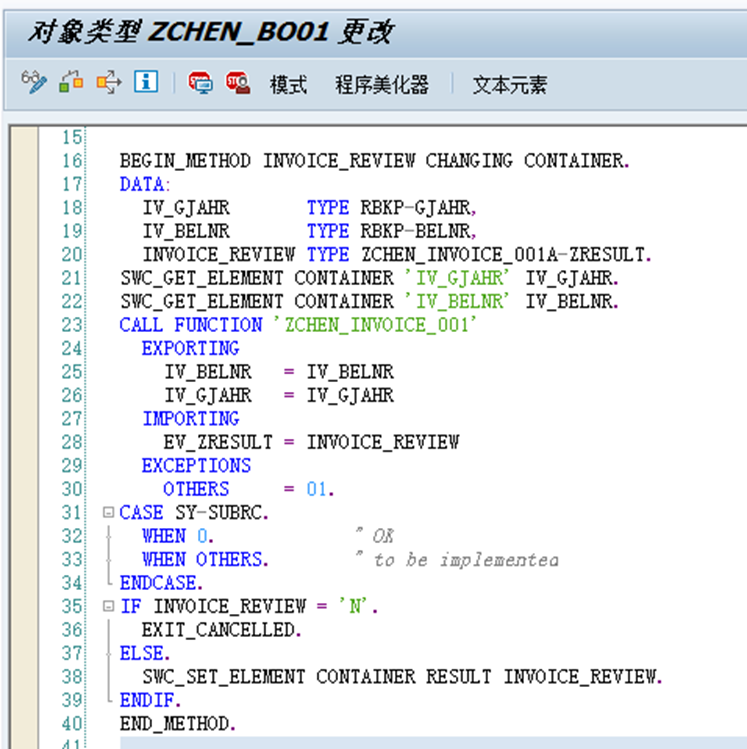

方法INVOICE_REVIEW程序代码修改

把自动生成的代码按下列源代码进行修改。

BEGIN_METHOD INVOICE_REVIEW CHANGING CONTAINER.
DATA:
  IV_GJAHR       TYPE RBKP-GJAHR,
  IV_BELNR       TYPE RBKP-BELNR,
  INVOICE_REVIEW TYPE ZCHEN_INVOICE_001A-ZRESULT.
SWC_GET_ELEMENT CONTAINER 'IV_GJAHR' IV_GJAHR.
SWC_GET_ELEMENT CONTAINER 'IV_BELNR' IV_BELNR.
CALL FUNCTION 'ZCHEN_INVOICE_001'
  EXPORTING
    IV_BELNR   = IV_BELNR
    IV_GJAHR   = IV_GJAHR
  IMPORTING
    EV_ZRESULT = INVOICE_REVIEW
  EXCEPTIONS
    OTHERS     = 01.
CASE SY-SUBRC.
  WHEN 0.            " OK
  WHEN OTHERS.       " to be implemented
ENDCASE.
IF INVOICE_REVIEW = 'N'.
  EXIT_CANCELLED.
ELSE.
  SWC_SET_ELEMENT CONTAINER RESULT INVOICE_REVIEW.
ENDIF.
END_METHOD.

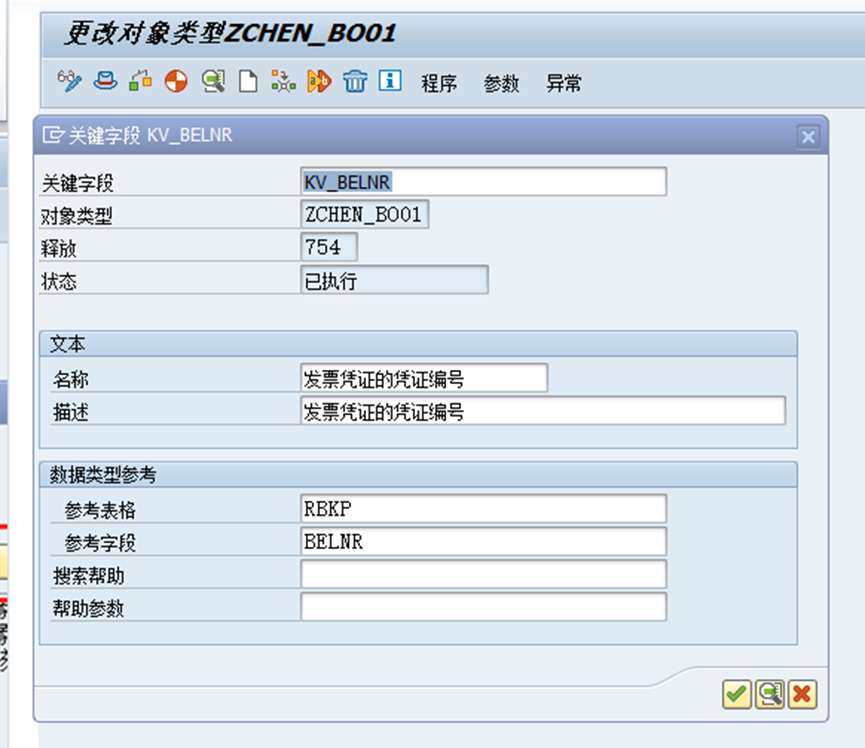

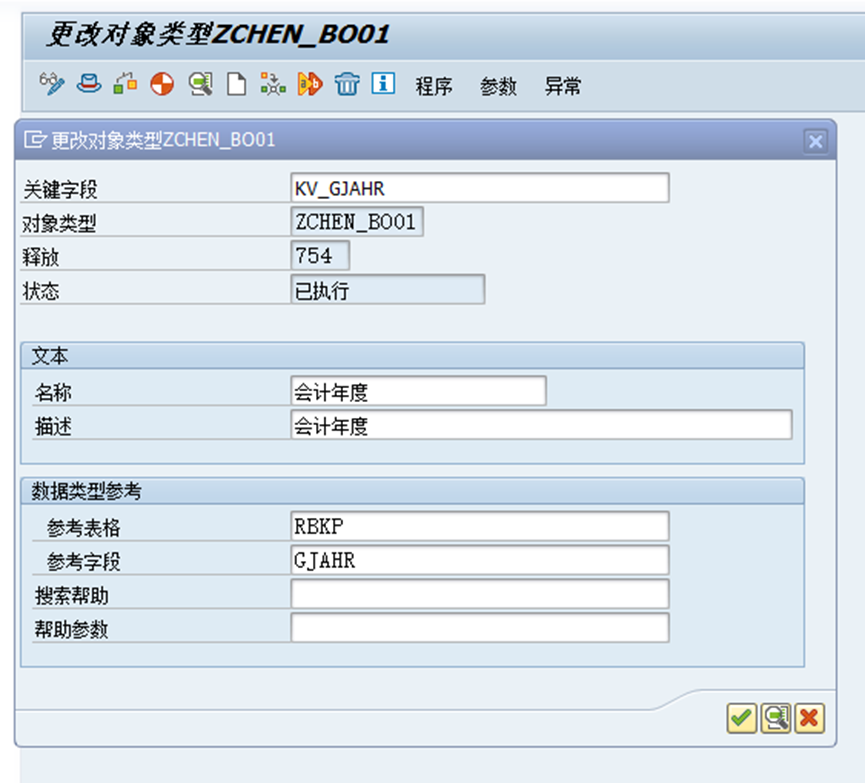

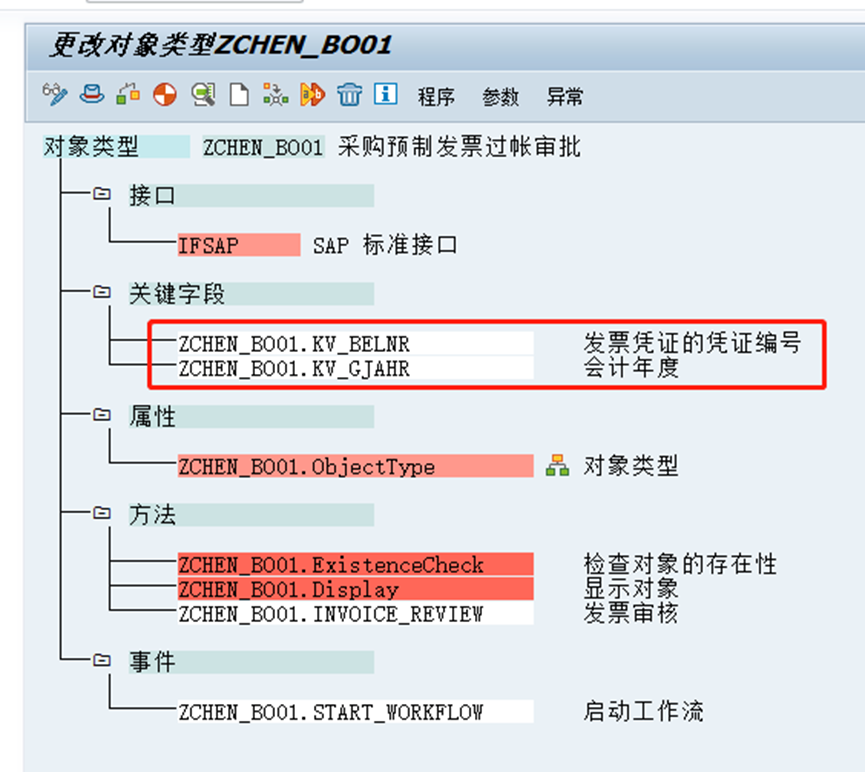

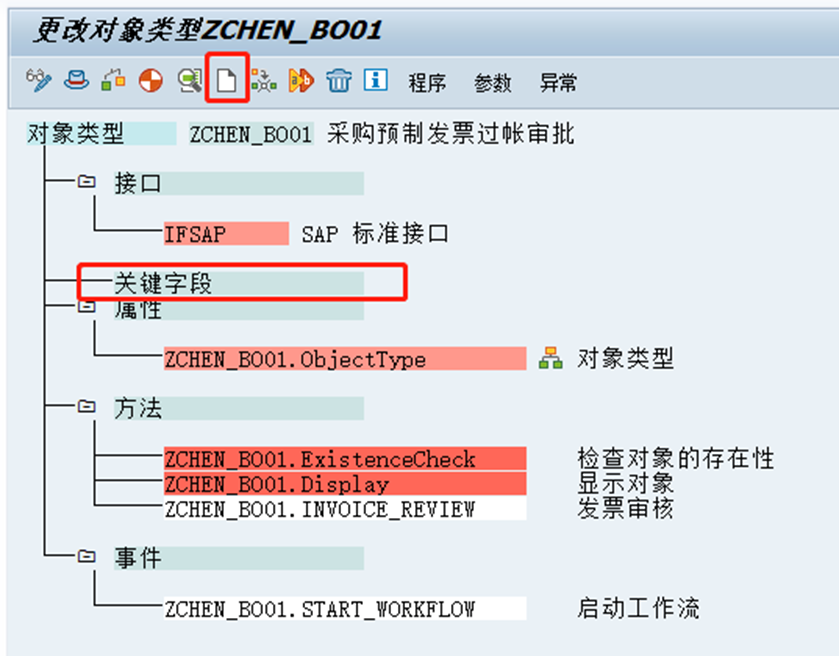

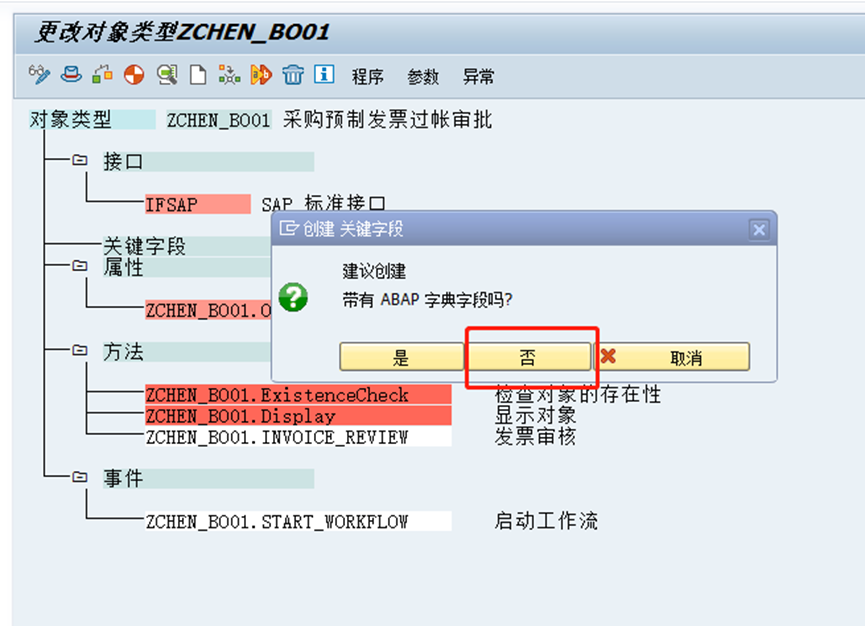

3.4创建关键字段

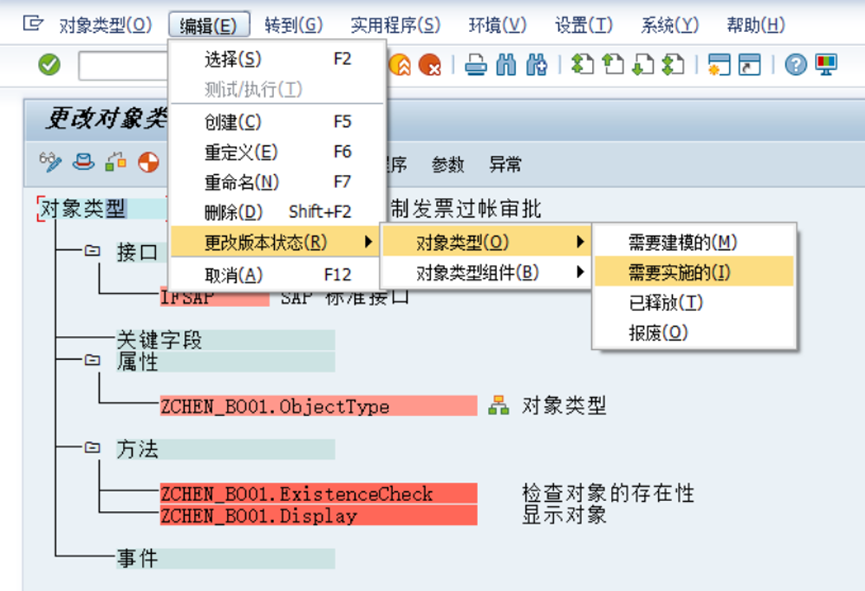

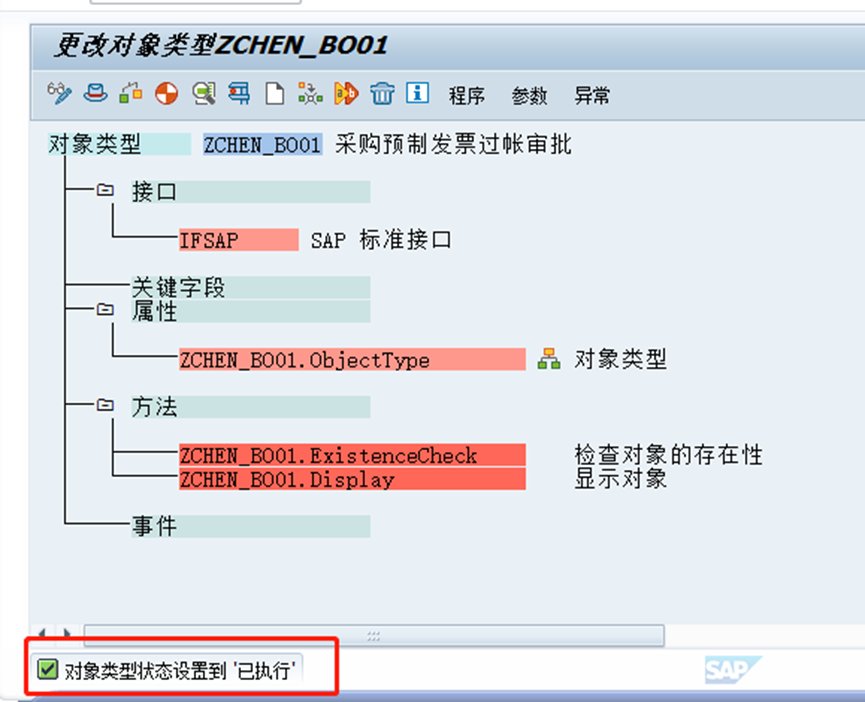

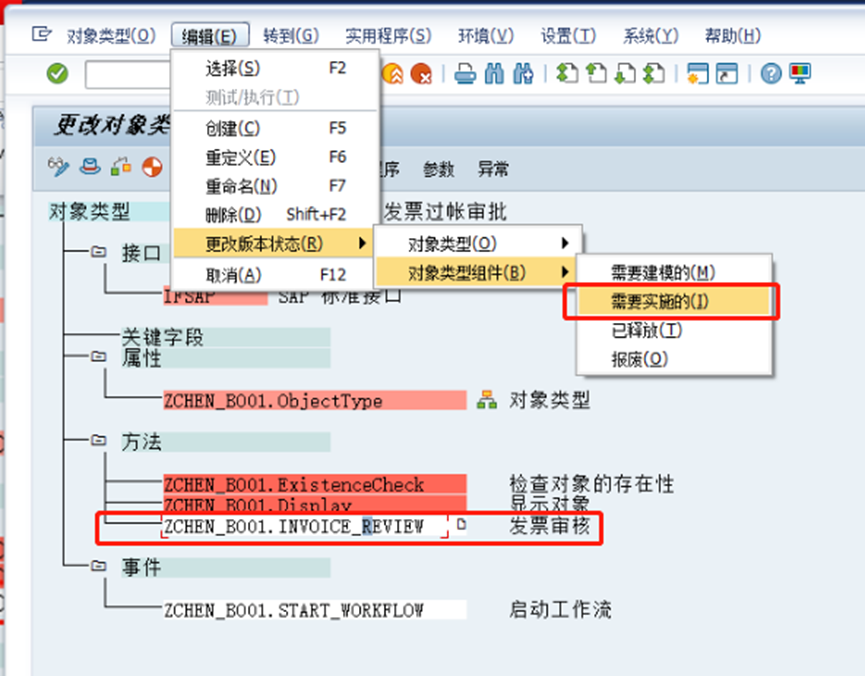

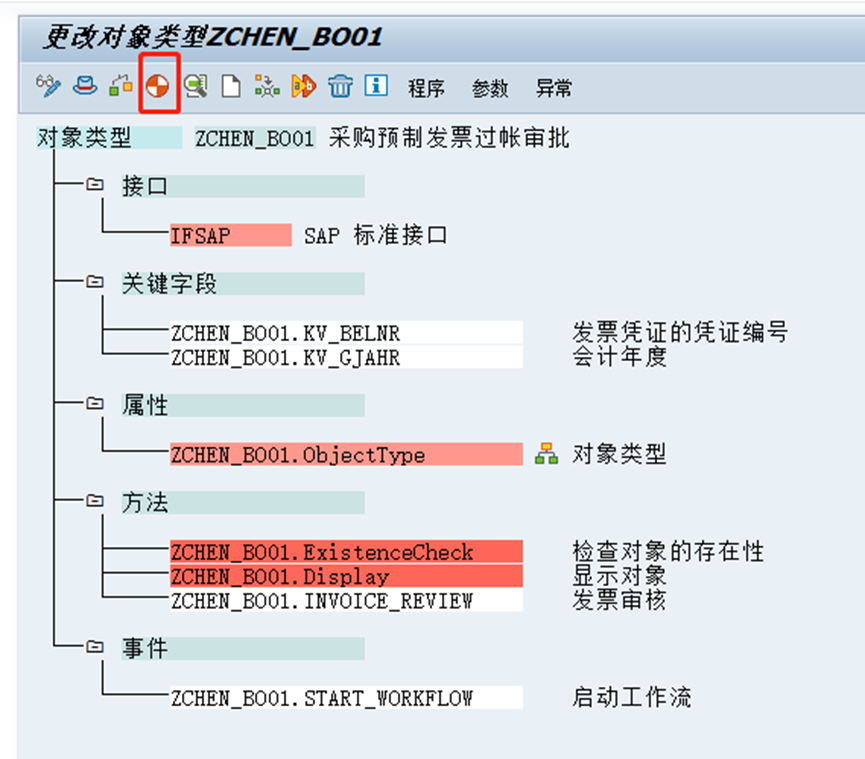

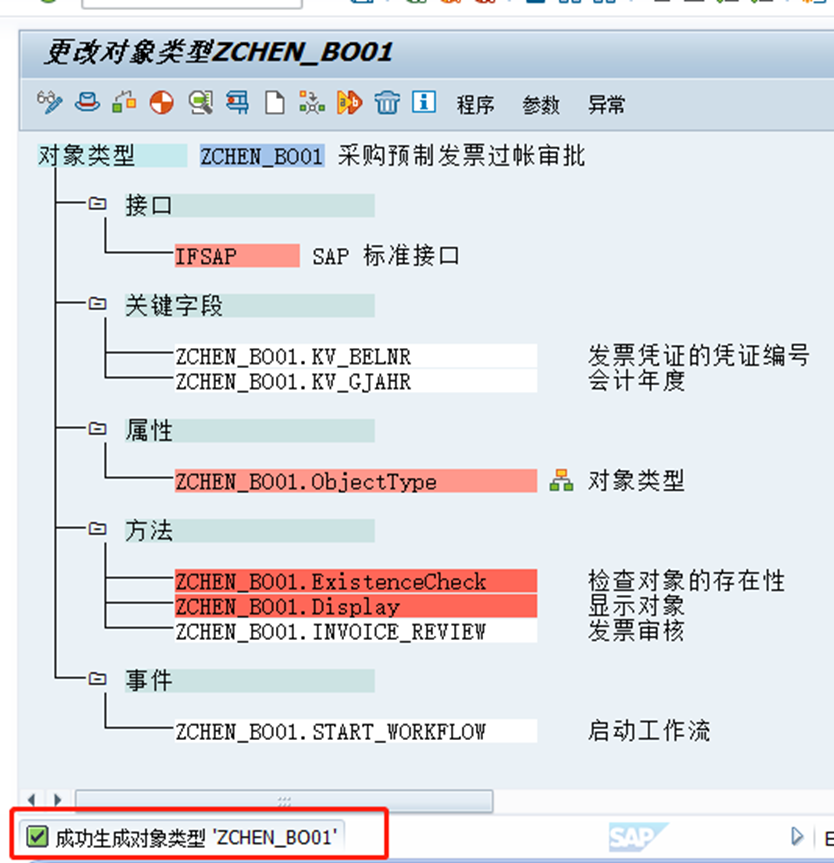

3.5生成/释放对象类型

生成对象类型

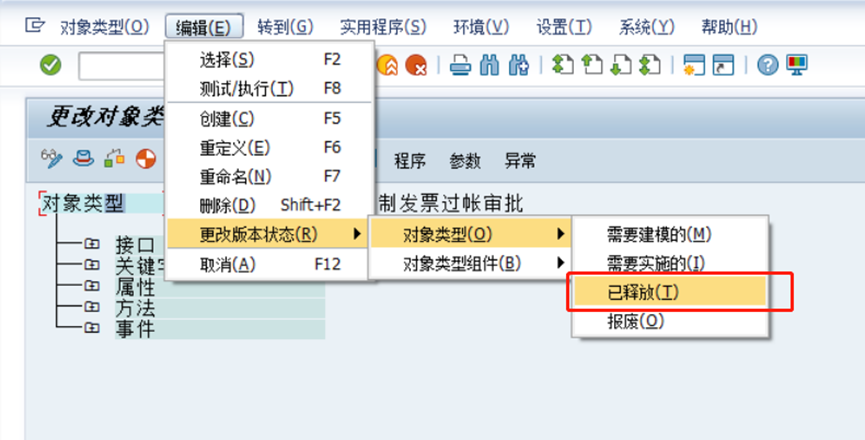

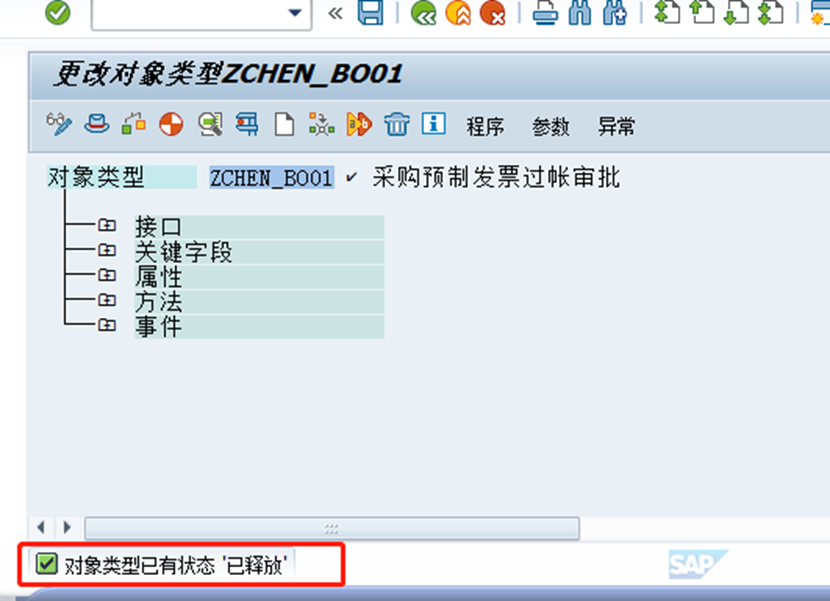

释放对象类型

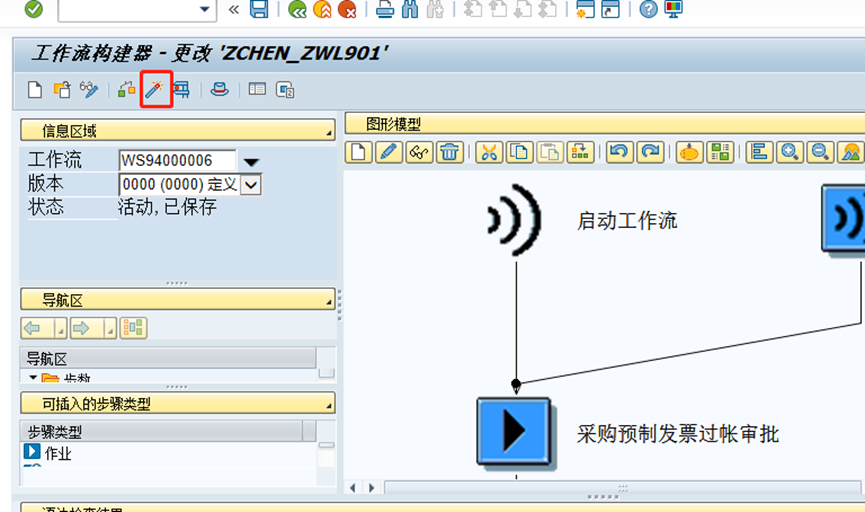

4创建工作流

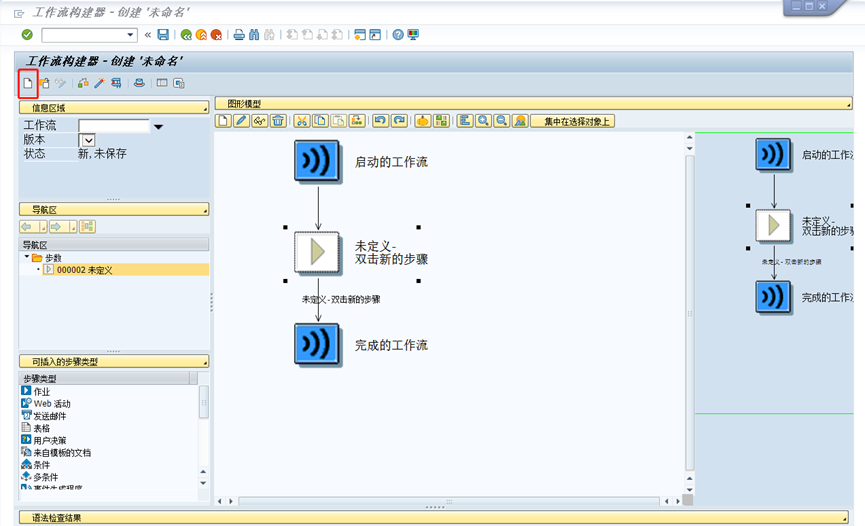

TCODE：SWDD - 工作流构建器

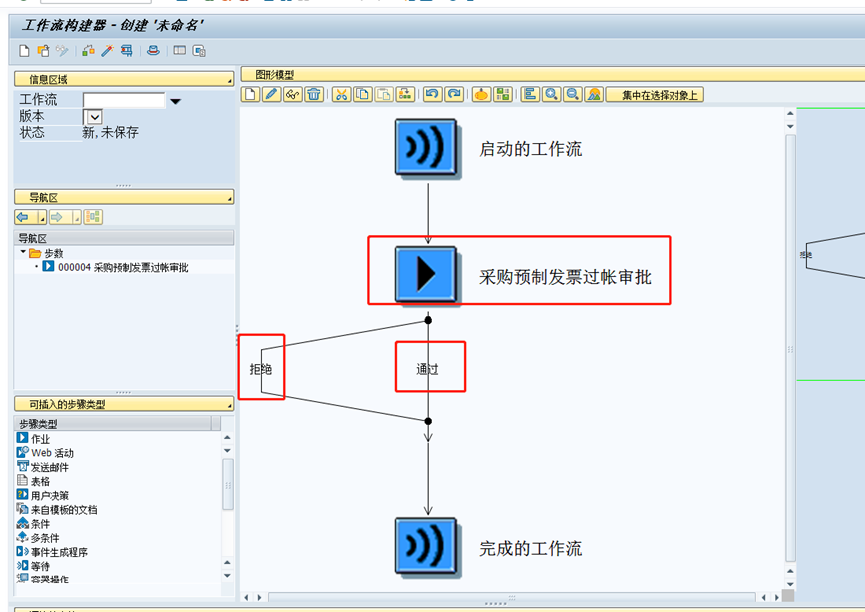

4.1创建审批作业节点

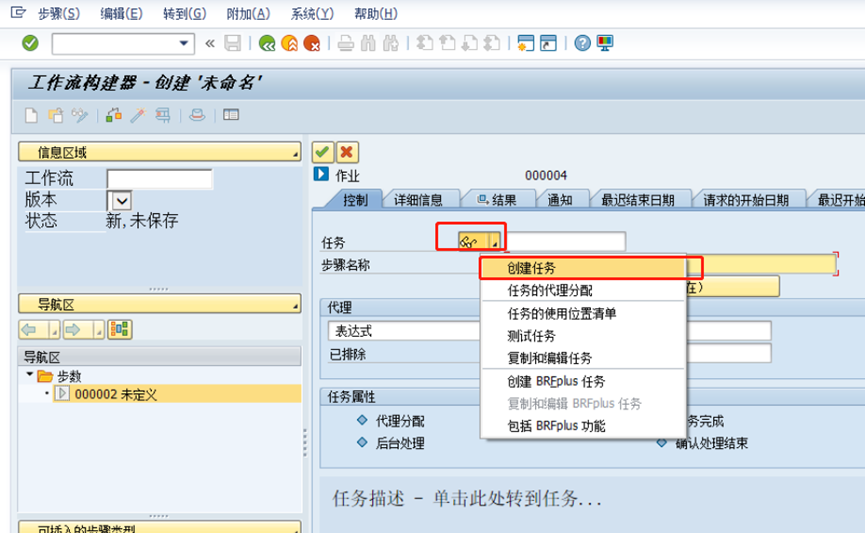

创建作业节点

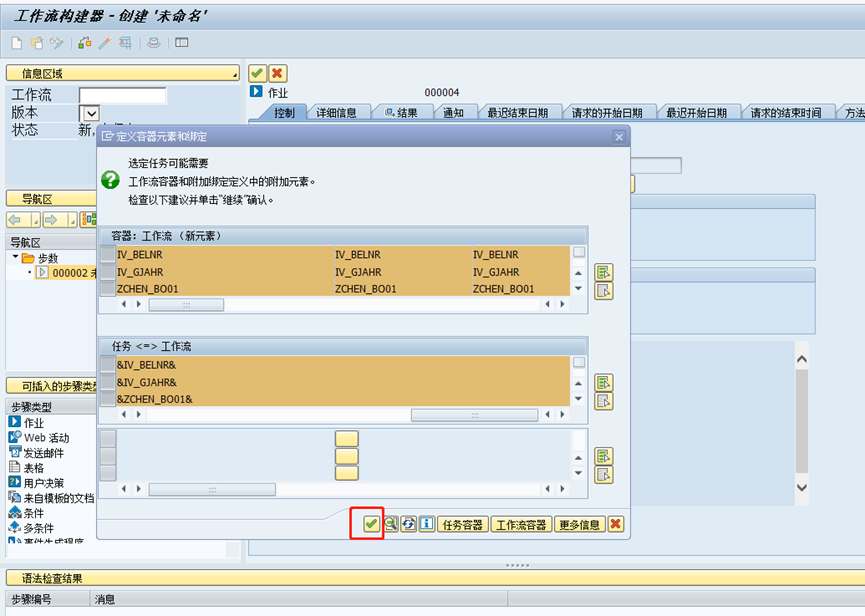

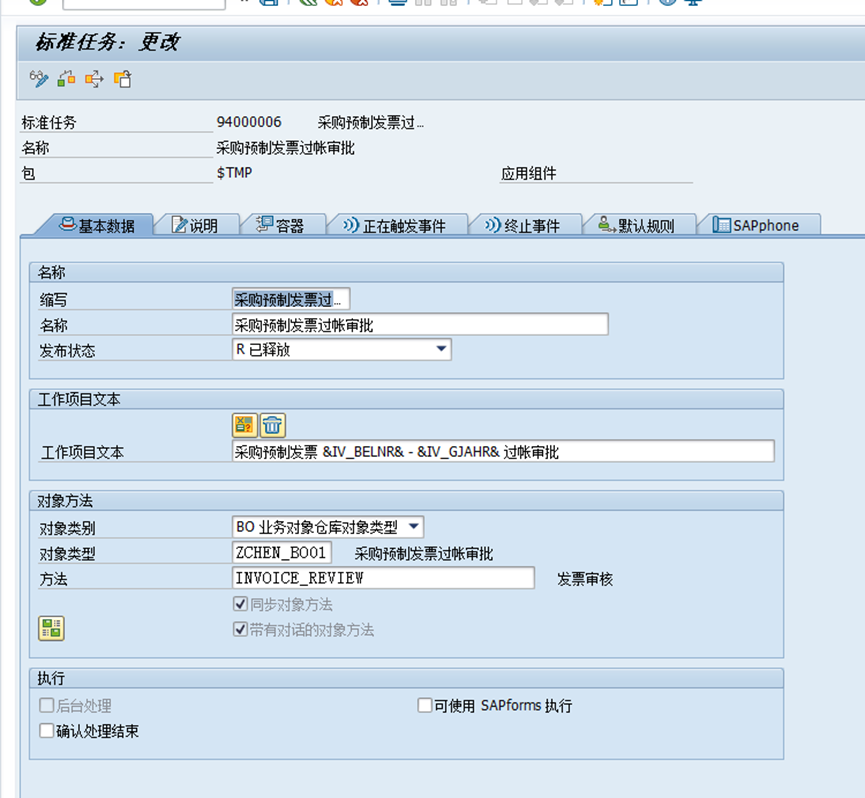

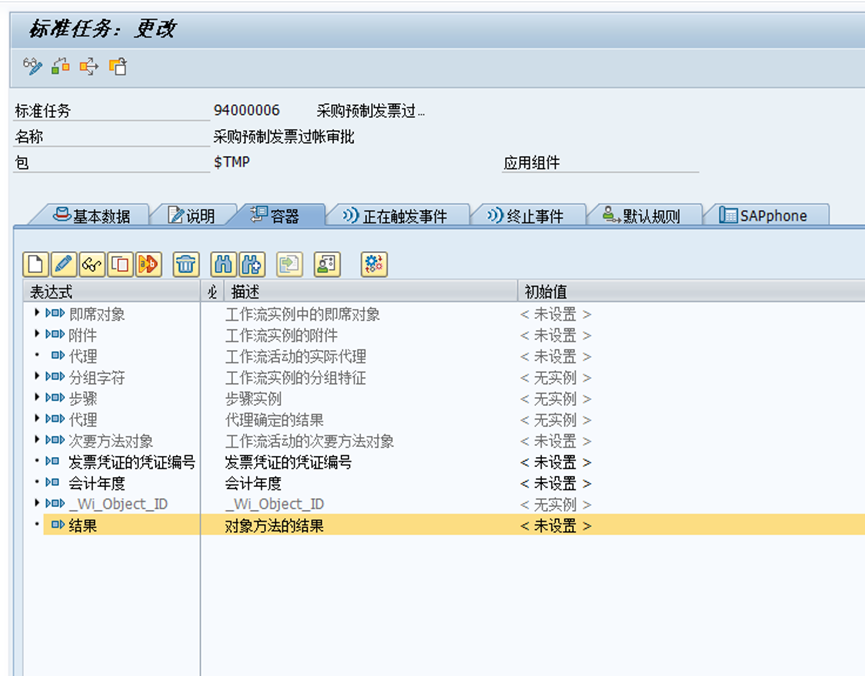

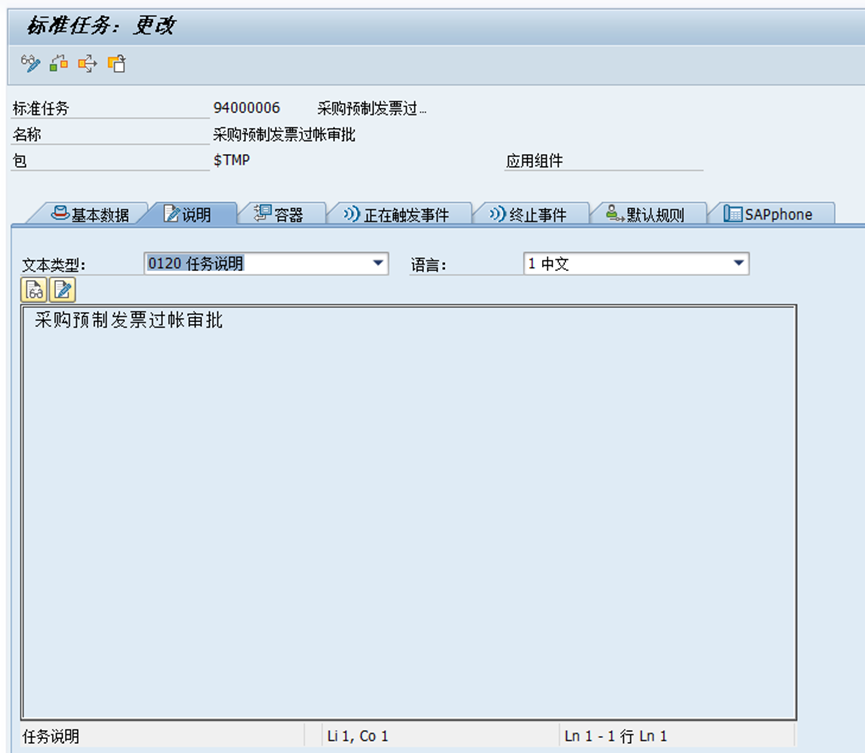

创建作业节点中调用的任务

点击返回按钮

任务生成结果如下

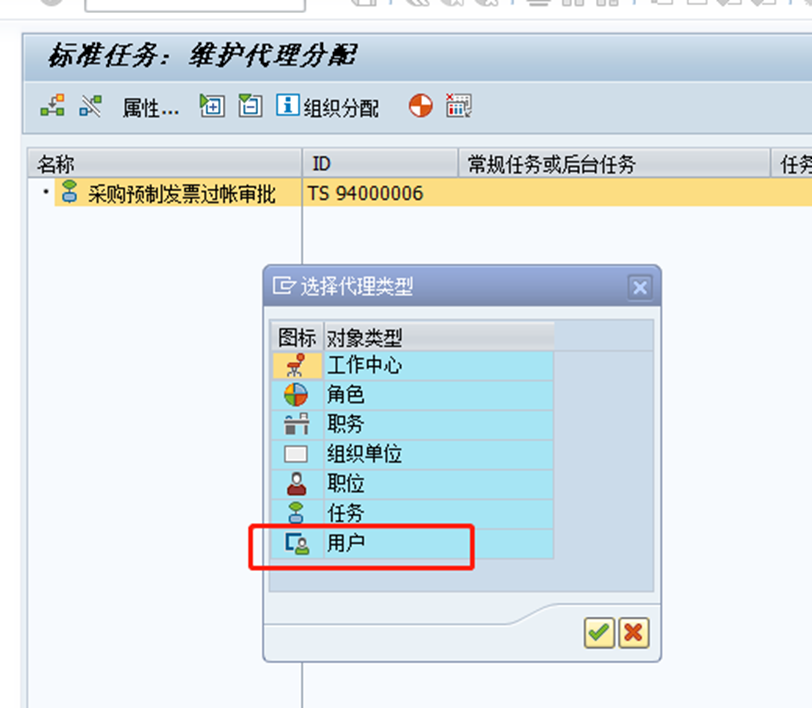

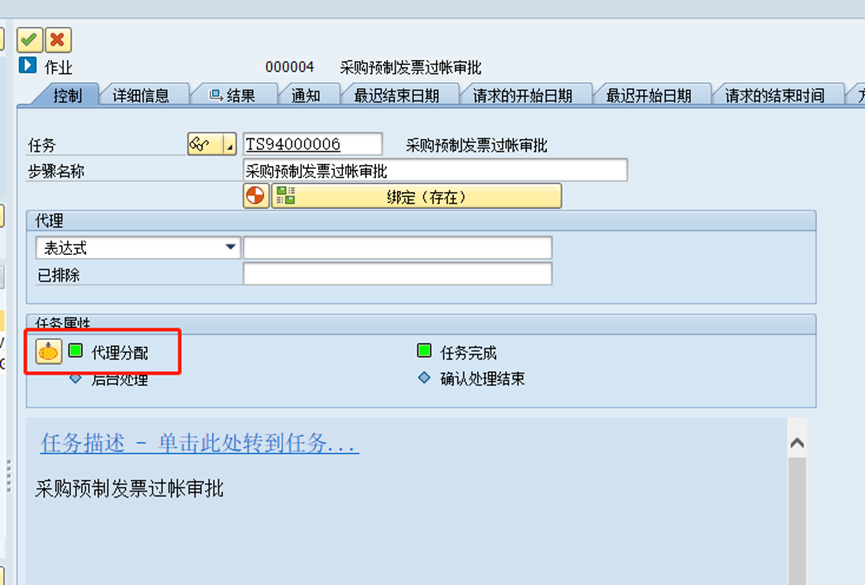

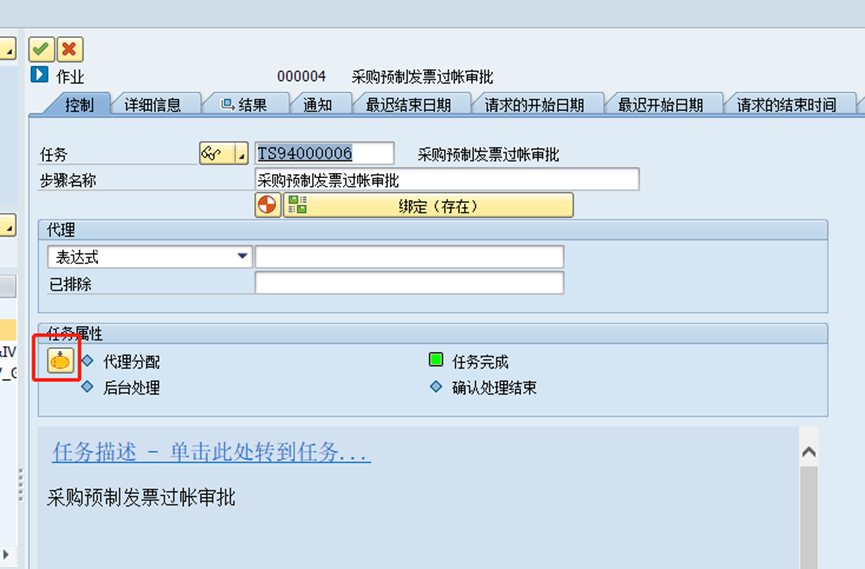

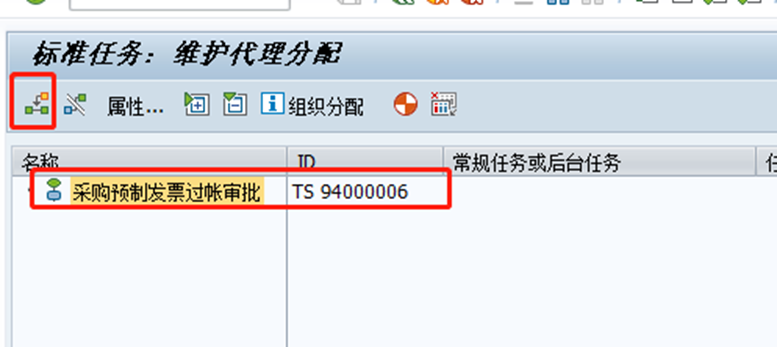

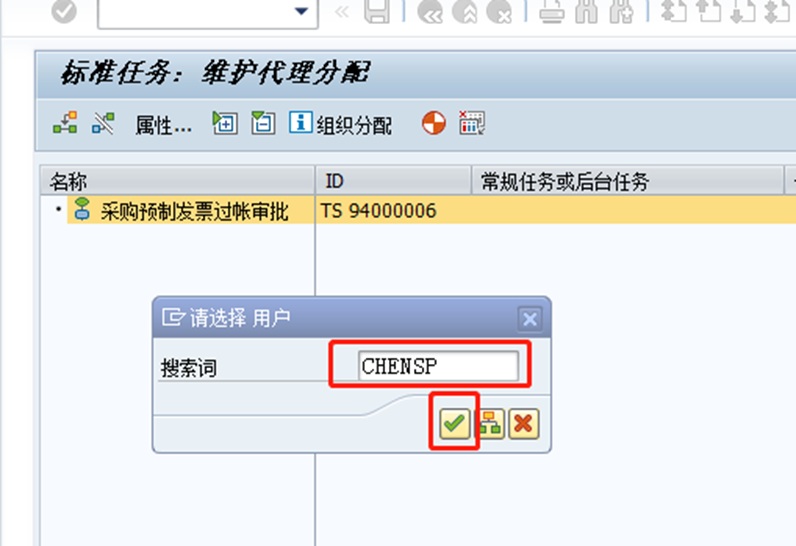

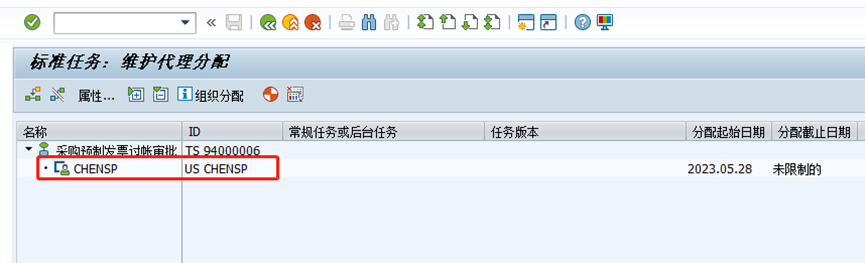

点定节点负责人

点击返回按钮

结果把【未处理】取消激活，然后点确认识按钮

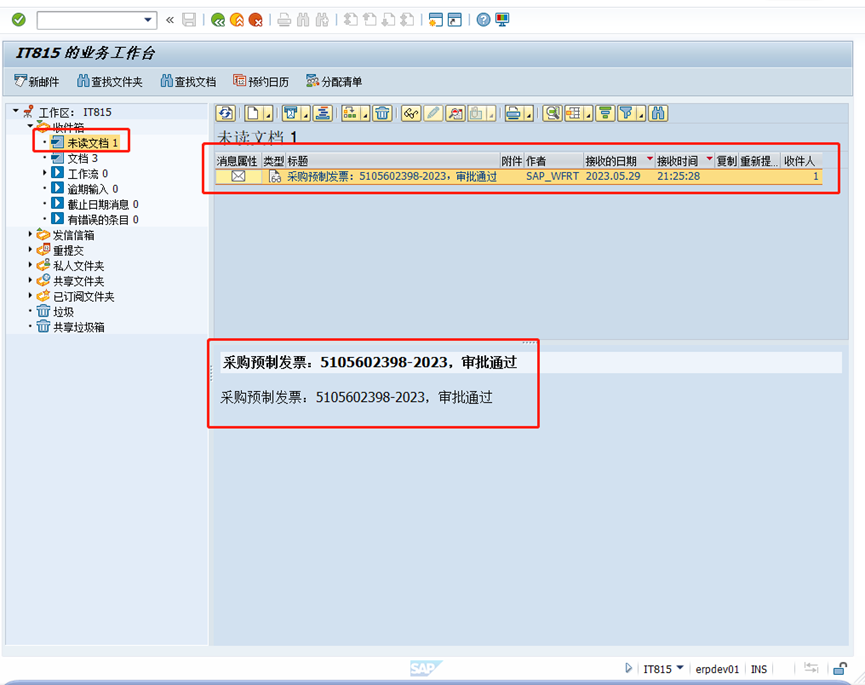

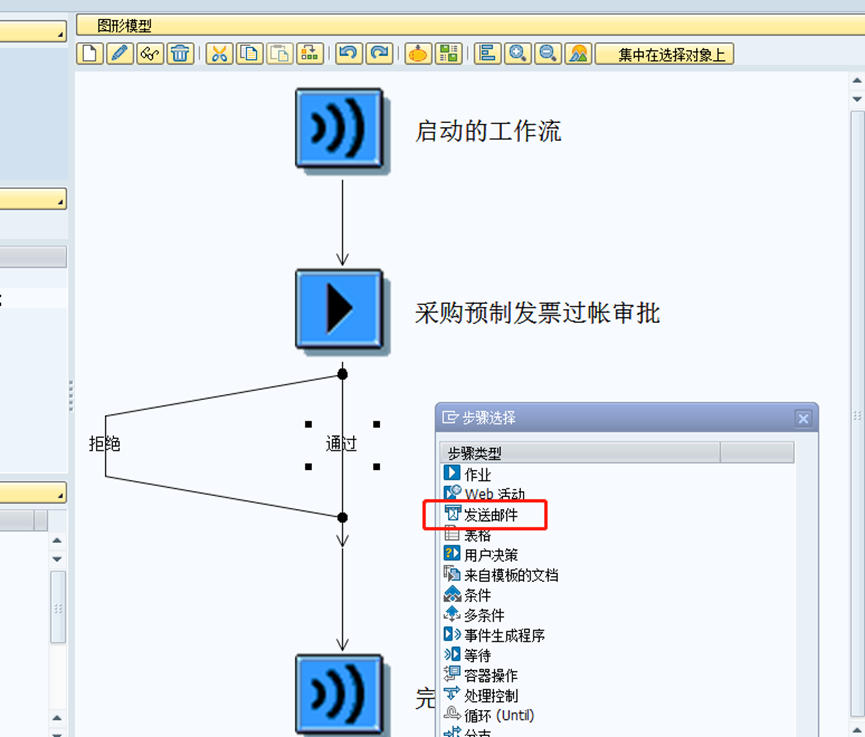

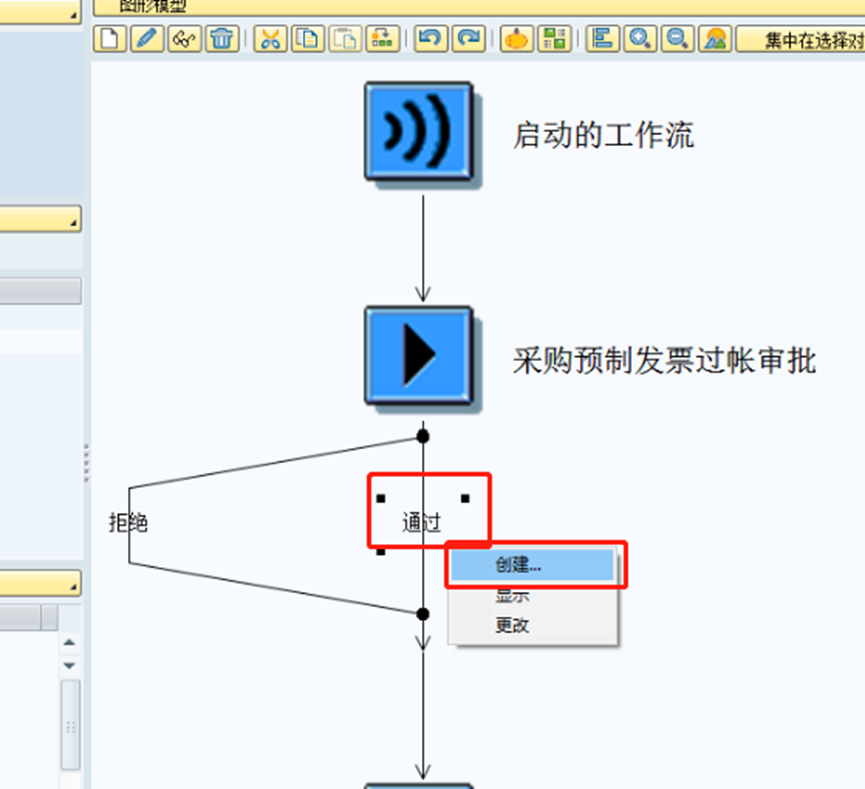

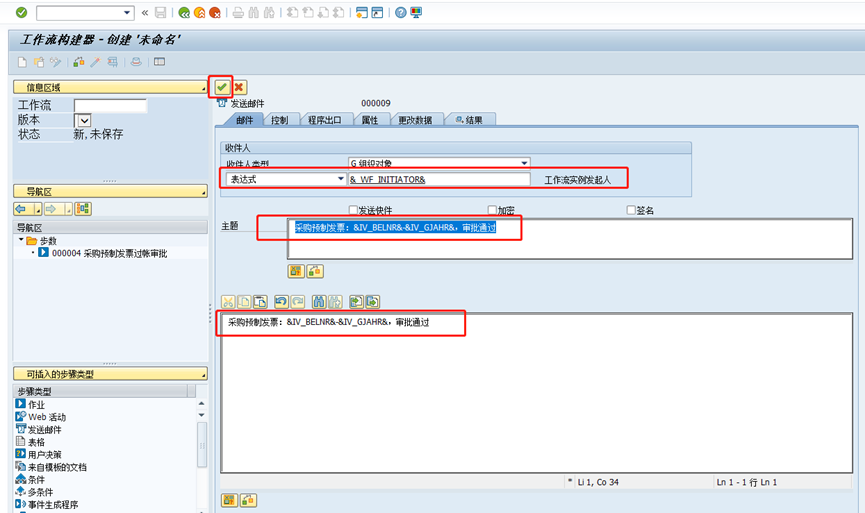

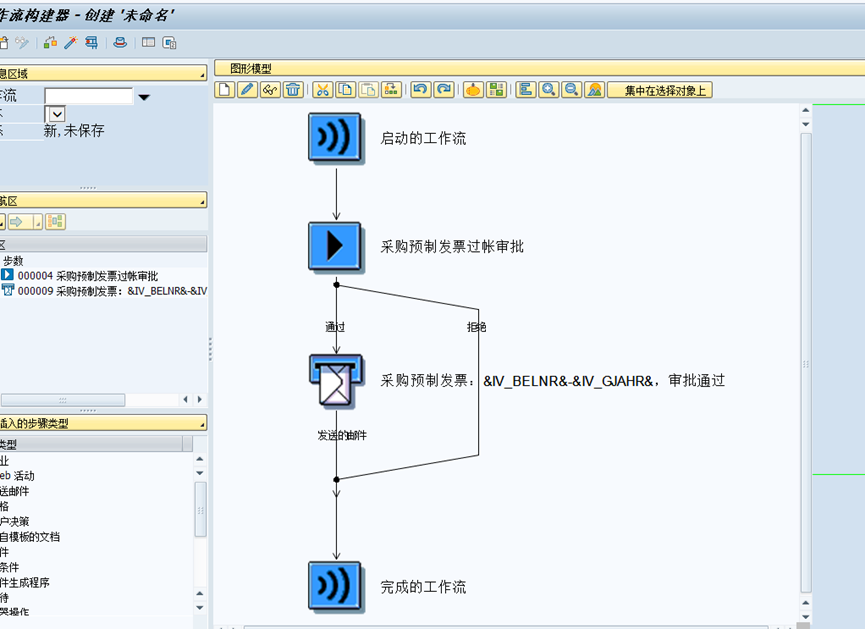

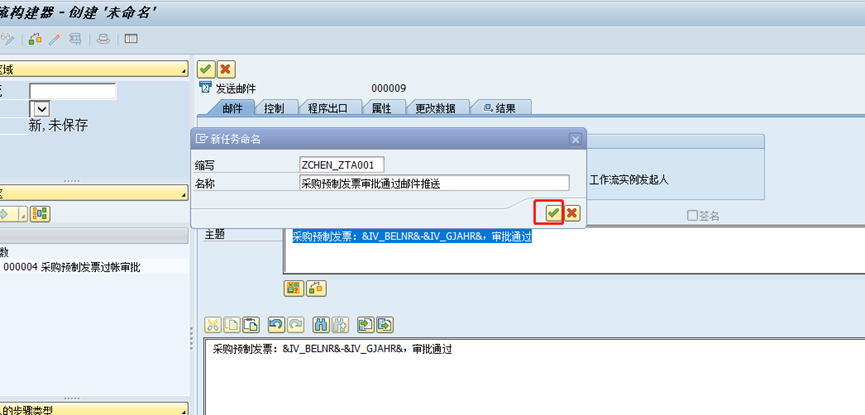

4.2创建审批通过邮件通知节点

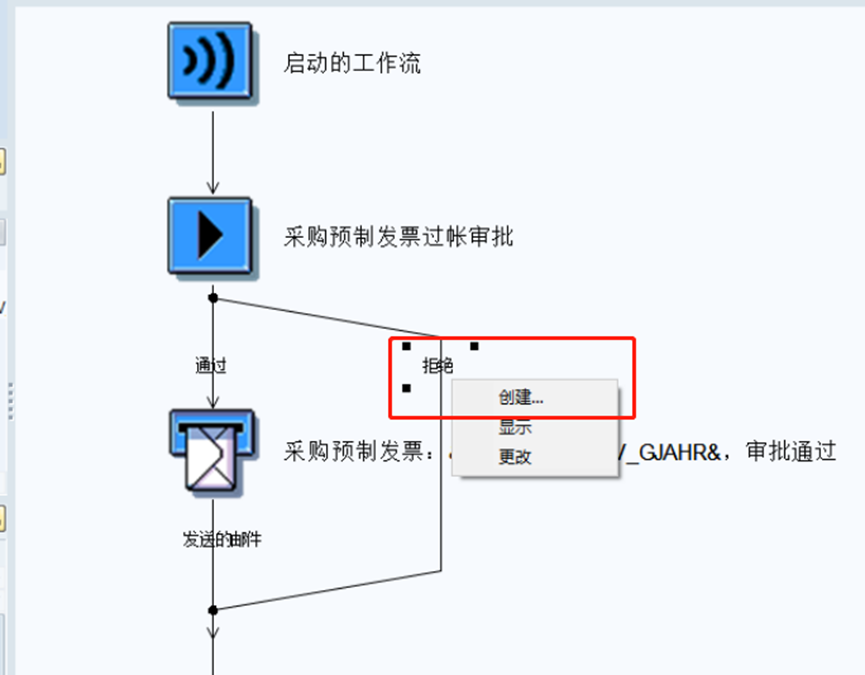

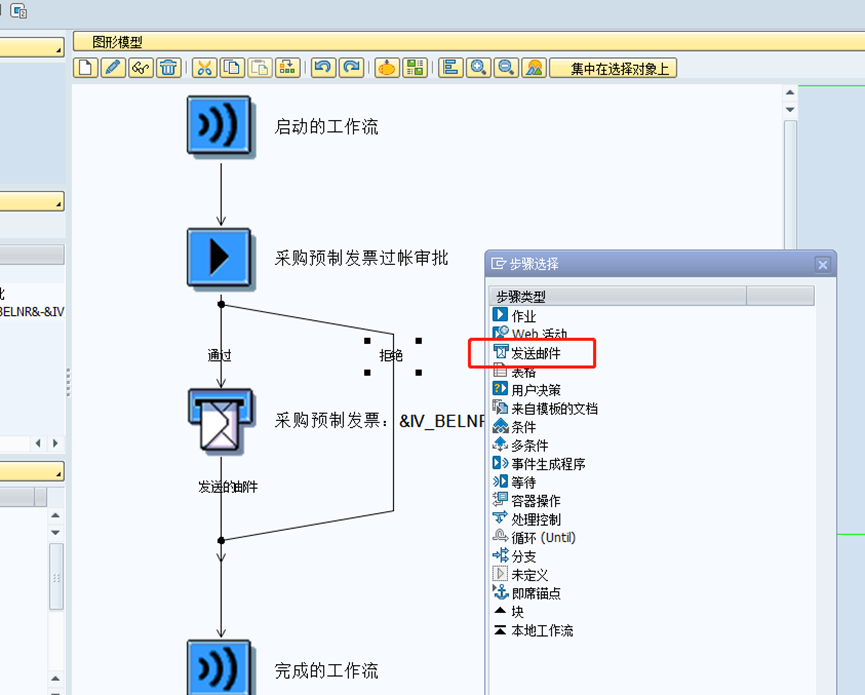

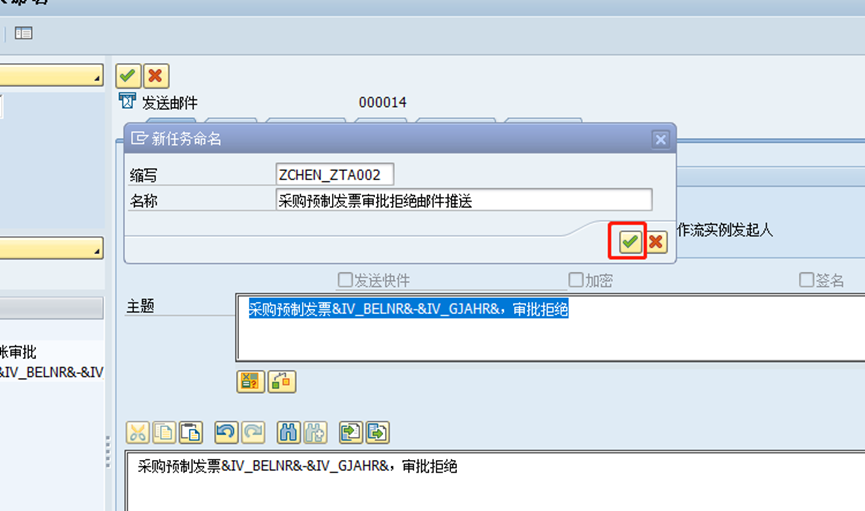

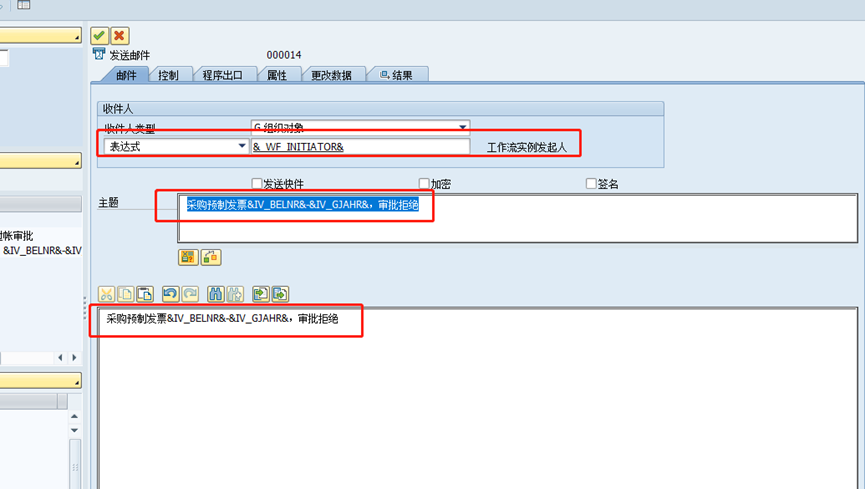

4.3创建审批拒绝邮件通知节点

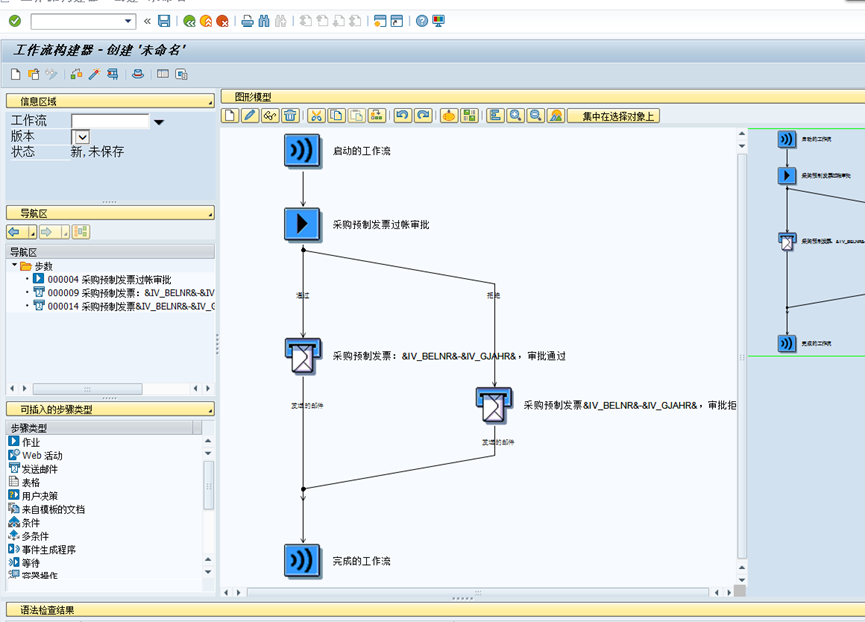

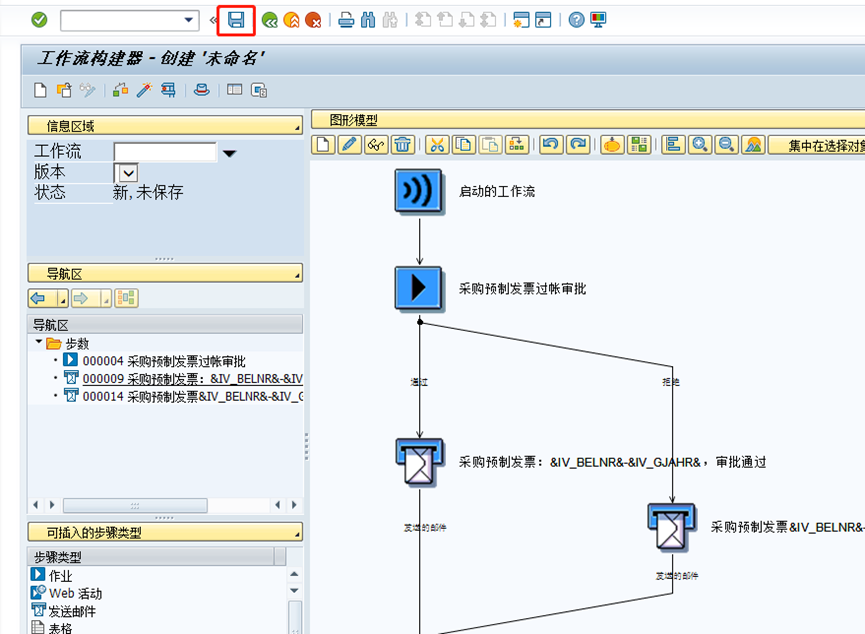

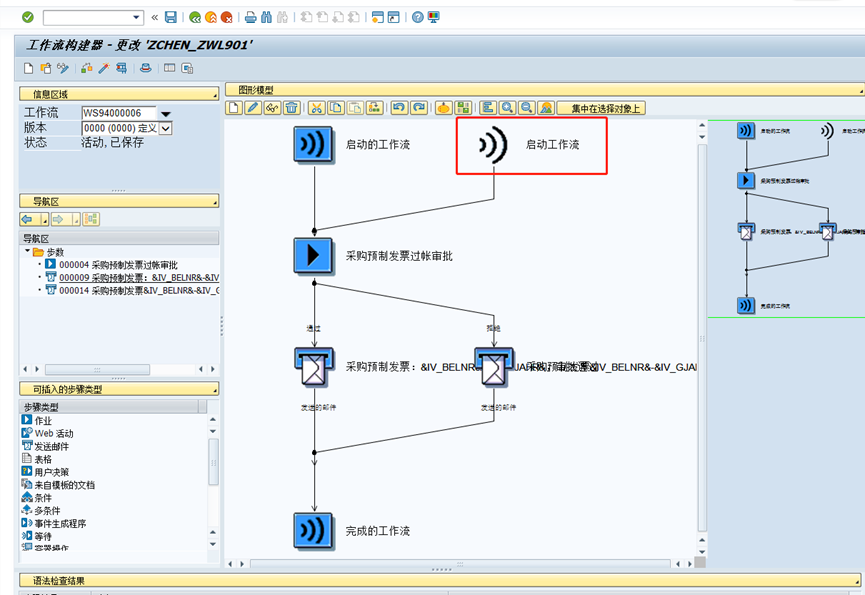

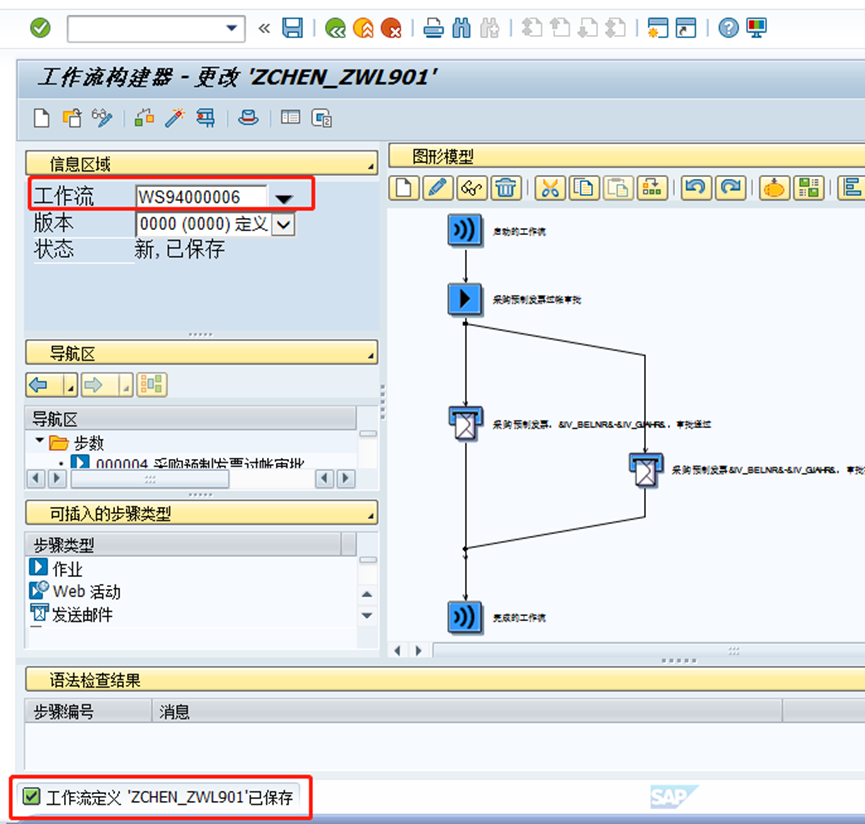

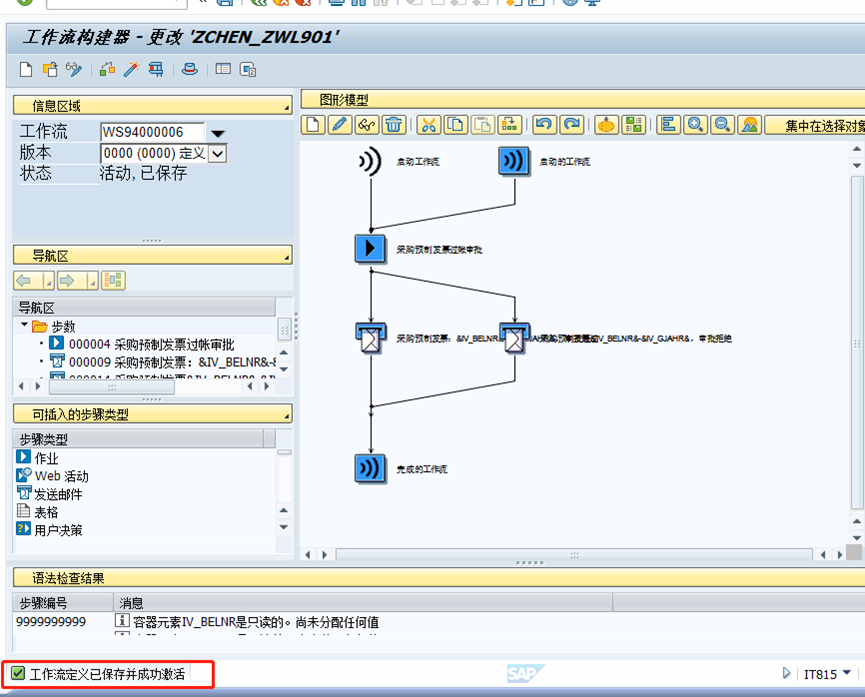

4.4保存生成工作流

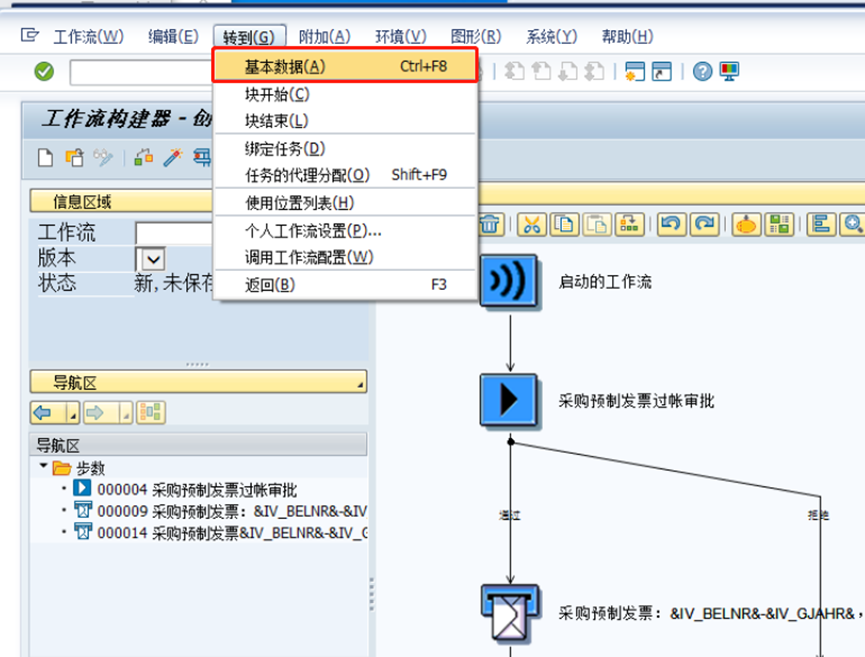

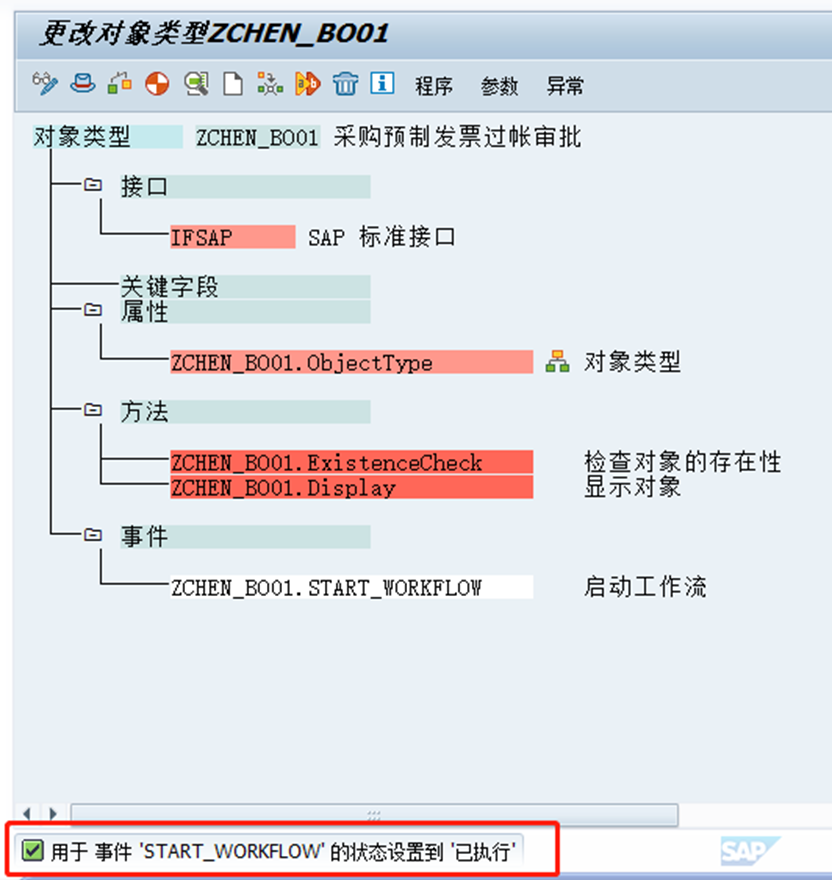

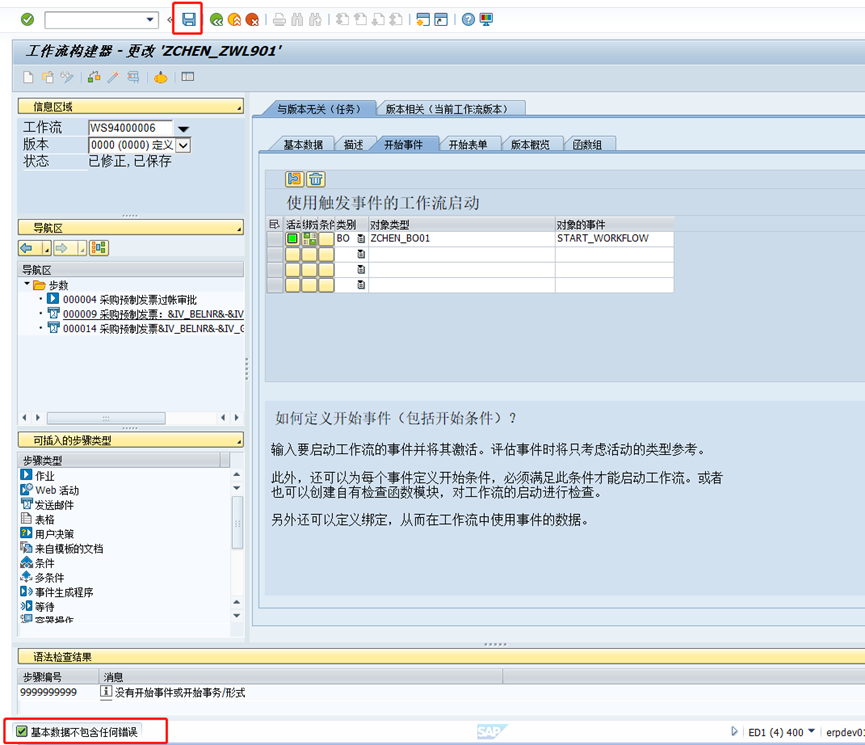

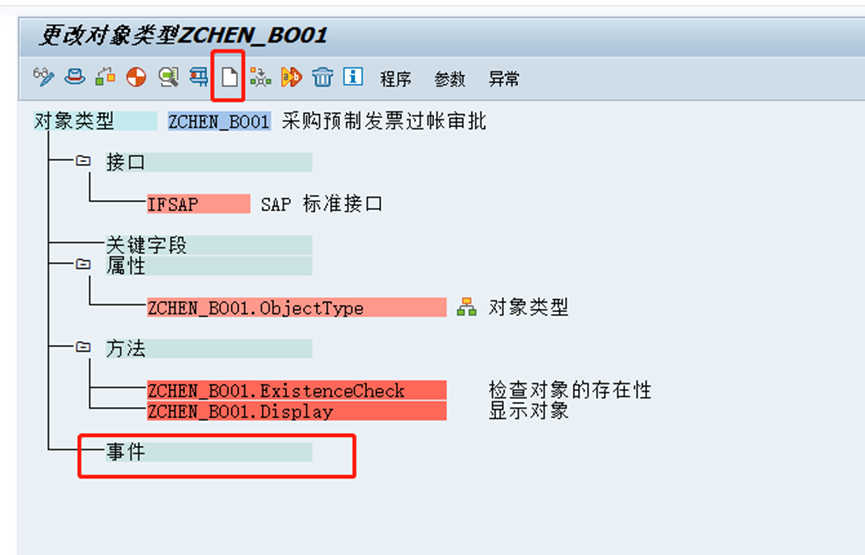

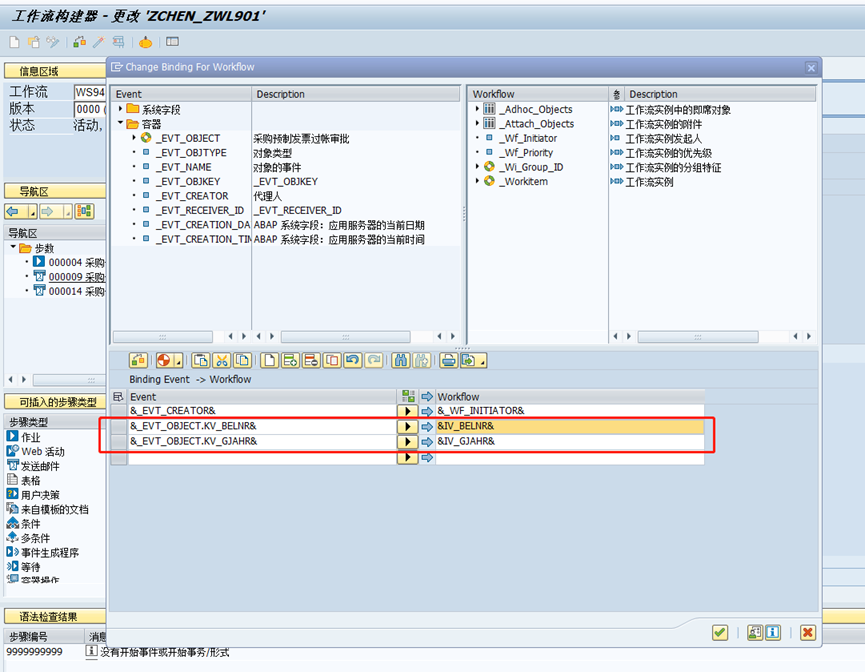

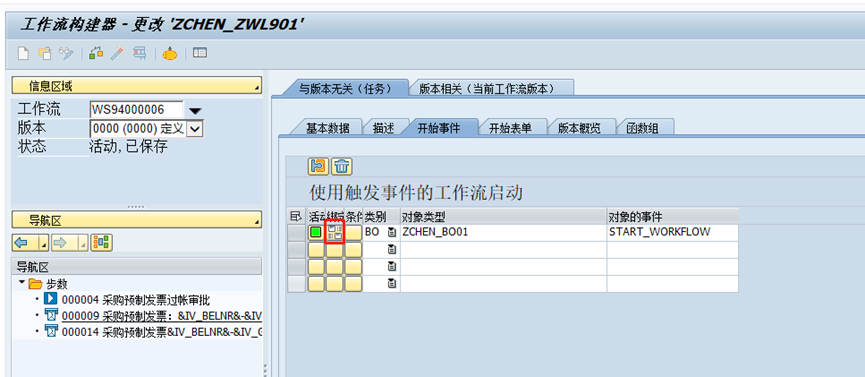

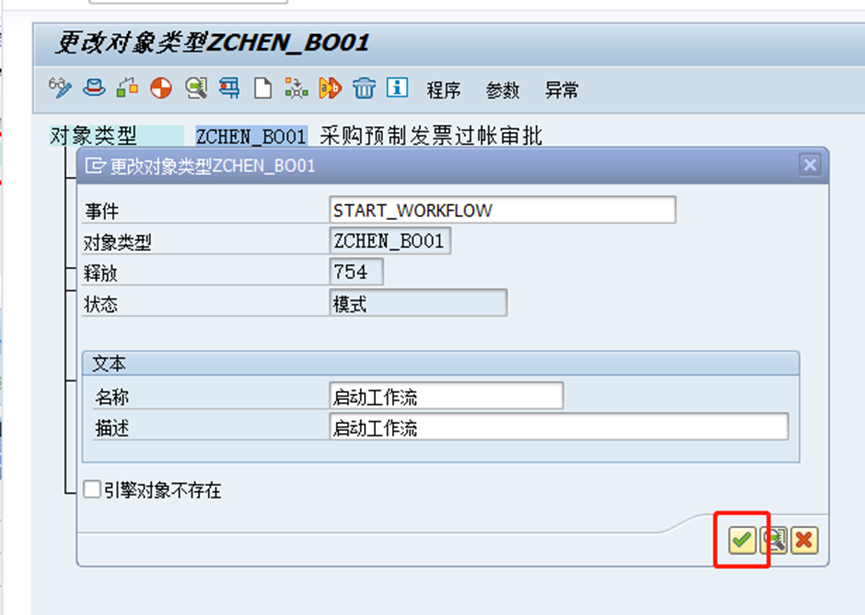

4.5创建工作流开始事件

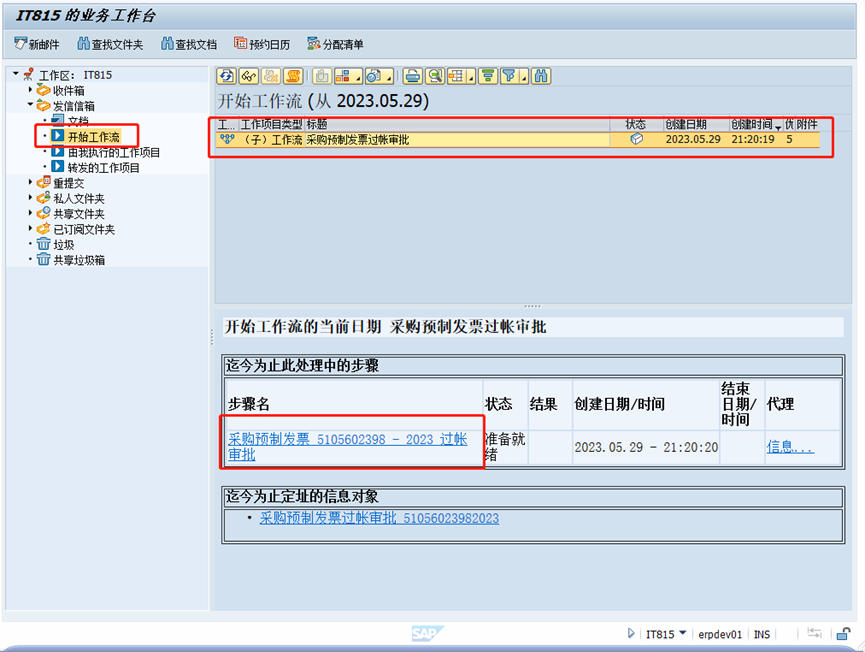

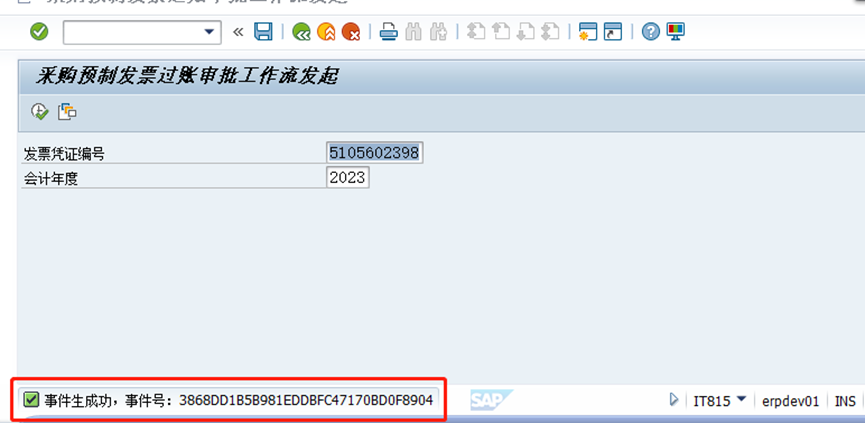

4.6创建工作流触发程序

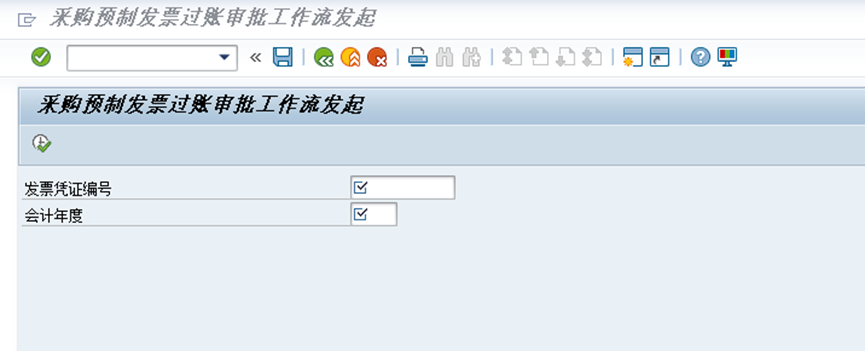

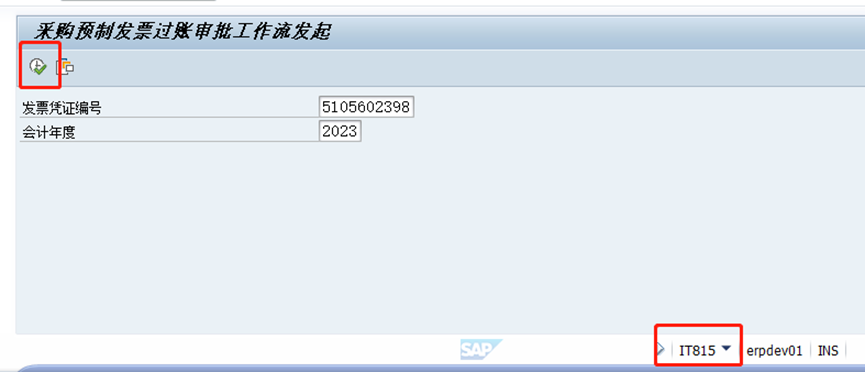

SE38：ZCHEN_START_WORKFLOW_001 -采购预制发票过账审批工作流发起

源代码：

*&---------------------------------------------------------------------*
*& Report ZCHEN_START_WORKFLOW_001
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZCHEN_START_WORKFLOW_001.
TYPES: BEGIN OF TYP_KEY,
         BELNR TYPE RBKP-BELNR,
         GJAHR TYPE RBKP-GJAHR,
       END OF TYP_KEY.
DATA: WA_KEY TYPE TYP_KEY.
PARAMETERS: P_BELNR TYPE RBKP-BELNR OBLIGATORY,
            P_GJAHR TYPE RBKP-GJAHR OBLIGATORY.

START-OF-SELECTION.
  PERFORM FRM_START_WORKFLOW.

*&---------------------------------------------------------------------*
*& Form FRM_START_WORKFLOW
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM FRM_START_WORKFLOW .
  DATA: GV_KEY TYPE SWEINSTCOU-OBJKEY.
  DATA: GV_EVENT_ID TYPE SWEDUMEVID-EVTID.
  DATA: GV_RECEIVER_COUNT TYPE SWE_EVTID.
  DATA: WA_EVENT_CONTAINER TYPE SWCONT,
        IT_EVENT_CONTAINER LIKE STANDARD TABLE OF WA_EVENT_CONTAINER.

  WA_KEY-BELNR = P_BELNR.
  WA_KEY-GJAHR = P_GJAHR.
  GV_KEY = WA_KEY. "关键字段
  CALL FUNCTION 'SWE_EVENT_CREATE'
    EXPORTING
      OBJTYPE           = 'ZCHEN_BO01'
      OBJKEY            = GV_KEY
      EVENT             = 'START_WORKFLOW'
*     CREATOR           = ' '
*     TAKE_WORKITEM_REQUESTER       = ' '
*     START_WITH_DELAY  = ' '
*     START_RECFB_SYNCHRON          = ' '
*     NO_COMMIT_FOR_QUEUE           = ' '
*     DEBUG_FLAG        = ' '
*     NO_LOGGING        = ' '
*     IDENT             =
    IMPORTING
      EVENT_ID          = GV_EVENT_ID
      RECEIVER_COUNT    = GV_RECEIVER_COUNT
    TABLES
      EVENT_CONTAINER   = IT_EVENT_CONTAINER
    EXCEPTIONS
      OBJTYPE_NOT_FOUND = 1
      OTHERS            = 2.
  IF SY-SUBRC <> 0.
    MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
    WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
  ELSE.
    MESSAGE S001(00) WITH '事件生成功，事件号：' GV_EVENT_ID.
    COMMIT WORK.
  ENDIF.
ENDFORM.
