永诺智能电表接入ha

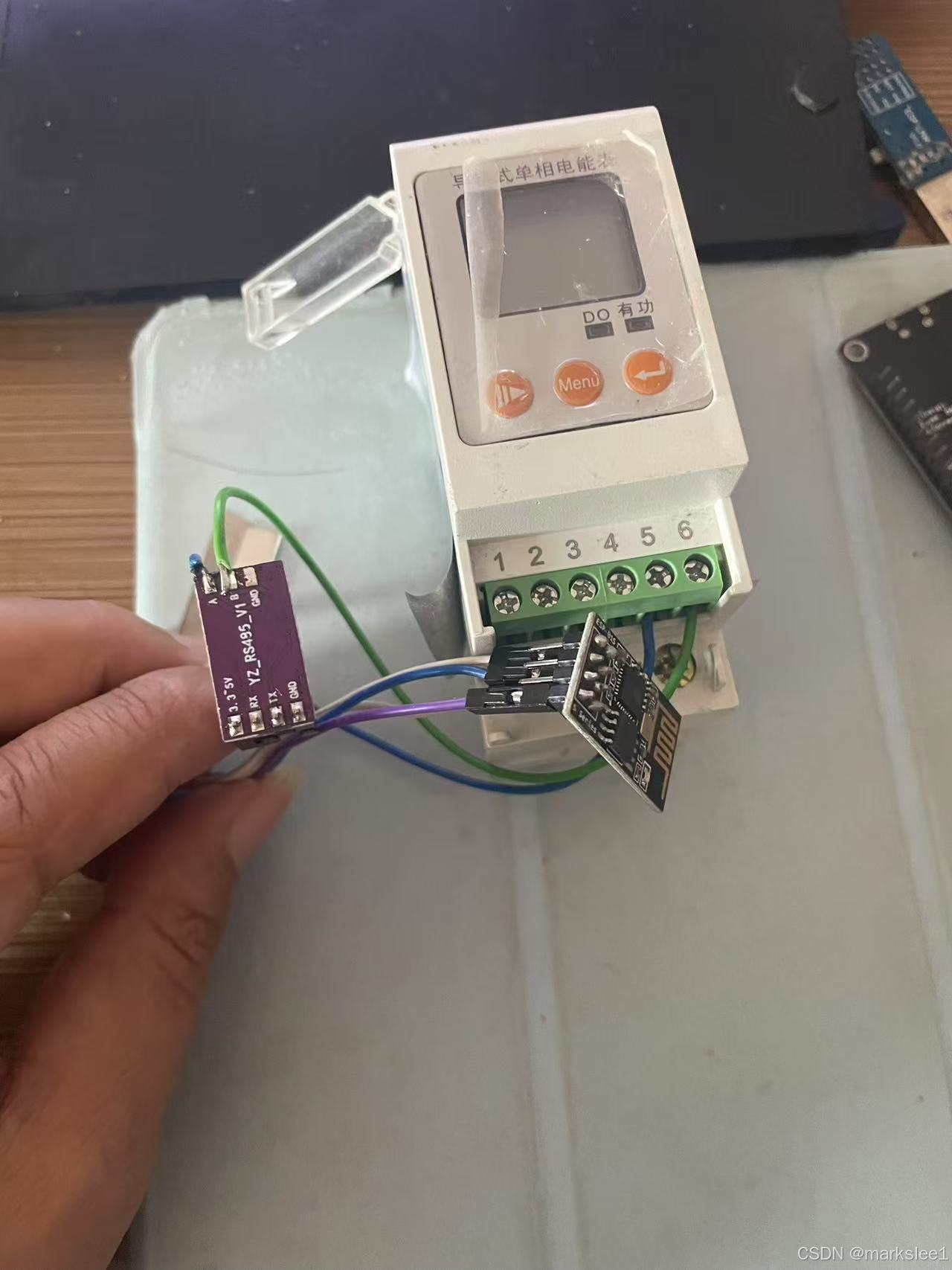

在这里用到3个设备：

1、永诺yn20e智能电表，来自咸鱼10块钱

2、esp01s一个3元

3.ttl转485模块一个2元

yn20e有485接口，支持modbus协议。用esp8266做一个modbus rtu tcp透传设备（源码已经分享）通过modbus tcp 传输到ha。esp8266透传固件链接  8266做透传设备教程

附ha yaml的代码 复制就可以用

modbus:
  - type: tcp
    host: 192.168.1.15
    port: 502
    name: "ddsu666"
    sensors:
      - name: "A相电压"
        address: 0x0046
        scale: 0.1
        slave: 2
        precision: 2
        unit_of_measurement: V
        data_type: int16
        unique_id: "2023062821"
        device_class: voltage
      - name: "A相电流"
        address: 0x004C
        slave: 2
        precision: 2
        scale: 0.01
        unit_of_measurement: A
        data_type: int16
        unique_id: "2023062822"
        device_class: current
      - name: "A相有功 功率"
        address: 0x004F
        slave: 2
        precision: 2
        scale: 1
        unit_of_measurement: W
        state_class: total
        data_type: int16
        unique_id: "2023062823"
        device_class: energy
      - name: "A相无功 功率"
        address: 0x0053
        slave: 2
        precision: 2
        scale: 1
        unit_of_measurement: Var
        data_type: int16
        unique_id: "2023062824"
        device_class: current

      - name: "A相视功 功率"
        address: 0x0057
        slave: 2
        precision: 2
        scale: 1
        unit_of_measurement: VA
        state_class: total
        data_type: int16
        unique_id: "2023062825"
        device_class: energy
      - name: "A相功率因素"
        address: 0x005B
        slave: 2
        precision: 2
        scale: 0.001
        unit_of_measurement: F
        data_type: int16
        unique_id: "2023062826"
        device_class: current
      - name: "频率"
        address: 0x005F
        slave: 2
        precision: 2
        scale: 0.01
        unit_of_measurement: HZ
        data_type: int16
        unique_id: "2023062827"
        device_class: current

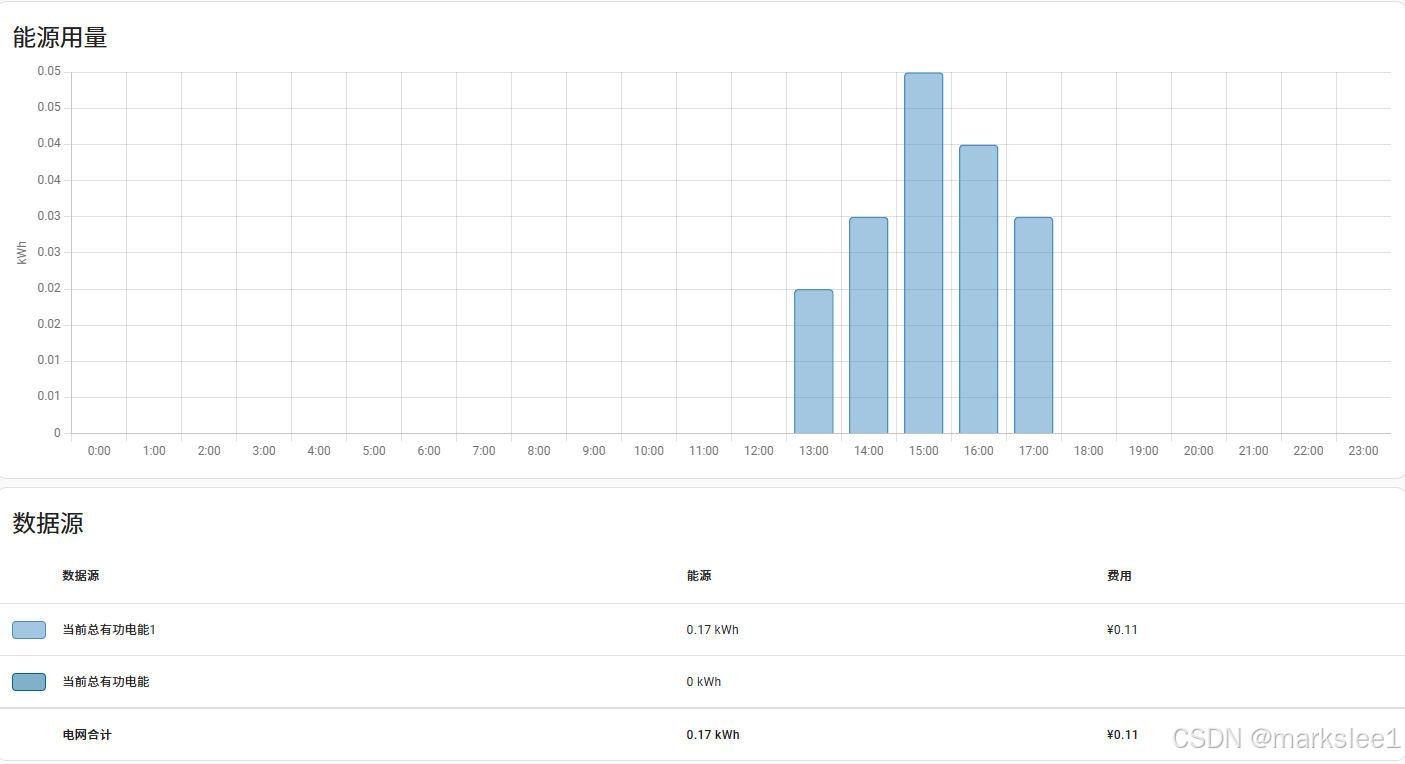

      - name: "当前总有功电能"
        address: 0x0063
        slave: 2
        precision: 2
        scale: 0.01
        unit_of_measurement: kWh
        state_class: total
        data_type: int32
        unique_id: "2023062828"
        device_class: energy
      - name: "当前总有功电能1"
        address: 0x2000
        slave: 2
        precision: 2
        scale: 0.01
        unit_of_measurement: kWh
        state_class: total
        data_type: int32
        unique_id: "2023062829"
        device_class: energy
      - name: "波特率"
        address: 0x0211
        slave: 2
        precision: 2
        scale: 1
        unit_of_measurement: HZ
        data_type: int16
        unique_id: "2023062830"
        device_class: current

最终esp01s+ttl转485模块实现联网接入ha
