1 SeNet介绍
SENet是Squeeze-and-Excitation Networks的简称,由Momenta公司所作并发于2017CVPR,论文中的SENet赢得了ImageNet最后一届(ImageNet 2017)的图像识别冠军 SENet主要是学习了channel之间的相关性,筛选出了针对通道的注意力,稍微增加了一点计算量,但是效果比较好。 通过学习的方式来自动获取到每个特征通道的重要程度,然后依照这个重要程度去提升有用的特征,并抑制对当前任务用处不大的特征。 Se模块思想简单,易于实现,很容易加载到现有的网络模型框架中。
2 SeNet优点
增加少量的参数,并能够在一定程度上提高模型的准确率。 是在ResNet的基础上建立的策略,创新点好,很适合自己创作新模型刷高准确率。 很方便插入到自己的深度神经网络模型中,以提高模型的准确性。

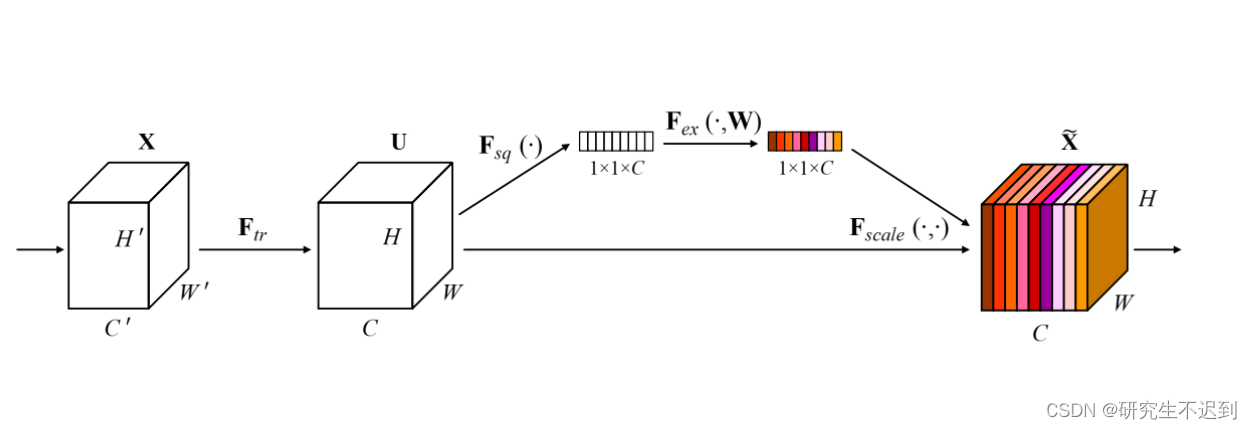

3 Se模块的具体介绍
Sequeeze :顺着空间维度(channel)
来进行特征压缩,将每个二维的特征通道变成一个实数,这个实数某种程度上具有全局的感受野,并且输出的维度和输入的特征通道数相匹配。它表征着在特征通道上响应的全局分布,且使得靠近输入的层也可以获得全局的感受野。 具体操作(和代码里面的数字是一一对应的):对原特征图50×512×7×7
进行global average pooling ,然后得到了一个50×512×1×1
大小的特征图,这个特征图具有全局感受野。Excitation :输出的50×512×1×1
特征图,经过两个全连接神经网络,最后用一 个类似于循环神经网络中门的机制 ,通过参数来为每个特征通道生成权重,中参数被学习用来显式地建模特征通道间的相关性(论文中使用的是sigmoid
)。50×512×1×1
变成50×512 / 16×1×1
,最后再还原回来:50×512×1×1
特征重标定:使用Excitation得到的结果作为权重,然后通过乘法逐通道加权到U的C个通道上(50×512×1×1
通过expand_as
得到50×512×7×7
), 完成在通道维度上对原始特征的重标定,并作为下一级的输入数据。
class SELayer ( nn. Module) :
def __init__ ( self, channel, reduction= 16 ) :
super ( SELayer, self) . __init__( )
self. avg_pool = nn. AdaptiveAvgPool2d( 1 )
self. fc = nn. Sequential(
nn. Linear( channel, channel // reduction, bias= False ) ,
nn. ReLU( inplace= True ) ,
nn. Linear( channel // reduction, channel, bias= False ) ,
nn. Sigmoid( )
)
def forward ( self, x) :
b, c, _, _ = x. size( )
y = self. avg_pool( x) . view( b, c)
y = self. fc( y) . view( b, c, 1 , 1 )
return x * y. expand_as( x)
4 完整代码
import numpy as np
import torch
from torch import nn
from torch. nn import init
class SEAttention ( nn. Module) :
def __init__ ( self, channel= 512 , reduction= 16 ) :
super ( ) . __init__( )
self. avg_pool = nn. AdaptiveAvgPool2d( 1 )
self. fc = nn. Sequential(
nn. Linear( channel, channel // reduction, bias= False ) ,
nn. ReLU( inplace= True ) ,
nn. Linear( channel // reduction, channel, bias= False ) ,
nn. Sigmoid( )
)
def init_weights ( self) :
for m in self. modules( ) :
print ( m)
if isinstance ( m, nn. Conv2d) :
init. kaiming_normal_( m. weight, mode= 'fan_out' )
if m. bias is not None :
init. constant_( m. bias, 0 )
elif isinstance ( m, nn. BatchNorm2d) :
init. constant_( m. weight, 1 )
init. constant_( m. bias, 0 )
elif isinstance ( m, nn. Linear) :
init. normal_( m. weight, std= 0.001 )
if m. bias is not None :
init. constant_( m. bias, 0 )
def forward ( self, x) :
b, c, _, _ = x. size( )
y = self. avg_pool( x) . view( b, c)
y = self. fc( y) . view( b, c, 1 , 1 )
return x * y. expand_as( x)
if __name__ == '__main__' :
input = torch. randn( 50 , 512 , 7 , 7 )
se = SEAttention( channel= 512 , reduction= 8 )
output = se( input )
print ( output. shape)
