这篇博客介绍了如何使用R语言的ggplot2和RColorBrewer库来绘制GO富集分析的条形图和散点图。通过读取pdata.txt文件，分别展示了GO-BP、GO-MF和GO-CC在同一图形上的表示，利用不同颜色区分不同的GO类别，并提供了调整图形样式和标签的详细代码示例。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

前面介绍过一些图形的绘制，我们有时候进行GO富集分析，需要绘制富集结果，这里介绍怎么将GO-BP,GO-MF，GO-CC绘制到同一图形中。

library(ggplot2)
library(RColorBrewer)
display.brewer.all()
color <- brewer.pal(3,"Dark2")
colorl <- rep(color,each=10)
pdata <- read.table("pdata.txt",header = T,sep="\t")

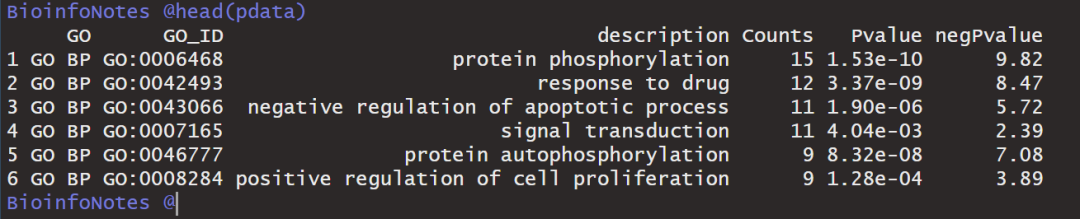

head(pdata)

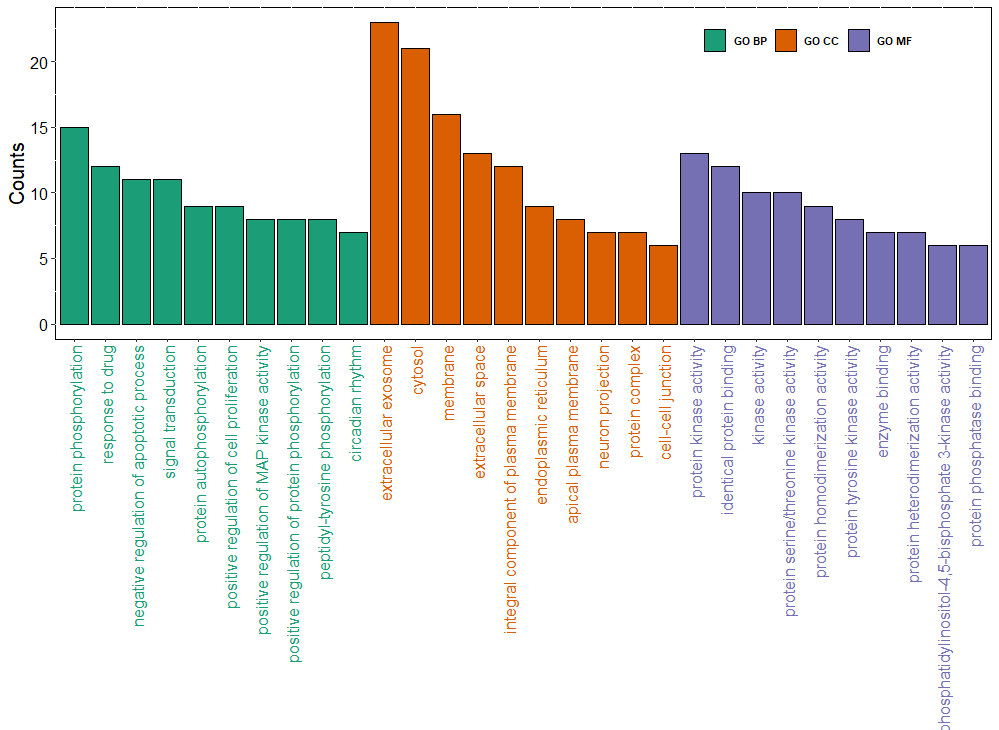

ggplot(pdata) +
  aes(x = description, y = Counts, fill = GO) +
  geom_bar(stat = "identity",colour="black") +
  #scale_fill_hue() +
  scale_fill_manual(values =color)+
  theme(
    axis.title=element_text(size=15,face="plain",color="black"),
    axis.text = element_text(size=12,face="plain",color="black"),
    axis.text.x = element_text(angle = 90,colour = colorl,hjust=1,vjust=0.6),
    axis.title.x = element_blank(),
    legend.title = element_blank(),
    legend.text = element_text(size = 8, face = "bold"),
    legend.margin = margin(t = 0, r = 0, b = 0, l = 0, unit = "pt"),
    legend.direction = "horizontal",
    legend.position = c(0.8,0.9),
    legend.background = element_blank(),
    panel.background = element_rect(fill = "transparent",colour = "black"),

    plot.background = element_blank()
  )

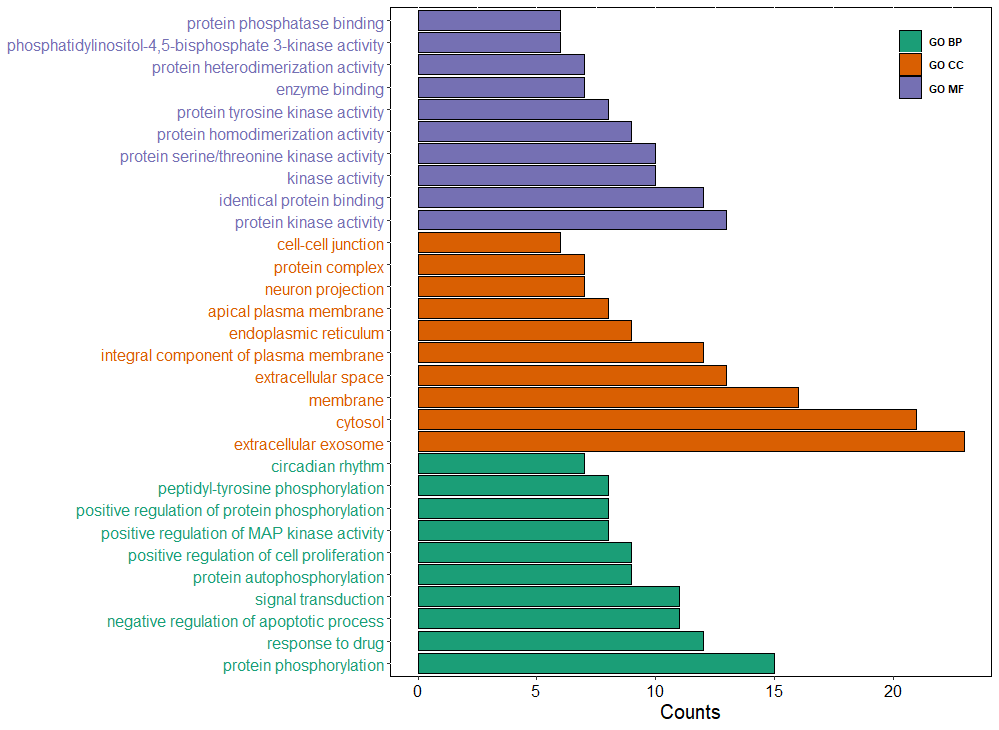

ggplot(pdata) +
  aes(x = description, y = Counts, fill = GO) +
  geom_bar(stat = "identity",colour="black") +
  #scale_fill_hue() +
  coord_flip()+
  scale_fill_manual(values =color)+
  theme(
    axis.title=element_text(size=15,face="plain",color="black"),
    axis.text = element_text(size=12,face="plain",color="black"),
    axis.text.y = element_text(colour = colorl,hjust=1,vjust=0.6),
    axis.title.y = element_blank(),
    legend.title = element_blank(),
    legend.text = element_text(size = 8, face = "bold"),
    legend.margin = margin(t = 0, r = 0, b = 0, l = 0, unit = "pt"),
    legend.direction = "vertical",
    legend.position = c(0.9,0.92),
    legend.background = element_blank(),
    panel.background = element_rect(fill = "transparent",colour = "black"),

    plot.background = element_blank()
  )

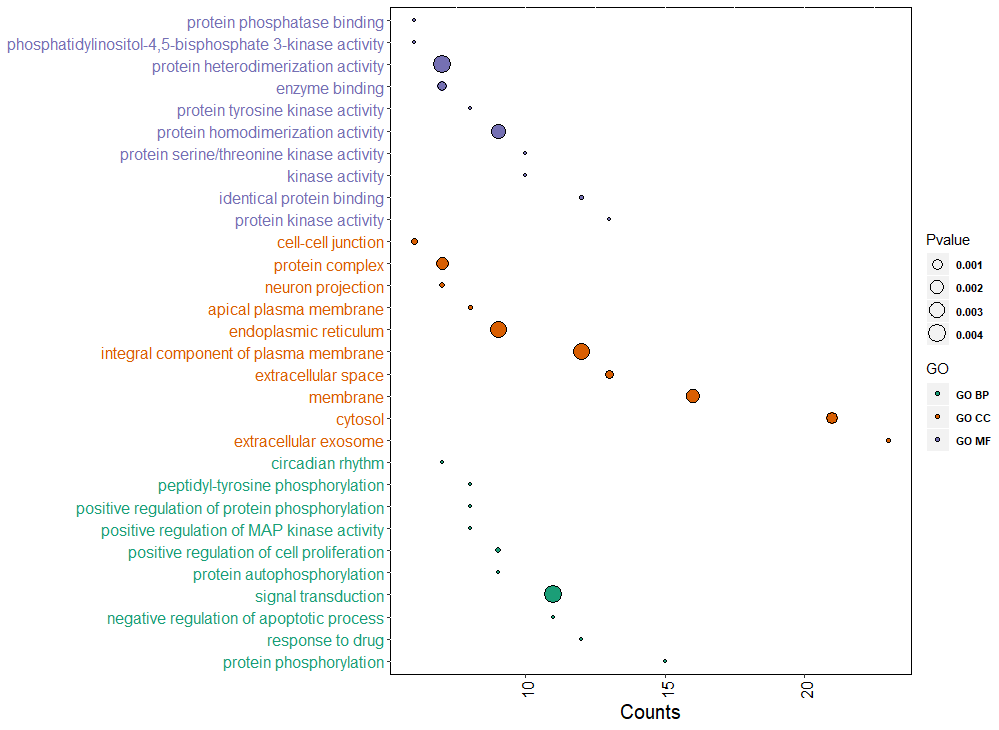

ggplot(pdata) +
  aes(x = description, y = Counts, fill = GO,size=Pvalue) +
  geom_point(shape=21,color="black") +
  #scale_fill_hue() +
  xlab("Counts")+
  scale_fill_manual(values =color)+
  coord_flip()+
  theme(
    axis.title=element_text(size=15,face="plain",color="black"),
    axis.text = element_text(size=12,face="plain",color="black"),
    axis.text.x = element_text(angle = 90,hjust=1,vjust=0.6),
    axis.title.y = element_blank(),
    axis.text.y = element_text(colour = colorl),
    #legend.title = element_blank(),
    legend.text = element_text(size = 8, face = "bold"),
    legend.margin = margin(t = 0, r = 0, b = 0, l = 0, unit = "pt"),
    #legend.direction = "horizontal",
    #legend.position = c(0.5,0.9),
    legend.background = element_blank(),
    panel.background = element_rect(fill = "transparent",colour = "black"),
    plot.background = element_blank()
  )

ggplot(pdata) +
  aes(x = description, y = Counts, fill = GO,size=Pvalue) +
  geom_point(shape=21,color="black") +
  #scale_fill_hue() +
  xlab("Counts")+
  scale_fill_manual(values =color)+
  theme(
    axis.title=element_text(size=15,face="plain",color="black"),
    axis.text = element_text(size=12,face="plain",color="black"),
    axis.text.x = element_text(angle = 90,colour = colorl,hjust=1,vjust=0.6),
    axis.title.x = element_blank(),
    #legend.title = element_blank(),
    legend.text = element_text(size = 8, face = "bold"),
    legend.margin = margin(t = 0, r = 0, b = 0, l = 0, unit = "pt"),
    #legend.direction = "horizontal",
    #legend.position = c(0.5,0.9),
    legend.background = element_blank(),
    panel.background = element_rect(fill = "transparent",colour = "black"),
    plot.background = element_blank()
  )
