SwiftUI(3) Drawing and Animation

参考

官方文档

动画

形状

1.矩形

Rectangle().frame(width: 200, height: 200)

2.圆角矩形

RoundedRectangle(cornerRadius: 30)
            .frame(width: 200, height: 200)

3.圆形

Circle().frame(width: 200, height: 200, alignment: .center)

4.椭圆

Ellipse().frame(width: 200, height: 100, alignment: .center)

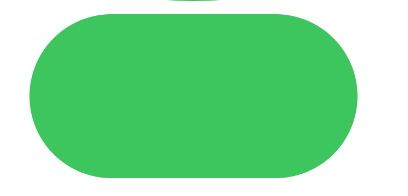

5. 胶囊

Capsule().frame(width: 200, height: 100, alignment: .center)
![胶囊](https://img-blog.csdnimg.cn/20191204161322815.png)

画笔，样式，渐变

1. 颜色

//color也继承于View，可以当做view使用
//通过已定义的颜色创建
Color.red.frame(width: 200, height: 200)

//通过rgb创建,rgb为百分比,如果是0-255之间的数字，则要除以255
Color(red: 1, green: 0.4, blue: 1,opacity: 0.5).frame(width: 200, height: 200)

//通过十六进制数创建
参考：https://blog.csdn.net/weixin_43864837/article/details/88619823
Color(UIColor.colorWithHex(hexStr: "#eeeeee")).frame(width: 200, height: 200)

2. 渐变

//线性渐变
LinearGradient(gradient: Gradient(colors: [.red,.green]), startPoint: UnitPoint.topLeading, endPoint: UnitPoint.bottomTrailing)
            .frame(width: 200, height: 200)
//角度渐变
AngularGradient(gradient: Gradient(colors: [.red,.green]), center: UnitPoint.center).frame(width: 200, height: 200)
//半径渐变
RadialGradient(gradient: Gradient(colors: [.red,.green]), center: UnitPoint.center, startRadius:1, endRadius: 100)
            .frame(width: 200, height: 200)    }
