Liunx部署部署Docker私有镜像仓库Harbor2.11.0

Harbor简介：

Harbor是一个用于存储和分发Docker镜像的企业级Registry服务器，通过添加一些企业必需的功能特性，例如安全、标识和管理等，扩展了开源Docker Distribution。作为一个企业级私有Registry服务器，Harbor提供了更好的性能和安全。提升用户使用Registry构建和运行环境传输镜像的效率。Harbor支持安装在多个Registry节点的镜像资源复制，镜像全部保存在私有Registry中， 确保数据和知识产权在公司内部网络中管控。另外，Harbor也提供了高级的安全特性，诸如用户管理，访问控制和活动审计等。

Harbor地址

https://github.com/goharbor/harbor/releases

Harbor部署依赖于docker和docker-compose 所以需要安装docker与docker-compose这里不在赘述

安装

使用wget下载很慢所以这里直接将下载好的文件copy到liunx中

[root@k8s-master210 docker]# ll harbor-offline-installer-v2.11.0.tgz
-rwxrw-rw- 1 root root 659171069 6月  12 11:23 harbor-offline-installer-v2.11.0.tgz
[root@k8s-master210 docker]# tar -xvf harbor-offline-installer-v2.11.0.tgz
harbor/harbor.v2.11.0.tar.gz
harbor/prepare
harbor/LICENSE
harbor/install.sh
harbor/common.sh
harbor/harbor.yml.tmpl
[root@k8s-master210 docker]# cd harbor/
[root@k8s-master210 harbor]# ls
common.sh  harbor.v2.11.0.tar.gz  harbor.yml.tmpl  install.sh  LICENSE  prepare
[root@k8s-master210 harbor]# cp harbor.yml.tmpl harbor.yml
[root@k8s-master210 harbor]# ls
common.sh  harbor.v2.11.0.tar.gz  harbor.yml  harbor.yml.tmpl  install.sh  LICENSE  prepare

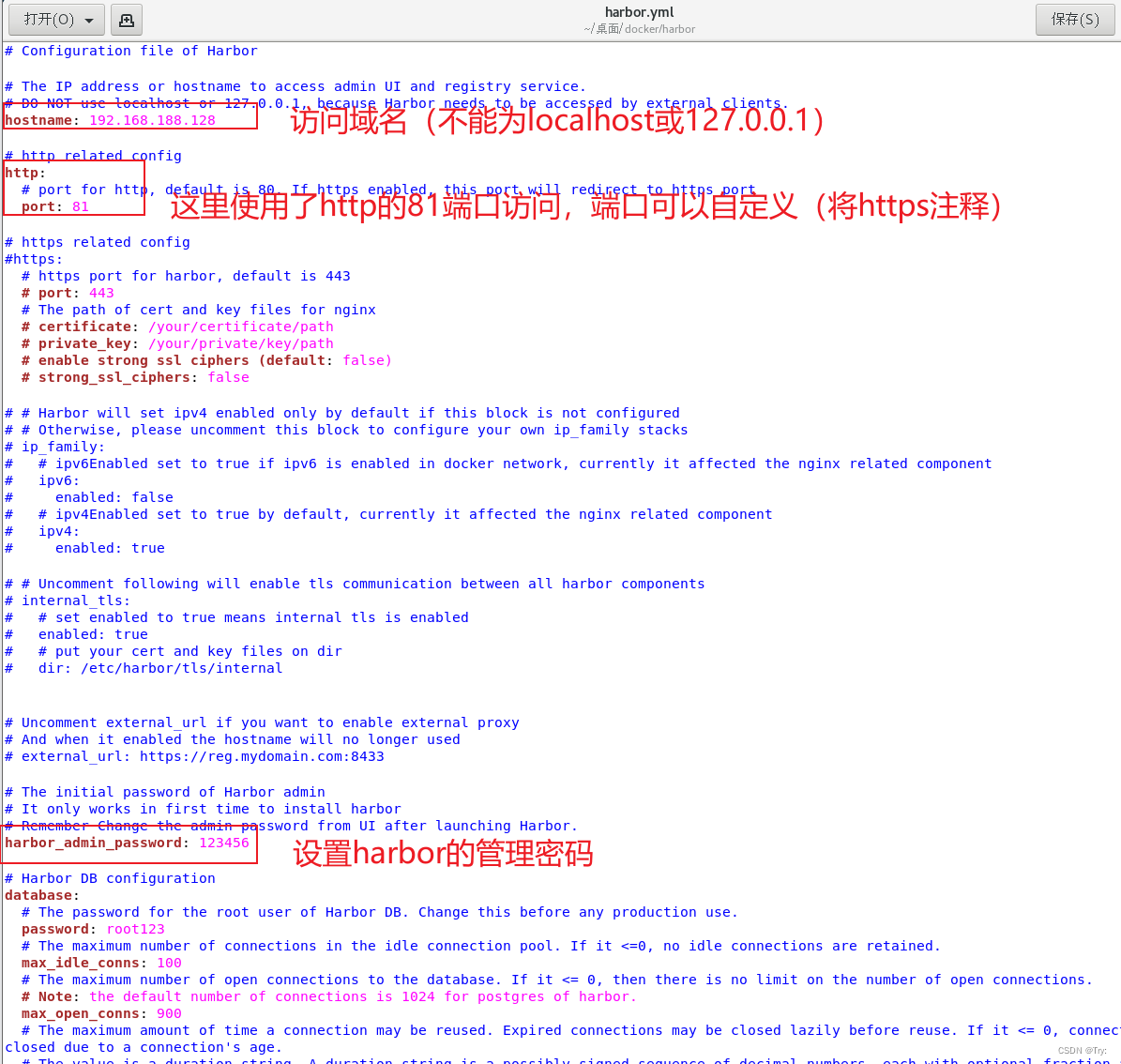

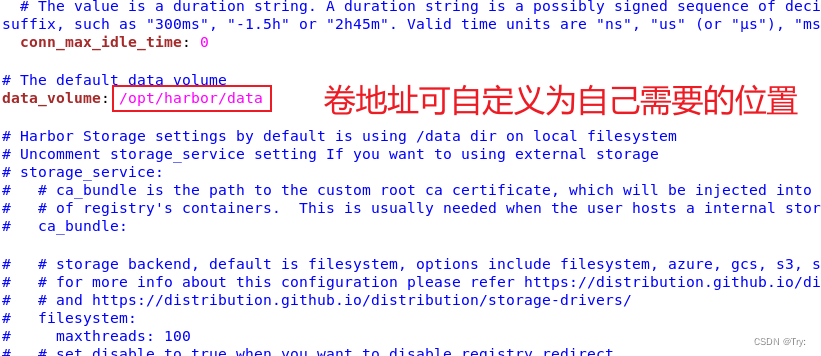

修改harbor.yml配置文件

保存后执行install

[root@k8s-master210 harbor]# ./install.sh

[Step 0]: checking if docker is installed ...

Note: docker version: 24.0.7

[Step 1]: checking docker-compose is installed ...

Note: Docker Compose version v2.16.0

[Step 2]: loading Harbor images ...
Loaded image: goharbor/harbor-core:v2.11.0
Loaded image: goharbor/harbor-db:v2.11.0
Loaded image: goharbor/nginx-photon:v2.11.0
Loaded image: goharbor/trivy-adapter-photon:v2.11.0
Loaded image: goharbor/redis-photon:v2.11.0
Loaded image: goharbor/registry-photon:v2.11.0
Loaded image: goharbor/prepare:v2.11.0
Loaded image: goharbor/harbor-portal:v2.11.0
Loaded image: goharbor/harbor-log:v2.11.0
Loaded image: goharbor/harbor-jobservice:v2.11.0
Loaded image: goharbor/harbor-registryctl:v2.11.0
Loaded image: goharbor/harbor-exporter:v2.11.0


[Step 3]: preparing environment ...

[Step 4]: preparing harbor configs ...
prepare base dir is set to /root/桌面/docker/harbor
WARNING:root:WARNING: HTTP protocol is insecure. Harbor will deprecate http protocol in the future. Please make sure to upgrade to https
Clearing the configuration file: /config/portal/nginx.conf
Clearing the configuration file: /config/log/logrotate.conf
Clearing the configuration file: /config/log/rsyslog_docker.conf
Clearing the configuration file: /config/nginx/nginx.conf
Clearing the configuration file: /config/core/env
Clearing the configuration file: /config/core/app.conf
Clearing the configuration file: /config/registry/passwd
Clearing the configuration file: /config/registry/config.yml
Clearing the configuration file: /config/registry/root.crt
Clearing the configuration file: /config/registryctl/env
Clearing the configuration file: /config/registryctl/config.yml
Clearing the configuration file: /config/db/env
Clearing the configuration file: /config/jobservice/env
Clearing the configuration file: /config/jobservice/config.yml
Generated configuration file: /config/portal/nginx.conf
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/log/rsyslog_docker.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/registryctl/config.yml
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
loaded secret from file: /data/secret/keys/secretkey
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir


Note: stopping existing Harbor instance ...
[+] Running 10/10
 ⠿ Container nginx              Removed                                                                       0.2s
 ⠿ Container registryctl        Removed                                                                       0.2s
 ⠿ Container harbor-jobservice  Removed                                                                       0.3s
 ⠿ Container harbor-portal      Removed                                                                       0.2s
 ⠿ Container harbor-core        Removed                                                                       0.2s
 ⠿ Container registry           Removed                                                                       0.3s
 ⠿ Container redis              Removed                                                                       0.4s
 ⠿ Container harbor-db          Removed                                                                       0.3s
 ⠿ Container harbor-log         Removed                                                                      10.2s
 ⠿ Network harbor_harbor        Removed                                                                       0.1s


[Step 5]: starting Harbor ...
[+] Running 10/10
 ⠿ Network harbor_harbor        Created                                                                       0.1s
 ⠿ Container harbor-log         Started                                                                       0.4s
 ⠿ Container redis              Started                                                                       1.1s
 ⠿ Container harbor-portal      Started                                                                       1.1s
 ⠿ Container harbor-db          Started                                                                       0.8s
 ⠿ Container registryctl        Started                                                                       0.9s
 ⠿ Container registry           Started                                                                       1.0s
 ⠿ Container harbor-core        Started                                                                       1.3s
 ⠿ Container nginx              Started                                                                       1.8s
 ⠿ Container harbor-jobservice  Started                                                                       1.8s
✔ ----Harbor has been installed and started successfully.----

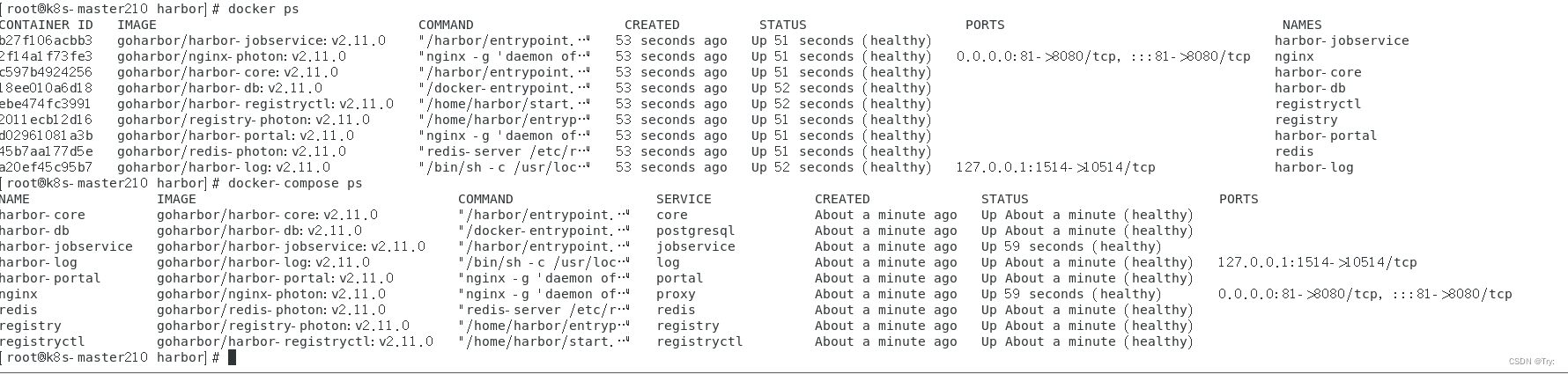

查看容器

docker-compose ps

• ginx：nginx负责流量转发和安全验证，对外提供的流量都是从nginx中转，所以开放https的443端口，它将流量分发到后端的ui和正在docker镜像存储的docker registry。
• harbor-jobservice：harbor-jobservice 是harbor的job管理模块，job在harbor里面主要是为了镜像仓库之前同步使用的;
• harbor-ui：harbor-ui是web管理页面，主要是前端的页面和后端CURD的接口;
• registry：registry就是docker原生的仓库，负责保存镜像。
• harbor-adminserver：harbor-adminserver是harbor系统管理接口，可以修改系统配置以及获取系统信息。
• harbor-db：harbor-db是harbor的数据库，这里保存了系统的job以及项目、人员权限管理。由于本harbor的认证也是通过数据，在生产环节大多对接到企业的ldap中；
• harbor-log：harbor-log是harbor的日志服务，统一管理harbor的日志。通过inspect可以看出容器统一将日志输出的syslog。

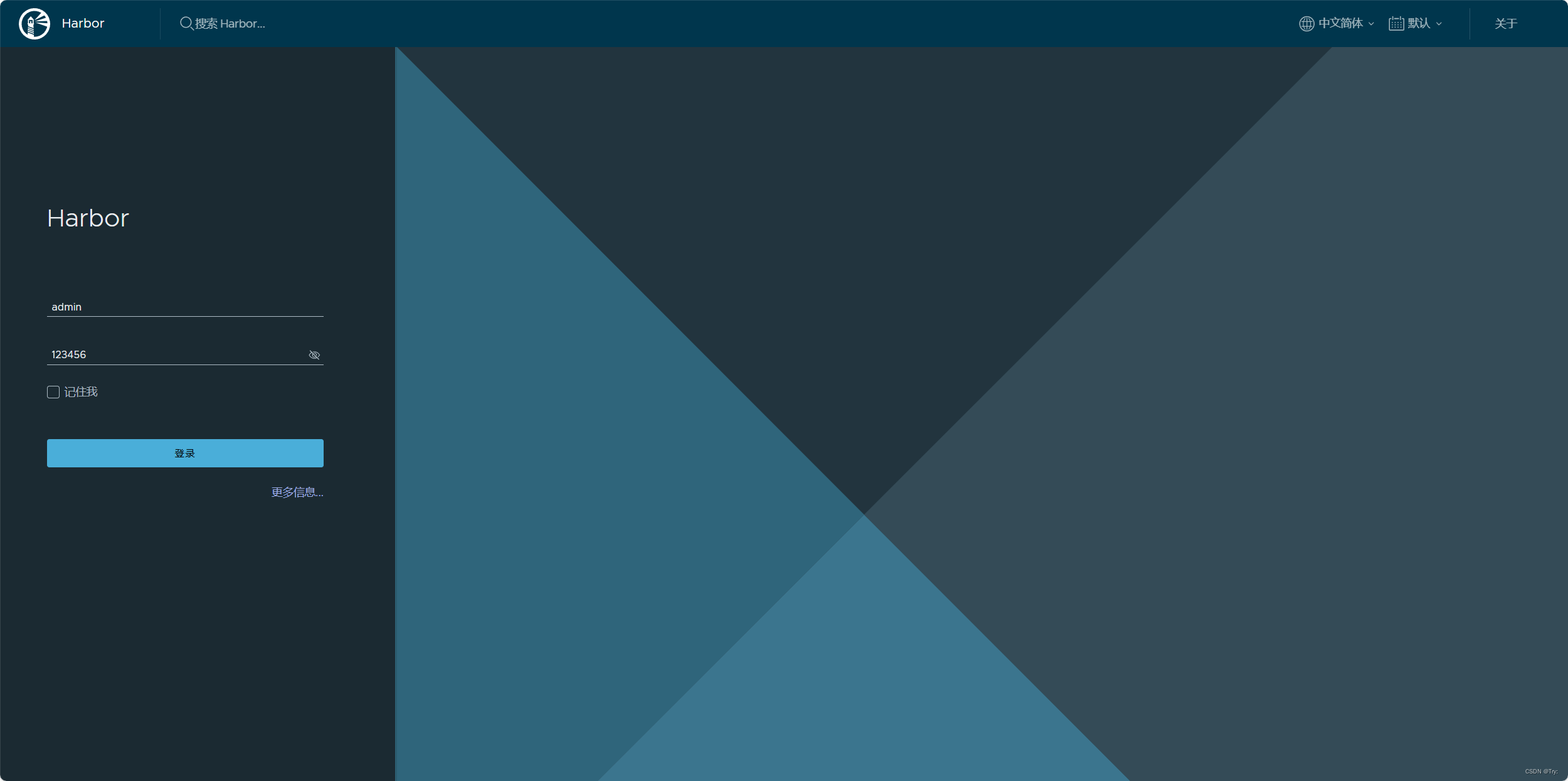

访问harbor

http://192.168.188.128:81/

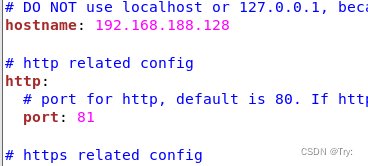

访问地址为在harbor.yml中的配置

账号为admin，密码为我们之前配置的123456

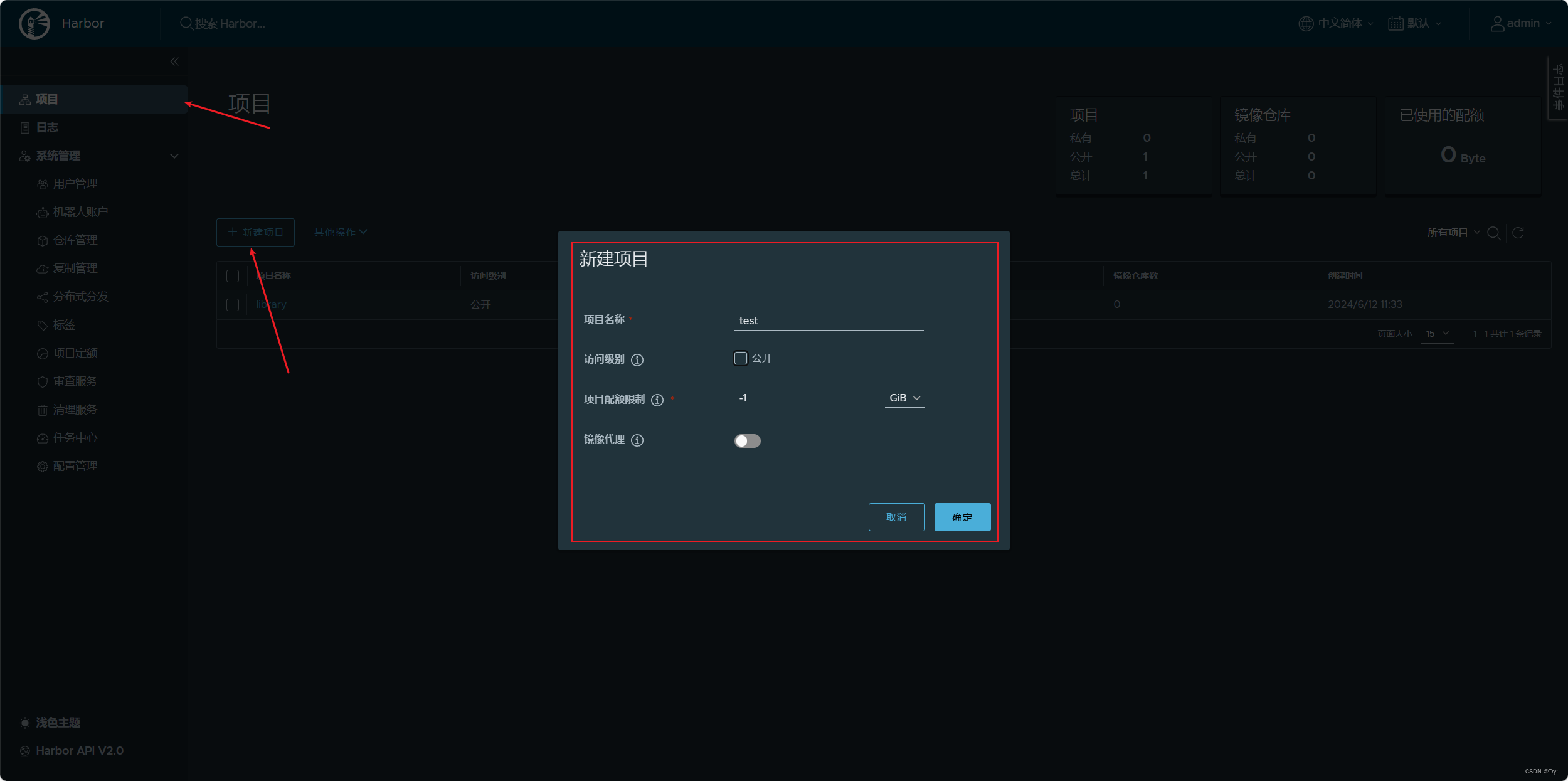

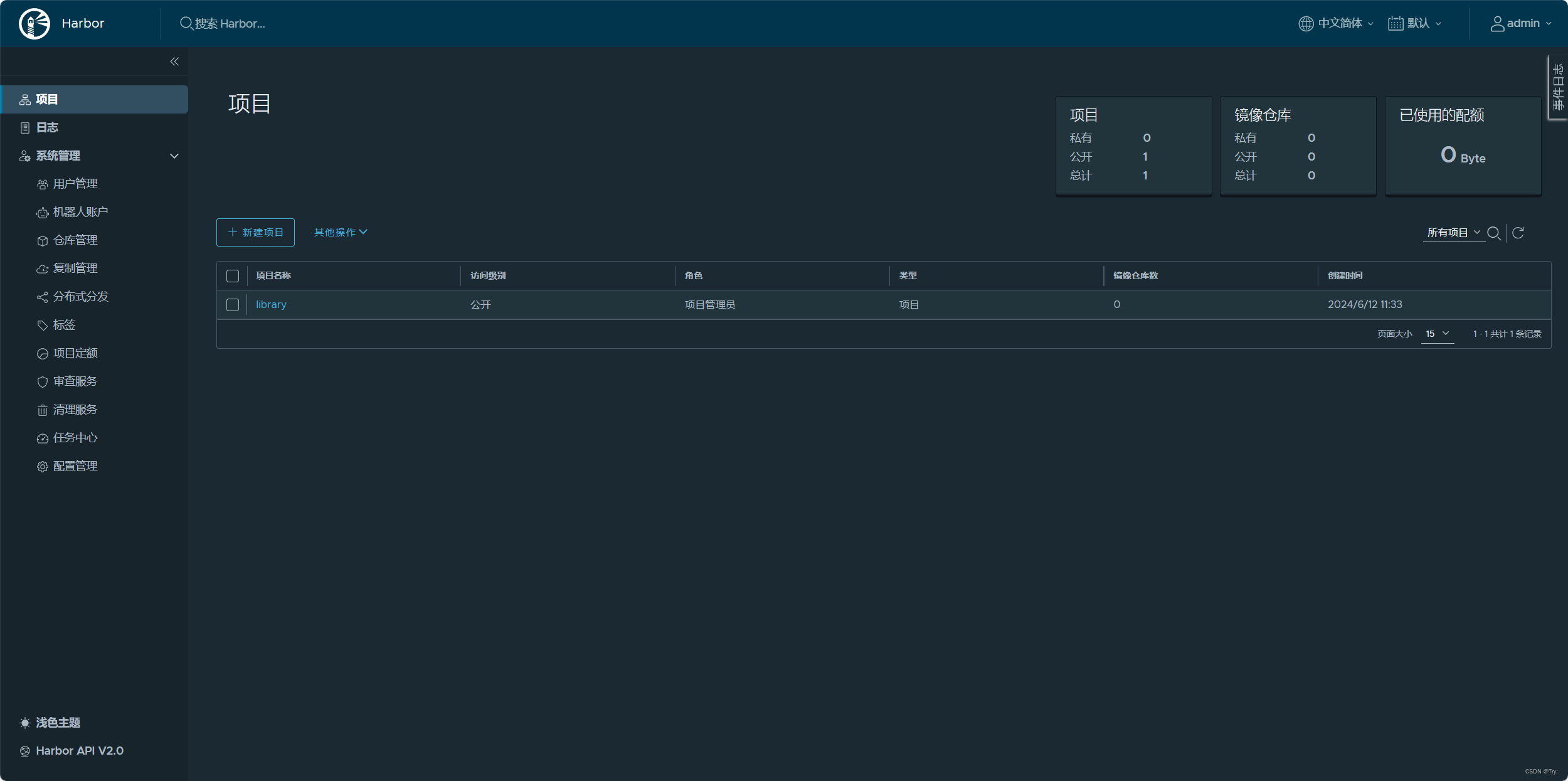

新建项目

推送项目到私有仓库

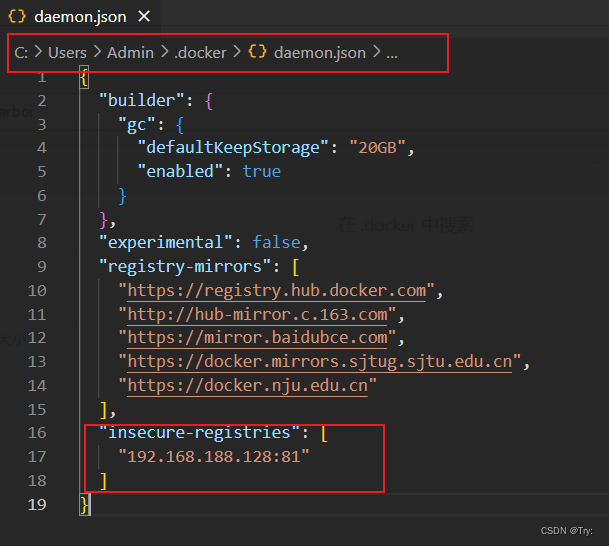

需要修改docker配置文件加入私有仓库的ip否则会出现
Error response from daemon: Get “https://192.168.188.128:81/v2/”: http: server gave HTTP response to HTTPS client

"insecure-registries" : [
    "192.168.188.128:81"
  ]

重启docker

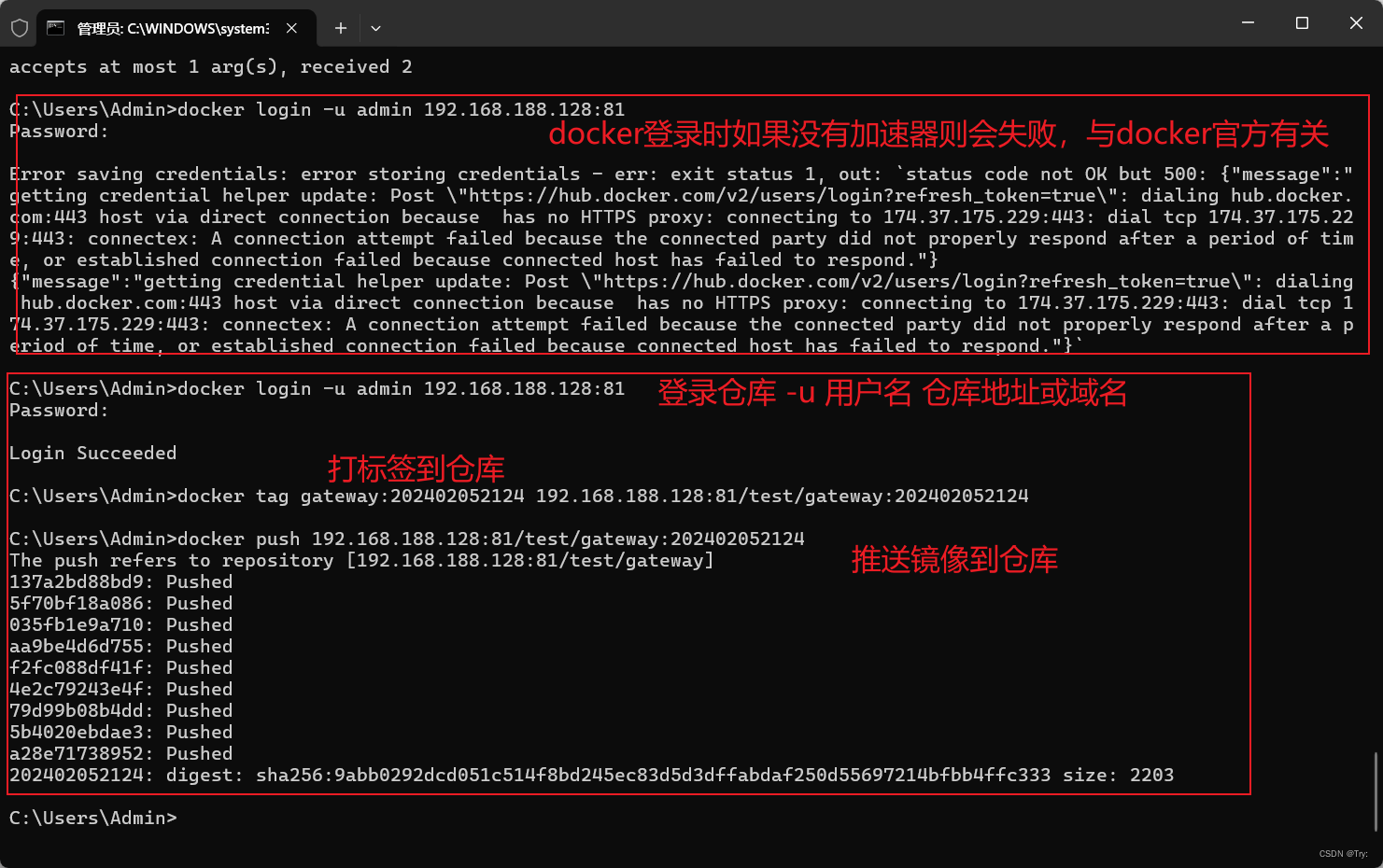

登录、打标签、推包

docker login -u admin 192.168.188.128:81
docker tag gateway:202402052124 192.168.188.128:81/test/gateway:202402052124
docker push 192.168.188.128:81/test/gateway:202402052124

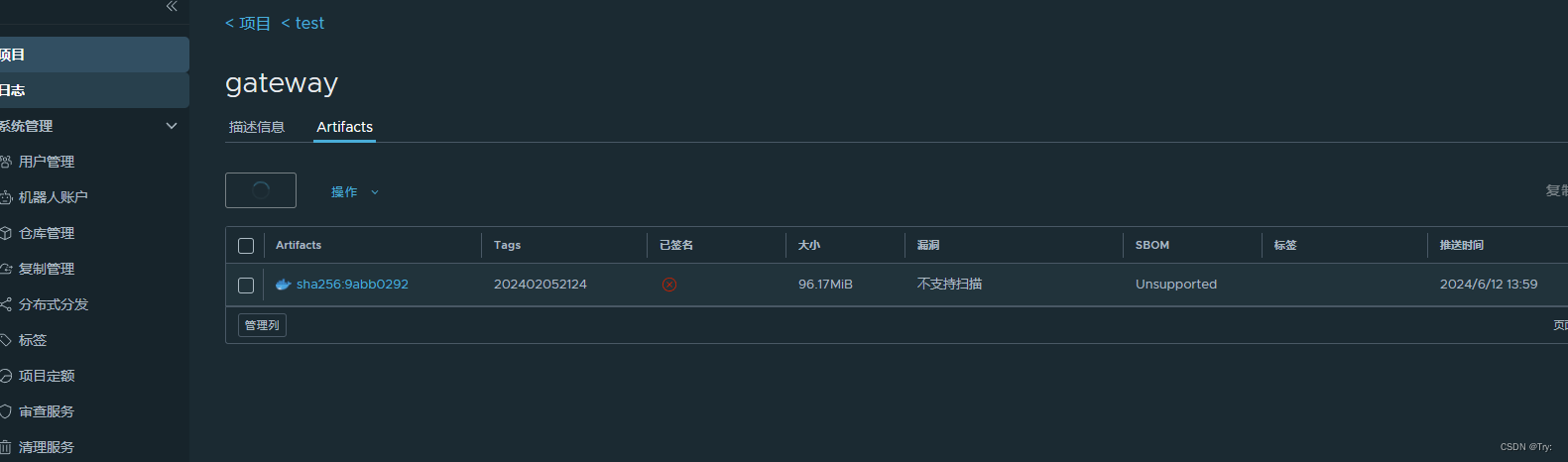

至此搭建结束
