UML--顺序图绘制

什么是顺序图？

UML序列图总结
感觉就是给定的业务场景下有一个时间轴的概念的时候会用到，一种二维图形，各个实体有很明显的生命周期。

用什么画顺序图？

语雀,好像还可以画其他流程图之类的，在线的，planUML有点类似于markdown，还挺好看的，语法也简单
依样画葫芦，按照模板画了一个，应付作业

@startuml

autonumber
hide footbox
title **在线订房系统**

actor "顾客" as user
participant "订房系统" as reserve
participant "支付系统系统" as payment
participant "中国银行(可能是建设银行)" as bank #orange
participant "打印系统" as printer

== 订房流程 ==
user -> reserve: 输入(房间套数、房间类型、入住时间、入住天数)
activate reserve
deactivate reserve
reserve --> user: 返回(房间号/无房间)
user -> payment: 确认订房号
activate payment
deactivate payment
payment --> user: 定金信息
user -> bank: 信用卡号和密码
activate bank
deactivate bank
bank --> user: 发送验证消息
activate user
deactivate user
user -> bank: 确认验证消息
activate bank
deactivate bank
bank --> reserve: 支付成功，预订房间
activate reserve
deactivate reserve
reserve --> user: 预订成功
note right of user: 可选择打印
user -> printer: 请求打印
activate printer
deactivate printer
printer --> user: 返回订单信息
== 订房结束 ==
@enduml

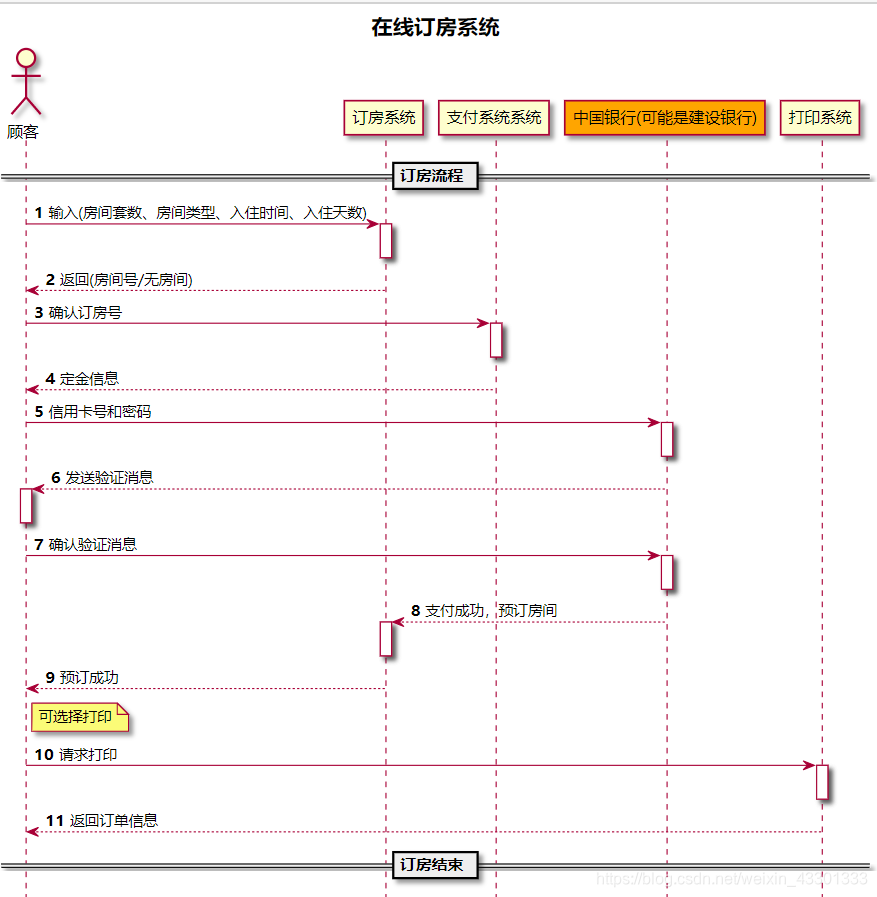

效果：
