【Coding】Latex添加表格注释footnote
@author: Heisenberg
@date: 2022/08/13
1. 需求
需要在表格下部对某些remarkable部分进行注释,如实验细节、条件补充等。
2. 代码
在文档最前部分调用threeparttable
包:\usepackage{threeparttable}
表格部分代码如下:
\begin{table*}
\label{table:number}
\centering
\caption{This is the caption of the table}
\begin{threeparttable}
\begin{tabular}{lc}
\hline
A & B \\
\hline
A & B\tnote{*} \\
A\tnote{**} & B \\
% 添加表格信息
\hline
\end{tabular}
\begin{tablenotes}
\footnotesize
\item[*] this is the .... %此处加入注释*信息
\item[**] my website is ... %此处加入注释**信息
\item[\psi] the exp is ... %可以用其他符号做注释
\end{tablenotes}
\end{threeparttable}
\end{table*}

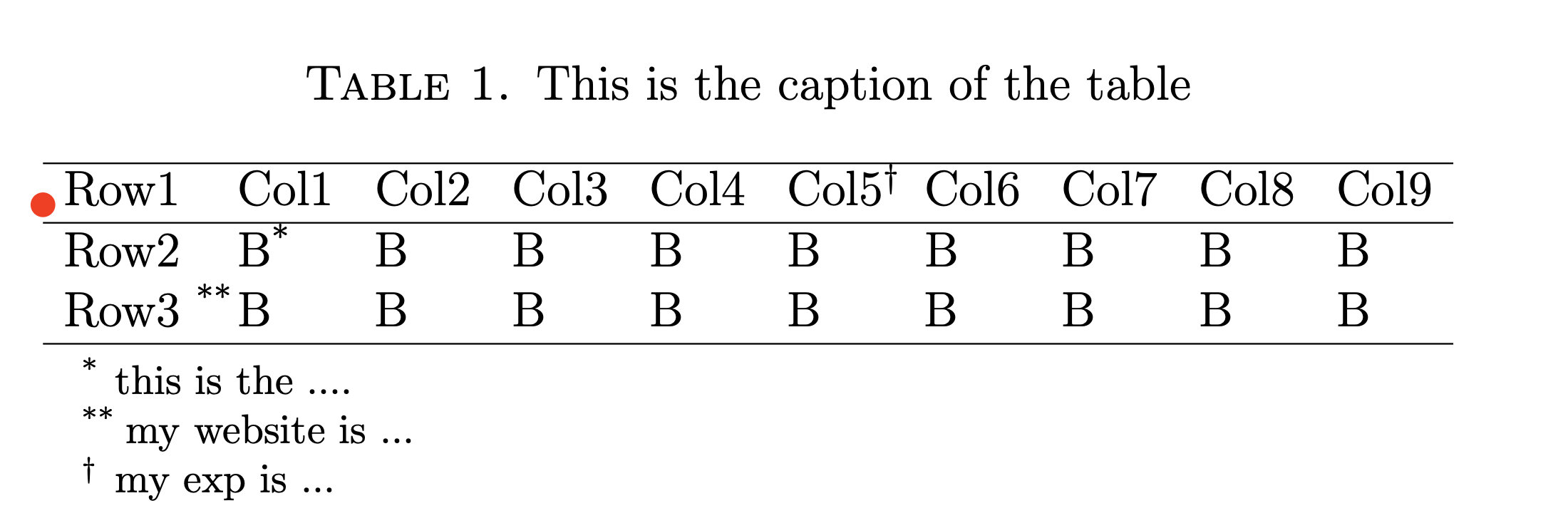

3. Demo展示
完整文档及表格部分代码如下:
\documentclass[12pt]{amsart}
\usepackage{geometry} % see geometry.pdf on how to lay out the page. There's lots.
\geometry{a4paper} % or letter or a5paper or ... etc
\usepackage{threeparttable}
\title{test}
\author{tsta}
\date{} % delete this line to display the current date
%%% BEGIN DOCUMENT
\begin{document}
\maketitle
\tableofcontents
\section{Test1}
\subsection{Table}
\begin{table*} \label{table:number}
\centering
\caption{This is the caption of the table}
\begin{threeparttable}
\begin{tabular}{llllllllll}
\hline
Row1 & Col1& Col2& Col3& Col4 & Col5\tnote{$\dagger$}& Col6& Col7& Col8& Col9 \\
\hline
Row2 & B\tnote{*}& B& B& B& B& B& B& B& B \\
Row3 \tnote{**} & B & B& B& B& B& B& B& B& B\\
% 添加表格信息
\hline
\end{tabular}
\begin{tablenotes}
\footnotesize
\item[*] this is the .... %此处加入注释*信息
\item[**] my website is ... %此处加入注释**信息
\item[$\dagger$] my exp is ...
\end{tablenotes}
\end{threeparttable}
\end{table*}
\end{document}
